77Ghz Motorcycle BSD Radar for Rider Blind Spot Detection Alert System
- Category: >>>
- Supplier: Dongguan Kysail Tech Ltd
Share on (1600906245564):
Product Overview
Description
Product Description
Features of 77Ghz BSD Radar for Motorcycle:
This product can give early warning to dangerous targets in the left and right rear of motorcycle.

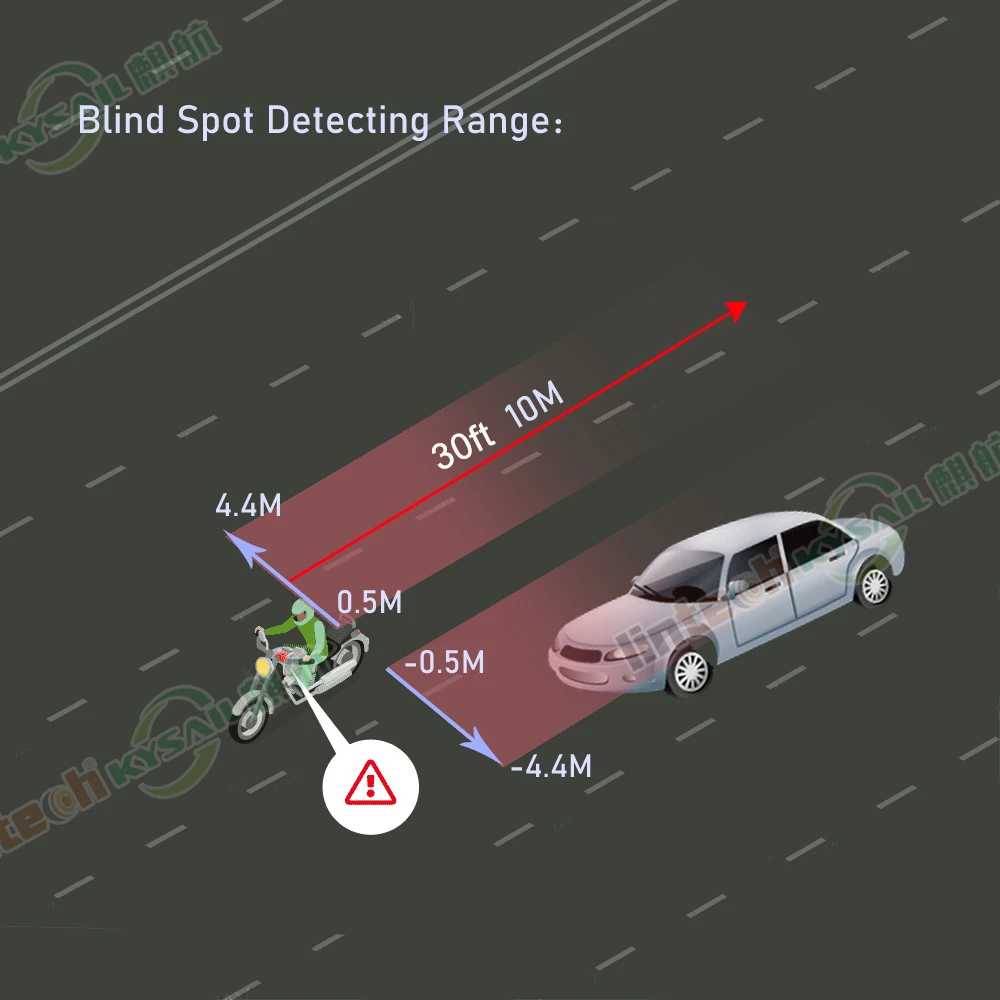

The LED indicators will signal you when there is a car/bike coming into your blind spots. This will increase your awareness of the surrounding traffic conditions. The radar’s monitoring zone covers the left and right adjacent lanes with a range of = 30ft and a width up to 14ft.
1. Wide field of view: 150° horizontal detecting range, helps rider to get more time to react and respond to emergencies.
2. High precision: This 77Ghz Radar achieves super-good performance in range resolution, velocity measurement, and accuracy.
3. Durable and flexible: Aluminum alloy case and high technology offer a stable performance against harsh environments such as temperatures from -40℃ to +70℃.
4. Up to 64 targets: Detecting 64 targets simultaneously in a 50m maximum detecting range.

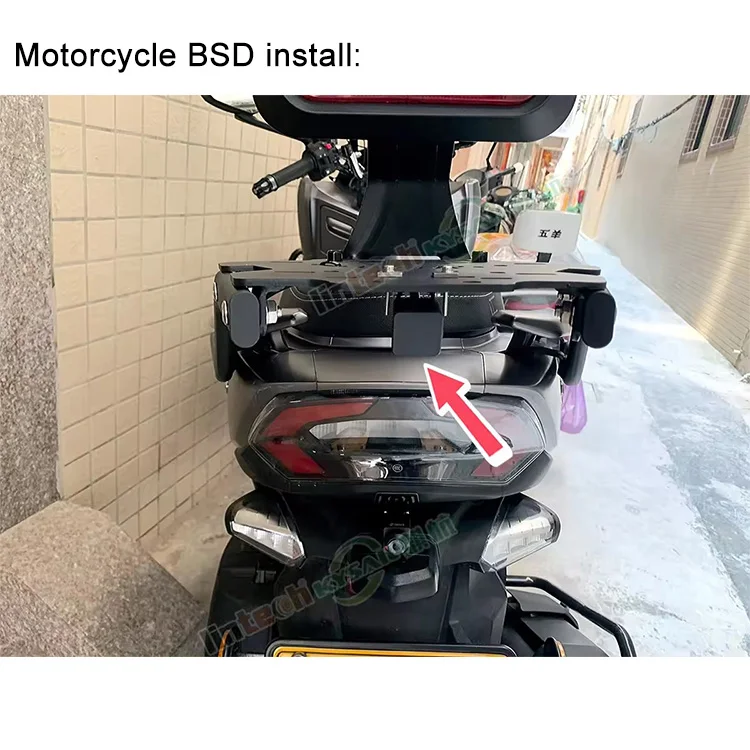

5. Easy to Install: Small and Compact sizes make the product quite easy to install within 1 hour.
6. Waterproof Rating IP67: superior performance against water, dust and excellent performance in high& low-temperature
environments.
Specification
-- Distance resolution: 0.2 m
-- Ranging accuracy Better than: 0.1 m.
-- Detection range: 0-50 m
-- Horizontal angle range: 150°
-- Pitch angle range: ±10°
-- Velocity measurement accuracy: 0.1m/s
-- Input Voltage Range: 9V – 16V, 12V (Typical)
-- Current Consumption: <200mA ± @12V (2.5W)
-- Operating temperature: -30°C ~ +80°C
item | value |
Type | Parking Sensor, Parking Sensor System, Reversing radar |
View Angle | 120°-170° |
Function | Waterproof, NIGHT VIEW |
Power | 5W |
Voltage | 9~15V |
Warranty | 1.5 years |
Place of Origin | China |
Guangdong | |
Brand Name | Kysail |
Model Number | LR-002 |
Suitable for | Universal Motorcycles |
Detection angle | 150 Degree |
Detection Range | 0-50M (160 Ft) |
Detection Targets | Max 64 targets |
Radar band | 77~79Ghz |
Waterproof | IP67 |
Blind Spot Alarm Range | 0~10M (30Ft) |
Alarm Type | LED Flashing+Voice Alarm |
Power Supply | 9-16V DC |

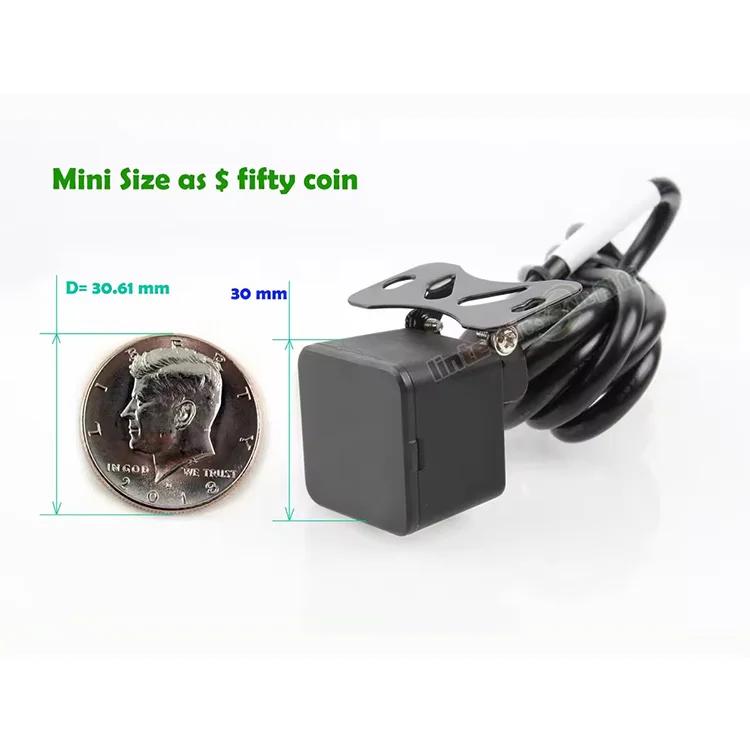

Product Size | 30mm x 30mm (1.2 inch) |

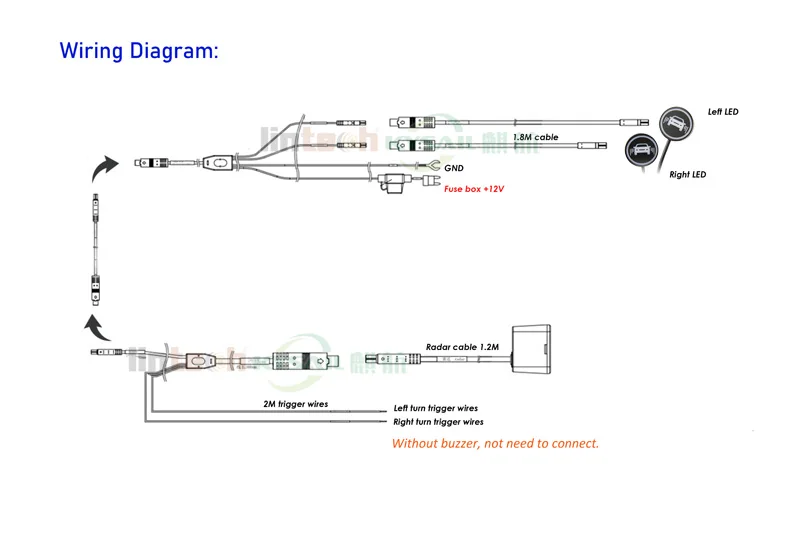

Wiring Diagram for Motorcycle BSD Radar.
Just connect to 12V power supply and fix the Radar unit and LED indicator is OK.
Packing & Delivery
1. Neutral color box packaging for 77Ghz Blind Spot Detection BSD Radar. / Customized box with your brand logo available.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Company Profile
Lintech/Kysail accordance with ISO quality management system. In order to ensure product quality, we strictly implement international standards from raw material procurement/inspection, production and processing, finished product inspection, packaging to delivery. We strictly implement the IATF 16949:2009 quality management system. Based on APQP / DFMEA / PFMEA / MAS / SPC / PPAP quality control methods to control product design, production, quality inspection, to ensure finally we make the highest reliability of products. Adhere to the concept of energy saving and low consumption, tools are designed using 3D simulation software, this way can eliminate errors and failures in the process of tool creation and product assembly. With the help of precise tools, parts assembled perfectly and quickly, which greatly enhances the waterproof and impact resistance of finished products. With assembly steps set reasonable, we can manufacture 15,000 sets of monitors and 10,000 sets of cameras every month.
