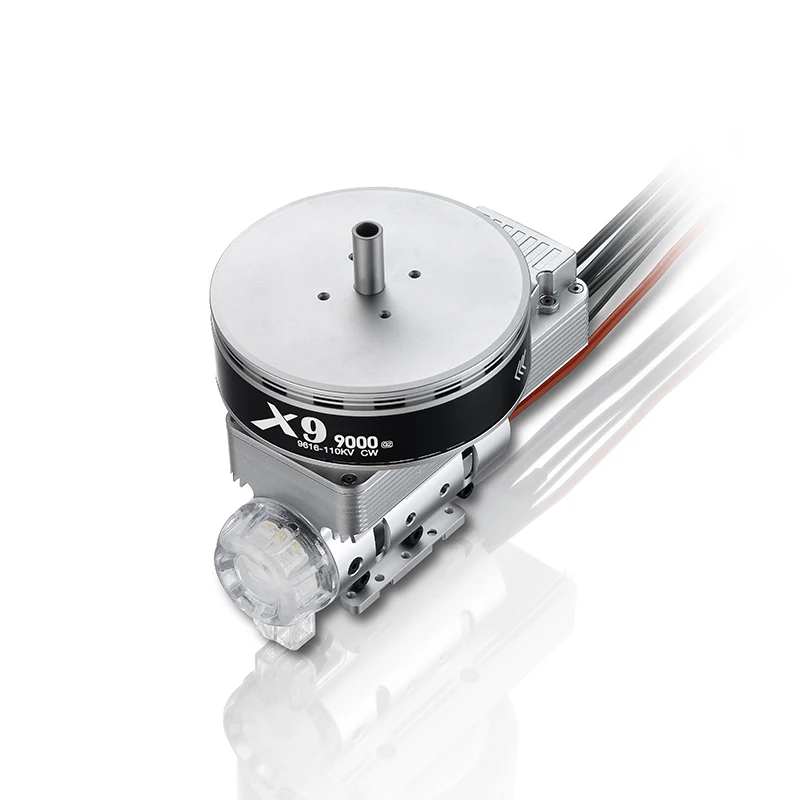

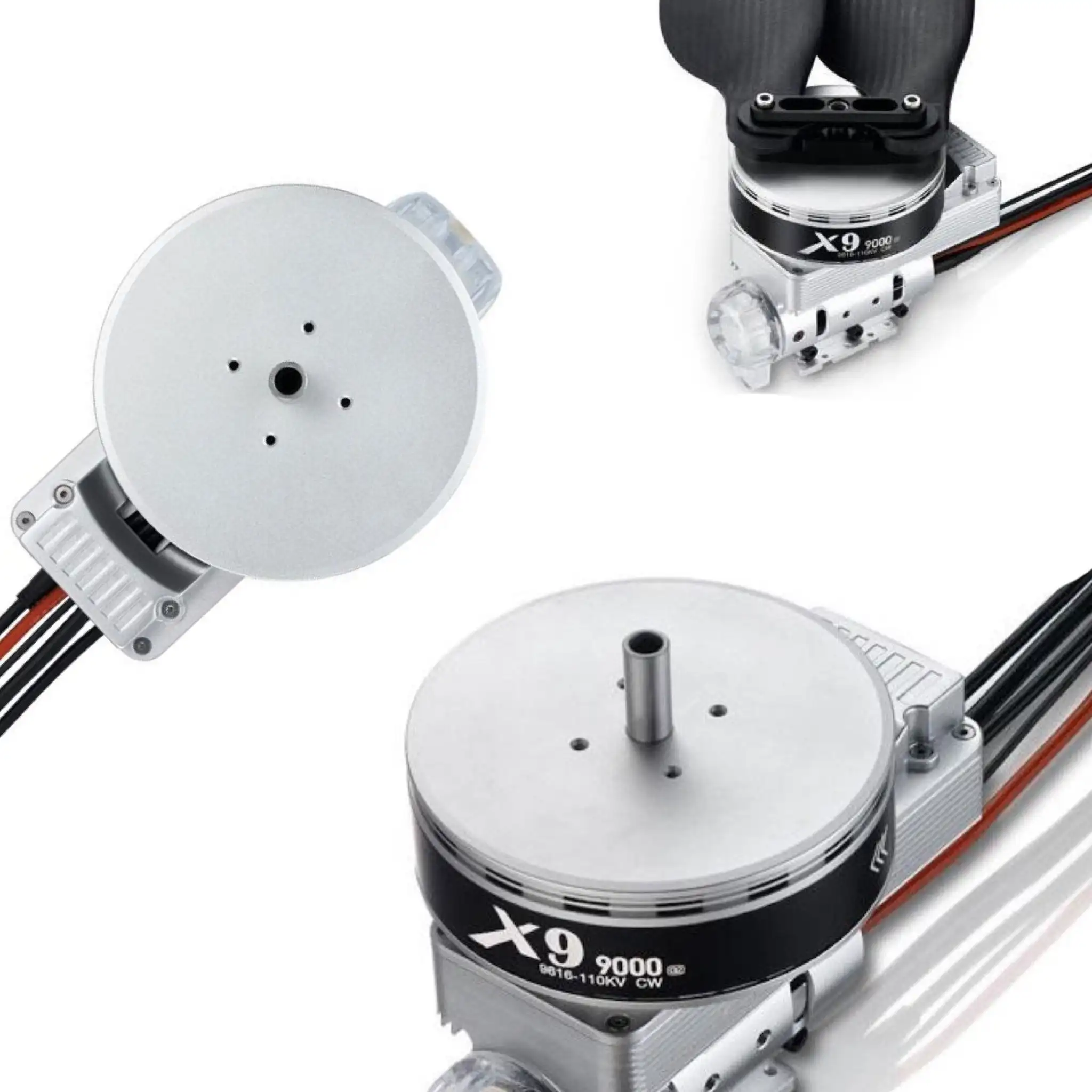

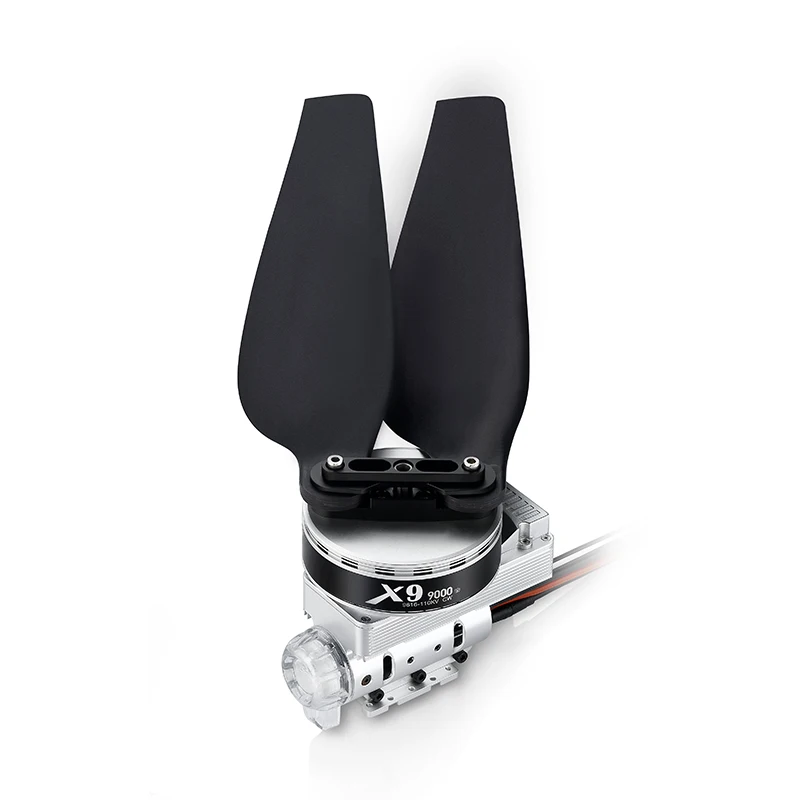

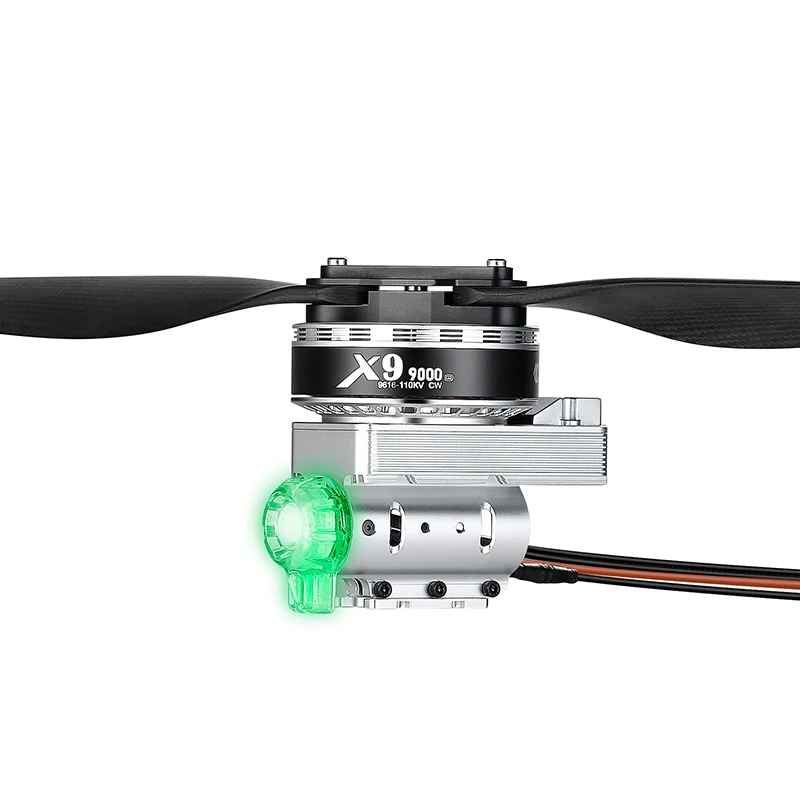

Original Hobbywing Motor Power Kit X9 Carbon Plastic Pulp Clip 3411 CW CCW Folding Drone Propeller hobby wing x9 motor
- Category: >>>
- Supplier: Shenzhen Hobbywing Technology Co. Ltd.
Share on (1600906257196):
Product Overview
Description
Note:
We are the headoffice & manufacturer of Hobbywing
We also can provide OEM and ODM bussiness according to your detail requirements.
Pls feel free to contact us for any requirement.
18 Years+ Focus on the R&D of brushless power system for drones.
100+ Patents Certificates
36600㎡ Floor Area, Strong mass production capacity
a. Source manufacturer
b. Lower price, Long-term service protection
c. Worldwide brand influence, Free market ads promotion
d. Reliable reputation and profound technical strength
We also can provide OEM and ODM bussiness according to your detail requirements.
Pls feel free to contact us for any requirement.
Shenzhen Hobbywing Technology Co., Ltd.
100+ Patents Certificates
36600㎡ Floor Area, Strong mass production capacity
Why Choose US ?
The reasons are as follows:a. Source manufacturer
b. Lower price, Long-term service protection
c. Worldwide brand influence, Free market ads promotion
d. Reliable reputation and profound technical strength
Products Description

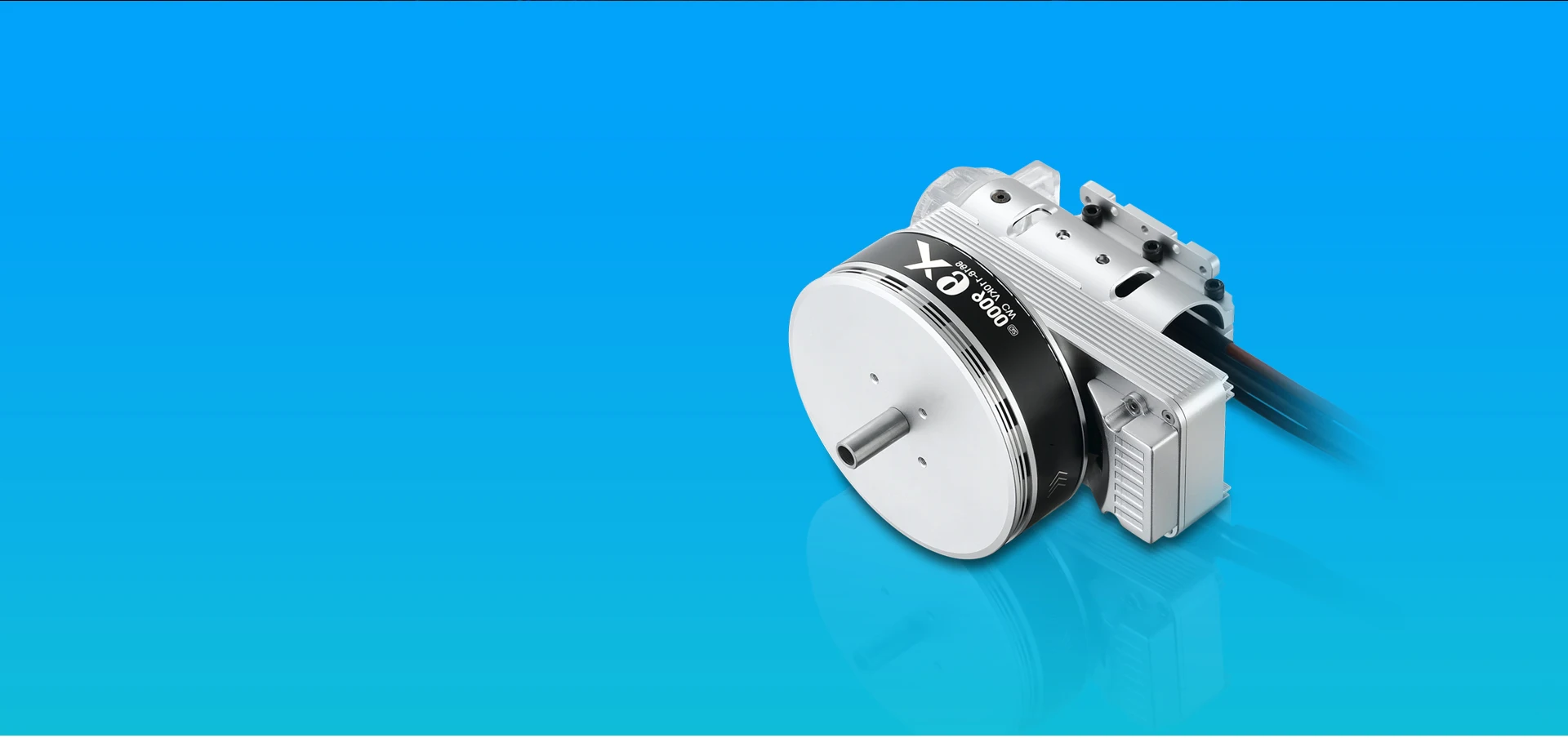

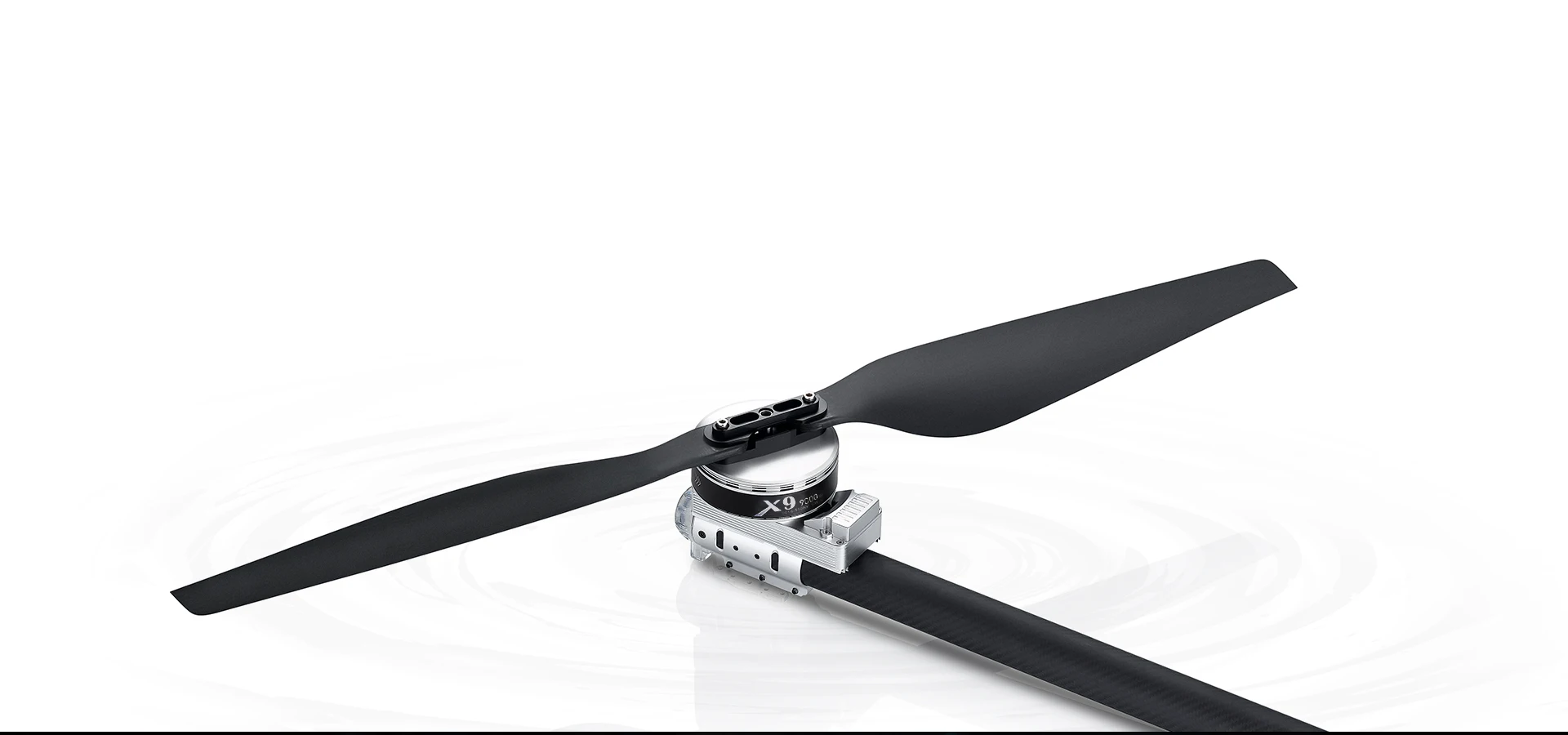

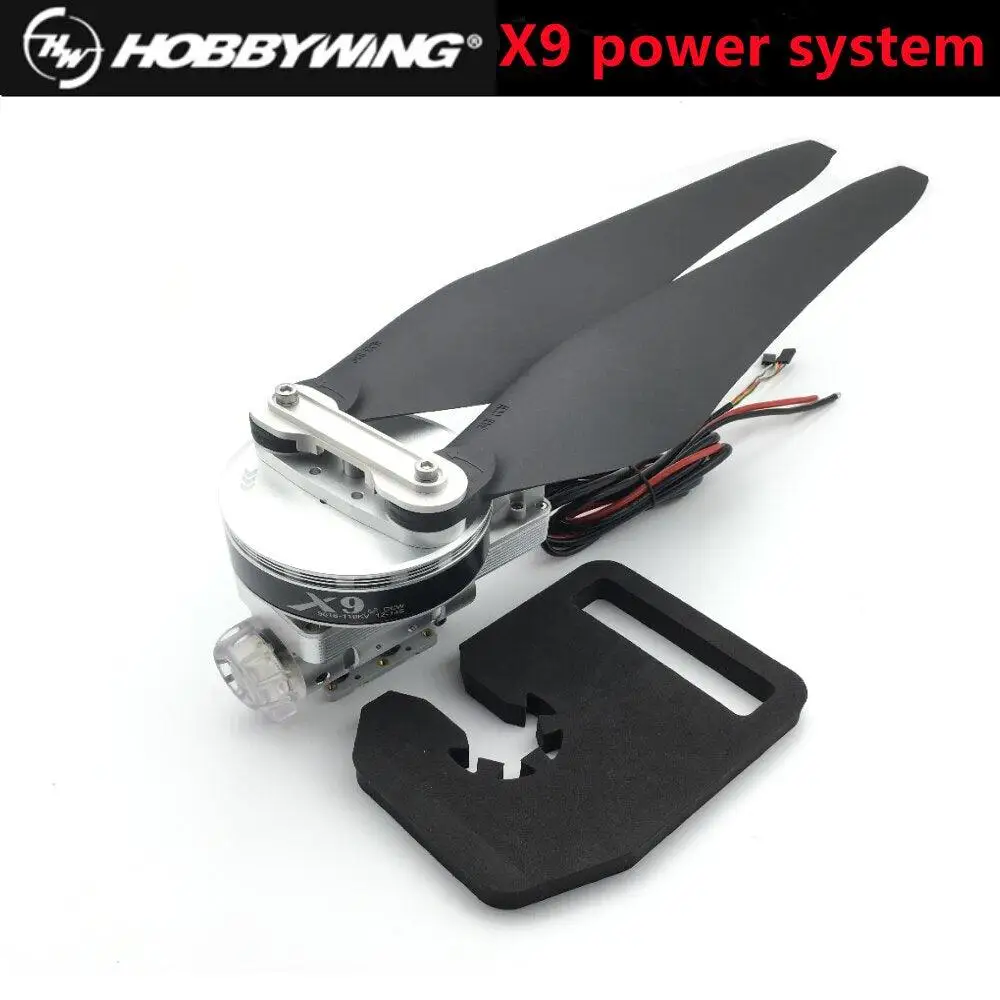

Tube-on-one Structural Design
The X9 is three-dimensional and designed with an integrated motor and ESC as one. The installation of the light weight structure is convenient and can be matched with the circular carbon fiber tube (40mm). It can be used with 34.7 propellers or 3411 propellers or 36190 propellers.
High Performance Power System
The power system is smoother and improves the compatibility of the flight controller (can be used with more excellent flight controllers). The overall stability and reliability of the aircraft has increased with an improved flight effect. LED light color adjustment function remove the lampshade and uses the DIP switch to adjust the LED light color. Smarter, more compatible & the perfect powertrain.
X9 Large Load
Using FOC ESC (optimization algorithm based on field-oriented control)
Easy airworthiness 16kg load four-axis plant protection rotor aircraft or larger type.
23kg
Maximum Tension
7-10kg/axis
Heavy Load
Maximum Tension
7-10kg/axis
Heavy Load
All-weather Application
The X9 is equipped with an overall waterproofing protection of IPX7 rating.it guarantees excellent waterproofng and dustproofing protection. The X9 is anti-corrosive and is fully sealed to cope with harsh environment and climates around the world.
Excellent Design for Heat Dissipation
The X9 system design are closely connected. The increase in conductive area greatly improves heat dissipation and can be used for higher power load. The overall structure is more reliable. Excellent design for heat dissipation.

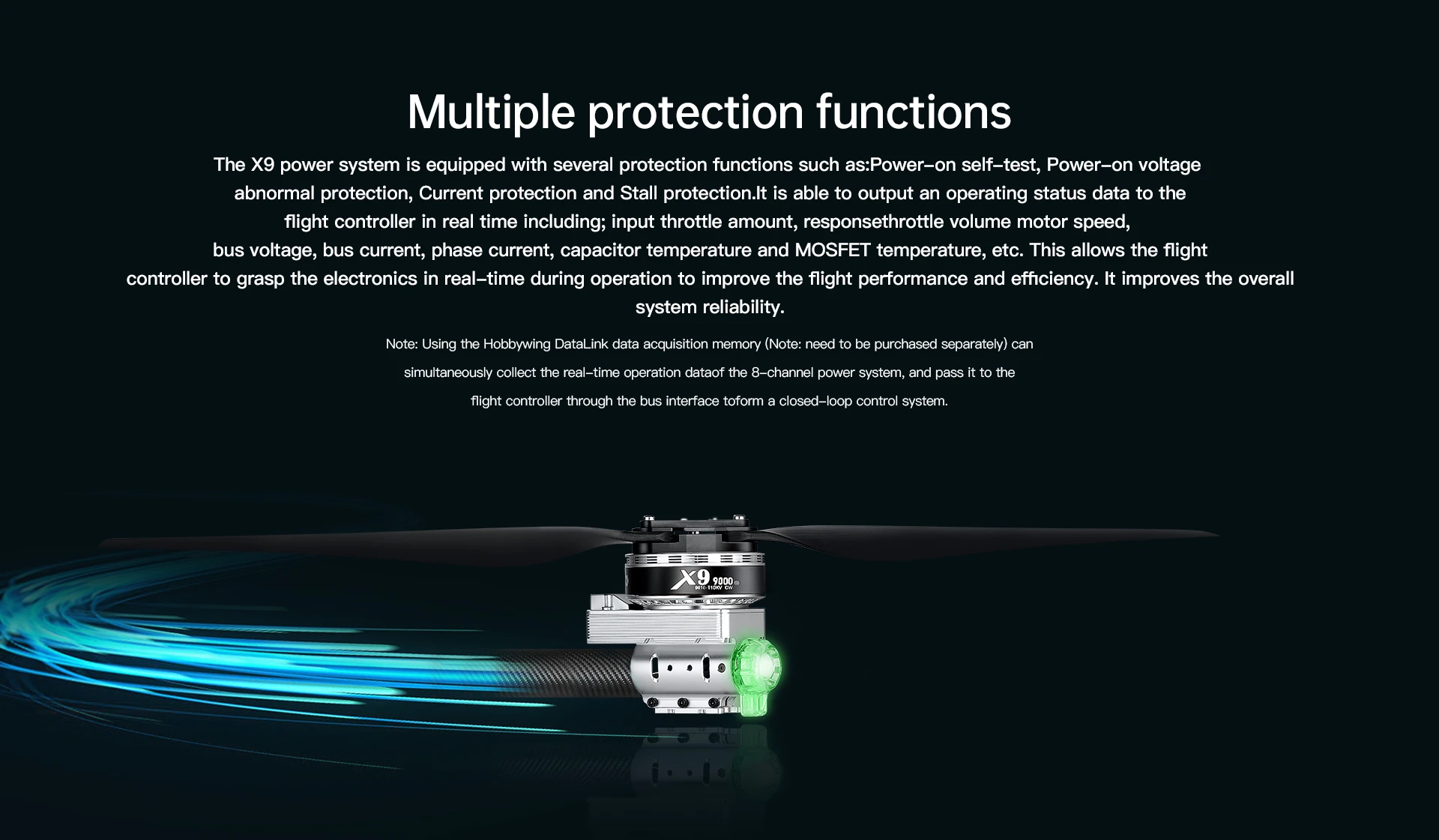

Multiple Protection Functions
The X9 power system is equipped with several protection functions such as: Power-on self-test, Power-on voltage abnormal protection, Current protection and Stall protection. lt is able to output an operating status data to the flight controller in real time including; input throttle amount, response throttle volume motor speed, bus voltage, bus current, phase current, capacitor temperature and MOSFET temperature, etc. This allows the flight controller to grasp the electronics in real-time during operation to improve the flight performance and efficiency. improves the overall system reliability.
Note: Using the Hobbwwing Datalink data acquisition memory (Note: need to be purchased separately) can simultaneously collect the real-time data of the 8-channel power system, and pass it to the flight controller through the bus to form a closed-loop control system.
Specification
Product Model | Hobbywing X9 | |
Maximum Thrust | 22.5kg/Axis (46V, Sea Level) | |
Recommended Takeoff Weight | 7-9.5kg/Axis (46V, Sea Level) | |
Recommended LiPo Battery | 12-14S（LiPo） | |
Combo Weight | 1524g | |
Operating Temperature | -20℃~55℃ | |
Motor | ||
Stator Size | 96*16mm | |
KV Rating | 110rpm/V | |
Powertrain arm tube outer dimeter | φ40 | |
Bearing | Imported Waterproof Bearing | |
ESC | ||
Recommended LiPo Battery | 12-14S LiPo | |
PWM Input Signal Level | 3.3V/5V(Compatible) | |
Throttle Signal Frequency | 50-500Hz | |
Operating Pulse Width | 1100-1940us(Fixed or cannot be Programmed) | |
Max. Input Voltage | 52.2V(Standard )， 61V(14S- Version) | |
Max. Input Current (Cont.) | 120A(w/ Good Heat Dissipation) | |
Max. Peak Current (10s) | 150A(w/ Good Heat Dissipation) | |
BEC | No | |
Mounting Holes for Nozzle | φ28.4mm-2*M3 | |
Propeller | ||
Diameter×Pitch | 3411/36190 | |
Company Profile

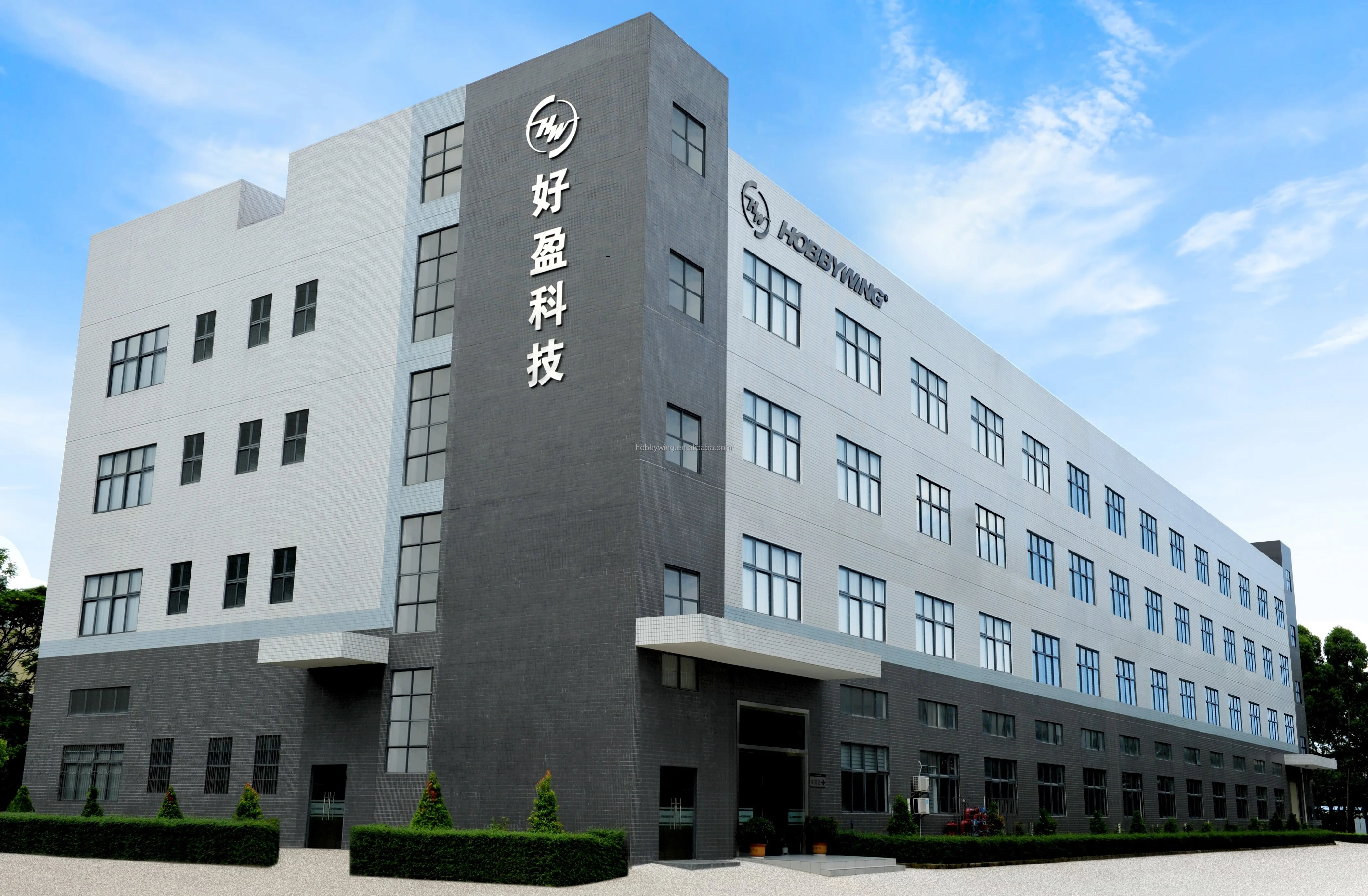

R&D Center in Shenzhen
Our Headoffice and R&D center in Shenzhen, Guangdong. Transportation is very convenient, it's close to HK, Shenzhen port and airport.
Manufacturing Base in Huizhou
Hobbywing has more than 1,000 employees and 160+ production equipment.
Production Strength
Raw Material Processing
Our brushless products from research and development to raw material processing, manufacturing is completed alone. Provide advanced technology at the same time, ensure quality, reduce costs, so as to provide customers with the best price, high quality products, and one-stop service.

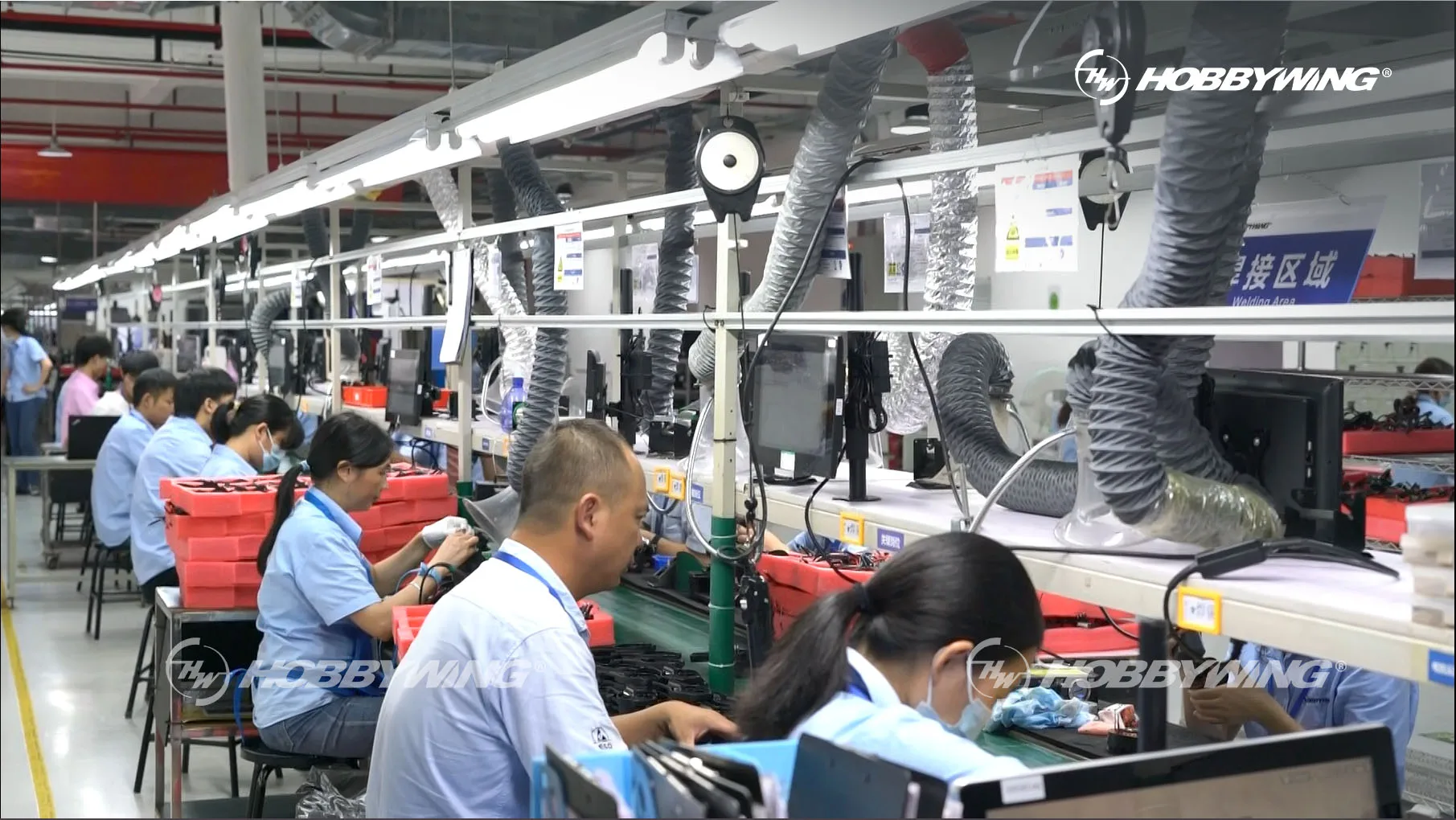

Production Line

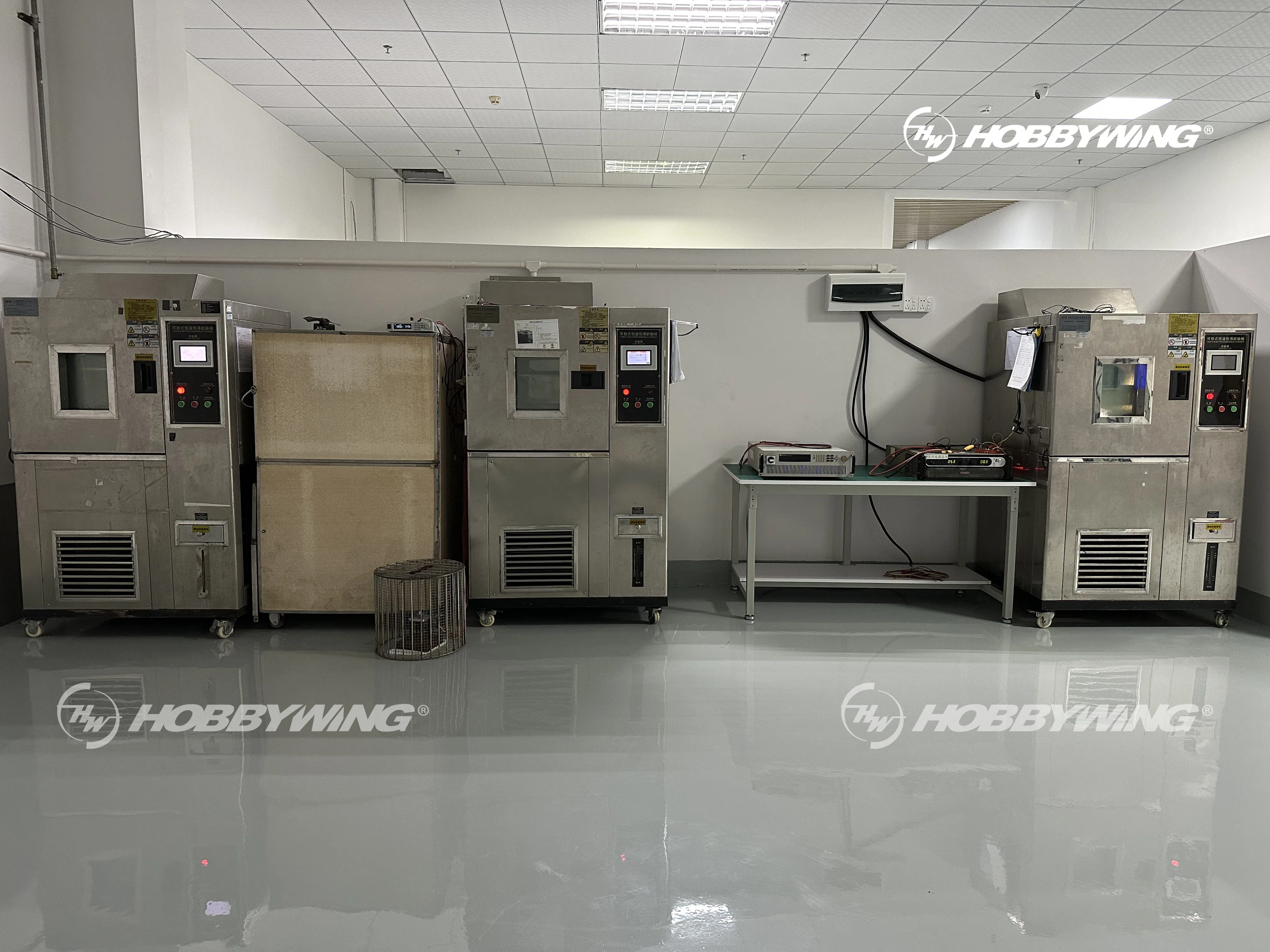

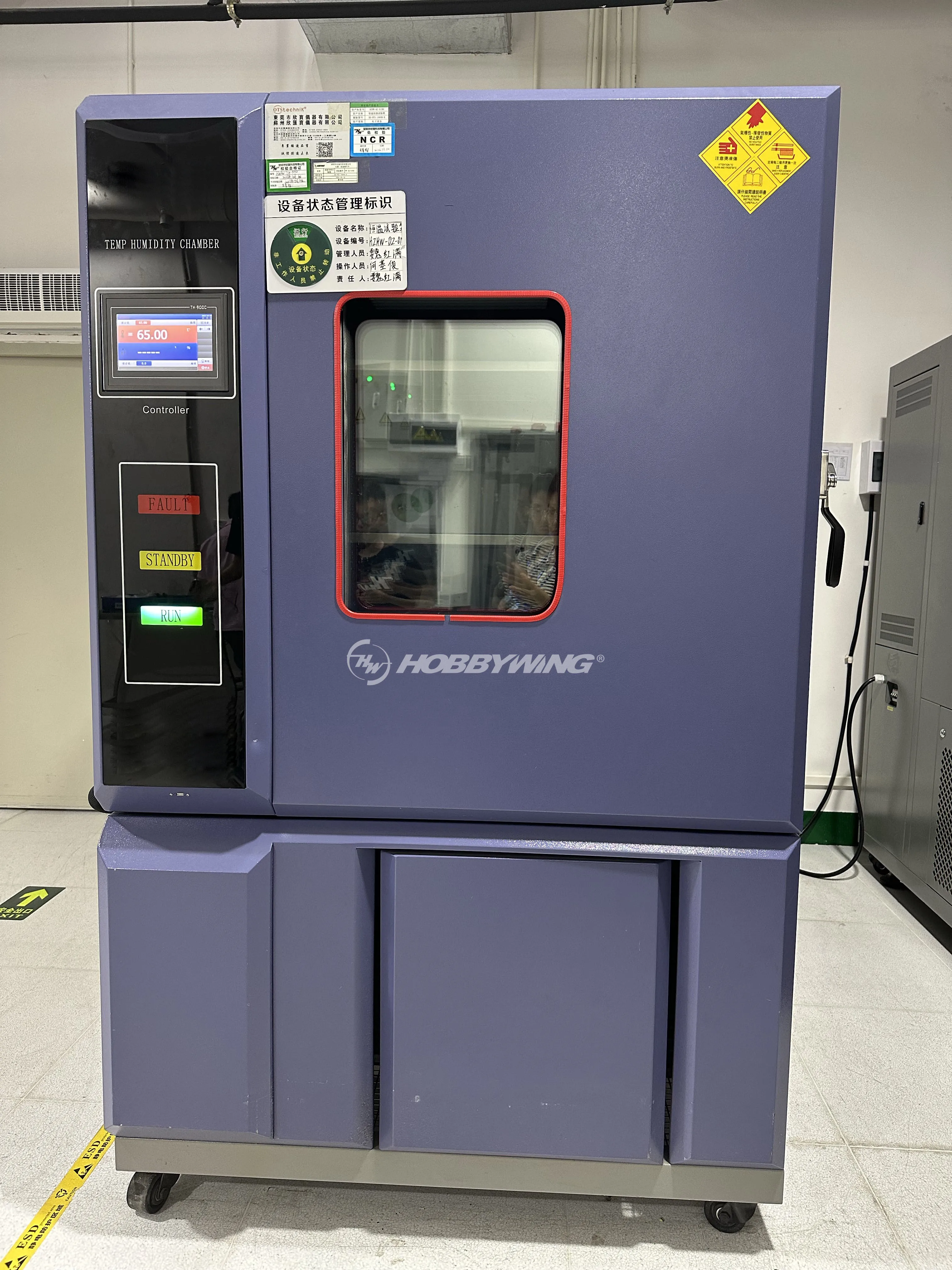

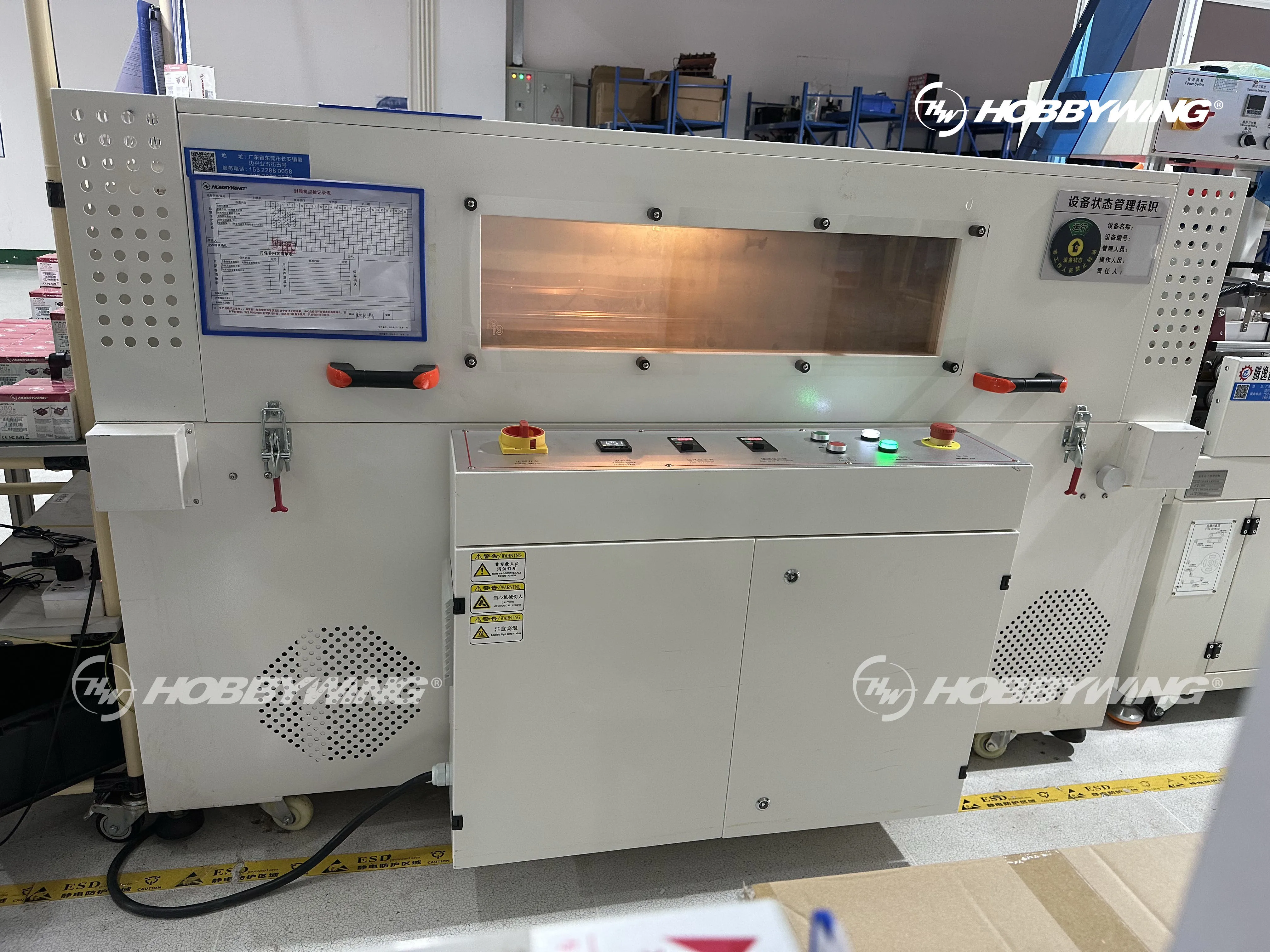

Test Equipment
We have rigorous quality inspection procedures to simulate real scenarios to ensure that products work well.

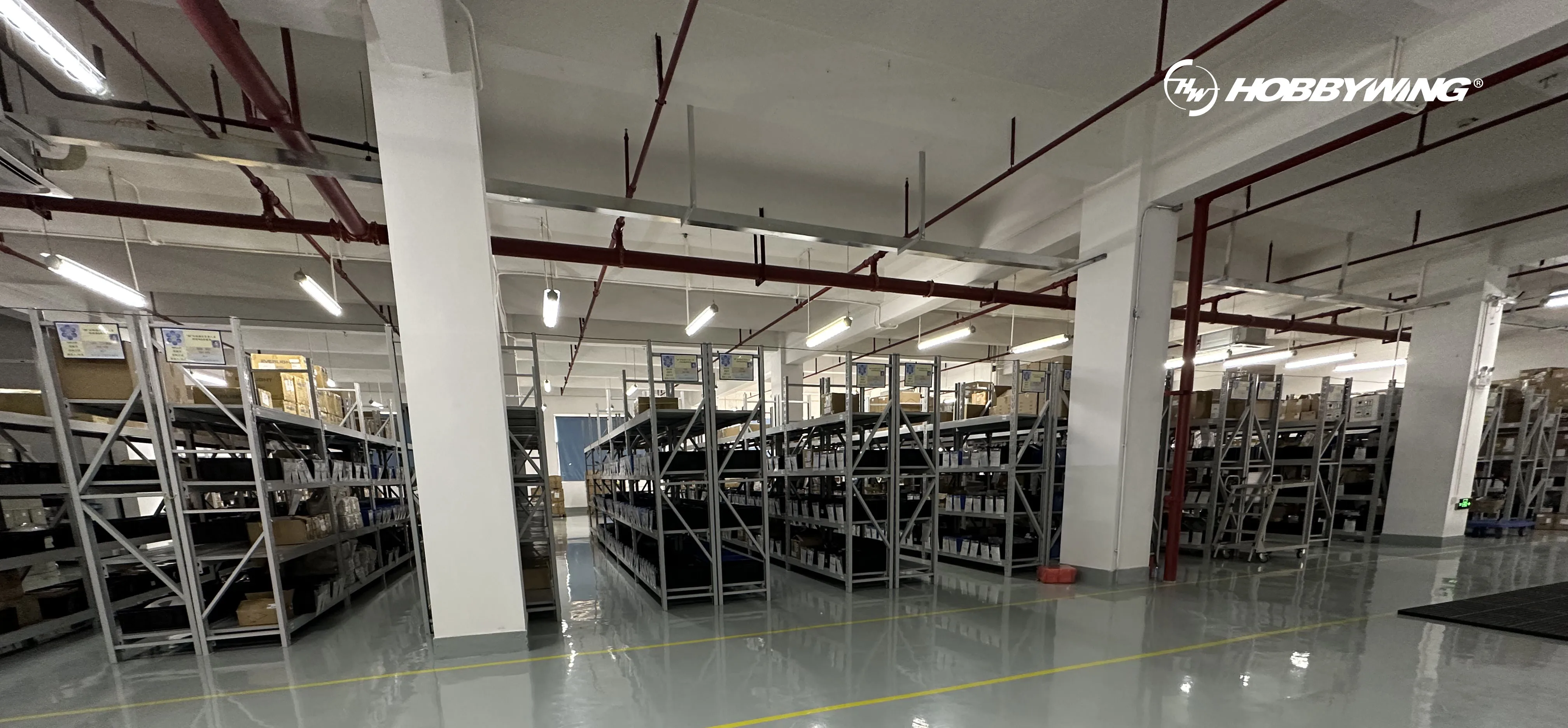

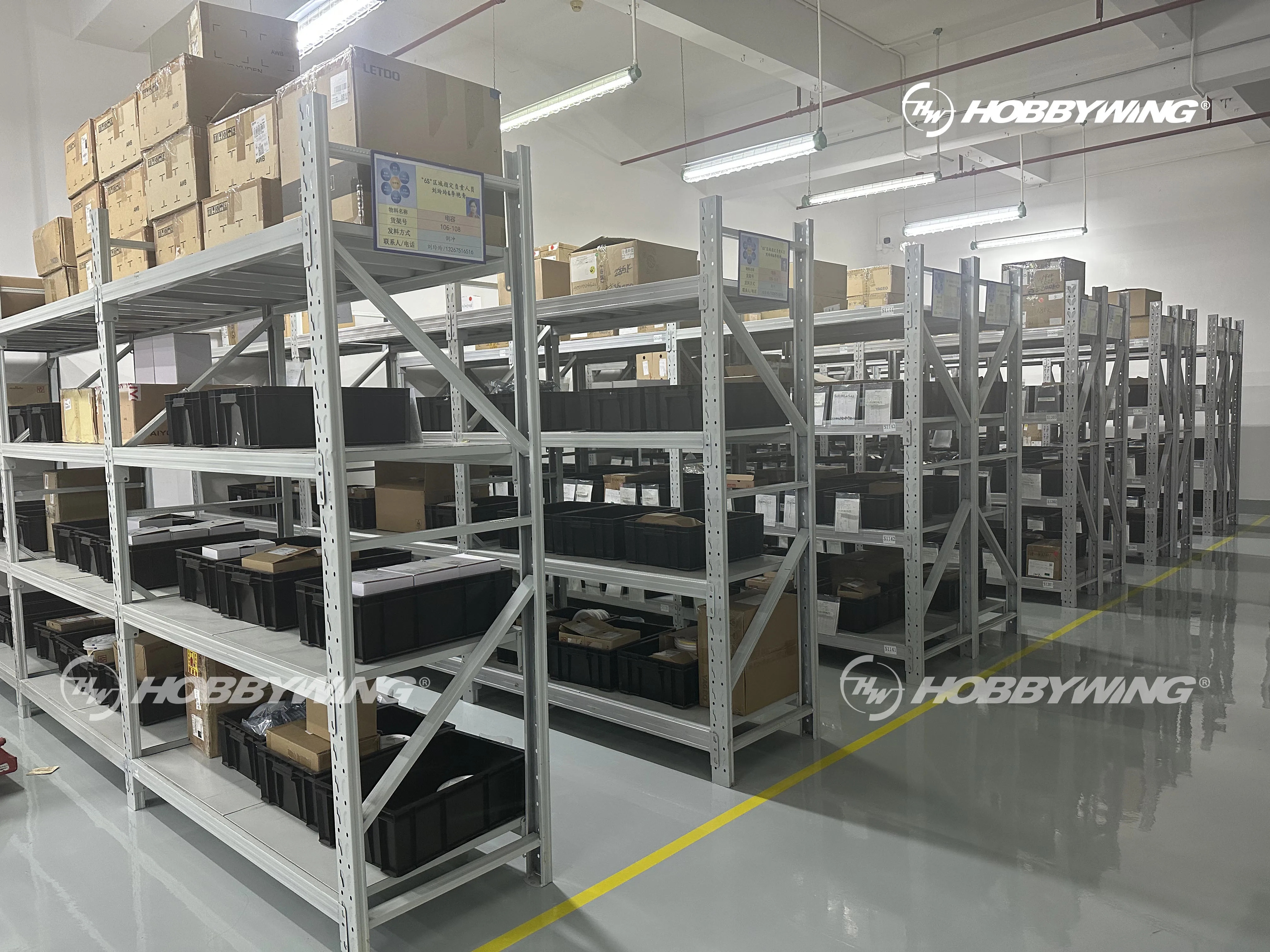

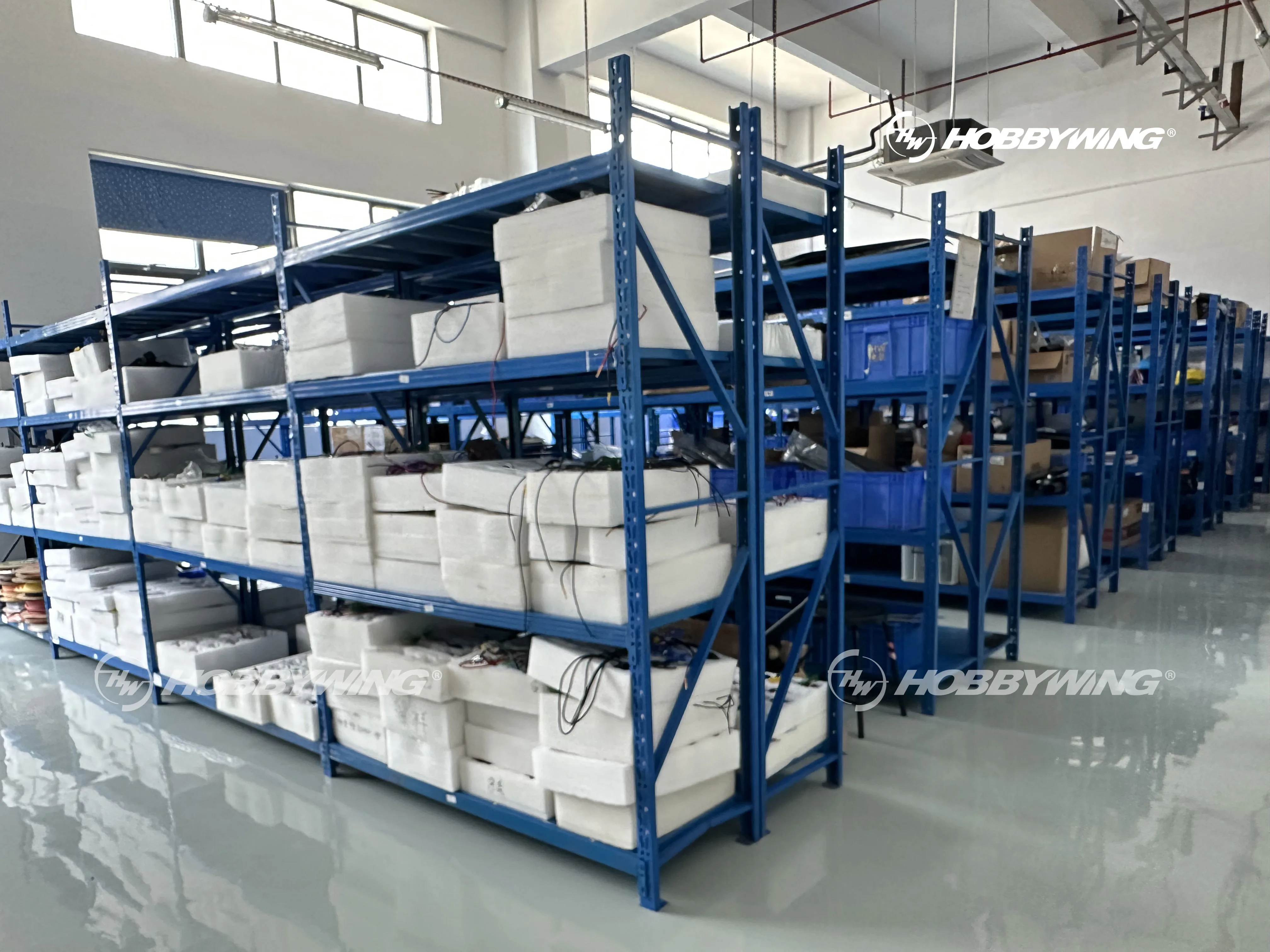

Warehouse
Certifications
FACTORY CERTIFICATES
ISO9001
Intellectual Property Management System
Invention Patent
Utility Models
PRODUCT CERTIFICATES
CE
RoHS
FCC
FAQ
1. Why choose you?
This is Hobbywing direct store. Must offer you Best Price and Reliable Service.
We have 18+years experience of Permanent magnet brushless DC motor and ESC in manufacturing and R&D.
3. Can you offer Customized service?
Yes, we do both OEM and ODM.
5. How can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
6. What about the lead time for mass production?
It depends on the order quantity. If 2000pcs, it takes about 10-15days.
7. What’s your payment terms?
We have 18+years experience of Permanent magnet brushless DC motor and ESC in manufacturing and R&D.
2. Can I have a sample order?
Yes, we accept sample order to test and check quality.
Yes, we accept sample order to test and check quality.
3. Can you offer Customized service?
Yes, we do both OEM and ODM.
4. How to get the price?
ODM: Pls tell us your interested model and demand quantity, we will offer good price.
OEM: Pls tell us the details: size, quantity, printing/package etc request, we will calculate good price for you.
ODM: Pls tell us your interested model and demand quantity, we will offer good price.
OEM: Pls tell us the details: size, quantity, printing/package etc request, we will calculate good price for you.
5. How can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
6. What about the lead time for mass production?
It depends on the order quantity. If 2000pcs, it takes about 10-15days.
7. What’s your payment terms?
We accept T/T, Western Union, Paypal and MoneyGram, those depend on specific cases.
