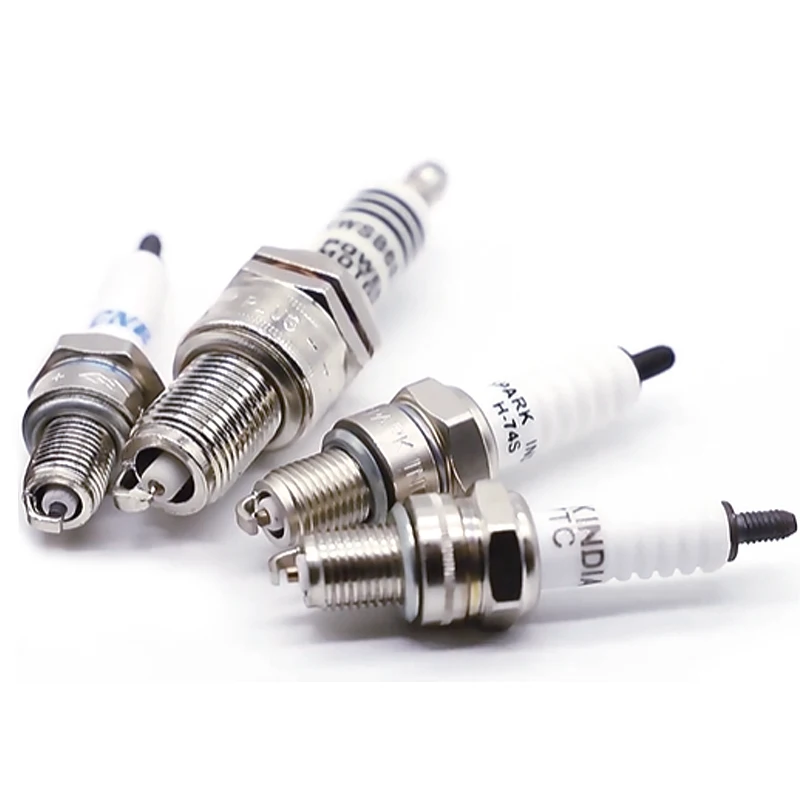

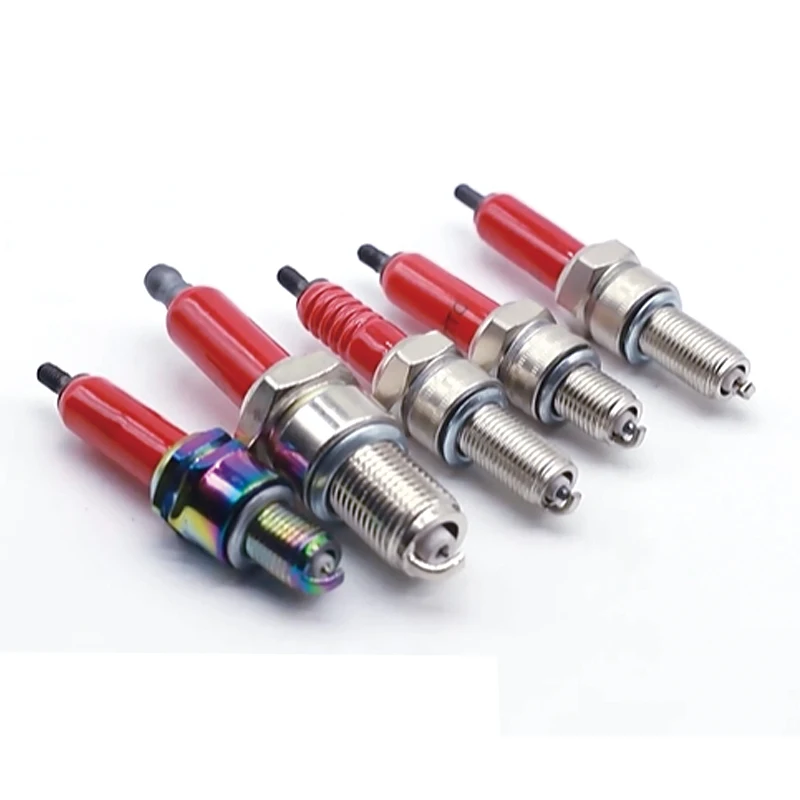

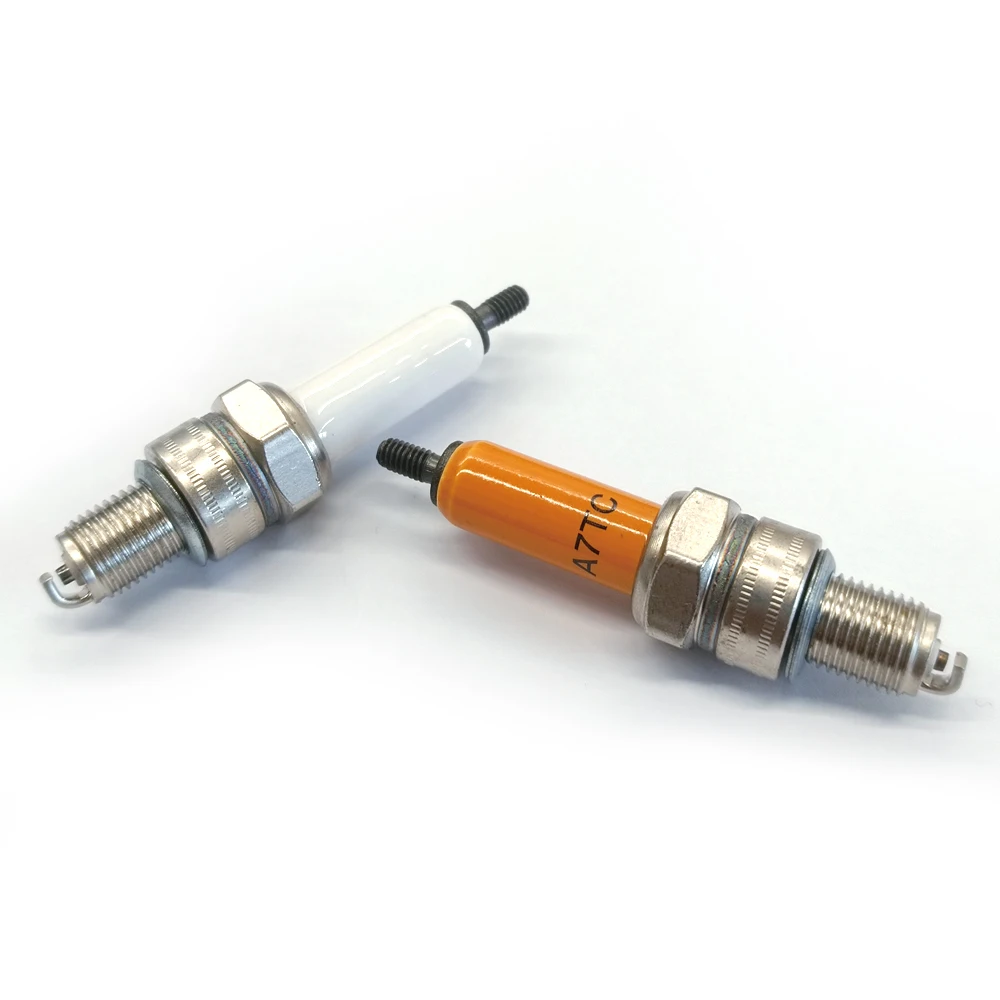

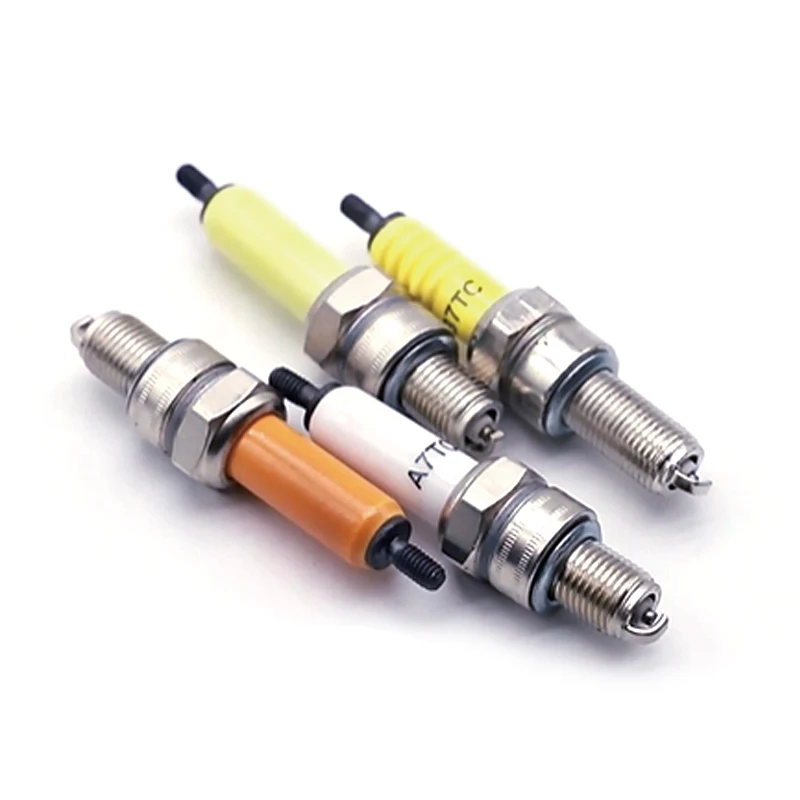

Professional motorcycle parts supplier, motorcycle spark plug manufacturer E6TC/BP7HS D8TC/D8EA A7TC/C7HSA H74S B7TC/C7E
- Category: >>>
- Supplier: Shanghai Huanbiao Imp.&Exp. Co. Ltd.
Share on (1600906282137):
Product Overview
Description
Products Description
Features

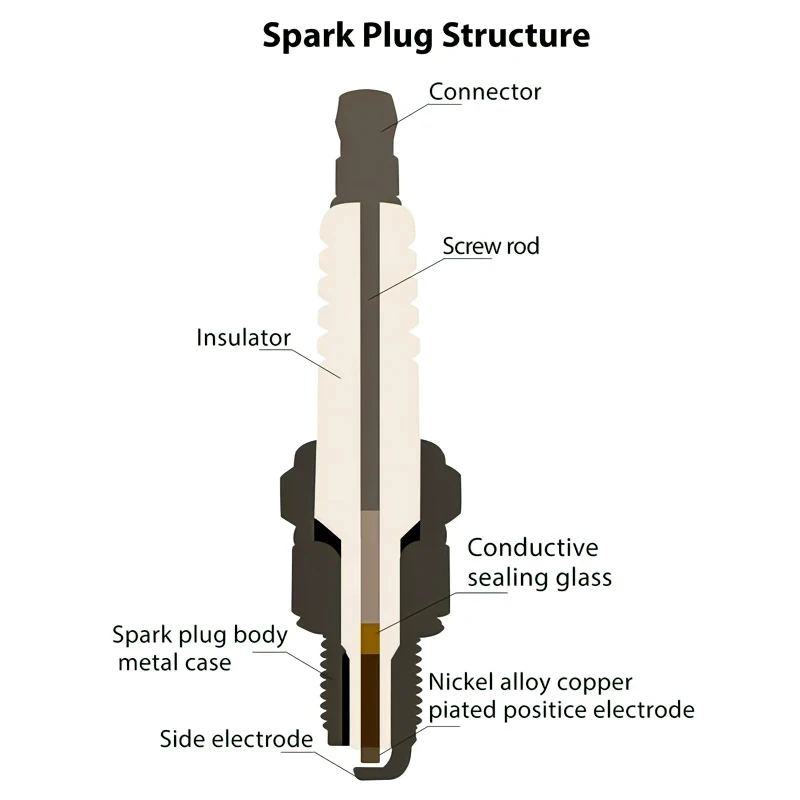

Multi-ribs of insulator eliminate flashover.
Insulator made of 95% pure aluminastrongresist ant to heat shock,great mechanic and electric features,super insulation.
Nicket plated houshing prevents oxidationand co rosion,heat crimping process ensuresabsolute gas-tight fit.
Insulator made of 95% pure aluminastrongresist ant to heat shock,great mechanic and electric features,super insulation.
Nicket plated houshing prevents oxidationand co rosion,heat crimping process ensuresabsolute gas-tight fit.
Inner sealing with conductivity glass ensuresa fin e conductivity and sealing. Multi-layer gaskets are elasticly strong,and reliable in sealing.
Copper core electrode prevents oxidation and co rrosion,good electric and heat conductivity.long spark plug service life.
Copper core electrode prevents oxidation and co rrosion,good electric and heat conductivity.long spark plug service life.

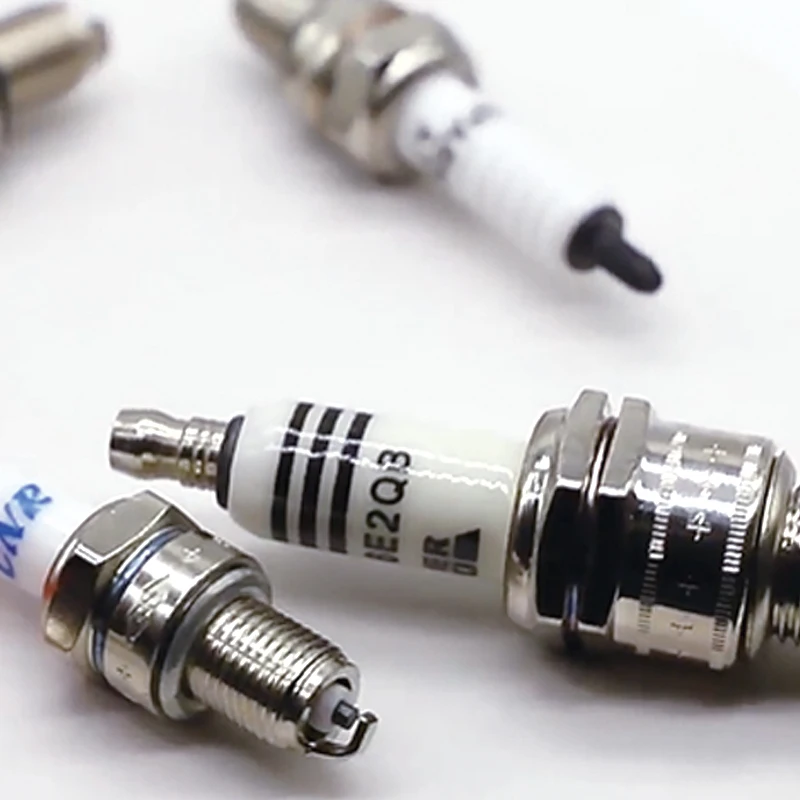

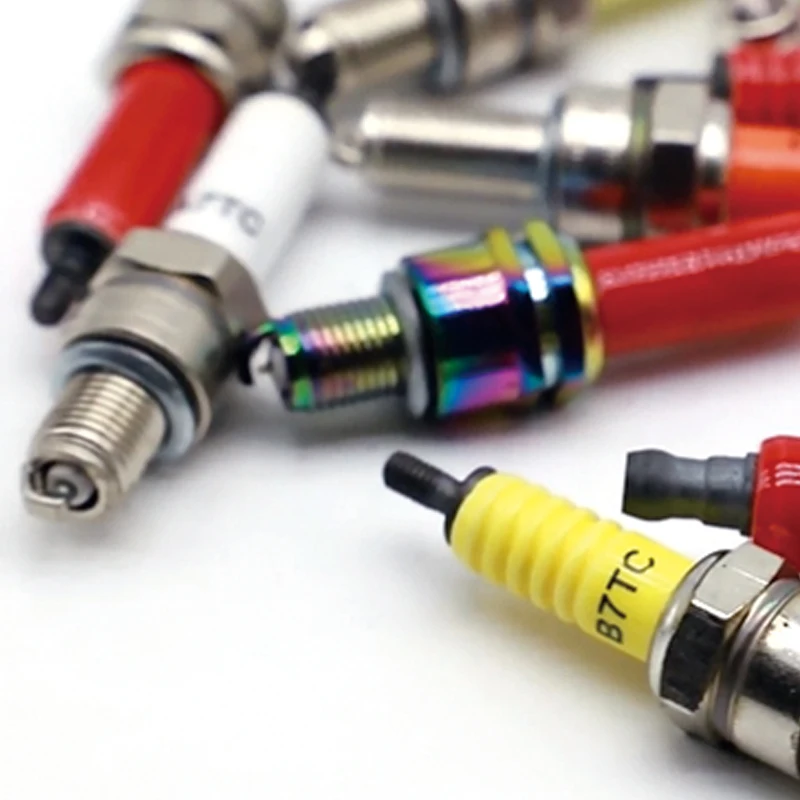

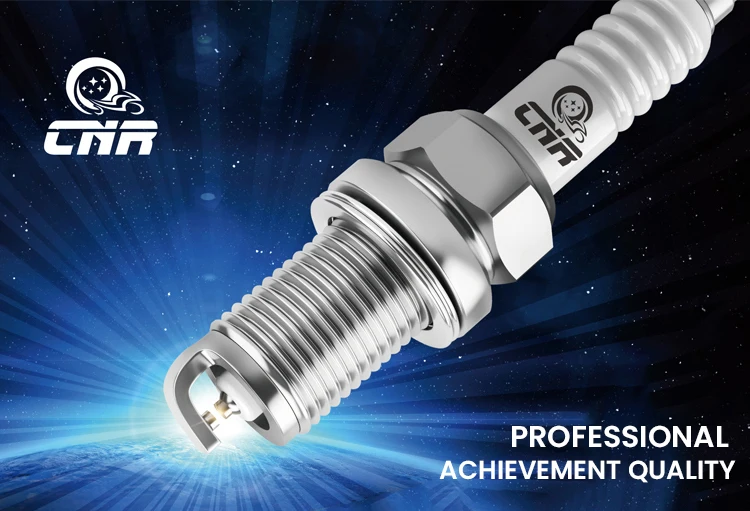

Spark Plug-HuanBiao
EXCELLENT UPGRADE PERFORMANCE
Nine big advantages
Heat Ramge | CNR | BOSCH | NGK | CHAMPION | DENSO |
1 | 1 | 10 | 2 | 18/19 | 9 |
2 | 2 | 9 | 4 | 14/16 | 14 |
3 | 3 | 8 | 5 | 11/12 | 16 |
4 | 4 | 6/7 | 6 | 9/10 | 20 |
5 | 5 | 5 | 7 | 7/8 | 22 |
6 | 6 | 4 | 8 | 6/61/63 | 24 |
7 | 7 | 3 | 9 | 4/59 | 27 |
9.5 | 57 | 29 | |||
8 | 8 | 2 | 10 | 55 | 31 |
10.5 | 53 | 32 | |||
9 | 9 | 11 | 34 | ||
11.5 | 35 | ||||
10 | 10 | 12 | 37 |
Letter | Thread Diameter | Reach | Insulator Type | Seat Type |
F | 14mm (Hex 15.8mm) | 19.0mm | Projected | Flat Seat |
Fa | 14mm (Hex 15.8mm) | 22.0mm | Projected | Flat Seat |
Fb | 14mm | 19.0mm | Projected | Flat Seat |
Fc | 14mm | 9.5mm | Projected | Flat Seat |
T | 14mm (Hex 15.8mm) | 18.0mm | Projected | Taper Seat |
Ta | 14mm (Hex 15.8mm) | 20.5mm | Projected | Taper Seat |
Tb | 14mm | 11.7mm | Projected | Taper Seat |
Tc | 14mm | 11.7mm | Non-Projected | Taper Seat |
Td | 18mm | 11.7mm | Projected | Taper Seat |
Huanbiao Numbering Rules for Ordinary Spark Plug Products
Construction | ||
M | Compact Type | |
P | Projected Insulator Type | |
R | Resistor TypeR | |
U | Surface or Semi-SurfaceU Discharge Type | |
Z | Inductive Resistor | |
Thread Reach (Flat Seat) | ||
A | 8.5mm | |
B | 9.5mm | |
C | 11.2mm | |
D | 12.0mm | |
E | 12.7mm | |
H | 19.0mm | |
K | 22.5mm | |
HE | Part Threaded Total reach=19.0mm Thread=12.7mm | |
Thread Reach (Taper Seat) | ||
T | H---T 7.8mm | |
K---HT 17.5mm | ||
HP---T 7.8mm | ||
K---T 11.2mm | ||
M---T 10.9mm | ||
Threaded Diameter | Hex | ||
A | 8mm | 13.0mm | |
B | 10mm | 16.0mm | |
C | 12mm | 16.0mm | |
D | 12mm | 18.0mm | |
E | 14mm | 16.0mm | |
F | 14mm | 16.0mm | |
H | 14mm | 19.0mm | |
K | 14mm | 20.8mm | |
L | 18mm | 20.8mm | |
M | 18mm | 25.4mm | |
G | PF 1/2 | 23.8mm | |
E type is made by ISO standard, it's 2.5mm shorter than F type | |||
Taper Seat Types | ||
Serial NO. | Hex | |
H---T | 16.0mm | |
H---HT | 16.0mm | |
K---T | 16.0mm | |
M---T | 20.8mm | |
Spark Gap | ||
6 | 0.6mm | |
7 | 0.7mm | |
8 | 0.8mm | |
9 | 0.9mm | |
10 | 1.0mm | |
11 | 1.1mm | |
13 | 1.3mm | |
14 | 1.4mm | |
15 | 1.5mm | |
20 | 2.0mm | |
No umber=Standard gap | ||
Firing End Construction | ||||||
A: | 2-ground electrode | H: | Booster gap | |||
B: | 3-ground electrode | I: | HHigh performance iridium | |||
C: | 4-ground electrode | P: | High performance platinum | |||
CH: | Compact type low angle ground electrode | PP： | Platinum on ground electrode | |||
D: | V-groove center electrode(14mm only), D:1.5mm out of insulator | Q: | Semi-surface discharge | |||
E: | V-groove center electrode(14mm only), 2.5mm out of insulator | S: | Standard Φ2.5mm center electrode | |||
F: | Special ground electrode | T: | Tapered seat (no gasket) | |||
G: | Nickel alloy center electrode | U: | Thick Φ2.9mm center electrode | |||
GG:V | Copper core ground electrode | W: | Tungsten electrode | |||
CNR | BOSCH | NGK | DENSO | CHAMPION |
JCPR5H | Y5DDC | DCPR7E | XU22EPR-U | RA8HC |
JCPR5Ha-9 | DCPR7EA-9 | XU22PR9 | ||
JEBR5a | ZKR7AP-Q | |||
JEER3a-11 | ZFR5LP-13G | |||
JEER3f | F8LCR | ZFR5F | KJ16CR8 | C9MCC |
JEER3f-11 | FR8HP | ZFR5F-11 | KJ16CR-L11 | RC12MC5 |
JEER3p | F7HER2 | ZFR5P-G | KJ20DR-M11 | |
JEER41-11 | F7LCOR2 | ZFR6F-11 | KJ20CR-L11 | RC10ECC |
JEER4i | ZFR6P-G | |||
JEER4k-11 | ZFR6K-11 | 9807B-5615P | ||
JER3H | F8DCOR | BKR5E | K16PR-U | |
JER3H-11 | BKR5E-11 | K14P-U11 | OE152/t10 | |
JER3HA | FLR8LDCU | BKR5EK | OE019/r04 | |
JER3HAFb-11 | FR8KDC | BKR5EKB-11 | K16TR11 | |
JER3HAFPb-11 | BKR5EKPB-11 | PK16TR11 | ||
JER3HE | BKR5EY | |||
JER3HEa | BKR5EYA | K16R-U | ||
JER3HEa-11 | FR8KCU | BKR5EYA-11 | K16R-U11 | |
JER3HIp | BKR5EIX-P | |||
JER3HP-11 | PGR8DQP | BKR5EP-11 | PK16R11 | |
JER3HS | FR8DC/FR8DCO | BKR5ES | OE013/T10 | |
JER3HS-11 | FR8DCX/FR8DPX | BKR5ES-11 | ||
JER3HU | BKR5EZ | OE093/110 | ||
JER3i | FR5Ei | |||
JER4H | F6DCOR | BKR6E | K20PR-U | OE002/r04/t10 |
JER4H-11 | BKR6E-11 | K20PR-U11 | ||
JER4HA | FR6LDC | BKR6EKC | OE030/t10/RC8BYC | |
JER4HAU | FGR7DQEO | BKR6EKUB | ||
JER4HCUP | F04DAR | BKR6EQUP | OE026/r04/t10 | |
JER4HEa | FR7KC | BKR6EYA | K20R-U | |
JER4HEa-11 | FGR7DQP | BKR6EYA-11 | K20R-U11 | |
JER4HE-11 | BKR6EY-11 | K20R-U11 | ||
JER4HP | F6DSR | BKR6EVX | ||
JER4HP-11 | FGR7DQP | BKR6EP-11 | PK20R11 | |
JER4HS | BKR6ES | OE034/t10 | ||
JER4HU | FR6KDC | BKR6EZ | OE033/t10/RC87YCL | |
JEUR3HB-10 | F8KTCR | BKUR5ET-10 | K16PBR-S10 | RC89PYC |
JEUR4HAQ | BKR6EKUB | |||
JEUR4HB-10 | F7KTCR | BBKUR6ET-10 | K20PBR-S10 |

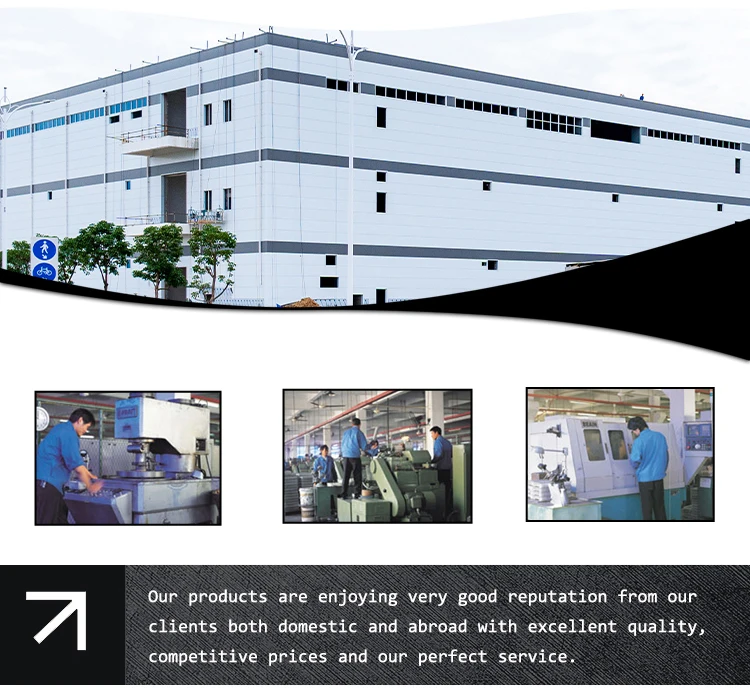

Company Profile
Shanghai Huanbiao Import &Export CoLtd. is a professional manutacturer and dealer of sparkplugs, motorcycle chain.
The main market is in India, in order to serve customers in India and surrounding countries betterwe have invested and built a production base of spark plug and chain in FaridabadIndia. The company uses the brand strategy, with CNR series brands to fully cover the needs of all quality levels from the market and OE. "Professional achievement quality, integrity creates cooperation.”
The main market is in India, in order to serve customers in India and surrounding countries betterwe have invested and built a production base of spark plug and chain in FaridabadIndia. The company uses the brand strategy, with CNR series brands to fully cover the needs of all quality levels from the market and OE. "Professional achievement quality, integrity creates cooperation.”
Our vision is to make the perfect combination of Chinese intelligent creating and Indian manufacturing, and to produce super cost-effective products with ingenuity to serve the whole mankind.
Warmly welcome guests from all over the world come to our company to inspect and guide the work.” As alwaysShanghai Huanbiao provides better quality service for customers at home and abroad.
Certifications
Exhibition
Packing & Transportation
FAQ
Q1: Can you do factory tests?
A: Of course, our products will be tested, because the requirements of domestic and foreign markets are very high, and we have
purchased a lot of testing equipment.
Q2. How to control the products quality?
A: Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over
the world.
Q3. What is the transportation?
A: If small quantity, we suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
Q4. Can we design packaging?
A: Yes. Except regular packing, and we can make customer's own packing.
Q5. Can you provide OEM service?
A: Yes, we provide OEM service. Which means size, quantity, design, packing solution, etc will depend on your requests; and your
logo will be customized on our products.
Q6. Could you tell me the delivery time of your goods?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to the
quantity.
Q7. What's your payment method?
A: We can accet PayPal/ West Union/ alibaba order by credit card/ Bank transfer etc.
A: Of course, our products will be tested, because the requirements of domestic and foreign markets are very high, and we have
purchased a lot of testing equipment.
Q2. How to control the products quality?
A: Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over
the world.
Q3. What is the transportation?
A: If small quantity, we suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
Q4. Can we design packaging?
A: Yes. Except regular packing, and we can make customer's own packing.
Q5. Can you provide OEM service?
A: Yes, we provide OEM service. Which means size, quantity, design, packing solution, etc will depend on your requests; and your
logo will be customized on our products.
Q6. Could you tell me the delivery time of your goods?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to the
quantity.
Q7. What's your payment method?
A: We can accet PayPal/ West Union/ alibaba order by credit card/ Bank transfer etc.
