Low power consumption portable multi 5 gas analyzers automotive monitor
- Category: >>>
- Supplier: Wuhan Kaidi Zhengda Electric Co. Ltd.
Share on (1600906321803):
Product Overview
Description
Detection gas: | Multi-in-one gas detector. It can continuously detect combustible, oxygen, carbon monoxide, hydrogen sulfide and other toxic gases in ambient air, and detect up to 5 gases at the same time. |
Detection principle: | catalytic combustion/electrochemical/infrared/photoionization |
Sampling method: | pump suction (optional) |
Alarm signals | sound, light, and vibration alarms |
Precision | 3% FS |
Product type: | Multi in one gas detector |
Explosion proof standard | Exib IIB T3 Gb |
Combination method | single, two in one, three in one, four in one, five in one |
Explosion proof type: | Intrinsically safe |
Product display: | Color LCD display |
Protection level | IP65 working |

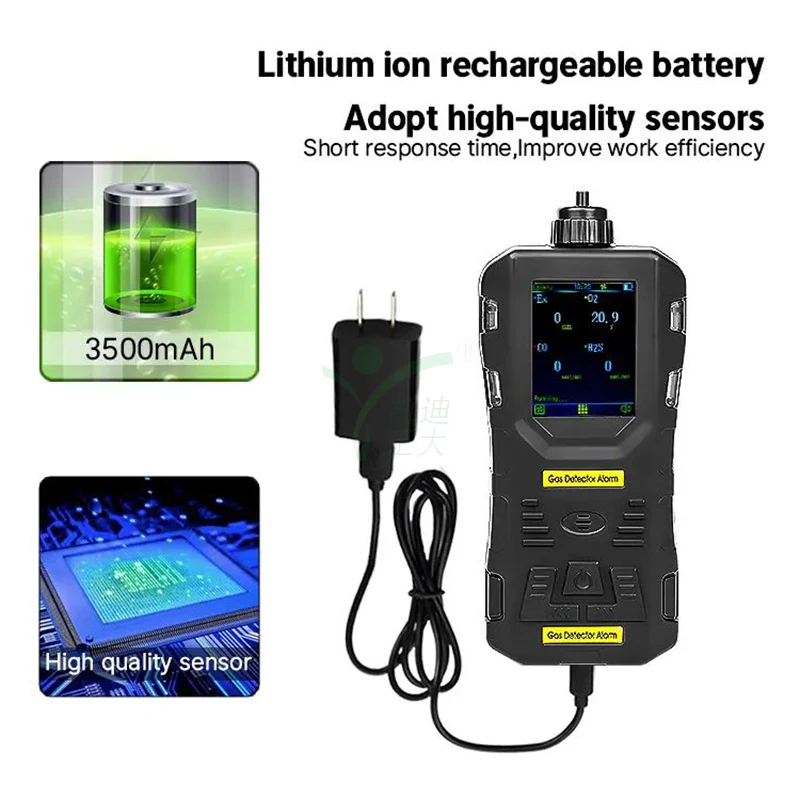

Power supply | rechargeable lithium battery |

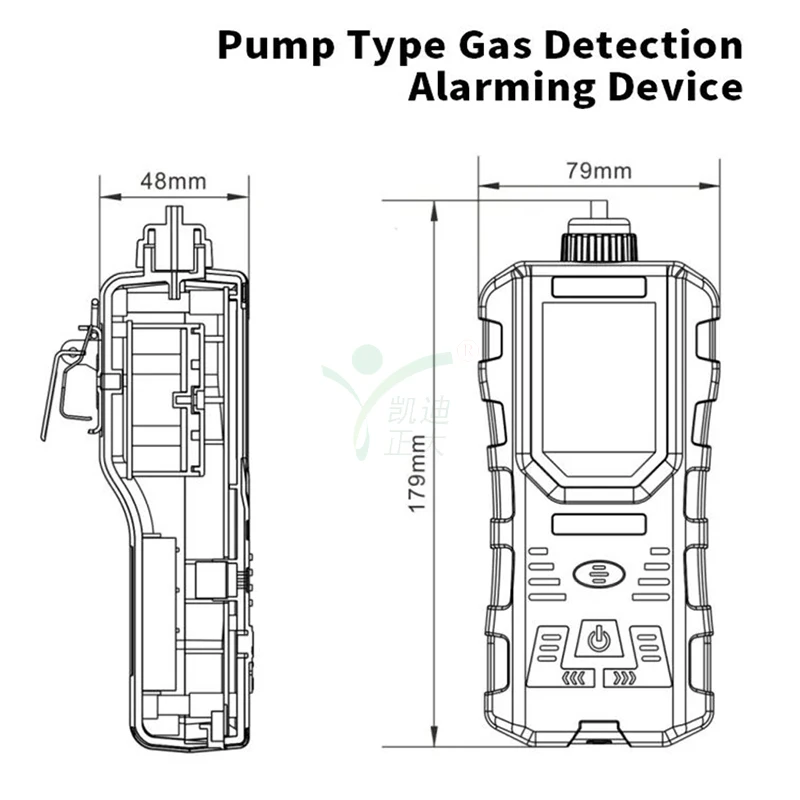

External dimensions | 179 * 76 * 49mm |
Product Description
Product Description
KDZD400 Gas Detector is a waterproof and dustproof pump suction composite gas detector that detects single gas concentration or multiple (≤ 6 types) gas concentrations. The machine uses pure imported sensors and has high sensitivity. It is applicable to Intrinsic safety equipment required in explosion-proof places.
The KDZD400 gas detector is a portable pump suction sampling safety detection instrument suitable for detecting abnormal concentrations of oxygen, carbon monoxide, hydrogen sulfide, and combustible gases in various places such as confined spaces, pits, underground mines, and pipelines. Instantaneous values are sampled on site, and a certain gas concentration exceeds the standard and is promptly alerted by sound, light, and vibration alarms. Widely used in various places that require the detection of toxic and harmful gas concentrations, such as oil extraction, smelting, chemical engineering, municipal engineering, sewage treatment, electricity, gas, mining, tunnel construction, fire protection, warehousing, papermaking, pharmaceuticals, brewing, etc.
The KDZD400 gas detector can be combined with two in one, three in one, four in one, and five in one. The product is equipped with a built-in pump, which can quickly detect and analyze gas concentration through a pump suction sampling method. The sensitive element adopts high-quality gas sensors, which have good sensitivity and excellent repeatability; The instrument adopts embedded microcomputer control, with simple operation, complete functions, high reliability, and multiple adaptive capabilities. It uses a graphic LCD display, which is intuitive and clear.
Adopting a Chinese graphical operation menu, it is simple, equipped with a large capacity lithium-ion rechargeable battery, waterproof, dustproof, and explosion-proof, paired with a replaceable inline gas sensing module, with low maintenance costs, and equipped with a high-power intelligent gas sampling pump, which can quickly detect the concentration of leaked gas!
The waterproof design of the instrument combines a rubber casing to meet the harsh requirements of harsh environments.
KDZD400 Gas Detector is a waterproof and dustproof pump suction composite gas detector that detects single gas concentration or multiple (≤ 6 types) gas concentrations. The machine uses pure imported sensors and has high sensitivity. It is applicable to Intrinsic safety equipment required in explosion-proof places.
The KDZD400 gas detector is a portable pump suction sampling safety detection instrument suitable for detecting abnormal concentrations of oxygen, carbon monoxide, hydrogen sulfide, and combustible gases in various places such as confined spaces, pits, underground mines, and pipelines. Instantaneous values are sampled on site, and a certain gas concentration exceeds the standard and is promptly alerted by sound, light, and vibration alarms. Widely used in various places that require the detection of toxic and harmful gas concentrations, such as oil extraction, smelting, chemical engineering, municipal engineering, sewage treatment, electricity, gas, mining, tunnel construction, fire protection, warehousing, papermaking, pharmaceuticals, brewing, etc.
The KDZD400 gas detector can be combined with two in one, three in one, four in one, and five in one. The product is equipped with a built-in pump, which can quickly detect and analyze gas concentration through a pump suction sampling method. The sensitive element adopts high-quality gas sensors, which have good sensitivity and excellent repeatability; The instrument adopts embedded microcomputer control, with simple operation, complete functions, high reliability, and multiple adaptive capabilities. It uses a graphic LCD display, which is intuitive and clear.
Adopting a Chinese graphical operation menu, it is simple, equipped with a large capacity lithium-ion rechargeable battery, waterproof, dustproof, and explosion-proof, paired with a replaceable inline gas sensing module, with low maintenance costs, and equipped with a high-power intelligent gas sampling pump, which can quickly detect the concentration of leaked gas!
The waterproof design of the instrument combines a rubber casing to meet the harsh requirements of harsh environments.
Product Features
Adopting a 2.4-inch high-definition full color IPS industrial screen
The KDZD400 multi gas detection alarm device can detect a single gas, and can also be combined with two in one, three in one, four in one, and five in one. Used for safety detection of combustible gases, toxic and harmful gases such as oxygen and carbon dioxide.
Two in one combination (partial):
Hydrogen sulfide and carbon monoxide
Methanol oxide carbon
Chlorine gas Chlorine gas
Combustible gas carbon monoxide
Combustible gas hydrogen sulfide
Combustible gas carbon dioxide
More gas combinations to choose from
Three in one combination (partial)
Adopting a 2.4-inch high-definition full color IPS industrial screen
Display various technical indicators and gas concentration values
PPM,% VOL, mg3/m3, and mg/L concentration units can be freely switched (user not adjustable, factory set)
Asian Ergonomic Design
The shell adopts a high IP encapsulation process
High performance imported sensors
Can simultaneously detect 1-4 types of gases, and sensors can be combined
Customizable simultaneous detection of 5 gases
With data storage function, it can store 500 pieces of data
Dust proof, explosion-proof, and waterproof design
Intrinsically safe circuit design, anti-static and electromagnetic interference
Alarm records can be uploaded to the PC
With temperature compensation function
Instrument type approximately 600g
Optional sampling rod and conduit
Built in high-power carbon film self priming pump, fast response time
Free adjustment of setting time and alarm function
Customizable simultaneous detection of 5 gases
With data storage function, it can store 500 pieces of data
Dust proof, explosion-proof, and waterproof design
Intrinsically safe circuit design, anti-static and electromagnetic interference
Alarm records can be uploaded to the PC
With temperature compensation function
Instrument type approximately 600g
Optional sampling rod and conduit
Built in high-power carbon film self priming pump, fast response time
Free adjustment of setting time and alarm function
The KDZD400 multi gas detection alarm device can detect a single gas, and can also be combined with two in one, three in one, four in one, and five in one. Used for safety detection of combustible gases, toxic and harmful gases such as oxygen and carbon dioxide.
Two in one combination (partial):
Hydrogen sulfide and carbon monoxide
Methanol oxide carbon
Chlorine gas Chlorine gas
Combustible gas carbon monoxide
Combustible gas hydrogen sulfide
Combustible gas carbon dioxide
More gas combinations to choose from
Three in one combination (partial)
Combustible gas Oxygen hydrogen sulfide
Chlorine, hydrogen fluoride, oxygen
Dimethyl ether methanol carbon monoxide
Hydrogen fluoride, chlorine gas, Difluoromethane
Combustible gas hydrogen chloride Hydrogen cyanide
Nitrogen dioxide, sulfur dioxide, voc
Phosphine, oxygen, carbon dioxide
More gas combinations to choose from
Four in one combination (partial)
Chlorine, hydrogen fluoride, oxygen
Dimethyl ether methanol carbon monoxide
Hydrogen fluoride, chlorine gas, Difluoromethane
Combustible gas hydrogen chloride Hydrogen cyanide
Nitrogen dioxide, sulfur dioxide, voc
Phosphine, oxygen, carbon dioxide
More gas combinations to choose from
Four in one combination (partial)
Hydrogen sulfide, oxygen, combustible gas, carbon monoxide
Methane oxidation carbon ammonia gas hydrogen sulfide
Sulfur dioxide, nitrogen, carbon monoxide, hydrogen sulfide
Carbon monoxide, carbon dioxide, combustible gas, oxygen
Hydrogen chloride, hydrogen sulfide, formaldehyde VOC
Methane, oxygen, ammonia, hydrogen sulfide
Methane, chlorine, sulfur dioxide, and australin
More gas combinations to choose from
Five in one combination (partial)
Hydrogen sulfide, oxygen, methane, carbon dioxide, ammonia
Oxygen, ammonia, hydrogen sulfide, Hydrogen cyanide, Carbon disulfide
Methane, chlorine, hydrogen chloride, hydrogen sulfide, Carbon disulfide
Carbon monoxide, oxygen, nitrogen dioxide, hydrogen sulfide
Hydrogen sulfide, ammonia, chlorine, carbon monoxide, Hydrogen cyanide
Carbon monoxide, ammonia gas, hydrogen sulfide, chlorine gas
Diesel oxygen carbon monoxide ammonia Carbon disulfide
More gas combinations to choose from
Methane oxidation carbon ammonia gas hydrogen sulfide
Sulfur dioxide, nitrogen, carbon monoxide, hydrogen sulfide
Carbon monoxide, carbon dioxide, combustible gas, oxygen
Hydrogen chloride, hydrogen sulfide, formaldehyde VOC
Methane, oxygen, ammonia, hydrogen sulfide
Methane, chlorine, sulfur dioxide, and australin
More gas combinations to choose from
Five in one combination (partial)
Hydrogen sulfide, oxygen, methane, carbon dioxide, ammonia
Oxygen, ammonia, hydrogen sulfide, Hydrogen cyanide, Carbon disulfide
Methane, chlorine, hydrogen chloride, hydrogen sulfide, Carbon disulfide
Carbon monoxide, oxygen, nitrogen dioxide, hydrogen sulfide
Hydrogen sulfide, ammonia, chlorine, carbon monoxide, Hydrogen cyanide
Carbon monoxide, ammonia gas, hydrogen sulfide, chlorine gas
Diesel oxygen carbon monoxide ammonia Carbon disulfide
More gas combinations to choose from
Company Profile
Certifications
Product packaging
FAQ
1. How is our product? We are manufacturer, so preferential price and high quality can guarantee. 2. How soon to get price? Usually provide within 6 hours once receiving inquiry. If you are very urgent, please call us then we will do in priority. 3. Whal is your terms of delivery? EXW,FOB, CFR, CIF, ect. Pls select your most conveient and cost effective. 4. When there is difficulty in using ? We will first provide equipment operation manual, operation video, or provide training through remote video call. Ifnecessary, engineers will serve on door. 5. What about the leading time for production? That depends on order qty and product item. For normal items, usually within 3 working days. Delivery time is determined by the logistics , generally is 5-7 days. 6.How to send? For most of our customers, we provide door-to-door service. You only to through import customs clearance proceduresand pay the import tariff. 7. How is packing and will the goods be damaged? We will pack standard export packing for everyequipment, so far there is no damage yet, pls no worry. |
