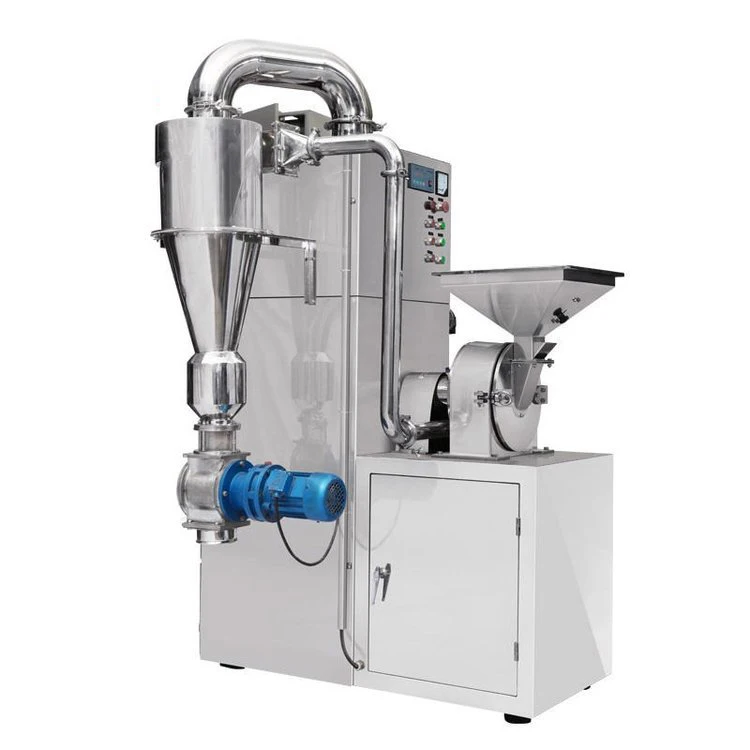

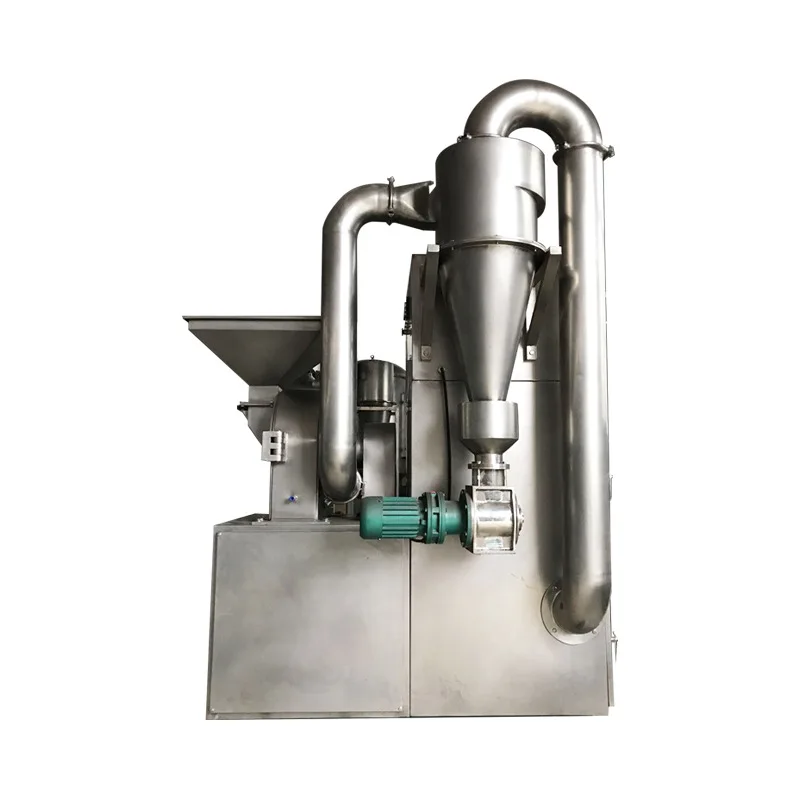

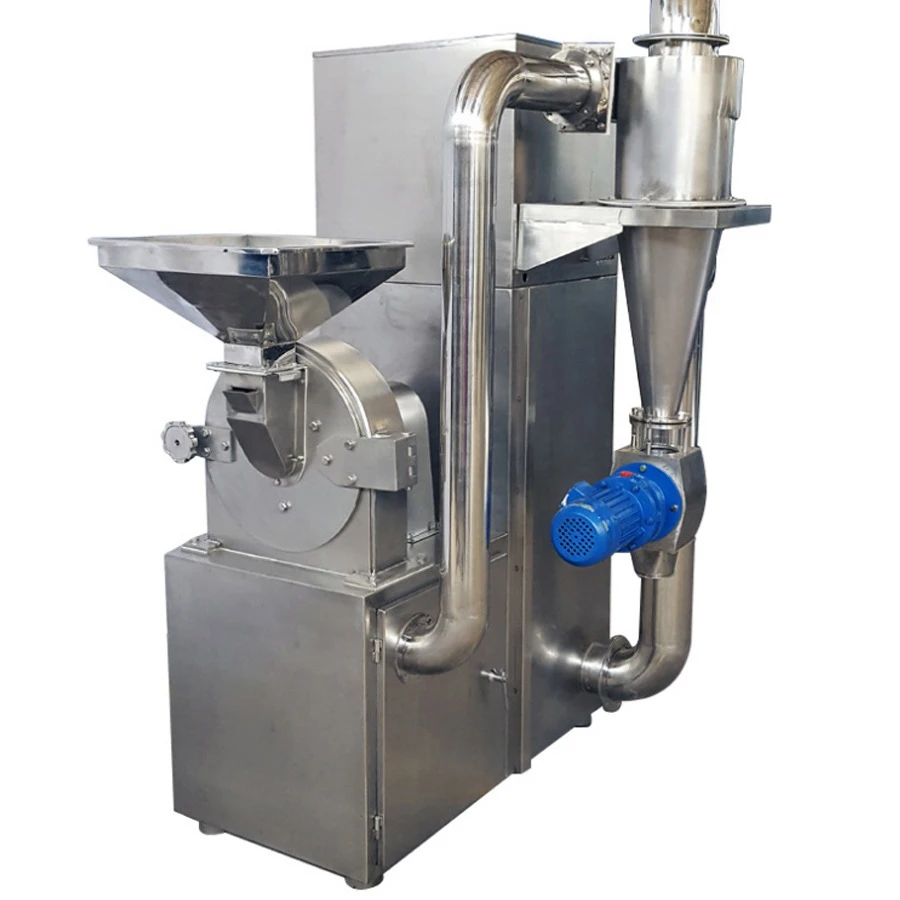

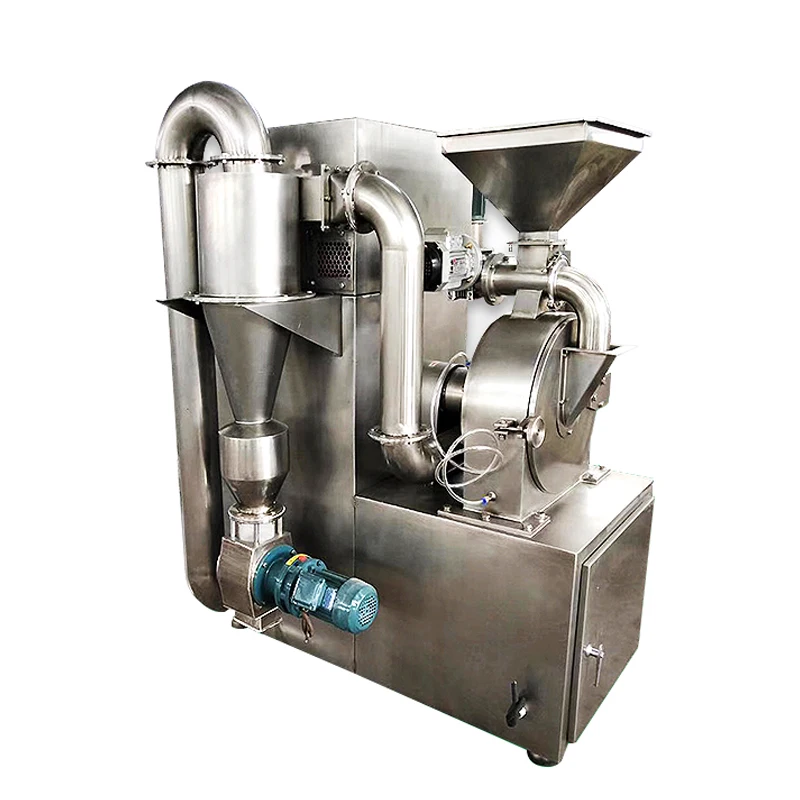

Universal flour mill pulverizer moringa leaves pulverizer machine
- Category: >>>
- Supplier: Wenzhou Kinding Machinery Co. Ltd.
Share on (1600906370501):
Product Overview
Description
Products Description
Application
The machine is widely used for material crushing in the industres of phamaceutics, chemical and foodstuff, etc. it is Particularty suitable for line production.
Working Principle

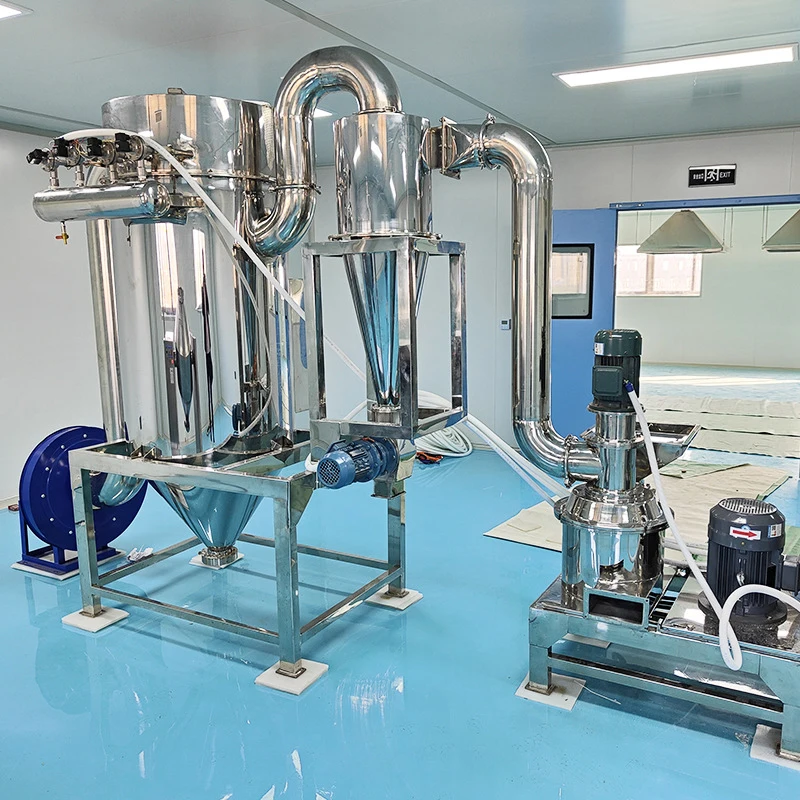

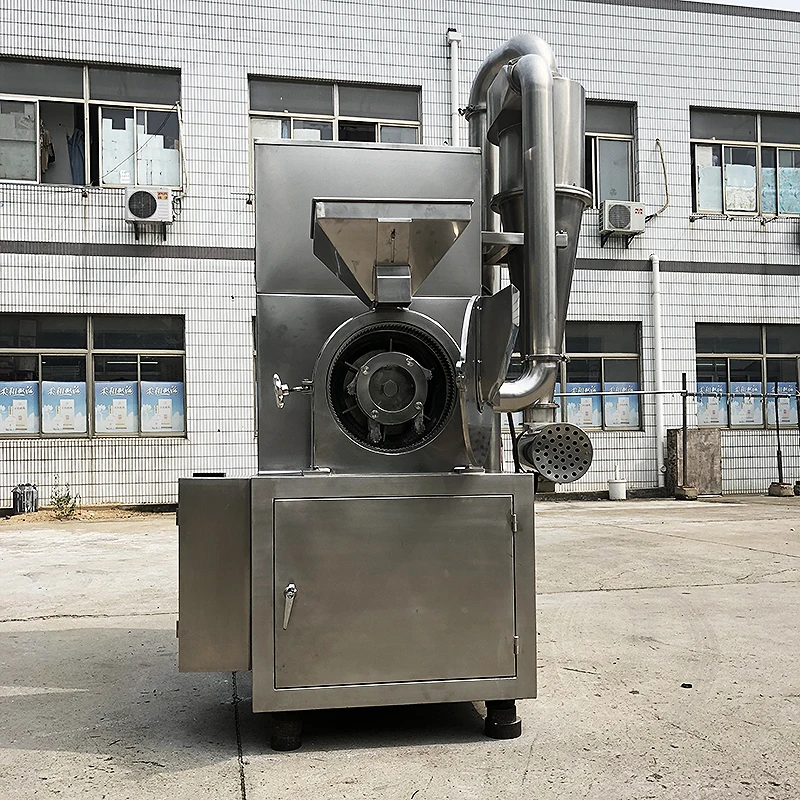

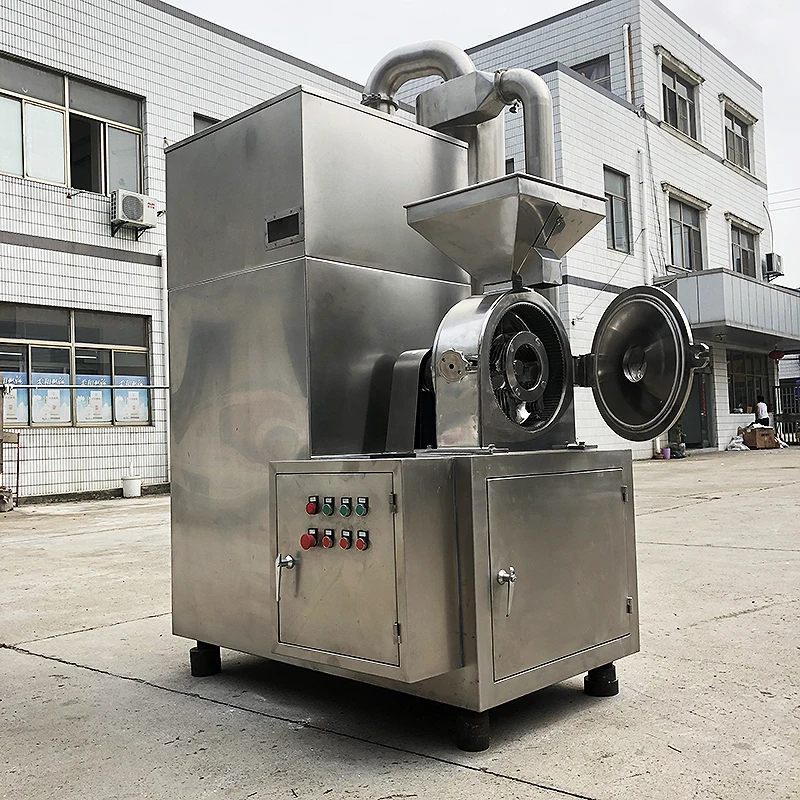

The machine is made up of crushing chamber, cyclone separator, pulse dust removing box and fan. It is use the high-speed relative motion of the active fluted disc and the fixed fluted disc to impact and crush the raw matreial. The different size of granules can be acquired by changing different screen. The whole machine is designed according to GMP standard and is made of stainless steel. The machine has theadvantages of simple structure, low energy consumption, easy cleaning and is an ideal crushing equipment .

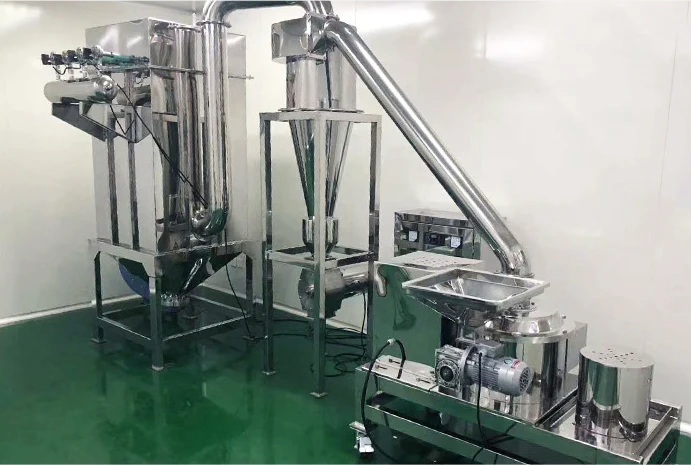

The crushed material goes through the cyclone separator by the rotating centrifugal force and the suction of fan. Dust is collected by pulse dust collecting box.
The crushed material goes through the cyclone separator by the rotating centrifugal force and the suction of fan. Dust is collected by pulse dust collecting box.
Model | 20B | 30B | 40B |
Capacity(kg/h) | 40-200 | 100-400 | 160-800 |
Feeding size(mm) | <10 | <12 | <15 |
Fineness of products(mesh) | 20-120 | 20-120 | 20-120 |
Motor power(kw) | 4 | 7.5 | 11 |
Dust collection power(kw) | 1.5 | 2.2 | 3 |
Spindle speed(r/min) | 4500 | 3800 | 3400 |
Weight(kg) | 400 | 650 | 780 |
Overall dimension(mm) | 1250*1000*1900 | 1350*1100*2000 | 1500*1250*2100 |

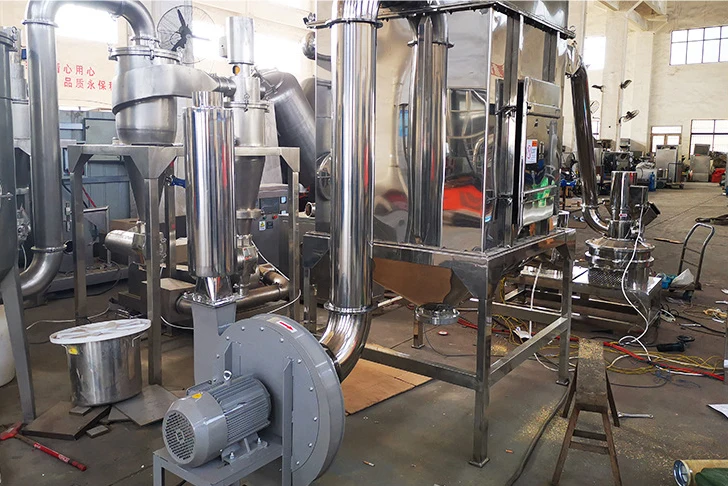

Our Company
Wenzhou Kinding Machinery co.,Ltd is located at a beautiful and traffic-convenient Longwan district of Wenzhou city, ,mainly engaged in developing,manufacturing,installation and techanical service in food, beverage, biology, pharmacy, chemical industry fields. We have advantage in producing high quality stainless steel equipment, such as fruit pulping machine, sanitary centrifugal pump, rotary lobe pump, high shear pump, etc. The enterprise has passed ISO9001:2008, our products are made of SUS304, SUS316 and SUS316L, conforming to sanitary standard stated in GMP specification.
Our Certifications
Best stainless
Design material according to customer ' s requirement, test all the raw material to confirm SS304, SS304L, SS316, SS316L.
Package and Shipping
FAQ
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight for the fittings.
Q4: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Mobile/Whatsapp: +86 15058983705 . Skype: hyq5871 . QQ: 1783023369.
