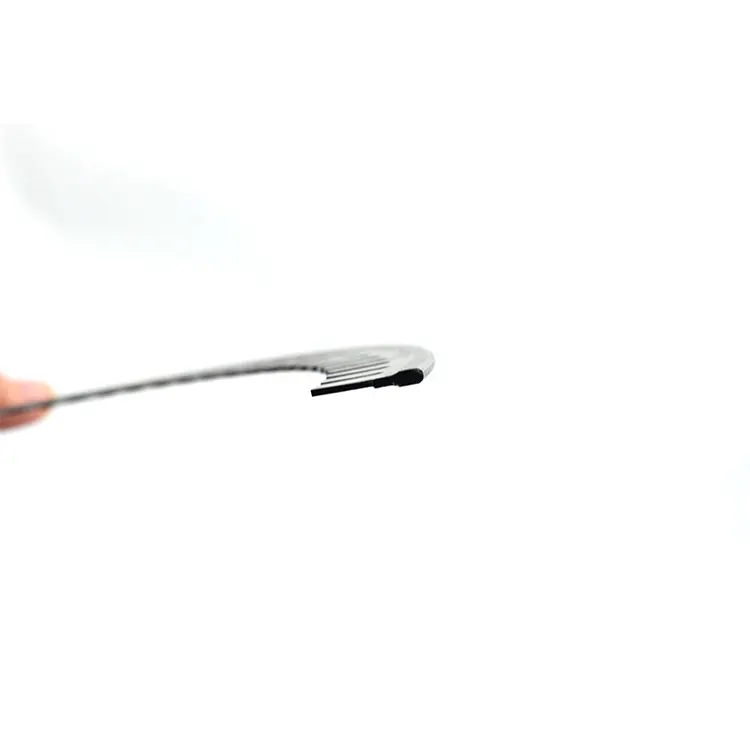

rotary curved die making creasing rule and cutting rule
- Category: >>>
- Supplier: Grandcorp Precision Mould(Kunshan)co. Ltd.
Share on (1600906376166):
Product Overview
Description
Product Description
Thicknesses-- (2PT)0.71mm, (3PT)1.07mm,(4PT)1.42mm,
Height----------22-23.8mm and 30mm,50mm,60mm,80mm
Hardness------Body(38-45HRC) Edge Angle(42/52)
Shape---------center bevel,long bevel,side bevel,long side bevel(CB,LCB,SB, LSB)
Our Advantages
Product Paramenters
Thickness | Type | Arc back slot | Height | Bevel Type | Teeth/lnch |
4Pt/1.42mm | Straight No Notch(SNN) | 150mm to 600mm | 23.8mm-26.4mm | CFLB to SFLB | 4 to 16 |
Straight Notch(SN) | |||||

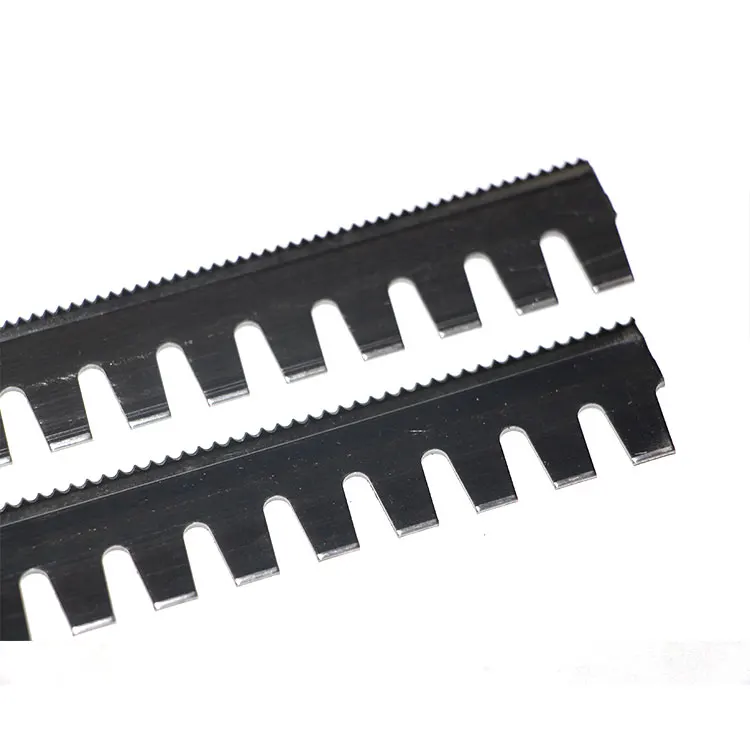

Curved Notch(CN) |
Detailed Images

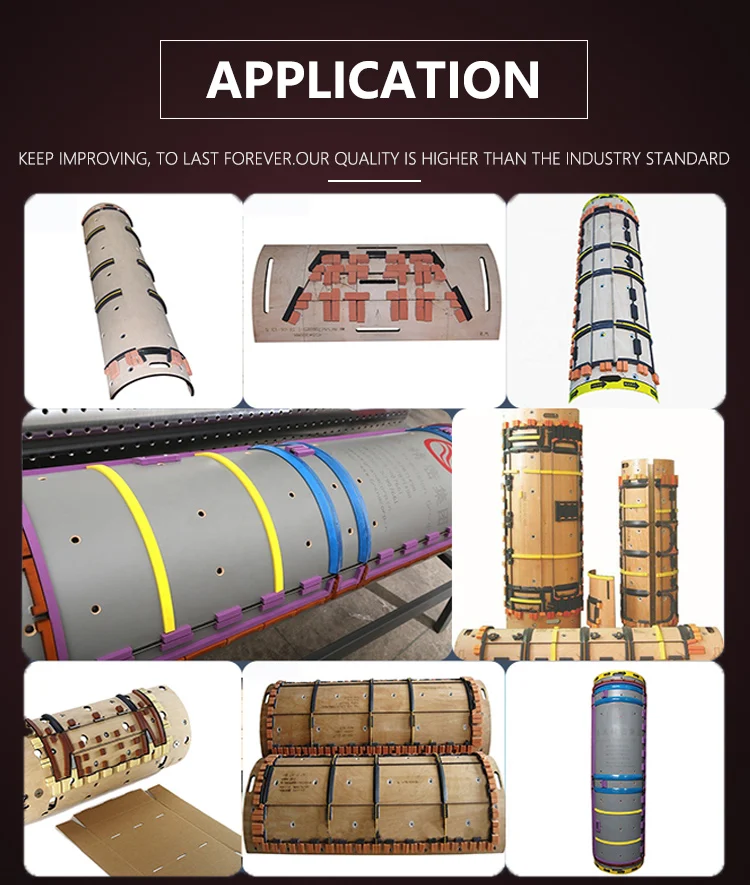

Application
cutting rule for die making
1. It is for rotary wooden laser die making
2. It is easy to be processed by auto bender and manual bender.
