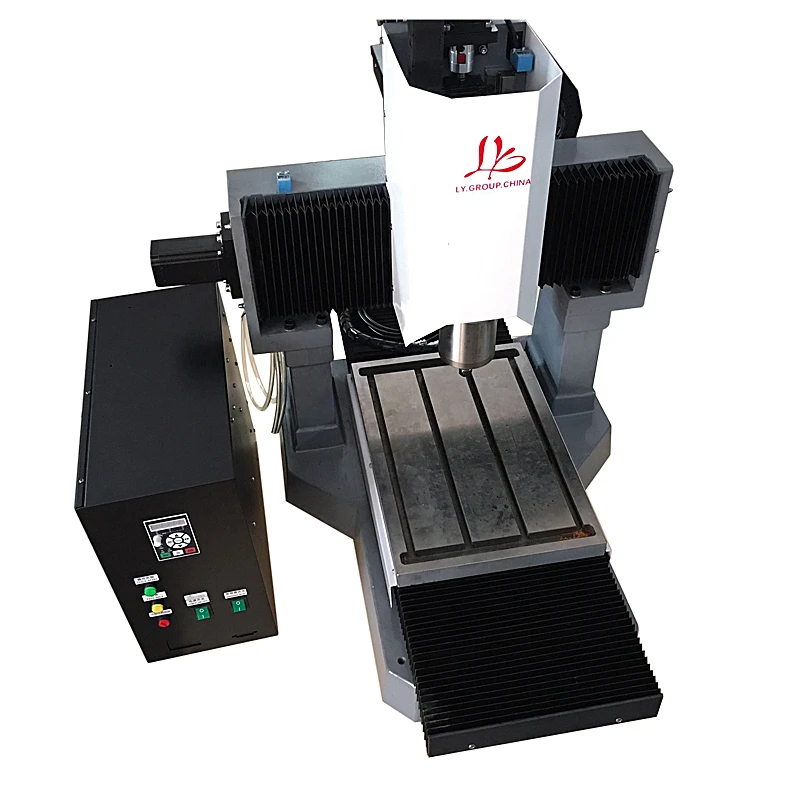

Full Cast Iron CNC 3040 1.5kw 2.2kw 3.5kw Stainsteel Router Brass 3 Axis CNC Engraving Machine Z Axis 170mm with Stepper Motors
- Category: >>>
- Supplier: Shenzhen Liyang Engraving Equipment Co. Ltd.
Share on (1600906378531):
Product Overview
Description
Product Description

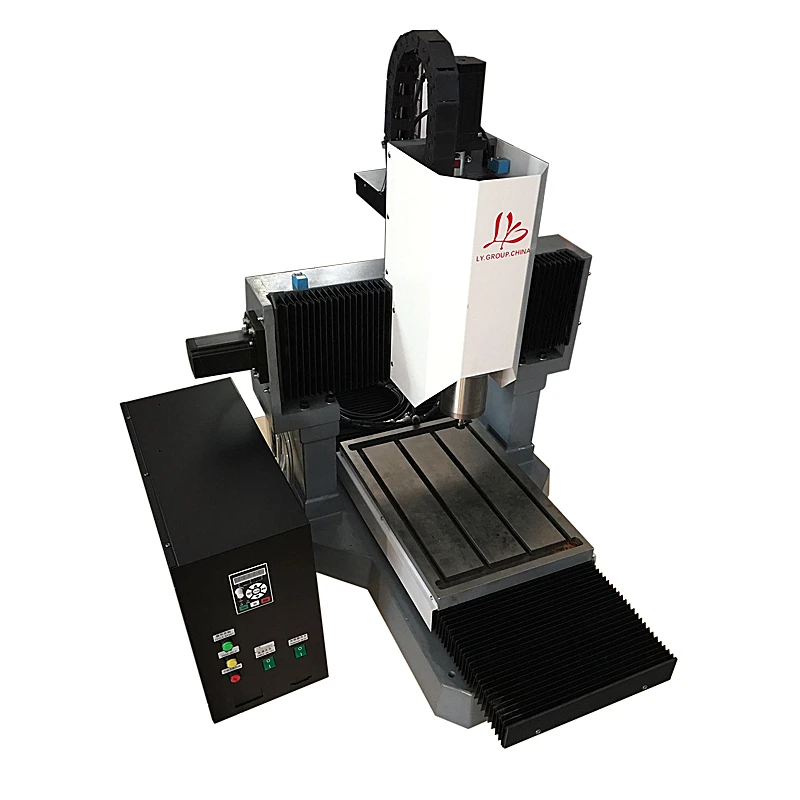

Full Cast Iron CNC 3040 1.5kw 2.2kw 3.5kw Stainsteel Router Brass 3 Axis CNC Engraving Machine Z Axis 170mm with Stepper Motors
Video:
.
This machine is custom-made cast iron CNC router,super heavy,shipping will by SEA only(CFR item),furthermore,we don’t accept return service,only offer parts repair & operation guiding service.

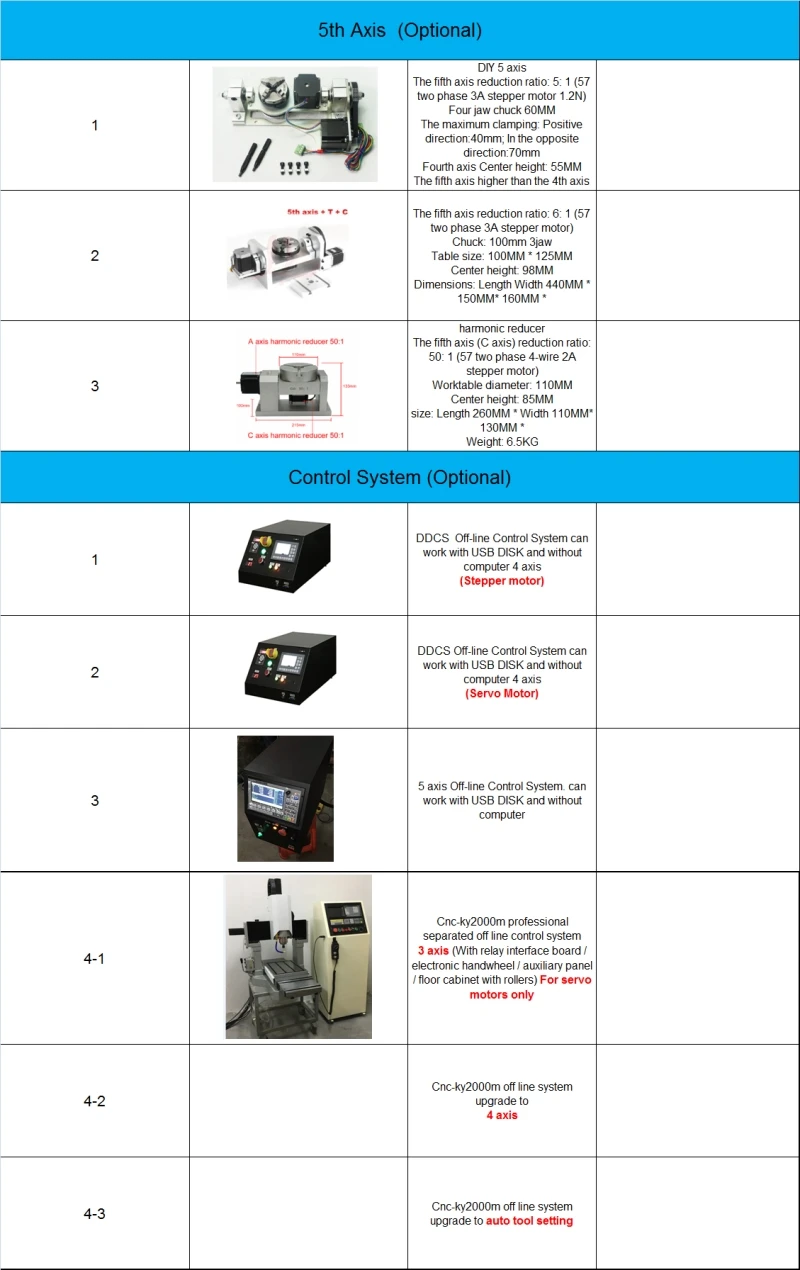

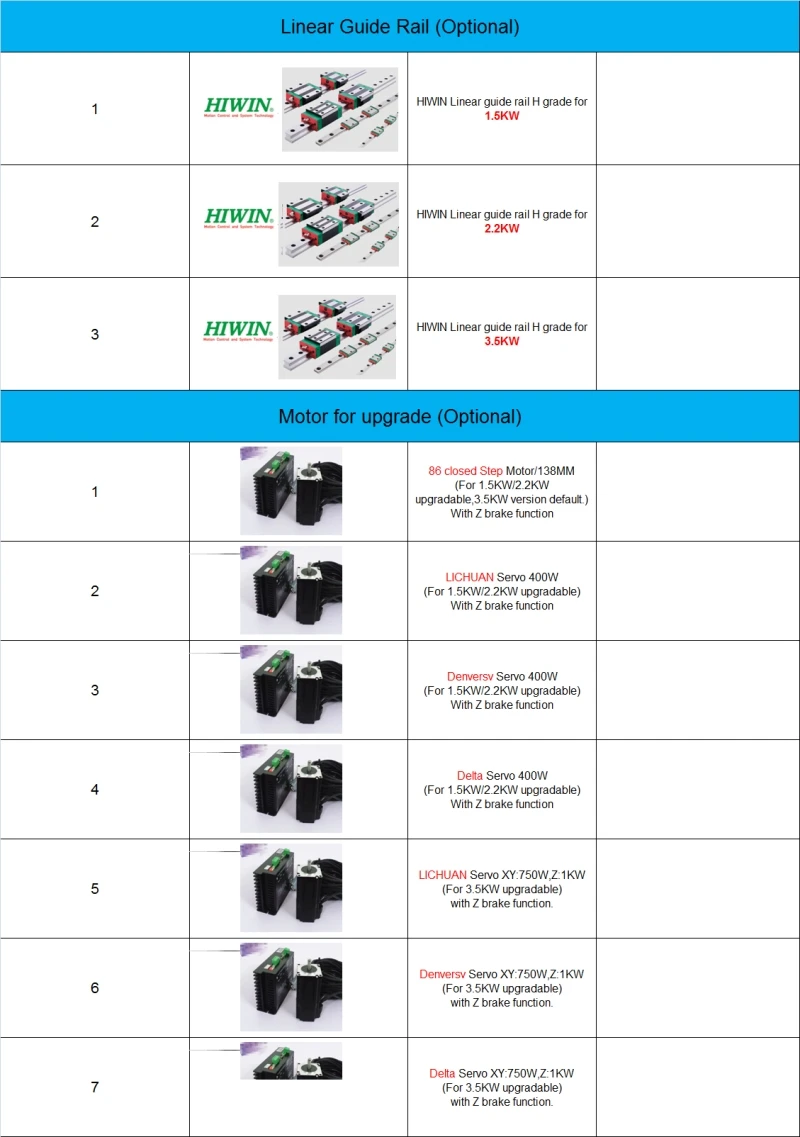

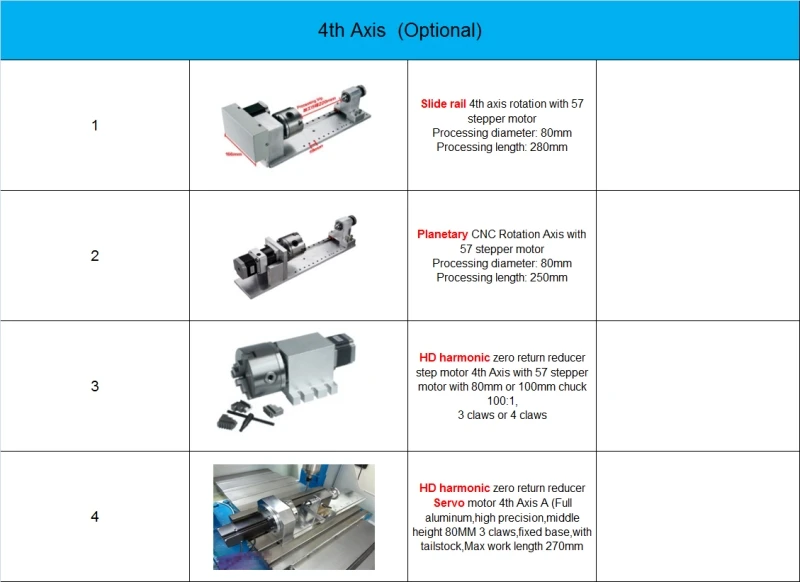

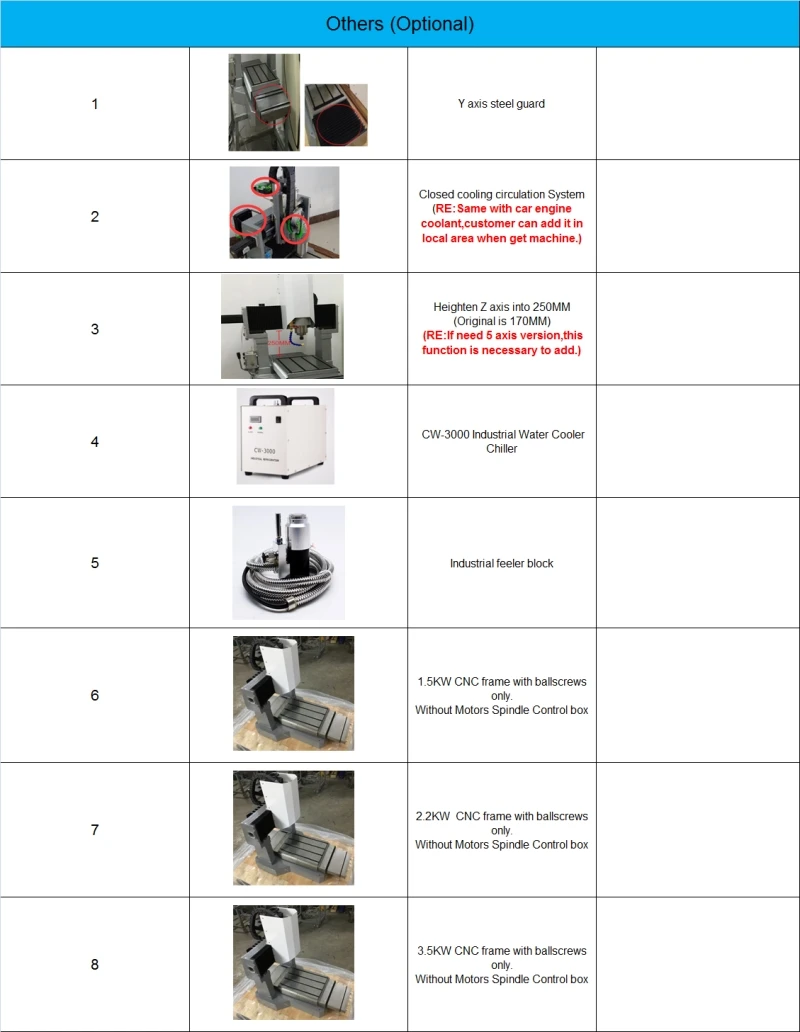

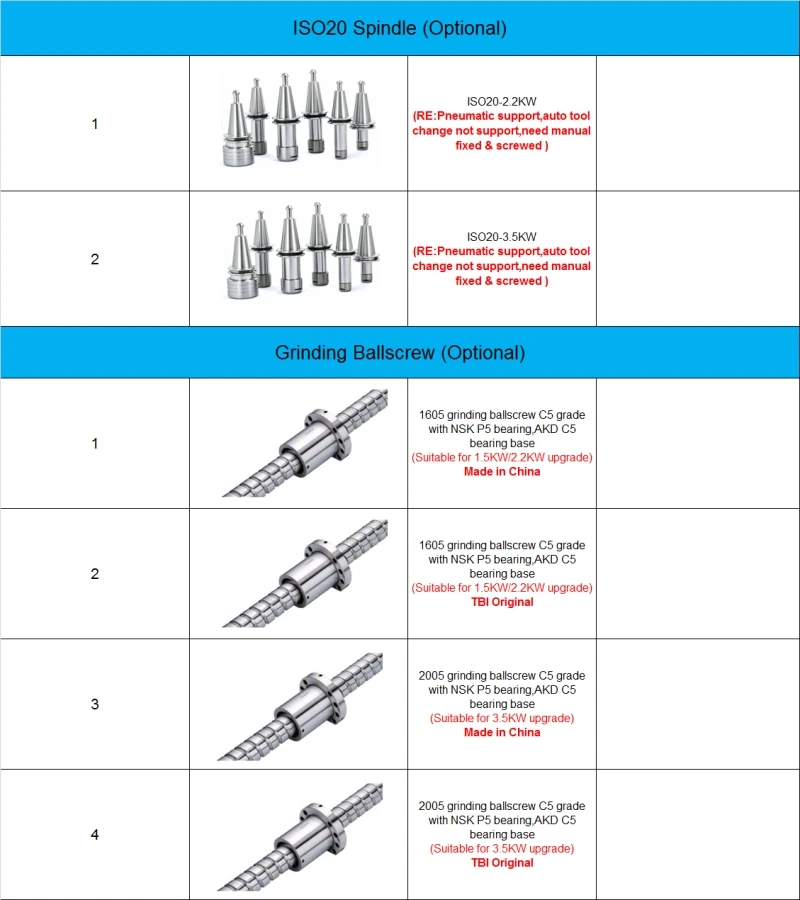

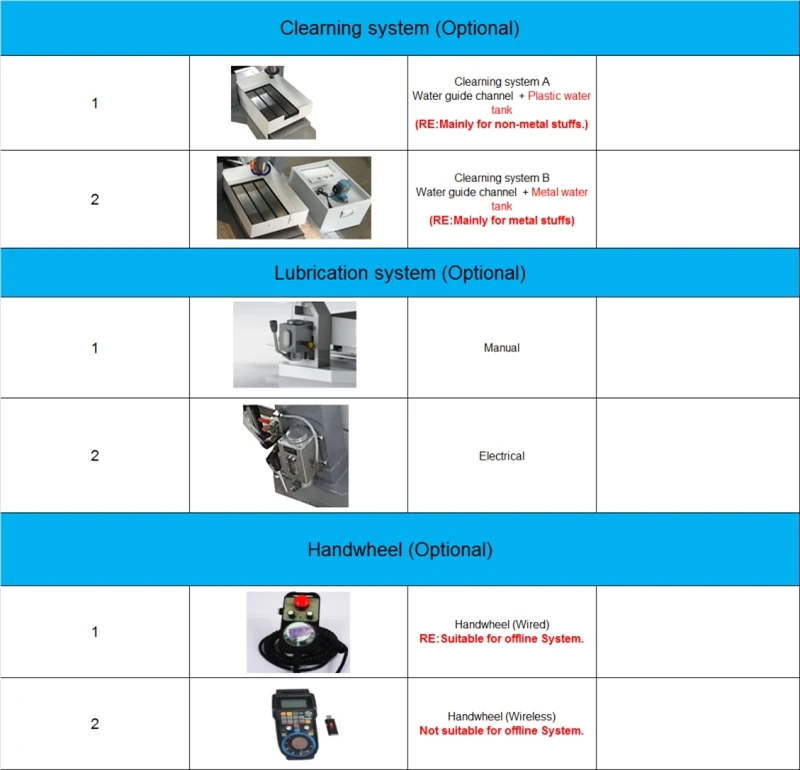

And this link is only basic version of 3 powers,if want to add more functions with original machine,can view our upgrading guide,and leave messages in order or cosult with our salesman before payment.

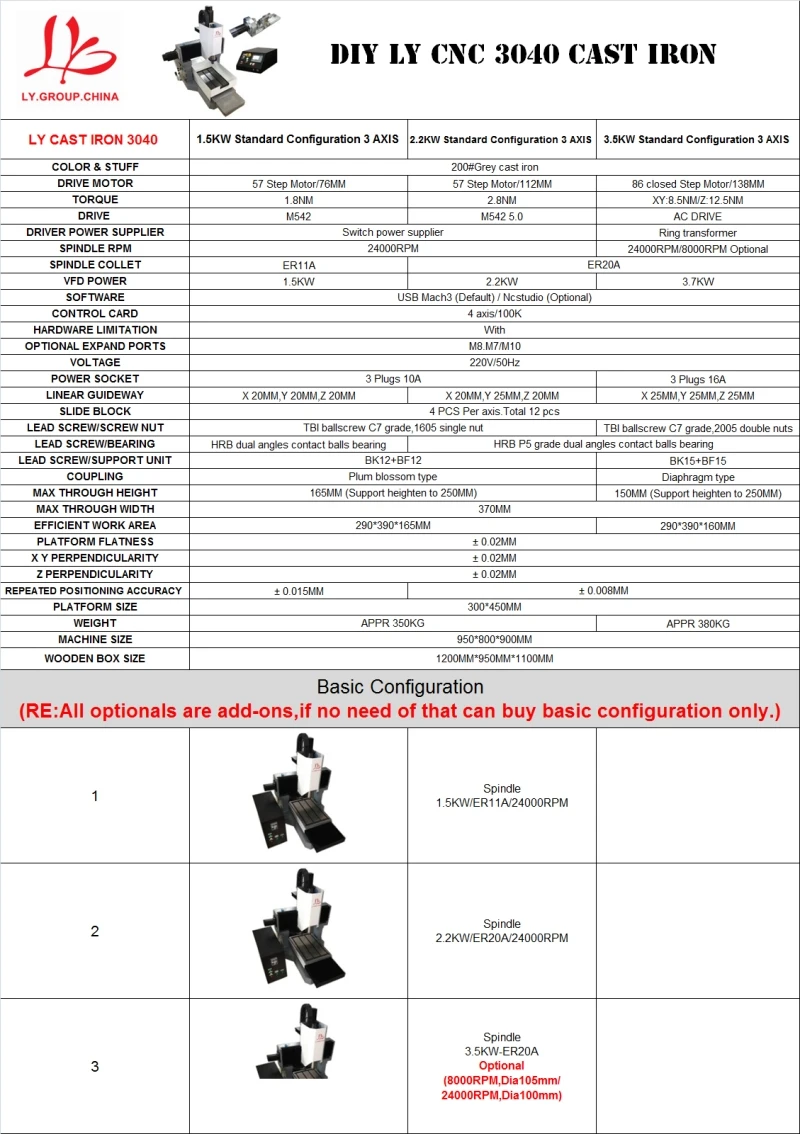

LY CAST IRON 3040 | 1.5KW Standard Configuration 3 AXIS | 2.2KW Standard Configuration 3 AXIS | 3.5KW Standard Configuration 3 AXIS |
COLOR & STUFF | 200#Grey cast iron | ||
DRIVE MOTOR | 57 Step Motor/76MM | 57 Step Motor/112MM | 86 closed Step Motor/138MM |
TORQUE | 1.8NM | 2.8NM | XY:8.5NM/Z:12.5NM |
DRIVE | M542 | M542 5.0 | AC DRIVE |
DRIVER POWER SUPPLIER | Switch power supplier | Ring transformer | |
SPINDLE RPM | 24000RPM | 24000RPM/8000RPM Optional | |
SPINDLE COLLET | ER11A | ER20A | |
VFD POWER | 1.5KW | 2.2KW | 3.7KW |
SOFTWARE | USB Mach3 (Default) / Ncstudio (Optional) | ||
CONTROL CARD | 4 axis/100K | ||
HARDWARE LIMITATION | With | ||
OPTIONAL EXPAND PORTS | M8.M7/M10 | ||
VOLTAGE | 220V/50Hz | ||
POWER SOCKET | 3 Plugs 10A | 3 Plugs 16A | |

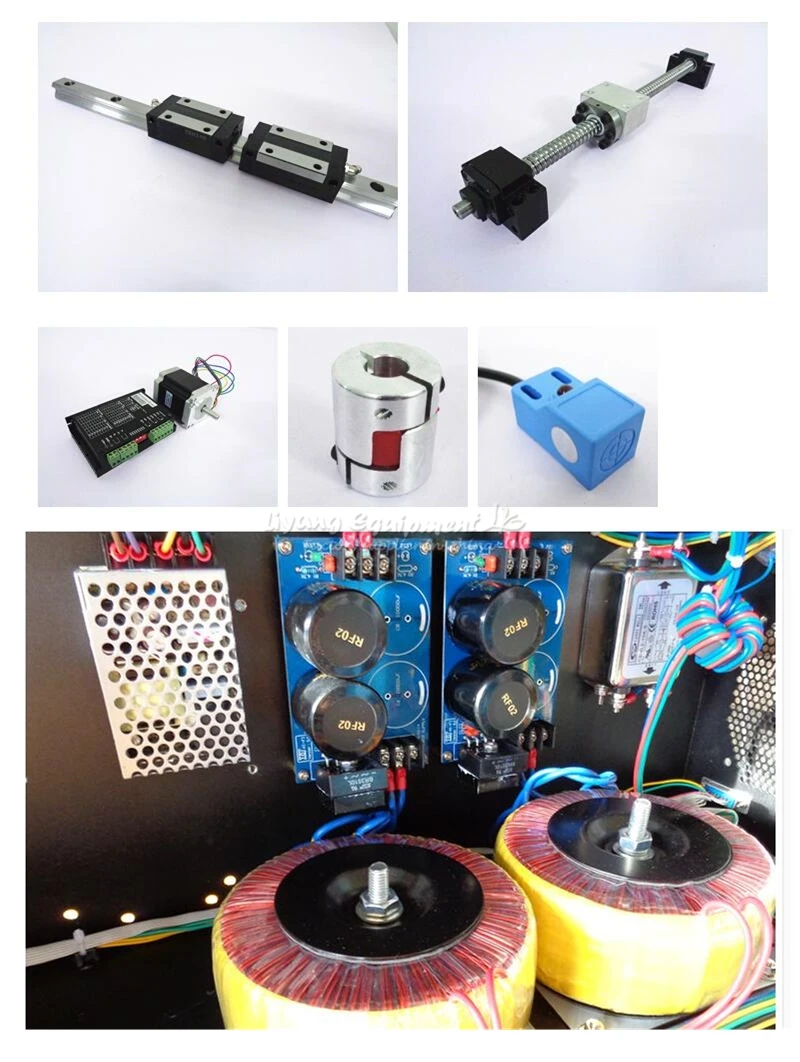

LINEAR GUIDEWAY | X 20MM,Y 20MM,Z 20MM | X 20MM,Y 25MM,Z 20MM | X 25MM,Y 25MM,Z 25MM |
SLIDE BLOCK | 4 PCS Per axis.Total 12 pcs | ||

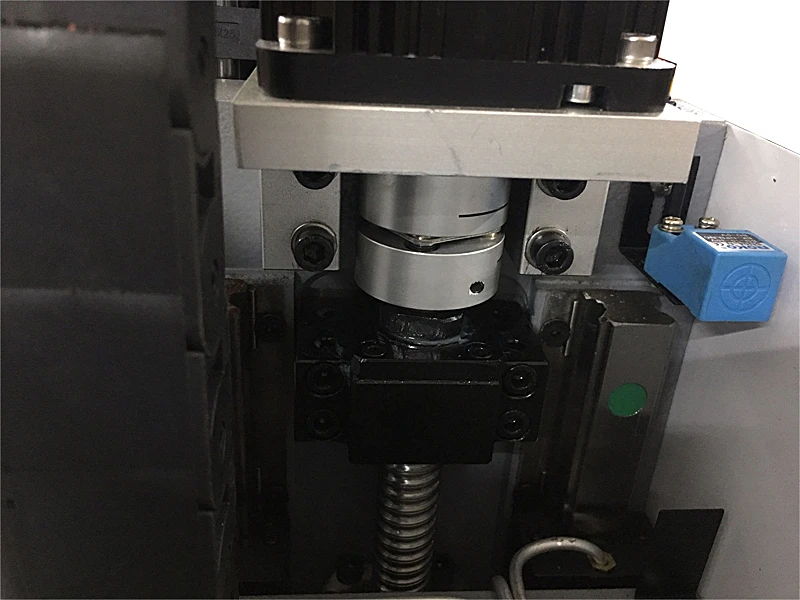

LEAD SCREW/SCREW NUT | TBI ballscrew C7 grade,1605 single nut | TBI ballscrew C7 grade,2005 double nuts | |
LEAD SCREW/BEARING | HRB dual angles contact balls bearing | HRB P5 grade dual angles contact balls bearing | |
LEAD SCREW/SUPPORT UNIT | BK12+BF12 | BK15+BF15 | |
COUPLING | Plum blossom type | Diaphragm type | |
MAX THROUGH HEIGHT | 165MM (Support heighten to 250MM) | 150MM (Support heighten to 250MM) | |
MAX THROUGH WIDTH | 370MM | ||
EFFICIENT WORK AREA | 290*390*165MM | 290*390*160MM | |
PLATFORM FLATNESS | ± 0.02MM | ||
X Y PERPENDICULARITY | ± 0.02MM | ||
Z PERPENDICULARITY | ± 0.02MM | ||
REPEATED POSITIONING ACCURACY | ± 0.015MM | ± 0.008MM | |
PLATFORM SIZE | 300*450MM | ||
WEIGHT | APPR 350KG | APPR 380KG | |
MACHINE SIZE | 950*800*900MM | ||
WOODEN BOX SIZE | 1200MM*950MM*1100MM | ||
Our Services
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5.OEM/ODM accept . MOQ of OEM/ODM is 10-100 sets.

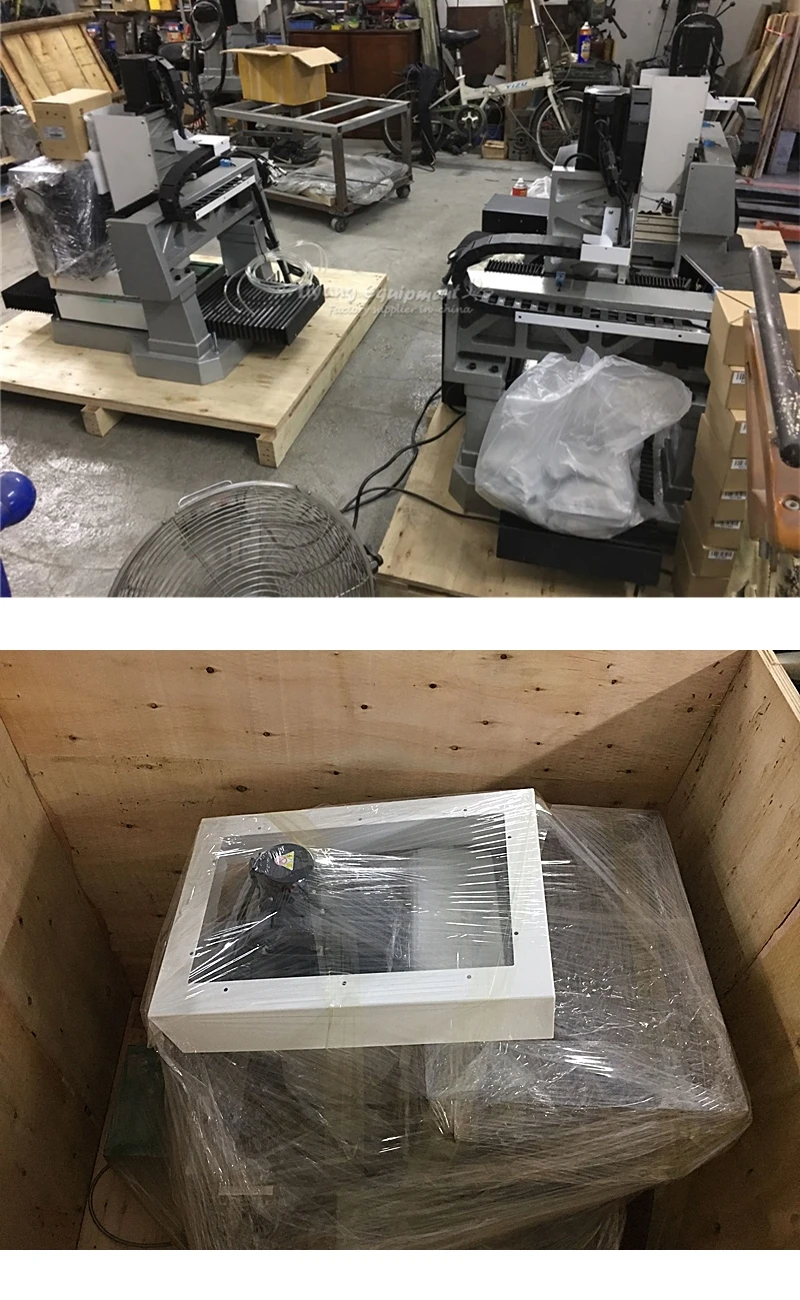

Packaging & Shipping
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from Poland Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to EU or Russia. No need to pay for customs duties and VAT.
D. We can arrange shipment by SEA. Minium CBM requirement : 1 CBM
