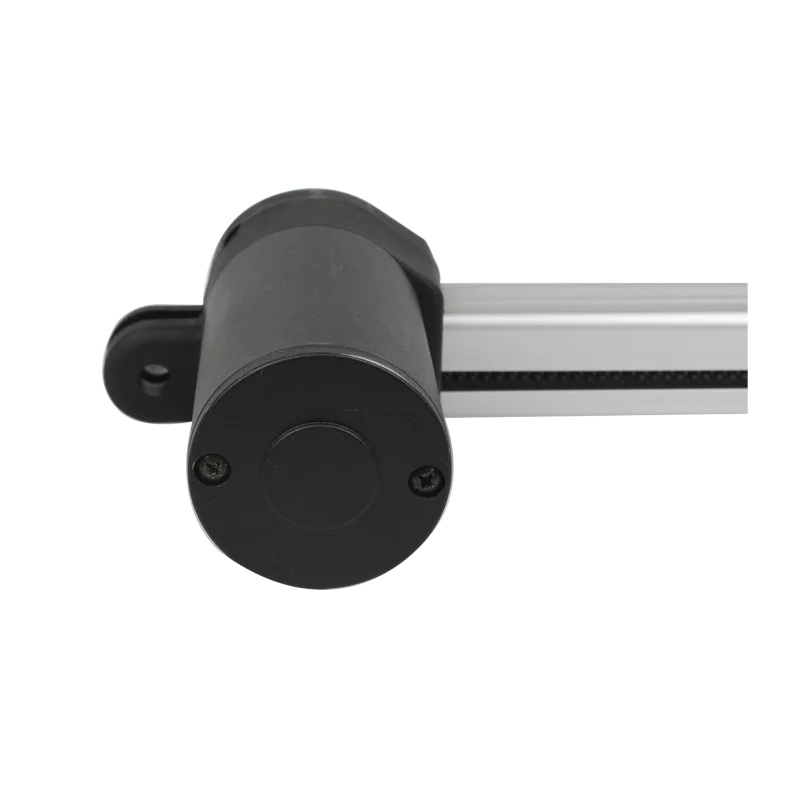

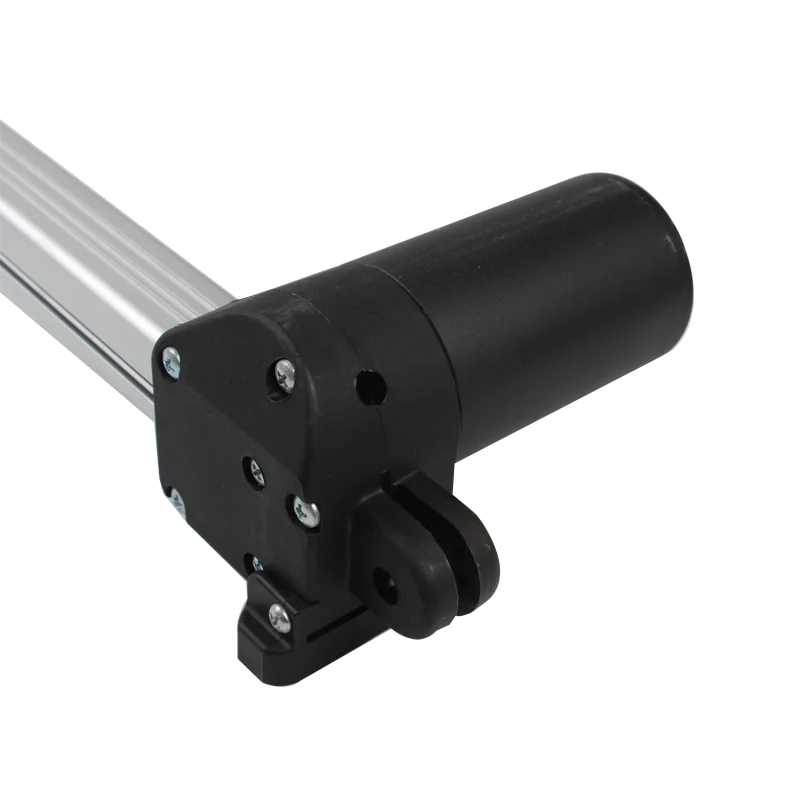

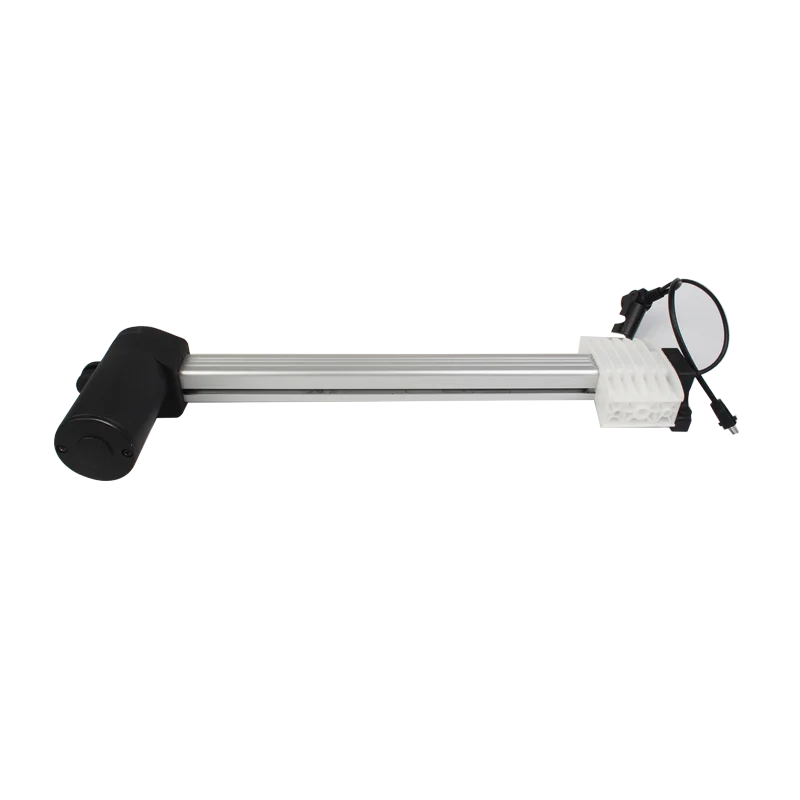

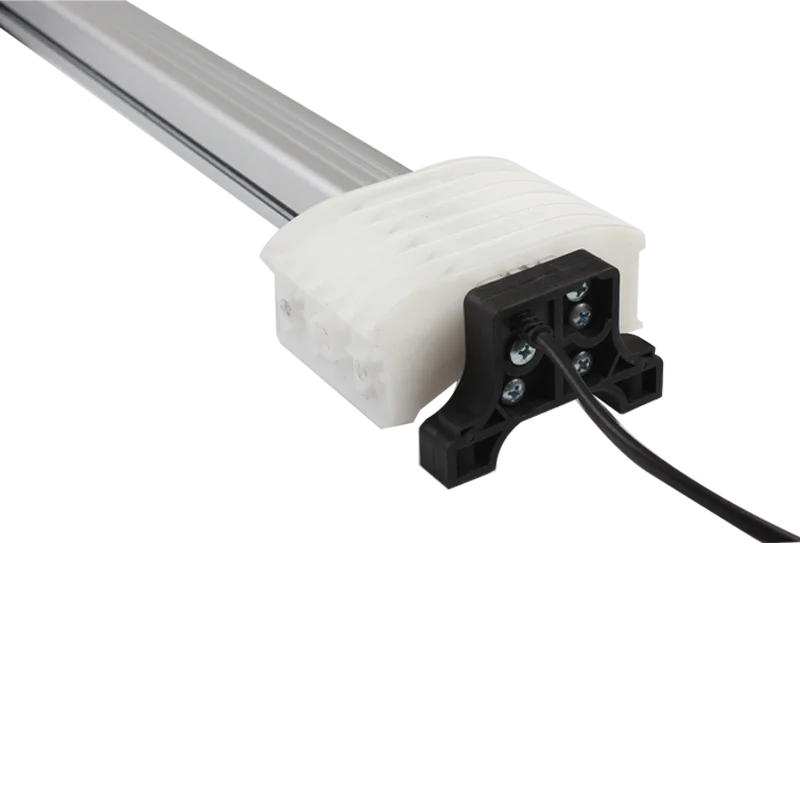

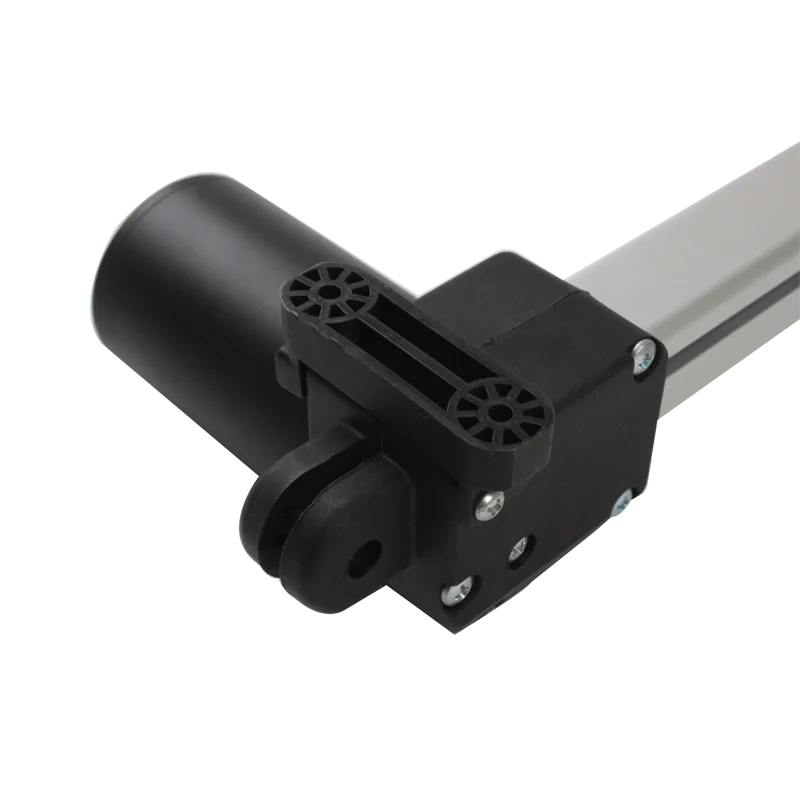

small linear actuator 12V 24V small electric Linear actuator manufacture motor actuator

Share on (1600906392900):


Price:$18.00 - $25.00

Quantity:


Product Overview

Description









Application
Sofa/Leisure chair
Voltage
DC24V
Pushing force
Max 6000N
Pulling force
Max 4000N
Speed
4~36mm/s
Stroke
10~350mm
Limit swiitches
Both ends
Min install dimension
S+165mm
Duty cycle
Max10% intermittent duty,2mins continuous Max
Protection class
IP42
Operation temperature
-5℃~+40℃
Relative humidity
20%~75%
Color
Black shell and silver outer tube
Option
Transformers and hand controllers






FAQ
Q1:What is your MOQ for the order of Linear actuator ?
A1: As usual,sample order from 1pcs to 10pcst, for massive production, the MOQ is 50pcs.

Q2:What is your lead time on the linear actuator?
A2: as usual, we can provide samples within 5-7 days.
For massive production, our delivery date is about 25 days.

Q3:What is your payment way on the linear actuators?
A3: T/T, Paypal, Western Union and other payment way.

Q4: Can you accept ODM and OEM on the linear actuators ?
A4: Yes, we can both accept ODC and OEM.

Q5:Could you customize the linear actuator for us?
A5: Yes, we can customize by your products, to provide the best solution for your products.

Q6: Which port we can choose to ship the linear actuator ?
A6: Shanghai, Ningbo or other ports can be agreed.

Q7: Could you let me know if you have any certificates?
A7: For material, we can provide ROHS, Reach and other certificates, and we have ISO, CE and CCC certificates.

Q8: What service can you provide?
A8: We can provide solution of the linear actuator and technical supports and other sales service.
