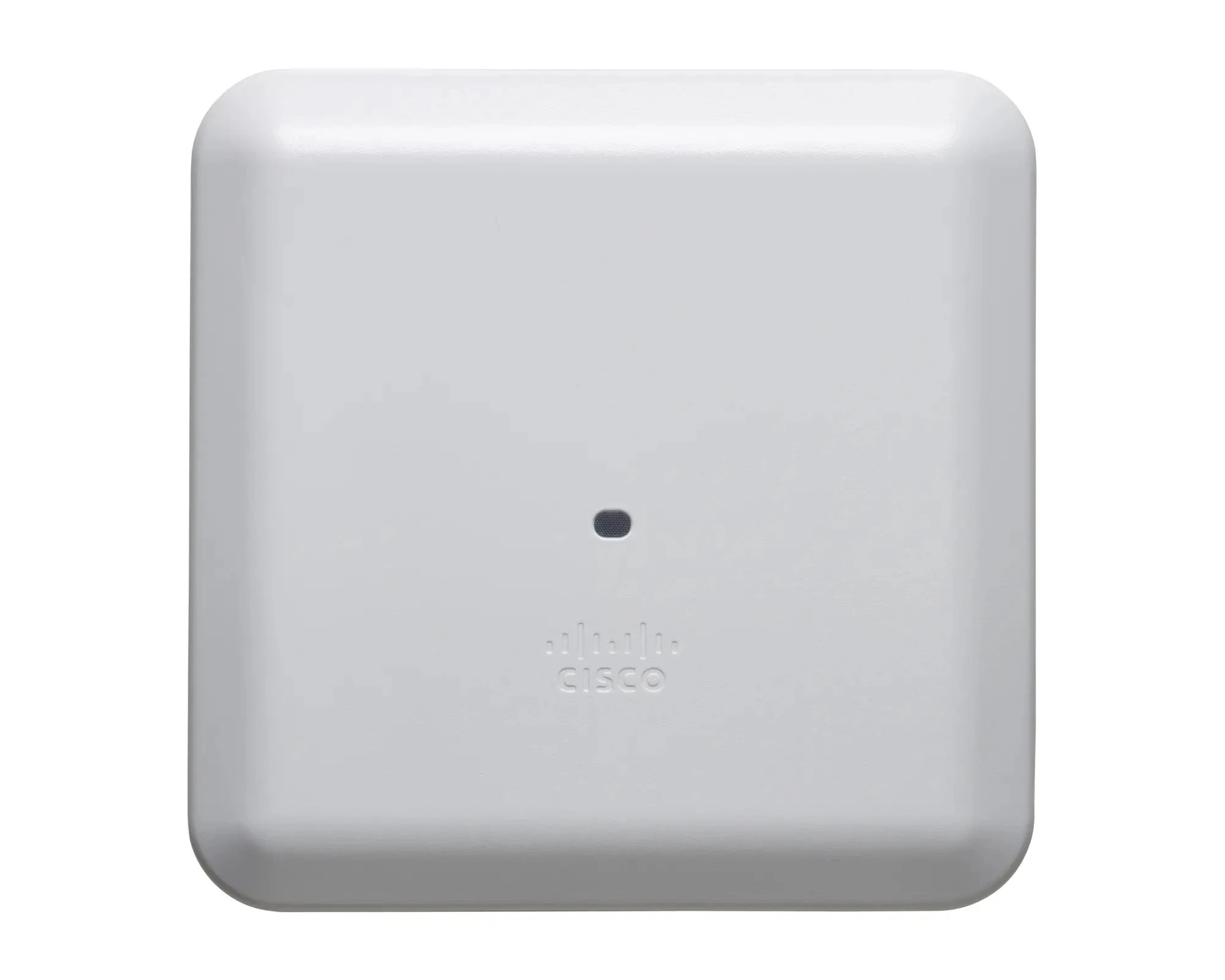

New Original AIR AP3802I A K9 4x4:3, Mod, Internal Antenna, mGig, A Regulatory Domain

AIR-AP3802E-E-K9

Part Number

AIR-AP3802I-A-K9

Description

IEEE 802.11b , IEEE 802.11g , IEEE 802.11n , IEEE 802.11ac wave2

Features

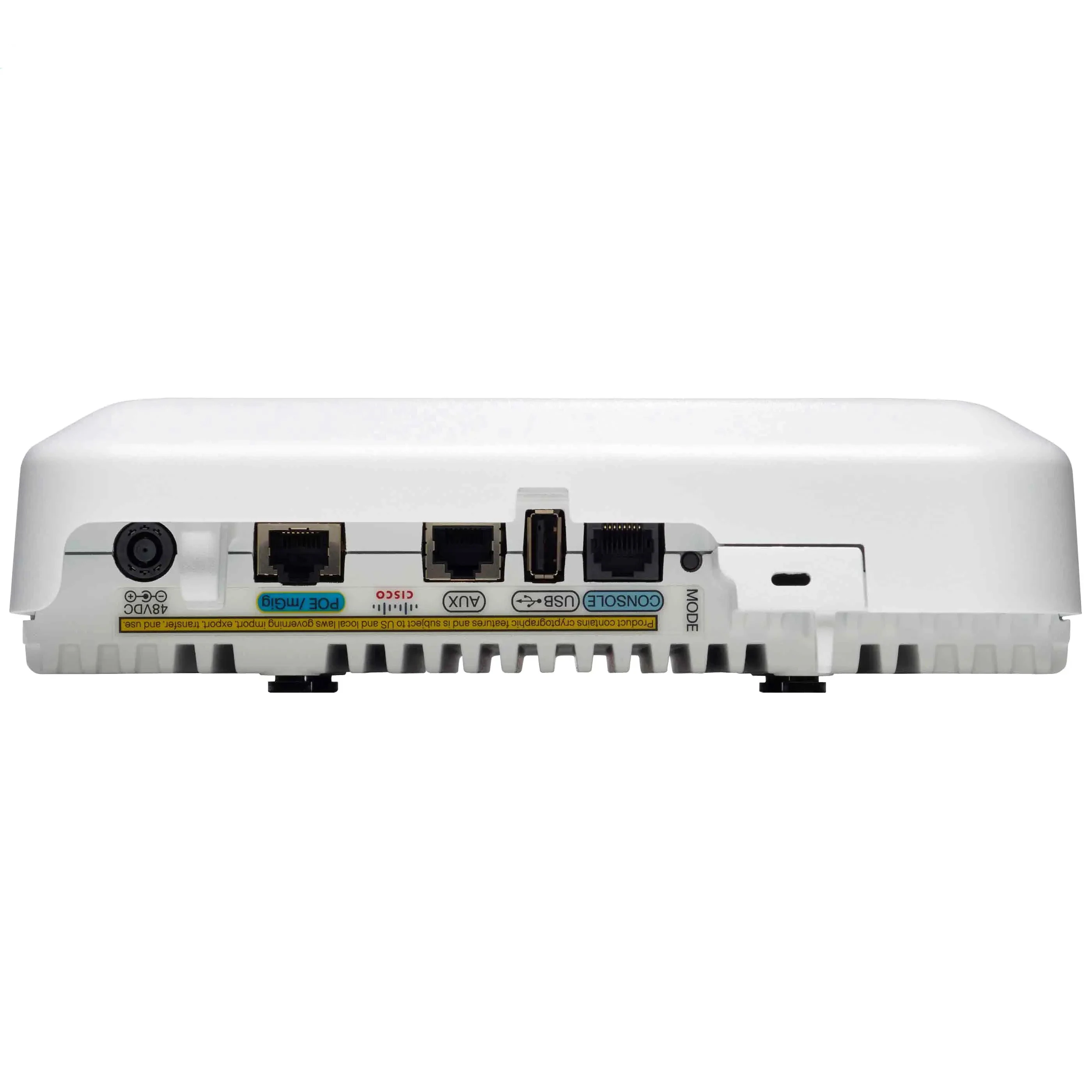

● 2 Ethernet ports
● 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz
◦ CAT 5e cabling
◦ Higher-quality 10GBASE-T (CAT 6/6a) cabling
● 100/1000BASE-T autosensing (RJ-45 - AUX port)
● Management console port (RJ-45)

Regulatory Domain

802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
802.1X
Advanced Encryption Standard (AES)

Integrated antenna

Flexible radio (either 2.4 GHz or 5 GHz)
● 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth
● 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°
Dedicated 5-GHz radio
● 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth

Power draw

● 25.8W at the PSE (22.5W at the PD) with all features enabled except for the USB 2.0 port
● 30W at the PSE (25.5W at the PD) with the USB 2.0 port enabled

Product Size

220X220X67mm

Weight

4.6 lb (2.09 kg)
