FLP30Granulator/Coater/pelletor is multi-function equipment integrated drying-granulating- -fluid coating---pelletor--drying in one body. The machine combined various process operations. Particularly it is suitable for granulating, and coating of varieties in foodstuff industry and chemical industry, etc
FLP-30Series High-efficiency Fluid Bed Granulator is widely utilized for heat airflow under the negative pressure
to make the powder suspend to fluidized, spray the coherence liquid to powder by spray nozzle which is air
flow, making them agglomerate multi-hole particles
to make the powder suspend to fluidized, spray the coherence liquid to powder by spray nozzle which is air
flow, making them agglomerate multi-hole particles
Technical Parameters
Model | 5 | 30 | 60 | 120 | 200 | 300 | 500 | ||||||
Capacity(Kg/Batch) | 5 | 30 | 60 | 120 | 200 | 300 | 500 | ||||||
Material yield Rate(%) | >/=99% | ||||||||||||
Qualified Rate (%) | |||||||||||||
Container Volume(L) | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | ||||||
Diameter(mm) | 500 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | ||||||
Power of Fan(Kw) | 3 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | ||||||
Liquid Feed Power(Kw) | 0.37 | ||||||||||||
Pressure of Steam(MPa) | 0.4~0.6 | ||||||||||||
Consumption Steam(Kg/h) | 18 | 60 | 120 | 140 | 180 | 310 | 400 | ||||||
Compress Air Pressure( MPa) | 0.4~0.6 | ||||||||||||
Consumption of Air(m3/min) | 0.3 | 0.9 | 0.9 | 0.9 | 1.1 | 1.1 | 1.5 | ||||||
Working Temperature C | Room temperature~120C adjustable | ||||||||||||
Noisy(dB) | Installed separated with fan | ||||||||||||
Detailed Information
Detail introduction
★ Mixing - granulation - drying - step method to meet the process requirements.
★ Double capture filter bag system, dust removal thoroughly.
★ Multi-fluid atomizer to ensure uniform particle formation,
Powder content is extremely low.
★ Optional 2 bar explosion-proof design.
★ Design, manufacture and engineering layout according to GMP specifications
★ Double capture filter bag system, dust removal thoroughly.
★ Multi-fluid atomizer to ensure uniform particle formation,
Powder content is extremely low.
★ Optional 2 bar explosion-proof design.
★ Design, manufacture and engineering layout according to GMP specifications

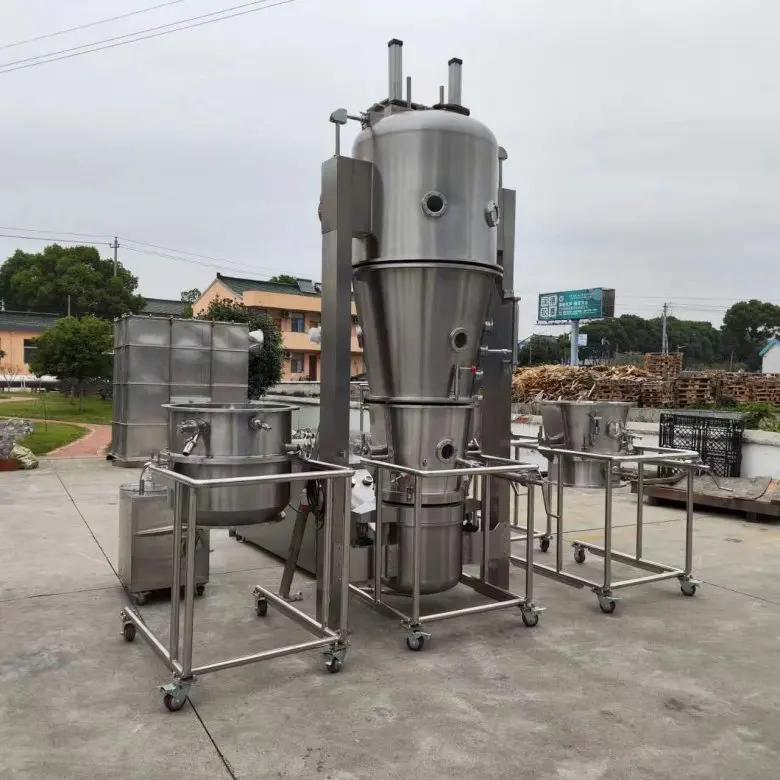

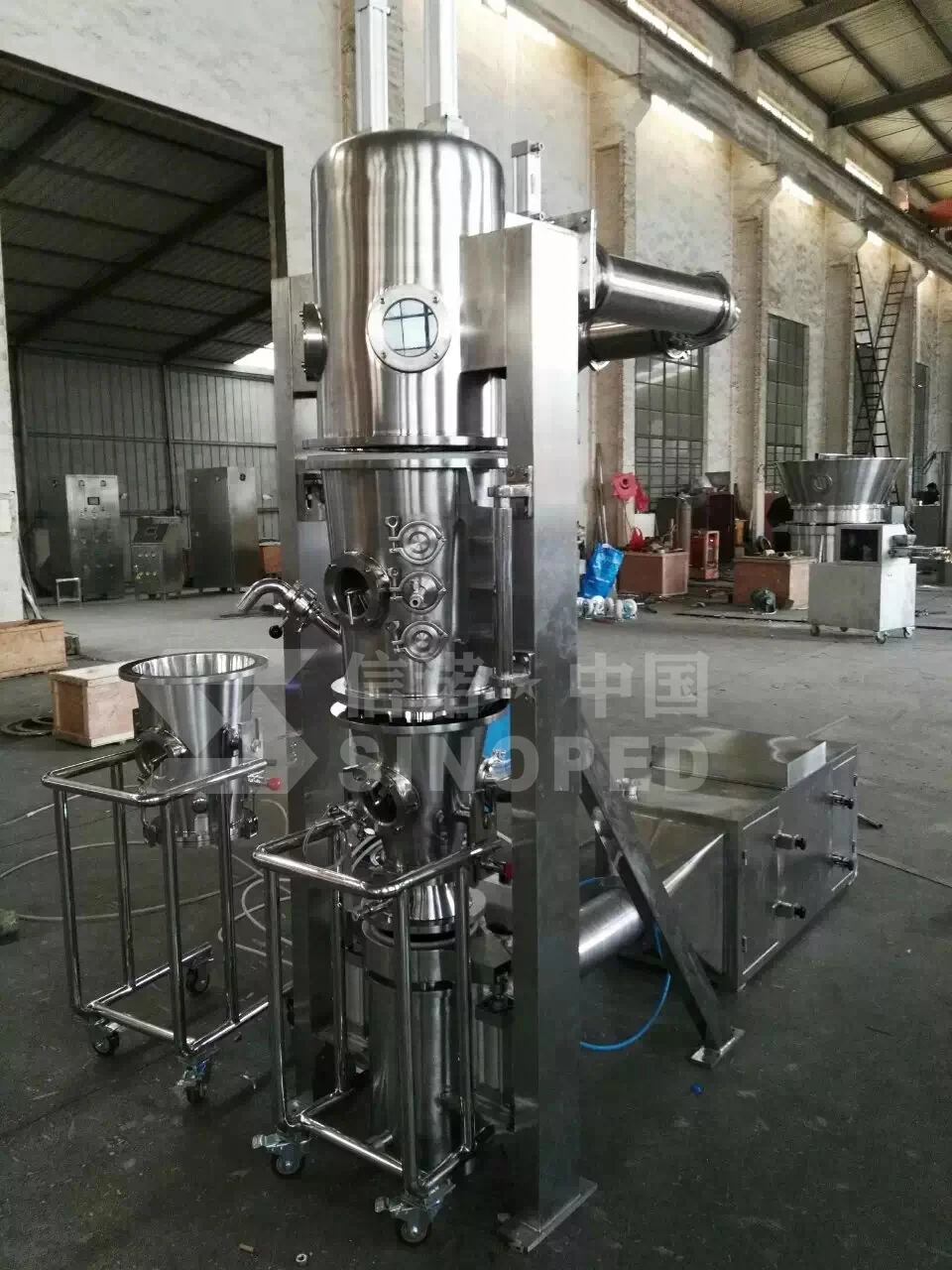

FLP-30 fluidized bed is mainly composed of bed body, gas distribution plate, feed port, discharge port, exhaust port, plus
Heater and other components. The bed body is generally cylindrical or rectangular, with solid particle materials inside.

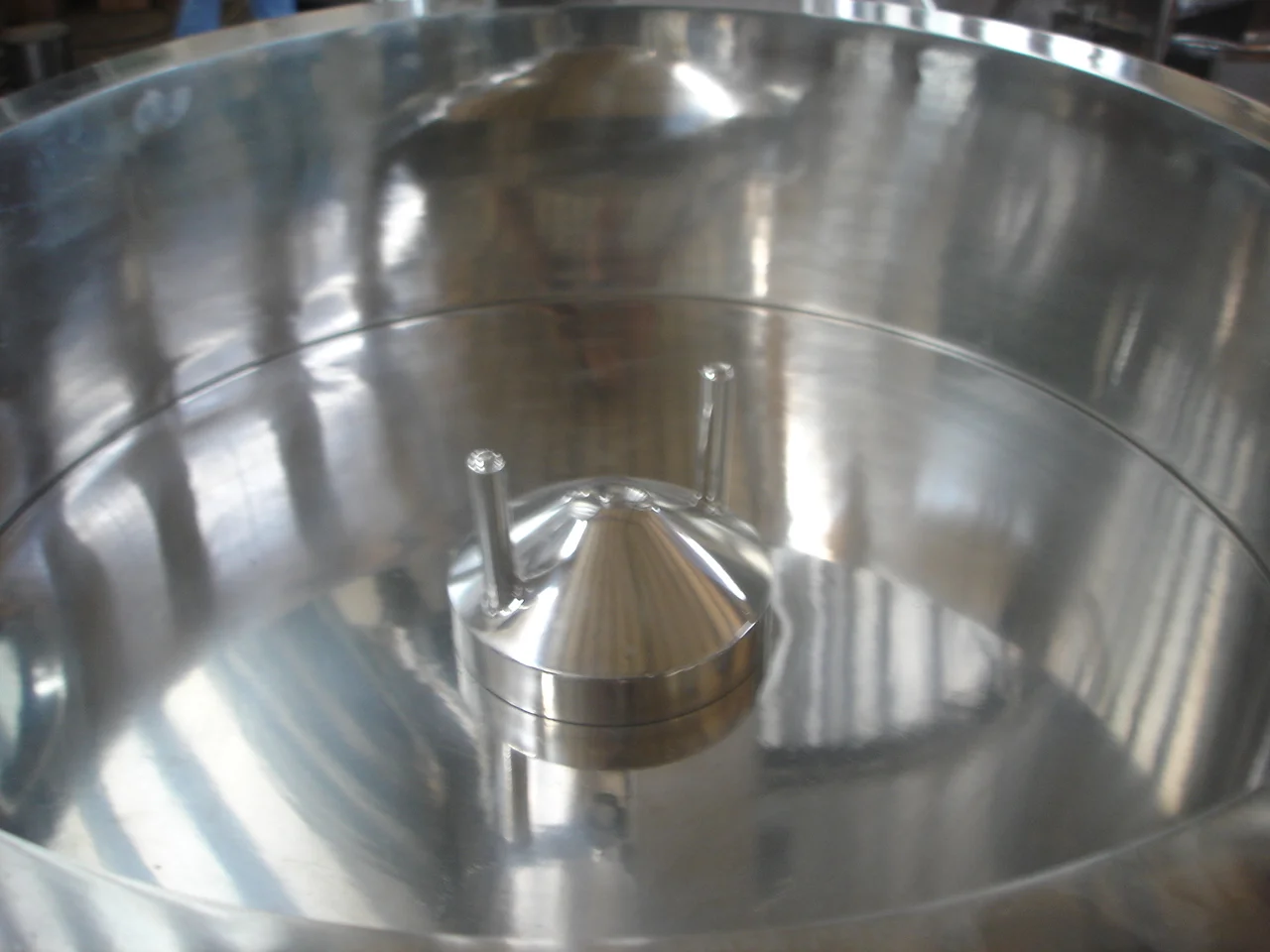

The gas distribution plate is located at the bottom of the bed and is used to evenly distribute the gas flow. Feed port and discharge port Located at the top and bottom of the bed for adding and removing materials. The exhaust port is located at the top of the bed Part, used for exhaust gas. The heater is used to heat the gas and increase the reaction temperature.
The wet material entering the fluidized bed is in contact with the hot air above the air distribution plate, and the material particles are suspended in the air flow to form a fluidization state. The fluid material particles are evenly and fully mixed with the hot air to carry out very strong heat and mass transfer, remove water and achieve drying. The qualified products are discharged from the discharge port of the fluidized bed, and the dust-containing gas is purified by the dust removal device and discharged into the atmosphere by the induced draft fan.Heater and other components. The bed body is generally cylindrical or rectangular, with solid particle materials inside.
The gas distribution plate is located at the bottom of the bed and is used to evenly distribute the gas flow. Feed port and discharge port Located at the top and bottom of the bed for adding and removing materials. The exhaust port is located at the top of the bed Part, used for exhaust gas. The heater is used to heat the gas and increase the reaction temperature.
In short, boiling fluidized bed is an efficient, flexible and reliable chemical equipment, its working principle In short, fluidized bed is an efficient, flexible and reliable chemical equipment, its working principle.
Packing&Dilivery
Standard export wooden case
① Apply some oil to the equipment to prevent rust from the weather during transportation.
② Wrap the device with a winding film to prevent water vapor from contacting the device surface and causing rust.
③ Wrap foam paper around the corners of the teabag packing machine to prevent damage caused by bumping during transportation.
④ This machine is packed in export standard plywood boxes to prevent the equipment from bumping during transportation.
① Apply some oil to the equipment to prevent rust from the weather during transportation.
② Wrap the device with a winding film to prevent water vapor from contacting the device surface and causing rust.
③ Wrap foam paper around the corners of the teabag packing machine to prevent damage caused by bumping during transportation.
④ This machine is packed in export standard plywood boxes to prevent the equipment from bumping during transportation.
