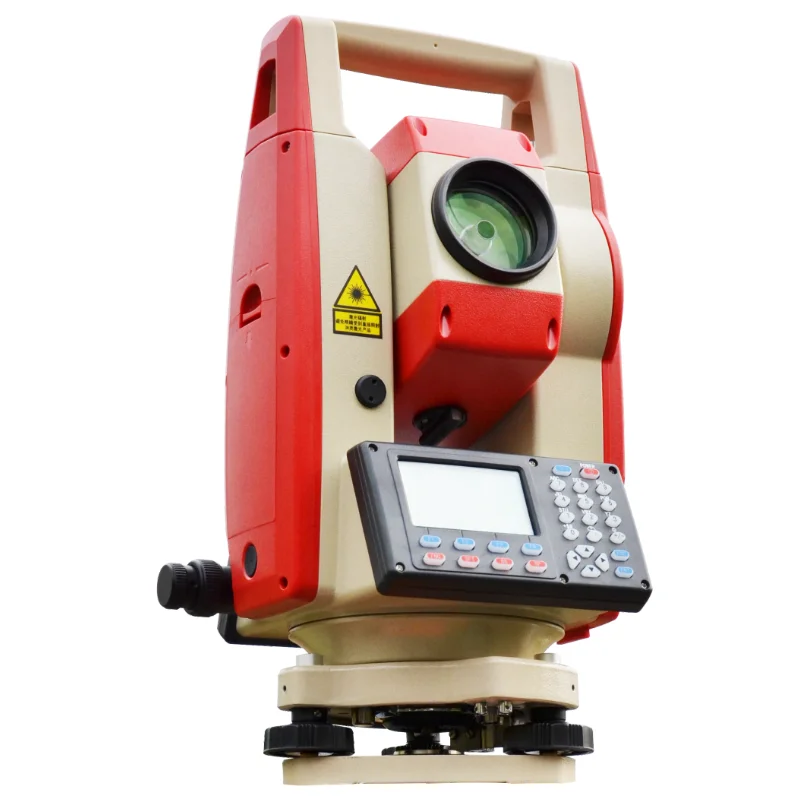

Kolida KTS 442R10 Robotic Survey Instrument Laser Optical Plummet Total Station
- Category: >>>
- Supplier: Shanghai Jice Instrument Co. Ltd.
Share on (1600906956682):
Product Overview
Description
Products Description
Economical surveying equipment Kolida KTS-442UT total station
KTS-442UT
Trigger key and USB are added to KTS-442R series, as well as other 5 new updates.
The High Performance Total Station with Great Reliability, Flexibility and Economy.
*Kolida's new generation of total station enjoys new functions, KTS-442R10U has new quick measurement keys, SD card is upgraded to U disk interface, standard built-in Bluetooth, newly upgraded LCD screen and font library, larger screen, font display Clearer, starting from the actual field measurement, tailor-made measurement procedures suitable for pure field operation, the instrument
is simple and practical to operate, and can be easily used without measurement experience.
is simple and practical to operate, and can be easily used without measurement experience.

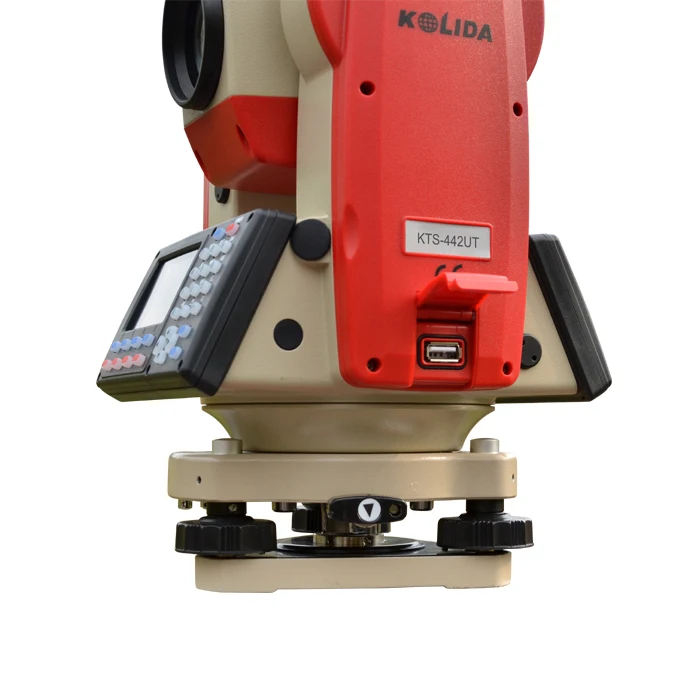

*New U disk interface transmission
The serial port SD card is upgraded to a U disk interface, and data import and export are carried out through the U disk, which is
convenient and fast
The serial port SD card is upgraded to a U disk interface, and data import and export are carried out through the U disk, which is
convenient and fast

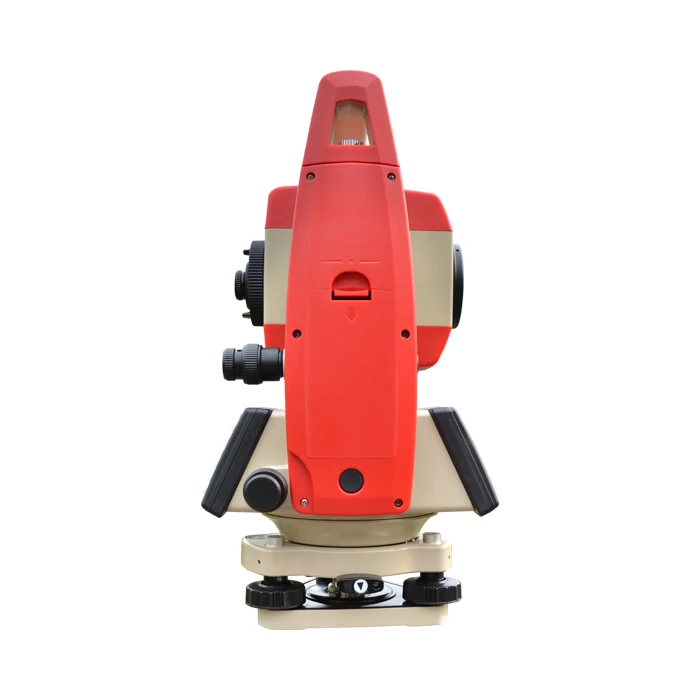

*One-click measurement, one step faster
A new quick measurement button is added, just press the black circular measurement button on the side of the total station to
start the measurement
A new quick measurement button is added, just press the black circular measurement button on the side of the total station to
start the measurement
Specification
KTS-442UT | ||
MeasuringRange | ||
1P | 5.0km | |
3P | 8-10km | |
Nonprism | 1000m(1500moptional) | |
DigitalDisplay | Maximum:99999999.9999Minimum:0.1mm | |
Accuracy | Withprism:2mm+2ppm,withoutprism3mm+2ppm | |
MeasuringTime | Tracking0.1s,Fine0.3s(optimal) | |
AtmosphericCorrection | AutomaticCorrectionbyInputtingParameter | |
PrismConstant | AutomaticCorrectionbyInputtingParameter | |
AngleMeasurement | ||
MeasurementMethod | AbsoluteEncoding | |
DiameterofTheRasterDisk | 79mm | |
MinimumReading | 1＂/5＂Optional | |
Accuracy | 2＂ | |
DetectionMethod | Horizontal:FourSensorsVertical:FourSensors | |
Telescope | ||
Image | Erect | |
Length | 154mm | |
EffectiveAperture | 45mm(DTM50mm) | |
Magnification | 30X | |
FieldofView | 1°30＇ | |
ResolvingPower | 3＂ | |
MinimumFocus | 1m | |
Compensation | ||
System | Dualaxisliquid-electric | |
WorkingRange | ±3＇ | |
ResolvingPower | 1＂ | |
SensitivityofVials | ||
PlateVial | 30＂/2mm | |
CircularVial | 8＇/2mm | |
LaserPlummet | Yes | |
DataStorageandCommunication | ||
InternalMemory | 12MB(upto100,000points) | |
ExternalMemory | USBFlashDisk(upto256GB) | |
CommunicationPort | USB,Bluetooth | |
Display | ||
Type | Dualsides,6lines,blackandwhite | |
Battery | ||
PowerSupply | Rechargeablebattery(3100mAH) | |
Voltage | 7.4VDC | |
OperationTime | 20hoursbytwobatteries | |
DimensionandWeight | ||
Dimension | 160mm×150mm×330mm | |
Weight | 5.7kg | |
EnvironmentalSpecification | ||
Dust/Water(IEC60529) | IP66 | |
WorkingTemperatureRange | -30℃~50℃ | |
Humidity | 95%,non-condensing | |
Company Profile
Shanghai Jice Instrument Co., Ltd. was established in Shanghai, specializing in the manufacturing and sales of measuring
equipment. We are committed to becoming a professional measurement equipment supplier. Our goal is to provide the best products and excellent services to customers around the world.We have been engaged in the geographic surveying and mapping industry for 13 years. We rely on our professional technology and years of cooperation experience with manufacturers to provide you with all the products you need at a reasonable price and provide technical support.
Our business has just started, and we invite you to be a part of success.
