New Wwifi 24V Digital HVAC Programmable Air Conditioner Room thermostat
- Category: >>>
- Supplier: Shenzhen Toupwell Technology Co. Ltd.
Share on (1600906961552):
Product Overview
Description
Product Description

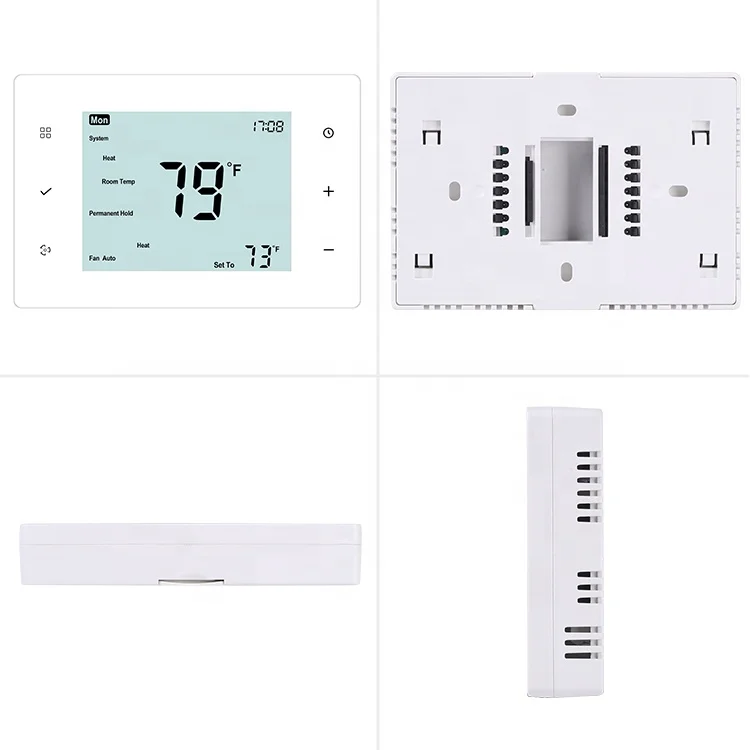

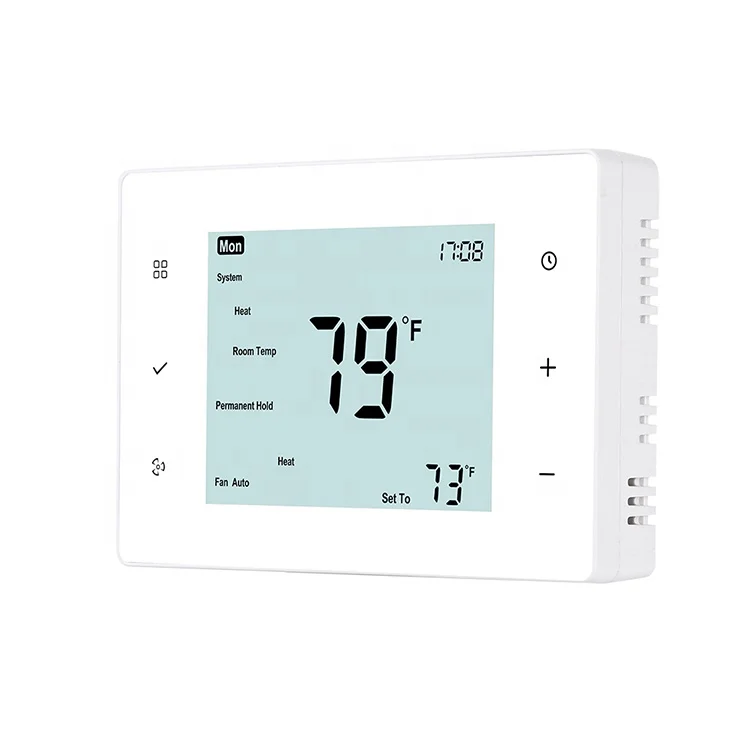

TP808 WiFi Thermostat
The TP808 series 3 Heat/2 Cool universal thermostat, Compatible with heat pump system,
.With amazing large display LCD.It has design to used in domestic.commercial,civil properties.With wifi and weekly
programmable.Easy convenient and energy saving for you to use.WIFI control.You could control via your mobile phone anywhere.This is very convenient and enjoyable.
.With amazing large display LCD.It has design to used in domestic.commercial,civil properties.With wifi and weekly
programmable.Easy convenient and energy saving for you to use.WIFI control.You could control via your mobile phone anywhere.This is very convenient and enjoyable.
Thermostat Features
1. Large LCD screen will bring you to a secret world.
2. 4 inch Large colorful screen display area, creates your colorful life.
3. Touch buttons to make simple operation.
4. Amazing Frame opens your modern life.
5. Wall mount installation. The visiable thickness above the wall is only 2cm.
6. The snap connection allows you to easily install.
7. Wall mounted or suitable for the installation of Europe, China, Japan, USA and Italy.
8. White ,black or brushless stainless steel to choose from.
9. Wrap-around cooling holes help heat to escape quickly and avoid affffecting temperature detection.
10. 12 terminal blocks for more systems.
2. 4 inch Large colorful screen display area, creates your colorful life.
3. Touch buttons to make simple operation.
4. Amazing Frame opens your modern life.
5. Wall mount installation. The visiable thickness above the wall is only 2cm.
6. The snap connection allows you to easily install.
7. Wall mounted or suitable for the installation of Europe, China, Japan, USA and Italy.
8. White ,black or brushless stainless steel to choose from.
9. Wrap-around cooling holes help heat to escape quickly and avoid affffecting temperature detection.
10. 12 terminal blocks for more systems.
Specification
Power supply | 24VAC ±10% /Cwires option | Storage Temp. | 23~113℉ (-5~45℃) |
Current Load | 1A (Inductive) 3A (Resistance) | Power Consumption | <1.5W |
Sensor | NTC3950,10K±1% | Timing Error | < 1% |
Accurancy | ±1℉ | Shell Material | PC +ABS ( Fireproof) |
Set Temp. Range | 42-122℉(5~50℃) | Installation box | Available Installation 1: Wall mounted Available Installation 2: Hole Distance of 62±5mm (Europe, China and Japan) Available Installation 3: Hole Distance of 86±3mm (USA and Italy etc,.) |
Dispaly Temp.Range | 41~210℉(5~99℃) | Wire Terminals | 2 x 1.5 mm2 or 1 x 2.5 mm2 |
Ambient Temp. | 32~113℉(0~45℃) | Protection Class | IP20 |

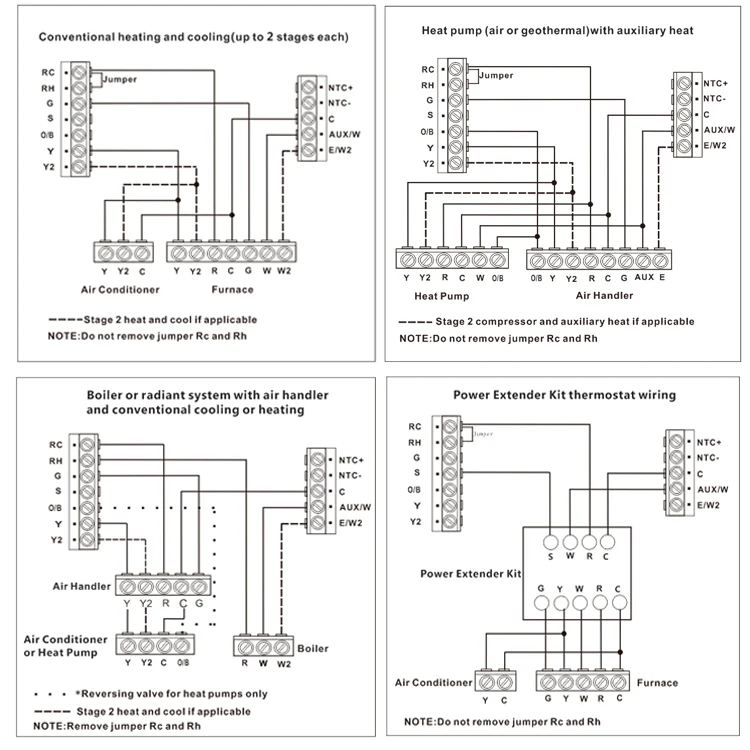

Thermostat's Wiring Diagram &Application system
1heat 1cool Single stage for heat pump system
2heat 2cool Two stage for heat pump system
3heat 3cool for universal using system
.........
...........
More functiones.Could contact our sales person to know more
Thermostats detail pictures
Other releated products
Packing & Delivery
Carton size:52*45*32CM 67PCS/CTN
GW:21KGS
We will shipping via TNT,DHL,UPS,FEDEX or by sea for you
Sample delivery time:3days Bulk order:7-20days depends on production reply
GW:21KGS
We will shipping via TNT,DHL,UPS,FEDEX or by sea for you
Sample delivery time:3days Bulk order:7-20days depends on production reply
Company Profie
Toupwell is one of the main HVAC products suppier in China.Inlcuding room thermostats ,valves ,sensors .With more than 13years of
HVAC line.We have strong R&D experiences .Fast reaction ,Quickly delivery.These help us have many famous brand partners.We are
locted in ShenZhen nearby HongKong.This is very convenient to export products or meet customers..
HVAC line.We have strong R&D experiences .Fast reaction ,Quickly delivery.These help us have many famous brand partners.We are
locted in ShenZhen nearby HongKong.This is very convenient to export products or meet customers..
Thermostats Produce Steps .
Certifications
FAQ
Q1.Why choose us?
A:With more than 10years experiences in room thermostats and valves line.We are confidient about our products could satisfied
customers.B:Quick delivery time, excellent quality and comprehensive superior service we can give our customers complete
satisfaction.
C. 100% QC inspection before shipping.
Q2. What about the lead time?
A:Sampleneeds 3-5 days, mass production time needs 2-4 weeks.
Q3. Do you have any MOQlimit for your prodcuts?
A: 50pcs. 10pcs for samplechecking is available.OEM/ODM order MOQ:300PCS
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples we usually ship byDHL, UPS, FedEx, TNT.It usually takes 3-5 days to arrive.
Bulk orders,We generally choose airline and sea shipping is also optional.
Airline need 3-6 days and sea shipping need 20-35 days.
Q5 Payment
Acturally, payment would be preferred: Normally we choose in T/T, usually is 30% deposit and pay the balance before shipment.
Q6. How to proceed an order ?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q7:Whats the warranty of your product?
Normally 18months after goods shipping out. Human damaged item do not including
Q8:Do you have certificate of your products?
Yes.All items are approved by CE.Some have Rohs
A:With more than 10years experiences in room thermostats and valves line.We are confidient about our products could satisfied
customers.B:Quick delivery time, excellent quality and comprehensive superior service we can give our customers complete
satisfaction.
C. 100% QC inspection before shipping.
Q2. What about the lead time?
A:Sampleneeds 3-5 days, mass production time needs 2-4 weeks.
Q3. Do you have any MOQlimit for your prodcuts?
A: 50pcs. 10pcs for samplechecking is available.OEM/ODM order MOQ:300PCS
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples we usually ship byDHL, UPS, FedEx, TNT.It usually takes 3-5 days to arrive.
Bulk orders,We generally choose airline and sea shipping is also optional.
Airline need 3-6 days and sea shipping need 20-35 days.
Q5 Payment
Acturally, payment would be preferred: Normally we choose in T/T, usually is 30% deposit and pay the balance before shipment.
Q6. How to proceed an order ?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q7:Whats the warranty of your product?
Normally 18months after goods shipping out. Human damaged item do not including
Q8:Do you have certificate of your products?
Yes.All items are approved by CE.Some have Rohs
