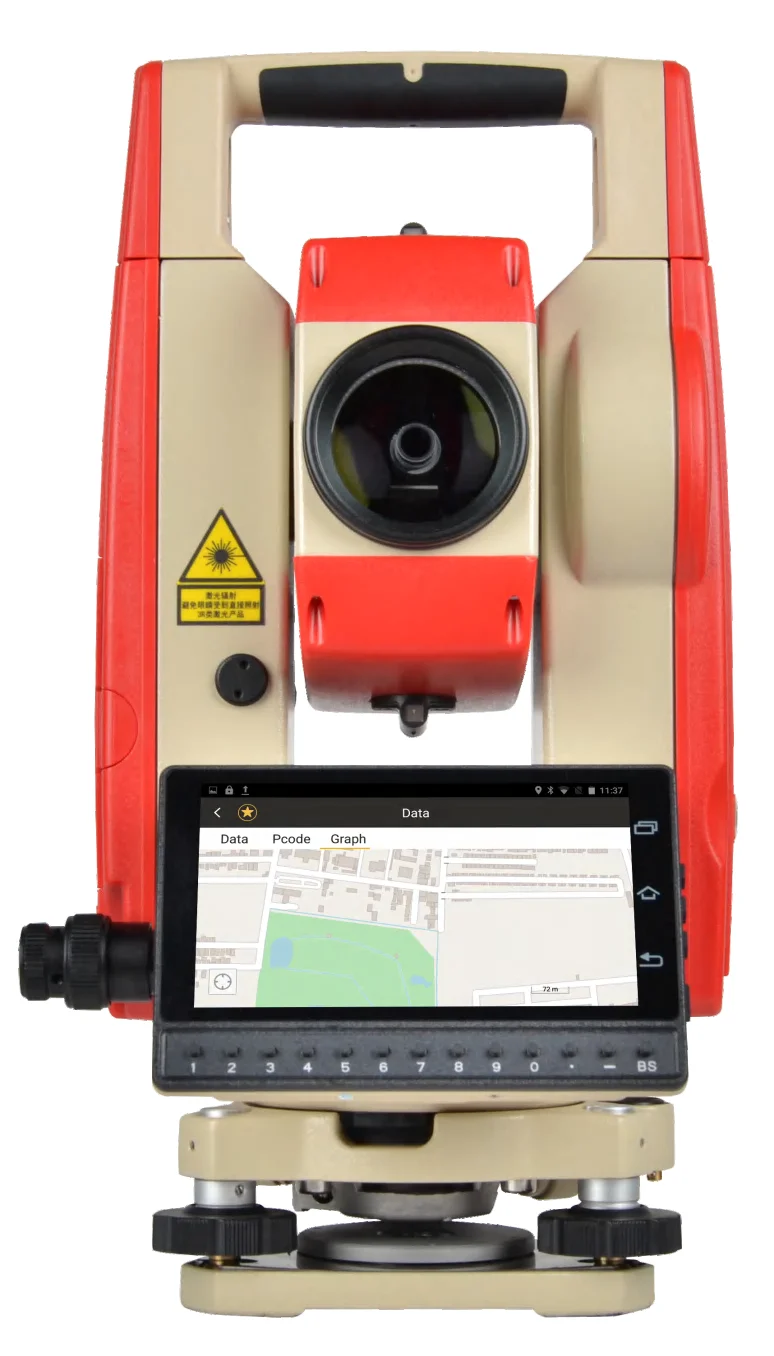

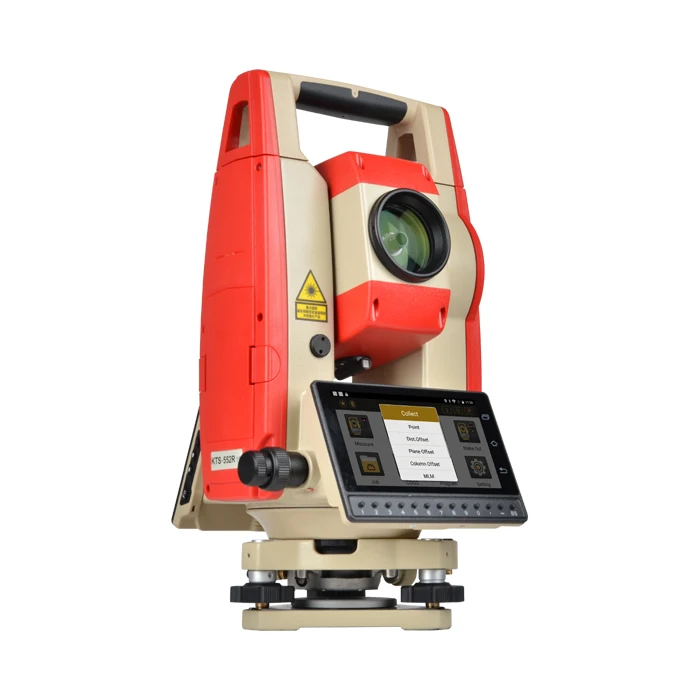

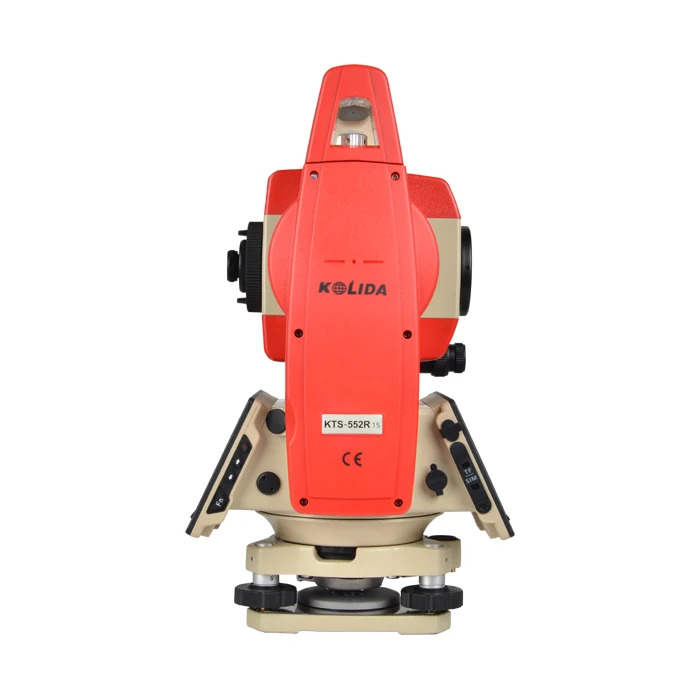

Kelida Android Total station KTS552R15 1500M Prism free Total station
- Category: >>>
- Supplier: Shanghai Jice Instrument Co. Ltd.
Share on (1600906976463):
Product Overview
Description
Products Description
KTS-552R15 total station provides a reliable and efficient solution to users who need to work faster and more productive
More Powerful than Ever,
More Versatile than Ever!
KTS-552 Android Total Station is equipped with an 8 -cores 1.5GHz CPU, 3 + 32 GB memory, the system works much smoother and
calculate much faster than old generation equipment, it also performs better when importing large size base map or design files.
More Versatile than Ever!
KTS-552 Android Total Station is equipped with an 8 -cores 1.5GHz CPU, 3 + 32 GB memory, the system works much smoother and
calculate much faster than old generation equipment, it also performs better when importing large size base map or design files.
Simple and Upgradable!

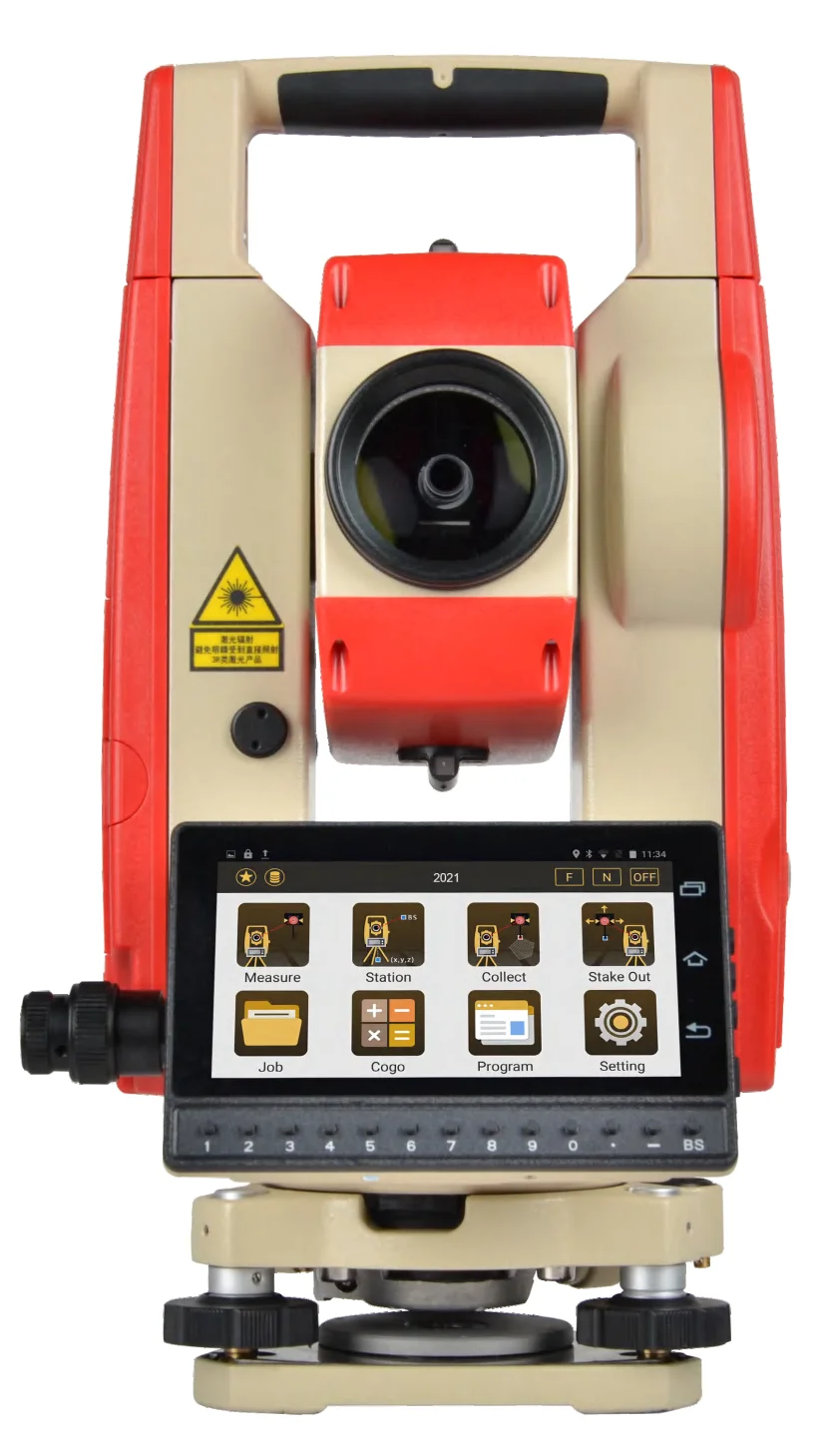

KTS-552 is powered by Android OS, easy to learn, combined with Kolida SurveyStar field software, it offers a simple and productive
way of working
Moreover, user can develop and install their own application into the system, to meettheir special work demand...
way of working
Moreover, user can develop and install their own application into the system, to meettheir special work demand...
Measures Longer and longer,
Improvement Never Settles!
Improvement Never Settles!
How could we lift the ranging cabability to a new level of 1000/1500m? The three key factors are "Dual-light Source Distance
Measuring technology", optimization of the signal-to-noise ratio, a more stable objective lens system.
Video: 1000m and 1500m Non-prism measurement in cloudy weather
Measuring technology", optimization of the signal-to-noise ratio, a more stable objective lens system.
Video: 1000m and 1500m Non-prism measurement in cloudy weather
A New Step to be More Accurate, Innovation Never Stops!
Every hard working surveyor deserves a higher precision than before.
Four innovations have been realized in our newly designed optical system to achieve this goal: "Focal Length Compensation Mirror",
"Fully sealed emitting laser circuit", "Less reflectors in optical part", "the 4th Generation EDM CPU".
Four innovations have been realized in our newly designed optical system to achieve this goal: "Focal Length Compensation Mirror",
"Fully sealed emitting laser circuit", "Less reflectors in optical part", "the 4th Generation EDM CPU".
Practical Survey Program

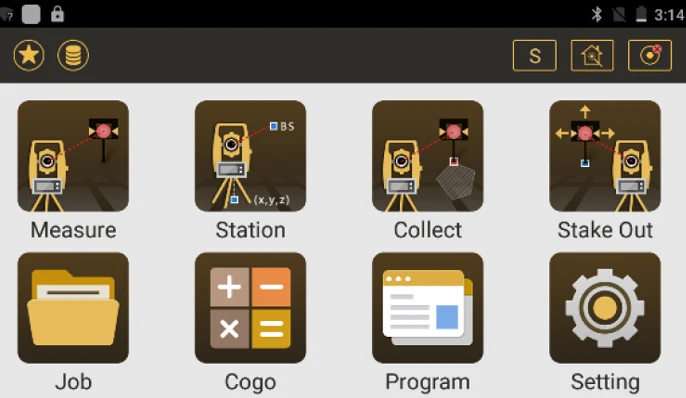

Various of surveying programs onboard allow surveyors to complete their tasks directly in the field: Resection, Point to Line,
Free Station, Point Collect, Distance Offset, Plane Offset, Column Offset, REM, Line & Point, Line & Angle, Point Setout,
Reference Line, Line Setout, Arc Setout, Reduction, XYZ Calc., Inverse, Area & Girth, Dist. Conversation, Angle Conversation,
Average, Triangle Calc., Calculator…
Free Station, Point Collect, Distance Offset, Plane Offset, Column Offset, REM, Line & Point, Line & Angle, Point Setout,
Reference Line, Line Setout, Arc Setout, Reduction, XYZ Calc., Inverse, Area & Girth, Dist. Conversation, Angle Conversation,
Average, Triangle Calc., Calculator…
Specification
KTS-552R15 | ||
MeasuringRange | ||
1P | 5.0km | |
3P | 8-10km | |
Nonprism | 1500m | |
DigitalDisplay | Maximum:99999999.9999Minimum:0.1mm | |
Accuracy | Withprism:2mm+2ppm,withoutprism3mm+2ppm | |
MeasuringTime | Tracking0.1s,Fine0.3s(optimal) | |
AtmosphericCorrection | AutomaticCorrectionbyInputtingParameter | |
PrismConstant | AutomaticCorrectionbyInputtingParameter | |
AngleMeasurement | ||
MeasurementMethod | AbsoluteEncoding | |
DiameterofTheRasterDisk | 79mm | |
MinimumReading | 1＂/5＂Optional | |
Accuracy | 2＂ | |
DetectionMethod | Horizontal:FourSensorsVertical:FourSensors | |
Telescope | ||
Image | Erect | |
Length | 154mm | |
EffectiveAperture | 45mm(EDM50mm) | |
Magnification | 30X | |
FieldofView | 1°30＇ | |
ResolvingPower | 3＂ | |
MinimumFocus | 1.2m | |
Reticle | Illuminated,4BrightnessLevel | |
Compensation | ||
System | Dualaxisliquid-electric | |
WorkingRange | ±4＇ | |
ResolvingPower | 1＂ | |
SensitivityofVials | ||
PlateVial | 30＂/2mm | |
CircularVial | 8＇/2mm | |
LaserPlummet(Default) | ||
Type | LaserPoint,4BrightnessLevel | |
Accuracy | ±1.5mmat1.5MInstrumentHeight | |
Wavelength | 630-670nm | |
LaserClass | Class2/IEC60825-1 | |
LaserPower | <0.4mW | |
OpticalPlummet(Optional) | ||
Image | Erect | |
Magnification | 3x | |
FocusingRange | 0.5m | |
FieldofView | 5" | |
Accuracy | ±1.5mmat1.5MInstrumentHeight | |
SystemConfig | ||
OperatingSystem | Android6.0 | |
Processor | MT6753,8Cores,1.5GHz | |
InternalMemory | RAM:3GB;ROM:32GB | |
Communication | ||
Interfaces | -MicroSimCardSlot | |
-USBTypeC(OTG) | ||
-TFCard | ||
Network | 2G900/1800 | |
3G2100/900CDMABC0TDSCDMAA/F | ||
4GLTEband1/3/7/38/39/40/41 | ||
Bluetooth | Bluetooth4.0 | |
WLAN | Dual-BandSingleStream802.11a/b/g/nRFforDataLink | |
Microphone/Speaker | Available | |
Display | ||
Type | 5”,Graphic,ColorTouchScreen1280*720,DualFaces | |
Battery | ||
Type | Lithium-ion,7.4V,3100mAh,twopieces | |
OperatingTime | 8Hours | |
Dimension | ||
Size | 200mm*170mm*350mm | |
Weight | 5.7kgs | |
Environmental | ||
TemperatureRange(Operation | -20℃~50℃ | |
Protection | IP55 | |
