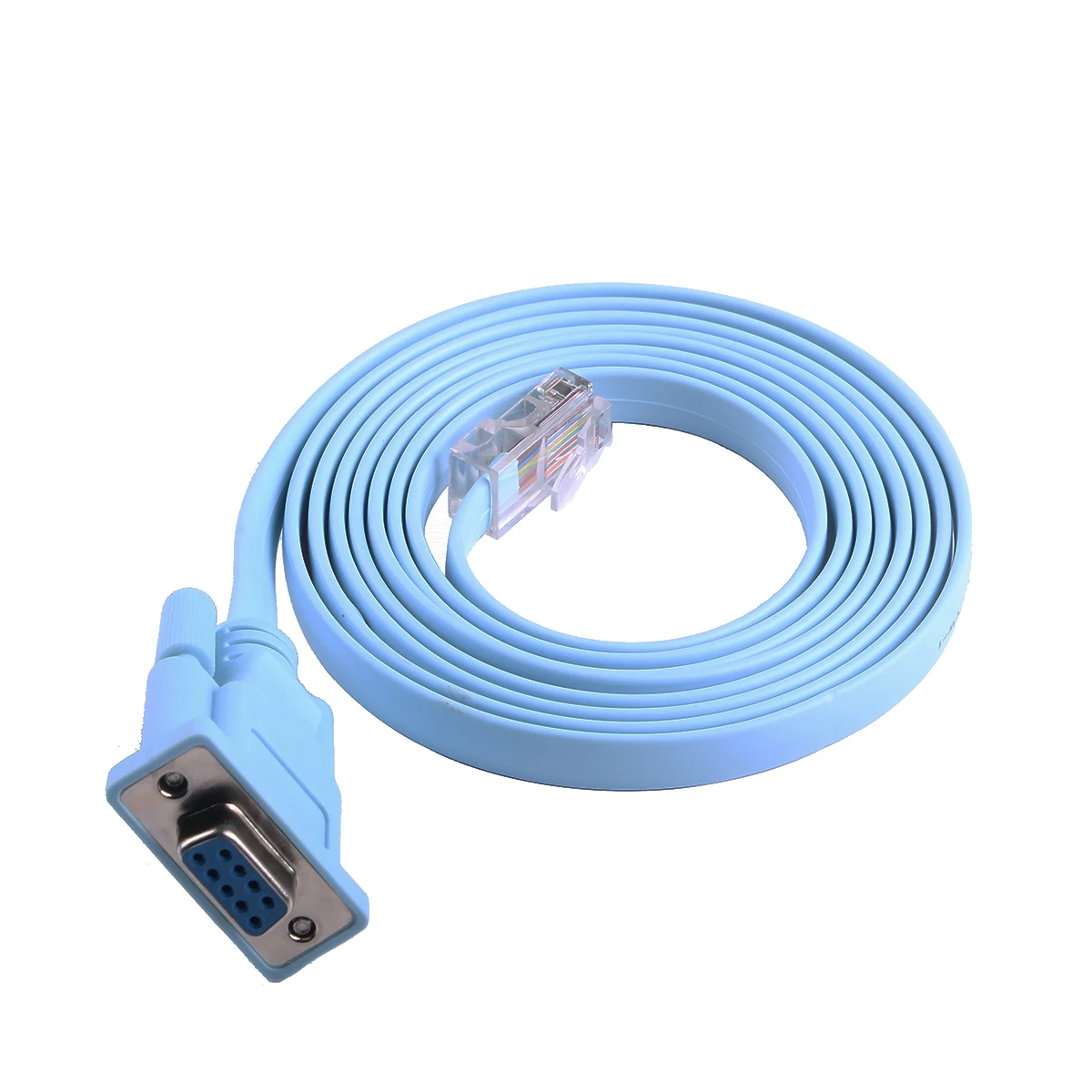

6ft/1.8m Compatible with Routers Switches and Firewall ,DB9 to RJ45 RS232 Console Cable
6ft/1.8m Compatible with Routers Switches and Firewall ,DB9 to RJ45 RS232 Console Cable
6ft/1.8m Compatible with Routers Switches and Firewall ,DB9 to RJ45 RS232 Console Cable
6ft/1.8m Compatible with Routers Switches and Firewall ,DB9 to RJ45 RS232 Console Cable
6ft/1.8m Compatible with Routers Switches and Firewall ,DB9 to RJ45 RS232 Console Cable

6ft/1.8m Compatible with Routers Switches and Firewall ,DB9 to RJ45 RS232 Console Cable

Share on (1600906985443):


Price:$6.90 - $8.20

Quantity:


Product Overview

Description



Product Description


Product Description:
The Cisco Console Cable is a premium accessory designed for networking professionals and IT administrators. Providing reliable and efficient communication between your computer's DB9 port and the console port of Cisco networking devices. It facilitates smooth configuration, troubleshooting, and management of Cisco routers, switches, and other network equipment.

Specifications:

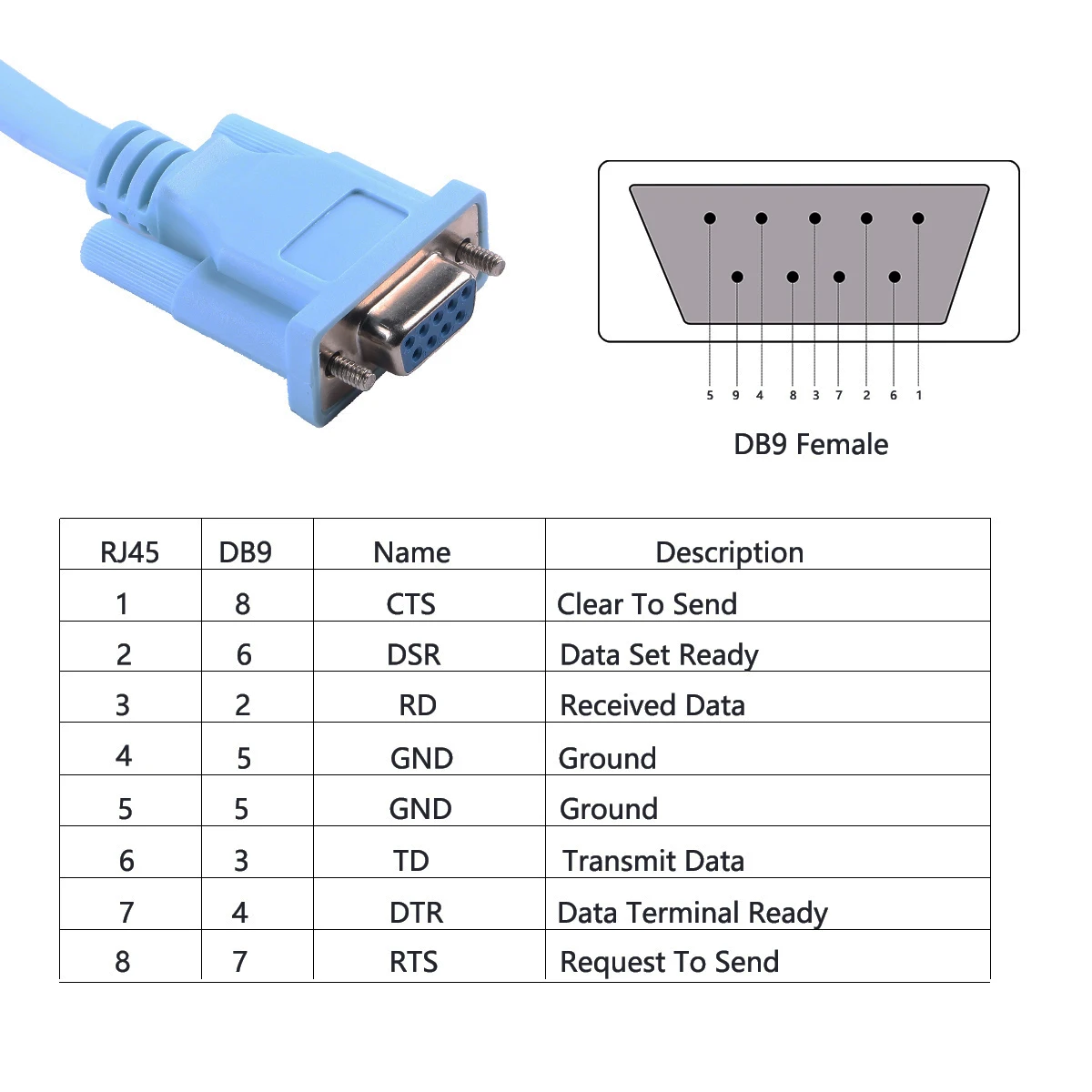

* Connector 1: DB9

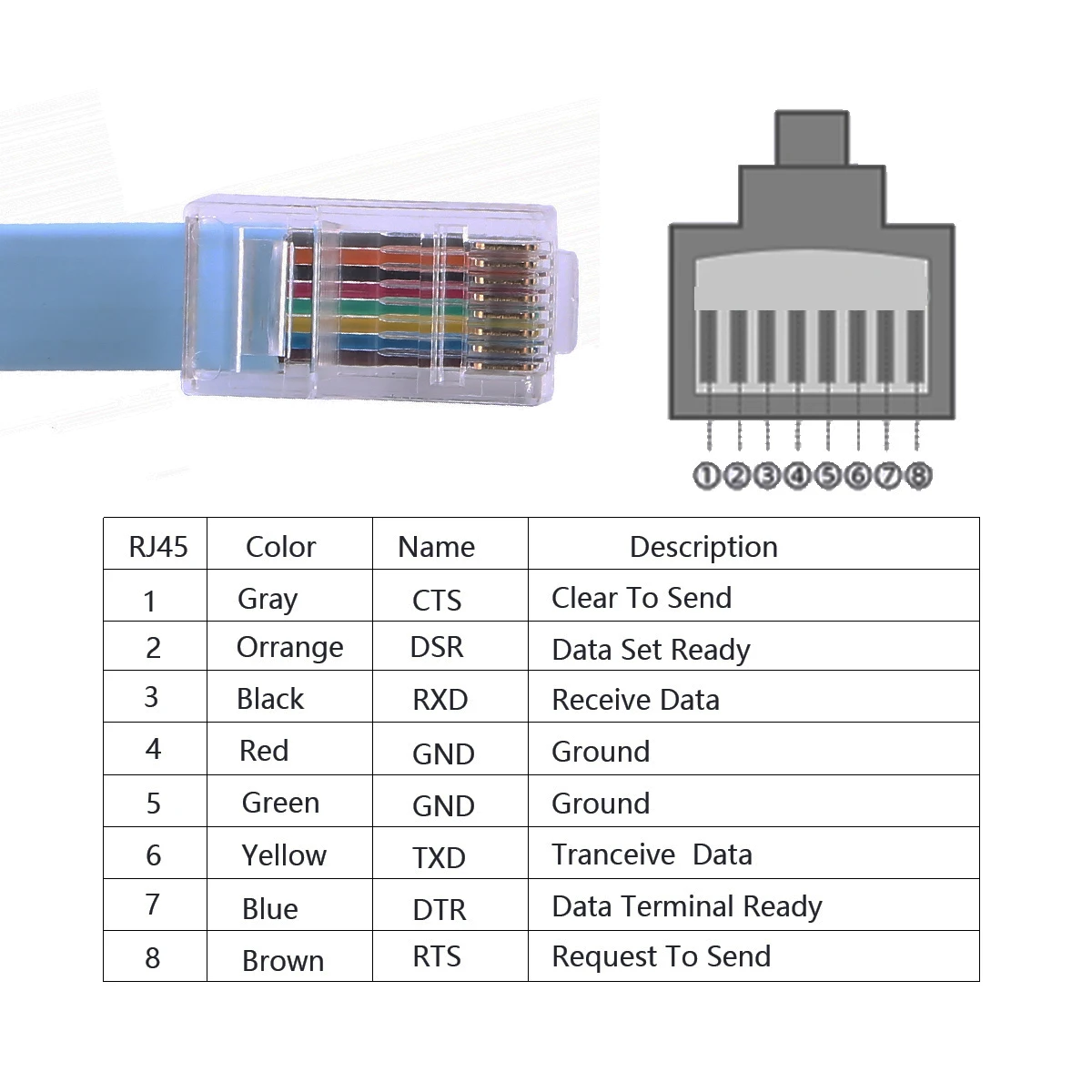

* Connector 2: RJ-45 (8-pin) male
* Cable Length: 6 feet (1.8 meters)
* Compatibility: Compatible with most Cisco networking devices and serial interfaces
* Cable Material: High-quality copper conductor for reliable data transmission
* Color: Blue

Features:
* Durable and reliable construction for long-lasting performance
* Easy plug-and-play installation with automatic driver detection
* High-speed data transfer for efficient configuration and management
* Allows for seamless communication between computer and Cisco devices
* Convenient length for flexible usage
* Compatible with various operating systems, including Windows, macOS, and Linux

Usage Instructions:
1. Connect the DB9 end of the cable to an available USB port on your computer.
2. Connect the RJ-45 end of the cable to the console port on the Cisco networking device.
3. Use terminal emulation software (such as HyperTerminal, PuTTY, or Tera Term) to access the console of the Cisco device.
4. Configure, troubleshoot, or manage the Cisco device as needed.

Package Contents: * 1 x Cisco Console Cable (6 feet)
Ordering Information: To place an order or inquire about bulk discounts, please contact our sales team.

Royalty free VIRTUAL COM PORT (VCP) Drivers are available for the following Operating Systems (OS):
* Windows
* Linux
* Mac
* Android (J2xx / D2xx only)

See the following website link for the full driver support list including OS versions and legacy OS.
https://ftdichip.com/drivers/

Virtual COM Port (VCP) drivers cause the USB device to appear as an additional COM port available to the PC. Application software can access the USB device in the same way as it would access a standard COM port.

D2XX Direct Drivers allow direct access to the USB device through a DLL. Application software can access the USB device through a series of DLL function calls. The functions available are listed in the D2XX Programmer's Guide document which is available from the Documents section via the website.
https://ftdichip.com/document/programming-guides/

Please also refer to the Installation Guides documents for details on how to install the drivers.
https://ftdichip.com/document/installation-guides/



Specification


item
value
Type
DB9 Cable
Use
Cisco, Router, switches, firewall
Model Number
000037
Place of Origin
China
Guangdong
USB Type
Standard
Material
PVC
Connector
RJ45
Jacket
PVC
Shielding
Non-Shielded
Conductor
Pure cupper
Function
Console Cable
Length
6ft/1.8m
Signal
RS232








Company Profile






Shenzhen Ewormart Electronics Co., Ltd is one of the leading suppliers who specialized in researching, designing and producing various kinds of cables & adapters.
Our main products include USB serial Cable & Adapters,USB Cable, USB Serial RS232 Cables, FTDI Cable, CP2102 Cable, PL2303 Cable RS485 Cables, TTL Uart Cables and related accessories. These products are exported to the world such as US, EU area, South America, Middle East Asia, Africa, etc.. Our products has got high reputation from the customers.

We always ensure to offer you not only high quality products but also reasonable prices and perfect services. We have a professional management team and well-trained workers to complete the samples in time, and modern manufacturing machines and inspection equipments to bring you the best after-sales service, all of our products are RoHs compliant and have got UL & CE Certification.
We are looking forward to be the business partners from all over the world


FAQ


1. who are we?
We are based in Guangdong, China, start from 2011,sell to North America(30.00%),Western Europe(15.00%),South America(8.00%),Mid East(8.00%),Eastern Asia(7.00%),Southern Europe(7.00%),Northern Europe(7.00%),Southeast Asia(6.00%),Eastern Europe(5.00%),South Asia(5.00%),Africa(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
USB RS232 Cable,USB TTL Uart Cable,USB RS485 Cable,USB Serial Adapter,FTDI Cable

4. why should you buy from us not from other suppliers?
We are cable assembled suppliers in China . Mainly prodcuts including USB Serial Cable, FTDI cable, PL2303 Cable, 3.3/5V/1.8V TTL Cable RS232 Cable RS485 Cable , CP2102 Cable, Computer Cables.We have experience for cable assembled 11 Years OEM/ODM welcome

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
