Solar grid tie inverter MPPT 300W350W500W600W700W PV Modular Smart micro inverter system DC to AC Output 120V/230V Auto
- Category: >>>
- Supplier: Shenzhen Zyouc Technology Co. Ltd.
Share on (1600907108276):
Product Overview
Description

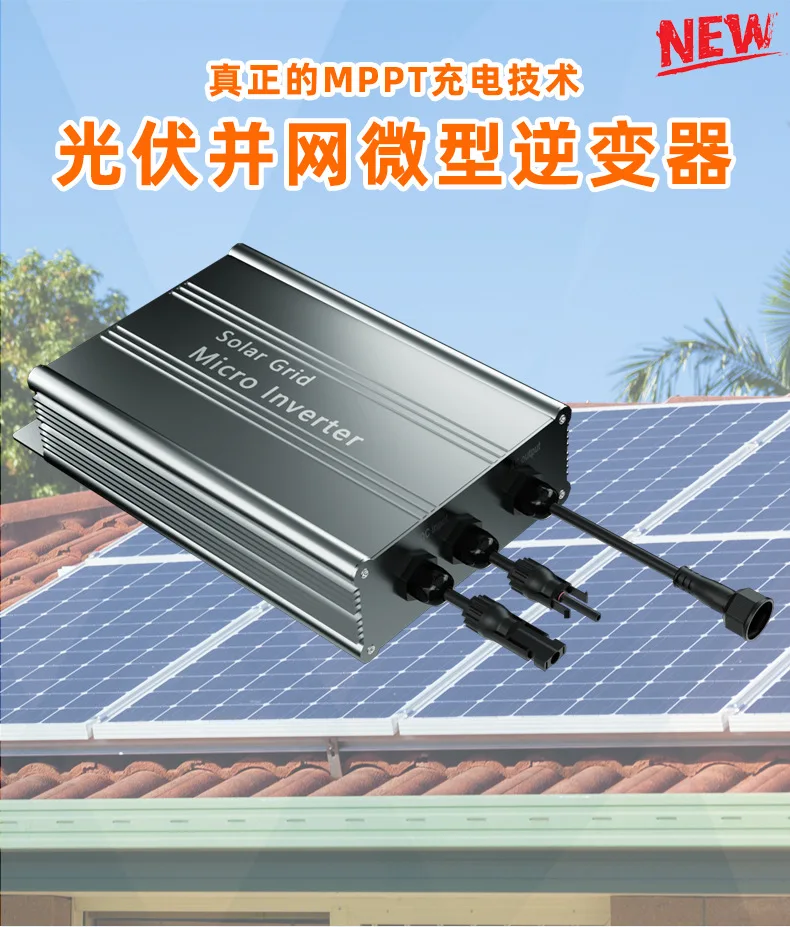

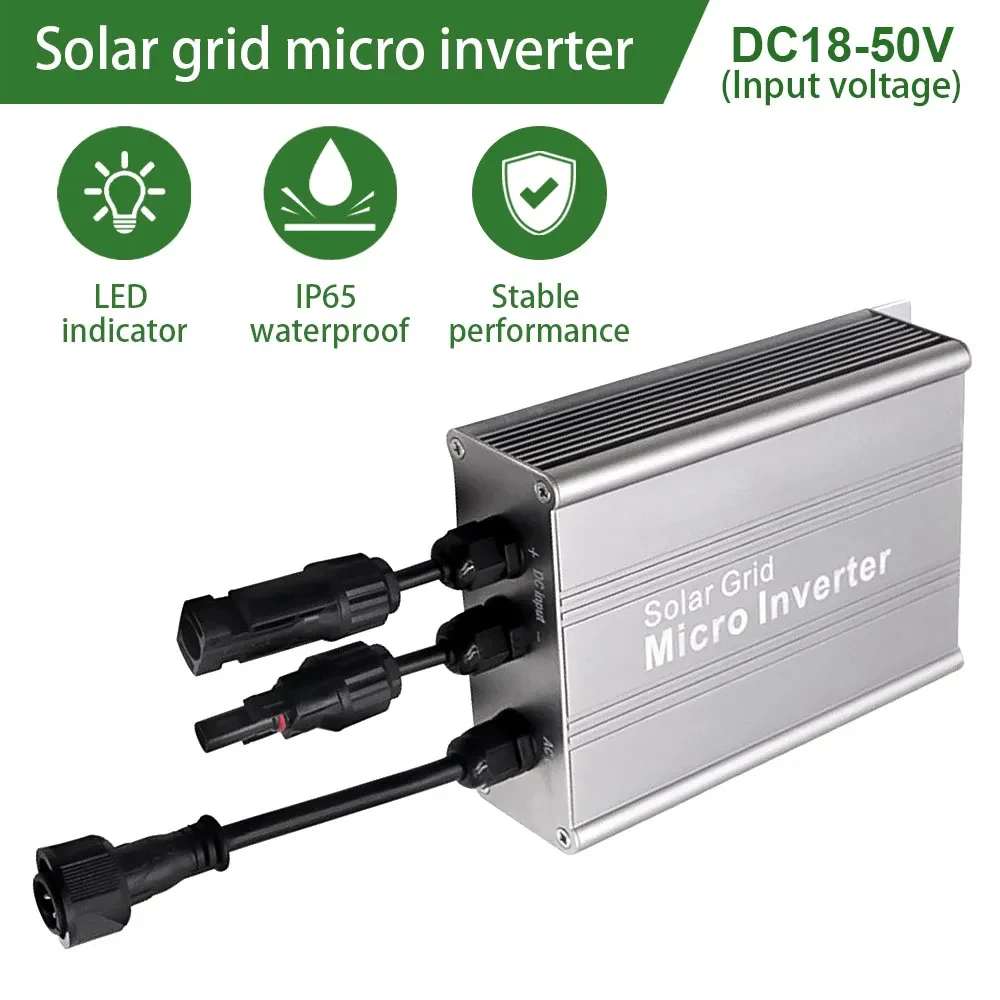

T-500W/T-600W/T-700W Solar Grid Micro Inverter
Inverter Using IP65 waterproof streamline
design, Can effectively prevent rainwater on the surface erosion, Built in high
performance Maximum Power Point Tracking(MPPT)Function,Better able to track
changes in the solar luminosity and control different output power, Effectively
capture and collect sunlight.

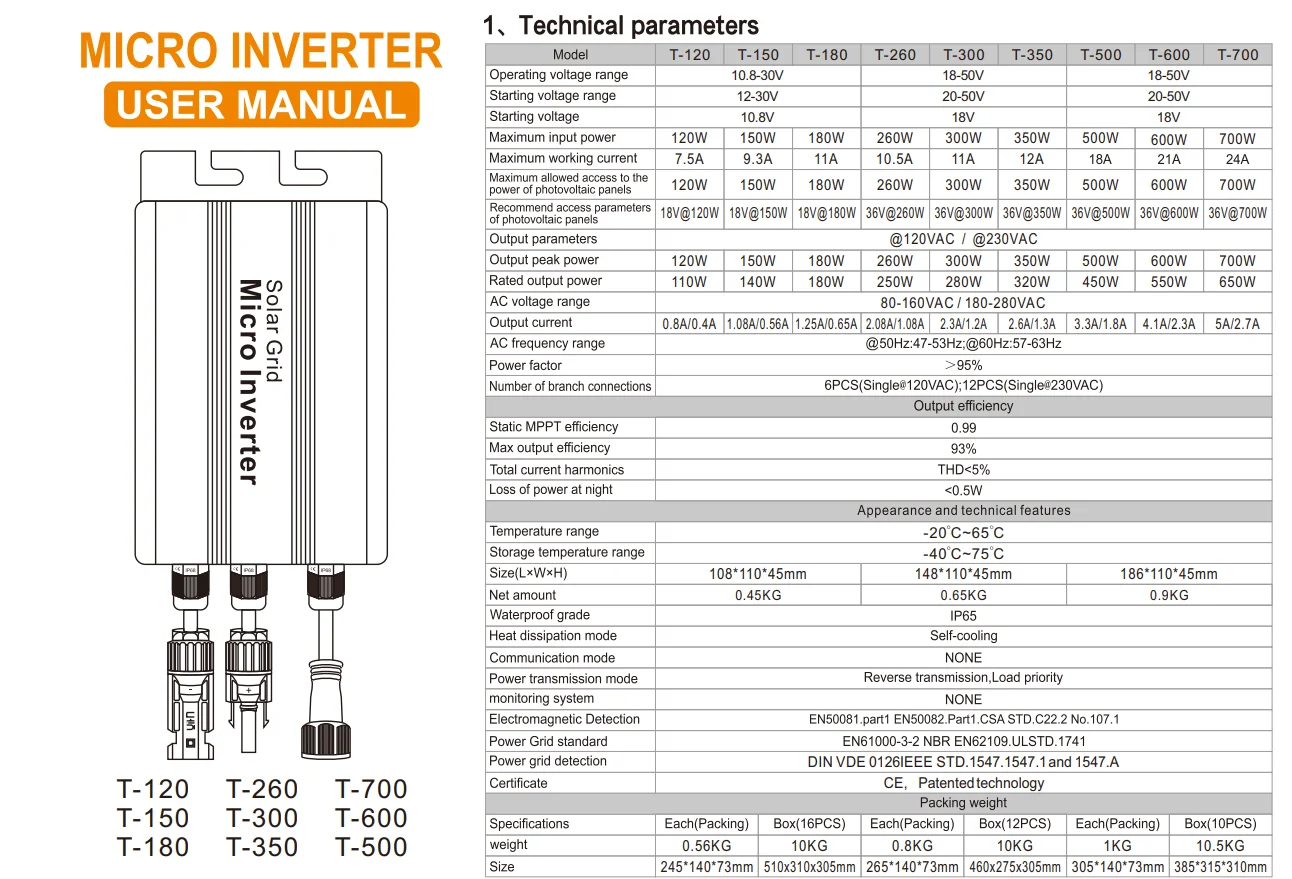

--Operating Voltage range:18-50v
--Starting Voltage range:20-50v
--Starting Voltage: 18v
--Maximum Input Power:500w/600w/700w
--Maximum working current:18A(500W)/21A(600W)/24A(700W)
--Output Volage: 120VAC(80-160VAC)/230VAC(180-280VAC)
--Output Peak Power:500w/600w/700w
--Rated Output Power:450w/550w/650w
--AC frequency range:50HZ(47-53HZ)/60HZ(57-63HZ)
--Waterproof:IP65
--Heat Dissipation Mode: Self-cooling(No fan)
--Temperature Range:-20 to 65 ℃
--MPPT Efficiency:0.99
--Electromagnetic Detection:EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1
--Power Grid standard: EN61000-3-2 NBR EN62109.UL STD.1741
--Power grid detection:DIN VDE 0126IEEE STD.1547.1547.1 and 1547.A
--Certificate:CE,Patented technology
Inverter Using IP65 waterproof streamline
design, Can effectively prevent rainwater on the surface erosion, Built in high
performance Maximum Power Point Tracking(MPPT)Function,Better able to track
changes in the solar luminosity and control different output power, Effectively
capture and collect sunlight.
--Operating Voltage range:18-50v
--Starting Voltage range:20-50v
--Starting Voltage: 18v
--Maximum Input Power:500w/600w/700w
--Maximum working current:18A(500W)/21A(600W)/24A(700W)
--Output Volage: 120VAC(80-160VAC)/230VAC(180-280VAC)
--Output Peak Power:500w/600w/700w
--Rated Output Power:450w/550w/650w
--AC frequency range:50HZ(47-53HZ)/60HZ(57-63HZ)
--Waterproof:IP65
--Heat Dissipation Mode: Self-cooling(No fan)
--Temperature Range:-20 to 65 ℃
--MPPT Efficiency:0.99
--Electromagnetic Detection:EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1
--Power Grid standard: EN61000-3-2 NBR EN62109.UL STD.1741
--Power grid detection:DIN VDE 0126IEEE STD.1547.1547.1 and 1547.A
--Certificate:CE,Patented technology
