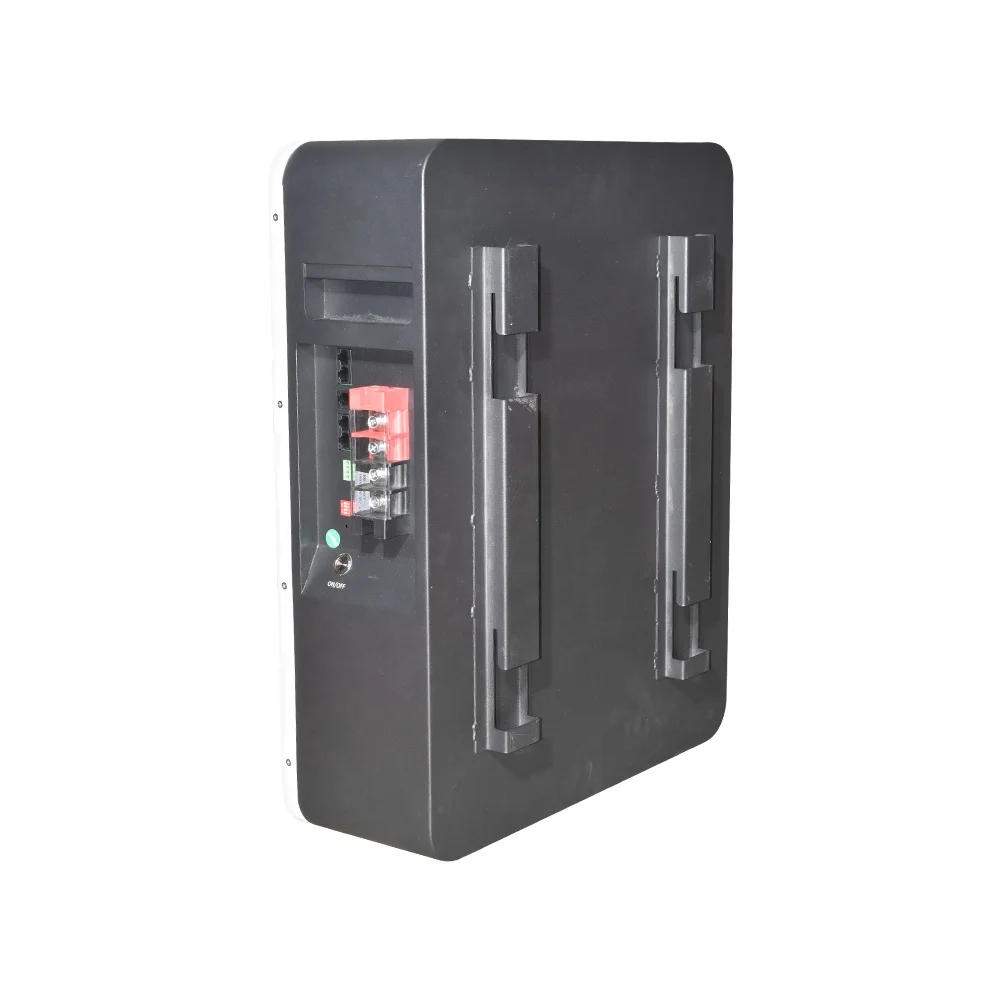

LPEL China Factory Price Solar Power Storage Battery Power Wall 10kwh 48v 5V 200ah Lifepo4 Battery
- Category: >>>
- Supplier: Hunan Lio-Power Era New EnergyCo. Ltd
Share on (1600907130787):
Product Overview
Description
Product Description
Specification
Basic parameter | ||||
Battery Type | LiFePO4 | |||
Interface | RS485/CAN | |||
Protection grade | IP20 | |||
Operating temperature | -15°C-55°C | |||
Built-in interface | RS485 | |||
Protection grade | IP20, indoor use | |||
Statement | Up to 16 battery packs in parallel | |||
Battery parameter | ||||
Input battery voltage range | 40-58.4V | |||
Rated voltage of battery pack | 51.2V | |||
Total number of batteries | 1 | |||
Battery pack size (length *width * height) | 445*565*182mm | |||
Single Battery power | 5.12kwh | |||
Maximum charging/discharging current | 50A/100A | |||
Inverter parameter | ||||
Inverter output | 5kw | 10kw | ||
Rated output power | 5000VA | 10000VA | ||
Rated output voltage | 230Vac(L/N/PE single-phase) | |||
Load bearing motor capacity | 4HP | 6HP | ||
Rated frequency | 50Hz/60Hz | |||
Output waveform | Pure sine wave | |||
Rated battery voltage | 48Vdc | |||
Voltage range | 40~60Vdc | |||
Max mixed charging current | 140A | 200A | ||
Photovoltaic input | ||||
Max Input Power | 4,400W | 11000W | ||
Max input current | 50A | 22/22A | ||
Max open circuit voltage | 145Vdc | 500Vdc | ||
MPPT operating voltage range | 60~115Vdc | 125-425Vdc | ||
MPPT paths | 1 | 2 | ||
Mains/generator input | ||||
Max mains/generator charging current | 60A | 120A | ||
Rated frequency | 50Hz/60Hz | |||
Bypass overload current | 40A | 63A | ||
Size | 426*322*124mm | 620*445*130mm | ||
Ambient temperature | -15°C-55°C | -10°C-55°C，>45°C Derating | ||

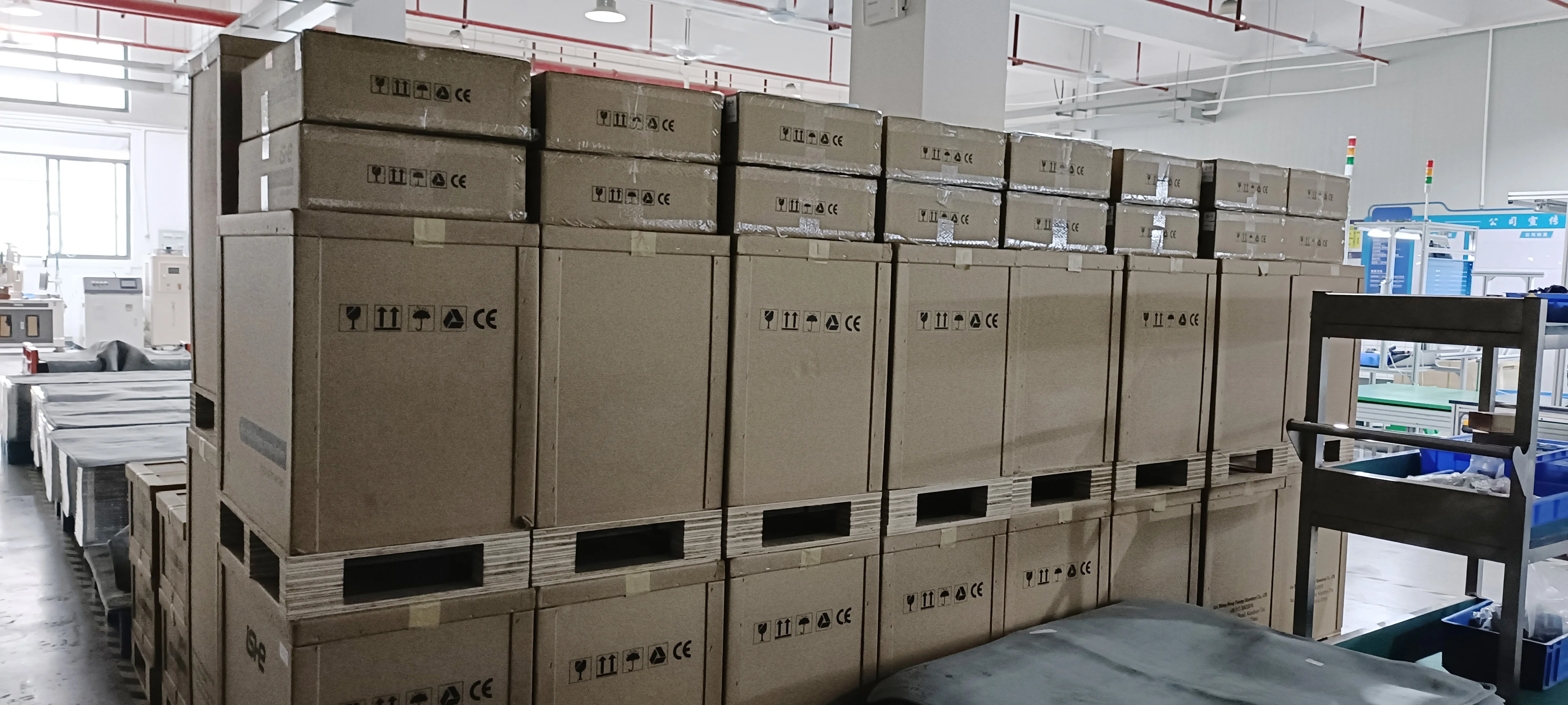

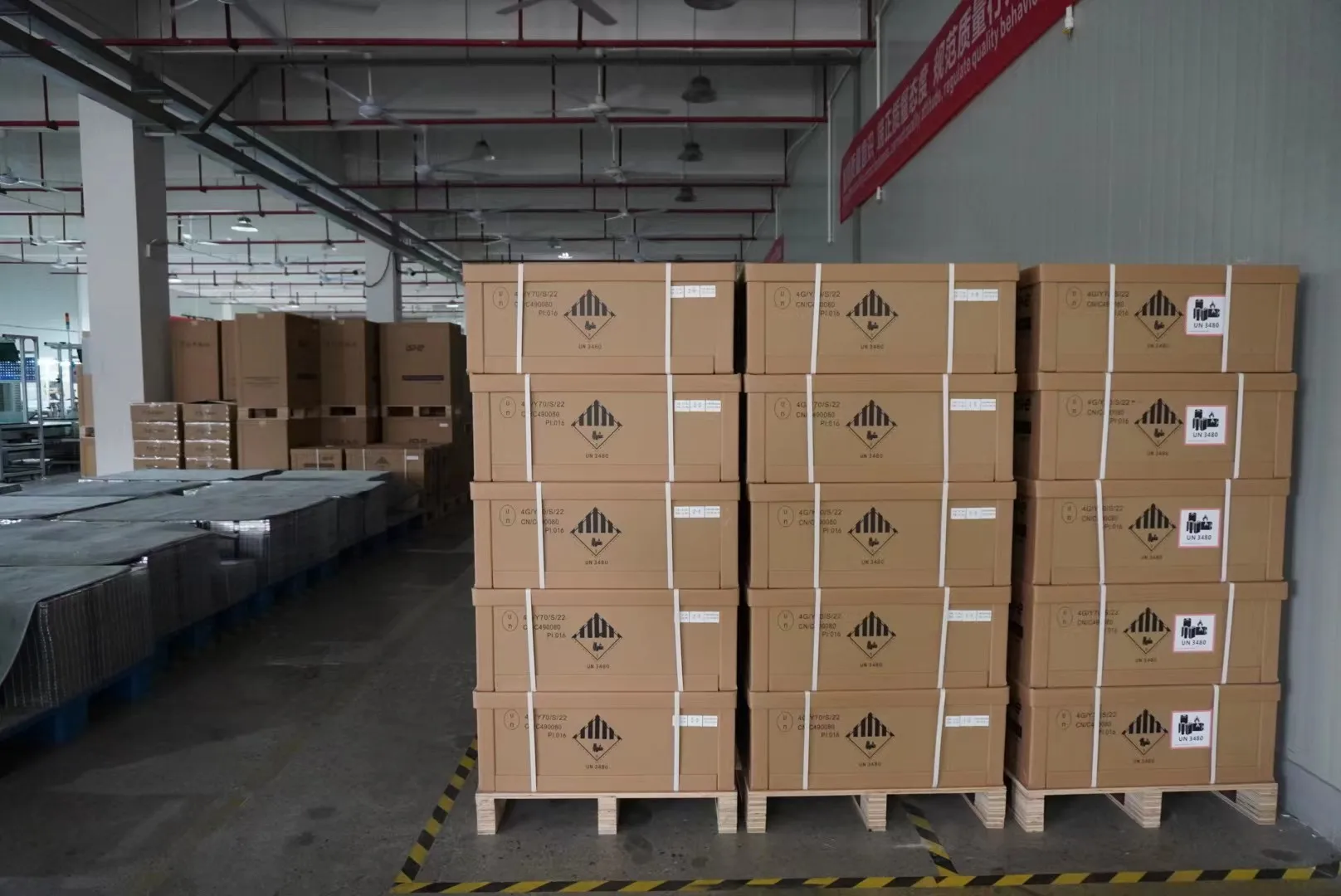

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Hunan L i o—Power Era New Energy Co.，Ltd. (L P E L) is located in the ancient city of Changsha, China.The company is a professional lithium battery manufacturer and battery system solution provider with research and development,
production and sales in one .
L P E L has a group of professional technical team for lithium-ion batteries and B MS R & D, production. With strong technical force,we have obtained a number of inventions and utility model patents.Our products can reach domestic and international advanced level in the field of lithium battery PACK and we have also provided many multi-purpose and personalized product design project for domestic and foreign users .
"Quality first, Customer first"is our quality policy,”Trustworthiness management, Customer satisfaction” is the activity guidebook of L P E L.We strictly implements the I S O 9001:2015 quality standard system, and all our products comply with CE, UL, R o HS, transportation conditions and other safety regulations and environmental protection requirements. We have been committed to provide the most stable,reliable and safest cost-effective products for customers. Our products are suitable for solar energy storage, home energy storage, automotive lithium batteries, power lithium batteries, cabinet batteries, industrial and commercial energy storage batteries and other fields.
In the future development, L P E L will uphold the business philosophy of low-carbon environmental protection, take energy saving,environmental protection and practical as mission, continue to provide green energy for the majority of foreign and domestic users, make our own contribution to create green life.
production and sales in one .
L P E L has a group of professional technical team for lithium-ion batteries and B MS R & D, production. With strong technical force,we have obtained a number of inventions and utility model patents.Our products can reach domestic and international advanced level in the field of lithium battery PACK and we have also provided many multi-purpose and personalized product design project for domestic and foreign users .
"Quality first, Customer first"is our quality policy,”Trustworthiness management, Customer satisfaction” is the activity guidebook of L P E L.We strictly implements the I S O 9001:2015 quality standard system, and all our products comply with CE, UL, R o HS, transportation conditions and other safety regulations and environmental protection requirements. We have been committed to provide the most stable,reliable and safest cost-effective products for customers. Our products are suitable for solar energy storage, home energy storage, automotive lithium batteries, power lithium batteries, cabinet batteries, industrial and commercial energy storage batteries and other fields.
In the future development, L P E L will uphold the business philosophy of low-carbon environmental protection, take energy saving,environmental protection and practical as mission, continue to provide green energy for the majority of foreign and domestic users, make our own contribution to create green life.
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
battery,lithium battery,solar energy system,home energy storage battery,power battery,lithium power battery,lithium battery pack
battery,lithium battery,solar energy system,home energy storage battery,power battery,lithium power battery,lithium battery pack
3. why should you buy from us not from other suppliers?
More than 4,500 square meters workshop and 150 staffs.
More than 4,500 square meters workshop and 150 staffs.
More than 11 years OEM & ODM experiences and be a strong supplier of many well-known customers.
Manufacturer competitive price
Good after-sales service
Integrity management
On-time delivery
