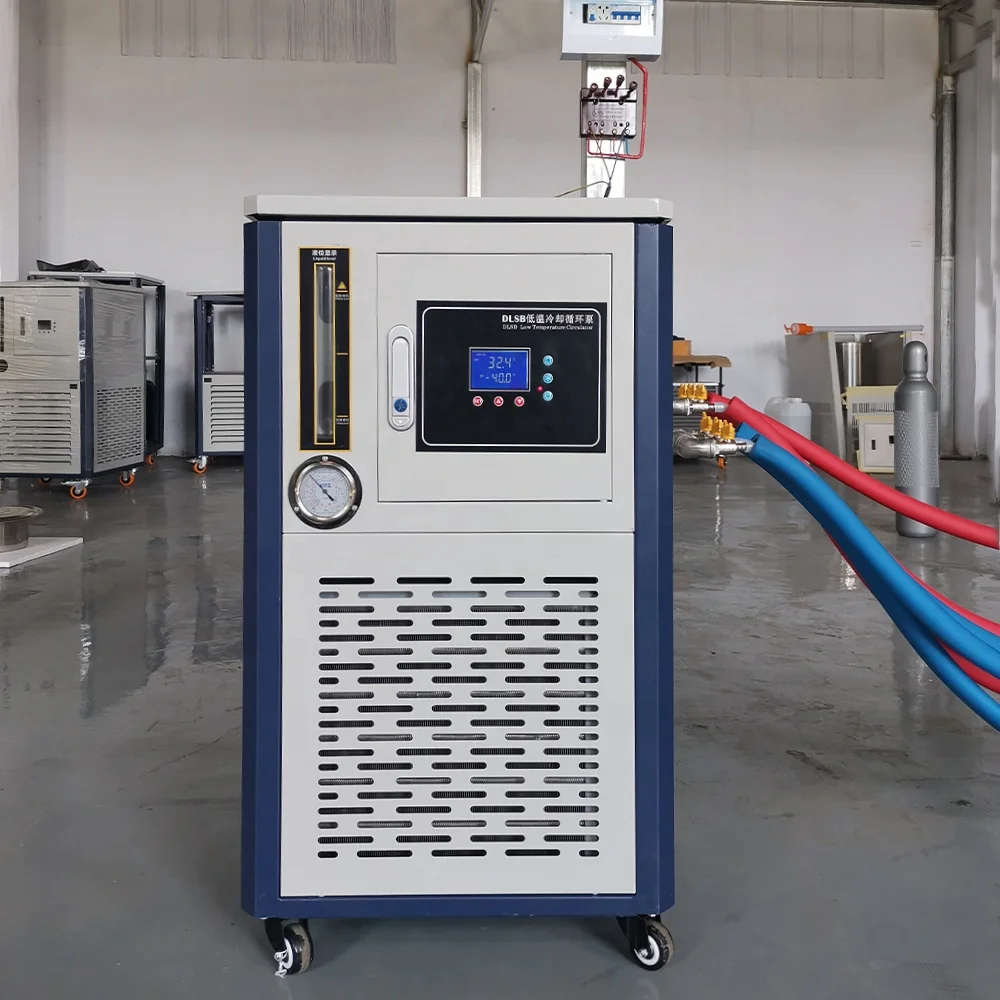

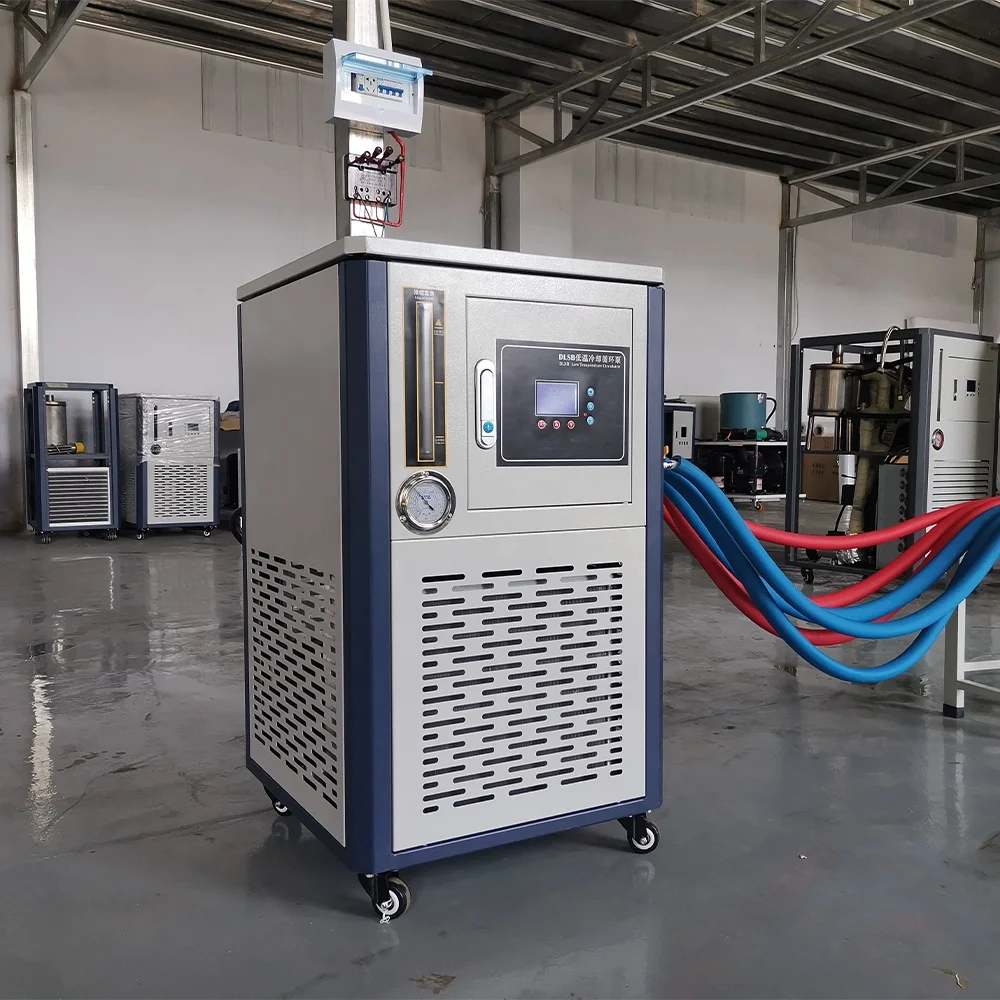

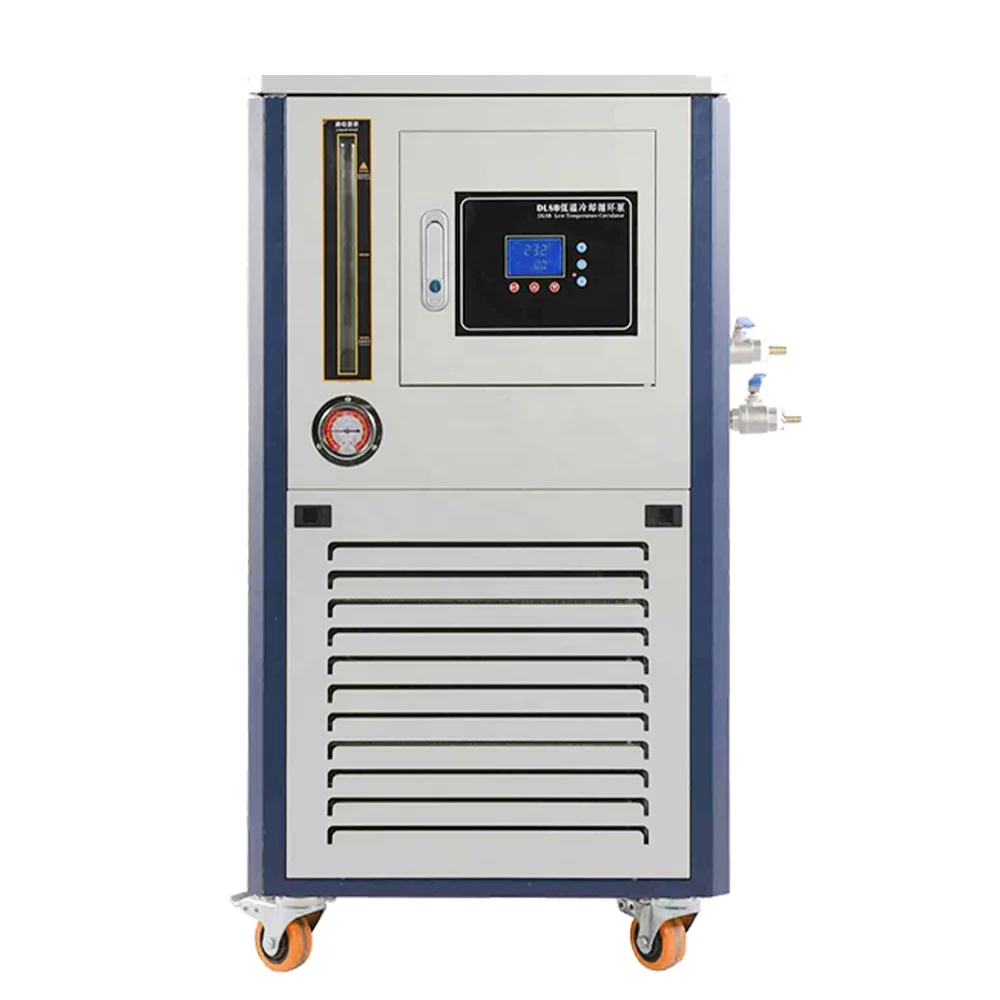

50L Coolant Circulation Cooling Circulator Chiller In Lab





Product Description

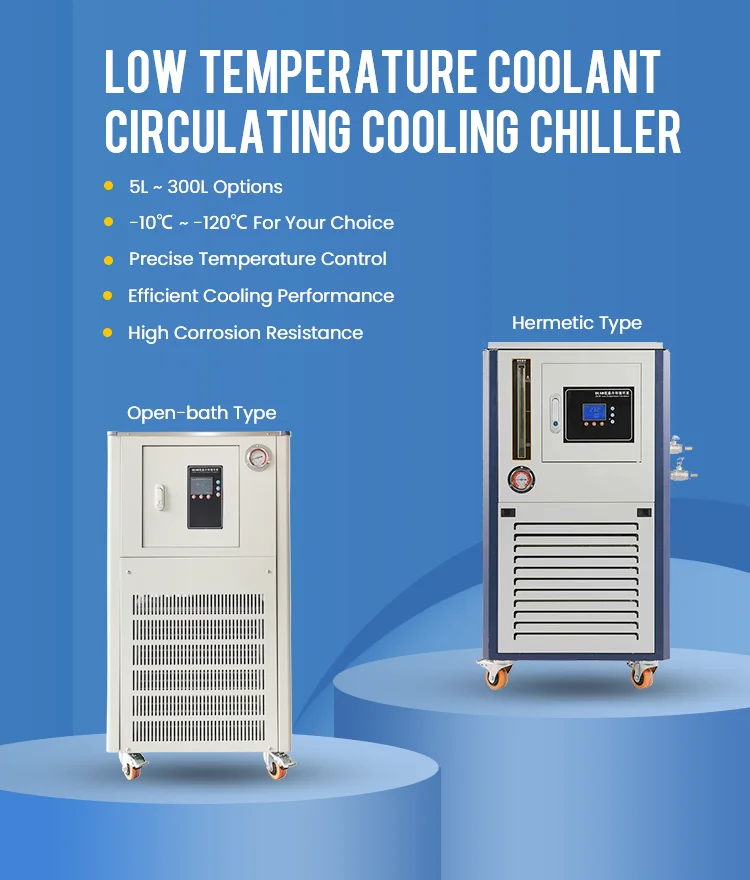

Low temperature coolant circulating bath chillers are designed to circulate a coolant through a temperature-controlled bath or chiller, in order to maintain a consistent low temperature for scientific or industrial processes.


Low temperature coolant circulating bath chillers are commonly used in laboratories, research facilities, and industrial settings where precise temperature control is required.


They are capable of cooling the coolant to temperatures even as low as -120°C, depending on the specific application.













Technical Parameters




































































Model5/8010/8020/8030/8050/80100/80
Volume

5L / 10L / 20L / 30L / 50L /100L


(100L to 300L For Customization)



Temperature


Range


Room Temperature ~ -80℃

Compressor


Power


1470W2200W5145W5145W7350W8820W

Power


Rating


1720W2500W6000W6000W8250W9820W

Temperature


Precision


±0.5℃

Operation


Environment



Environment Temperature:≤35℃;


Relative Humidity:≤75%.


Optional Power220V / 50HZ or 380V / 50HZ or Customized

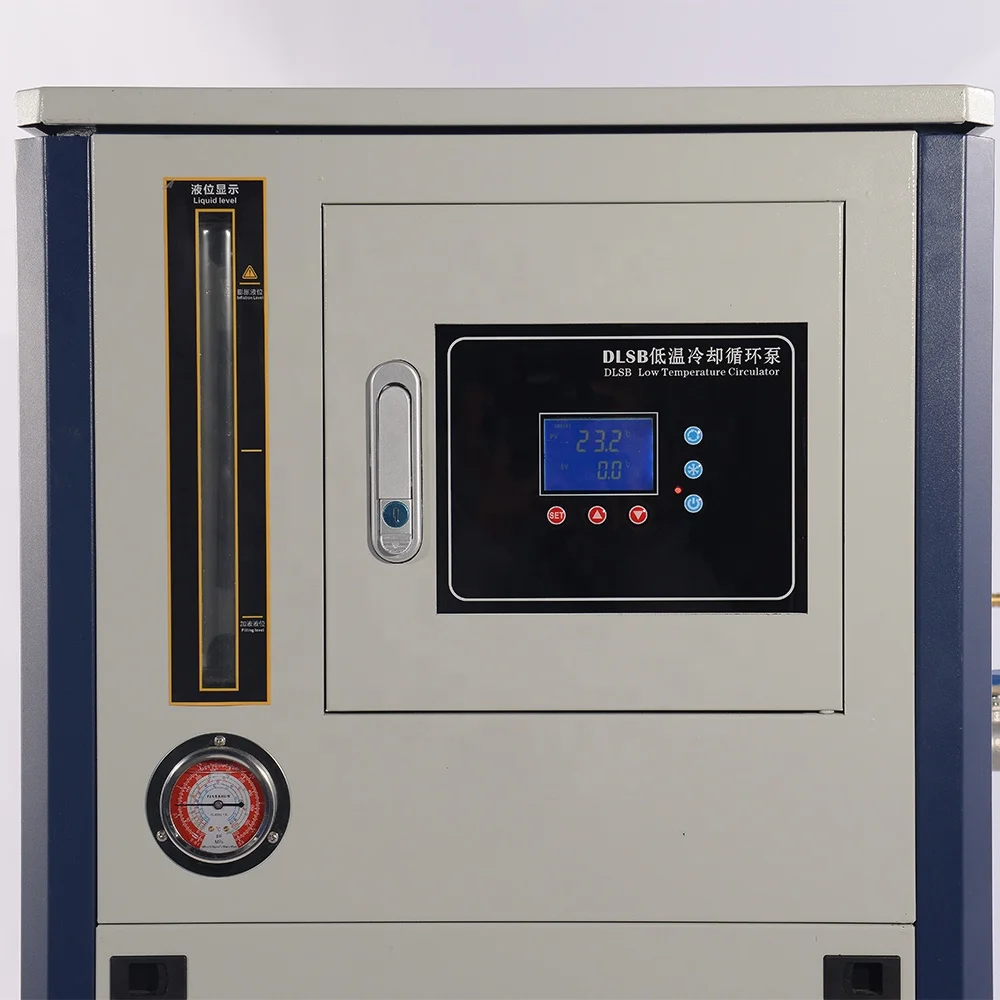

DisplayLCD Display

Security


Protection


Delayed, Overshoot Current, Compressor Overheating
RefrigerantR14

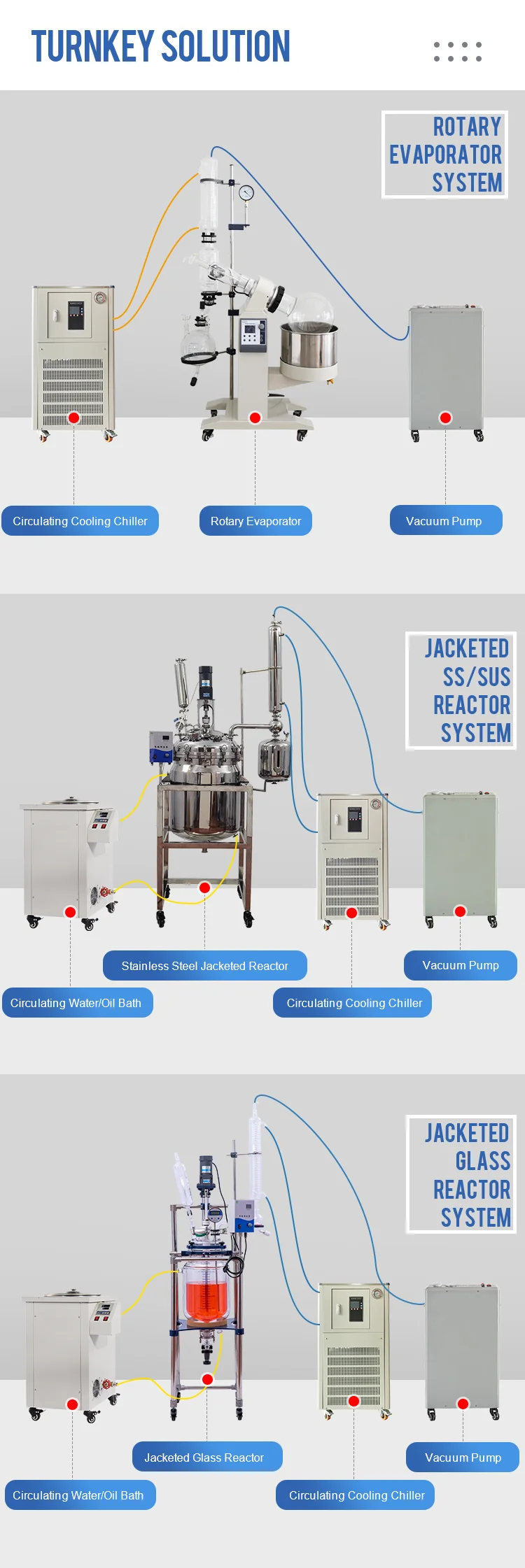

Turnkey Solution
