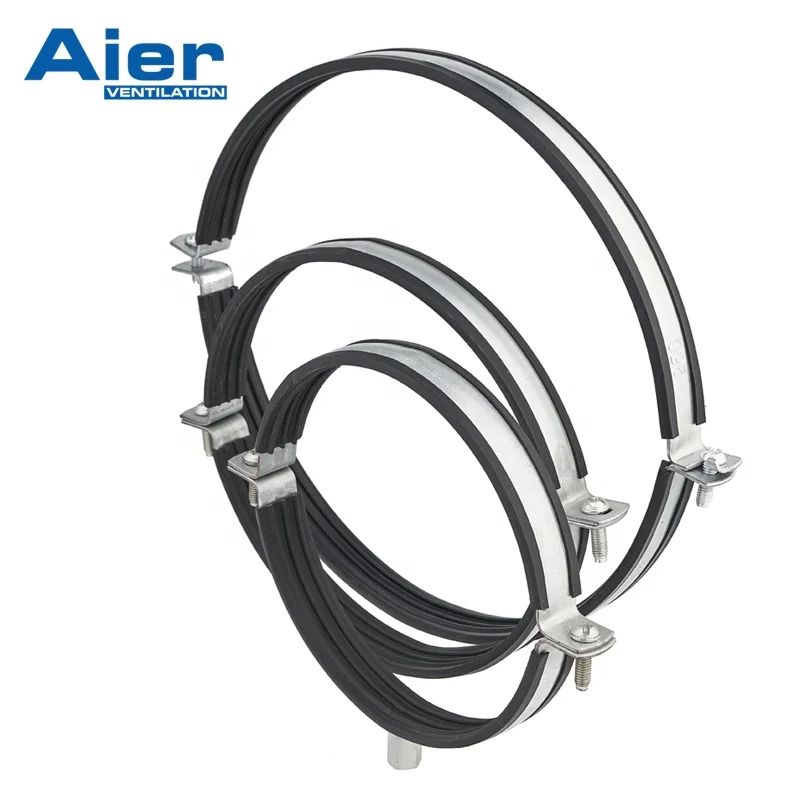

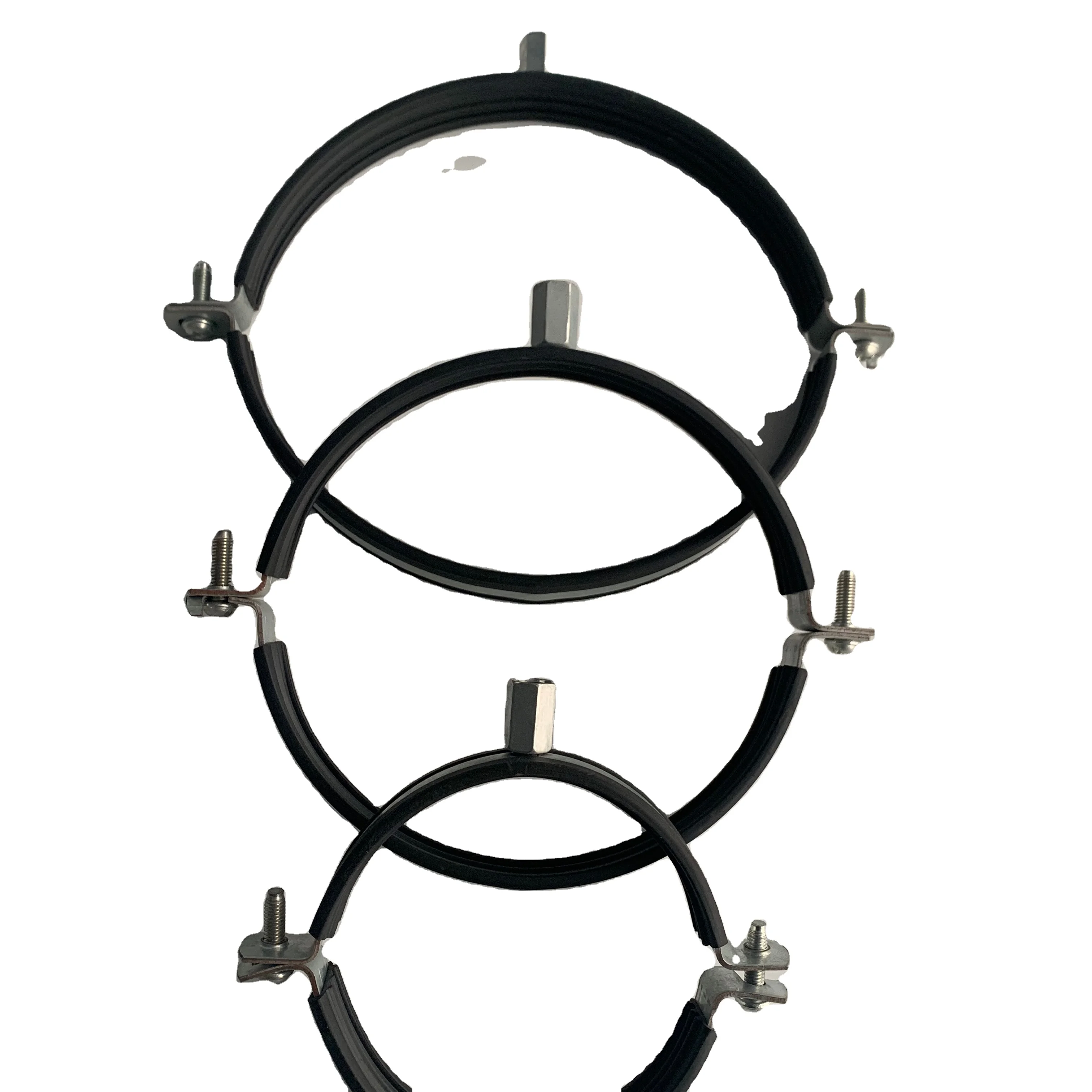

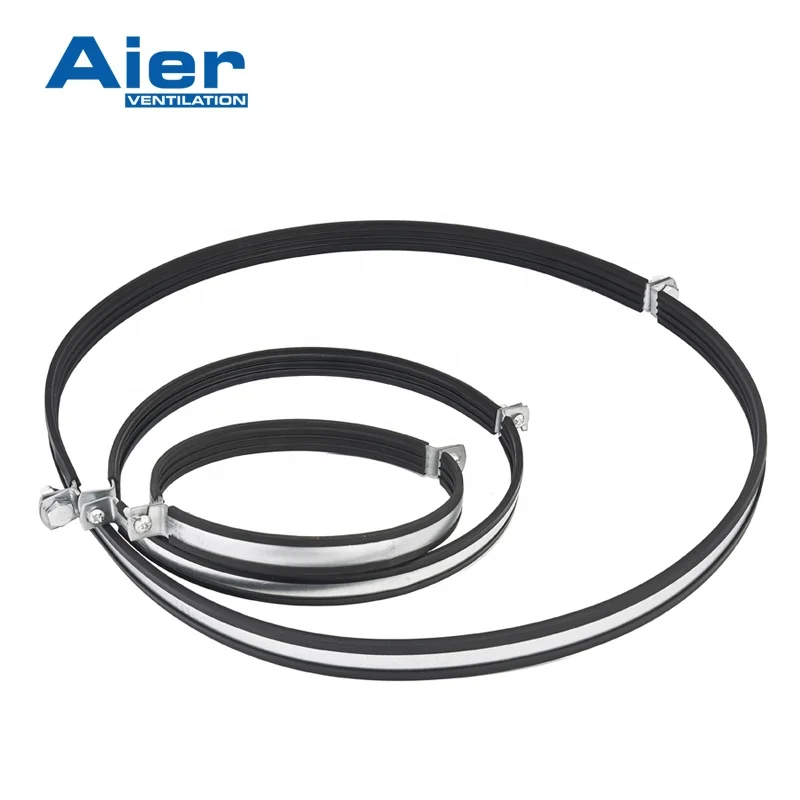

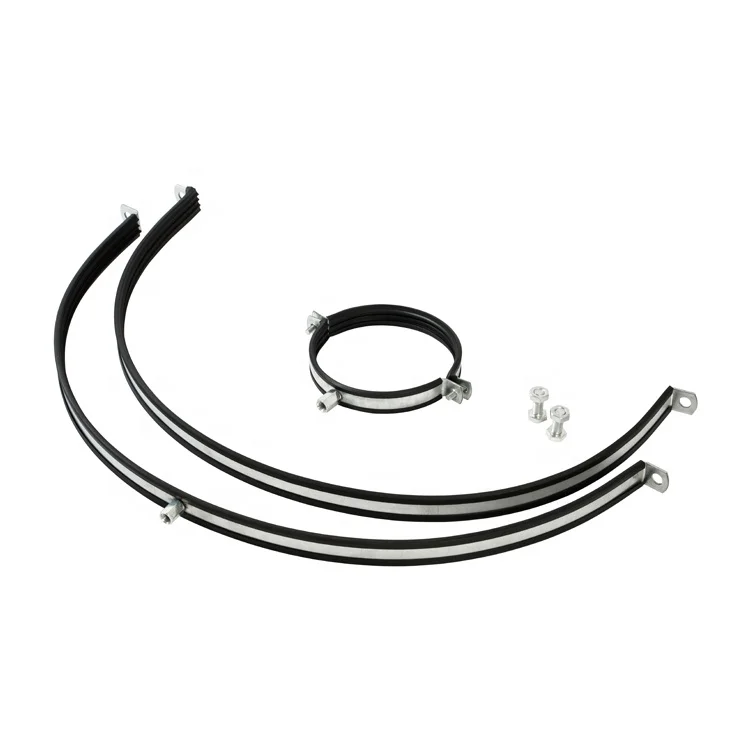

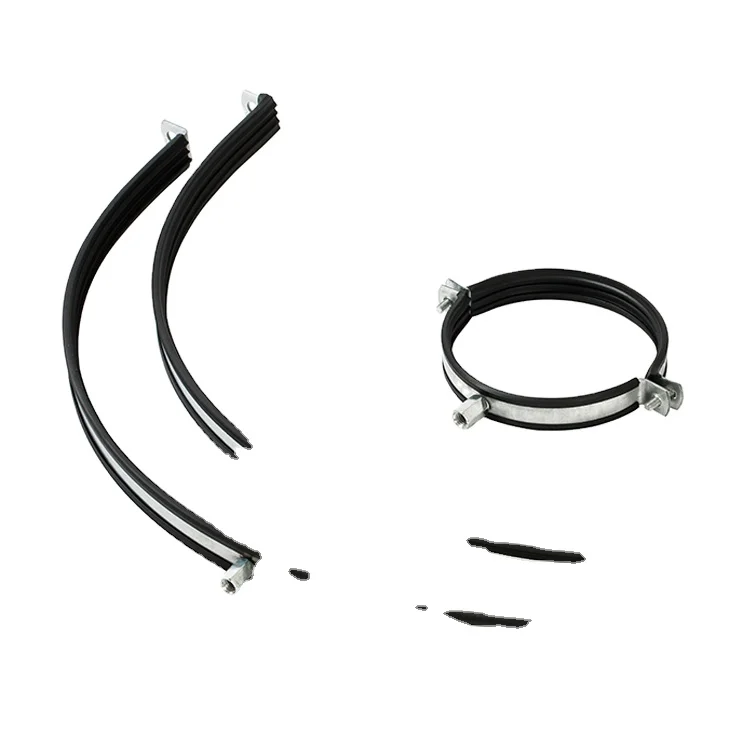

Rubber Lined Split Clamps, Duct Suspension Clamps

Product Overview

Description

Rubber Lined Split Clamps, Duct Suspension Clamps    ventilation

Product Name	Pipe Clamp with rubber
Material	DX51 D+Z80 or Z275 galvanized steel, stainless steel,with PVC lining
MOQ	3000piece
Locking screw	M6x20mm from 80-400mm, M10x25mm from 450-1250mm
Available sizes	80mm to 1250mm
Uses	For suspending spiral duct in ventilation system
Custom processing	Yes(Pattern - Stamping - Machining – Clean - Finish)
Brand	Aier
Delivery	Stock According to quantity
Free Sample	Avaliable
Advantage	1. We are direct factory, we are the first one in China to make pipe clamps,best price will offer  2. Established in year 1997, with experiences, quality guaranteed,and years of experience in manufacturing and exporting  3. Factory visit welcome  4. With independent open mold capacity, all sorts of stamping parts can be manufactured according to customer's requirement, drawing, design or samples(OEM)



Item code	D (mm)	Width x Thickness (mm)	Hex connection nut
PCWR 080	80	20×1.8	M8/M10
PCWR 090	90	20×1.8	M8/M10
PCWR 100	100	20×1.8	M8/M10
PCWR 110	110	20×1.8	M8/M10
PCWR 125	112	20×1.8	M8/M10
PCWR 140	140	20×1.8	M8/M10
PCWR 150	50	20×1.8	M8/M10
PCWR 160	160	20×1.8	M8/M10
PCWR 180	180	20×1.8	M8/M10
PCWR 200	200	20×1.8	M8/M10
PCWR 225	225	20×1.8	M8/M10
PCWR 250	250	20×1.8	M8/M10
PCWR 280	280	20×1.8	M8/M10
PCWR 300	300	20×1.8	M8/M10
PCWR 315	315	20×1.8	M8/M10
PCWR 355	355	20×1.8	M8/M10
PCWR 400	400	20×1.8	M8/M10
PCWR 450	450	25×2.5	Optional
PCWR 500	500	25×2.5	Optional
PCWR 560	560	25×2.5	Optional
PCWR 600	600	25×2.5	Optional
PCWR 630	630	25×2.5	Optional
PCWR 710	710	25×2.5	Optional
PCWR 800	800	25×2.5	Optional
PCWR 900	900	25×2.5	Optional
PCWR 1000	1000	25×2.5	Optional
PCWR 1120	1120	25×2.5	Optional
PCWR 1250	1250	25×2.5	Optional













a>

1.Can I get free samples?
Yes. We can offer you free samples but you need to bear international courier cost.



2.Usually what is your delivery time?
Usually our delivery time is 30days. But the delivery time of this product is interrelated to the quantity very much. So please check the delivery time with us before order placement.



3.Can I place the order directly online Alibaba?
Yes. We are paid gold member capable of trade assurance orders online. You can place the order both online or offline.



4.Can you make products according to our own design?
Yes. This is also our strength. We have a big series of production facilities which can turn your idea/design into real products.



5.How do you guarantee the quality?
We make 100% inspection from material to finished products. We can also provide pre-shipment inspection report.
