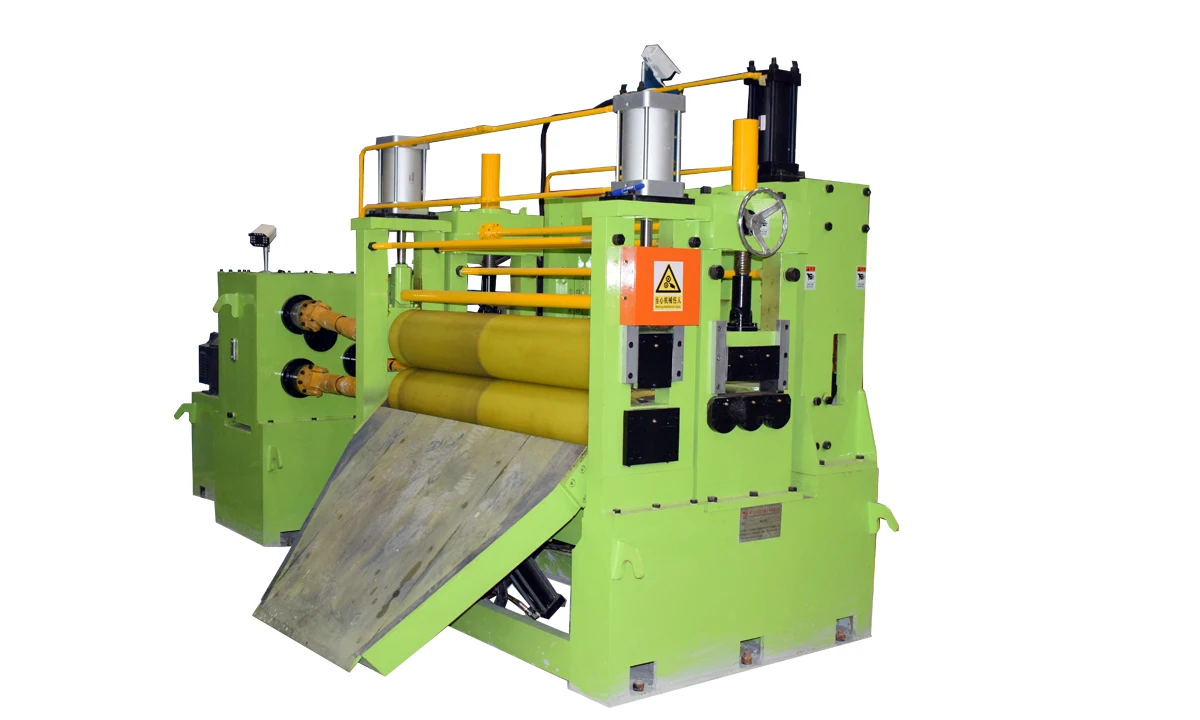

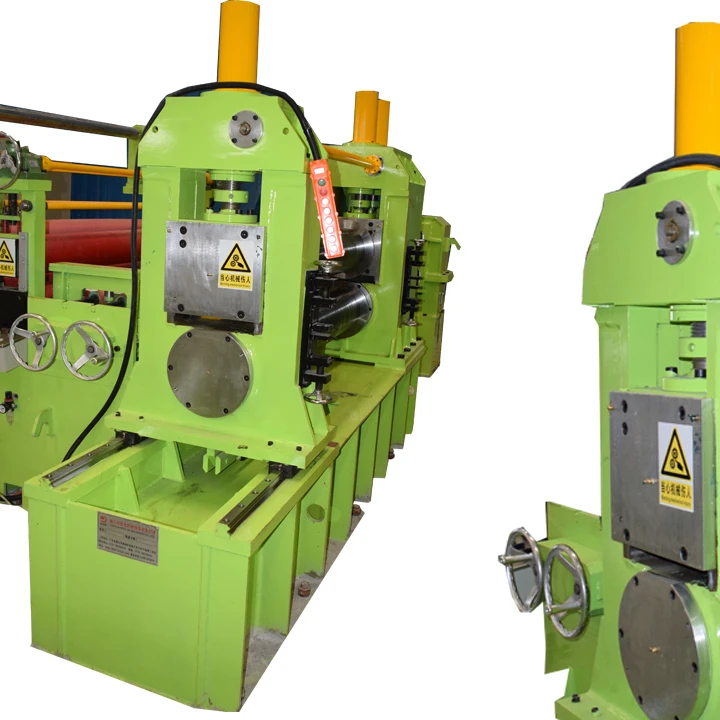

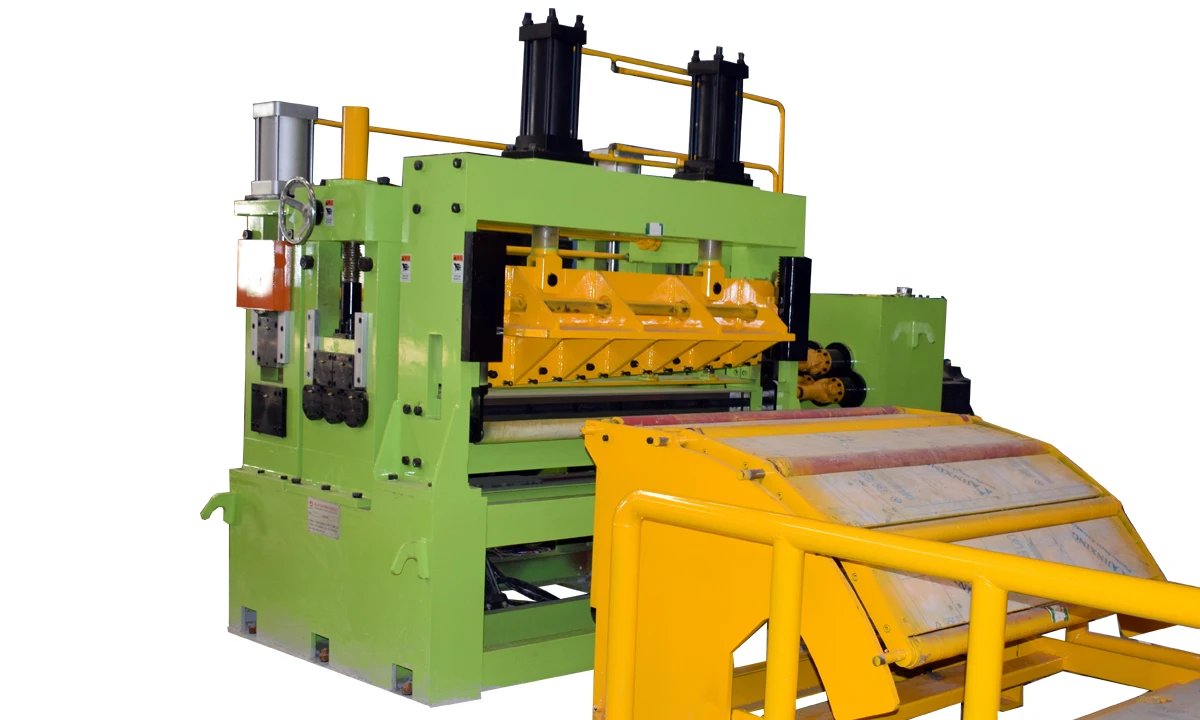

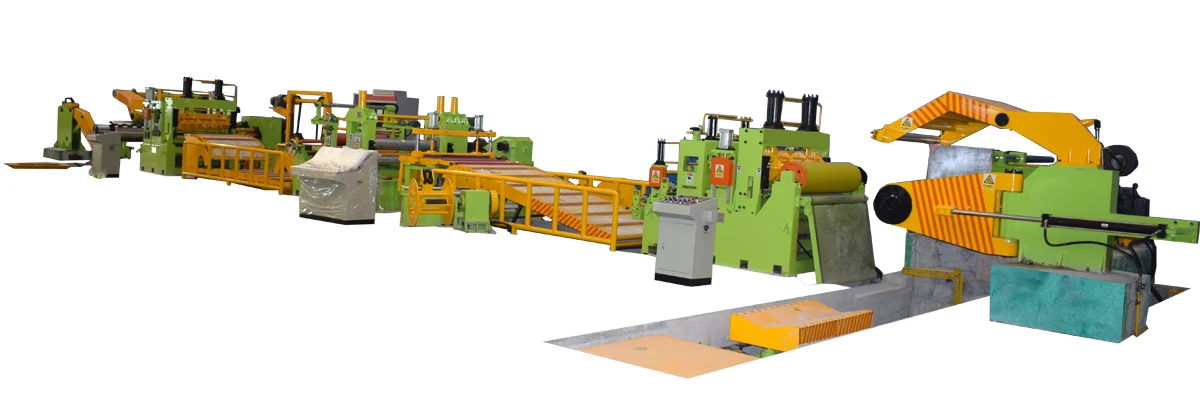

High Speed Automatic Metal Steel Coil Slitting Machine Slitting Line For Steel Coil Ss Coil
- Category: >>>
- Supplier: Foshan Glory Machinery Equipment co. ltd
Share on (1600907175478):
Product Overview
Description
Product Description
Specification
item | value |
Cutting Width (mm) | 200mm - 1250mm |
Material Thickness(mm) | 0.3mm - 3.0mm |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New product 2022 |
Warranty of core components | 1 Year |
Core Components | PLC, Engine, Bearing, Gearbox, Motor, Gear |
Cutting Speed(m/min) | 200M/MIN |
No. of Slitting Lines | thickness：0.5mm≤25pcs; 1.0-2.0MM≤15 pcs;2.0-3.0≤10pc |
Coil Weight (T) | 15T |
Place of Origin | China |
Guangdong | |
Brand Name | Glory(Hengjia) |
Condition | New |
Voltage | 380V, 50HZ, 3 phase |
Rated Power | 320 KW |
Dimension(L*W*H) | W26*6M*H2M |
Weight | 40 |
Year | 2022 |
Key Selling Points | High-accuracy |
Applicable Industries | Energy & Mining, Other, Building Material Shops, Manufacturing Plant |
Showroom Location | Turkey, Viet Nam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Russia, Thailand, Sri Lanka, Malaysia |
Material: | ss,carbon steel,galvanized,metal |
ID of Coil | 508 |
OD of Coil | ≤1800mm |
Mini width of strips | 10mm |
Scrap edge width range | 2-5mm |
Burr | ≤0.05mm |
Straightness | Strip width ≦ 30mm: ≦0.8/1M Strip width ﹥ 30mm ≦ 0.5/1M (excluding head and tail plate within 10M) |
Operator | 1 technician and 2-3 workers |
Height of working | 1000mm |
After-sales Service Provided: | Engineers available to service machinery overseas |

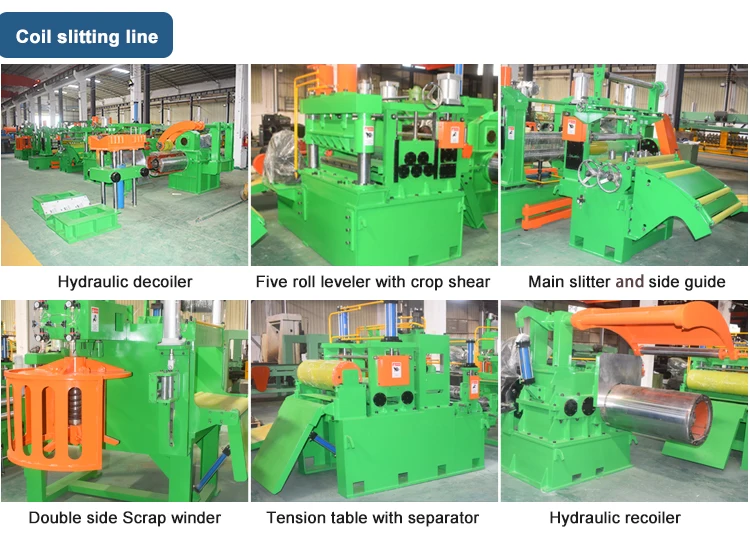

Equipment component | ||||||
No. | Name | Quantity | Remark | |||
1 | Loading car with stock bay | 1 set | ||||

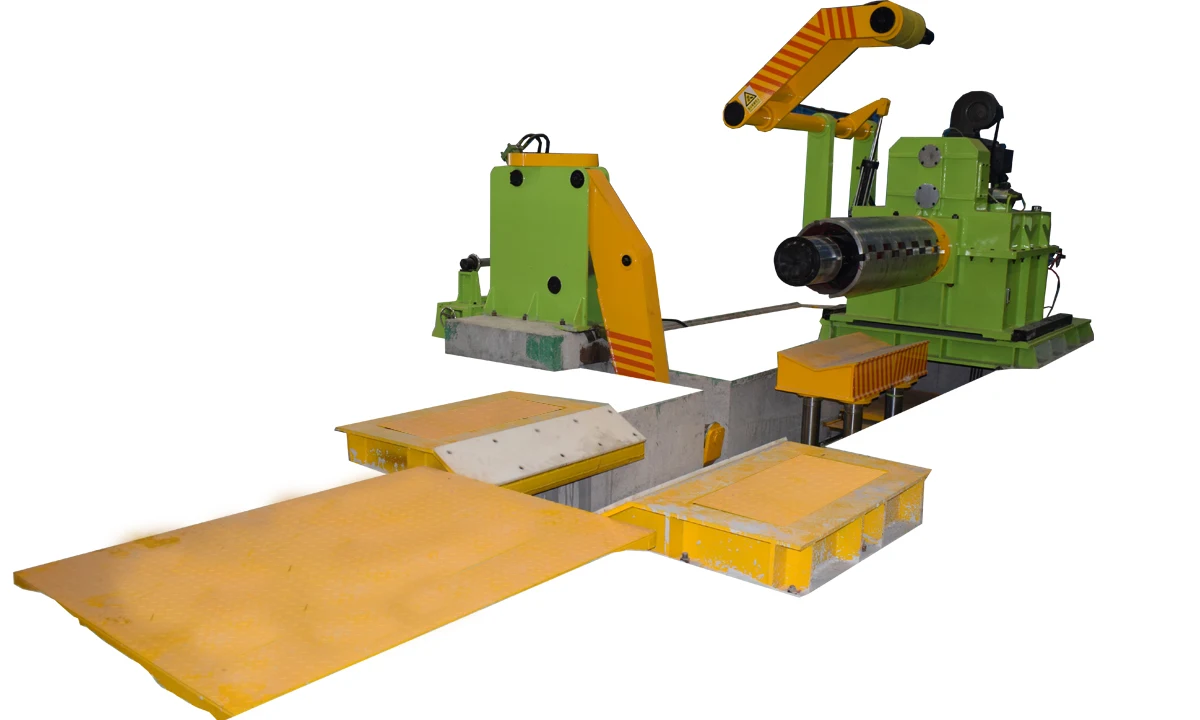

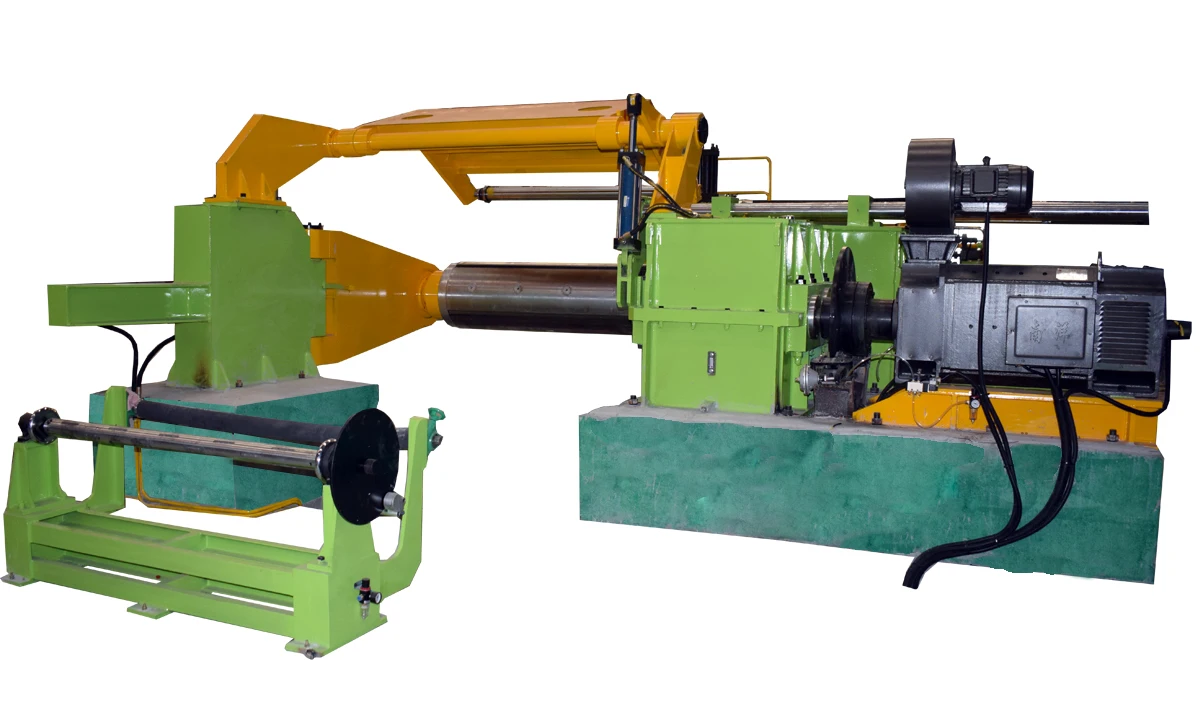

2 | Decoiler with holding arm | 1 set | ||||
3 | Peel table ,Pinch Roll ,five roll leveler Crop shear | 1 set | ||||
4 | Loop bridge1# | 1 set | ||||
5 | Correcting and pressing device | 1 set | ||||

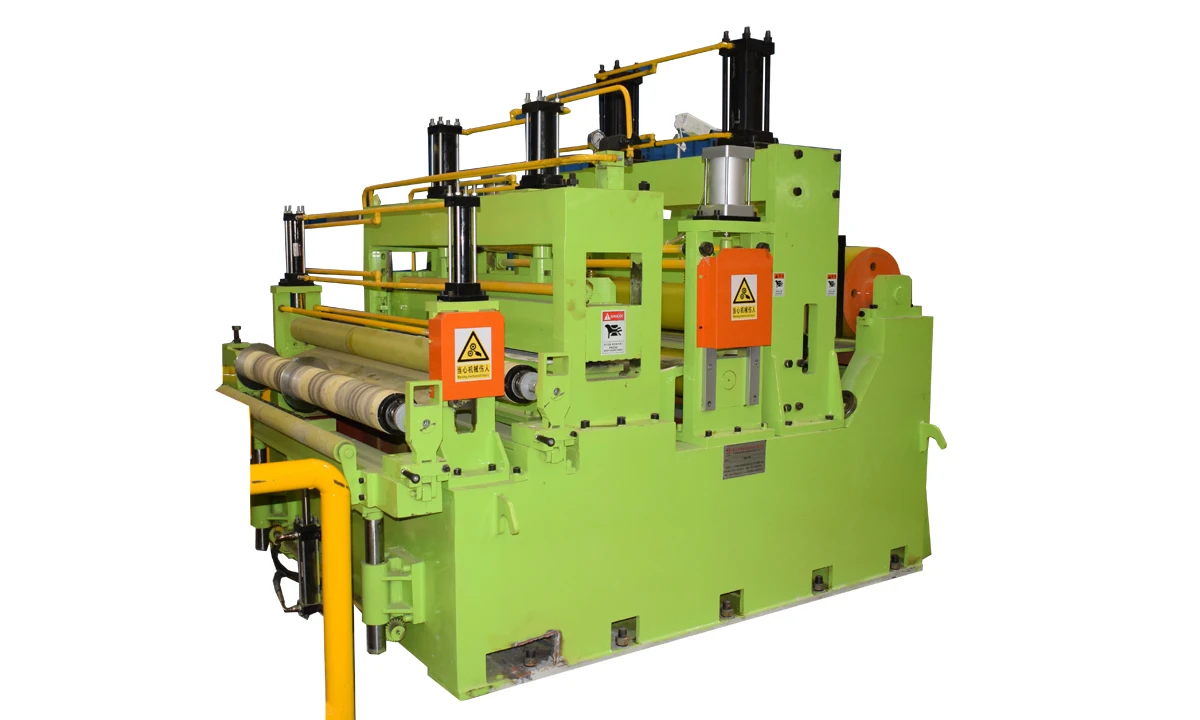

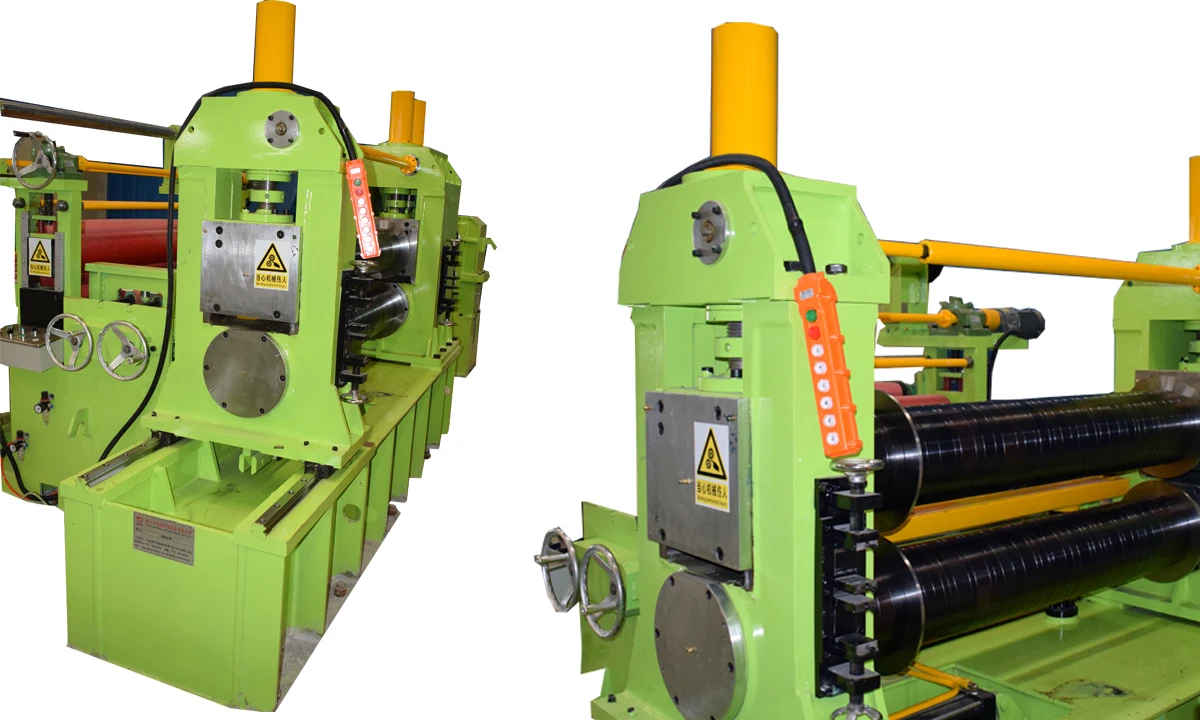

6 | Hi precision Slitter | 1 set | ||||
7 | Scrap winder | 1 set | ||||
8 | Loop bridge 2# | 1 set | ||||

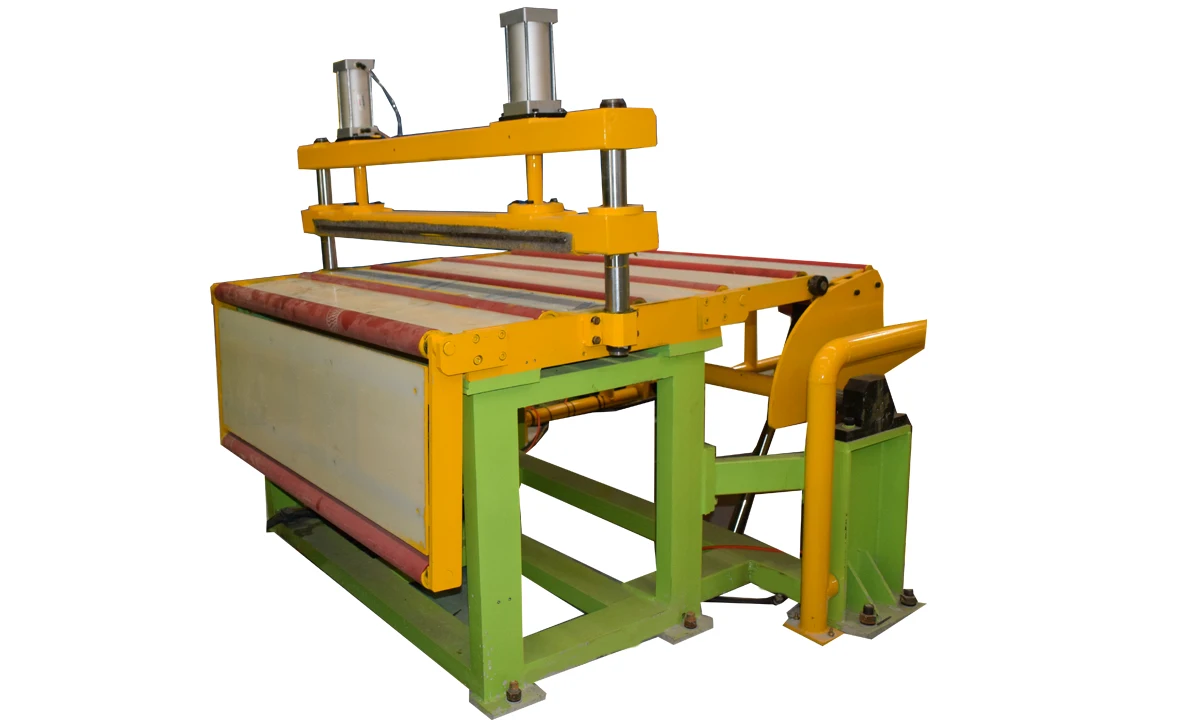

9 | Tension table with pinch roll | 1 set | ||||

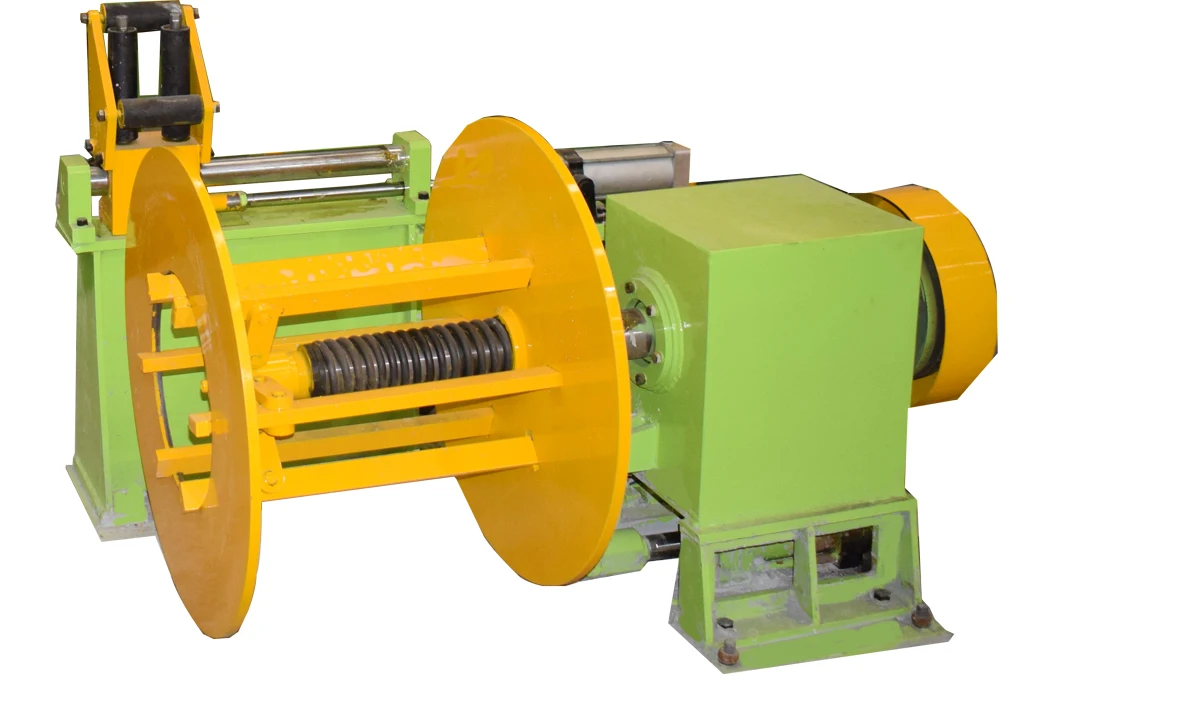

10 | Recoiler with separator | 1 set | ||||
11 | Unloading Car | 1 set | ||||
12 | Holding arm | 1 set | ||||
13 | Hydraulic system | 1 set | ||||
14 | Gas system | 1 set | ||||
15 | Electrical System | 1 set | ||||
No. | Name | Producer | Remark |
1 | Inverter motor | Guangdong famous brand | |
2 | Motor Controller | American Parker/Continental 590 | |
3 | HMI | Taiwan Yonghong | 17 Inch |
4 | PLC system | Siemens brand | |
5 | Proximity switch | Schneider | |
6 | Encoder | Koyo, Japan | |
7 | Relay | Schneider | |
8 | Low Voltage Electrical Components | Schneider | |
9 | Buffer pit monitoring (HD) | Hai Wei Kang | 17-inch screen 4 |
10 | Contactor | Schneider | |
11 | ultrasound | Pepperl+Fuchs |
Company Profile
Foshan Glory(Lihongyuan/Hengjia) Machinery Equipment Co.; Ltd is a Chinese enterprise company with Taiwan technology to produce the machine.It locates in Foshan city,near Guangzhou of Guangdong province.

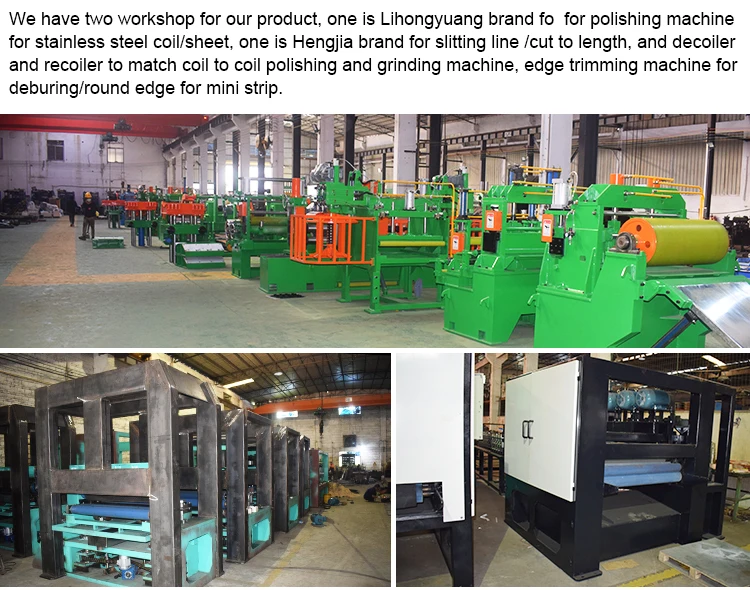

We have two workshop for our product,one is Lihongyuang brand fo for polishing machine for stainless steel coil/sheet;one is Hengjia brand for slitting line /cut to length,and decoiler and recoiler to match coil to coil polishing and grinding machine,edge trimming machine for deburring /round edge for mini strip.
Our main product is coil to coil or sheet to sheet polishing and grinding machine line for No.4+Brushing+hairline,Hi precision slitting line,cut to length for stop shear or frying shear,strip edge trimming machine for deburing/round edge for mint strip coil .All our product are used by Taiwan/European design and technology with more than 10 years experience.

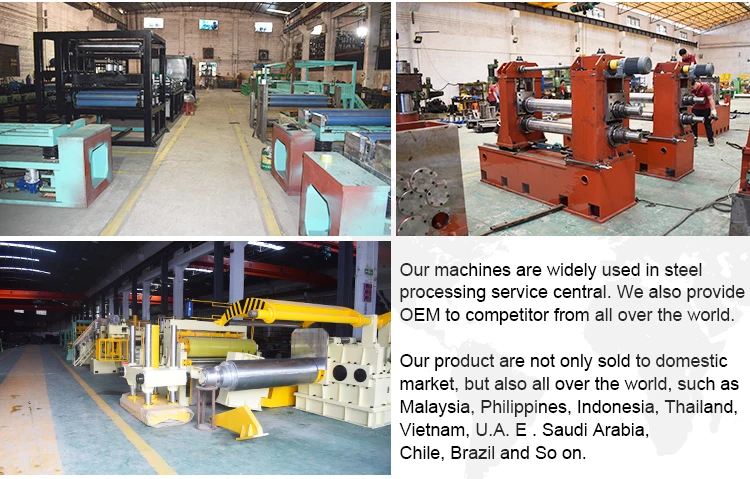

Our machines are widely used in steel processing service centre.We also provide OEM to competitor from all over the world .Our product are not only sold to domestic market ,but also all over the world ,such as Malaysia,Philippines, Indonesia ,Thailand , Vietnam, U.A. E . Saudi Arabia ,Chile ,Brazil and So on .
Our company area is medium scale factory. We set up domestic marketing department,oversea marketing department,engineering department, production department, QC department, administration department and so on.
We have large-scale production line with large assembly area and workshop to fabrication the parts.We have many CNC drilling mill machines,CNC lathe machines,CNC boring mill machines, CNC surface grinding mill machines and CNC milling machines in our workshop.
Our company principle is to provide good quality of product and service to customer to win more and more customers credit.
We have two workshop for our product,one is Lihongyuang brand fo for polishing machine for stainless steel coil/sheet;one is Hengjia brand for slitting line /cut to length,and decoiler and recoiler to match coil to coil polishing and grinding machine,edge trimming machine for deburring /round edge for mini strip.
Our main product is coil to coil or sheet to sheet polishing and grinding machine line for No.4+Brushing+hairline,Hi precision slitting line,cut to length for stop shear or frying shear,strip edge trimming machine for deburing/round edge for mint strip coil .All our product are used by Taiwan/European design and technology with more than 10 years experience.
Our machines are widely used in steel processing service centre.We also provide OEM to competitor from all over the world .Our product are not only sold to domestic market ,but also all over the world ,such as Malaysia,Philippines, Indonesia ,Thailand , Vietnam, U.A. E . Saudi Arabia ,Chile ,Brazil and So on .
Our company area is medium scale factory. We set up domestic marketing department,oversea marketing department,engineering department, production department, QC department, administration department and so on.
We have large-scale production line with large assembly area and workshop to fabrication the parts.We have many CNC drilling mill machines,CNC lathe machines,CNC boring mill machines, CNC surface grinding mill machines and CNC milling machines in our workshop.
Our company principle is to provide good quality of product and service to customer to win more and more customers credit.
Customer Photos
Q1: What kind of machine do you have ?
A1: We three type different machine line and accept customize

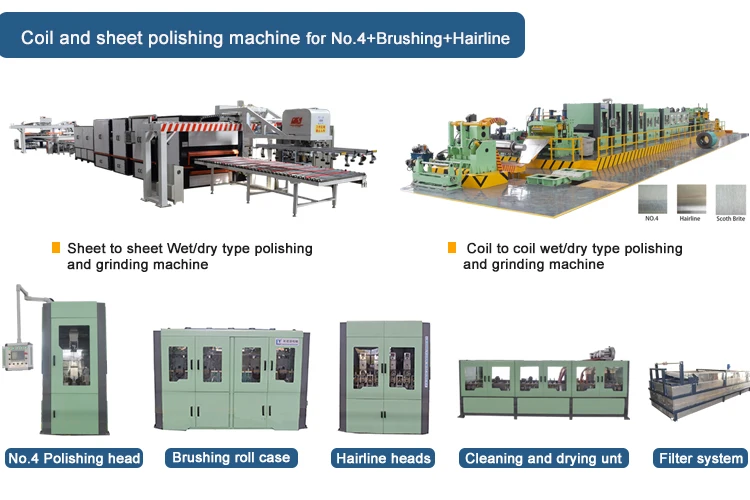

a. coil to coil wet or dry type polishing and grinding machine for No.4 +Brushing roll+hairline for steel surface
b. Sheet to sheet wet or dry type polishing and grinding machine for No.4 +Brushing roll+hairline for steel surface
c. Hi precision slitting line for cold roll for different width .

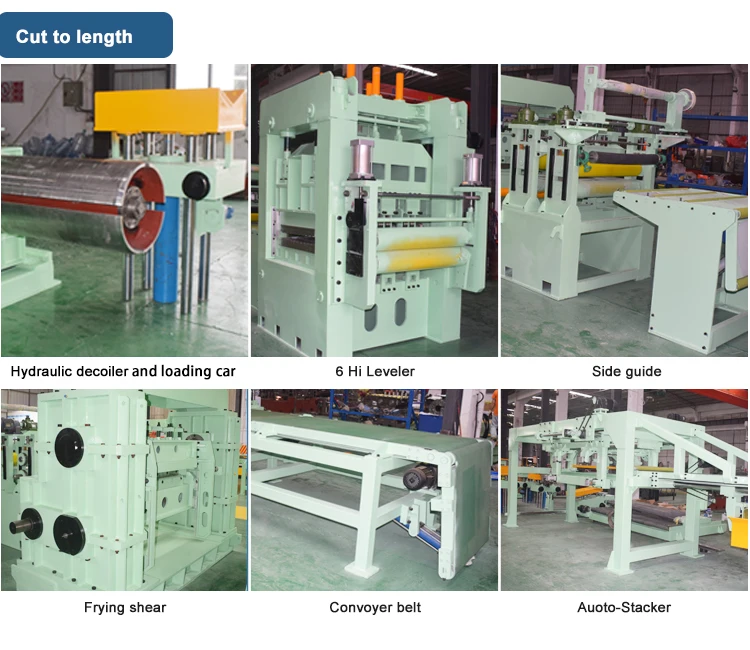

d. Cut to length (Stop shear and frying shear ) for cold roll

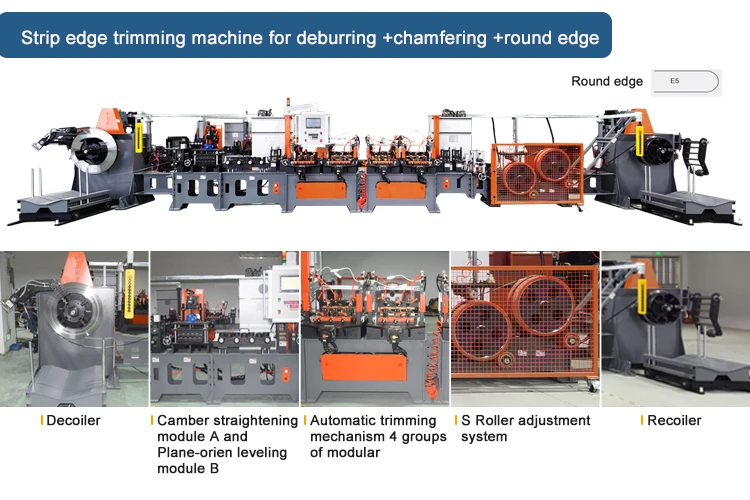

e. The strip edge trimming machine for deburring +Chamfering +round edge for different steel strip(from 5mm-300 mm)
Q2: How to visit your company?
Our company located in Foshan city ,Guangdong province of China , we can pick you up from Guangzhou Baiyun international airport
or any other place in Guangdong province .
Q3:How long will you send the proposal and offer?
A3:We need you provide your material data and your requirement for machine,then we can give you offer within 2-3 days.
Q4: What is your payment term and lead time?
A4: We usually accept 30% deposit ( the strip edge trimming machine line need 50%), the balance must be paid before shippment ,or
70% is irrevocable LC at sight ; the lead time : we generally need about 90 days after getting deposit .
Q5: How to install the machine and the engineer fee,and warranty?
A5: We will send one or two engineer to install the machine in customer plant,the customer need bear the visa fee/flight
ticket/accommodation during installation ,and give 80 usd subsidy to engineer; installation and training time : it usually need
about 10-25 days with the cooperation from customer ,depend on the size of machine .
A1: We three type different machine line and accept customize
a. coil to coil wet or dry type polishing and grinding machine for No.4 +Brushing roll+hairline for steel surface
b. Sheet to sheet wet or dry type polishing and grinding machine for No.4 +Brushing roll+hairline for steel surface
c. Hi precision slitting line for cold roll for different width .
d. Cut to length (Stop shear and frying shear ) for cold roll
e. The strip edge trimming machine for deburring +Chamfering +round edge for different steel strip(from 5mm-300 mm)
Q2: How to visit your company?
Our company located in Foshan city ,Guangdong province of China , we can pick you up from Guangzhou Baiyun international airport
or any other place in Guangdong province .
Q3:How long will you send the proposal and offer?
A3:We need you provide your material data and your requirement for machine,then we can give you offer within 2-3 days.
Q4: What is your payment term and lead time?
A4: We usually accept 30% deposit ( the strip edge trimming machine line need 50%), the balance must be paid before shippment ,or
70% is irrevocable LC at sight ; the lead time : we generally need about 90 days after getting deposit .
Q5: How to install the machine and the engineer fee,and warranty?
A5: We will send one or two engineer to install the machine in customer plant,the customer need bear the visa fee/flight
ticket/accommodation during installation ,and give 80 usd subsidy to engineer; installation and training time : it usually need
about 10-25 days with the cooperation from customer ,depend on the size of machine .
