Multifunction 3 cup Anemometer AM 1236C for Air Velocity,Air Flow,Wave Height,Direction,Temperature
- Category: >>>
- Supplier: Guangzhou Landtek Instruments Co. Ltd.
Share on (1600907196357):
Product Overview
Description
Anemometer AM-1236C
Spec:Wide applications: use to check air conditioning & heating systems , measure air velocity, wind speed, direction, temperature, etc.
Model:AM-1236C
Features
* Wide applications: use to check air conditioning & heating systems , measure air velocity, wind speed, direction, temperature, etc.
* Multifunctional. the measurement unit can be selected according to different requirements.
* Maximum value data hold function.
* DATA HOLD function for storing 24 groups of datas.
* Low-friction ball-bearing design allows free vane movement.
* Separate type design, convenient to measure.
* Automatic Power off, 0-9 minutes set by users.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

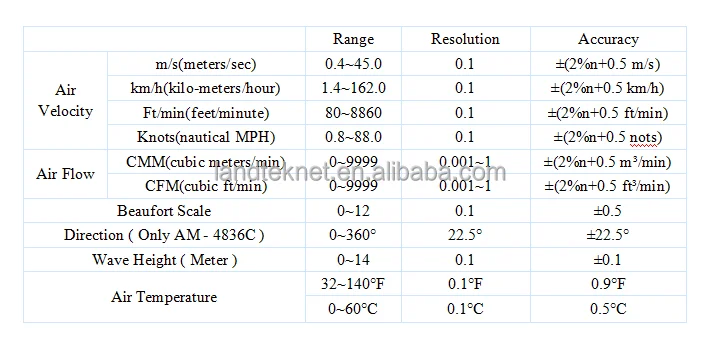

Specifications
Model | AM-1236V | AM-1236C | |
Display | LCD | ||
Measurement Units | Air Velocity | m/s,km/h,ft/min,knots | |
Air Flow | CMM(m³/min),CFM(ft³/min) | ||
Beaufort Scale | Force | ||
Wave Height | m | ||
Direction | ------ | º from The North Diection | |
Temoerature | ºC,ºF | ||
Data Hold | Maximum Value | ||
Data Memorized | 24 Groups | ||
Sampling Rate | Reading Per Second Approx | ||
Sensors | Air Velocity/Flow Sensor | Vane Arms with Low-friction Ball Bearing | 3-impeller |
Direction Probe | ------ | Low Friction Probe | |
Temperature Sensor | Precision Thermistor | ||
Automatic Power Off | 0~9 Minutes Set by Users | ||
Operating Conditions | Temperature | 0ºC~50ºC(32ºF~122ºF) | |
Humidity | <80%RH | ||
Power Supply | 4x1.5V AAA(UM-4)Battery | ||
Dimensions | Main Unit | 156mmx67mmx28 mm(6.1x2.6x1.1 inch) | |
Sensor | Sensor Head:72mm Diameter | Velocity Sensor:65mmx65mmx115mm | |
------ |
| ||
Weight (Including Batteries) | 260g | ||
Standard Accessories | Main Unit | ||
Carrying Case(B04) | Carrying Case(B10) | ||
Operation Manual | |||
Sensor | Velocity Sensor | ||
------ | Direction Sensor | ||
Optional Accessories | RS-232C Data Cable with Software | ||
Bluetooth Data Adapter with Software | |||
