Window Film / Smart Glass Film with Self Adhesive

Product Overview

Description

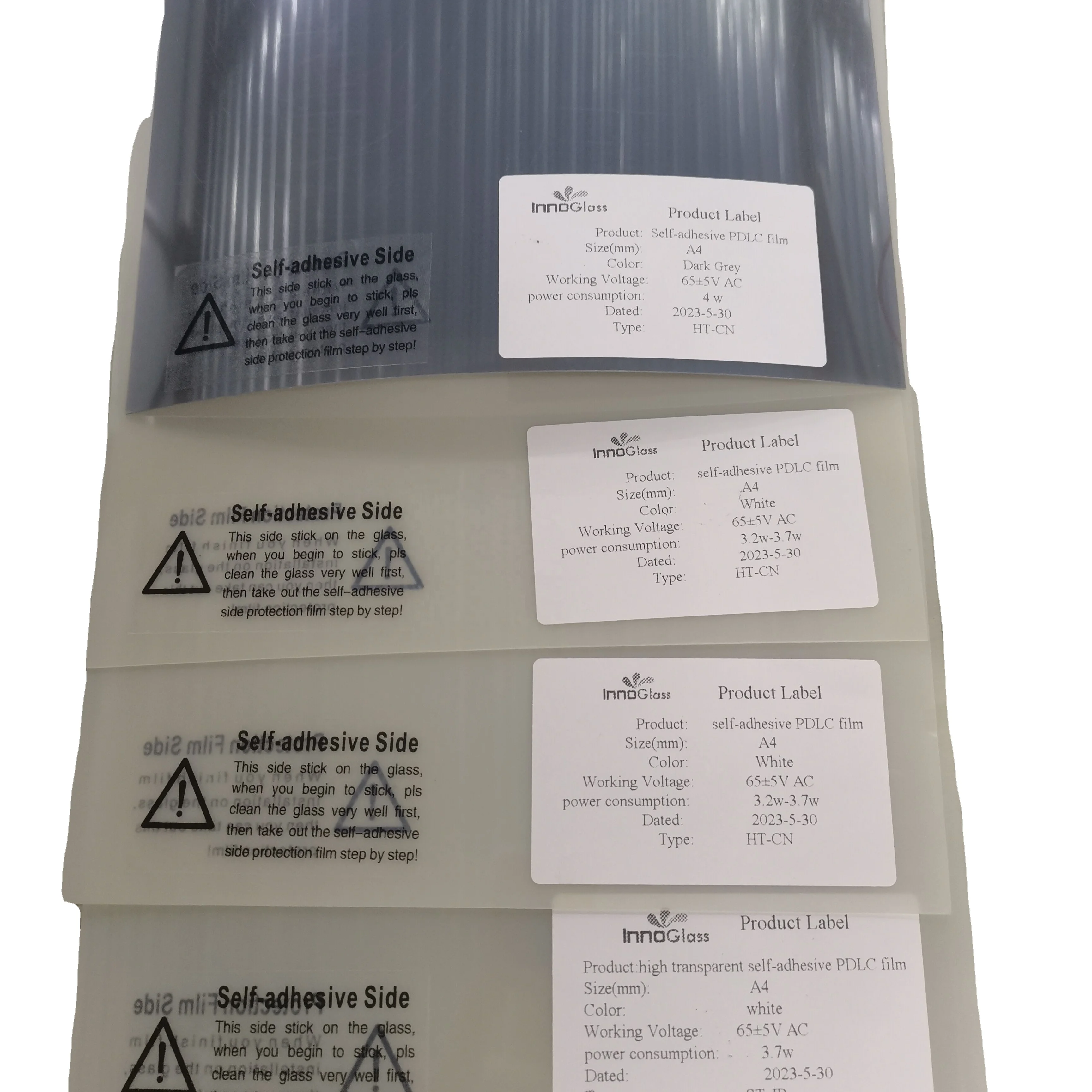

 INNO Switchable Smart Glass Film Introduction:



Smart film, also called Switchable film,which is capable of adjusting light transmission between transparent and opaque using AC power. Due to moisture sensitivity, earlier versions of the film were used only to make smart glass by lamination on glass. With continual improvement in moisture resistance, the new (3rd) generation of the film can be directly installed on existing windows with special glue or self-adhesive. It combines many functions, such as light adjustment, UV and infrared blocking, advertising and security.



Switchable film (also known as smart film) offers a next generation alternative to blinds or privacy film making it the ideal choice for commercial or residential installations. The self-adhesive layer means that it can be installed on existing glass – so no need for expensive window or partition replacement.





Advantages of INNO Self-Adhesive Smart Film for Cars

A) Its shading could be gradually changed.
B) Fast response when transferring from transparency to translucent;
C) Laminated glass has high security and excellent sound-control.
D) Variety of control modes: switch, optical control, sonic control, temperature control and remote net control;
E) Simple structure , low cost, and easy setting and controlling;
F) No trouble of curtain setting and cleaning;
G) Could be matched in every square, and every shapes and curves;
H) Allows total privacy or clear viewing;
I) With a modern look, good for interior design





Tap this link to see more Projects of Smart Film :







INNO Switchable Smart Glass Film Techinical Dates:





Optical Properties	Parallel Light Transmission	ON	>81%
		OFF	<10%
	Visible Light Transmission	ON	>80%
		OFF	< 5%
	Visual Angle	ON	150 degree
	UV Blocking	ON/OFF	>97%
Electrical Properties	Operating Voltage	ON	48 volts A.C.
	Frequency	ON	50~60HZ
	Current	ON	2 mA/sqm
	Power Consumption	ON	3.7W/sqm
	Switching Time	ON==>OFF	Tr.2ms
		OFF==>ON	Td.10ms
Specification	Thickness	0.4mm
	Max Size	1524mm x 3048mm
	Color	milky white and brown
Other index	Working Temperature	–30~80 °C
	Life time	> 10 years



Power:On:Transparent,Off:Opaque

Transmittance::80%±1%

Solar Reduction:up to 40%

UV Block: 99%

Operating Temperature:-30℃-60℃

Operating Voltage:60--70VAC(safe voltage)

Energy Use:3.6W/Sqm (low energy consumption)



Advantage  OF INNO Self-adhesive Smart Film and Smart Glass for Window



1.Privacy protection. As most important function, smart glass can be changed from transparent to opaque via easy model ON & OFF.

2. Perfect function of safety. As smart glass is a special kind of laminated glass, it has all the good function of the laminated glass, mainly the security.

3. Blocks more than 99% UV rays ,avoiding fading in the room.

4. Sound proof. With excellent damping action, the smart glass is easy to block the noise.

5.Projection. When it is under suit    light, the perfect projection appears.

6.No trouble of curtain setting and cleaning

7.With a modern look, good for interior design

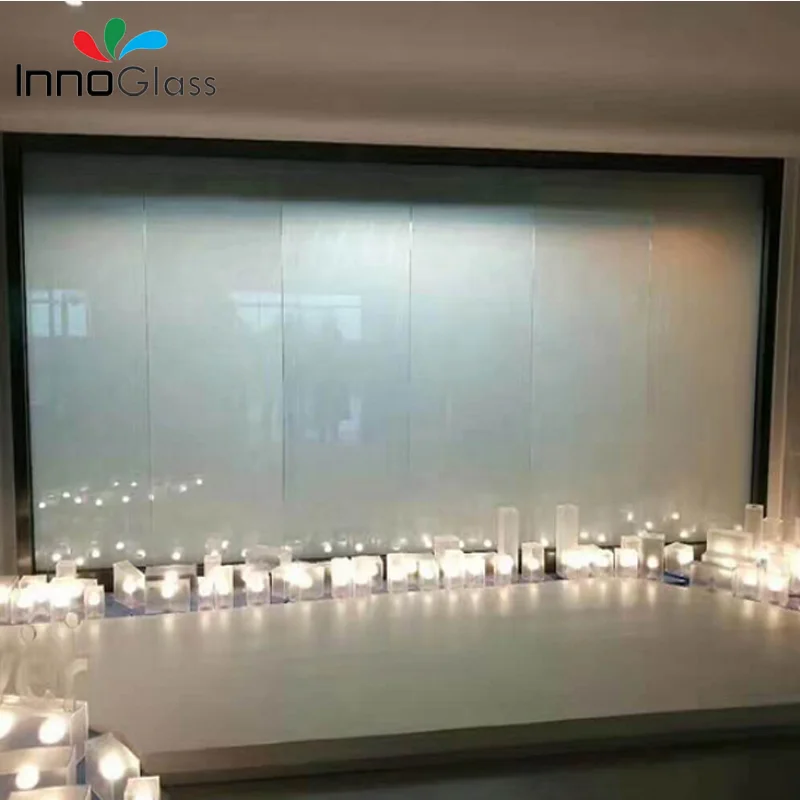

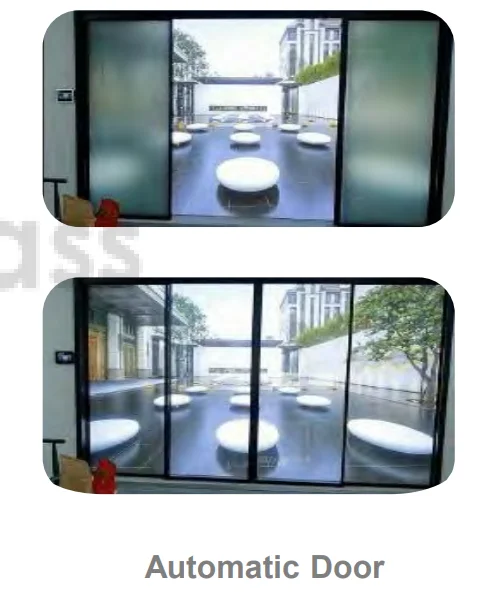

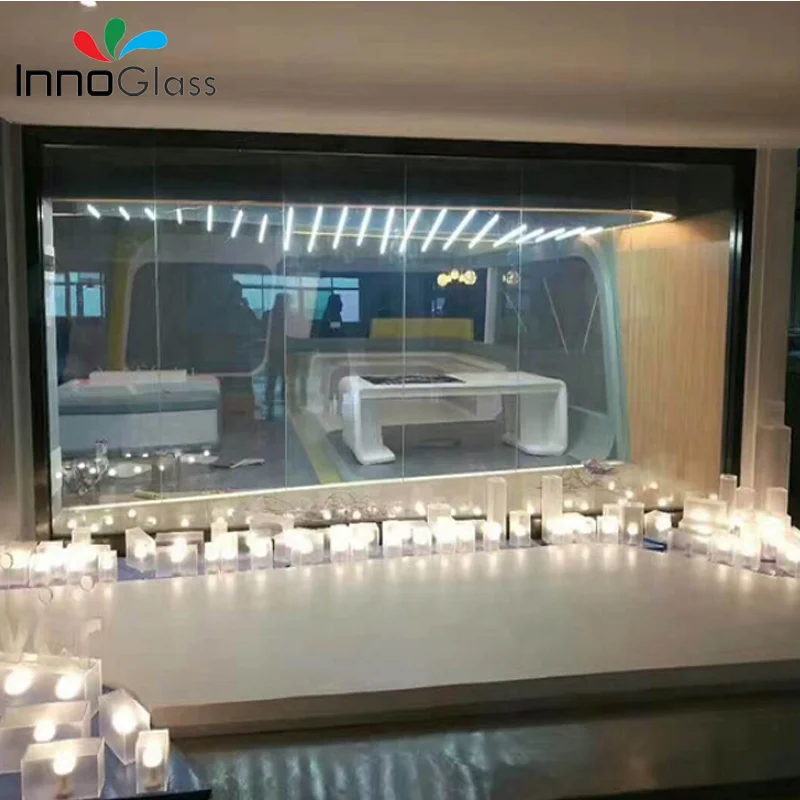

 Application and Projects of INNO Smart Glass and Smart Film

• Hospitality - Hotel room privacy screen, privacy screen, external windows, doors ect.

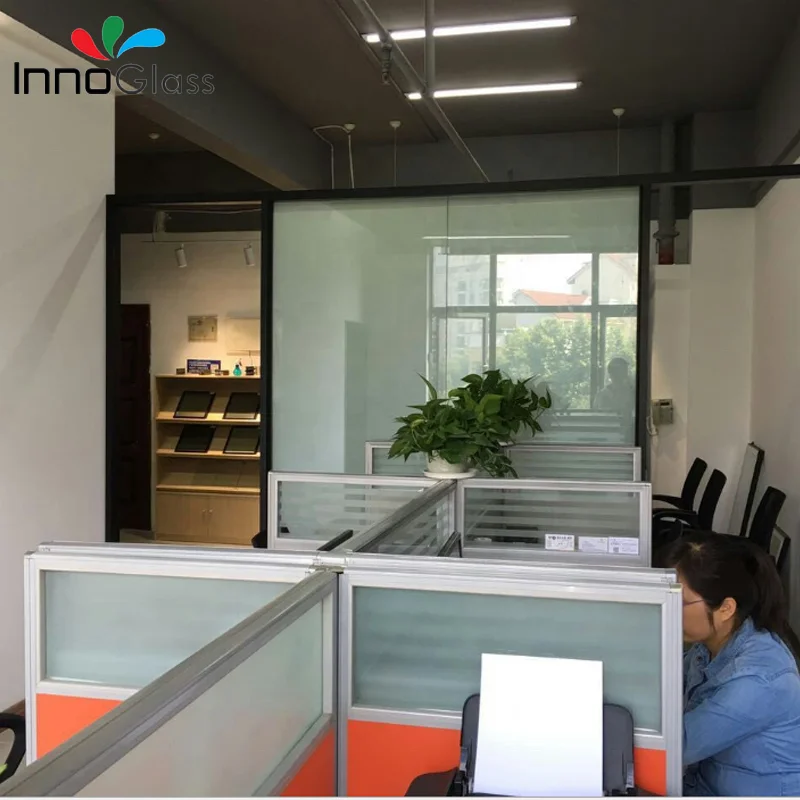

• Commercial - Office & boardroom partition screen


• Healthcare -  Doors, moveable privacy screens, and X-Ray protection screens.


• Retail & Showroom - Projection windows, vanity screens, feature screens.


• Projection - Internal or External high resolution rear projection screens.


• Corporate boardrooms / meeting rooms


• Residential windows


• Dividing partitions


• Conservatories / sun rooms


• Vision panels


• Luxury vehicle privacy


• Yachts


• Retail / museum display cases







electric window tint

smart film

smart glass film

car window smart tint film

smart film price

smart window film

switchable smart film

smart film for car

pdlc smart film

switchable smart glass film

smart tint film

switchable self-adhesive smart film

smart glass projection film

smart film for car window tint

smart film switchable

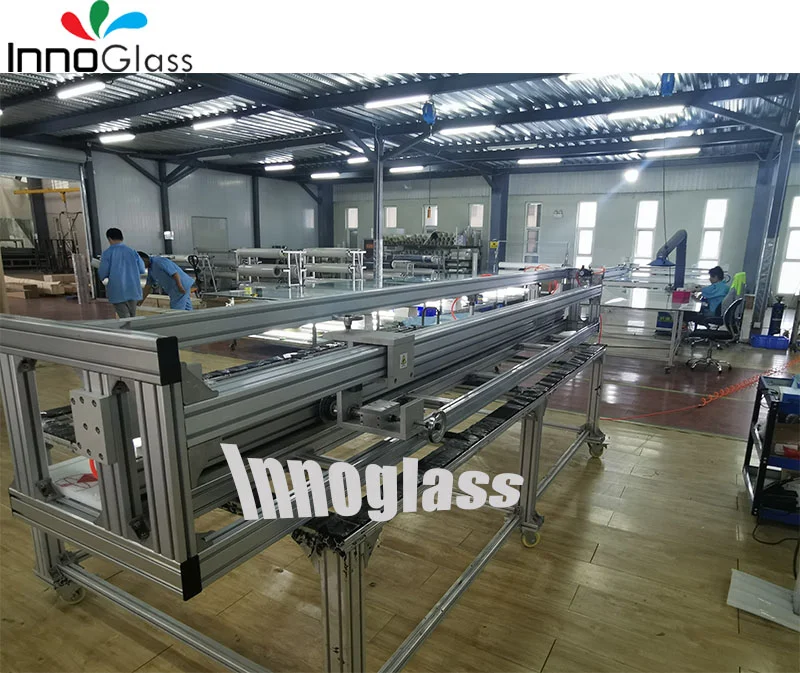

Our Production Facility















For the high and low temperature glass printing, we achieve colorful, super adhesion combined specializing in high demand products, for example home appliances panel products, decorative glass , furniture glass production and so on



In the switchable smart PDLC glass film products, InnoGlass cooperate with Korea factory based on our own research and development on the film, we achieve transfer film in China hardening , coating , laminating , plastic folders and other production processes , to achieve ultrathin , UV resistant, high transmittance, oversized products such advantages ;



For the Transparent LCD display,totally innovative products, they can be used for Showcase, advertising,building,fridge door and so on;











For shipment :
