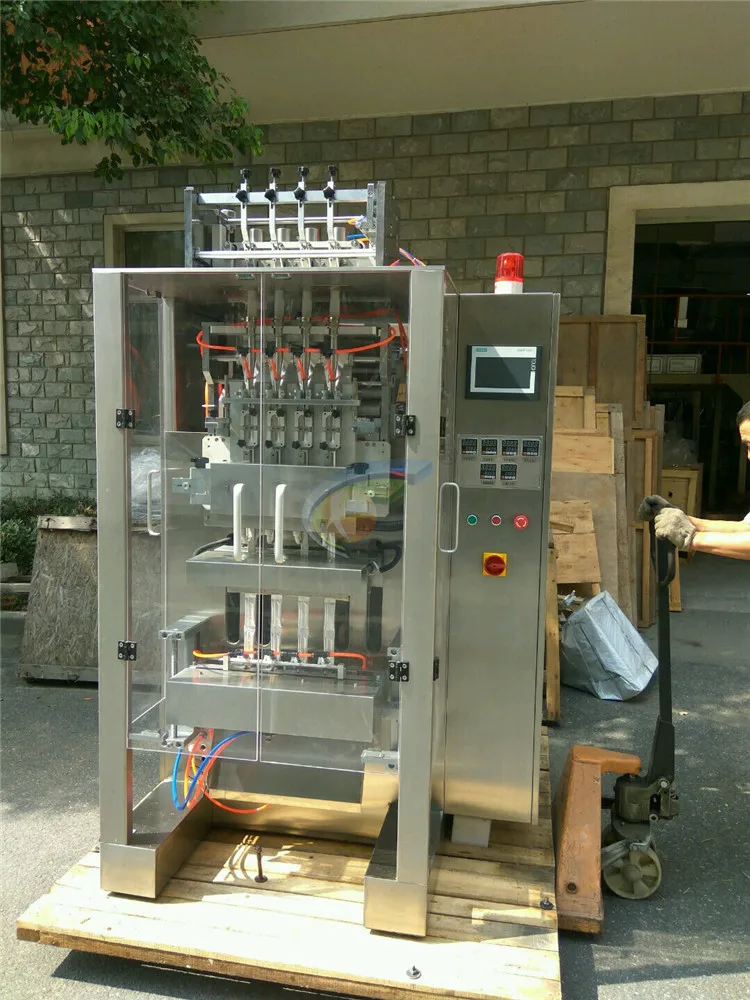

Automatic Multi Lane Stick Orange Flavour Energy Drink Powder Packing Machine 8 Lane Energy Supplement Powder Packaging Machine

Share on (1600907216236):


Price:$50,000.00 - $80,000.00

Quantity:


Product Overview

Description














Product Description

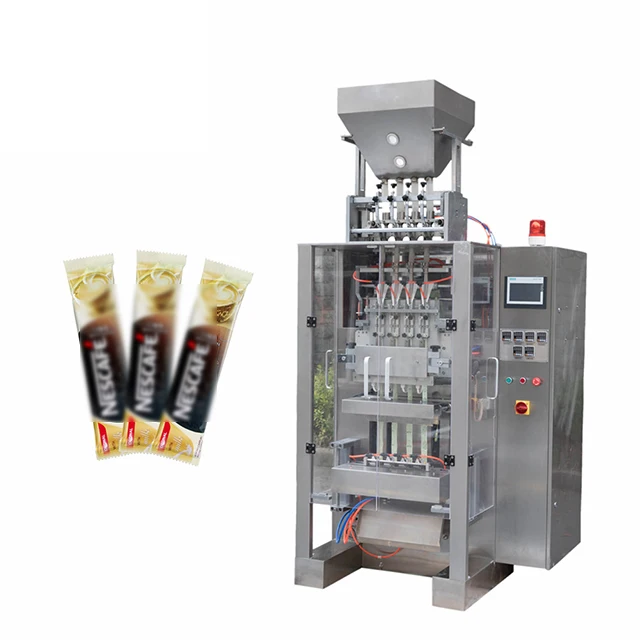

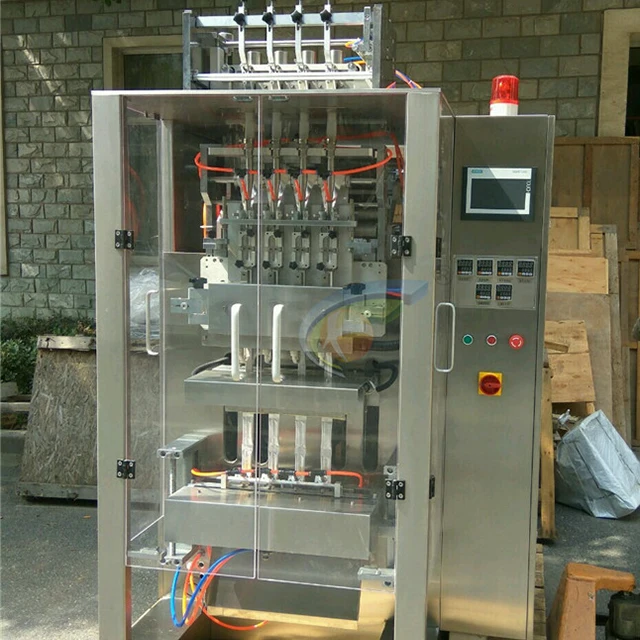

QC-320 Multi-line particle back-seal packaging machine
















Machine Introduction:





It is widely used in the automatic packaging of loose, non-sticky granular materials in food, medicine and chemical products. Such as (medicine) granules, instant coffee, monosodium glutamate, sugar, desiccant, etc. It can also be used for packaging powders, liquids and viscous liquids.




It has a series of automatic functions such as automatic feeding, metering, bag making, filling, sealing, date printing and

finished product output. It can also realize the function of automatically correcting the color mark according to the requirements of users. The feeding part of the machine has changed the single feeding method in the past, adopting different feeding methods according to different medicines.

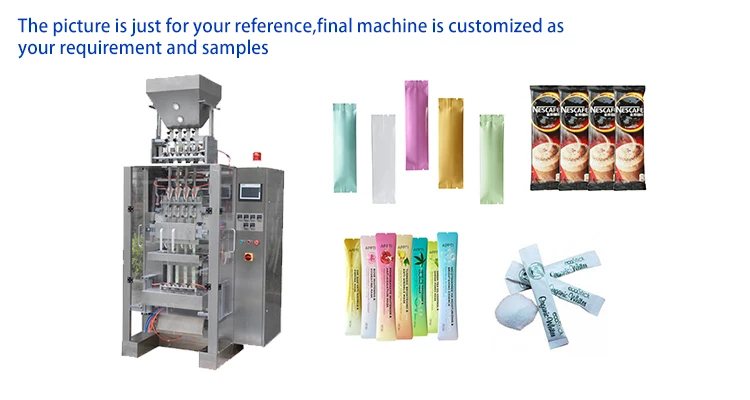

All of machine pictures are just for your reference, final machine according to your real samples!

























We'll change into your standard plug before shipping,such as American plug, UK plug, European plug...








Specification





























































Power


380V 50Hz,4.5kw


Compressed air pressure (Mpa)


0.6 Mpa


Compressed air consumption (m3/h)


2.5m3/h


Dimensions (L*W*H) and weight


1300*1500*2400mm ,1500kg


Packaging materials


Granules Liquid powders (need to replace the feeding mechanism)


Number of vertical columns


2-6 columns


Packing capacity 2-200ml Measurement accuracy


±5%


Bag-making capacity


Width 20mm≤W≤70mm (special order can be made) Length 50 mm≤L≤190mm (special order can be made)


Packaging material


width 320mm


Printer


with thermal coding machine or thermal typing


Cutting knife method


Flat knife cutting, sawtooth cutting, round corner cutting


Packaging materials


Composite packaging materials (BOPP/PE, etc.)


Cross cutting frequency


20-40 times/minute, stepless (setting) adjustment can be carried out according to the requirements of use.
















































































Name


Model


From


PLC


FX3U-48MT


Mitsubishi


DC power supply


S50-2A


Mingwei


Intermediate relay


RJ2S-CL-DC24V


Izumi


solid state relay


E1542-32K


Baxter


server Driver


ASD-B2-1021-B


Delta


Main servo motor


ECMA-E21010SS


Delta

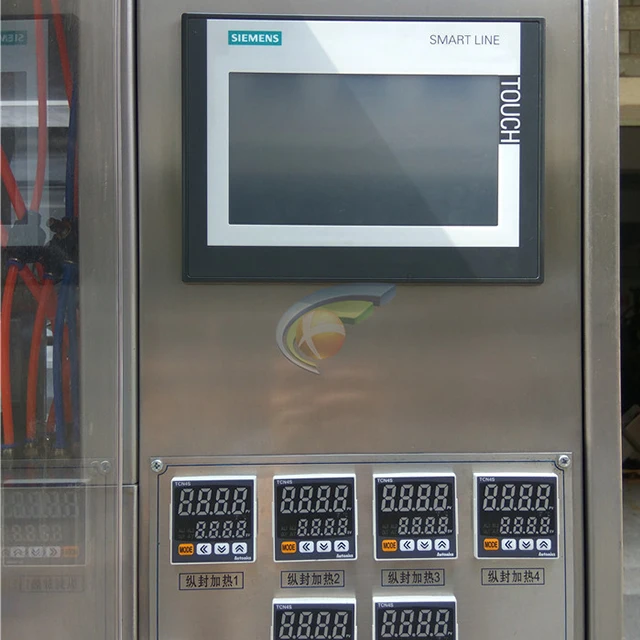

Temperature table


TCN4S-24R


Otonis


Heating sling


22*320


Shanghai


Heating pipe


10*200


Shanghai

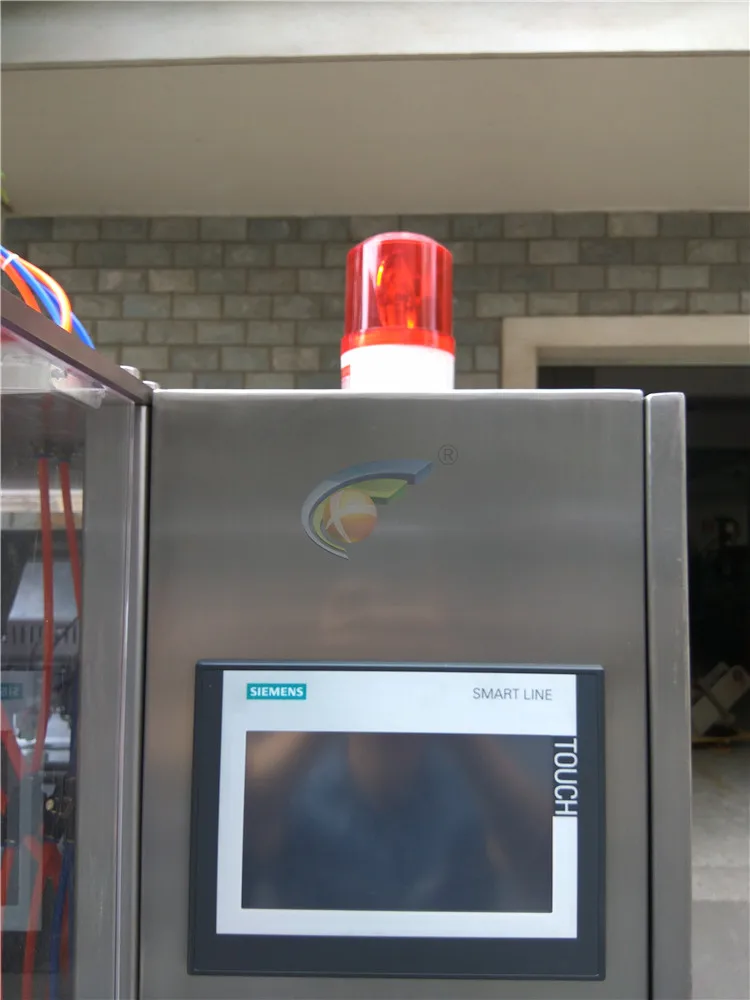

HMI


SMART 700IE


Siemens


Proximity switch


PRE12-4DN


Otonis


Proximity switch


PSNT17-5DO


Otonis


Benchmarking switch


Z3N-T22


JULONG


















Packing

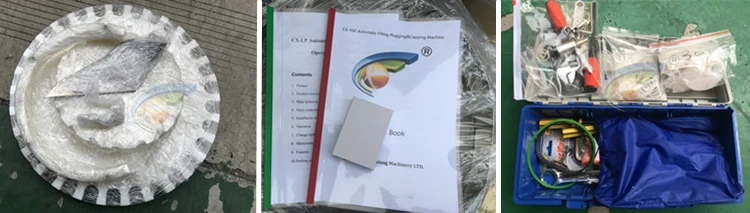

We pack all quick wear parts,manual,operation & installation video,tool and whole machine in wooden case,more easy for set up




























































Exhibitions and customers











































Certifications

















FAQ








Q1.Are you the factory?

A1:Yes,we are 18 YEARS manufacturer of filling-capping-labeling-bottle washing machine, our factory is in Shanghai.



Q2.What's the payment terms and trade terms for new customers?

A2: Payment terms:T/T,L/C,D/P,O/A, Western Union etc.

Trade terms:EXW,FOB,CIF,C&F...



Q3:What's the Minimum Order Quantity and warranty?

A3:MOQ:1 set

Warranty:12 months,some customized products will be 24 months.



Q4:Your standard please?

A4:CE/ISO/TUV/GMP,more details as below:
