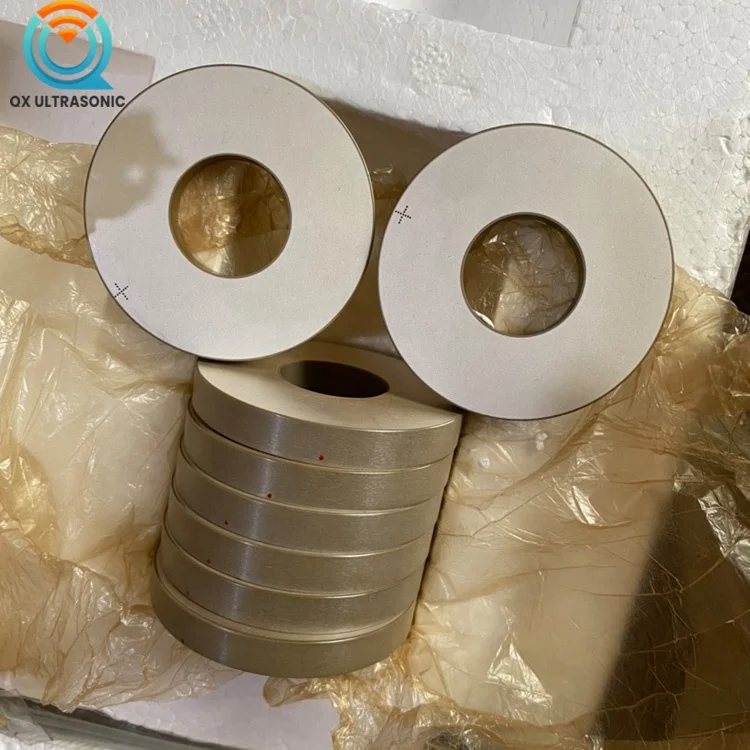

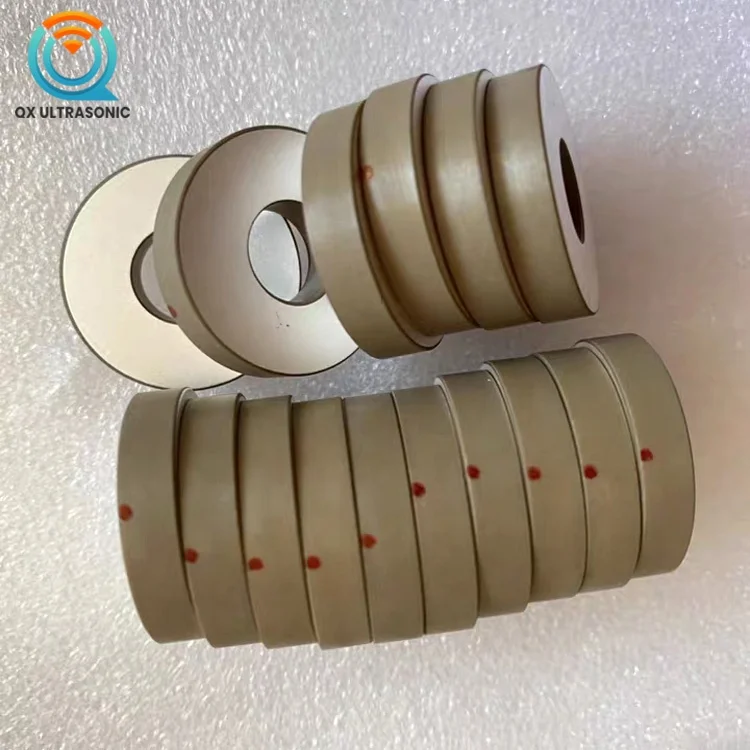

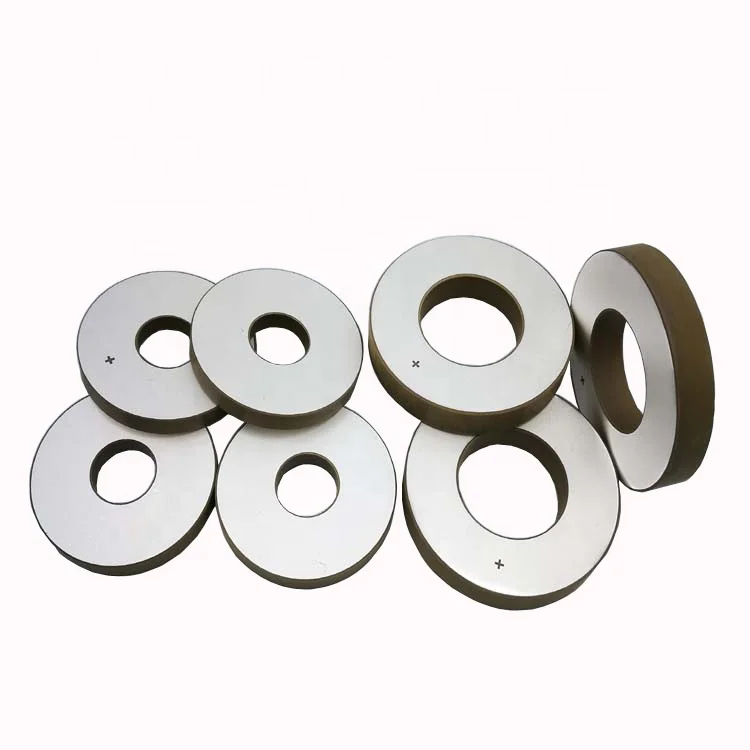

Piezo Element Custom Welding Transducer 50*20*5 Pzt8 Material Piezo Ceramic Piezoelectric Ring For 20k Transducer
- Category: >>>
- Supplier: Beijing Quanxin Ultrasonic Co. Ltd.
Share on (1600907246997):
Product Overview
Description
Products Description
Piezoelectric Ceramics (PZT) materials are categorized as functional ceramics. In sensors they make it possible toconvert forces, pressures and accelerations into electrical signals, and in sonic and ultrasonic transducers and actuators they convert electric voltages into vibrations or deformations. Piezoelectric Ceramics materials are classified according to their chemical composition on the one hand, and by the specific application conditions on the other.
In addition to piezoelectricity, piezoelectric ceramics also have dielectric properties, elasticity, etc., and have been widely used in medical imaging, Acoustic sensors, acoustic transducers, ultrasonic motors, etc.
Piezoelectric Materials of Ring Piezoelectric Ceramics
PZT4,PZT5,PZT8 or other required Piezoelectric Materials.
Factory Direct Sale transducer PZT ring Piezoelectric Piezo Ceramics
Based on our technical innovation, high quality and excellent services, we have won a good reputation among customers around the world. We welcome all interested companies to cooperate with us!
Based on our technical innovation, high quality and excellent services, we have won a good reputation among customers around the world. We welcome all interested companies to cooperate with us!

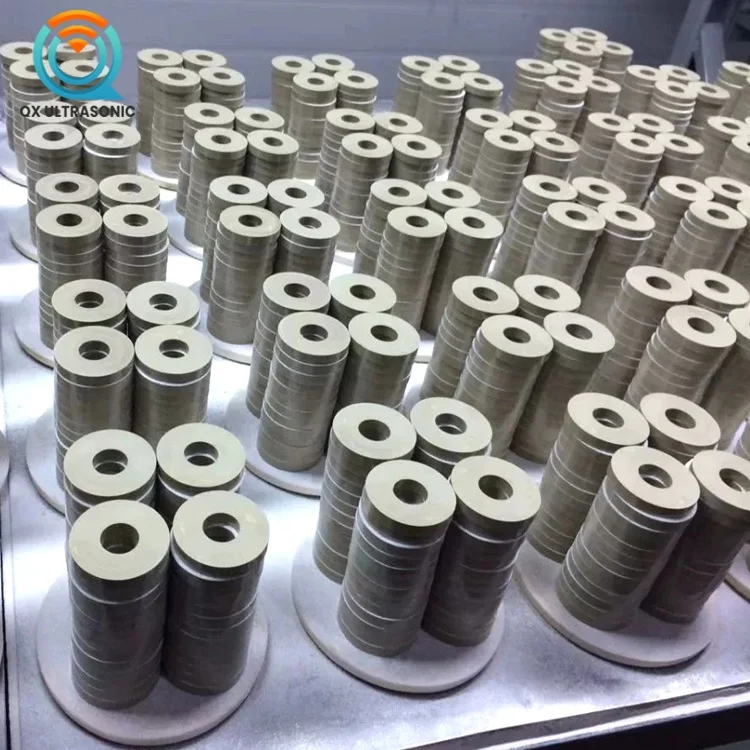

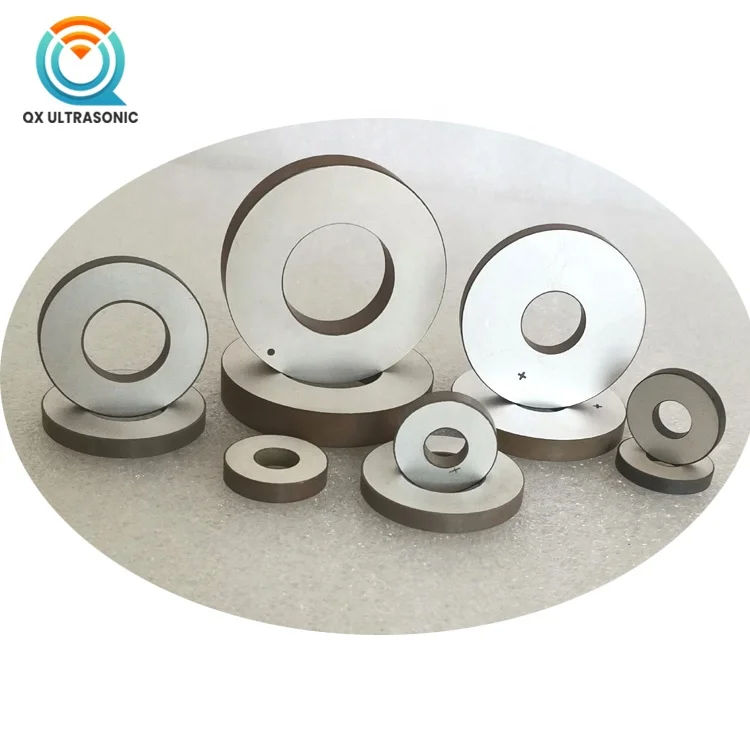

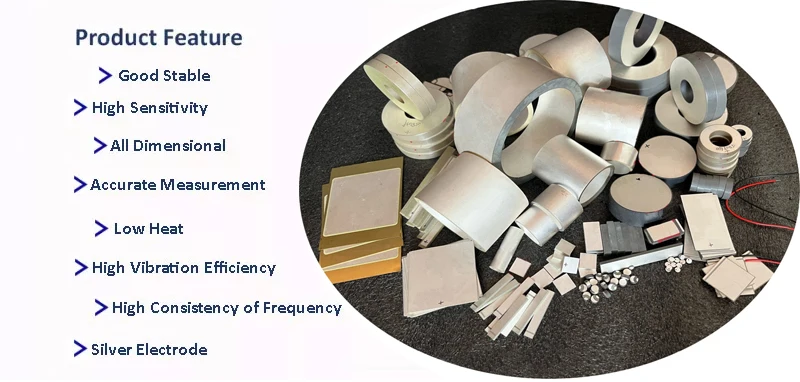

Product Picture
PZT8 Material have the characteristics of low strong field loss, high mechanical quality factor and high power density.High voltage power and high voltage drive.It is generally a high-power transmitter and high-power ultrasonic transducer. Widely used in mask welding.Ultrasonic cleaning machine, ultrasonic welding and other ultrasonic high-power equipment.
PZT4 Material integrating power receiving and sending, often used for ultrasonic carving machine, ultrasonic flowmeter, ultrasonicbeauty instrument, ultrasonic welding machine, ultrasonic flaw detector, ultrasonic cleaning machine, sonar, fish detector, such as aerospace, medical equipment, food industry, electronic industry, communication industry widely used.
PZT5, PZT5A, PZT33, PZT5H Materials These are soft materials, usually suitable for petroleum detection equipment, underwater acoustic detection and standard hydrophones, medical B-ultrasound transducers, automobile knock sensors.
Product Paramenters

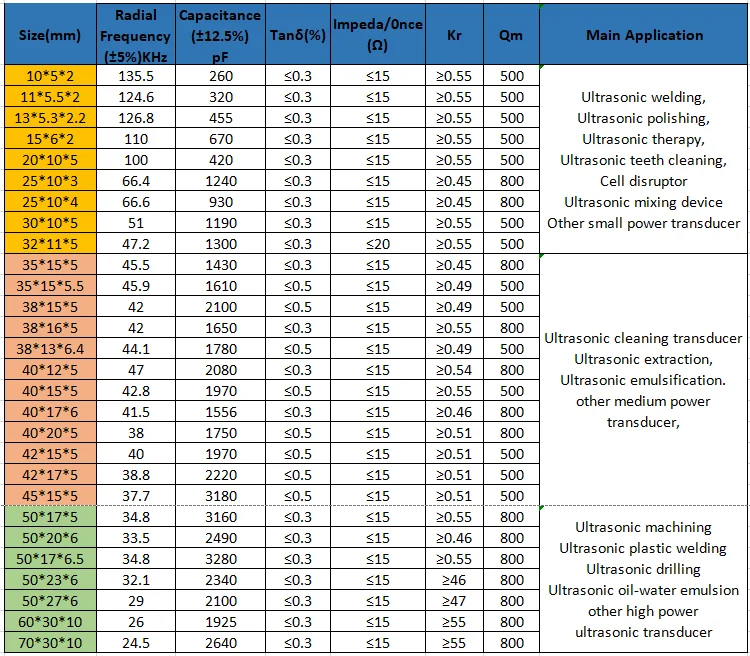

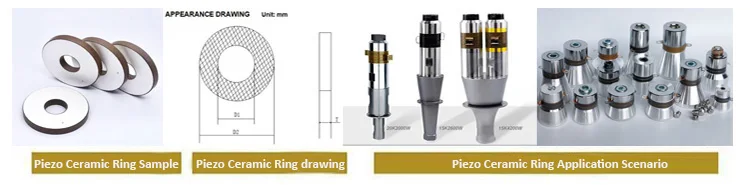

Some standard Size of Ring Piezoelectric Ceramics (Size=OD*ID*Thickness) (Qm=Mechanical quality factor) (tanδ(%)=Dielectric dissipation factor ) |
Related Products
----------------Click Here To Learn More----------------
Our Advantages
Packaging & Shipping

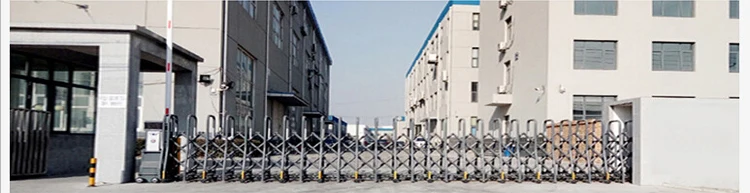

Company Profile
Established in 2009，Beijing Quanxin Ultrasonic is a manufacturers who suppply different kinds of ultrasonic
transducer,Piezoelectric ceramics, ultrasonic cleaner, ultrasonic generator.Ultrasonic immersion transducer and other Ultrasonic welding equipment to all the world. Our ultrasonic products from the development.design.Production. installation and service of the whole process in strict accordance with international standard of ISO9001 quality management system, can continue to provide safe and reliable products and services

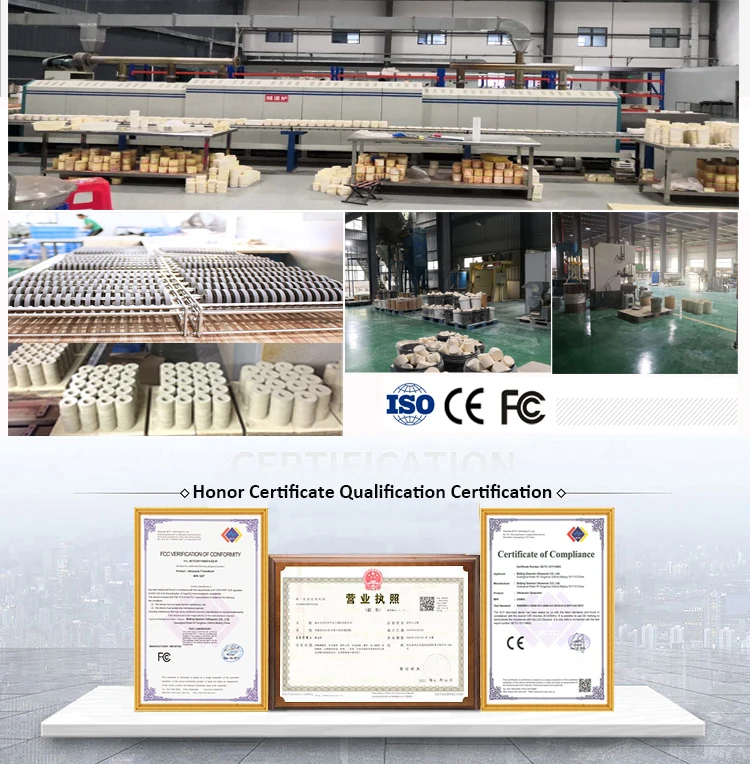

Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total
costomer satisfaction ,Besides , we have received ISO 9000 ,ROSH,CE, FCC certification.In credibility with the business purposes of " bast prestige , best quality, bast service " .we Sincerely hope you cooperate with us
transducer,Piezoelectric ceramics, ultrasonic cleaner, ultrasonic generator.Ultrasonic immersion transducer and other Ultrasonic welding equipment to all the world. Our ultrasonic products from the development.design.Production. installation and service of the whole process in strict accordance with international standard of ISO9001 quality management system, can continue to provide safe and reliable products and services
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total
costomer satisfaction ,Besides , we have received ISO 9000 ,ROSH,CE, FCC certification.In credibility with the business purposes of " bast prestige , best quality, bast service " .we Sincerely hope you cooperate with us
FAQ
Q: Delivery Time
A: Based on the order quantity, the goods will be sent out within 2-7 days.
Q: Payment
A: T/T,W esternUnion,L/C,Paypal
Q: Quantity guarantee
A: All products will have been strictly Quality insepected before packing.
Q: Shipping
A: We have strong cooperation with DHL,TNT,UPS,FEDEX,and shipping agent for air and sea.
give the economic freight according to goods weight.
Q: Wealth of experience
A: Professional sercive.choose us,you will do the trade more easily.
Q: Good Service
A: Excellent team to offer the efficient and professional reply.
Q: Technical Problem
A: Provide Professional Technical Support.
A: Based on the order quantity, the goods will be sent out within 2-7 days.
Q: Payment
A: T/T,W esternUnion,L/C,Paypal
Q: Quantity guarantee
A: All products will have been strictly Quality insepected before packing.
Q: Shipping
A: We have strong cooperation with DHL,TNT,UPS,FEDEX,and shipping agent for air and sea.
give the economic freight according to goods weight.
Q: Wealth of experience
A: Professional sercive.choose us,you will do the trade more easily.
Q: Good Service
A: Excellent team to offer the efficient and professional reply.
Q: Technical Problem
A: Provide Professional Technical Support.
Welcome to sample a variety of customized products, the growth of the road we appreciate your support! Please provide parameters and we will suggest a match. Thank you .
