Product Overview

Description

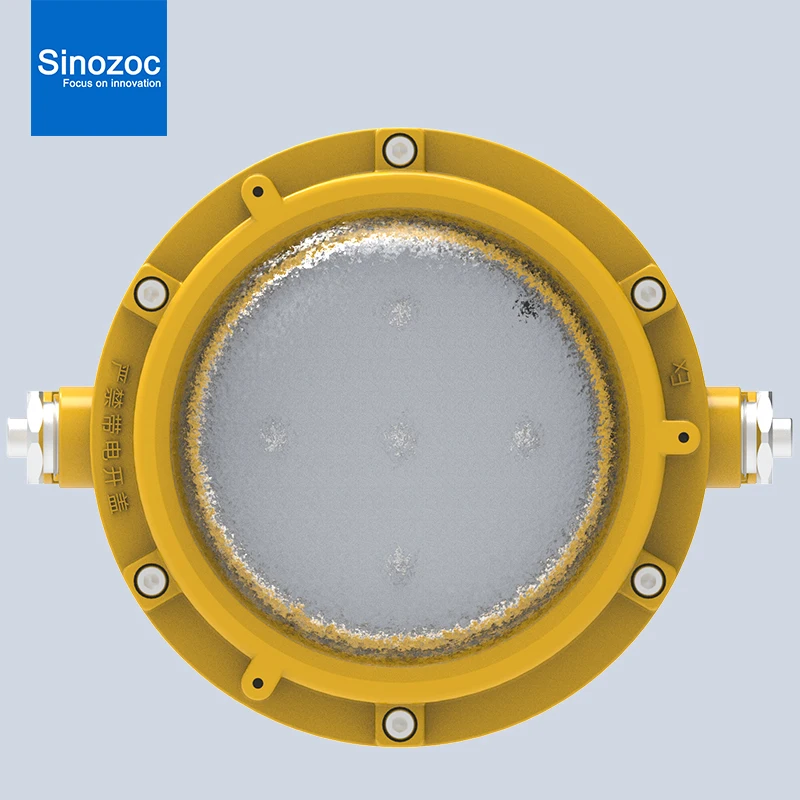

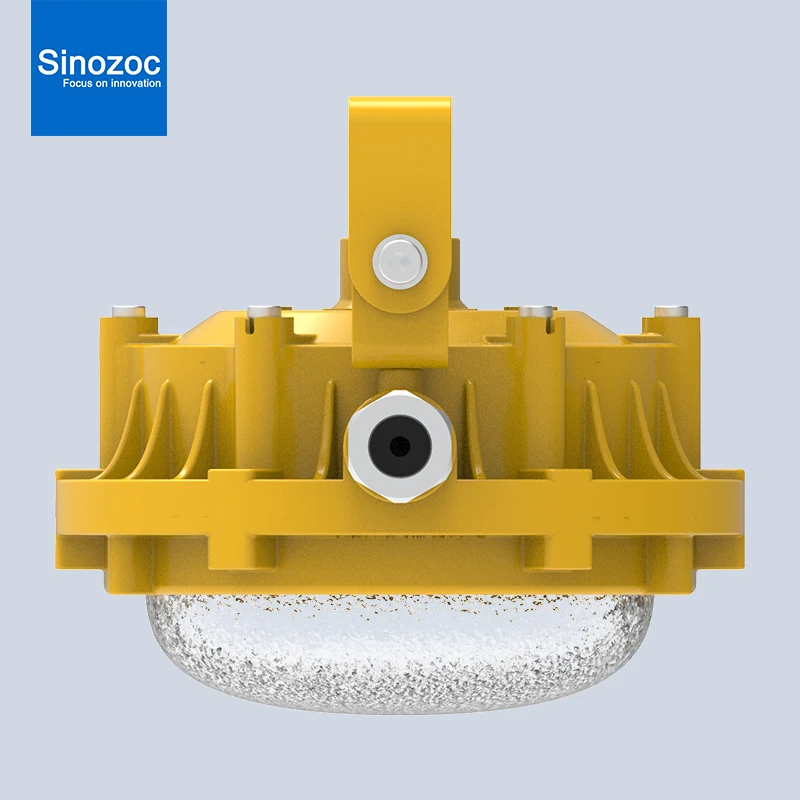

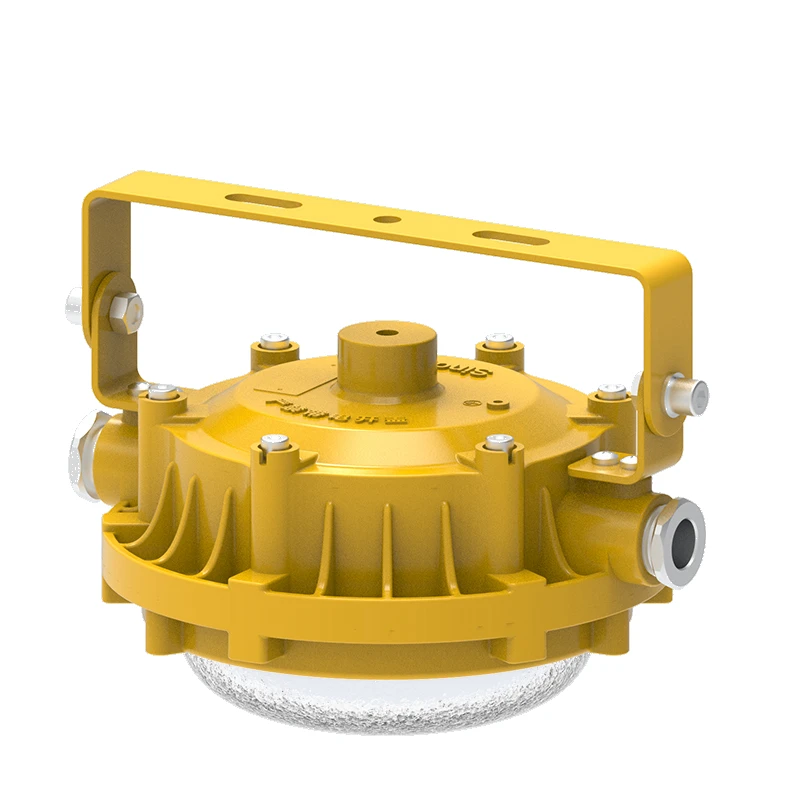

Atex Certified Explosion Proof High Bay Lighting, suitable for Zone 1 &2 and Zone 21 & 22. Class 1 div 2 led light fixtures. Hazardous location lighting fixtures.



 Aluminum alloy die-casting shell, surface high-pressure electrostatic spraying:  Highly corrosion-resistant stainless steel exposed fasteners; and Stainless steel exposed fasteners with high corrosion resistance;.
High borosilicate physical toughened glass transparent cover, fogging anti-glare design, anti-thermal fusion, light transmittance up to 90%;

Stop-port explosion-proof form, explosion-proof performance is more reliable;

Professional design of anti-glare design, anti-thermal fusion, light transmittance up to 90.

Specialized design of light distribution system.
Professional design of light distribution system, high light efficiency, high utilization rate, reasonable light distribution, uniform illumination.
Professional design of internal protection structure, to ensure the normal work in the bad state;
Professional heat insulation technology, special heat insulation material, effective isolation of heat conduction, to ensure the reliable work of the product;
Special constant current and constant voltage power supply, wide voltage input, constant power output, with constant current, open circuit protection, short circuit protection and other functions;
Can be equipped with emergency devices according to requirements, when the power supply power failure, the lamps and lanterns are automatically switched to the emergency lighting state.



Item Number	BAT95-V6
Product Power	20-60W
Input Voltage	85-265V
Frequency	50-60HZ
Power Factor	0.95
EX-Mark	Ex d e mb II C T6 Gb
IP Rating	IP66
Protection Grade	WF2
Light Efficiency	≥120Lm/W
Service Life	>50000H
