Hot Selling Lathe CNC Vertical Lathe Low Price Power Vertical Turning Center Lathe
- Category: >>>
- Supplier: Zhengzhou Timeway Machine Tool Co. Ltd.
Share on (1600907263700):
Product Overview
Description
Products Description

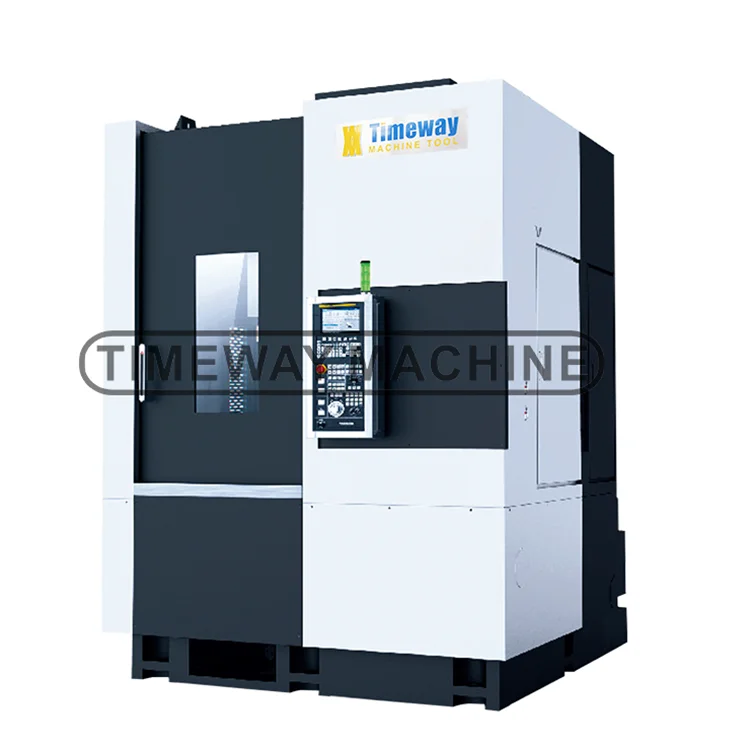

CNC Vertical Lathe Machine
Technical Parameter
Model | VK500 |
Max. swing | Φ530mm |
max. cutting diameter | Φ500mm |
Max. height of turning | 40mm |
Spindle nose | A2-8 |
Front spindle bearing ID | Φ120mm |
Spindle speed range | 100-2000mm |
Spindle nose | A2-8 |
Travel of X axis | -50; +250mm |
Travel of Z axis | 450mm |
Rapid feed of X axis | 8m/min |
Rapid feed of Z axis | 10m/min |
Type of tool stations | Horizontal 8-position |
Number of tool stations | 8 |
Tool shank size (square) | 25x25mm |
Tool shank size (round) | Φ40mm |
Main motor | 11KW |
Coolant pump motor | 0.9Kw |
Net weight | 5500kg |
Features:
1. Compact structure, rigid spindle component and good for heavy cutting.
2. Easy to chuck and remove, workpiece roundness and other precision are ensured.

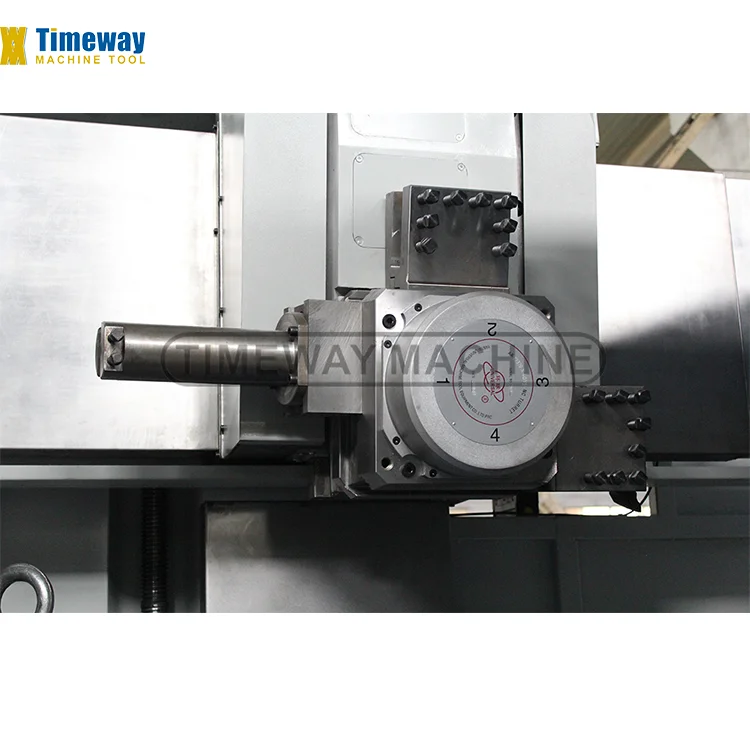

3. The turret on the slide moves along longitudinal or cross rails.
4. There are three cross rails to support the slide. Ball screws and linear rails are used to ensure smooth feed and high precision.

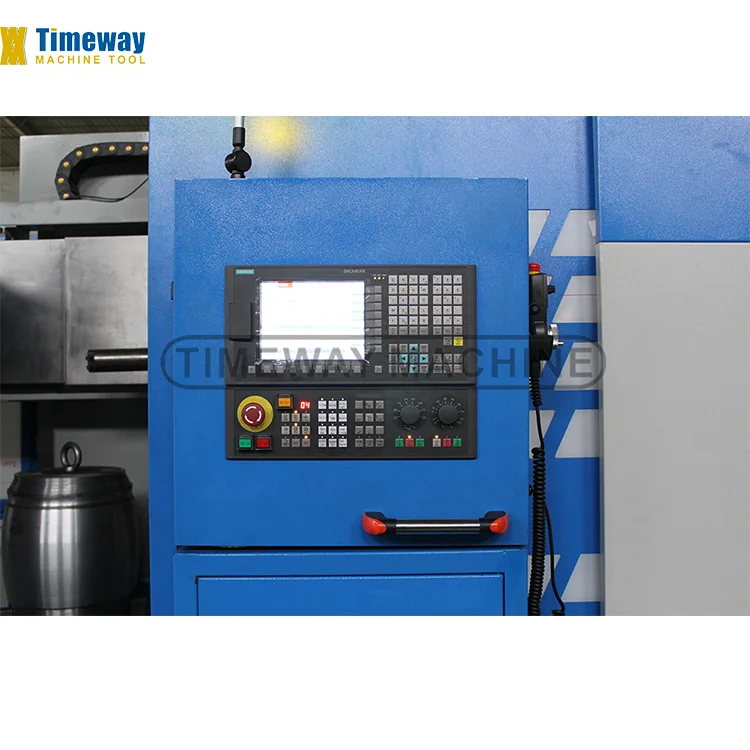

5. Different handles, electric buttons and CRT displayer are all on the same rocking panel for easy operation.
6. Machine totally sealed guard structure. Back side chip removal conveyor.
1. Compact structure, rigid spindle component and good for heavy cutting.
2. Easy to chuck and remove, workpiece roundness and other precision are ensured.
3. The turret on the slide moves along longitudinal or cross rails.
4. There are three cross rails to support the slide. Ball screws and linear rails are used to ensure smooth feed and high precision.
5. Different handles, electric buttons and CRT displayer are all on the same rocking panel for easy operation.
6. Machine totally sealed guard structure. Back side chip removal conveyor.

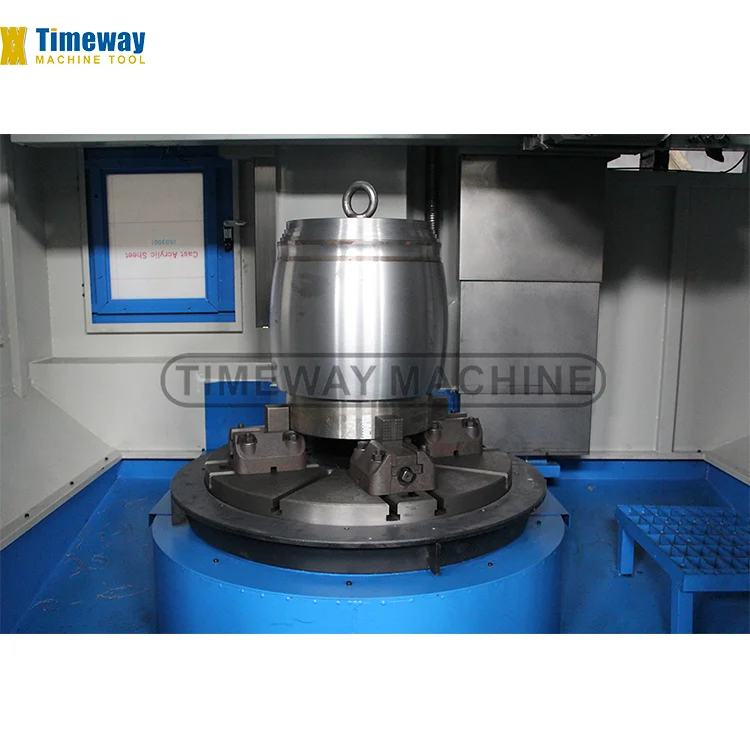

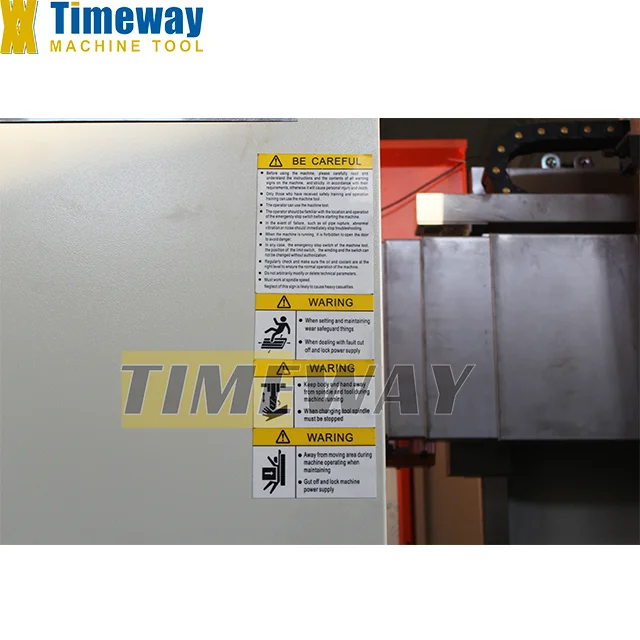

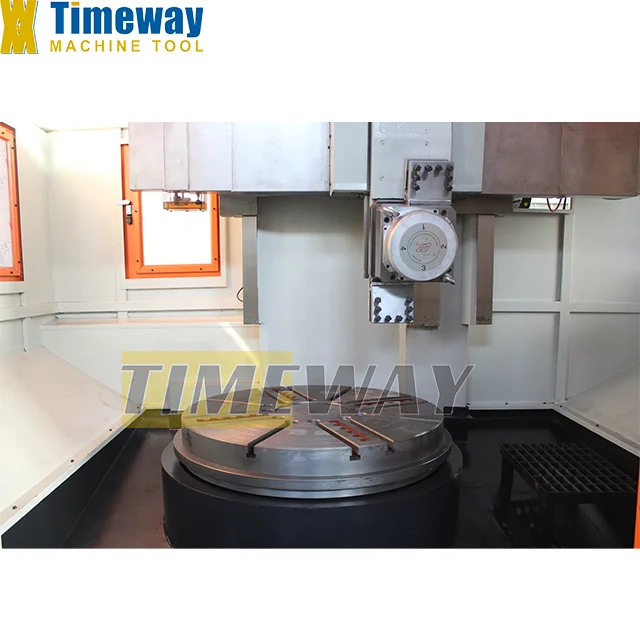

Detail Images
Our Team
Why Choose Us
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
