Product Overview

Description





Products Description

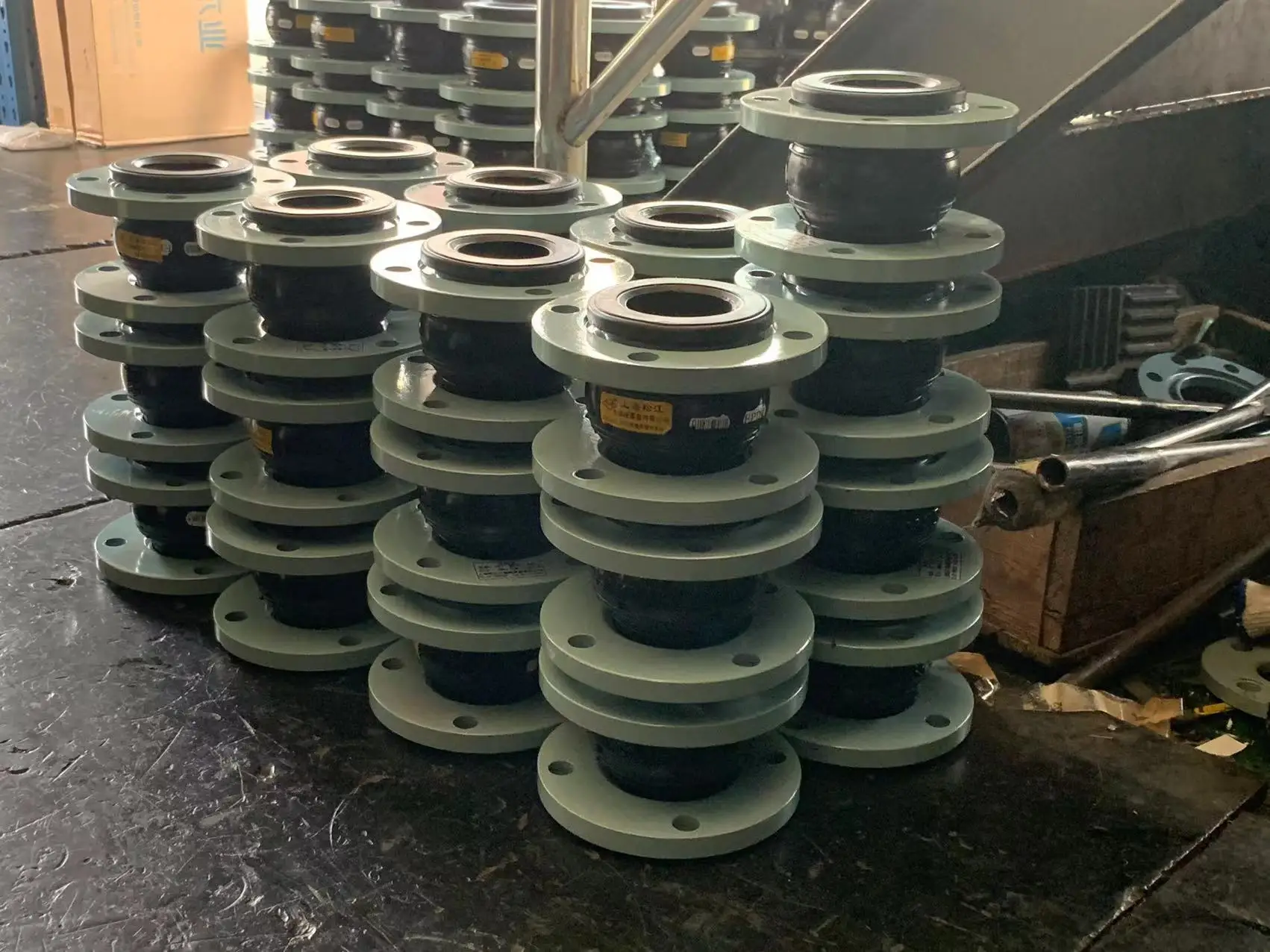

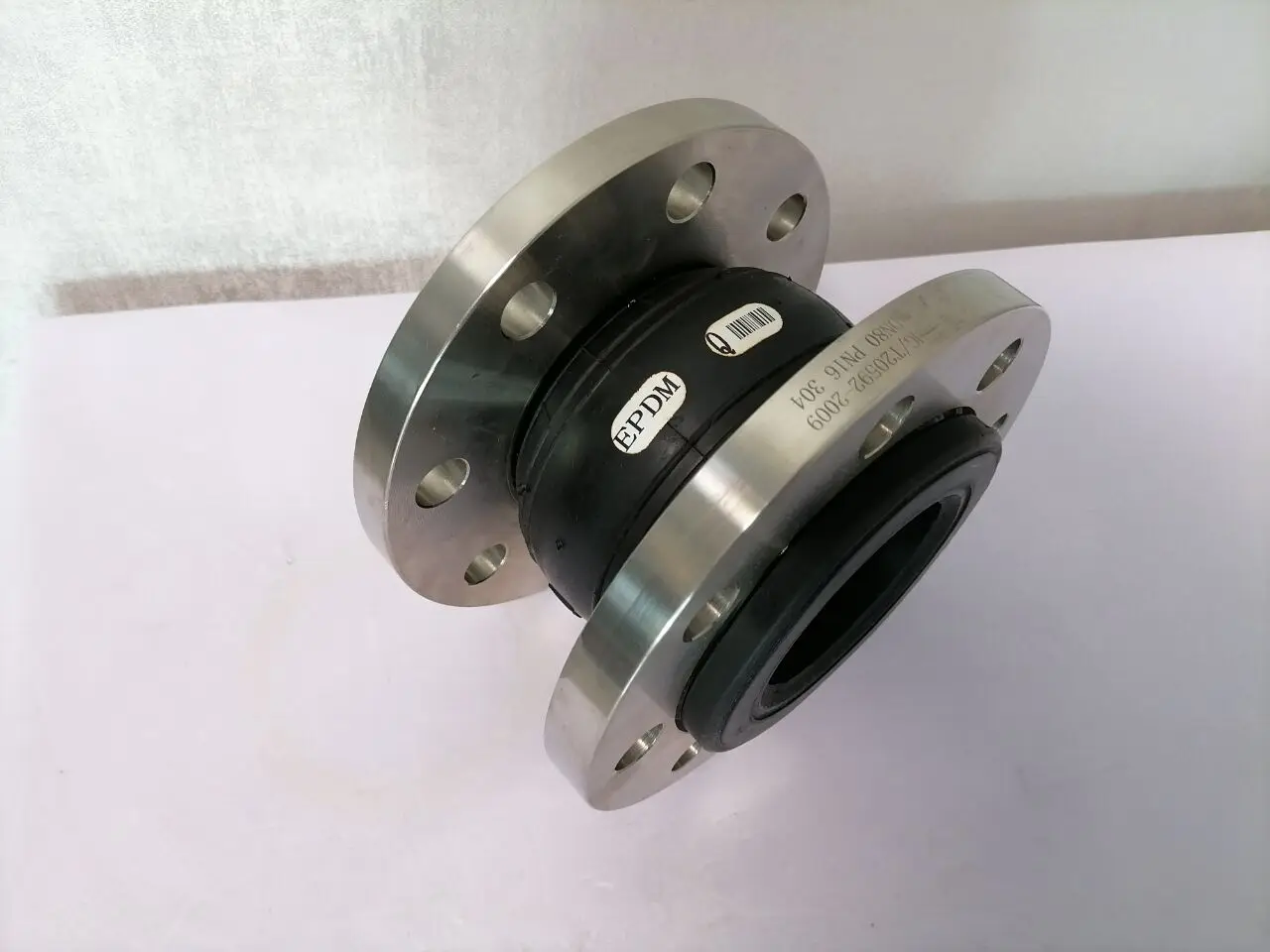

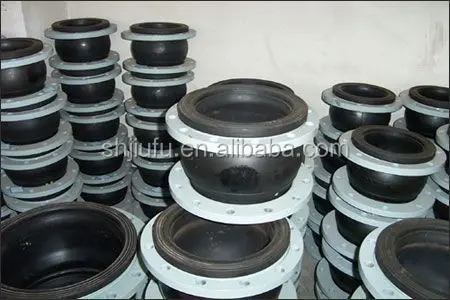

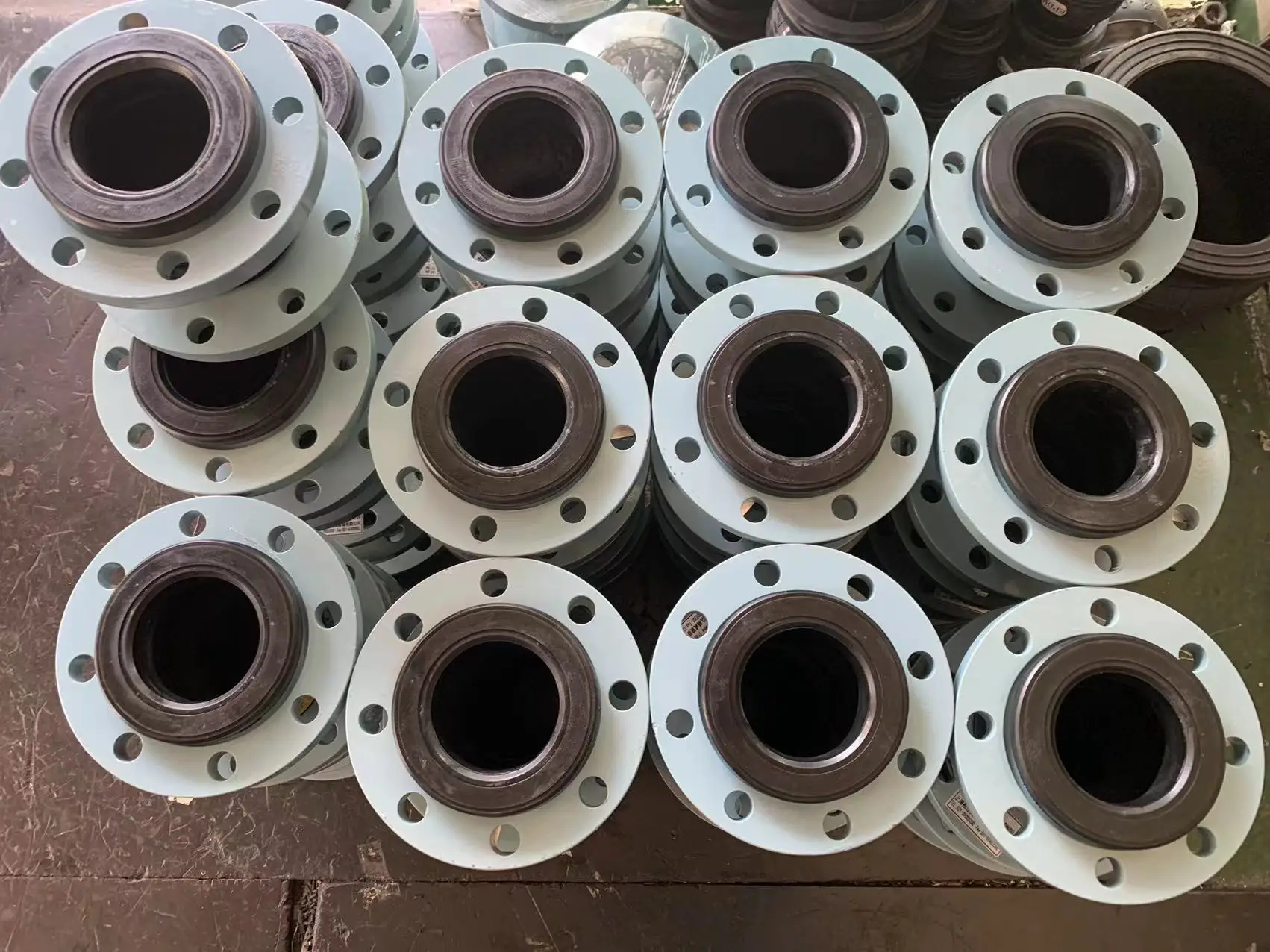

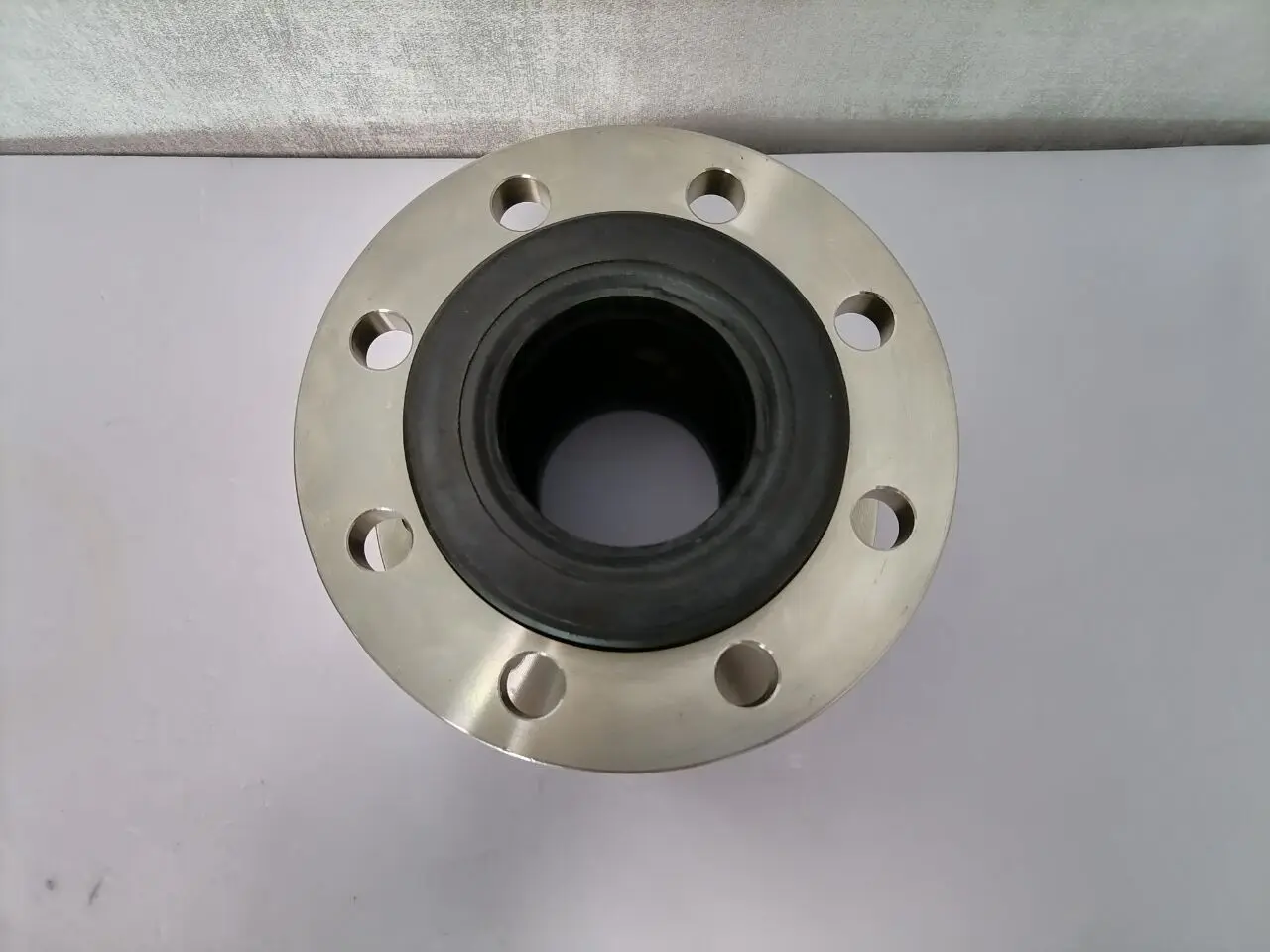

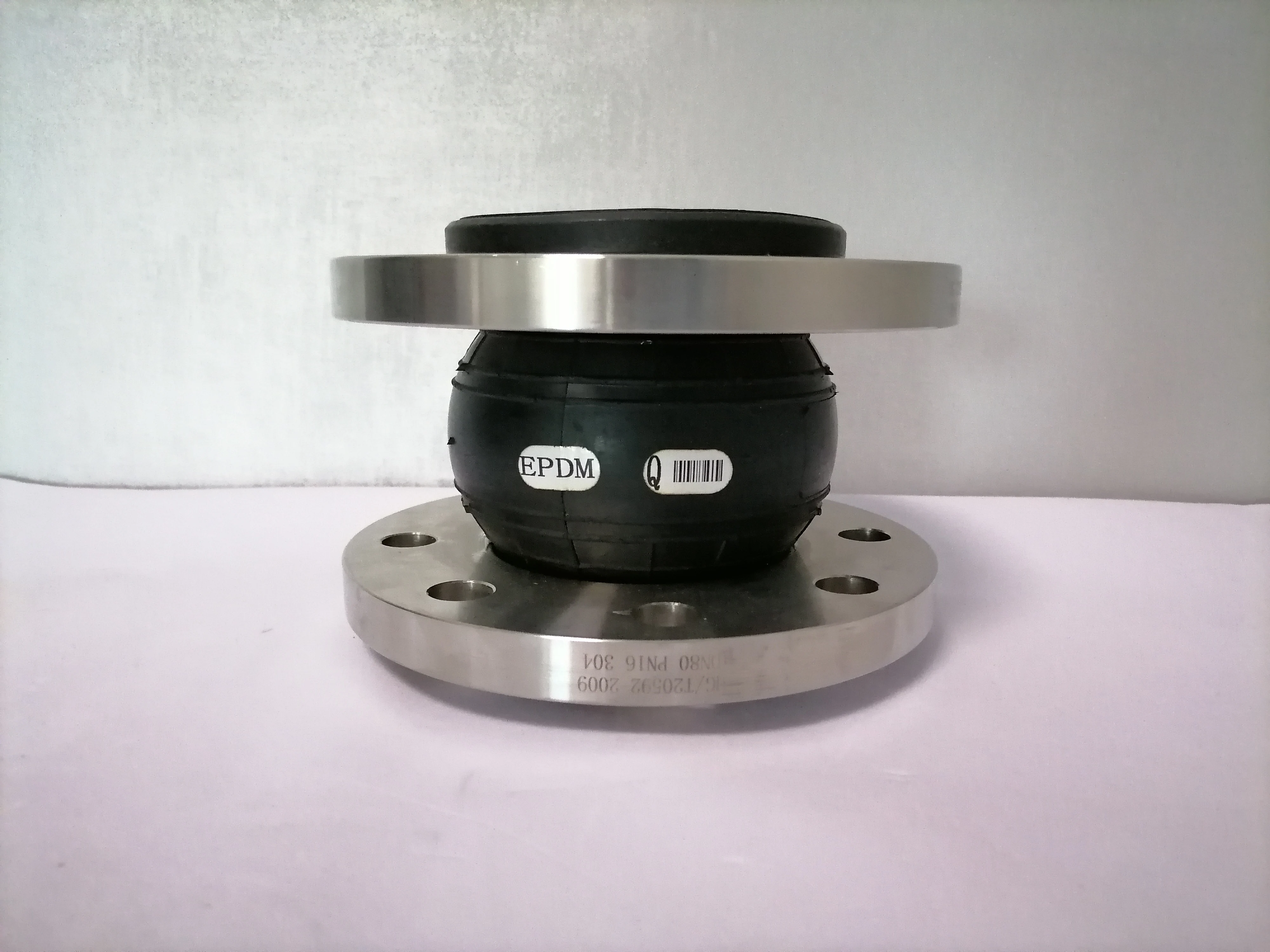

Flexible rubber joint

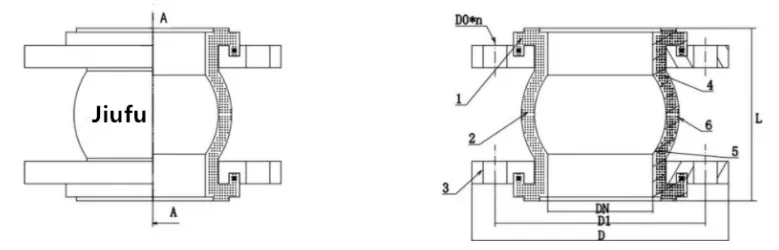

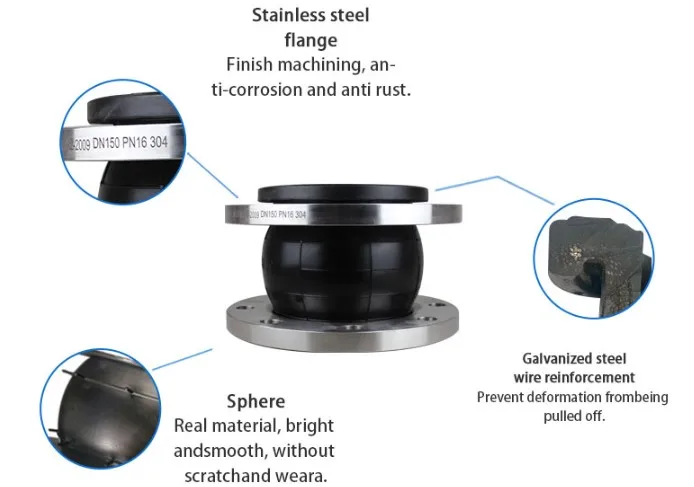

The rubber joint is composed of inner and outer rubber layer, nylon cord fabric and steel ring, which is vulcanized and then combined with metal flange or parallel joint loose sleeve. The product can reduce vibration and noise, and can compensate thermal expansion and contraction caused by temperature change. It is widely used in various pipeline systems. Rubber soft joints, also known as flexible single-ball rubber joints, rubber flexible joints, soft joints, shock absorbers, pipe shock absorbers, shock absorber throats, etc., is a high Flexible, highly airtight, medium resistant and weatherproof pipe joints.


Technical parameters






Nominal diameter
Length（mm)
Axial displacement mm
Horizontal displacement
Angle of deflection
mm
Inch
extension
compress
a1+a2
32
11/4
95
6
9
9
15°
40
11/2
95
6
10
9
15°
50
2
105
7
10
10
15°
65
21/2
115
7
13
11
15°
80
3
135
8
15
12
15°
100
4
150
10
19
13
15°
125
5
165
12
19
13
15°
150
6
180
12
20
14
15°
200
8
210
16
25
22
15°
250
10
230
16
25
22
15°
300
12
245
16
25
22
15°
350
14
255
16
25
22
15°
400
16
255
16
25
22
15°
450
18
255
16
25
22
15°
500
20
255
6
25
22
15°
600
24
260
6
25
22
15°
700
28
260
16
25
22
15°
800
32
260
16
25
22
15°




Features：
●Small size, light weight, good elasticity, easy to install and maintain.
●During installation, it can produce lateral, axial, and angular displacement, and is not restricted by pipelines that are not
through the center and flanges are not parallel.
●It can reduce the noise transmitted by the structure while working, and has a strong shock absorption ability.
●It has high-pressure resistance, good elasticity, large displacement, balanced pipeline deviation, vibration absorption, good noise reduction effect, convenient installation


Our service

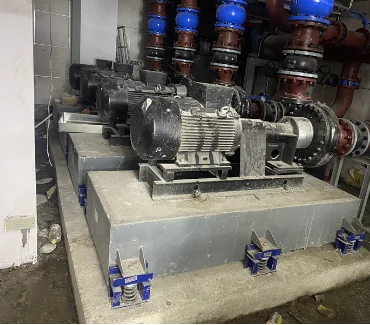

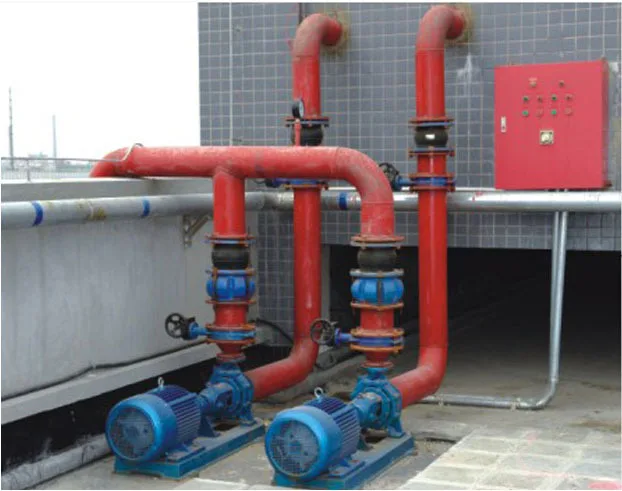

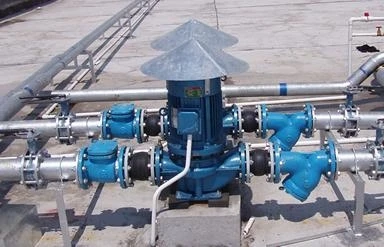

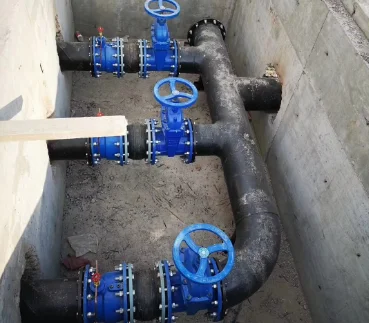

Application

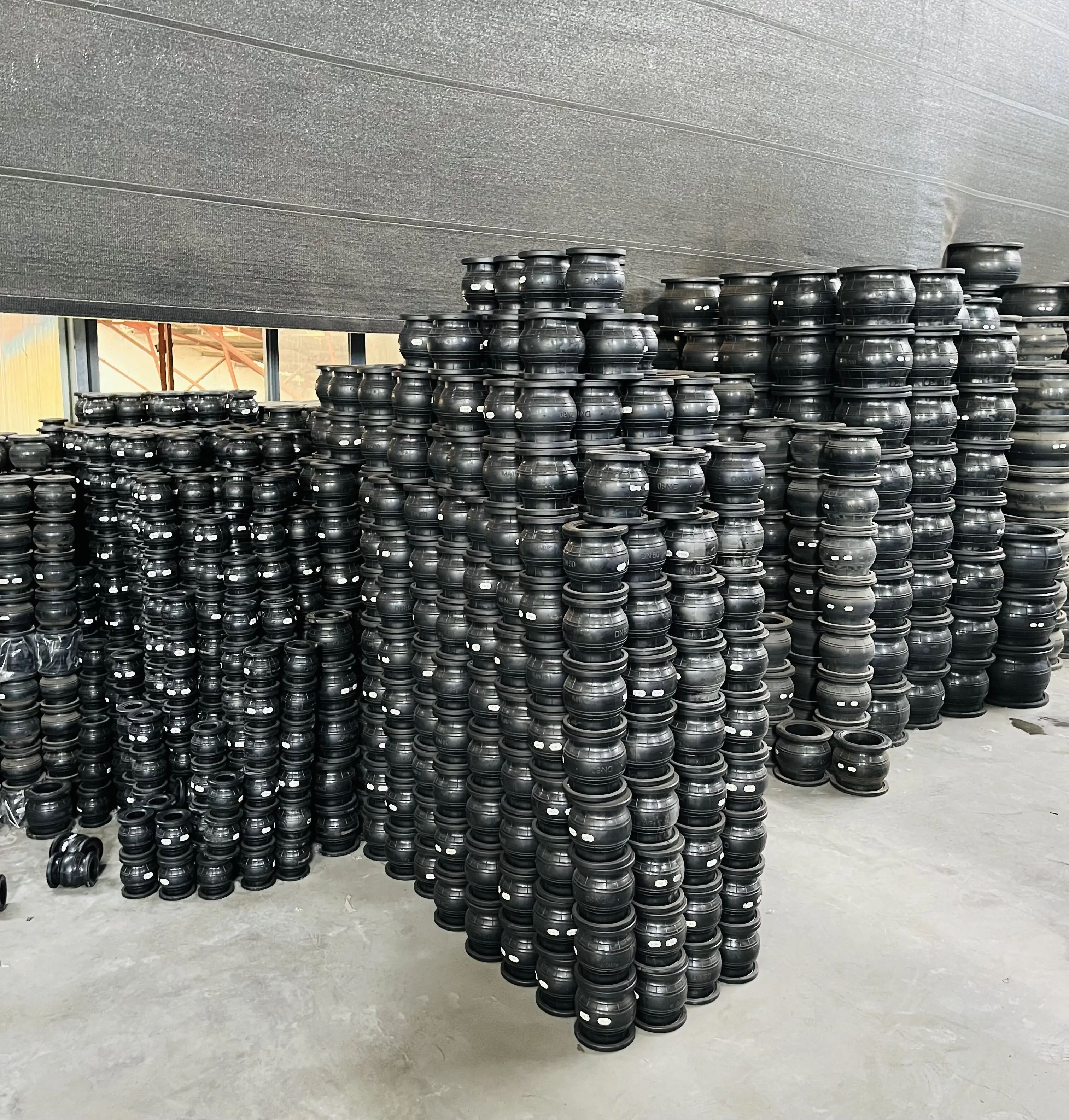

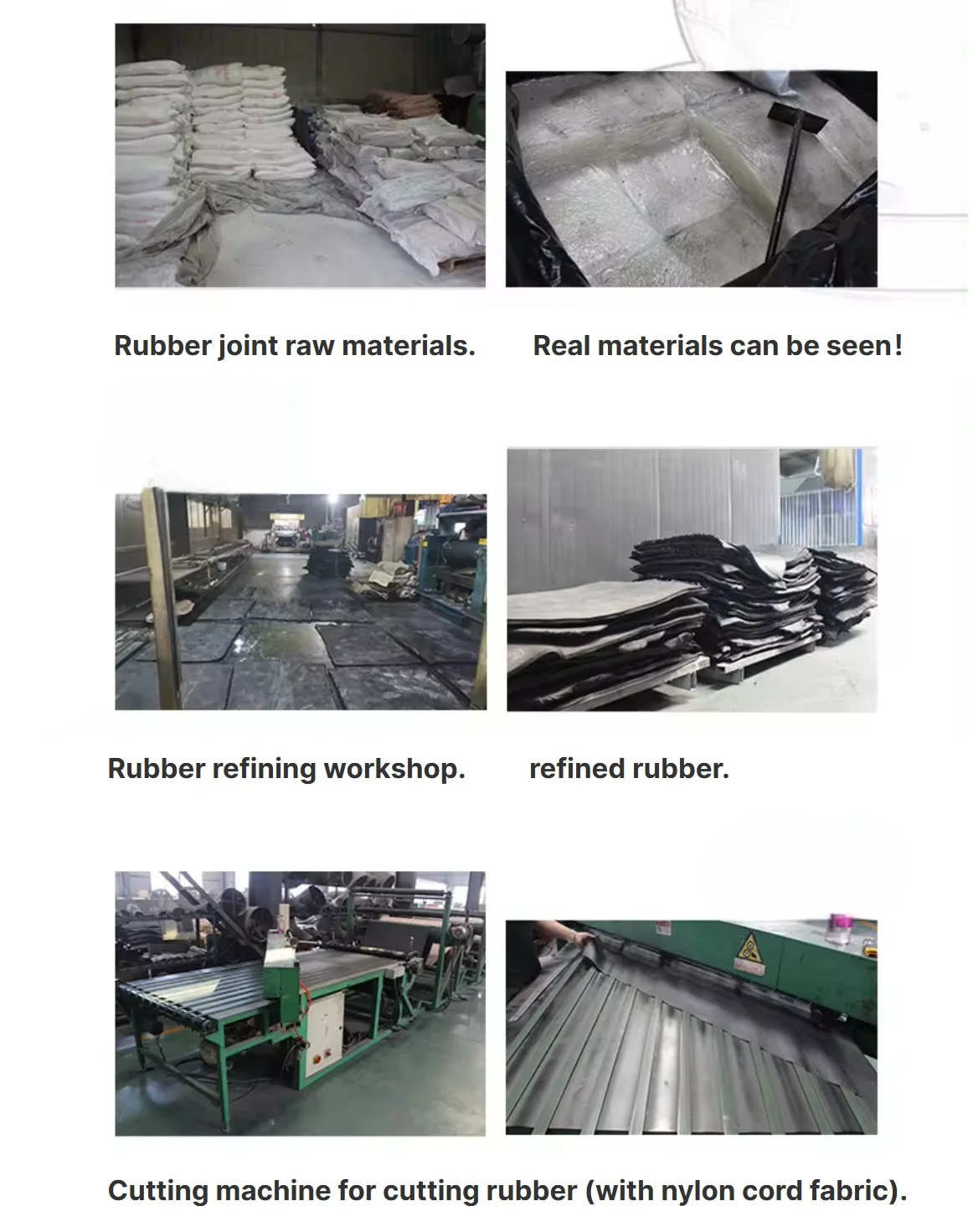

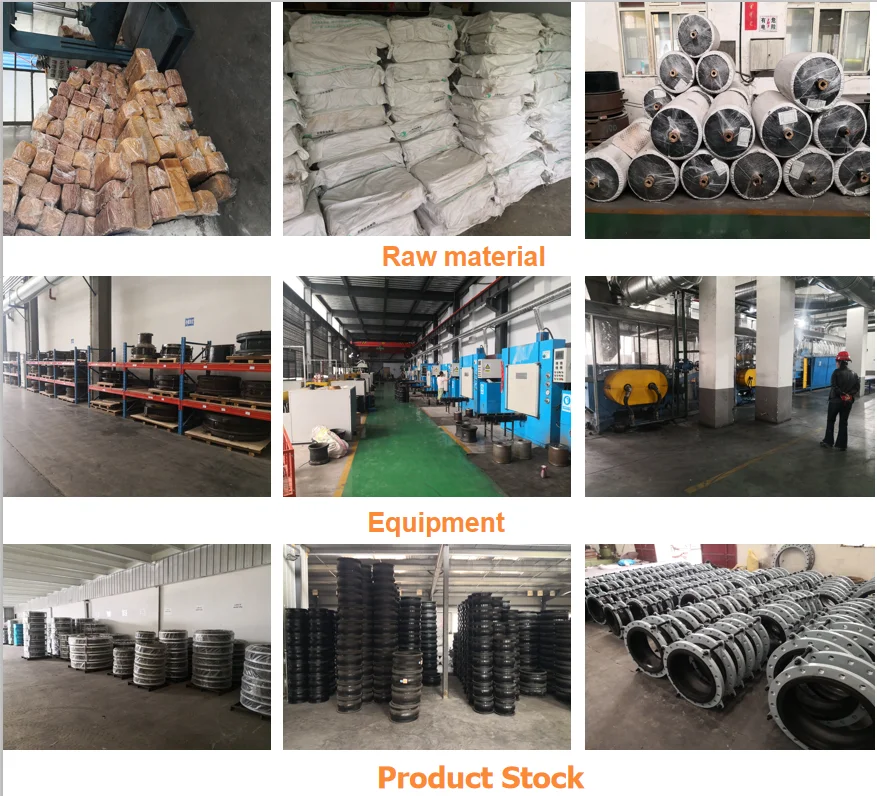

Product process

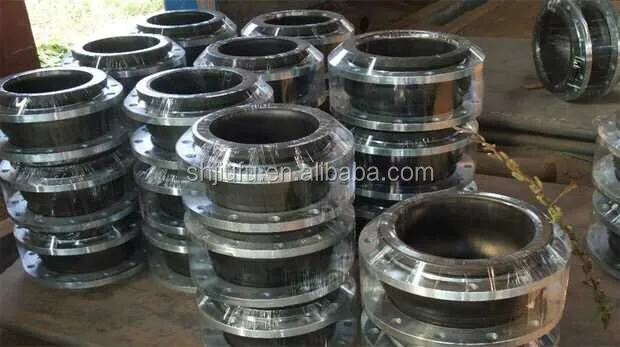

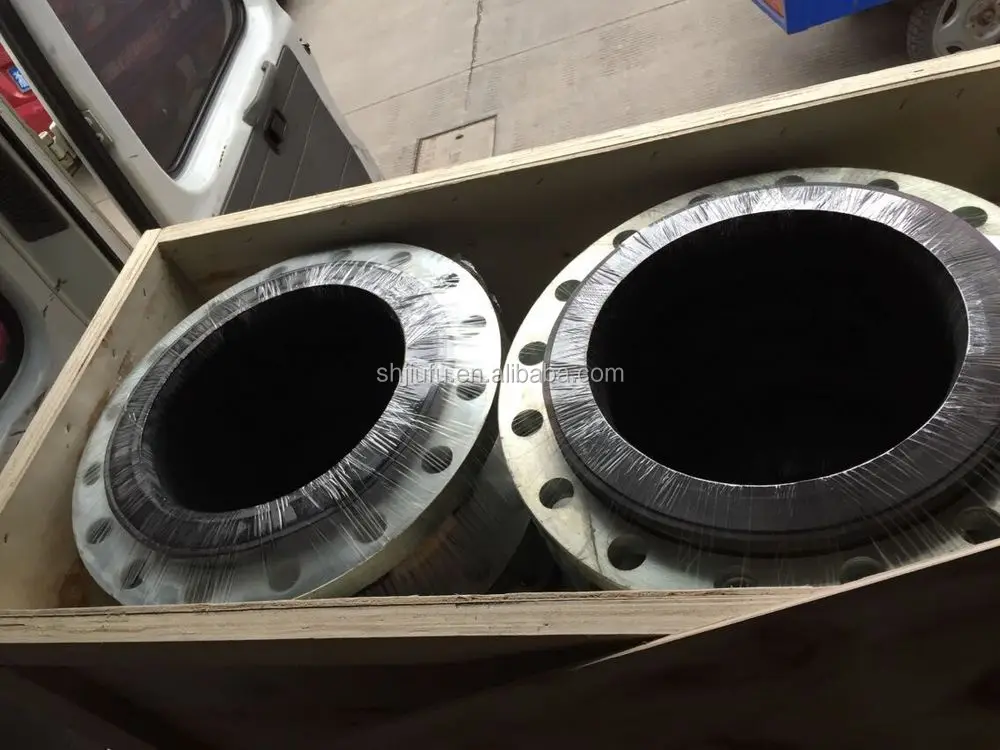

Delivery

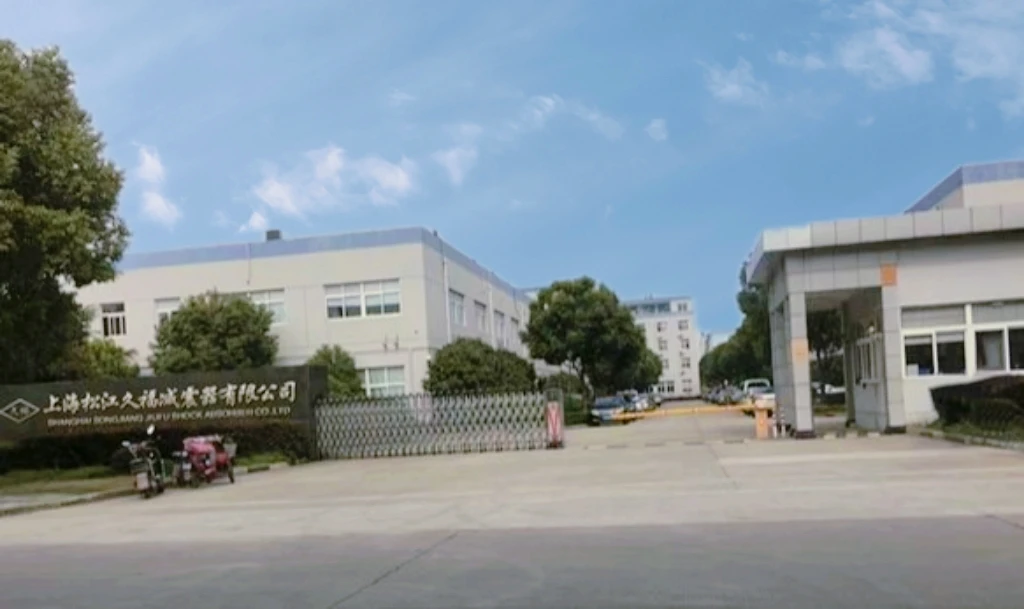

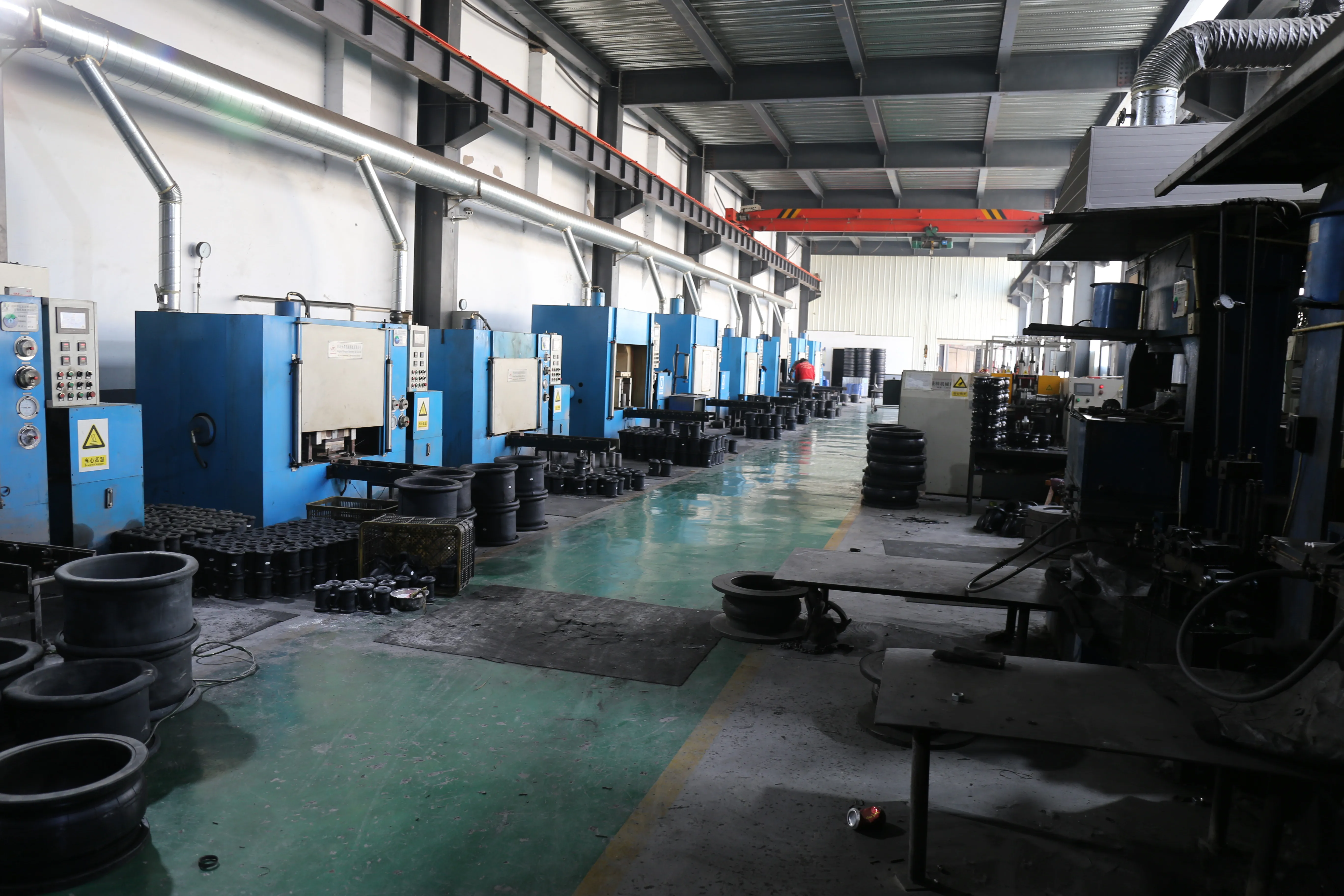

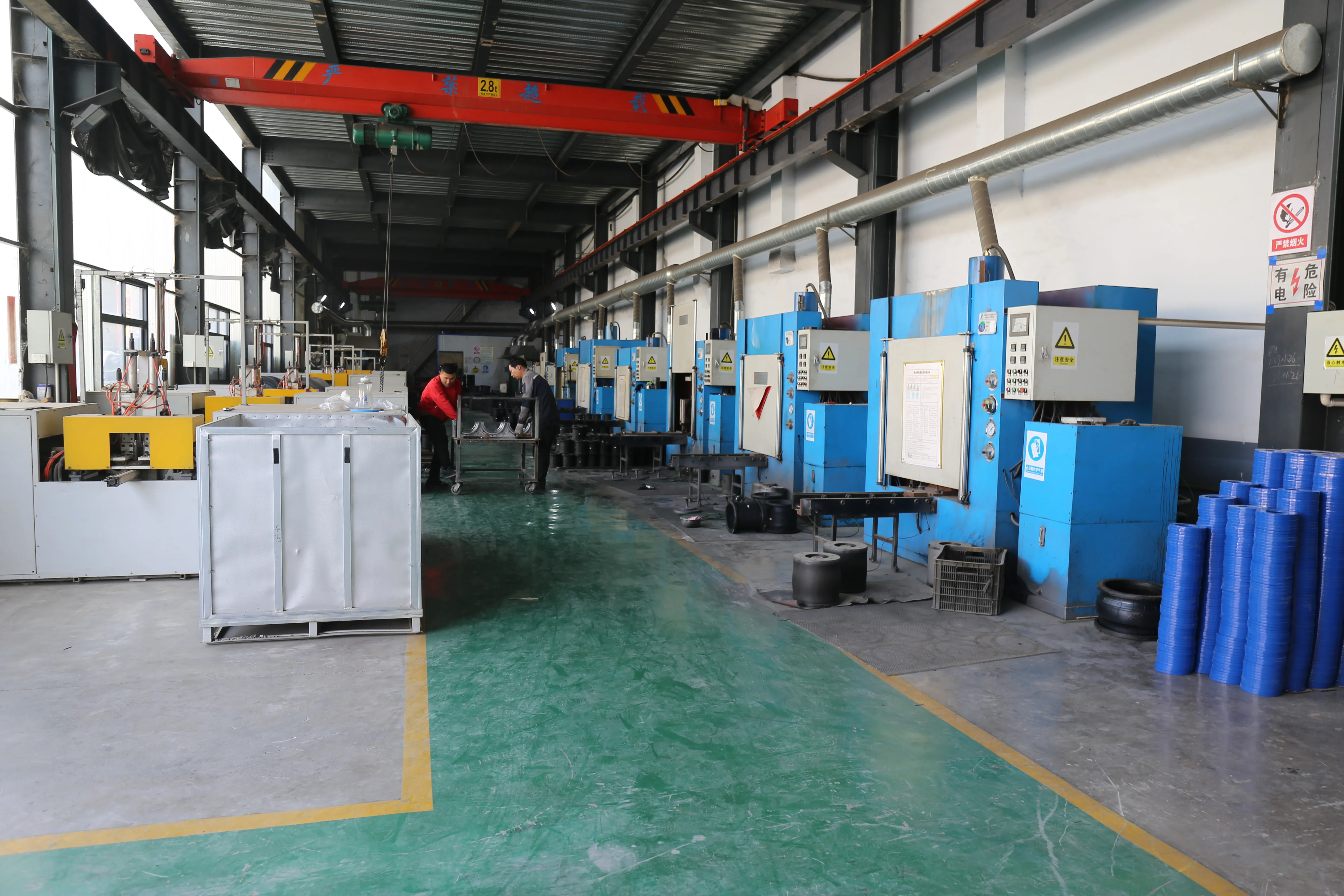

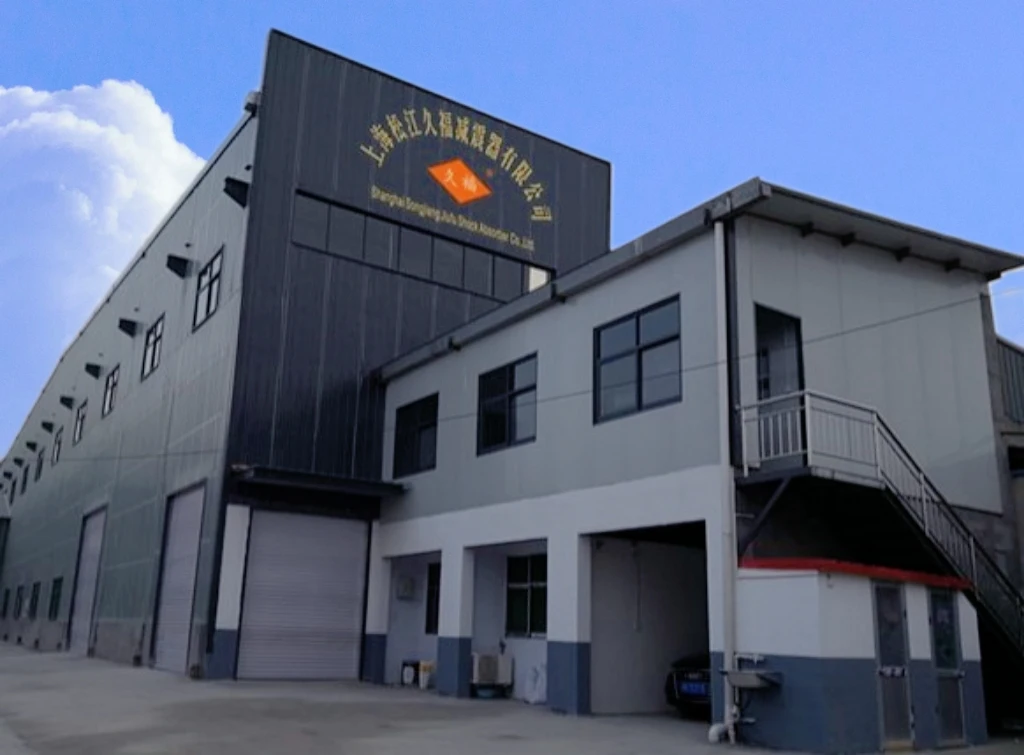

Our company














Shanghai Songjiang Jiufu Shock Absorber Co., Ltd. products are mainly used for the basic vibration isolation of various types of horizontal pumps, vertical pumps, pipeline pumps, fans, chillers, heat pump units, generator sets, diesel units, engine test benches and other vibration machinery, as well as fan coils, fresh air units, and transformers. Air volume air conditioning boxes, axial fans,mixed flow fans, air ducts, water pipes and other hoisting vibration isolation; widely used in high-rise residential buildings, hotel buildings, industrial and mining buildings, plumbing, heating and ventilation pipes, water supply and drainage,petrochemical and industrial pipelines, metallurgy, industrial automation, Shipping, aviation and other fields.


Certifications






F A Q
Q:Are you trading company or manufacturer?
A:We are manufacturer of rubber expansion joint, bellow expansion joint,,flexible metal hose, shock absorber , flange adaptor and flange with more than 20-years experience.

Q:Do you have products catalog?
A:Yes, we have. Please tell me your email or instant messager, we will send our catalog.

Q:Can you provide drawings and technical data?
A:Yes, our professional technical department will design and provide drawings and technical data.

Q:Do you provide samples? Is it free or charged?
A:Yes, we can offer sample free but shipping charges covered by customer.

Q:Can the products be manufactuered by customer's requirement?
A:Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
