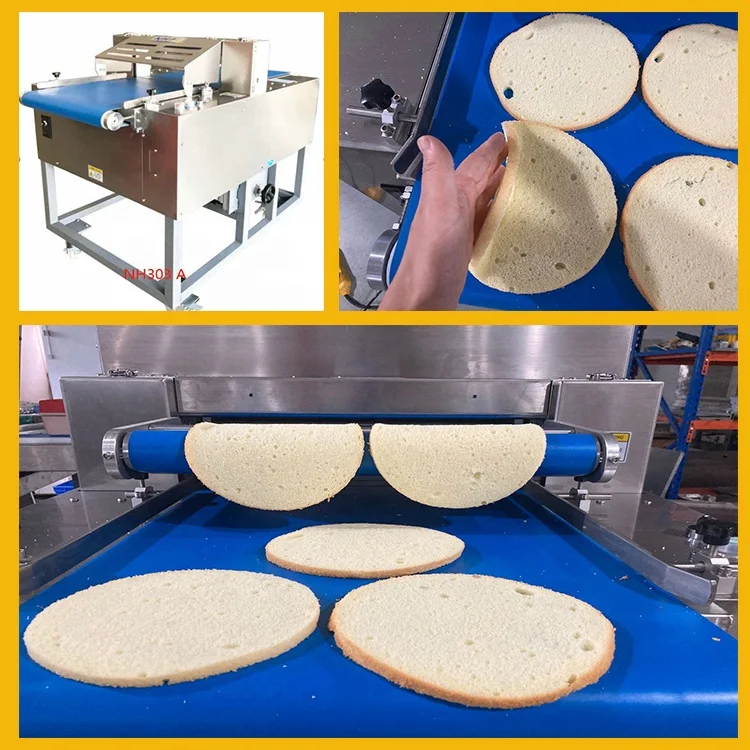

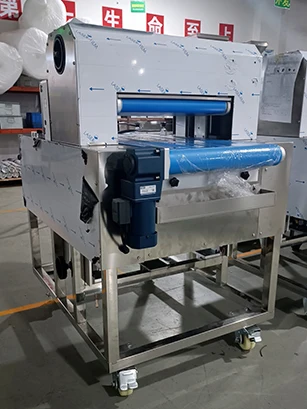

automatic hamburger bun slicer Commercial Electric burger bread cutting slicing machine
- Category: >>>
- Supplier: Shenzhen Nha Machinery Equipment Co. Ltd.
Share on (1600907264929):
Product Overview
Description
Products Description

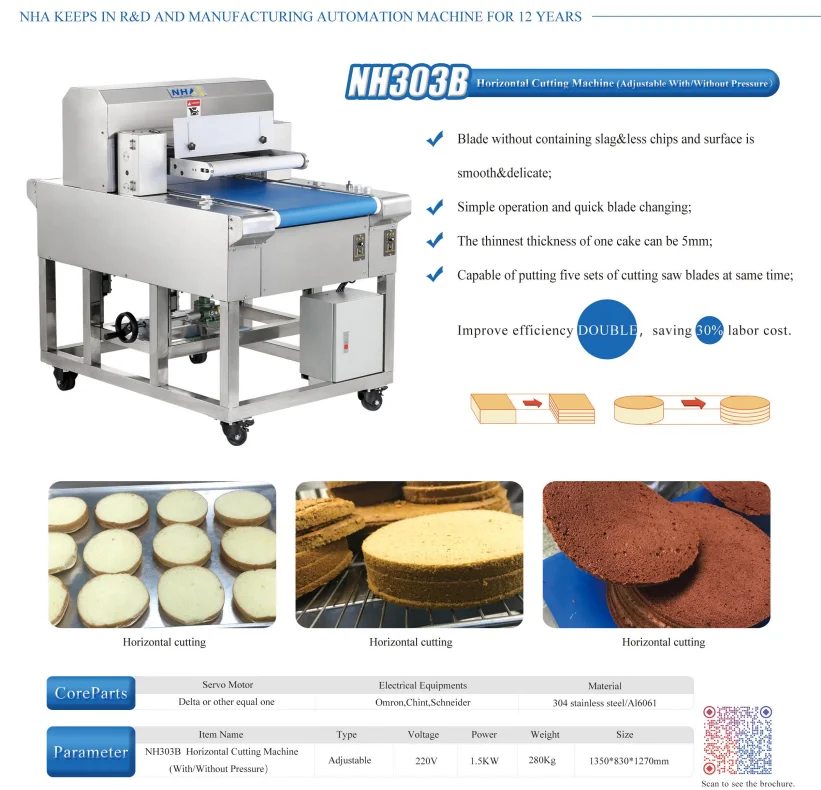

Product Name | Horizontal Cake Cutting Machine |
Model | NH303B |
Cut Hamburger Speed | around 10000pcs/hr |
Voltage | 220V |
Power | 1.5KW |
Machine size | 1350*830*1270mm |
Machine weight | About 280kg |
Material | SS304 |
Type | Full Automatic |
Drive Type | Electric |
Warranty | 1 Year |
Motor | JSCC Motor |
Application：

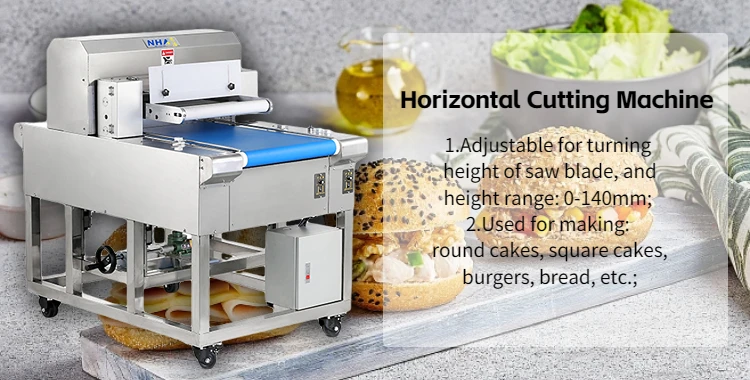

Hamburg horizontal cutting machine
1.Mainly using two drive wheels to drive the circular saw blade to wait for the hamburger cut items to be cut. The annular saw blade is mounted on the two transmission wheels, and the appropriate tension and the parallelism and position of the two transmission wheels are adjusted; when the transmission wheel rotates, the annular saw blade is driven to cut the waiting for cutting articles.

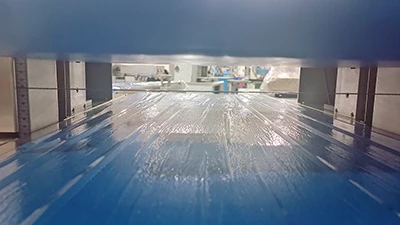

2.When the hamburger horizontal cutter cuts the hamburger horizontally, the lower conveyor belt cuts the hamburger for cutting, and another synchronized conveyor belt is used to press the cut hamburger to prevent the hamburger from being smashed. This results in uneven cutting, and the height of the burger is not uniform. To meet the requirements of various specifications, the upper and lower conveyor belts can be freely adjusted according to customer requirements.

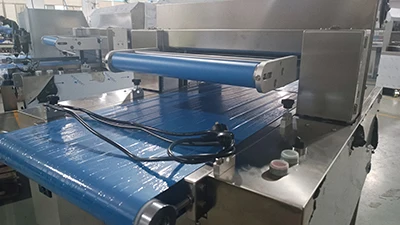

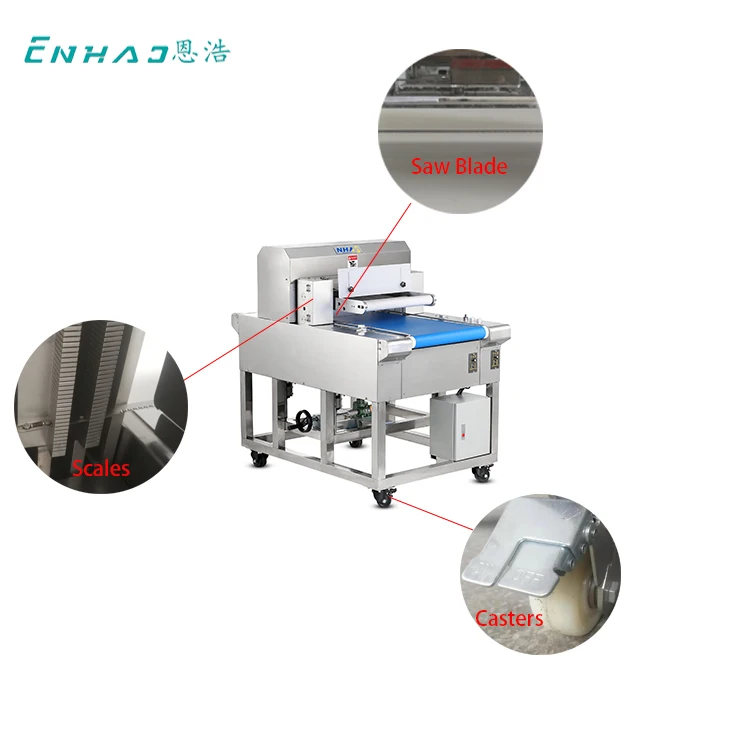

3.The burger is placed on the conveyor belt and automatically cut into the hamburger horizontal cutting machine for cutting. There are two adjustment screws on the top of the machine for adjusting the burger height and the cut height between the upper and lower conveyor belts. The horizontal hamburger cutter has a knob on the right to adjust the band saw blade to be tight.
4.There are four inset screws in front of the horizontal hamburger cutter to adjust the book belt tension and the conveyor belt leveling.
1.Mainly using two drive wheels to drive the circular saw blade to wait for the hamburger cut items to be cut. The annular saw blade is mounted on the two transmission wheels, and the appropriate tension and the parallelism and position of the two transmission wheels are adjusted; when the transmission wheel rotates, the annular saw blade is driven to cut the waiting for cutting articles.
2.When the hamburger horizontal cutter cuts the hamburger horizontally, the lower conveyor belt cuts the hamburger for cutting, and another synchronized conveyor belt is used to press the cut hamburger to prevent the hamburger from being smashed. This results in uneven cutting, and the height of the burger is not uniform. To meet the requirements of various specifications, the upper and lower conveyor belts can be freely adjusted according to customer requirements.
3.The burger is placed on the conveyor belt and automatically cut into the hamburger horizontal cutting machine for cutting. There are two adjustment screws on the top of the machine for adjusting the burger height and the cut height between the upper and lower conveyor belts. The horizontal hamburger cutter has a knob on the right to adjust the band saw blade to be tight.
4.There are four inset screws in front of the horizontal hamburger cutter to adjust the book belt tension and the conveyor belt leveling.
Features:

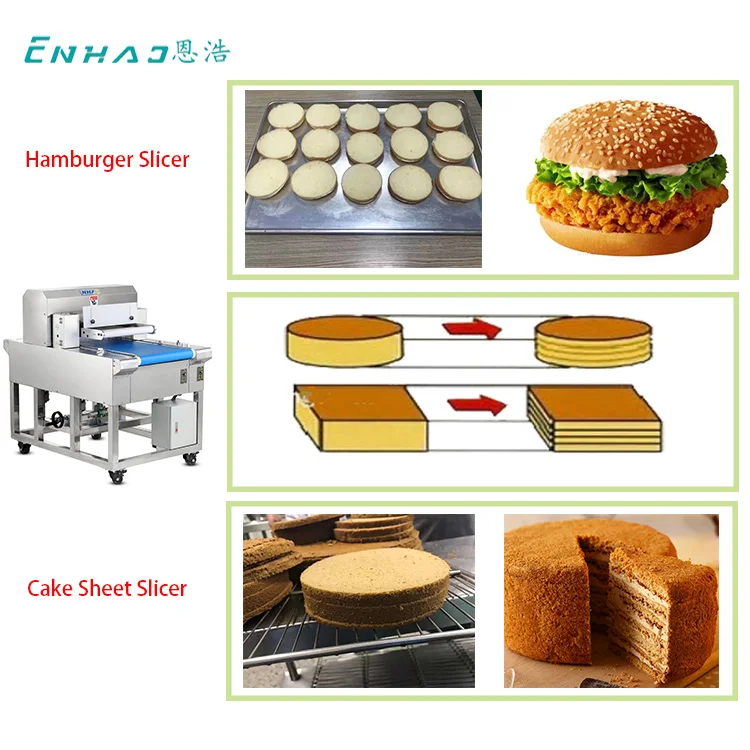

The hamburger horizontal cutting machine is made of imported advanced technology and uses American band saw blades. It has the characteristics of safe and fast, adjustable thickness, automatic slag collection and neat incision. It is used by food factory cake house, KFC, McDonald's, Dicos and other fast food restaurants.
Features:
1.It adopts tooth-form tool with imported textures. The blade does not include slag, has fewer crumbs, is tender in cutting face and is a high-grade quality.

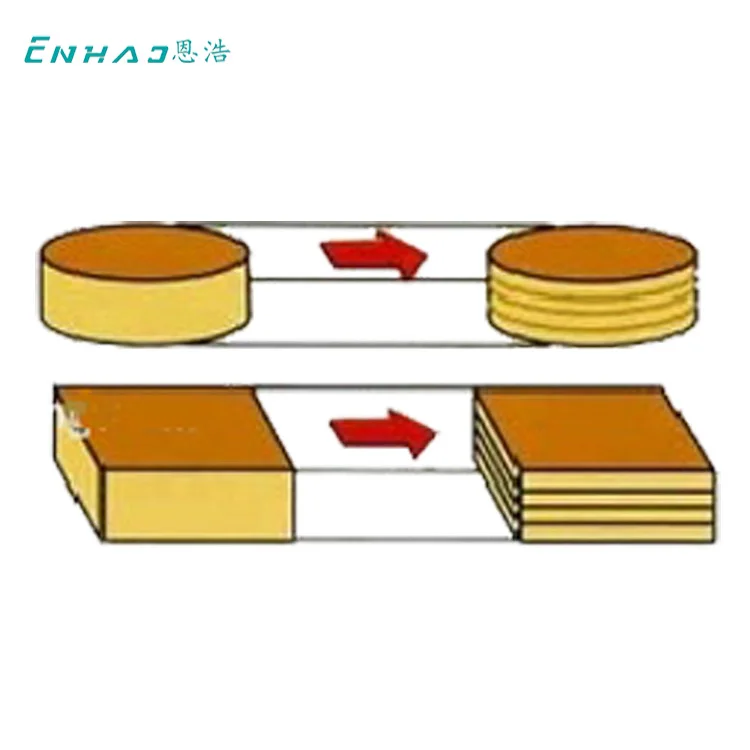

2.It is used to cut castella (whole dish), Chiffon cake, Sponge cake embryo (used for cake shop) .
3.It adopts material of 304 stainless steel and its conveyer belt adopts imported environmental PU conveyer belt. Cakes can be directly conveyed and cut, so it is very safe and healthful ;
4.One-key start, it is easy and convenient to operate.
2.It is used to cut castella (whole dish), Chiffon cake, Sponge cake embryo (used for cake shop) .
3.It adopts material of 304 stainless steel and its conveyer belt adopts imported environmental PU conveyer belt. Cakes can be directly conveyed and cut, so it is very safe and healthful ;
4.One-key start, it is easy and convenient to operate.
