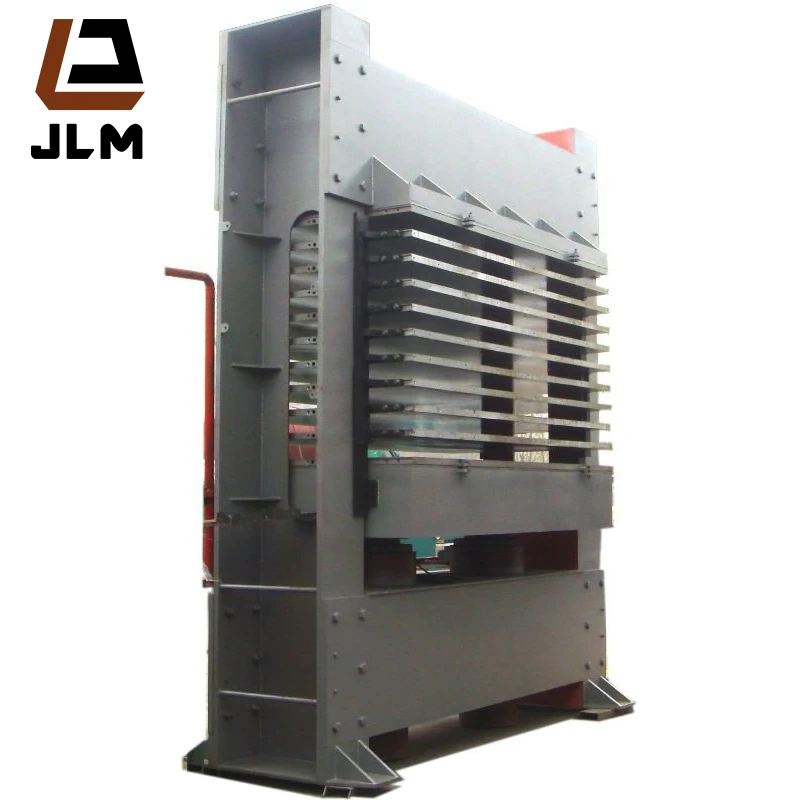

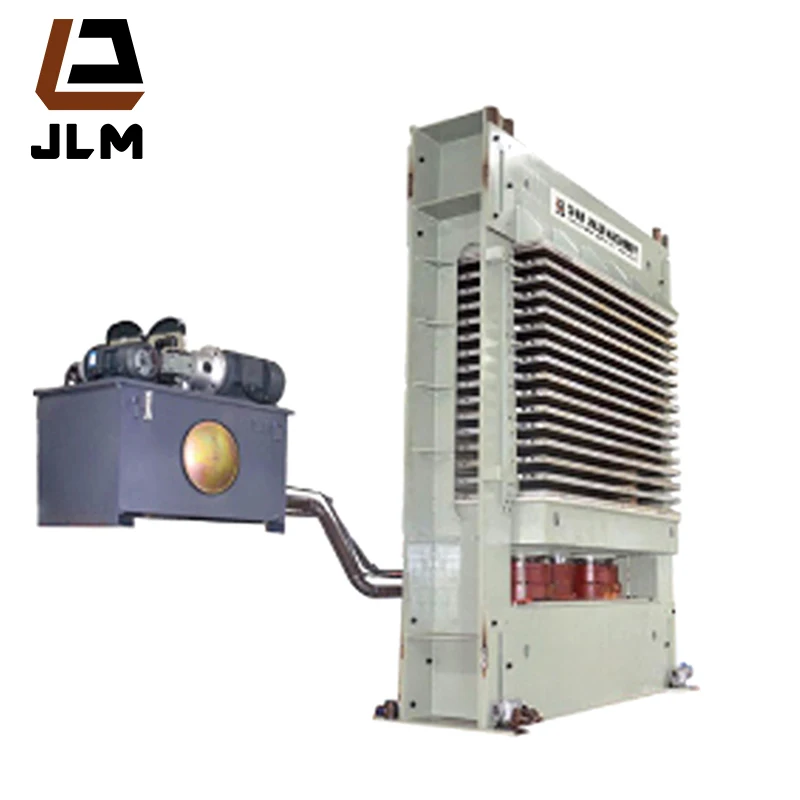

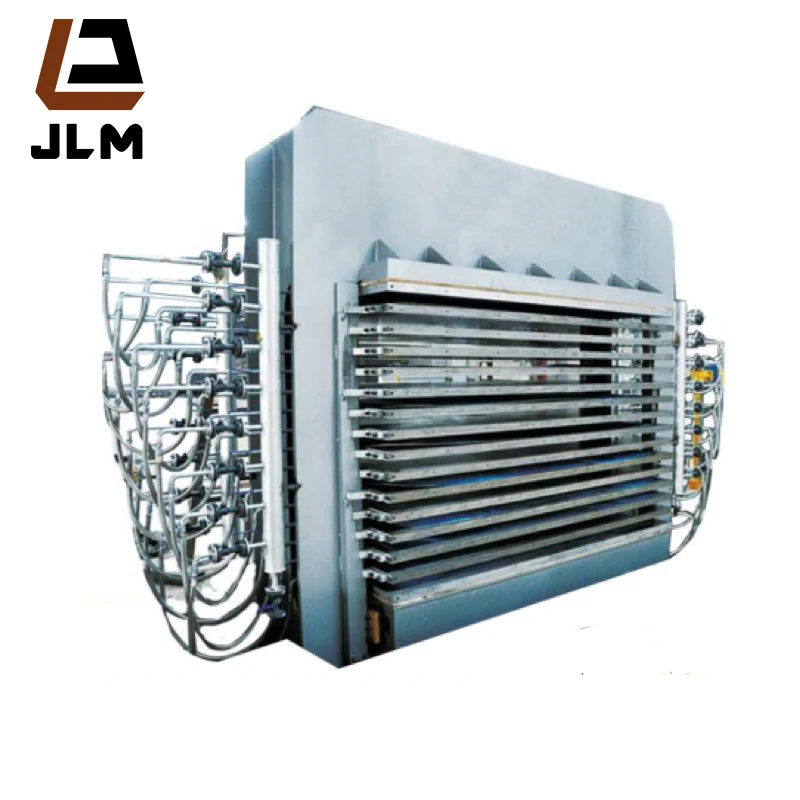

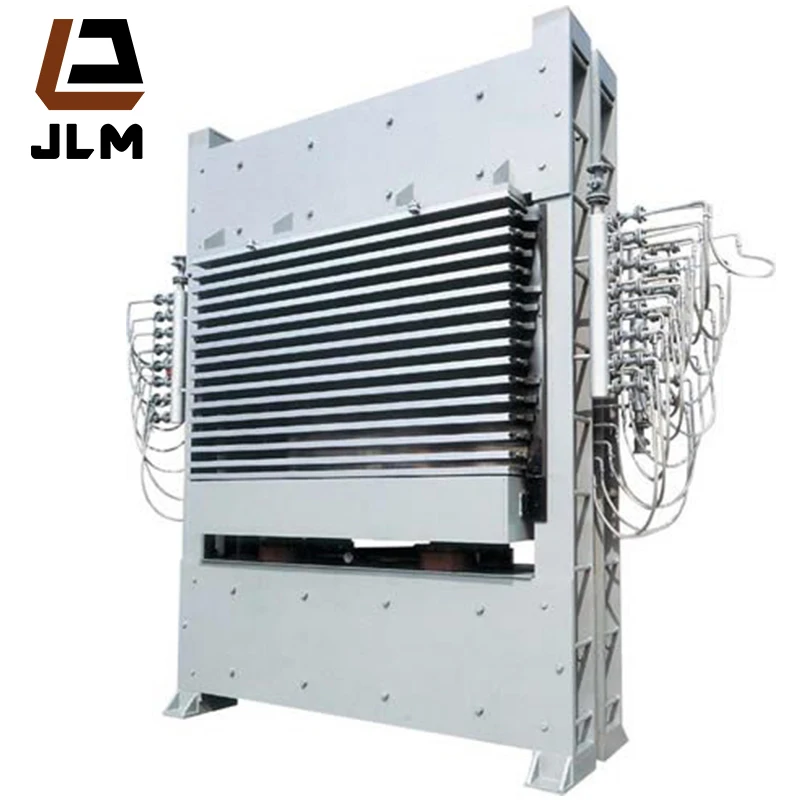

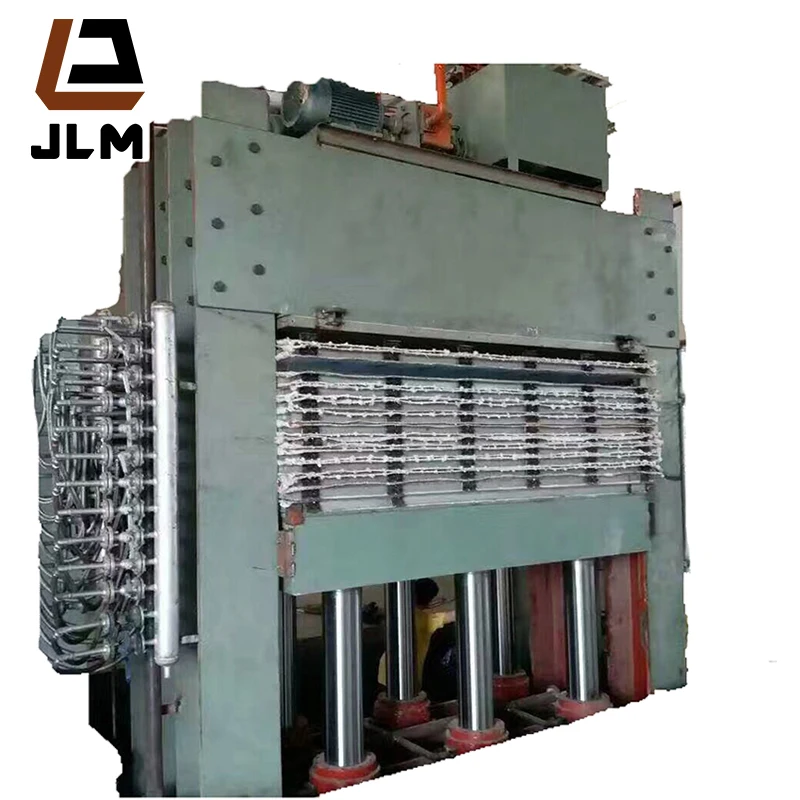

Jinlun Woodworking Machinery Hot Press Machine for Plywood Production Line
- Category: >>>
- Supplier: Shandong Jinlun Machinery Co. Ltd.
Share on (1600907278392):
Product Overview
Description
Product Superiority
After cold pressing and repairing process, the treated basic plywood will be sent to basic plywood hot press. It will take 5-60 minutes depends on board thickness. After hot pressing, the workers will do the second time defects repairing. The board will be stored in semi product storage hours for cooling and storage.
The working condition of the hot press is directly related to the production quality of the plywood, so it is especially important o choose a high quality machine.
The working condition of the hot press is directly related to the production quality of the plywood, so it is especially important o choose a high quality machine.
ADVANTAGES:
Cylinder:
1. It is made in wuxi from excellent carbon solid steel and it
is high strength and durable.
2. It uses high quality oil envelop so as to avoid of oil leaking.
3. Have lifting cylinder, improve the close speed.
1. It is made in wuxi from excellent carbon solid steel and it
is high strength and durable.
2. It uses high quality oil envelop so as to avoid of oil leaking.
3. Have lifting cylinder, improve the close speed.
Hot platen:
1. it is drilled from excellent carbon solid steel and it is high precision, high strength and durable.
2. it is manufactured on special workable, so as to keep the hot platen easy to operate.
1. it is drilled from excellent carbon solid steel and it is high precision, high strength and durable.
2. it is manufactured on special workable, so as to keep the hot platen easy to operate.

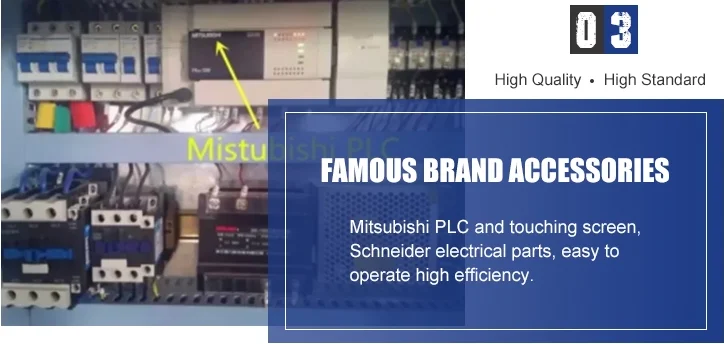

Control system
1. Plc control
2. It can lift the hot platen, close the seperation, add the pressure, keep the presssure, keep time, descend the hot platen and so on.
1. Plc control
2. It can lift the hot platen, close the seperation, add the pressure, keep the presssure, keep time, descend the hot platen and so on.
Specification
This machine is mainly used on producing various specifications of PLYWOOD.Plywood is the ideal product widely used in all kinds of furniture, office supplies, combination speaker, packaging exhibition and other industries.

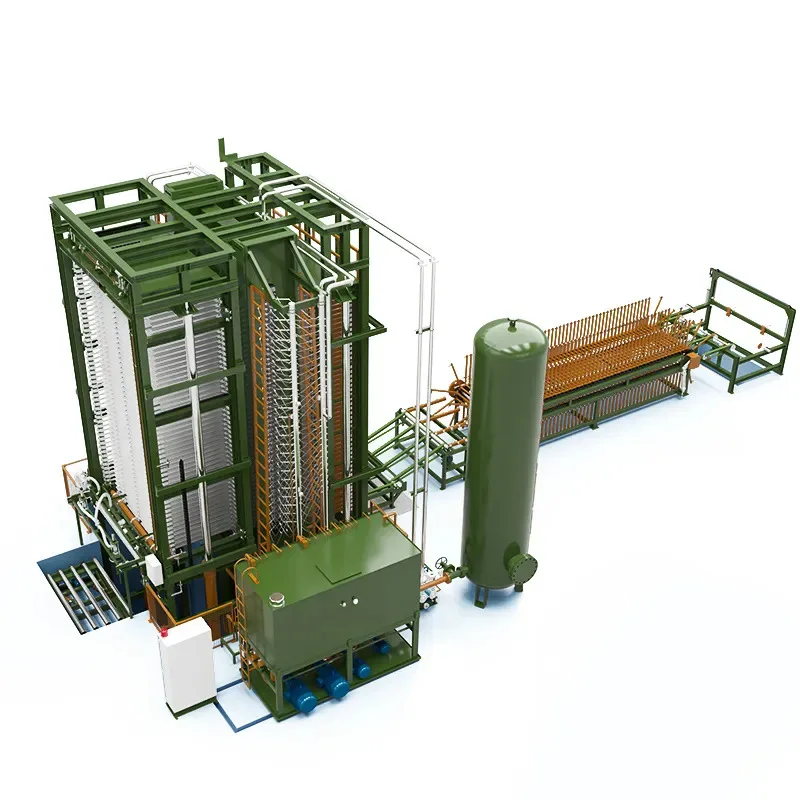

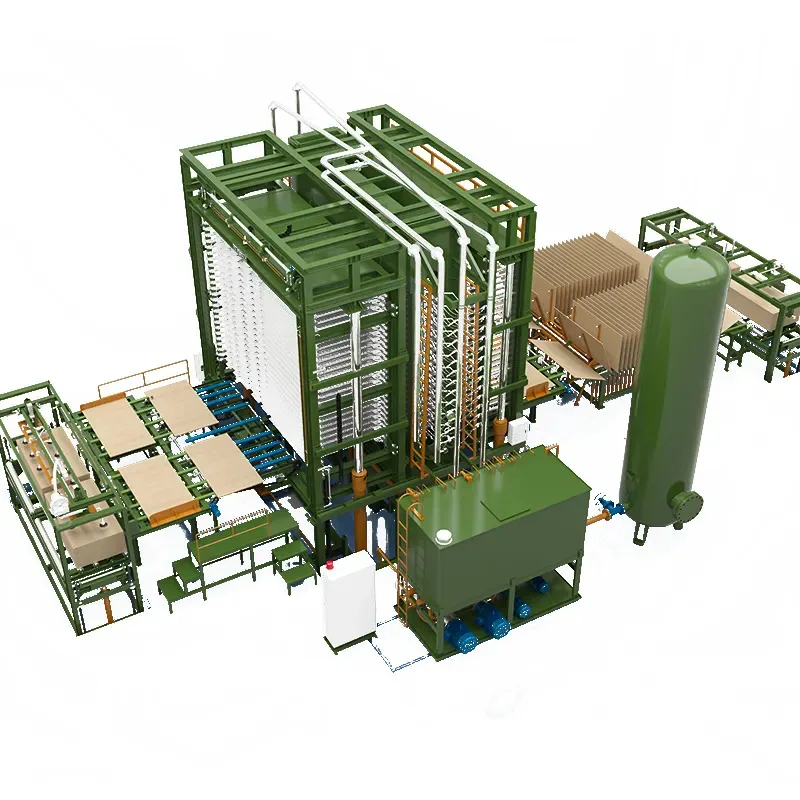

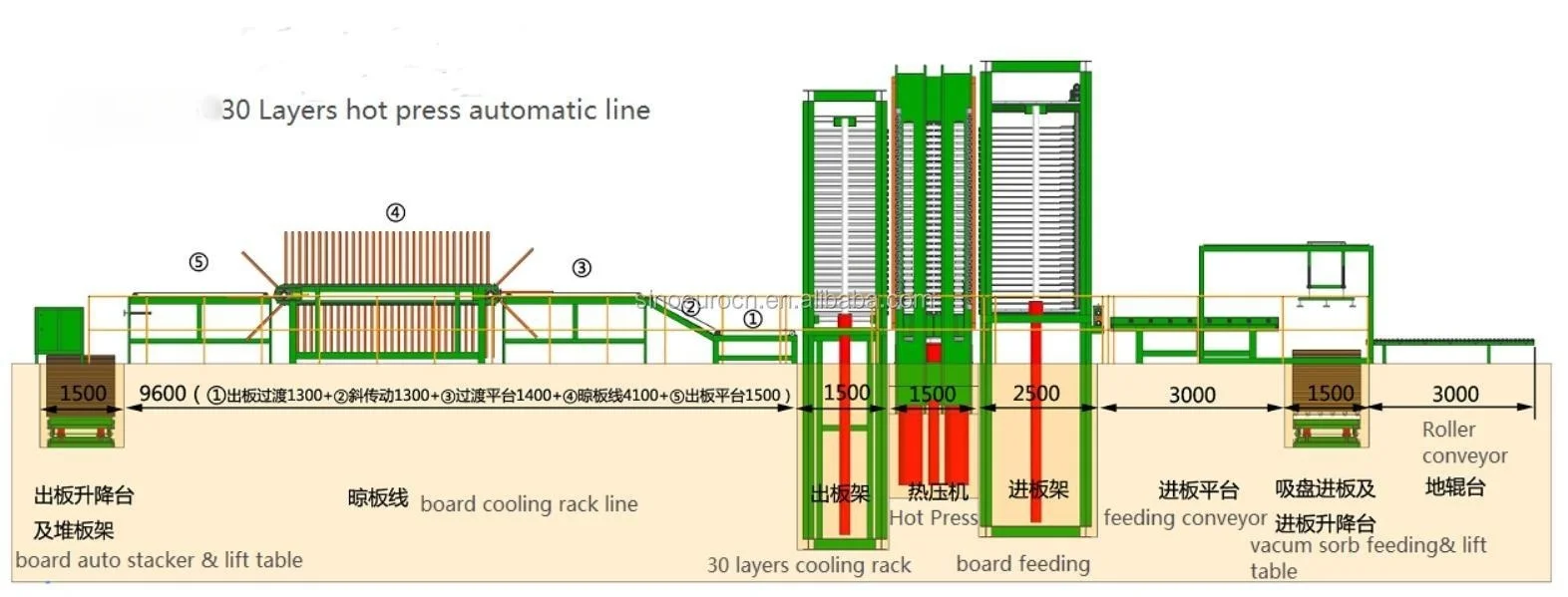

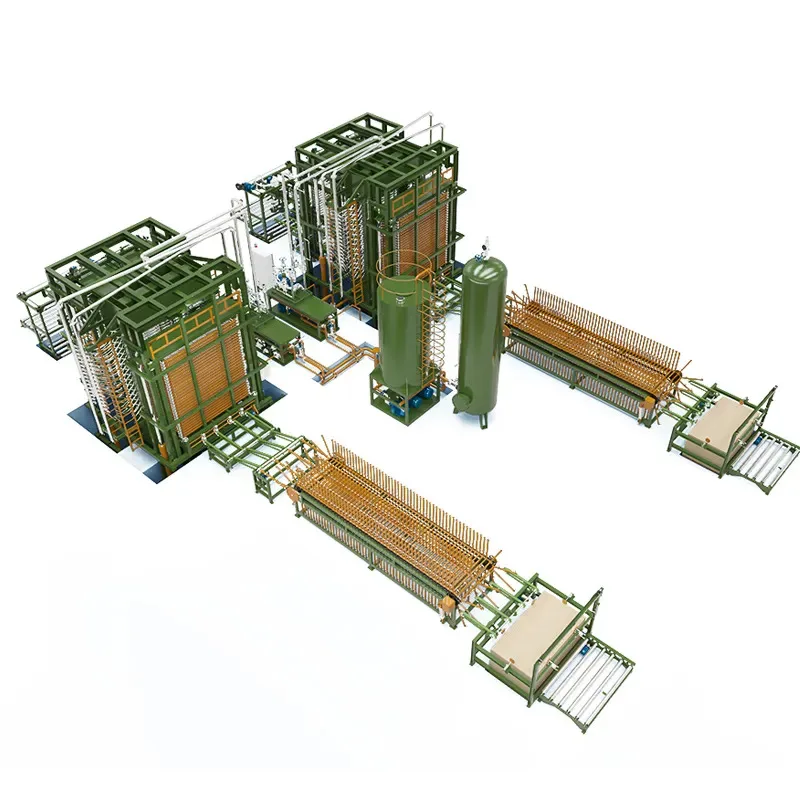

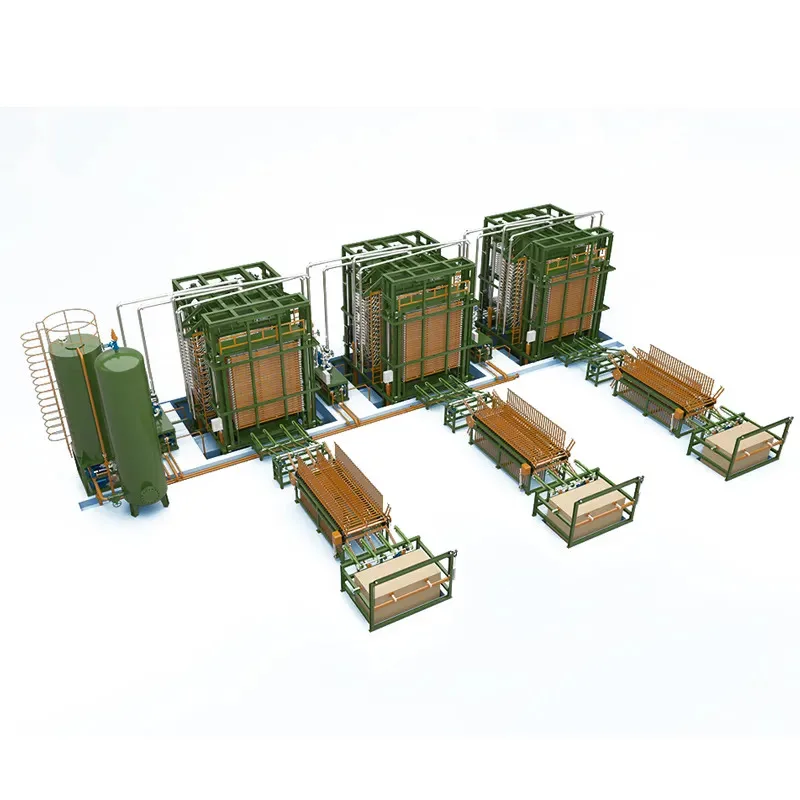

Main sections of plywood production line include peeling section, veneer drying section, gluing section, pre-press section, hot press section, saw edge section, sanding section...etc.
We are expert on both single machine and whole production lines. The thickness range of plywood is generally 3-18 mm, board width is generally 915-1220 mm.
We can design and manufacture any size according to users’ requirements. Welcome inquiry with details about your product plan.
Main sections of plywood production line include peeling section, veneer drying section, gluing section, pre-press section, hot press section, saw edge section, sanding section...etc.
We are expert on both single machine and whole production lines. The thickness range of plywood is generally 3-18 mm, board width is generally 915-1220 mm.
We can design and manufacture any size according to users’ requirements. Welcome inquiry with details about your product plan.
HOT PRESS MACHINE | ||
Max pressure | 500 Tons | |
Board feeding direction | Transverse | |
Layers | 15Layers | |
Layer spacing | 70mm | |
Number of hot press plate | 16pcs | |
Hot press plate size | 2700*1370*42mm | |
Cylinder | 1*ø180mm*1050mm 2*ø360mm*1050mm | |
Stroke | 1050mm | |
Compression resistance | ≤25 Mpa | |
Total Power | 7.5KW+18.5kw | |
Low pressure pump flowing | 250ml/r*1pcs | |
high pressure pump flowing | 10ml/r*1pcs | |
Overall dimension | 3550mm*1370mm*4650mm | |
Working methods | Full | |
Composite frame | Assembled | |
Upper and bottom beam | 900mm | |
Middle beam | 400mm | |
Thickness of the frame | 35 mm | |
Weight | About 33Tons | |
