Product Overview
Description

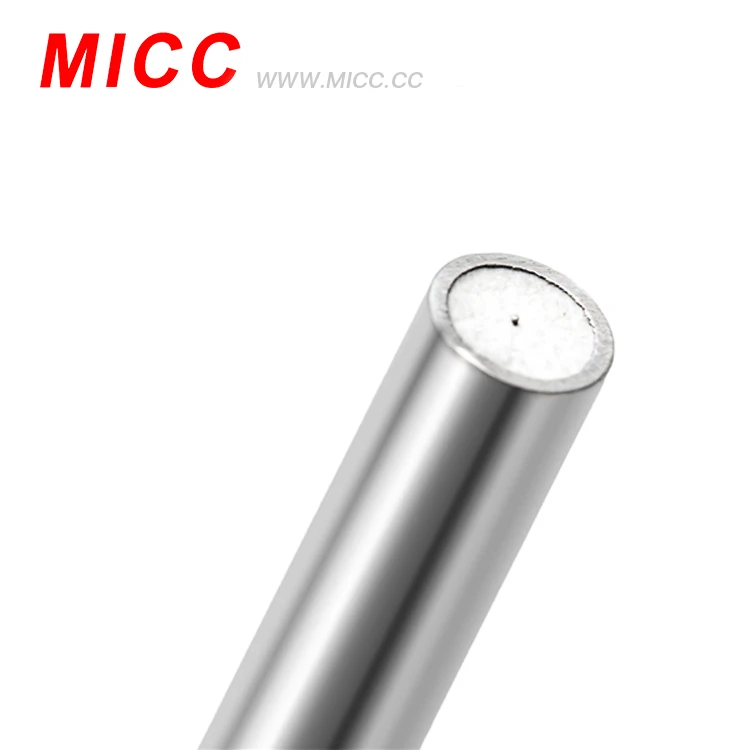

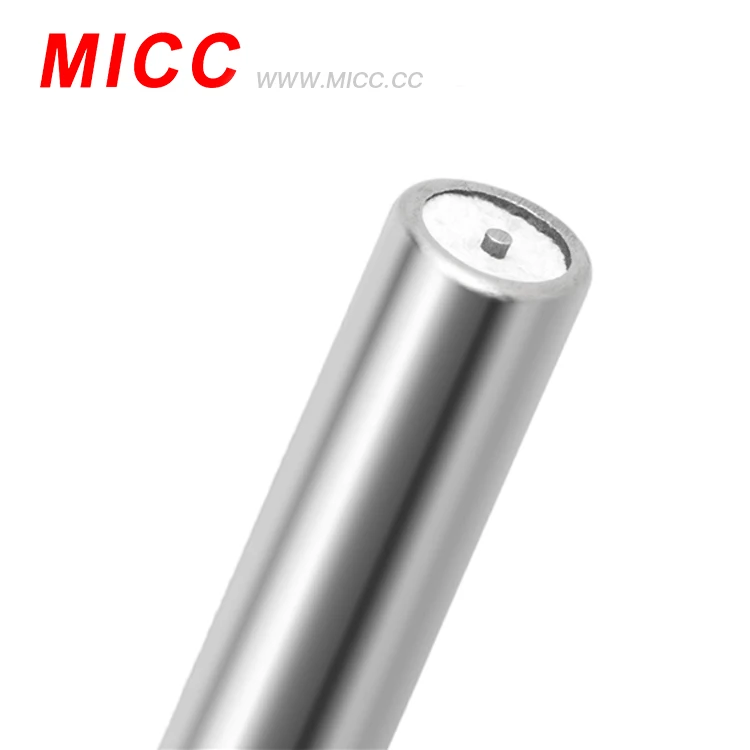

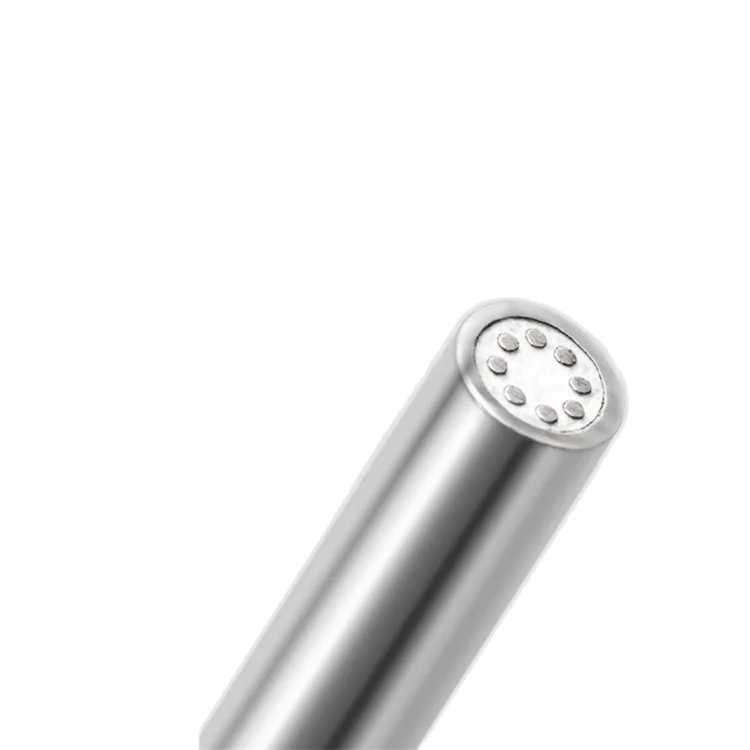

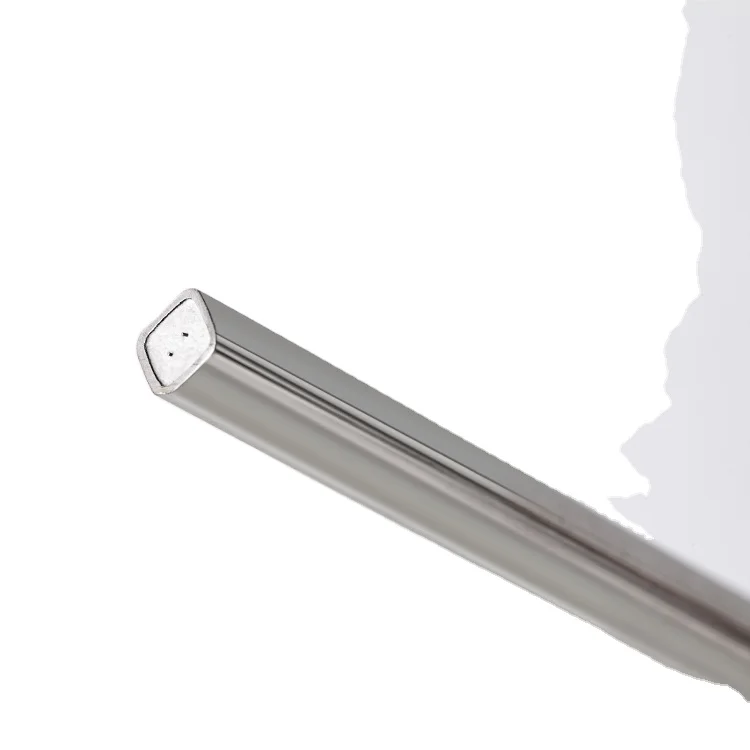

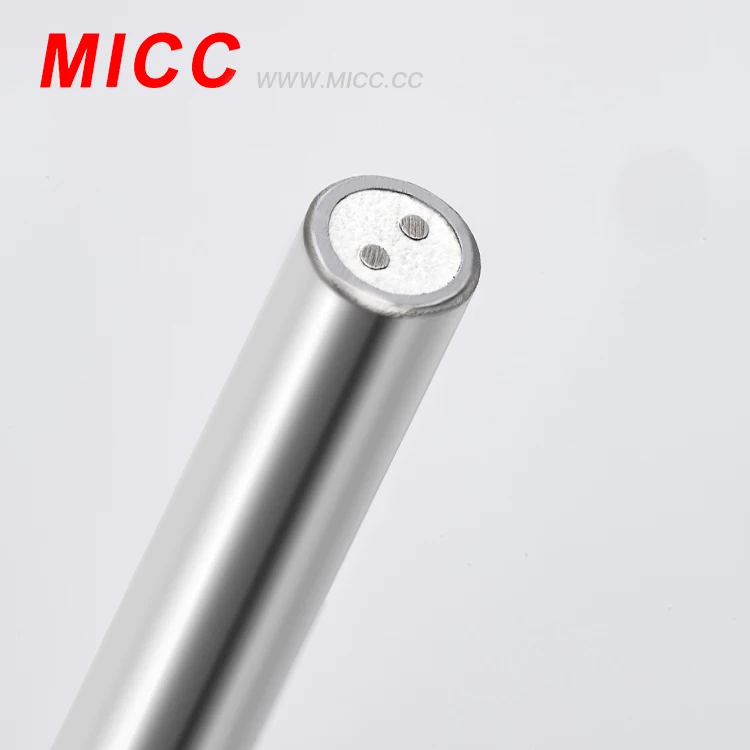

MICC MI metal sheathed high temperature heating cable 3mm diameter ss304 mineral insulated cable
Product show
Quick detail
- Name: MICC mi cable type K CIM Inconel
- Type: K, N, E, J, T
- Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
- Insulator: 99.6% high purity MgO
- Core number: 2, 4, 6
- Sheath material: SS321(SS304), SS316, SS310, INCL600, Nicrobell
- Dia(mm): from 0.25mm to 12.7mm
- Application: connecting with thermocouple and instrument machine
- Place of Origin: Jiangsu, China (Mainland)
- Eco-friendly: Yes
- MOQ: 100m
- Certificate: ISO,CQC
- Making sample time: all type in stock
- Trade term: FOB, EXW, CIF, CFR
- Payment term: T/T, Western Union, L/C
- Advantage: Competitive price and best service
Product Name | Code | Type | Sheath material | Outer dia.(mm) | Temperature | ||||||||
Ni Cr - Ni Si | KK | K | SS304 | 0.5-1.0 | 400 | ||||||||
SS321 | 1.5-3.2 | 600 | |||||||||||
SS316 | 4.0-8.0 | 800 | |||||||||||
0.5-1.0 | 500 | ||||||||||||
SS310 | 1.5-3.2 | 800 | |||||||||||
INCL600 | 4.0-6.4 | 900 | |||||||||||
8.0-12.7 | 1000 | ||||||||||||
Ni Cr Si - Ni Si | NK | N | SS304 | 0.5-1.0 | 400 | ||||||||
SS321 | 1.5-3.2 | 600 | |||||||||||
SS316 | 4.0-8.0 | 800 | |||||||||||
0.5-1.0 | 500 | ||||||||||||
SS310 | 1.5-3.2 | 800 | |||||||||||
INCL600 | 4.0-6.4 | 900 | |||||||||||
8.0-12.7 | 1000 | ||||||||||||
Ni Cr -Konstantan | EK | E | SS304 | 0.5-1.0 | 400 | ||||||||
SS321 | 1.5-3.2 | 500 | |||||||||||
SS316 | 4.0-8.0 | 800 | |||||||||||
Fe - Konstantan | JK | J | SS304 | 1.0 | 300 | ||||||||
SS321 | 1.5-3.2 | 500 | |||||||||||
SS316 | 4.0-8.0 | 800 | |||||||||||
Cu - Konstantan | TK | T | SS304 | 1.0 | -200-100 | ||||||||
SS321 | 1.5-3.2 | 100-200 | |||||||||||
SS316 | 4.0-8.0 | 100-350 | |||||||||||
Name | Type | Class of Accuracy | |||||||||||
I | II | III | |||||||||||
Tolerance | Temperature | Tolerance | Temperature | Tolerance | Temperature | ||||||||
Ni Cr - Ni Si | K | 1.5℃ or 0.4%t | -40~1000 | 2.5℃ or 0.75%t | -40~1000 | 2.5℃ or 0.75%t | -200~40 | ||||||
Ni Cr Si- Ni Si | N | -40~1000 | -40~1000 | -200~40 | |||||||||
Ni Cr - Konstantan | E | -40~800 | -40~800 | -200~40 | |||||||||
Fe - Konatantan | J | -40~750 | -40~750 | --- | |||||||||
Cu - Konstantan | T | 1.5℃ or 0.4%t | -40~350 | 1℃ or 0.75%t | -40~350 | 1℃ or 0.75%t | -200~40 | ||||||
Pt Rh 10 - Pt | S | 1℃ or 1+(t-1100)x0.003 | 0~1600 | 1.5℃ or 0.25%t | 0~1600 | --- | --- | ||||||
Pt Rh 13 - Pt | R | 0~1600 | 0~1600 | ||||||||||
Pt Rh 13 - Pt Rh 6 | B | --- | --- | 600~1700 | 4℃ or 1.5%t | 600~1700 | |||||||
Wall thickness table
Outer Sheath(mm) | Core Wire Dia.(mm) | Sheath Material | Length(m) | |||||
Out Dia. | Wall Thickness | K,N,E,J,T Types | S,R,B Types | K,N Types | E,J,T Types | S,R Types | B Types | |
0.5 | 0.05-0.10 | 0.08-0.12 | --- | SS304, SS321, SS316, SS310, INCL600 | SS304, SS321, SS316 | INCL600, INCL800 | INCL600, INCL800 | 500 |
1.0 | 0.10-0.20 | 0.15-0.20 | --- | 300 | ||||
1.5 | 0.15-0.25 | 0.23-0.30 | --- | 200 | ||||
1.6 | 0.16-0.26 | 0.26-0.36 | --- | 200 | ||||
2.0 | 0.25-0.35 | 0.40-0.50 | 0.25-0.30 | 180 | ||||
3.0 | 0.38-0.48 | 0.50-0.60 | 0.30-0.40 | 80 | ||||
3.2 | 0.48-0.58 | 0.58-0.68 | 0.30-0.40 | 75 | ||||
4.0 | 0.52-0.62 | 0.60-0.70 | 0.35-0.40 | 70 | ||||
4.8 | 0.73-0.83 | 0.75-0.85 | 0.40-0.45 | 40 | ||||
5.0 | 0.78-0.88 | 0.80-0.90 | 0.40-0.45 | 40 | ||||
6.0 | 0.98-1.08 | 0.90-1.10 | 0.45-0.50 | 30 | ||||
6.4 | 1.05-1.15 | 1.02-1.12 | 0.45-0.50 | 30 | ||||
8.0 | 1.30-1.44 | 1.30-1.40 | 0.45-0.50 | 20 | ||||
12.7 | 1.75-1.90 | 1.95-2.05 | --- | 10 | ||||
Shipment for MICC mi cable type K CIM Inconel
International express for sample or small orders. Air transportation and sea transportation for big orders.
