Product Overview

Description



High And Low Environmental Temperature Humidity Test Chamber Constant Climate Rapid Temperature Change Test Chamber
Sonacme Fast Change Rate Test Chambers can set different stress screening temperature change rates:
5℃/Min, 10℃/Min, 15℃/Min, 20℃/Min, 25℃/Min.

The Environmental stress chamber supports heat load and provides faster temperature cycling performance with a wide temperature and humidity control range.Customers can select the optimal model for their needs based on performance and test area capacity. A chamber is now available that achieves a temperature change rate of 15K/min for specimens that comply with IEC 60068-2-14Nb/2-30/2-38.



Products Description




Better air duct design
Double air duct, connected with chamber but isolate,
air out from top and return from bottom. The racks is
made of high-quality cold-formed stainless steel plate,
adjustable louver for air outlets.

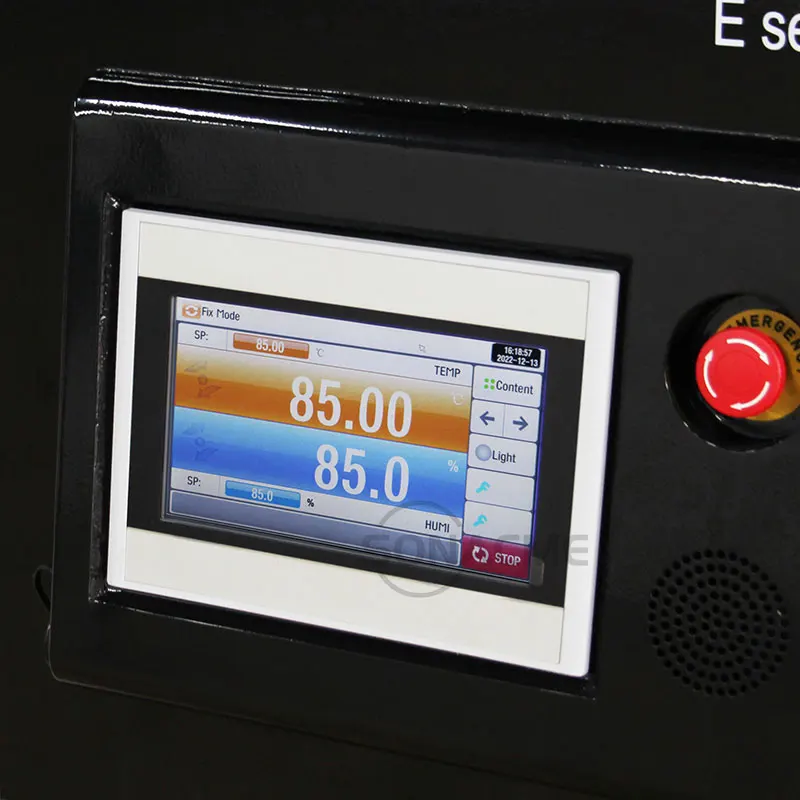

Controller【Easy-to-use, easy-to-read touchscreen】
7.0 inch resolution: 65535 true color, LED backlight
display screen, integrating monitoring and control;
the screen adopts interactive touch operation.


Electronic temperature humidity sensor
Adopt VAISALA electronic humidity sensor imported from Finland; its humidity resolution can reach 0.01%rh. No need to change wet cloth, avoid adding tedious work.
Automatic water replenishment
Equipped with automatic water replenishment system, double-layer filter device. New structure design, high
efficiency and low water consumption.
Observation window
A set of observation window is multi-layer hollow tempered glass with automatic defrosting function and
anti-condensation electric heating device, which can ensure that the glass surface is free of frost and condensation during any test.




Product Paramenters


Model
SR/340/70/25(H)
System
Temperature and Humidity Balance Control (BTHC) System
Test area capacity
340L
Internal dimensions W×H×D mm
750*750*600
Dimensions W×H×D mm
1100*1800*1780
Power
1φ220V AC&50/60Hz，24A  or  3φ380V AC&50/60Hz，10A
Temperature performance
Temperature & Humidity Range
 -70～＋100℃ (+150℃/+180℃) / 10～98%rh
Temperature & Humidity Fluctuations
±0.3°C / ±2.5%rh
Temperature uniformity
1.5°C
Space temperature change
−70 to +150℃: 1.5K, +150.1 to +180℃: 2.0K
Allowable heat load
est area temperature +20°C：4000 W
Temperature performance
Temperature change rate (Heating rate)
25K/min（ nonlinear ）
Temperature change rate (Cooling rate)
25K/min（ nonlinear ）
Extreme temperature reach time (Heating time)
 +20℃ to +180℃ 7 min.
Extreme temperature reach time (Cooling time)
 +20℃ to −70℃ 7 min.
Structure
Appearance material
Using 1.5mm thick FC advanced electrolytic plate + spray anti-corrosion
Test area material
1.2mm thick SUS304 stainless steel
Heater
Finned Nichrome Explosion-Proof Heater
Humidifier
Stainless Steel Sheathed Humidifier (Steam Humidification)
Condenser
Air-cooled condenser
Air circulator
Centrifugal fan
Water supply
Standard water tank
10 L
Refrigeration unit
System
Mechanical single-stage compression cooling
Compressor
Scroll/Piston Compressor
Refrigerant
R404A [R449A available on request]
Power
12 Kw
Noise level
72dB
*1 Performance values based on IEC60068-3-5:2001 and IEC60068-3-6:2001； Performance data is given at +23°C ambient temperature,
65±20%rh relative humidity, rated voltage and no samples in the test area. *2 Minimum temperature attainable at ambient
temperature +5 to +30°C. *3 When the temperature inside the chamber is +20℃.




Related Products




Packing & Delivery

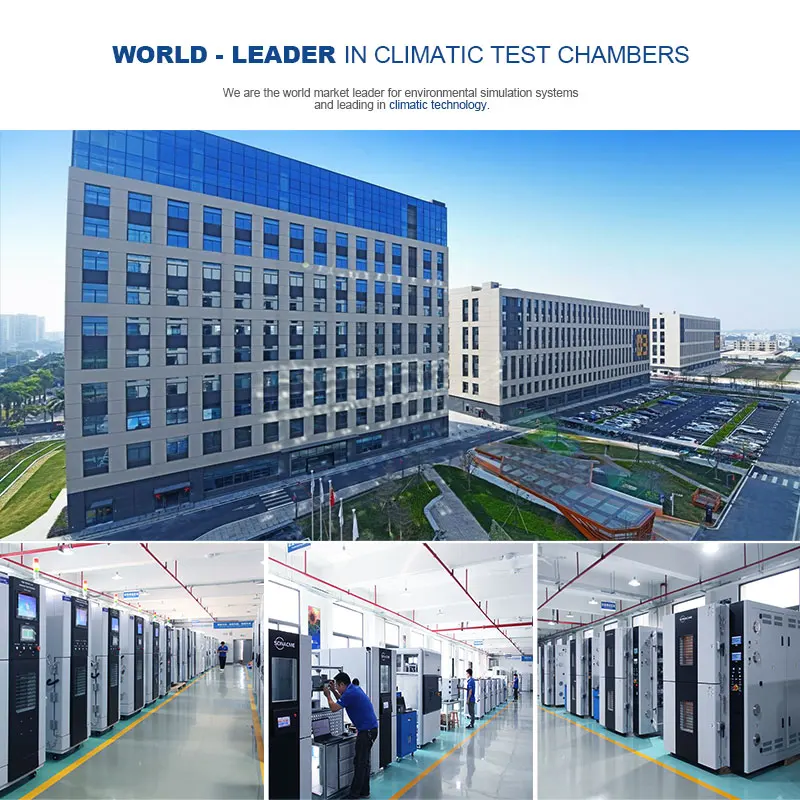

Company Profile


ABOUT SONACME
SONACME Technology (Guangdong) Co.,Ltd. established at 1995 with Europe technologies, with abundant capital invested at 2016 to become a backup listed company, we re-registered our company to be SONACME Technology (Guangdong) Co.,Ltd. with more than two decades hard working in this industry, we built our own manufacture facility at 2006, capacity reaches to 12,000 square meters which allow us to provide customers with one-stop station products and services from R & D, Sheet metal processing, mass production, sales service, after-sales service, rent & lease,internal testing to import & export.




Why Choose Us


1.Onsite Service: 【Device installation】
 【Equipment opration traing】
【Daily maintenance】

2. Online Service: 【We will provide device installation videos 】
 【We will provide device operation videos 】
【We will provide free technical training】
【We will provide English operation manual】
【We will provide free software upgrades】
【We can hold the online meeting with customers to inspect the chamber before shipment 】

3. Warranty Service:
During the warranty, if there is any spare part problems, we will respond within 2 hours, within 2 working
days ready to provide replacement parts and then send them through Feddex or DHL.

4. Payment terms-guaranteed that we will never run away:
【30% before production, 70% before shipment】until you inspect the chamber online and you are satisfied. We will arrange the shipment.

5. Delivery Time- we deeply know that your time is valuable!
【If we are 1 week delayed-refund you 1%】
【If we are 2 week delayed-refund you 2%】
【If we are 3 week delayed-refund you 3%】
【If we are 4 week delayed-refund you 4%】

6. Alibaba Trade Assurance Money is Guaranteed!
【Trading through Trade Assurance Order on Alibaba.com would be the safest option】Customer pays to the Alibaba Platform first, after we show related documents showing that we have shipped the goos, than the supplier can withdraw the money. After a month the customer receives the goods, and it is not same as discussed, than you can apply for refund through Alibaba, just like Amazon refund policy.


Certifications






FAQ


1. Who Are We?
We are based in Guangdong, China, start from 2014,sell to Eastern Europe(43.00%),Western Europe(40.00%),Southeast Asia(17.00%). There are total about 11-50 people in our office.

2. How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3.What Can You Buy From Us?
Environmental Chamber , Altheletic Training Room , Weathering Resistance Aging Chamber.

4. Why Should You Buy From Us Not From Other Suppliers?
SONACME was established at 1995 with more than 20+ years experience. Our product passed CE and ISO Certification with customer covered moer than 70+coutries.

5. What Services Can We Provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP,DDU,DAF；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian.
