Pharmaceutical and chemical industry Load Cell Sensor Manufacturer
- Category: >>>
- Supplier: Anhui Tianguang Sensor Co. Ltd.
Share on (1600907373380):
Product Overview
Description
Product Description
1. Rated Force Range: 150-300kN,400-600kN,1000kN,1500-2000kN,3000kN
2. Cable length: 6m
3. OEM: Acceptable
4. Certification: ISO9001/CE
5.Packing: See the details
2. Cable length: 6m
3. OEM: Acceptable
4. Certification: ISO9001/CE
5.Packing: See the details

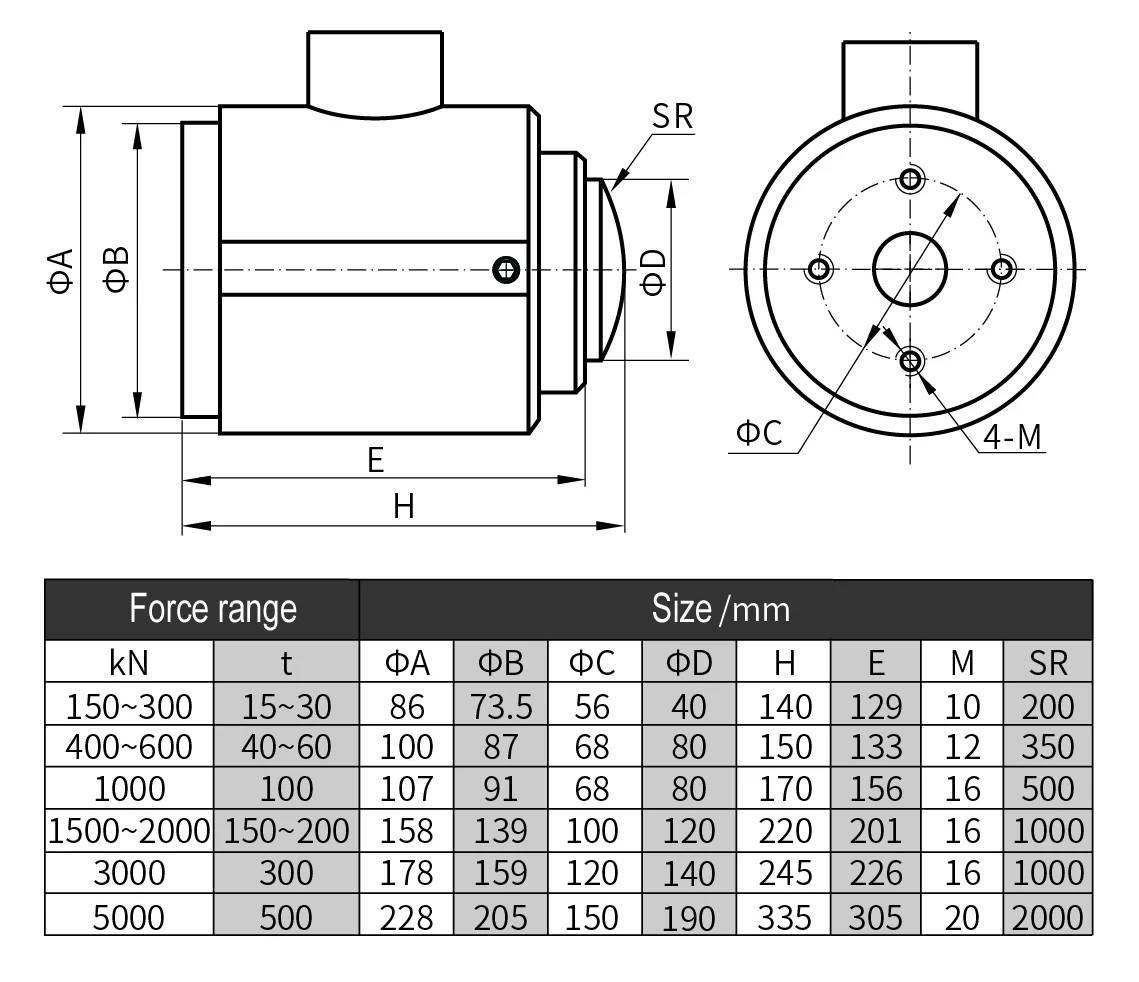

Specification
Product Name | Column Type Load Cell |
Model Number | TJH-3 |
Comprehensive Precision | 0.05-0.1%FS |
Sensitivity | 2.0mV/V |
Creep | ±0.05%FS/30min |
Zero Output | ±1%FS |
Temperature effect on zero | ±0.03%FS/10℃ |
Temperature effect on output | ±0.03%FS/10℃ |
Operating temperature range | -20℃-+65℃ |
Input Resistance | 380±10Ω |
Output Resistance | 350±3Ω |
Insulation Resistance | >5000MΩ |
Safe Load Limit | 150%FS |
Bridge Voltage | advise 10V DC |
Mode of connection | Input+ : Red, Input- : Black, Output+ : Green, Output- : White |
Stainless Steel | Alloy Steel |
Recommend Products
Process Flowchart
Our Company
Anhui Tianguang Sensor Co., Ltd. was founded in 1991, covers an area of 22,000 square meters, registered capital of 16 million.Main research and development, production and sales: load cell, ice coating detection sensors, torque sensors, tension sensors,shaft pin sensors, pressure sensors, tension and pressure sensors, oil field load sensors and related monitoring and control instruments and other products. Over the past 32 years Tianguang constantly draws on domestic and foreign advanced technology, the introduction of foreign advanced equipment and technology, learning and absorbing the concept of modern enterprise management, has developed, produced more than 100 kinds of load cell sensors and ancillary instruments, the products are widely used in military.

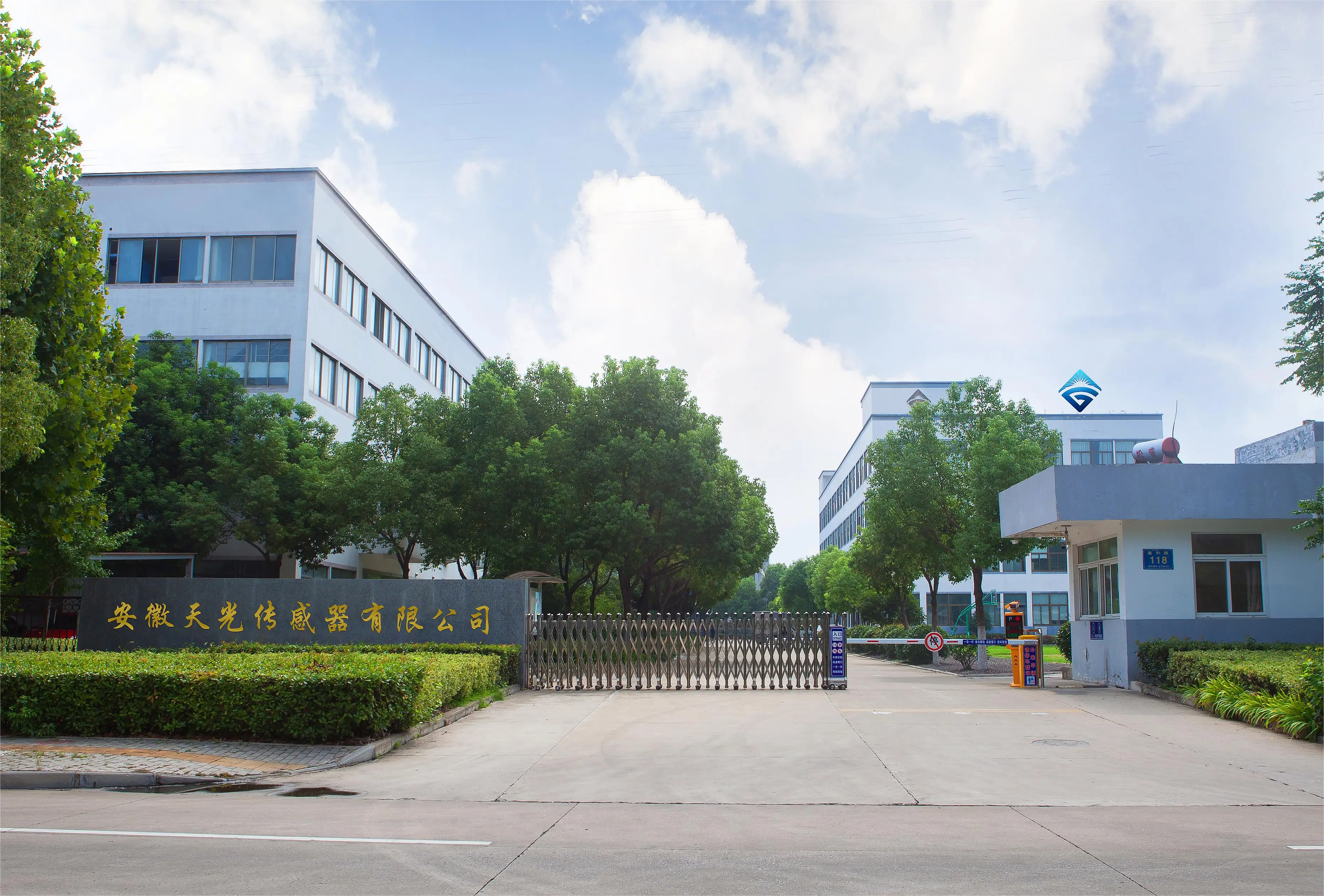

Factory
Workshop
Warehouse
Equipment
Office
Team
Our Service
Free consult support
24/7 free product relating consult through Alibaba Trade Manager, email, telephone, Skype, Whatsapp, Wechat and other measures.
Customization
Provide OEM service, most products are customizable (please consult with us for details).
After sale service
One year warranty since product shipped out. Fully technical support for application.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-30 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the small size sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-30 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the small size sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
