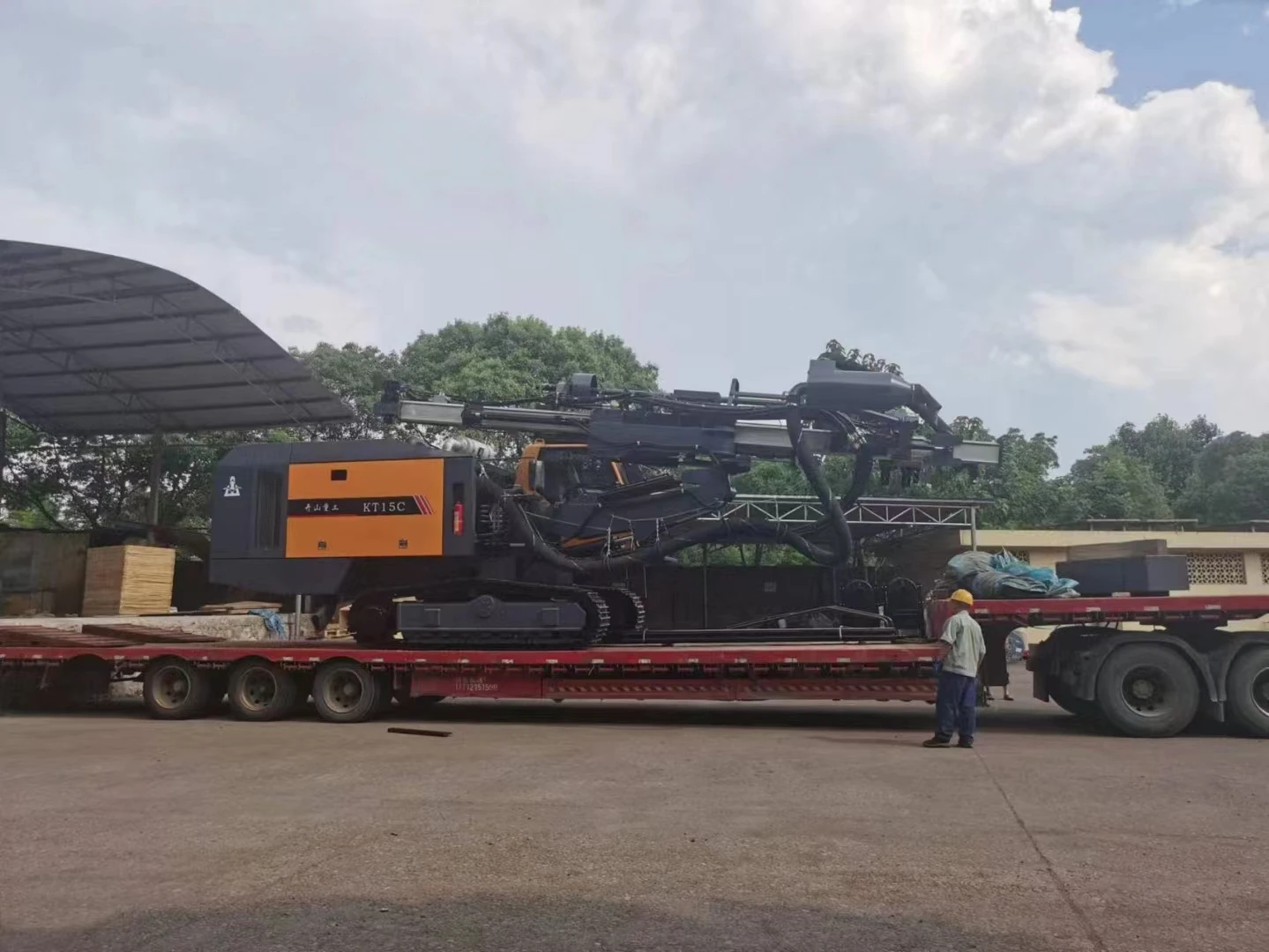

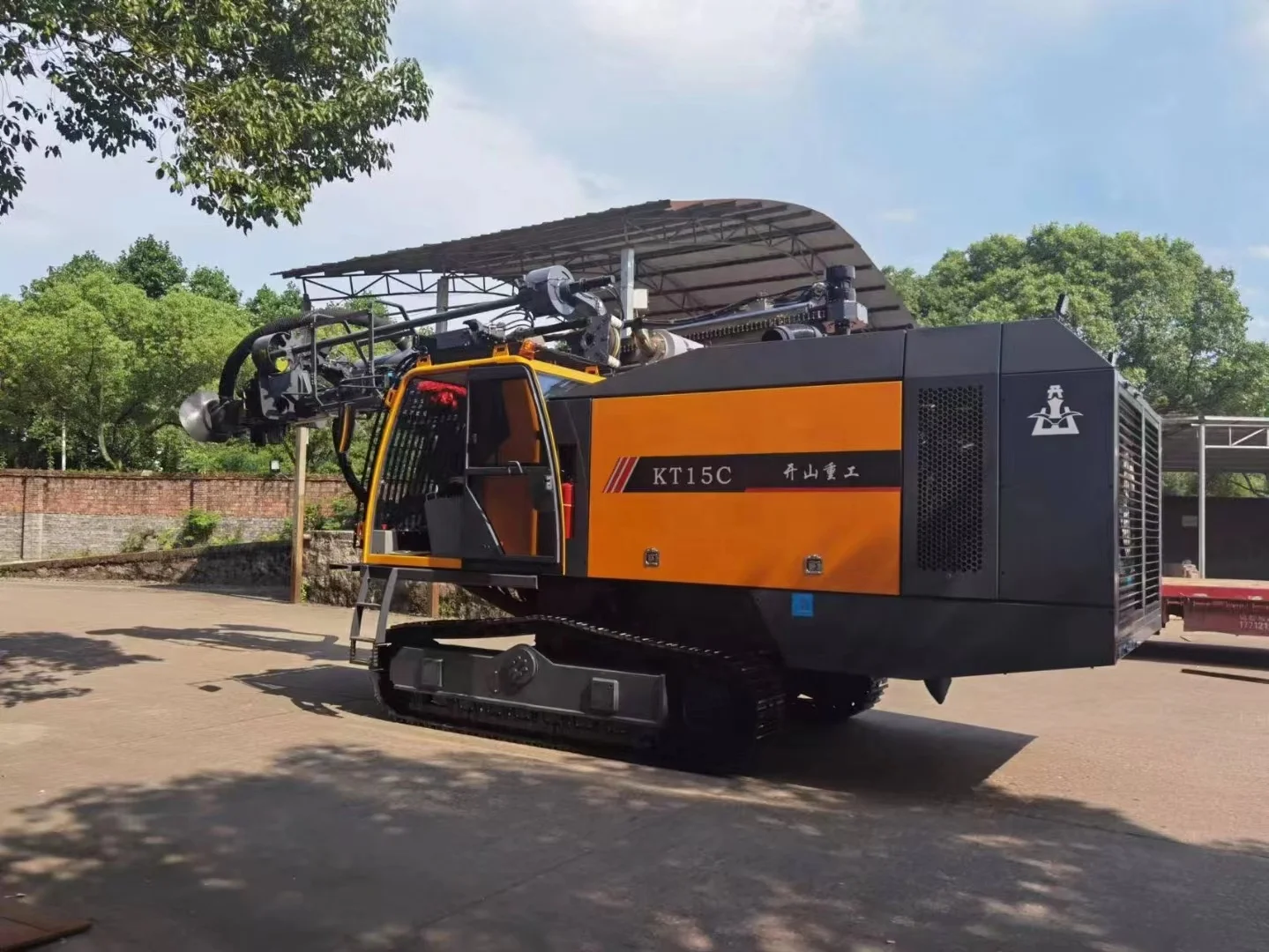

Kaishan KT15C 36m deep crawler Integrated DTH drill rig 298kw Diesel borehole rock rotary drill rig machine for open use
- Category: >>>
- Supplier: Quzhou Jugong Machinery Equipment Co. Ltd.
Share on (1600907378318):
Product Overview
Description

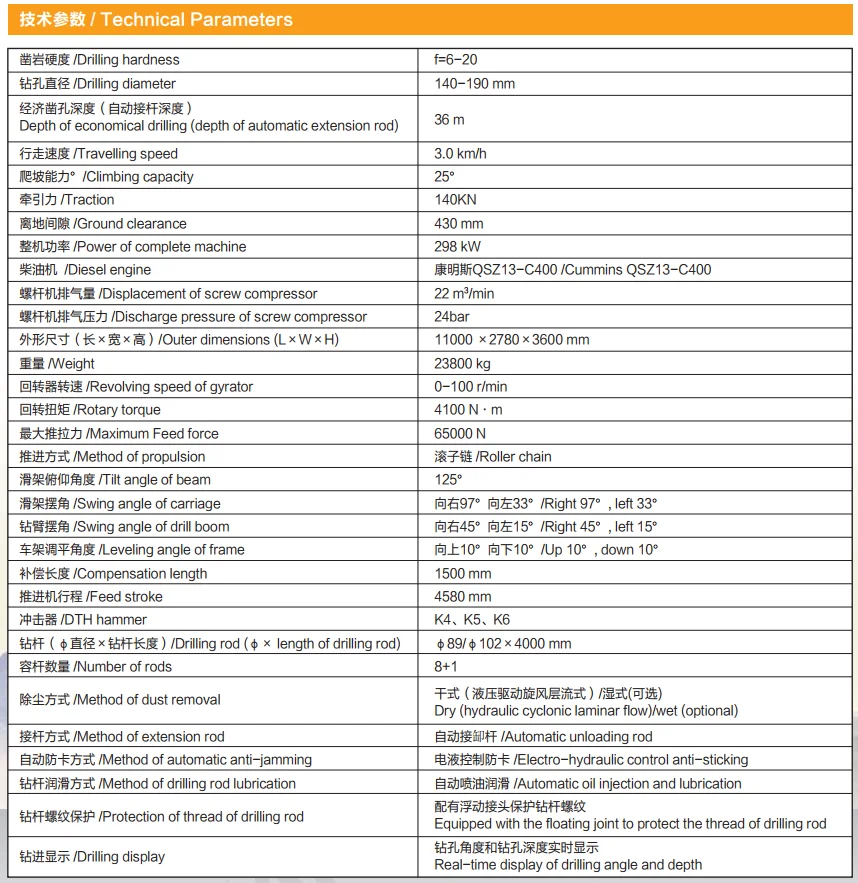

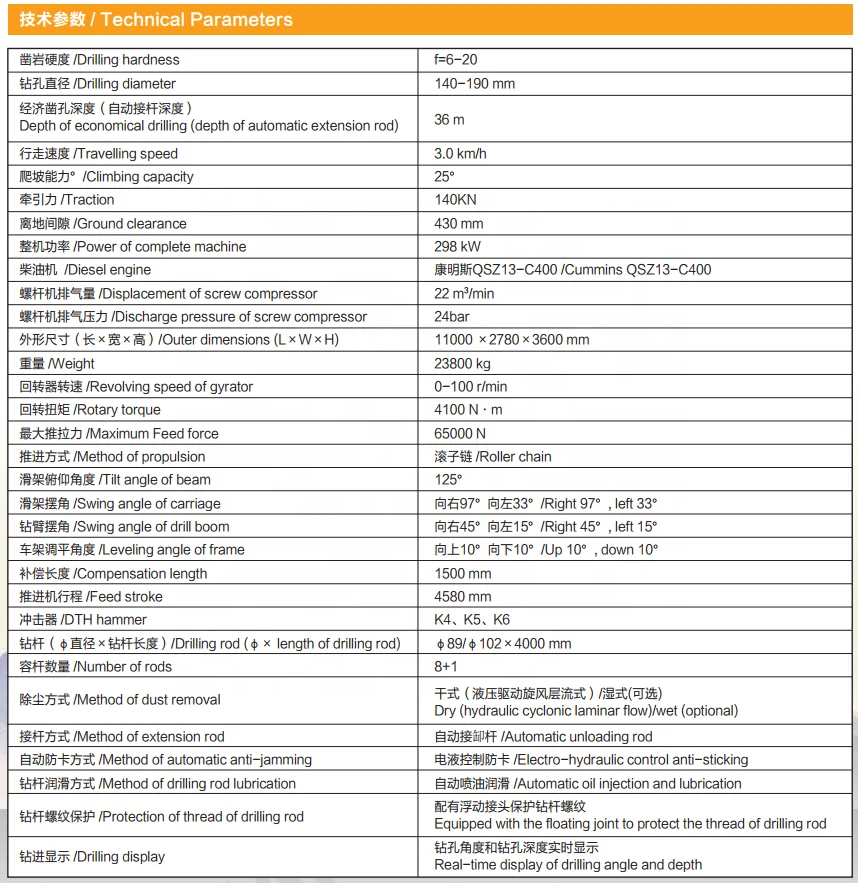

Product Specifications
Product Overview

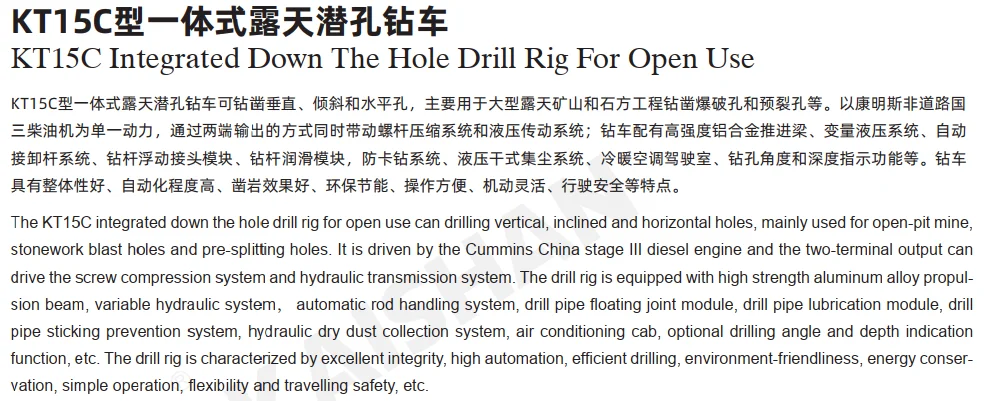

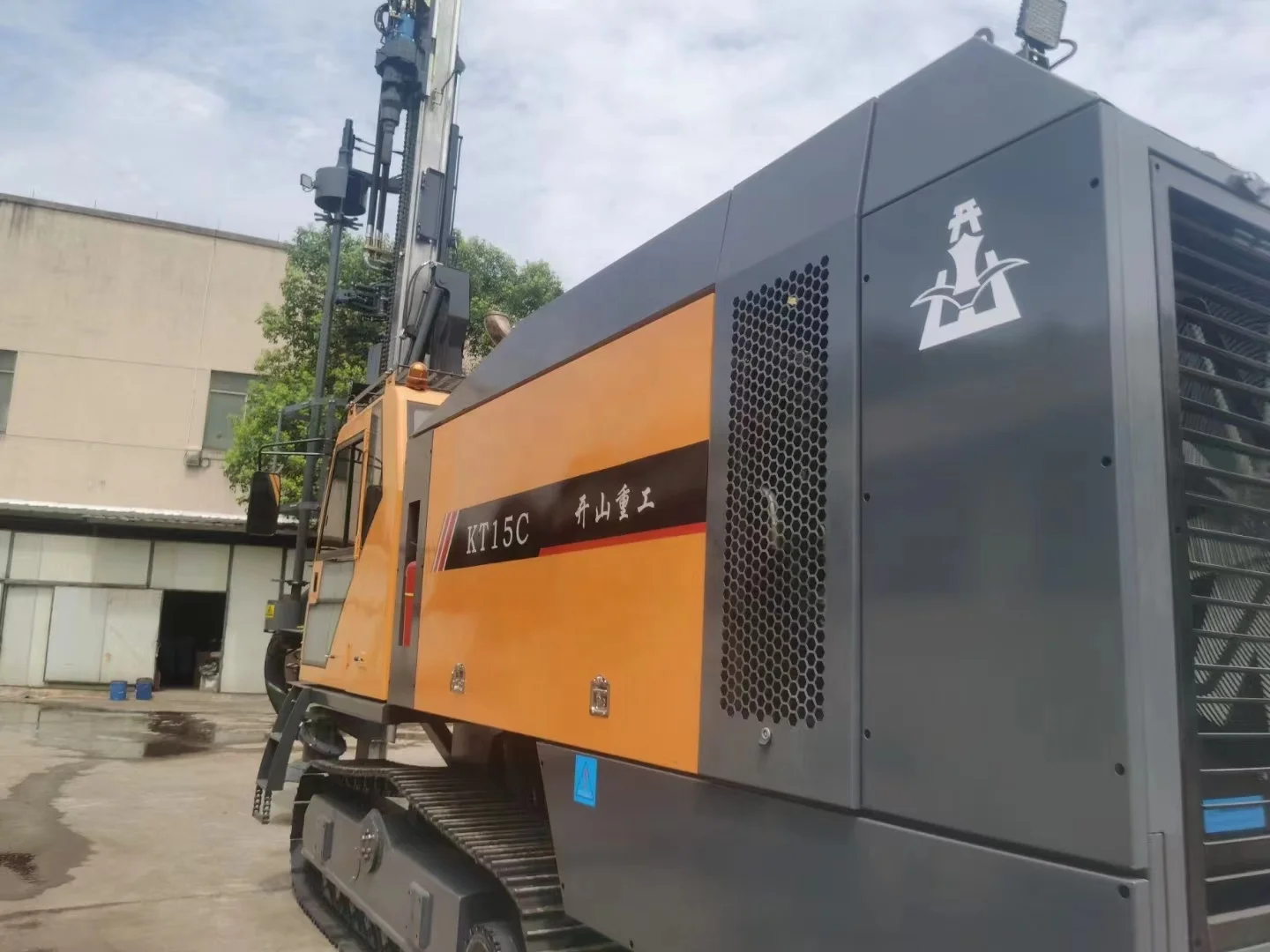

KT series drilling rig
KT series integrated DTH drilling rig is an advanced drilling equipment which is the DTH drilling system combined with the screw air compressore system.With compact structure,good integrity and mobile convenience.The characteristics of drilling rig are energy-saving efficient,safe environmental production,flexible and convenient operation,stable performance,etc.
Driling rig is equipped with single stage high air pressure screw air end which is core konwledge products of the company.The application of international leading towne Y line,large flow,high pressure,to provide strong power to high air pressure pneumatic impactor.The drilling speed is higher than middle air pressure drilling rig in 20%-50%.

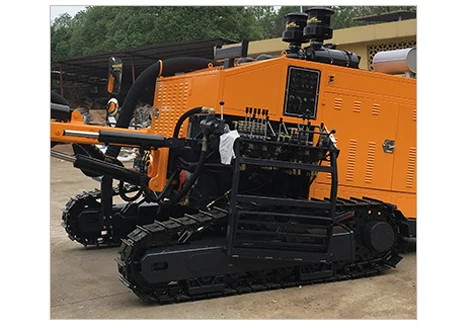

The left and right crawler frame assemblies, each crawler frame assembly includes, a track beam, a guide wheel assembly, a drive wheel, five roller assemblies, a carrier sprocket assembly, a travel motor, a track assembly, and a track stop and more.

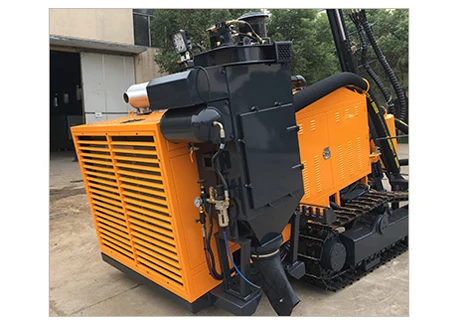

Dust collecting system:
The drilling rig is equipped with hydraulic dry integrator to collect dust and reduces the pollution of the environment.When the dust collector works backflush, the damper is closed, so that there is no suction in the dust collector, and the dust on the filter element can be easily blown off, thereby preventing dust accumulation in the dust collector The operation time is saved, and the work efficiency is improved.

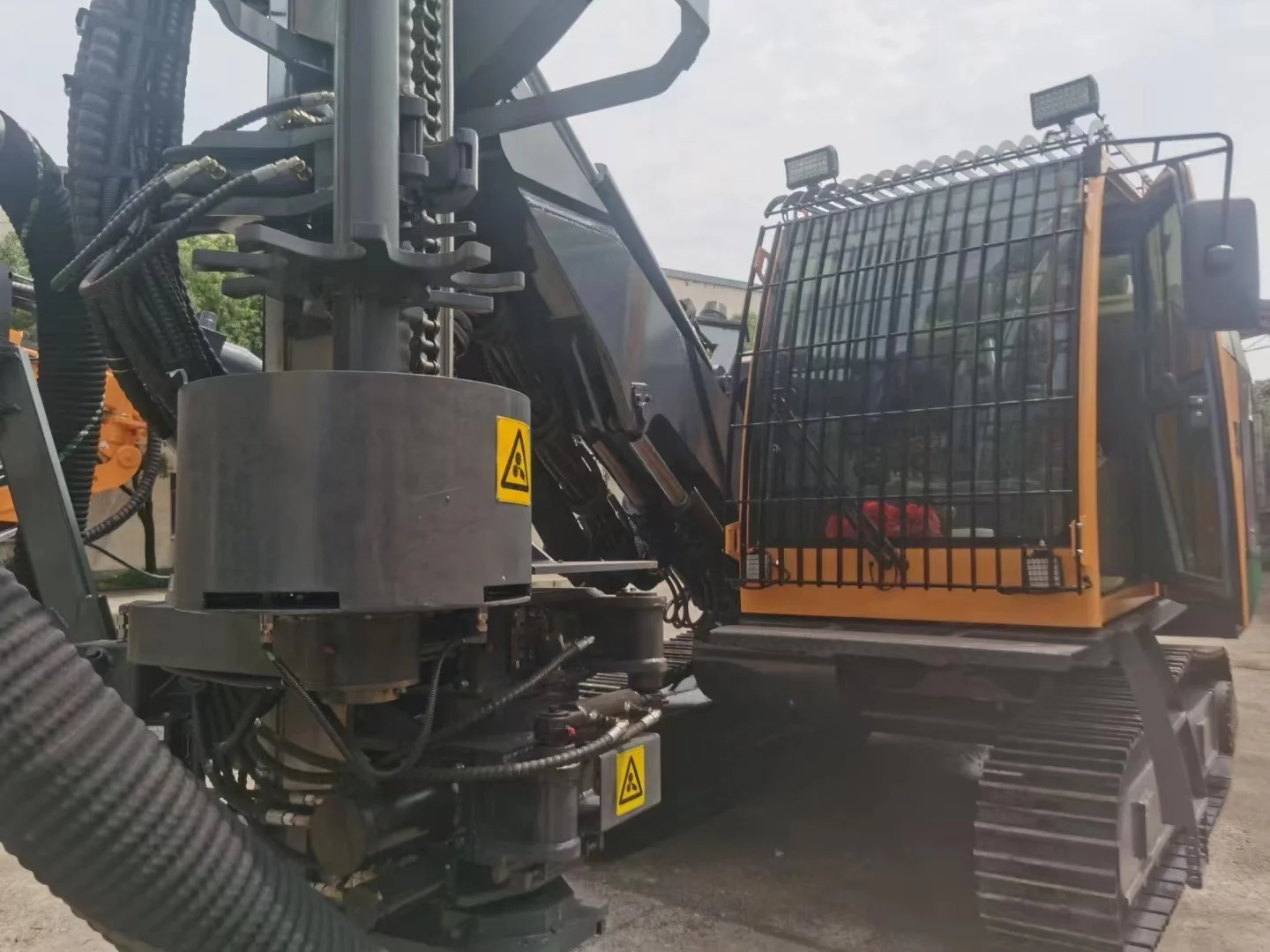

Driling rig is equipped with hydraulic manipulator,the drill pipe warehouse which disassemble the drill pipe and the floating joint which protect thread of drill pipe.One can disassemble the drill pipe.
Application
Company Profile
Kaishan group has 18 subordinate companies with over 4100 employees. It covers an area of over 430,000 m2 with the total building complex area over 230,000 m2 and the total assets of the group amounts to over 1.5 billion.
Kaishan group has a sophisticated national-wide retail network supported by the high-quality customer service system. The nine major series of Kaishan product spread from rock drilling unit, screw air compressor to excavator, crawler drill etc, and altogether 18 categories with over 800 individual products.
Kaishan group has a sophisticated national-wide retail network supported by the high-quality customer service system. The nine major series of Kaishan product spread from rock drilling unit, screw air compressor to excavator, crawler drill etc, and altogether 18 categories with over 800 individual products.
By far, Kaishan group is the largest rock drill manufacturer in the world, and the largest air compressor manufacturer in China. Exports are shipped to over 20 different nations and regions such as United States, Germany, Japan, South Korea, Russia, African and Latin American countries.
By the year of 2008, the total sales revenue of the group is 2.03 billion RMB, with 173 million RMB of profit, and USD10.69 million worth of export goods. Kaishan group has been honored with "Special Quzhou Mayoral Award" for the past consecutive eight years.
By the year of 2008, the total sales revenue of the group is 2.03 billion RMB, with 173 million RMB of profit, and USD10.69 million worth of export goods. Kaishan group has been honored with "Special Quzhou Mayoral Award" for the past consecutive eight years.
Sales And Service Network
Project in Thailand
Project in India
Project in Russia
Packing & Delivery
Packing Details:Nude packing/wooden box packing/As requirement
Number | Delivery time |
≤3 sets | 15 days |
≤10 sets | 30 days |
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products??Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products??Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
