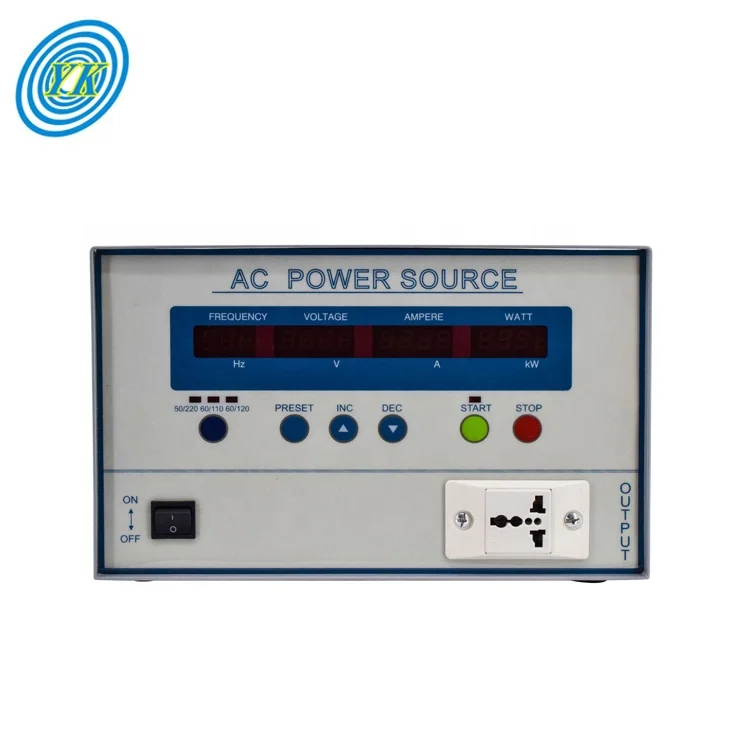

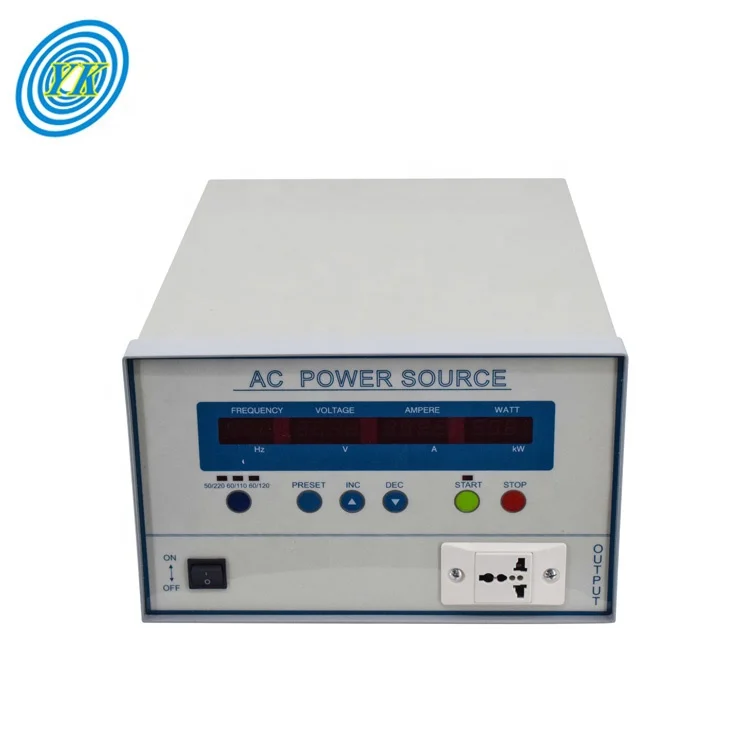

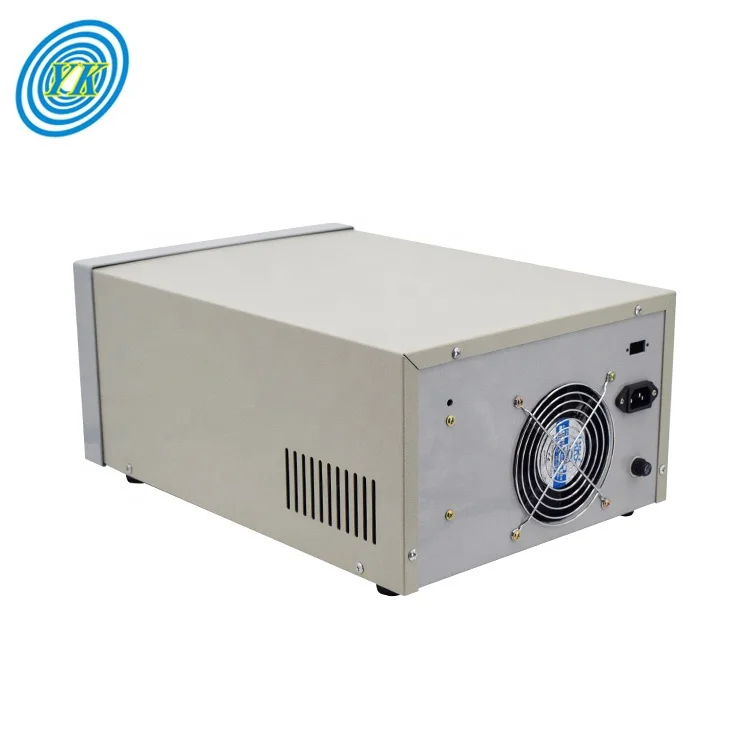

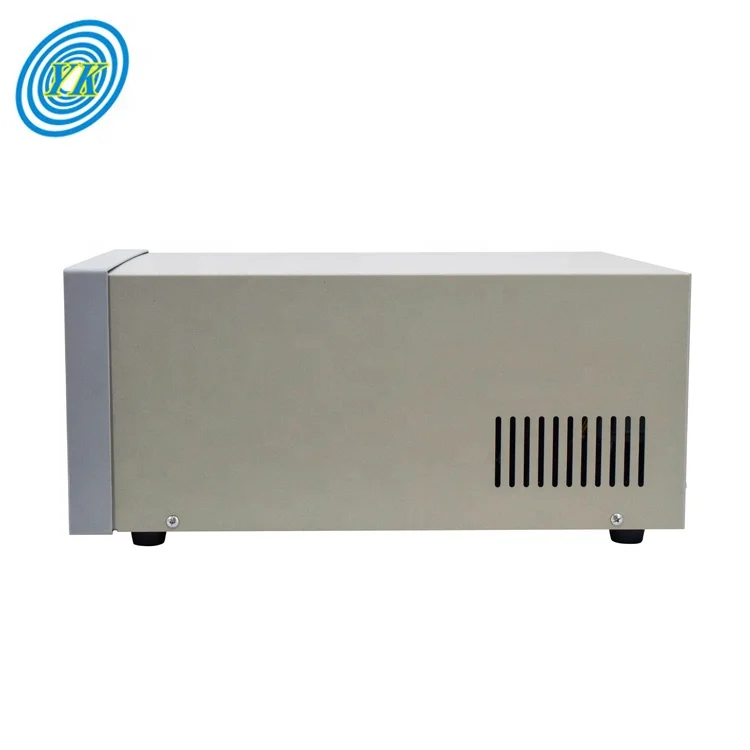

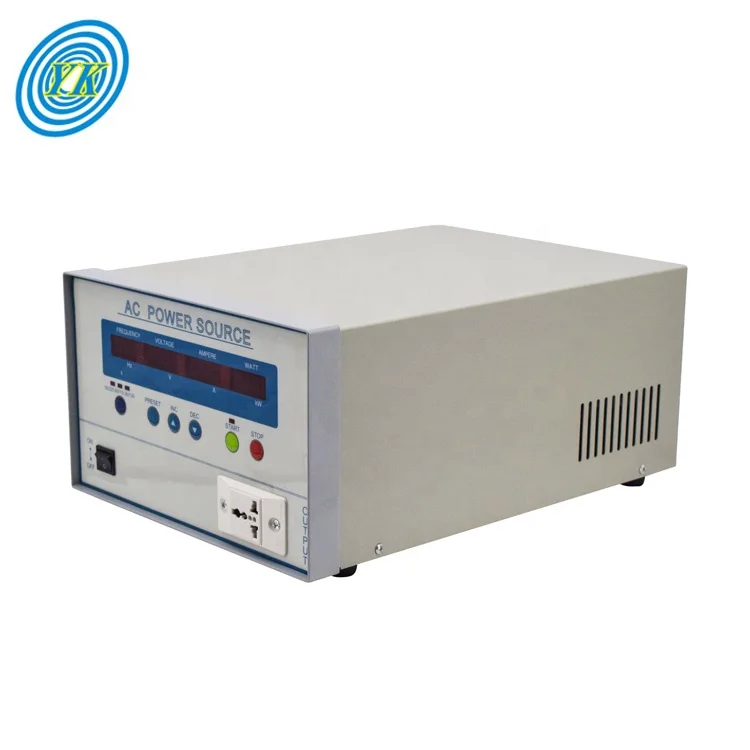

frequency converter 220v 60hz to 220v 50hz single phase 50 to 60 hz frequency converter
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (1600907385563):
Product Overview
Description
Product Description
Features:
1. Programmable dynamic output voltage
2. High precision frequency stabilizing and voltage stabilizing, key-press quick
3. Adjustment voltage and frequency
4. High precision display: voltage, current, frequency and active power
5. Unique voltage frequency group shortcut output mode 220V/50Hz, 110V/60Hz and 120V/60Hz
6. Output frequency: 47～63Hz(400Hz optional)
7. Output voltage: 0~300V can adjust and simulate voltages from all countries in the world
8. It has multiple protections of overvoltage, over current, overload, over temperature and alarm function
2. High precision frequency stabilizing and voltage stabilizing, key-press quick
3. Adjustment voltage and frequency
4. High precision display: voltage, current, frequency and active power
5. Unique voltage frequency group shortcut output mode 220V/50Hz, 110V/60Hz and 120V/60Hz
6. Output frequency: 47～63Hz(400Hz optional)
7. Output voltage: 0~300V can adjust and simulate voltages from all countries in the world
8. It has multiple protections of overvoltage, over current, overload, over temperature and alarm function
Model Series
Model (YK-BP) | YK-BP 8001 | YK-BP 8002 | YK-BP 8003 | YK-BP 8005 | YK-BP 8006 | YK-BP 8010 | |||||||||
Output capacity (KVA) | 1 | 2 | 3 | 5 | 6 | 10 | |||||||||
Circuit mode | IGBT/PWM pulse width modulation mode | ||||||||||||||
AC input | Single-phase 220VAC 50Hz/60Hz | ||||||||||||||
AC output | Phase | Single-phase | |||||||||||||
Voltage | Low range | 0~150V | |||||||||||||
High range | 151~300V | ||||||||||||||
Frequency | 47Hz~70Hz、50Hz、60Hz、400Hz(optional ) | ||||||||||||||
Max current | Voltage low range | 8.4 | 16.8 | 25 | 42 | 50 | 84 | ||||||||
Voltage high range | 4.2 | 8.4 | 12.5 | 21 | 25 | 42 | |||||||||
Frequency stability rate | ≤±0.1% | ||||||||||||||
Waveform distortion degree | ≤2%(resistance load) | ||||||||||||||
Response time | ≤2ms | ||||||||||||||
Indication resolution | Digit frequency | 4 digits display, resolution 0.1Hz | |||||||||||||
Digit voltage | 4 digits virtual value display, resolution 0.1V | ||||||||||||||
Digit current | 4 digits virtual value display, resolution 0.01A | ||||||||||||||
Digit power | 4 digits virtual value display, resolution 1W | ||||||||||||||
Protection | overvoltage, over current, overload, over temperature and short-circuit, as well as automatic jump protection and alarm device | ||||||||||||||
Cooling | Forced fan cooling | ||||||||||||||
Security regulation | Inslation resistance | 500VDC/200MΩ | |||||||||||||
Compression resistance insulation | 1800VAC/5mA/1min | ||||||||||||||
Working temperature | 0℃~45℃ | ||||||||||||||
Working humidity | Relative 0～90%（ non-coagulation state ） | ||||||||||||||
