Product Overview
Description
AG400 Auto Steering System
tractor auto pilot system
FJ Dynamics auto-steering kit FJD auto steering system
Key Features
SunNav Auto-Steering system AG400 can give you high-performance autosteering on non-steer-ready vehicles, including tractors, sprayers, swathers and combines. It can provide an accuracy up to 2.5 cm and can be widely used in planing,spraying,harvest.
Main Specification
• Installation in 30 mins, Calibration in 15 mins, Quick learn in 5 mins
• Motor steering system: No need to change hydyraulic system
• Can be switched in different vehicles(support John deer, New Holland, AGleader,CAT and other tractors)
• 3m on the line, continue the last AB line automatically.
• AB Line files can be shared in different vehicles
• U-Turn, easy operation
• Support base staiton & Ntrip cors communication.
• integrate hign precesion GNSS board, IMU moudle, radio module, 4G network all in one receveir, get high accuracy and heading, easy installation.
• Operation accuracy: 2.5 cm High Precision
• Cloud data storage

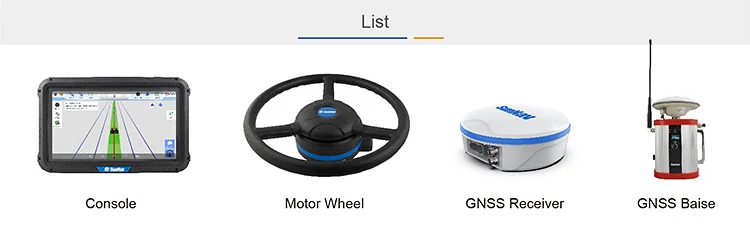

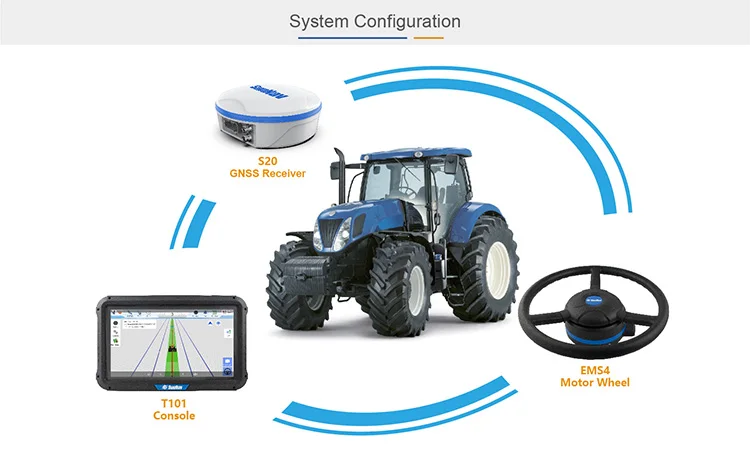

Parts
Useing
Technical Specificat
| PRODUCT TYPE |
GNSS Auto Steering System AG300
| |

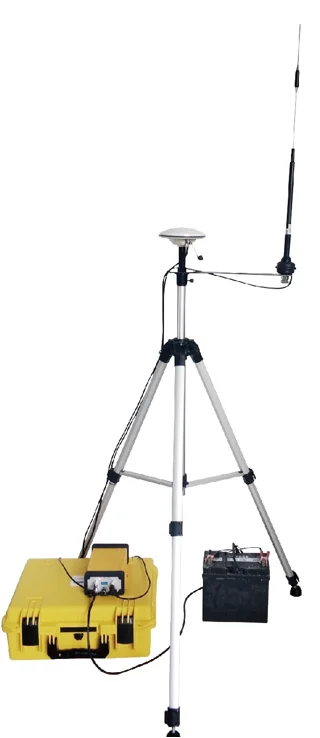

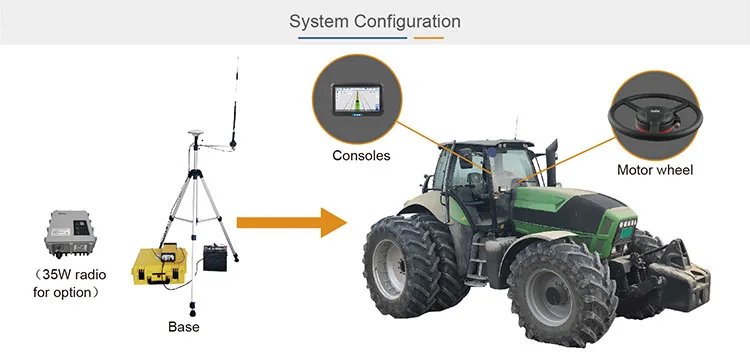

 | GNSS Base Station | |
| Channels: | 965/432 Channels | |
| GPS: | L1 C/A, L2C,L2P,L5 | |
| BEIDOU: | B1/B2/B3; BeiDou Global Signal: B1C, B2a, B2b | |
| GLONASS: | L1 C/A, L1P, L2 C/A, L2P | |
| Galileo | E1, E5a, E5b | |
| SBAS | WAAS, EGNOS, MSAS, GAGAN, SDCM | |
| Radio Module: | Adjustable Full Band: 410-470 MHz | |
QZSS, IRNSS L- Band | support | |
| Size (L x W x H): | 213mm x 119mm x 73mm | |
| Weight: | 1.2kg (include Internal UHF) | |
| Working Temperature: | -40°C to +70°C | |
| Storage Temperature: | -45°C to +80°C | |
| Interface: | 2 Ports (Power & Data & Configuration) | |
| Waterproof and Dustproof: | IP67 | |

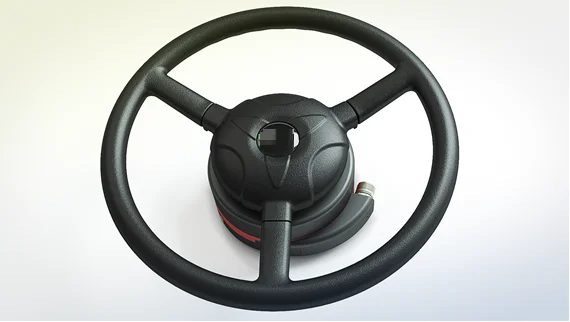

| • EMS2/4 Motor Steering Wheel | |
| The EMS2/4 is an electric motor steering wheel. It is designed for easy-to-install operation. With high-torque, direct-drive electric motor, EMS2/4 can provide an accuracy up to 2.5cm RTK. | ||

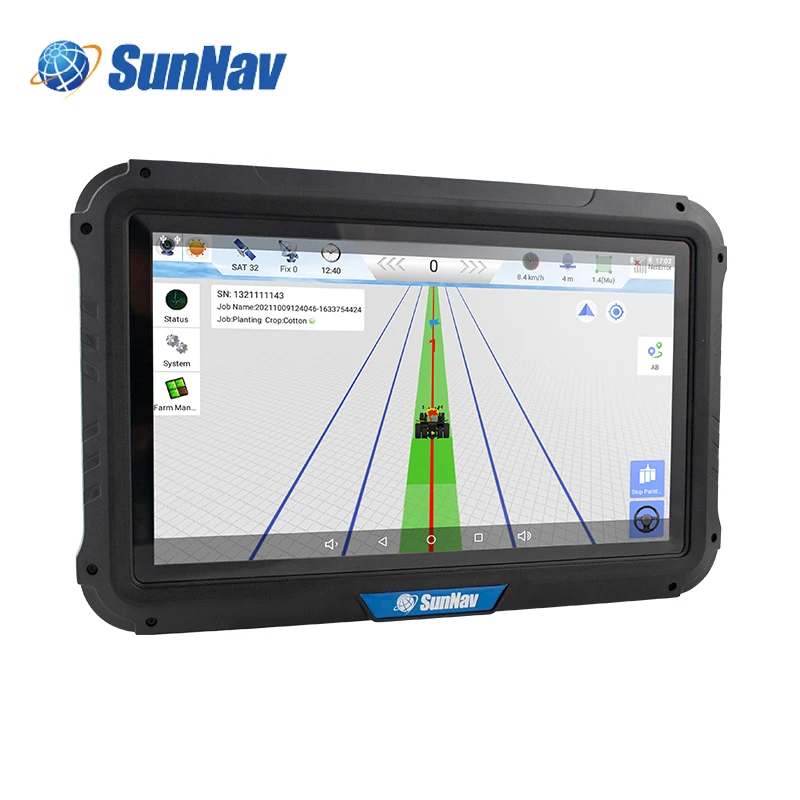

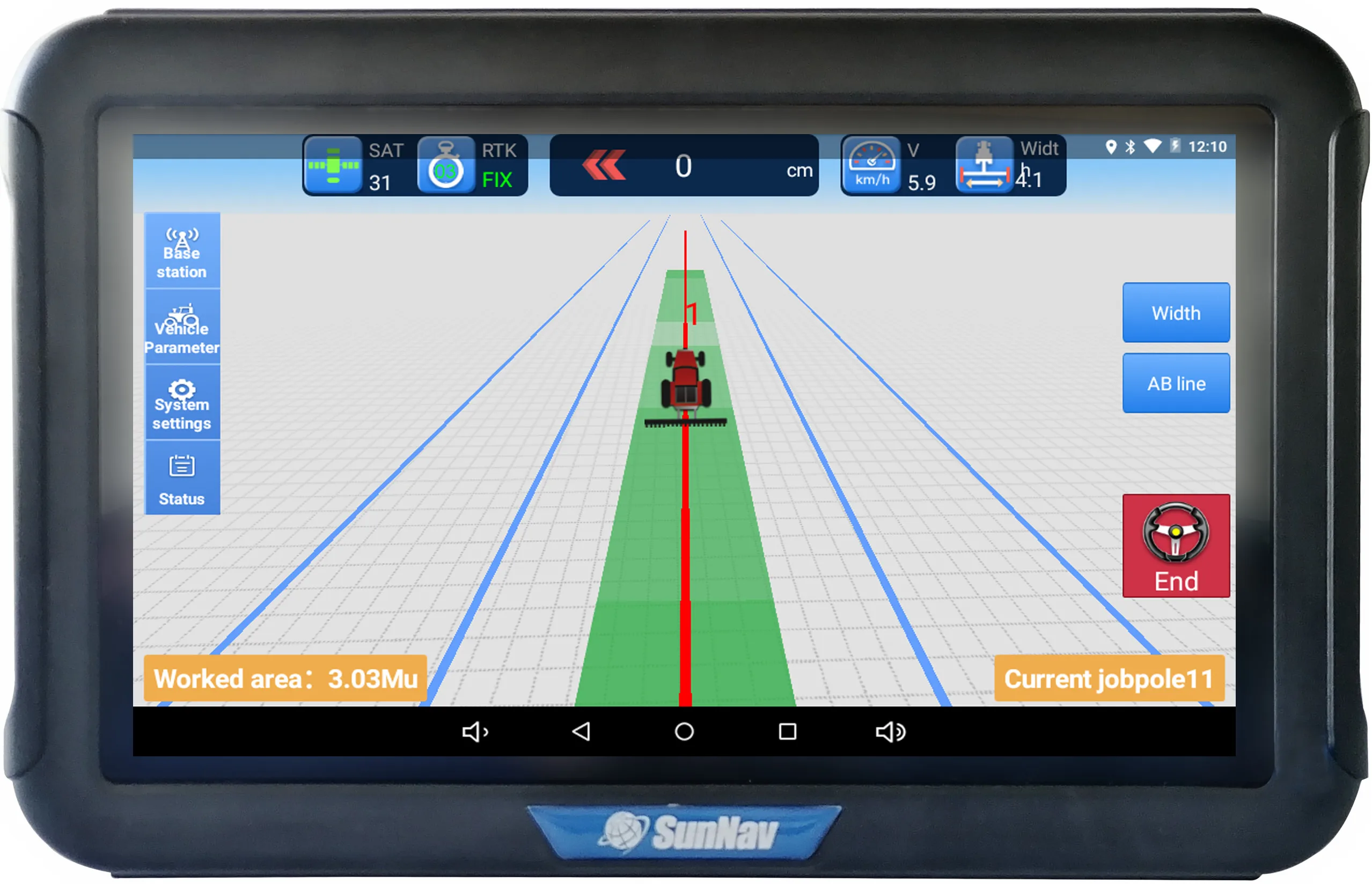

| • T101 console Tablet | |
The SunNav T101 display is a portable,robust Android tablet. T100 also provides RS-232/485, USB 2.0, GPIO, CAN, CVBS signal interface to connect with other equipments, and supports WI-FI, 3G / 4G LTE wireless communication. | ||
| Operation system: | Android 9.0 | |
| CPU: | Quad-core Cortex-A7 ,1.5GHz | |
| Storage: | 2GB+16GB | |
| LCD: | 1024*600 800nits 10.1 inch | |
| TP: | 10.1 inch,10 fingerprint multi touch, capacitive, explosion-proof and anti-dazzle | |
| GNSS: | GPS+BDS/GPS+GLONASS | |
| WiFi+BT: | 2.4G WiFi,IEEE802.11 g/b/n ,BT4.0,BLE | |
| WWLAN: | 4G full networks,supporting Unicom, Telecom and Mobile | |
| Speaker: | 4ohm, 2W speaker | |
| Battery: | 2600mAh, NTC protection | |

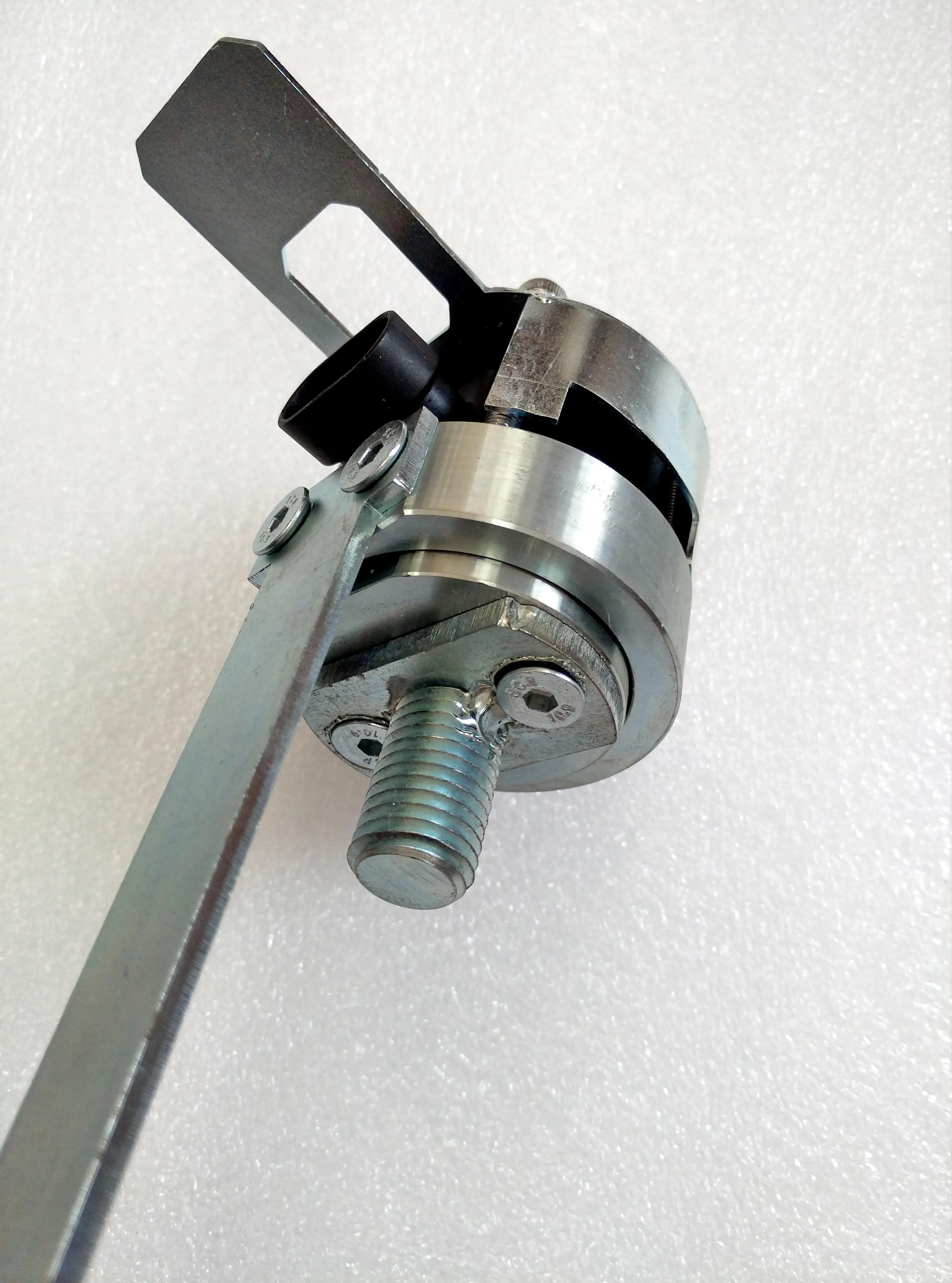

| • ANGLE SENSOR / IMU SENSOR | |
| Angle sensor is optional, it can provide higher accuracy and stability. | ||

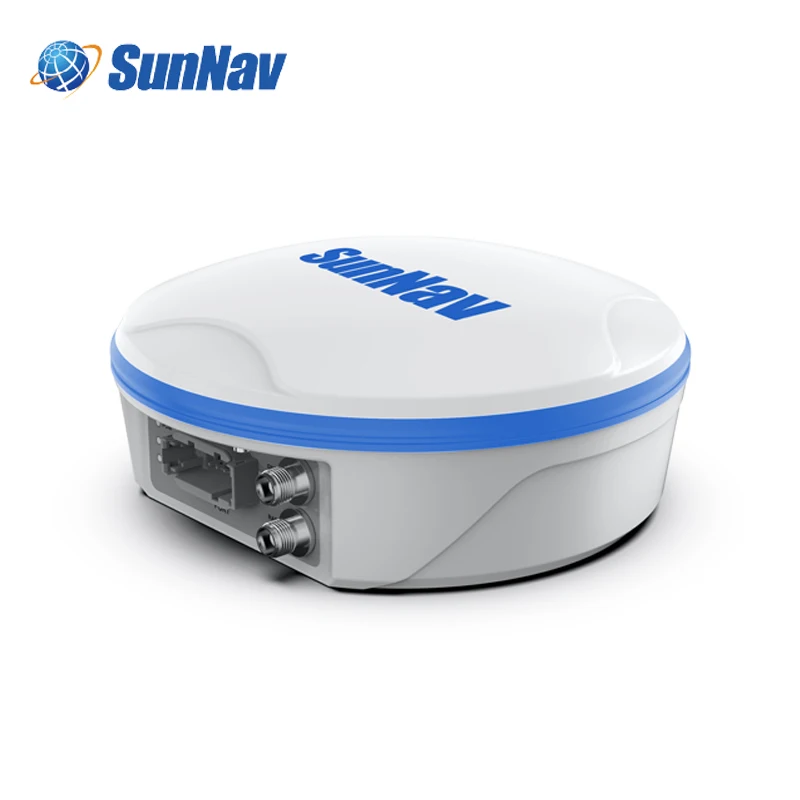

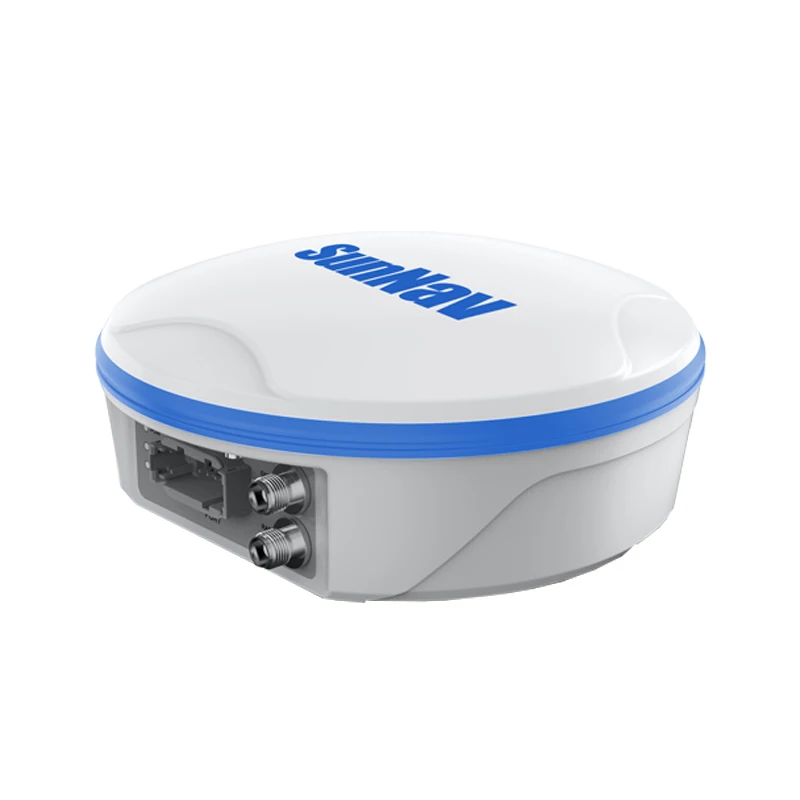

 | • GNSS Receiver: S20 | |
GNSS receiver S20 can give high precision position and heading. integrate hign precesion GNSS board, IMU moudle, radio module, 4G network all in one receveir Frequency Range: GPS L1/L2, GLONASS L1/L2, Beidou B1/B2/B3 | ||
• Other Parts | ||
• 1.5m RS232 Data Cable • 5m power & data Cable • 5m Angle Sensor Cable • Radio Antenna • 5m TNC-TNC Antenna Cables *2 Mounting Assembly
| ||
