felicity solar price mppt solar charge controller inverter 10kva inverter with high voltage regulation
- Category: >>>
- Supplier: Guangzhou Felicity Solar Technology Co. Ltd.
Share on (1600907419968):
Product Overview
Description
Features

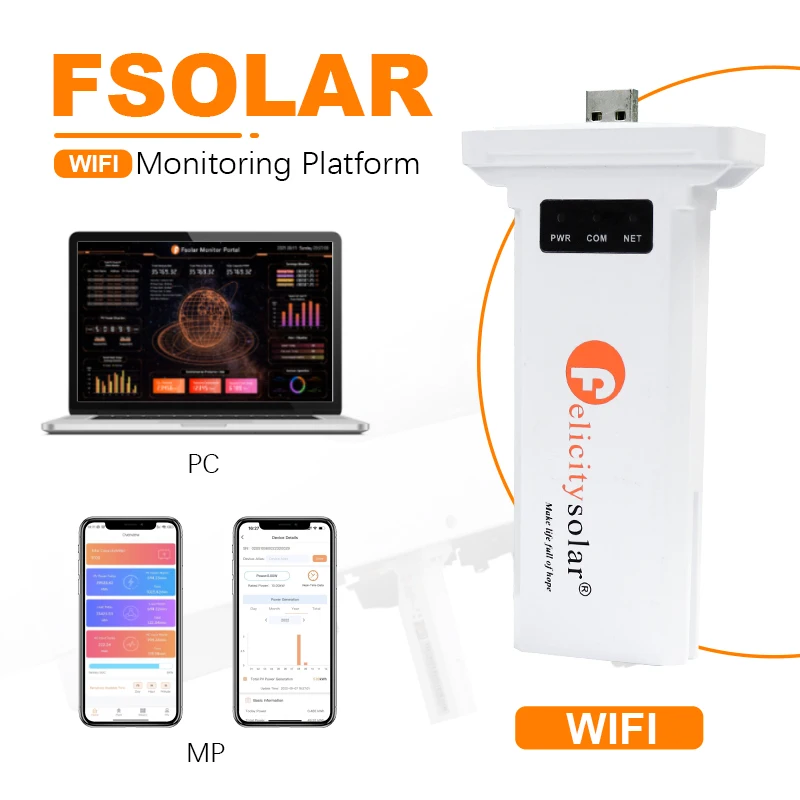

·Support Wi-Fi for mobile monitoring
·Max.charging/discharging current of 100A
·AC couple to retrofit existing solar system
·Support storing energy from diesel generator
·Power supplycan be switched automatically and switching time within 20ms
·Support three phaseimbalance
·Max.charging/discharging current of 100A
·AC couple to retrofit existing solar system
·Support storing energy from diesel generator
·Power supplycan be switched automatically and switching time within 20ms
·Support three phaseimbalance
Model | IVGM100600 | |
Battery Input Data | ||
Battery Voltage Range | 180V~580V | |
Max.charging and discharging current | 25A | |
Max.charging and discharging power | 10000W | |
Battery type | Li-Ion/Lead-acid | |
DC Input Data(PV side) | ||
Max.recommended PV power | 13000W | |
Max.PV voltage | 900V | |
Start voltage | 160V | |
PV voltage range | 160V~900V | |
MPPT voltage range | 200V~850V | |
MPPT Voltage Range for Full Load | 450V~850V | |
Nominal voltage | 720V | |
Max.Input current | 15A/15A | |
Max.shorted curent | 18A/18A | |
Number of MPP trackers/strings per MPP tracker | 2/1 | |
Grid Data | ||
Nominal Input Voltage | L1/L2/L3/N/PE,230/400Vac | |
Input Voltage Range | 184~264.5Vac* | |
Nominal grid frequency | 50/60Hz* | |
Max.Input current | 30A | |
Max.Charge Current | 25A | |
Max.AC output power | 10000W | |
AC Output Rated Current | 14.5A | |
Max.output current | 18A | |
Max.Continuous AC Passthrough | 30A | |
Power factor | >0.99 | |
Displacement power factor | 0.8leading...0.8lagging | |
THDI | <3% | |
AC Output Data(Back Up) | ||
Rated output power | 10000VA/10000W | |
Max.Output current | 30A | |
Rated AC output voltage | L1/L2/L3/N/PE,230/400Vac | |
Rated AC output frequency | 50/60Hz | |
Efficiency | ||
Max.efficlency | 97.6% | |
Euro efficlency | 97.0% | |
MPPT efficiency | 99.9% | |

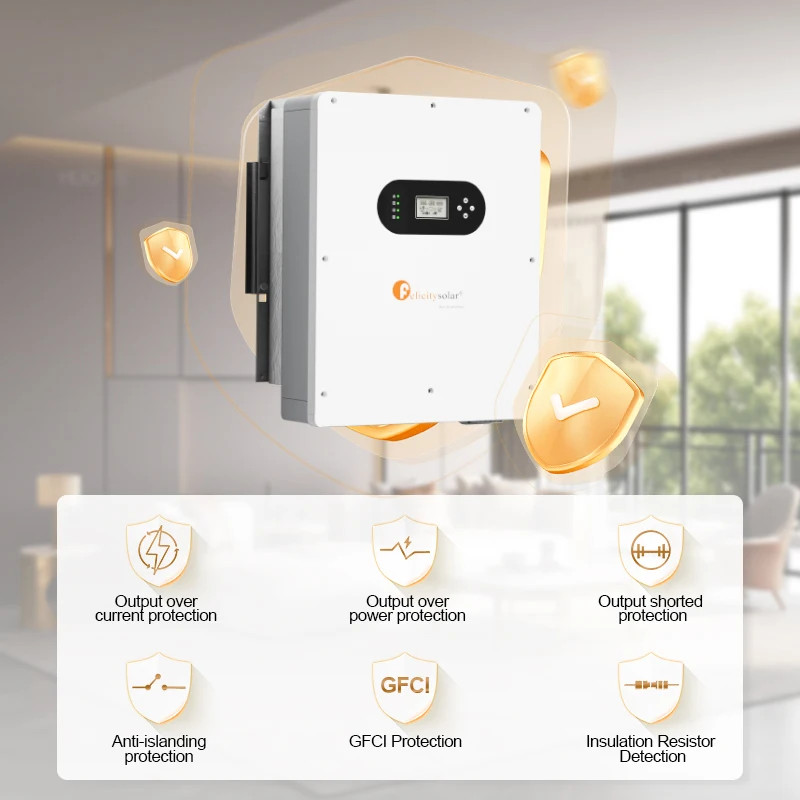

Protection | ||
Output over current protection | Integrated | |
Output over power protection | Integrated | |
Output shorted protection | Integrated | |
Anti-islanding protection | Integrated | |
GFCI Protection | Integrated | |
Insulation Resistor Detection | Integrated | |
General Data | ||
Operating temperature range | -25℃~60℃,>45°℃ Derating | |
Protection degree | IP65 | |
Relative humidity | 100% | |
Cooling concept | Nature | |
Altitude | 2000m | |
Communication | RS232/RS485 | |
BMS Communication | CAN/RS485 | |
Monitor module | WIFI/GPRS | |
Display | LCD+LED | |
Installation Style | Wall-mounted | |
Warranty | 10 years | |
Grid Regulation | VDE-AR-N 4105;G99/1;EN50549-1;CEI0-21;AS 4777.2;NRS 097-2-1; | |
Safety Regulation | IEC62109-1/2.IEC 62040-1 | |
EMC | EN61000-6-1.EN61000-6-3 | |
Net Weight | 36.2KG | |
Gross Weight | 41.5KG | |

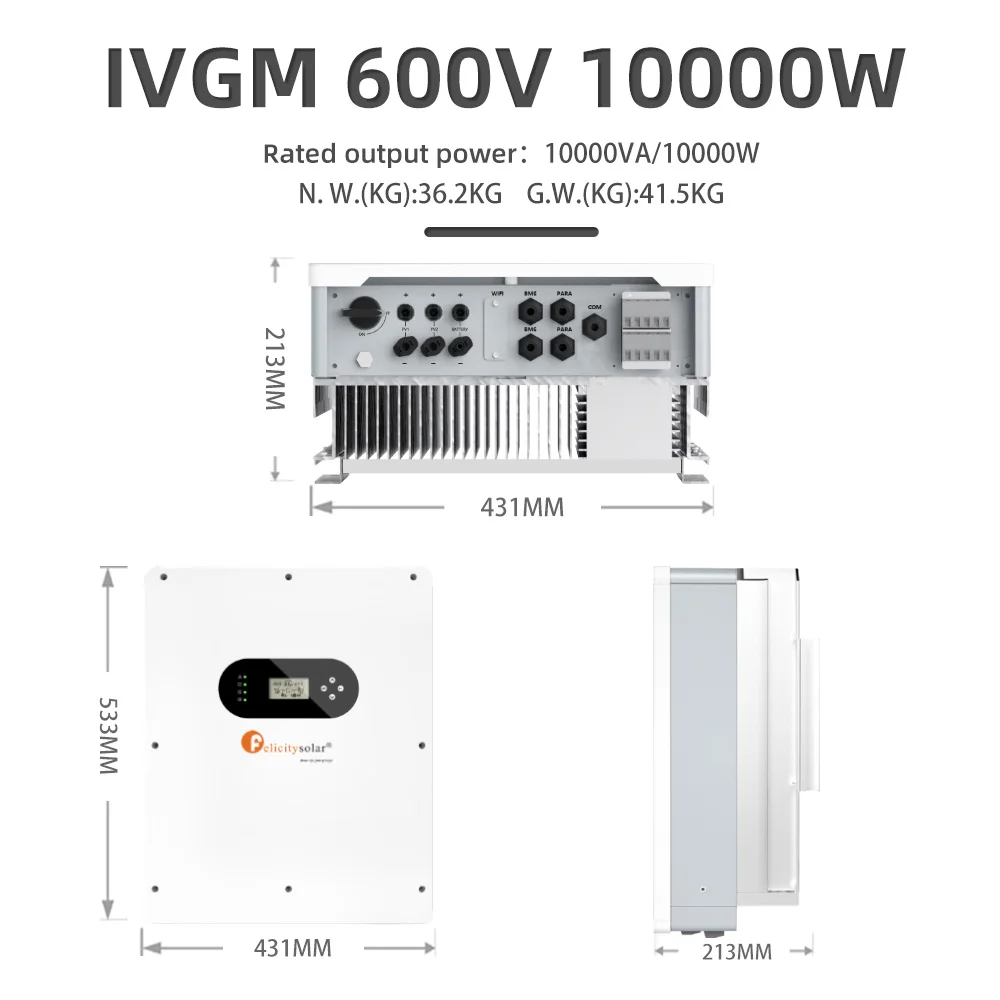

Product Dimension | 533*431*213MM | |
Package Dimension | 635*533*321MM | |
