Automatic Johnson Screen Drum Screen Cylinders Profile Bar Filter
- Category: >>>
- Supplier: Hebei YUBO Filtration Equipment Co. Ltd.
Share on (1600907434755):
Product Overview
Description
Product Description
All specifications of the product can be customized, please consult the staff for details and samples

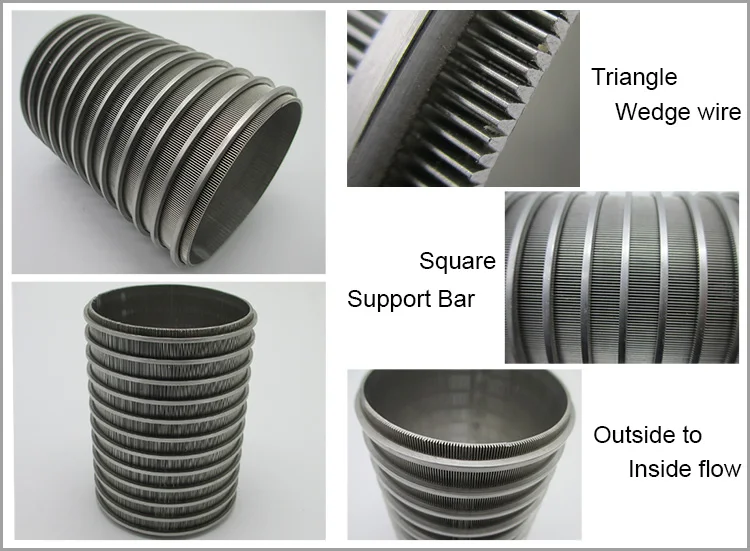

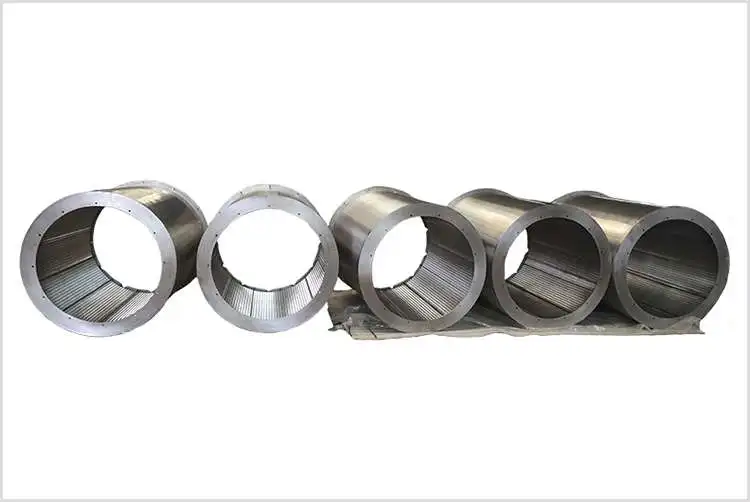

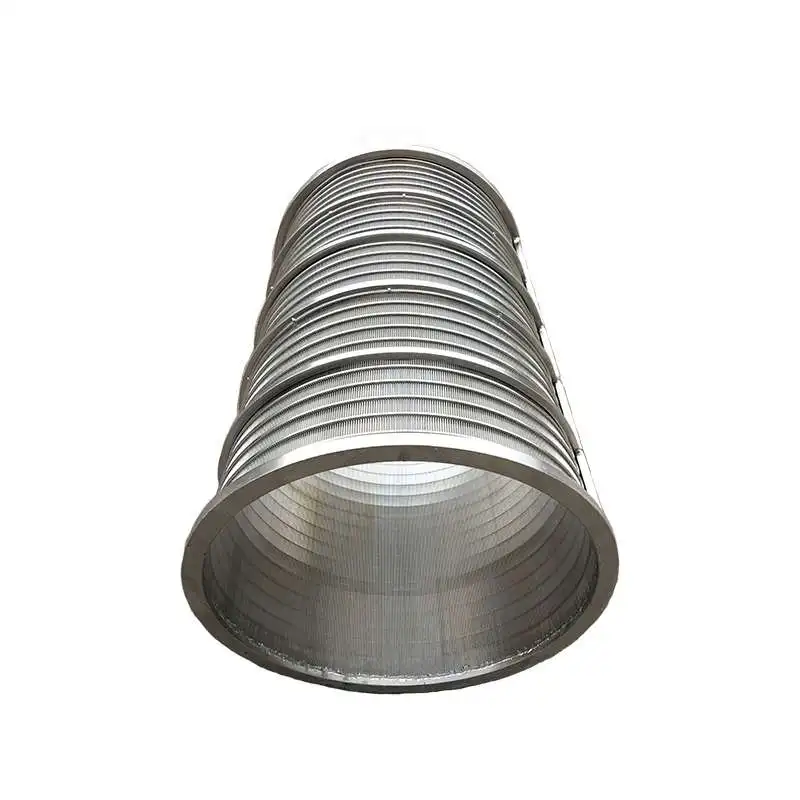

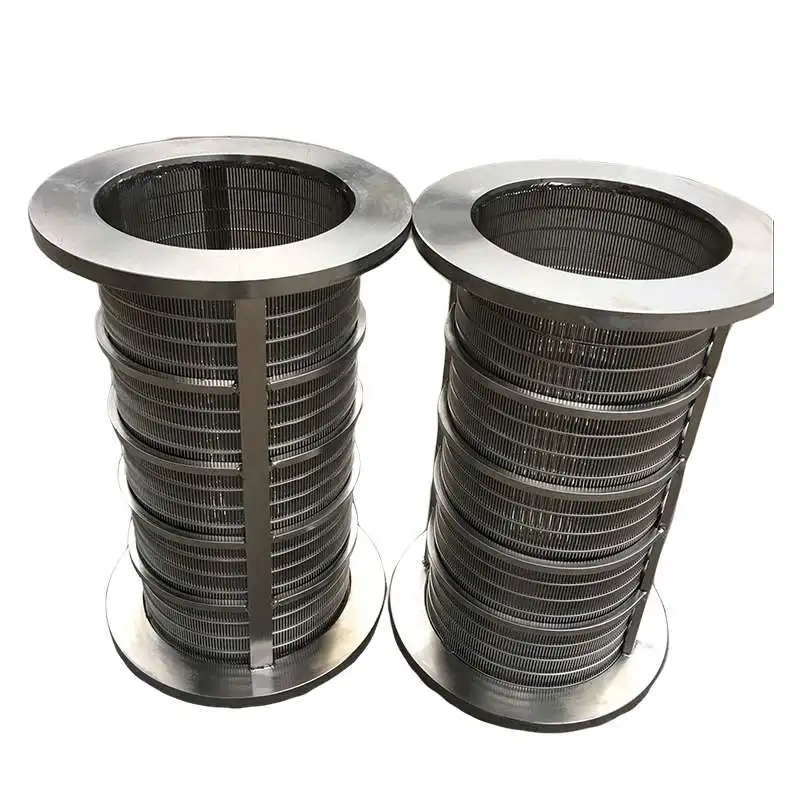

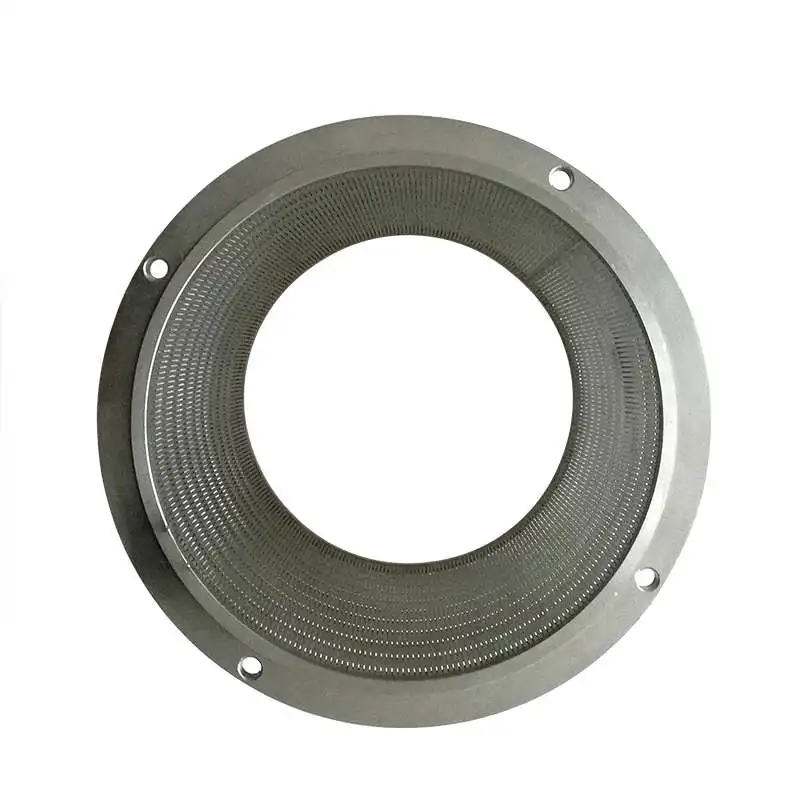

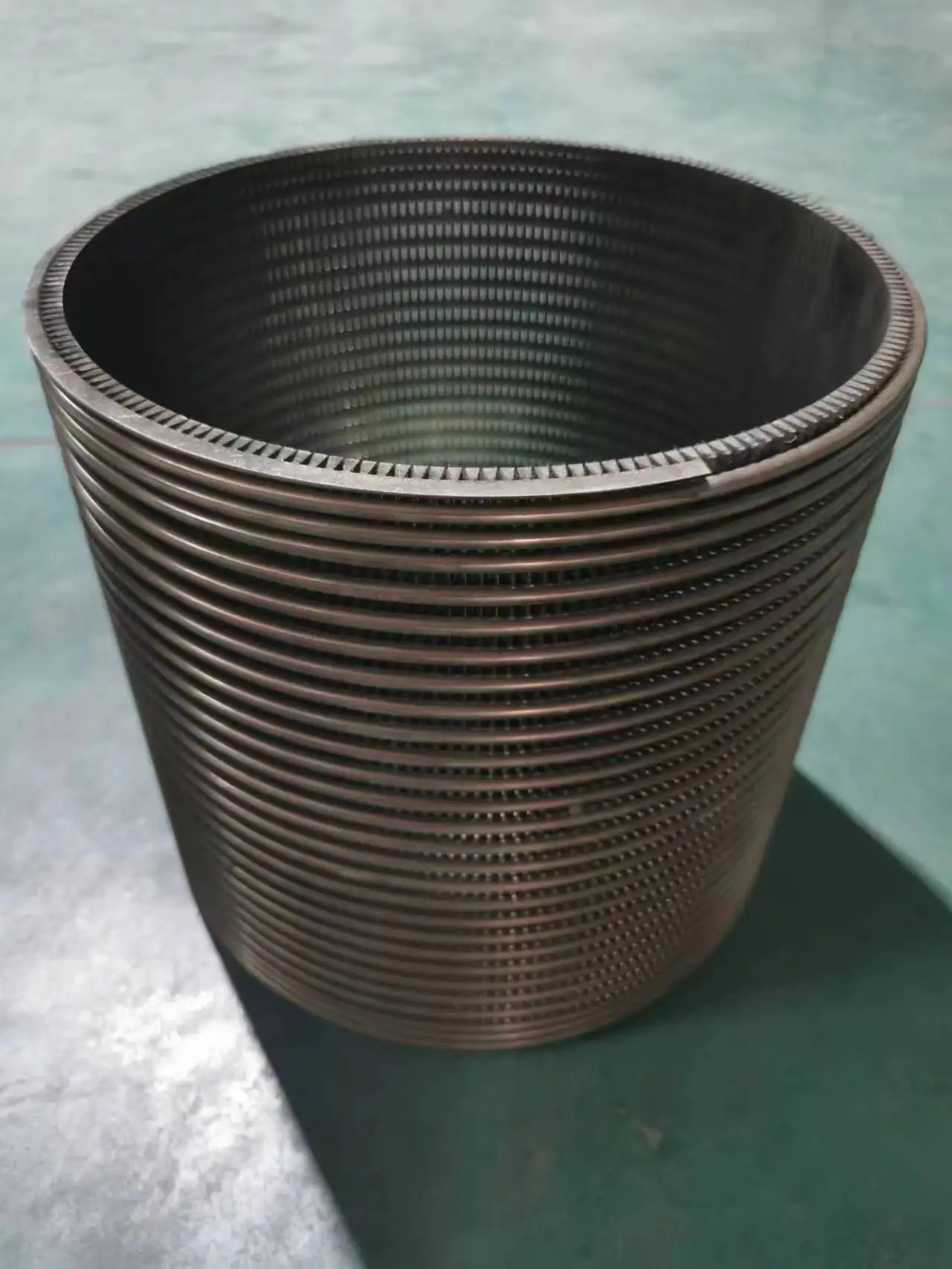

Johnson Screen Drum Screen Cylinders Profile Bar Filter
The Johnson Screen Drum Screen Cylinders Profile Bar Filter is integrated machines consisting of a drum screen, screw conveyor and compactor. Effluent enters the screen drum and solids are captured. When the drum rotates the solids fall into the spiral conveyor. The spiral feeds the screenings into a compactor where they are compressed and disposed. Screen water continues downstream. The rotating screen drum ensures screen does not blind. Filtration rates of between 1 - 7 mm are available, alongside flow rates of up to 7600 m3/h.
Advantages of Johnson Screen Drum Screen Cylinders Profile Bar Filter
- High quality and reliability at low cost
- Protection of downstream plant and drains
- Easily installed onto an existing or new treatment works
- Improved Health & Safety with optional continuous bagging
- Non-clogging even with fibrous materials
- Reduced disposal costs because of the screenings press
- High solids capture
- Enclosed drum screen
Specifications
 | |||||||
Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
OD Range | 19mm-2000mm | ||||||
ID Range | 13mm-1981mm | ||||||
Length Range | Up to 6000 mm | ||||||
Slot Range | 20 micron to 3000 micron (Tolerance:+-5 micron) | ||||||
Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5*2 | 2x3 | 2*4 | 3*5 |
Support Rod | 1.5x2.5 2x3 | 1.5x2.5 2x3 | 1.5x2.5 2x3 | 1.8*2.5 2x3 | 2x3 2x4 3x5 3x6 3x10 4x7 | 2x4 3x5 3x6 3x10 4x7 5x6 | 3x5 3x6 3x10 4x7 5x6 5x8 |
End Finishing | Flange, Metal Ring, Cross Connector, closed, etc | ||||||
Note | Customized According To Requirement | ||||||
Related Products
For more products,you could also visit www.ubowedgewire.com
Company Information
Packaging & Shipping
FAQ
FAQ
• 1.Is YOUBIOU (UBO) Factory or Trading Company?
YOUBIOU (UBO )Group has our own factory. professional on wedge wire and filters production and export for more than 10 years.
• 2.How about the MOQ?
MOQ according to different product, sometimes MOQ decided by customer.
• 3.Cou you supply the sample?
We could offer the sample for free charge but the cost of freight is extra.
• 4. What payment term do you accept?
T/T ,L/C at sight, Western union, and other mainstream payment term.
• 5. How about the delivery time?
Usually within 3-15days after receiving the deposit;
• 6.Where is your Market?
We have been exported to more than 120 different countries and regions all over the world.
• 7.How about your sales service?
Market promotion support and best after sales service will be offered to every customer, and help them get more new customers and orders.
