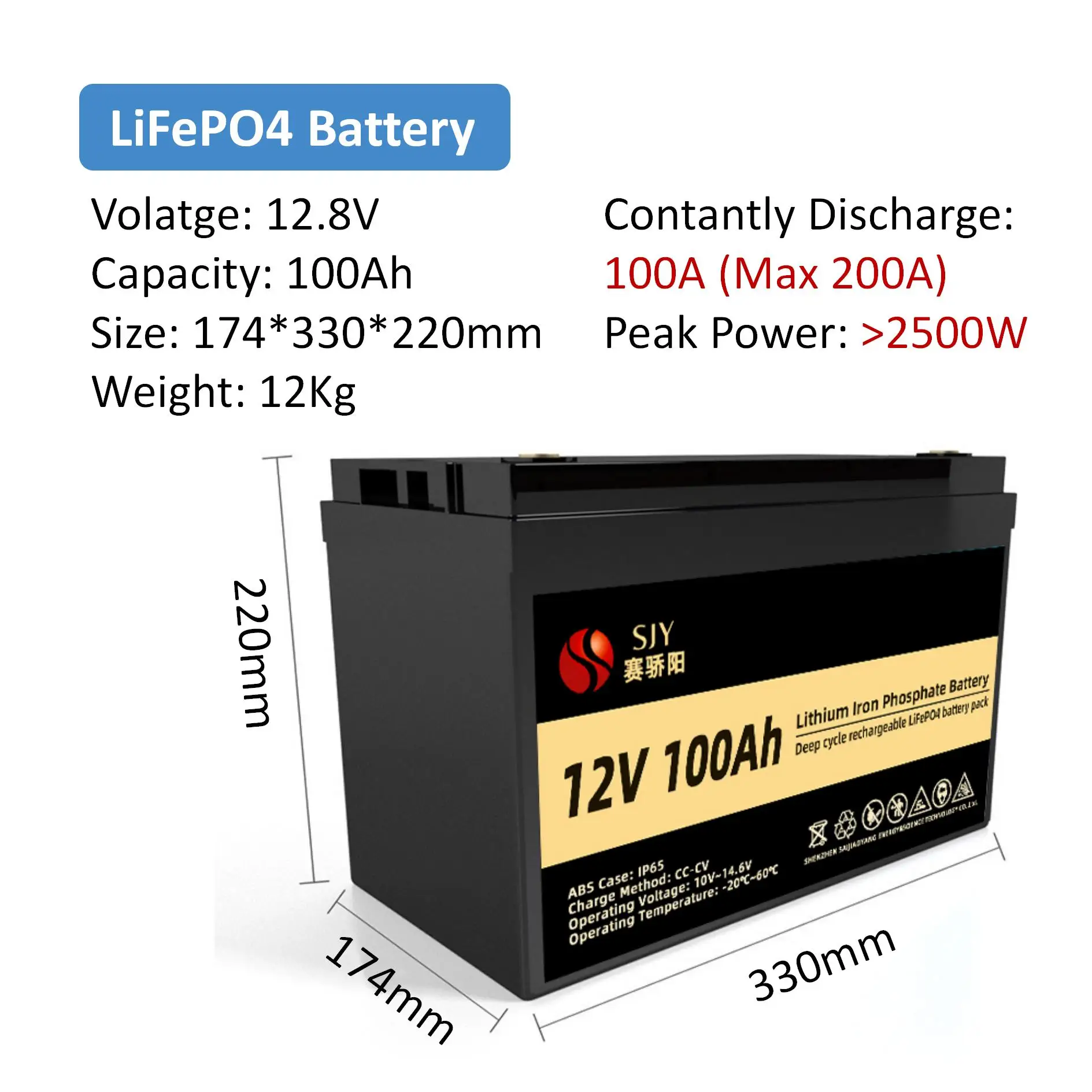

Build in 100A BMS 12V100AH LFP Lithium Battery Pack 12V LiFePO4 100Ah Battery for Marine Boat Thruster Crane Truck
- Category: >>>
- Supplier: Shenzhen Sai Jiao Yang Energy & Science Technology Co. Ltd.
Share on (1600907437204):
Product Overview
Description

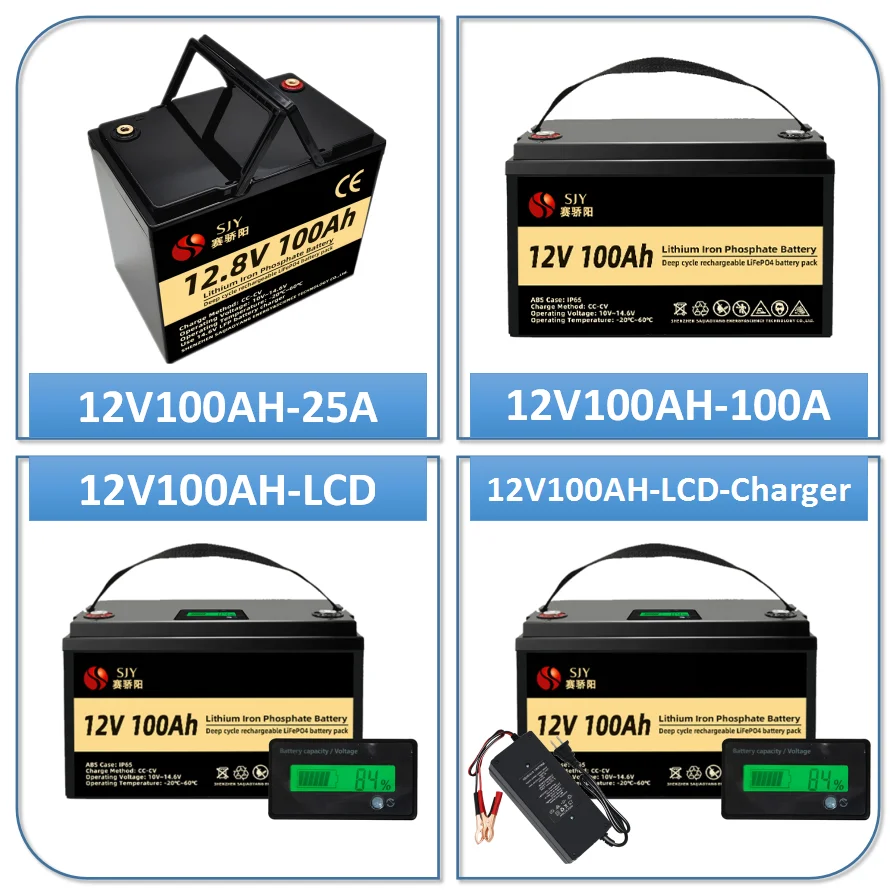

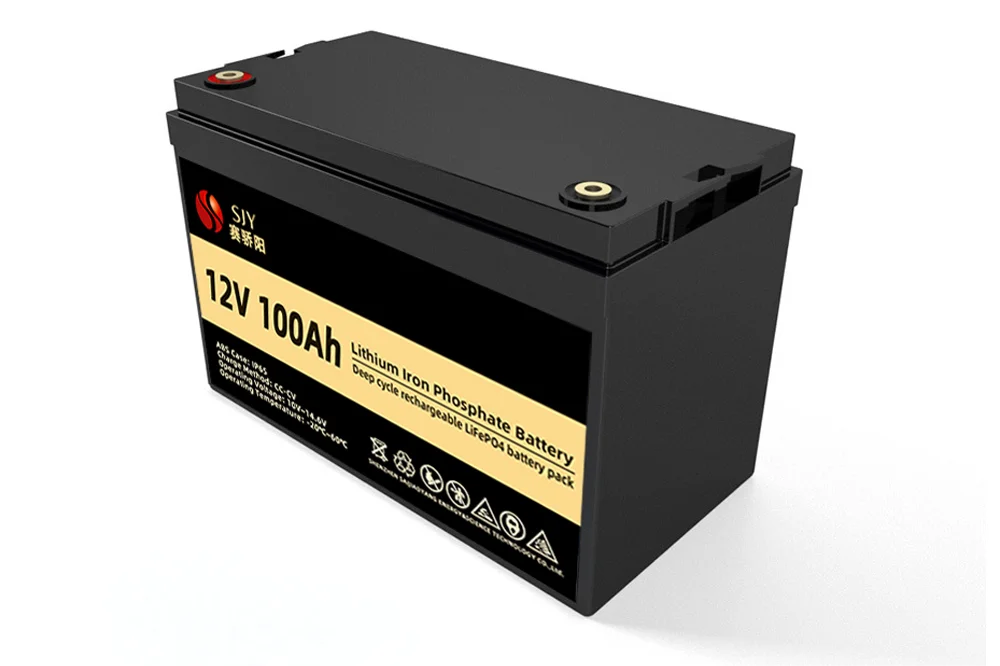

Products Show

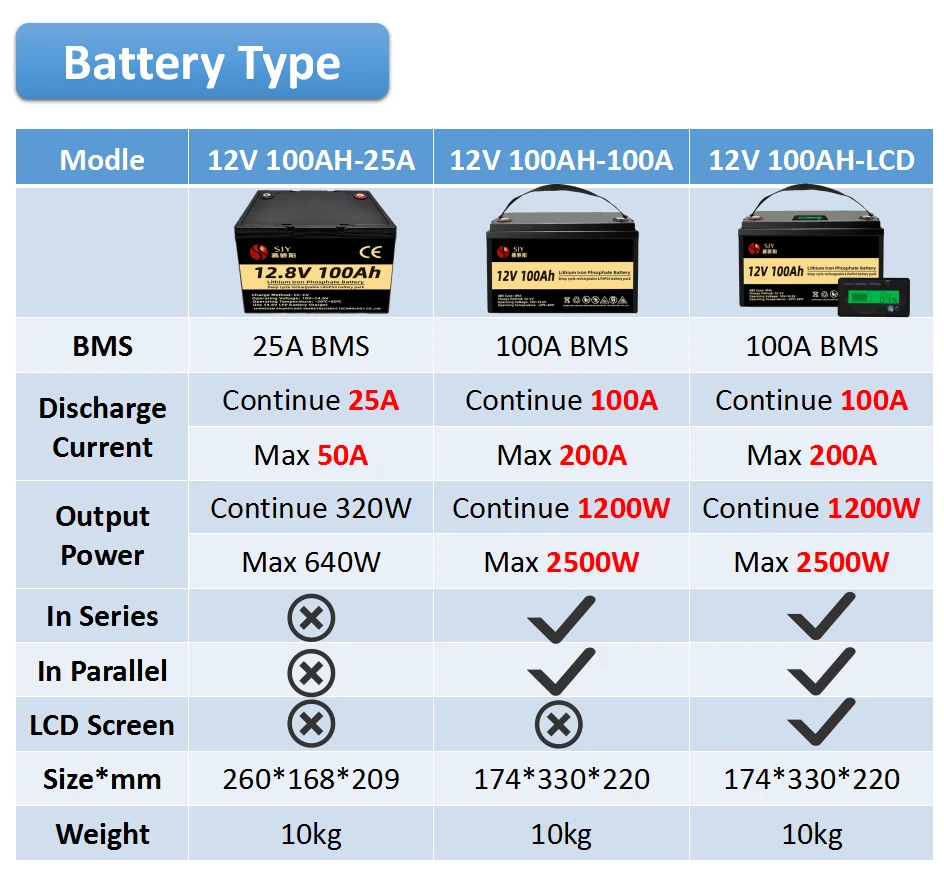

Product Parameters
Battery Type: Lifepo4 battery pack
Voltage: 12.8V
Battery Capacity:100Ah
Span Life: 4000 cycles or more
Operating Temperature: -20~60°C
Operating Voltage Range:8.0 V-14.6 V
Voltage: 12.8V
Battery Capacity:100Ah
Span Life: 4000 cycles or more
Operating Temperature: -20~60°C
Operating Voltage Range:8.0 V-14.6 V
Charger Model: 14.6V 10A charger
ITEM | 12V100Ah | 12V200Ah | 12V300Ah | 12V400Ah | |||
Nominal Voltage | 12V | 12V | 12V | 12V | |||
Nominal Capacity | 100Ah | 200Ah | 300Ah | 400Ah | |||
Energy | 1280Wh | 2560Wh | 3840Wh | 5120Wh | |||
Cycle Life | 4000 cycle @0.5C 80% DOD | ||||||
Opreating Voltage | 10V~14.6V | ||||||
Charge Current | 10A | 20A | 30A | 50A | |||
Max. Charge Current | 50A | 100A | 100A | 100A | |||
Discharge Current | 100A | 200A | 200A | 200A | |||
Max. Continuous Current | 200A | 200A | 200A | 200A | |||
Charge Temp. | 0℃ ~ 45℃ | ||||||
Discharge Temp. | -20℃ ~ 65℃ | ||||||
Water Dust Resistance | IP65 | ||||||
Optional | OEM label/LED Screen/ Wifi/Bluetooth/Remote Control/Pre-heating/IP67 ect. | ||||||

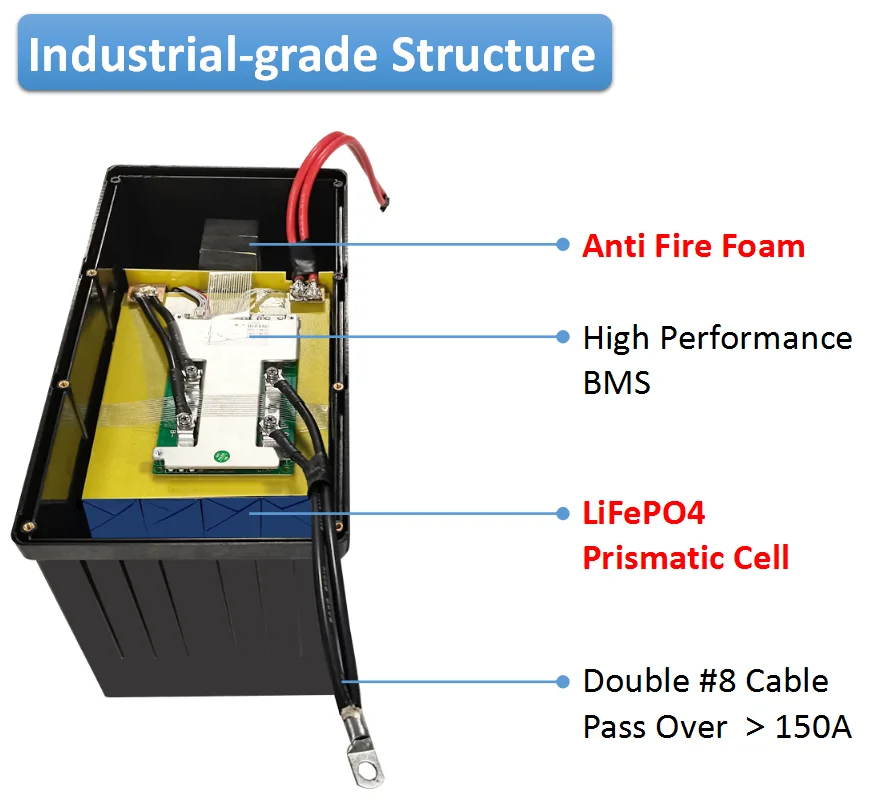

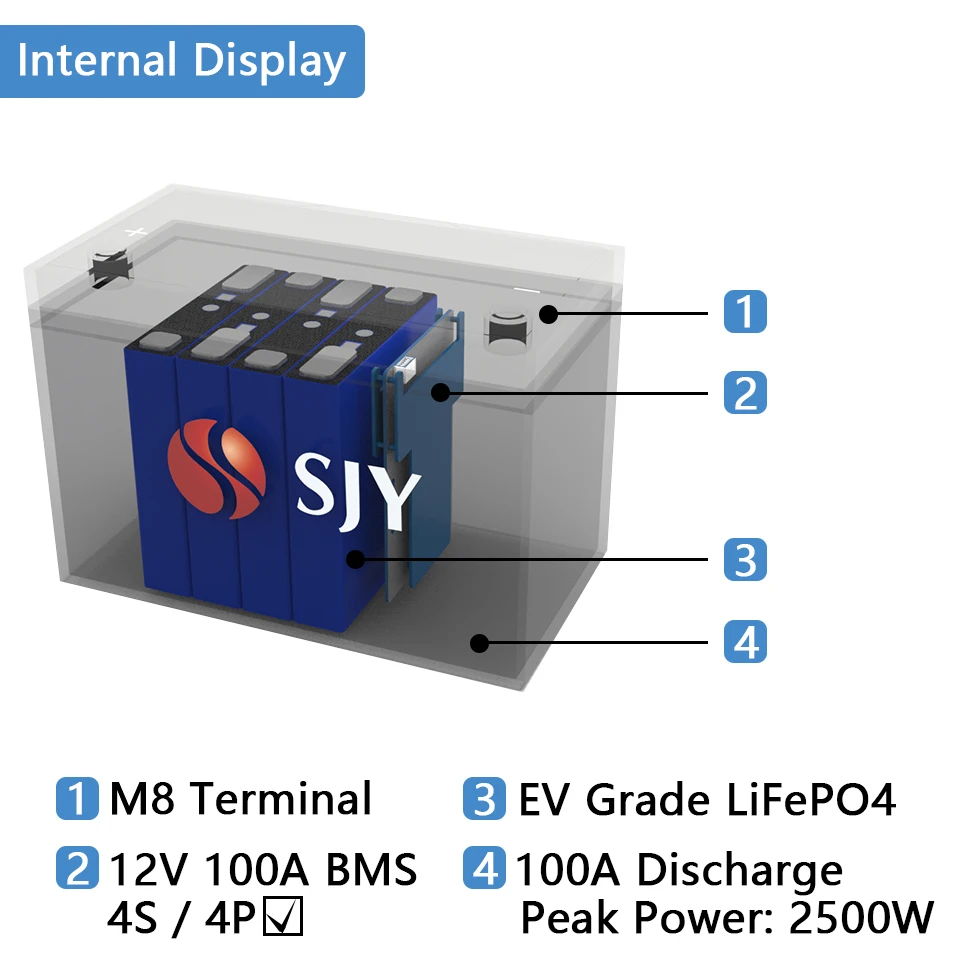

Industrial-grade Structure
Terminal Connection Display

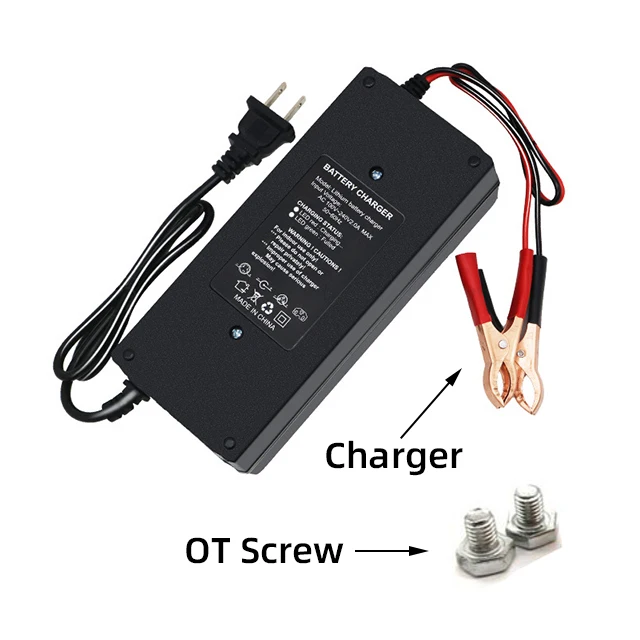

Package
1*12V100AH Battery Pack
1*14.6V Battery Charger
2*OT Screw
Our Advantages

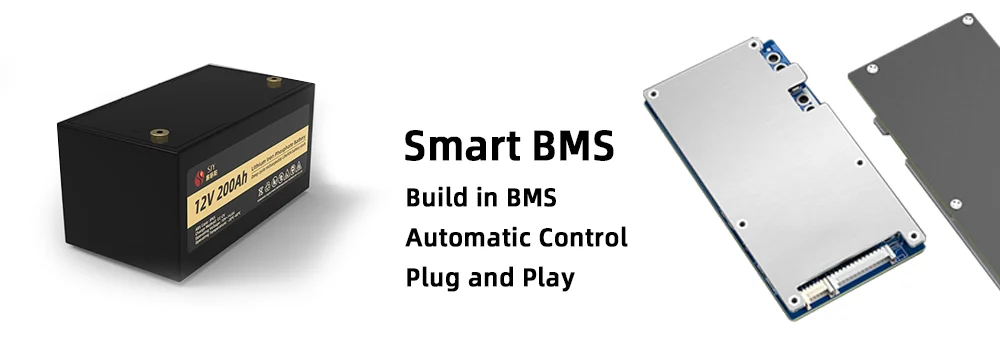

Build in Smart BMS
Charge and Discharge Protection
Surge Protection
Short-circuit Protection
Equalizing Function ect.

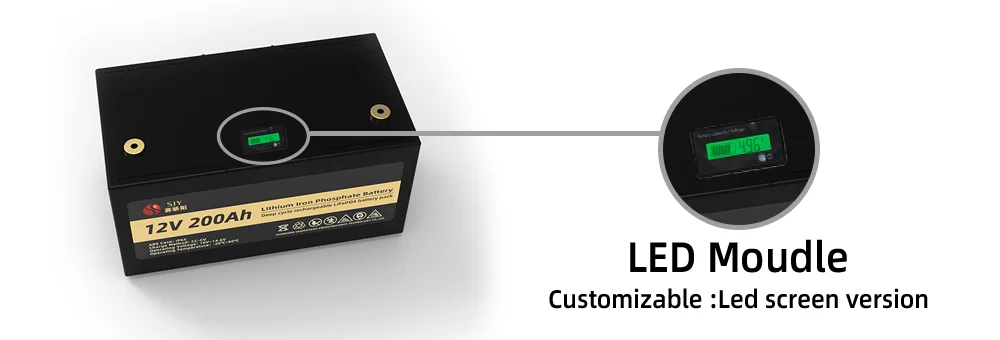

LED Moudle
Customizable LED screen version.
Real-time monitoring of remaining battery capacity.

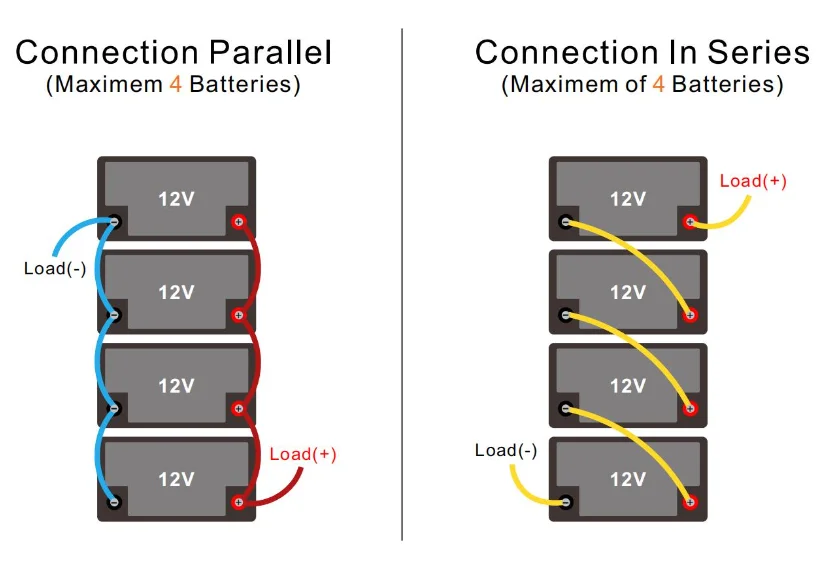

MAX. 12V400AH or 48V100AH
Select high-quality batteries and BMS, and support 12V100Ah battery packs for 4 series or 4 parallel connections.
Different Rate Discharge Curve @25℃
Different Tempreture Discharge Curve @0.5C
Application
Company Profile

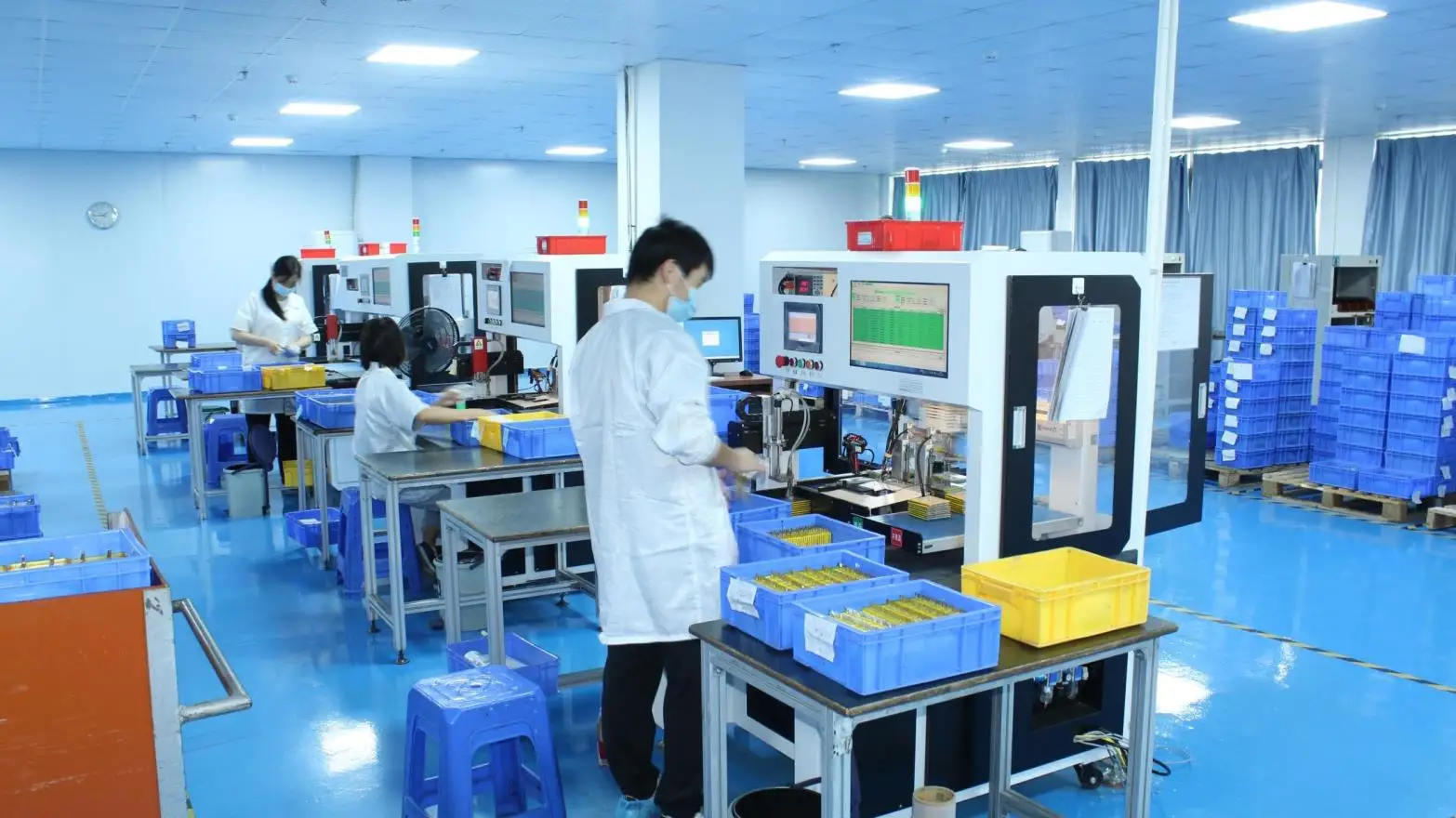

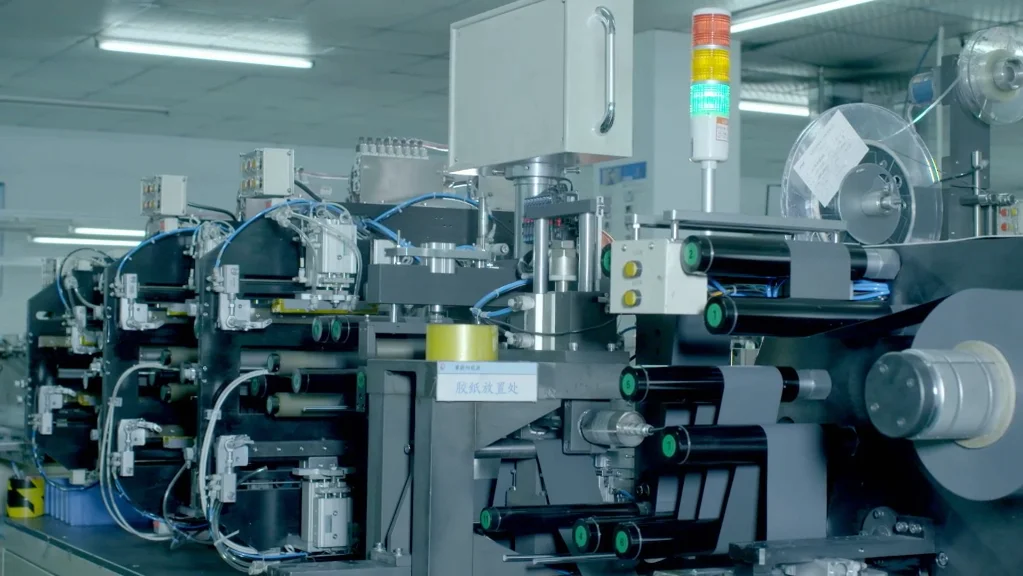

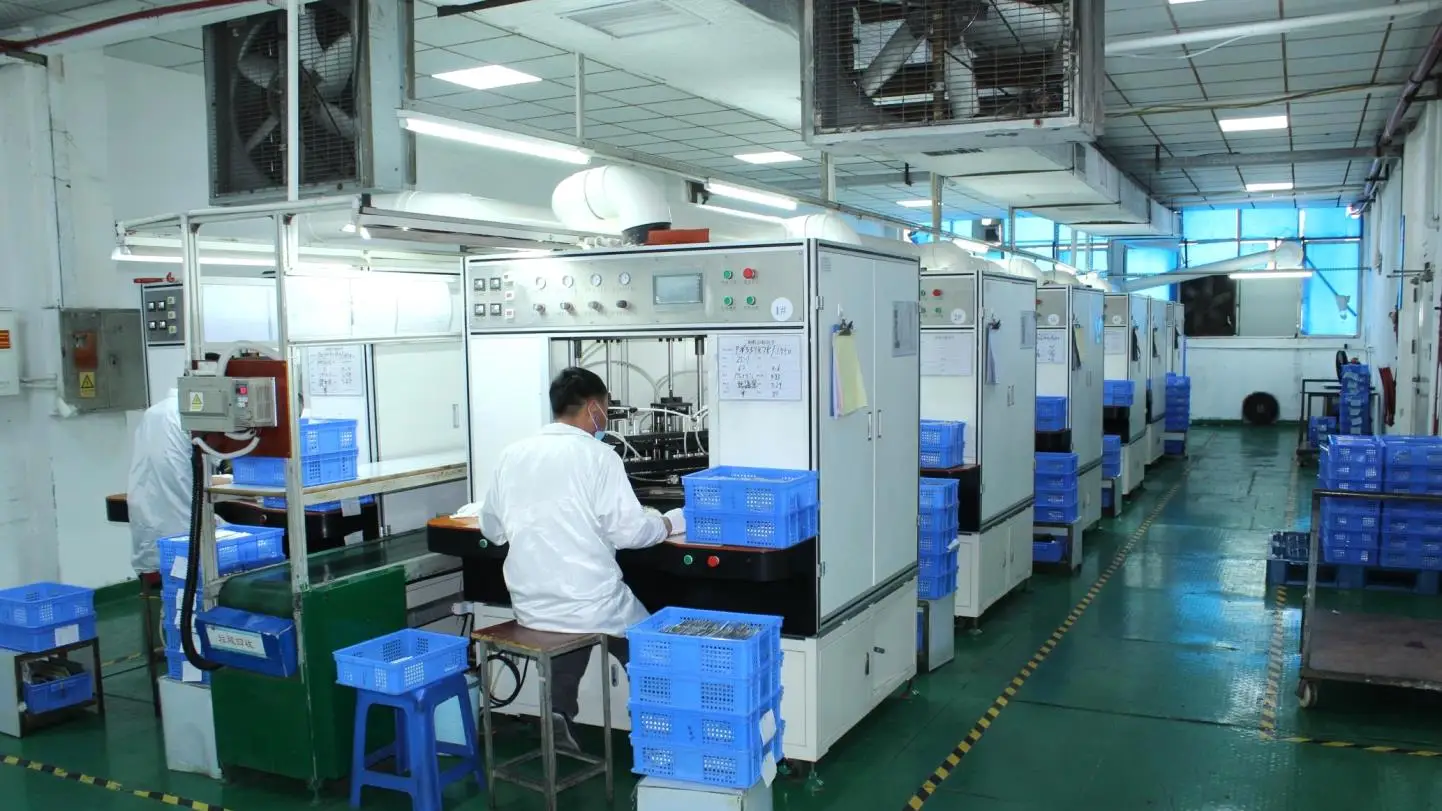

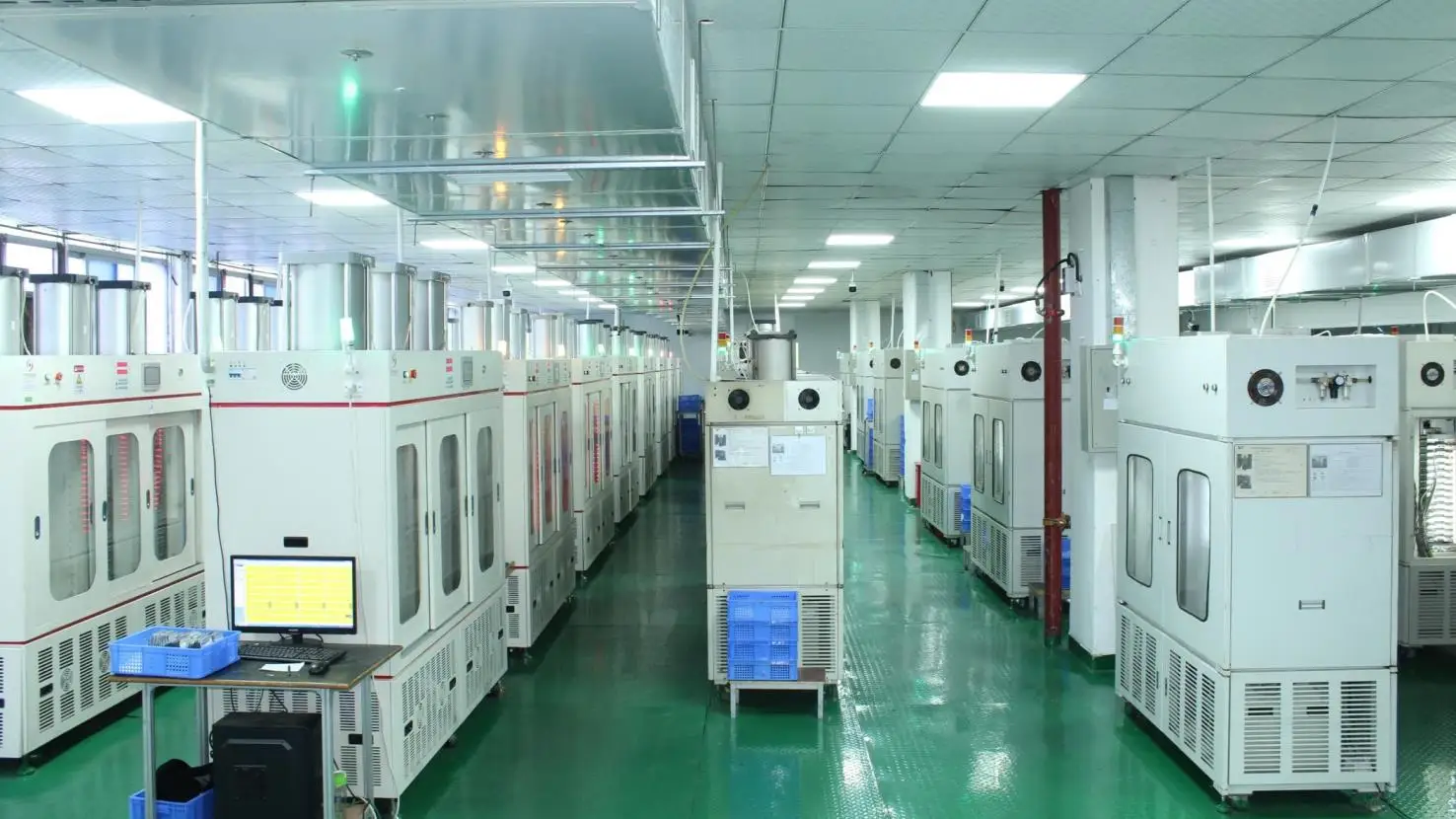

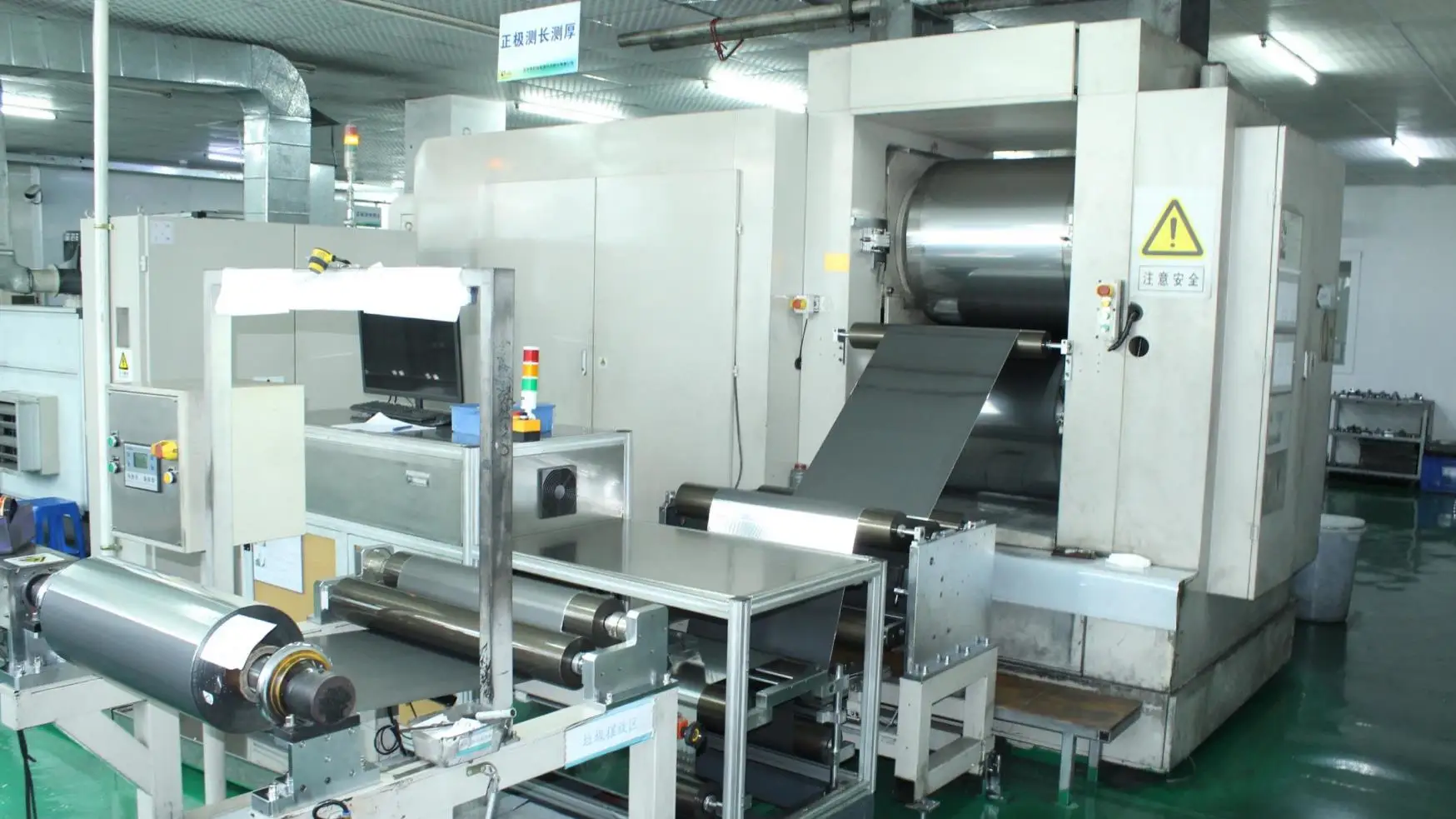

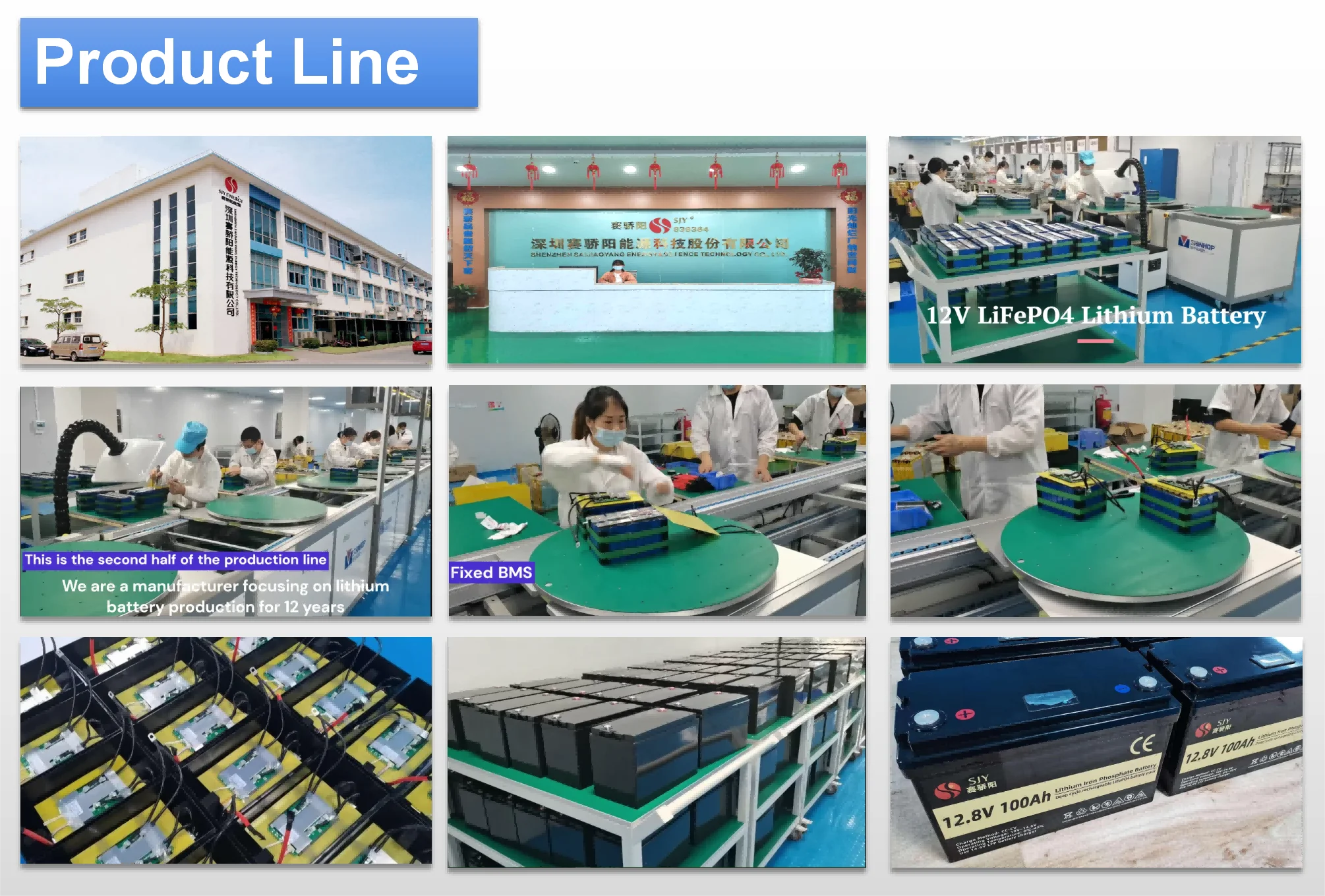

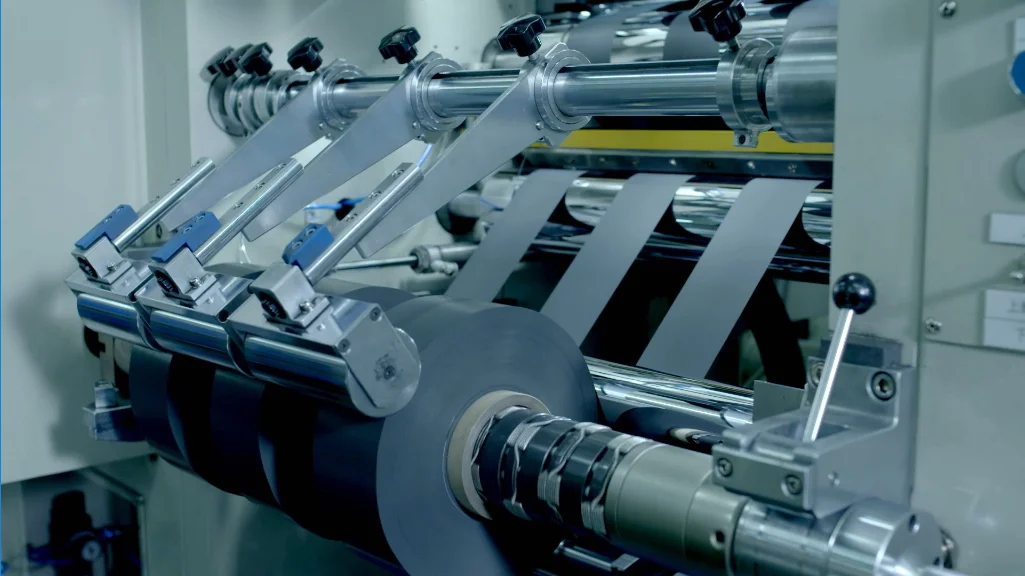

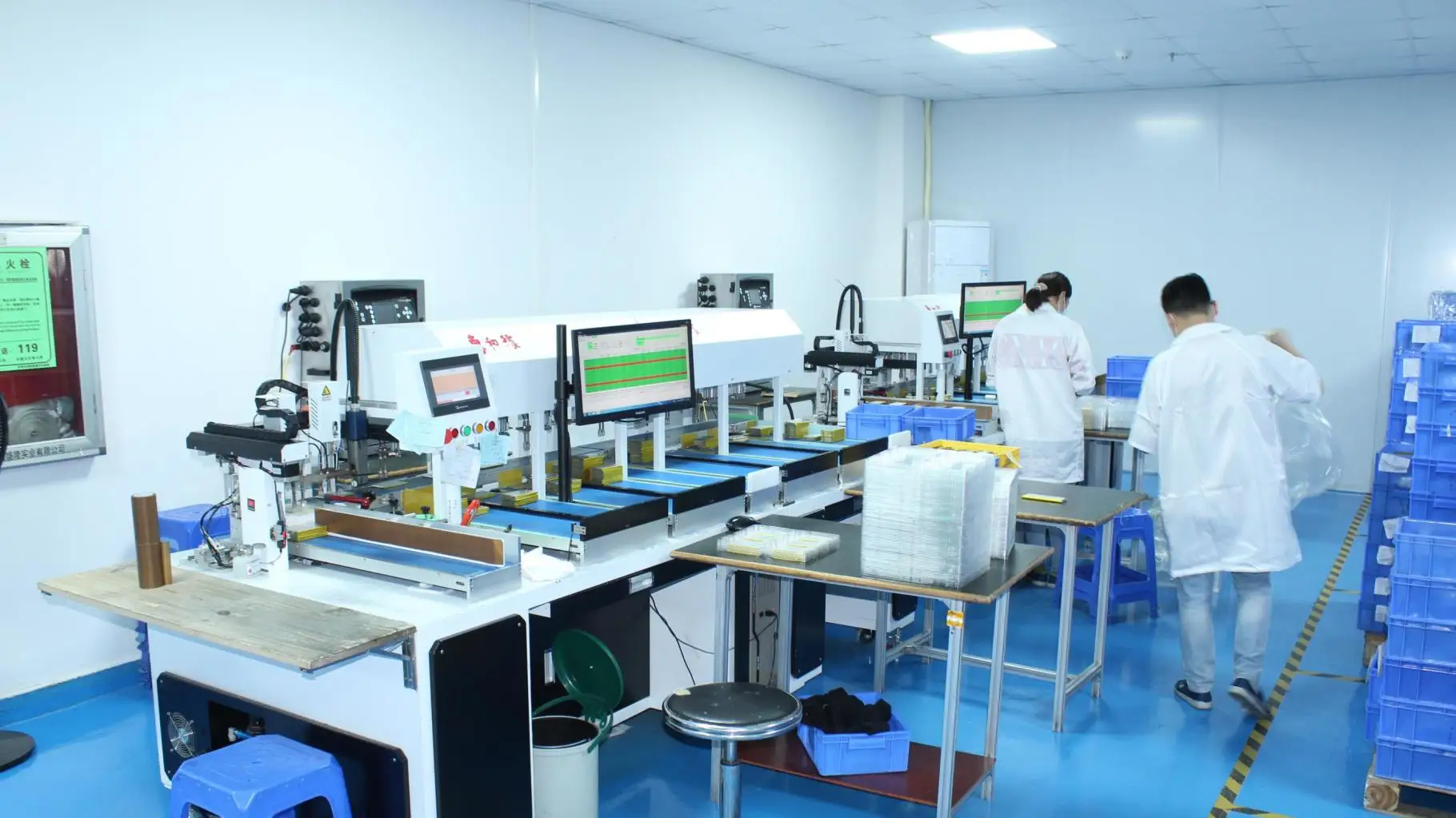

Production Process
Showroom
