Sliding Table Panel Saw 45 Degree 90 Degree 3200mm Sliding Table Panel Saw

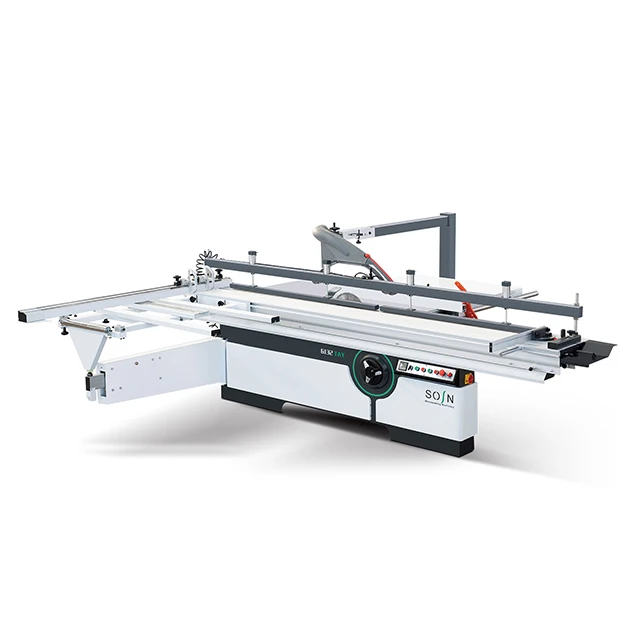

Precise. Powerful. Potential -- MJ61-32TAZ sliding table saw.
Sliding Table Saw Machine Wood Cutting Machine Precision Sliding Panel Table Saw
• Saw motor: 5.5kw+1.1kw
• Maximum cutting length: 3200 mm
• Main saw blade Up&down electric control.
Relying on quality is always a best choice!
Features:
If you want to select sliding table saw in your first own workshop, or you need a compact second machine,
even when large quantities and maximum productivity are important in industrial production
--- this MJ61-32TAZ is your reliable machine for all cases.
Technical parameter:

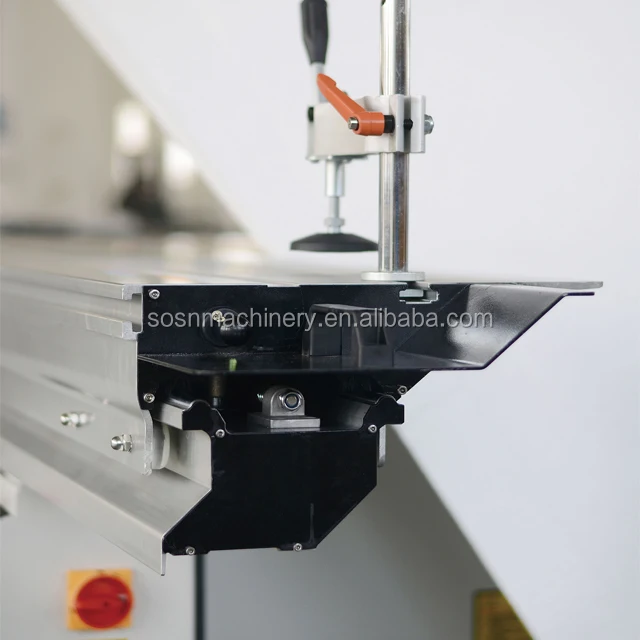

Dimension of sliding table | 3200*410mm |
Gross cut capacity | 3200mm |
Width of cut between saw blade and rip fence | 1250mm |
Saw blade diameter | 400mm(250-400mm) |
Height of cut(300mm) | 90mm |
Height of cut with saw blade 300mm at 45° | 60mm |
Tilting saw blade | 0-45° |
Main motor | 5.5kw |
Scoring motor | 1.1kw |
Speed of scoring saw blade | 7000-8000rpm |
Scoring saw blade diameter | 120mm |
Main spindle diameter | 30mm |
Scoring spindle diameter | 20mm |
Gross weight | 950kg |
Overall dimension | 3150*3150*900mm |
features:

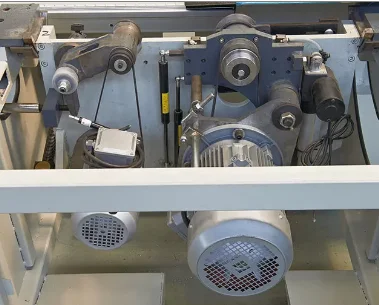

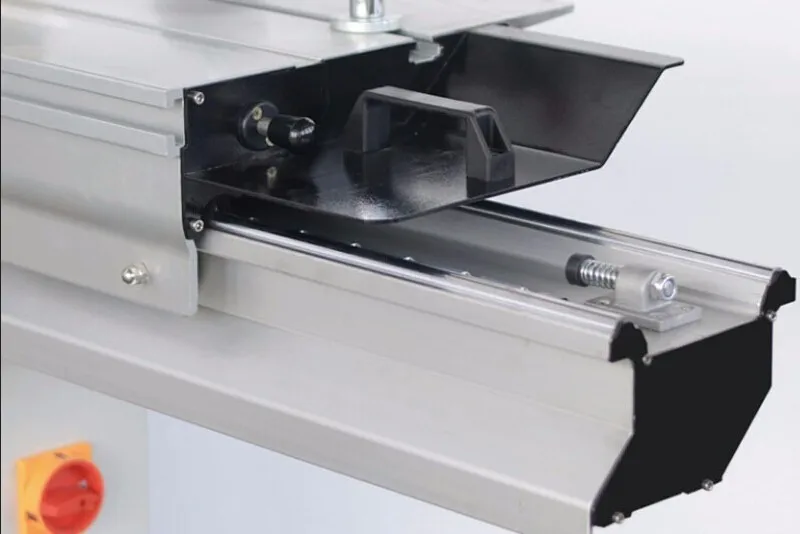

 | Sawing system: linear guide structure Perfect inner structure, linear guide way to make sure the machine work precision, easy-operation. | |

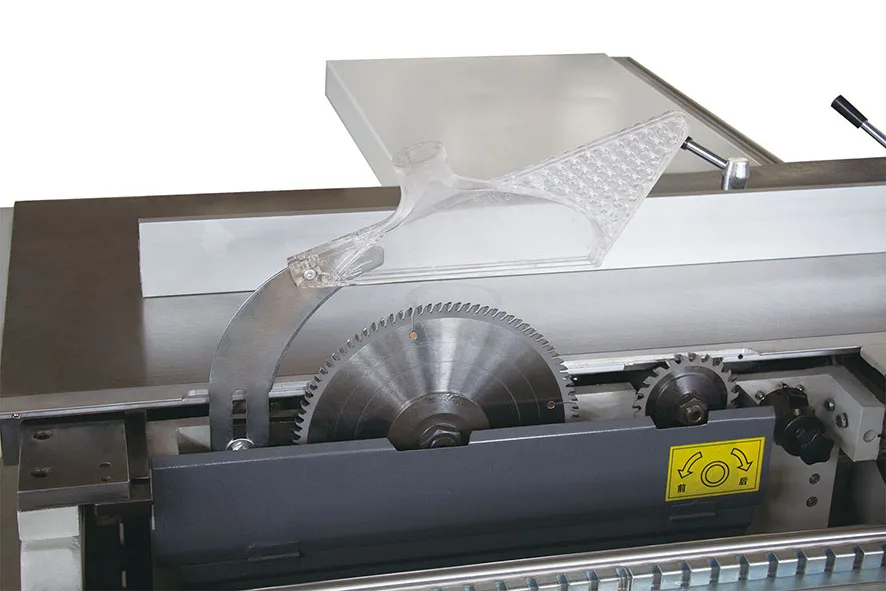

 | Automatic power off saw blade cover added the working safety. | |

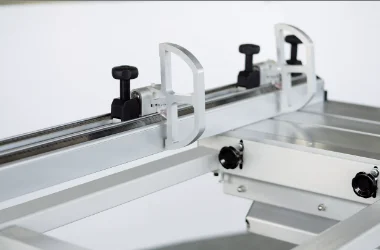

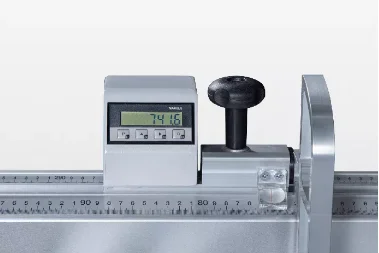

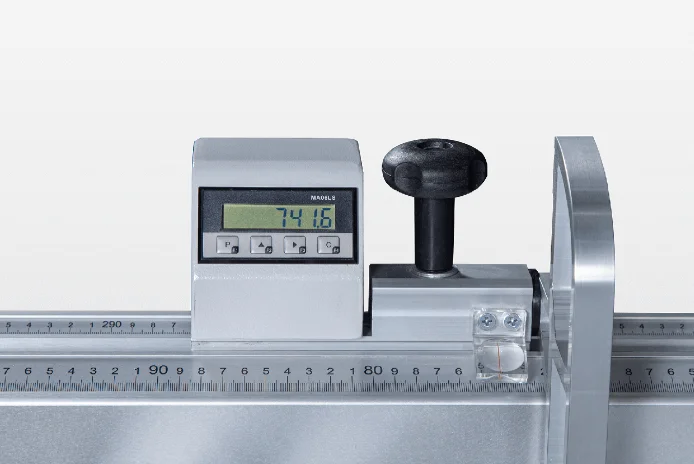

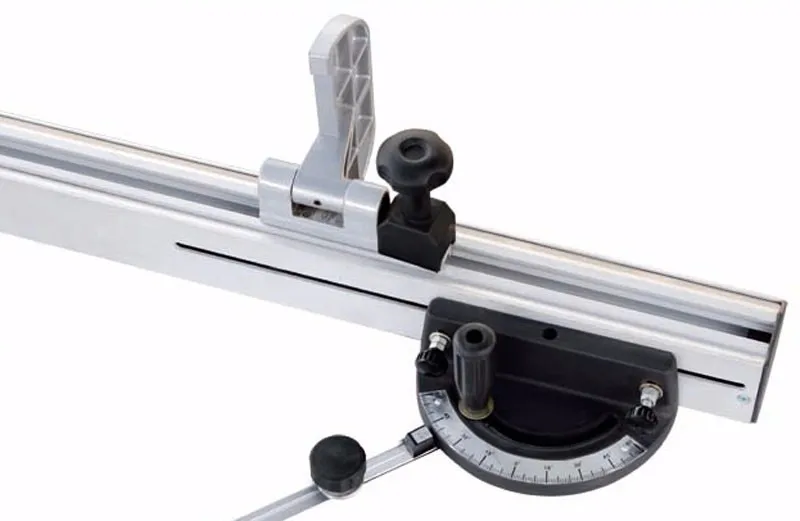

 | Aluminum extruded fence with large stopper, sliding table saw big ruler made of aluminum, ensure cutting precision, enlarged baffle plate for strength saving, flexible pushing plate. | |
 |
| |
 |
| |

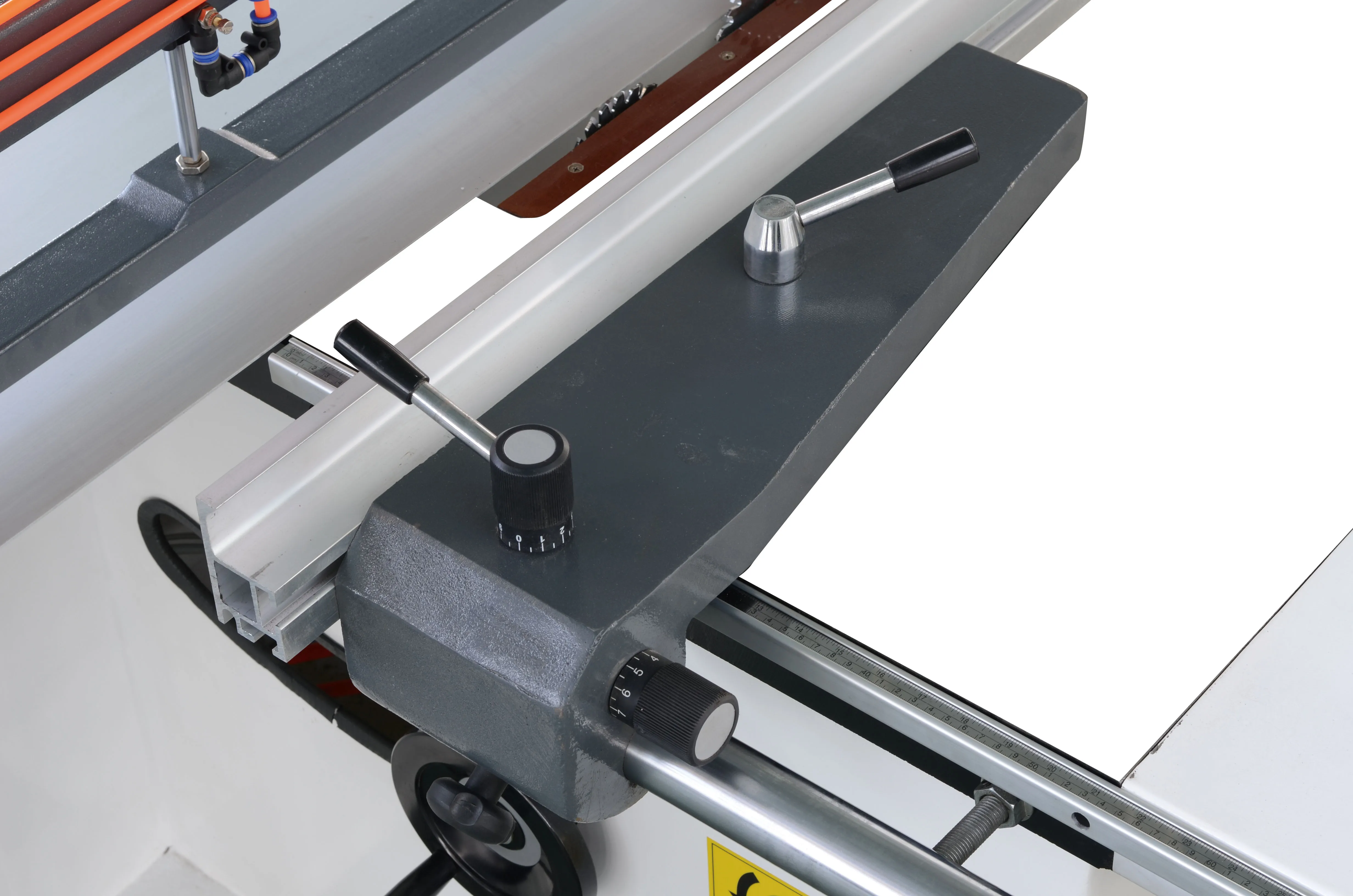

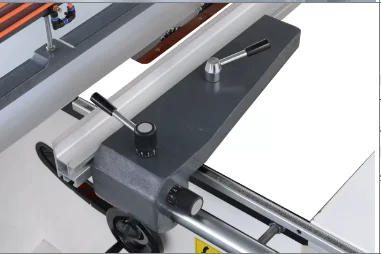

 | Rip fence fine micro adjustment, stable and precision. The stop is easy to adjust and, thanks to the fine adjustment, can be adjusted very precisely by hand. If large panels are to be divided up, the stop can be swiveled under the table level with one handle |

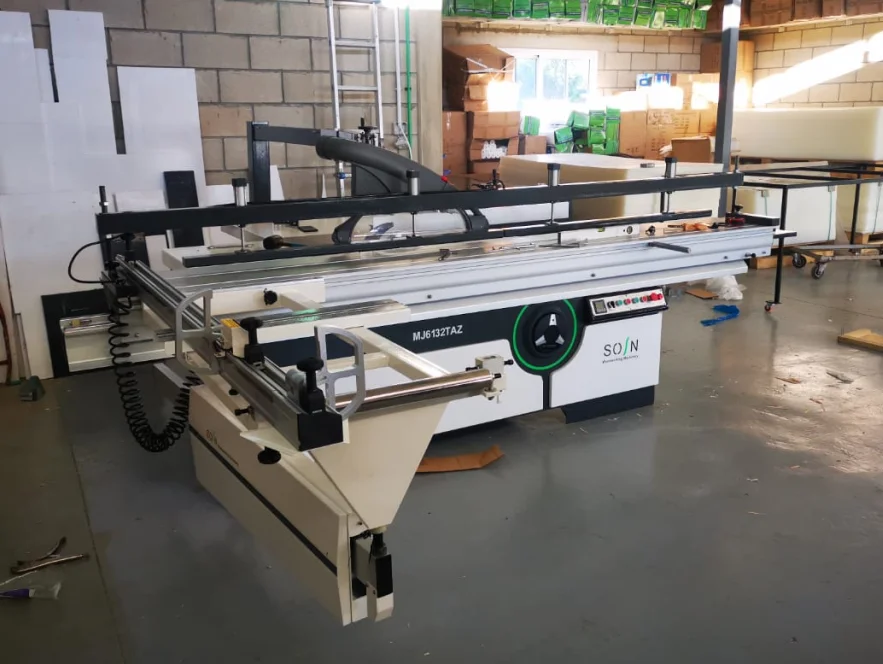

more pictures :
