Multi functional aluminum x shaped tail folding 9 position adjustable ambulance stretcher

Product Overview

Description

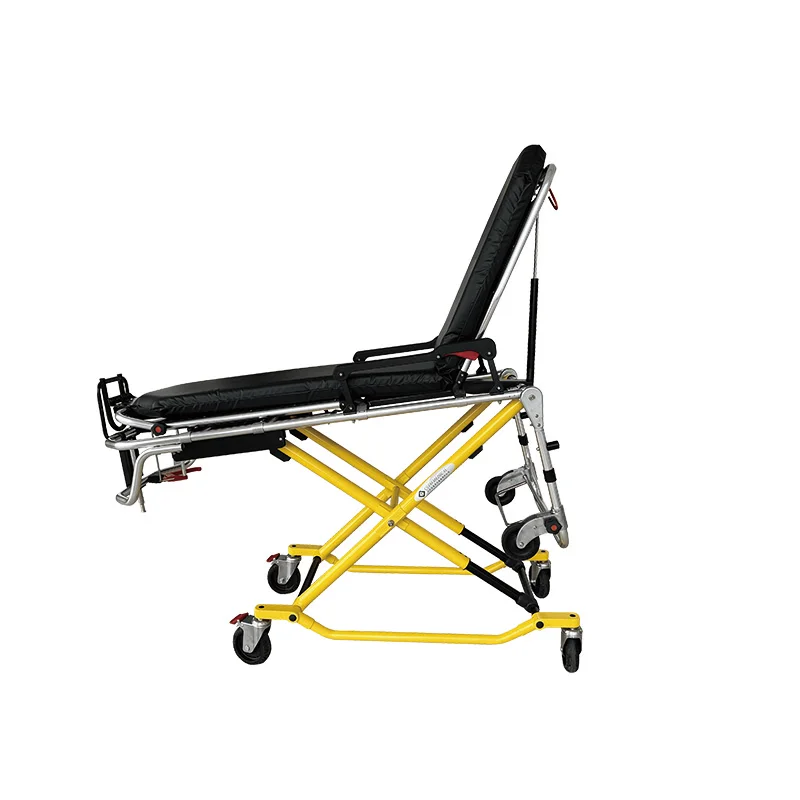

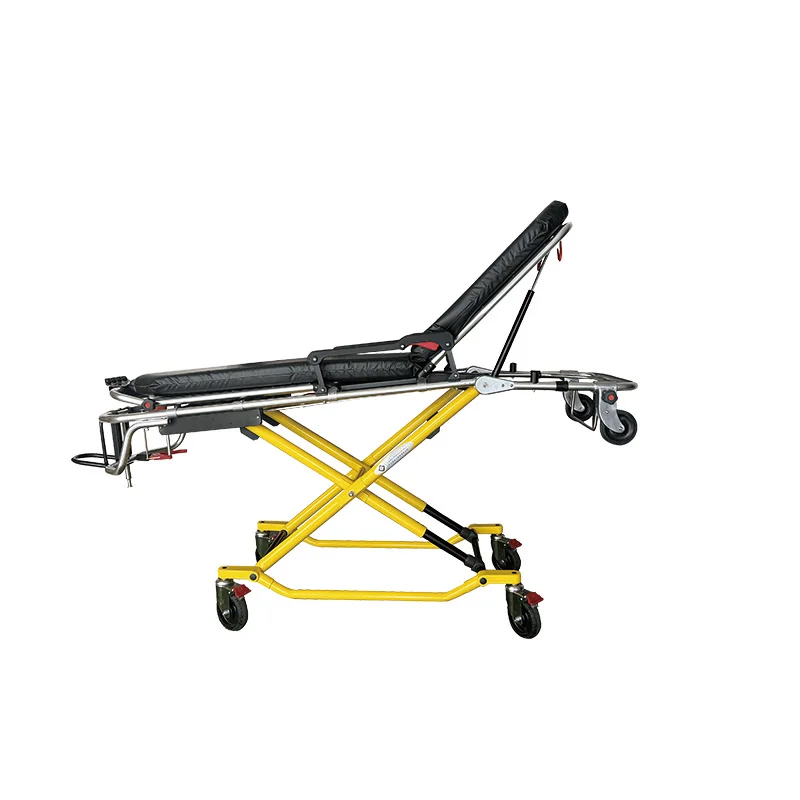

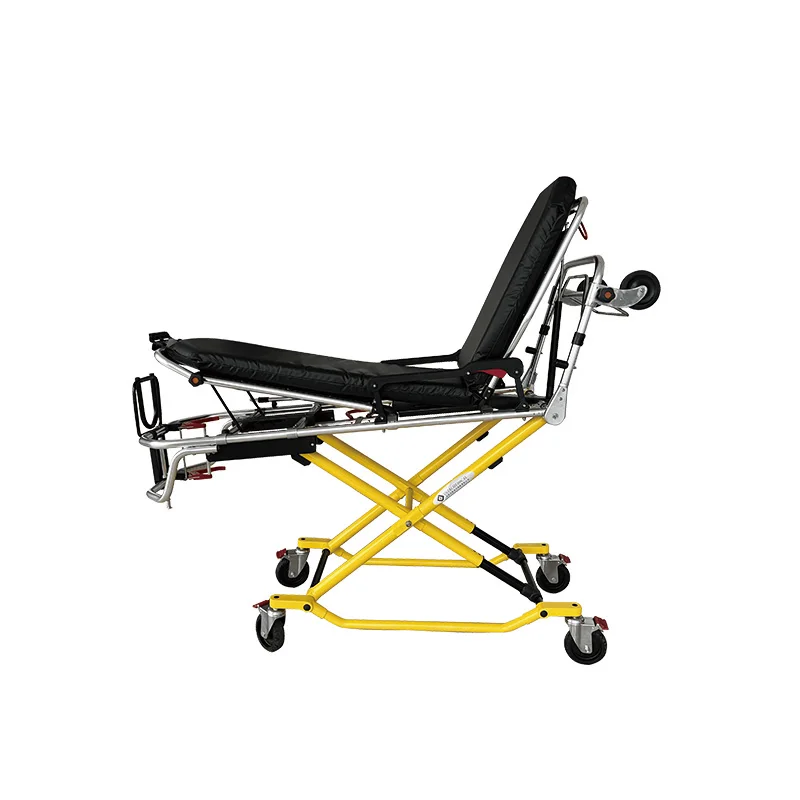

 Multi-functional aluminum x-shaped tail folding 9-position adjustable ambulance stretcher

Product name	stretcher trolley
Size	90*28
Material	Aluminum Alloy
Folded size	120*44*9cm
Load capacity	159kg
Packing size	170*45*7cm



Model QT-A4 is a kind of transfer type stretcher suitable for in-hospital transfer and ambulance, a comprehensive product for hospital in-hospital first aid and elevator transfer first aid, the stretcher is made of stainless steel, with multi-stage adjustments to place it more stable, the stretcher can be controlled by the switch to fold the tail into the elevator, and multi-stage up and down adjustments to make first aid operations better.
Technical features.
When getting on the ambulance, the X structure is very light when lifting up and down.

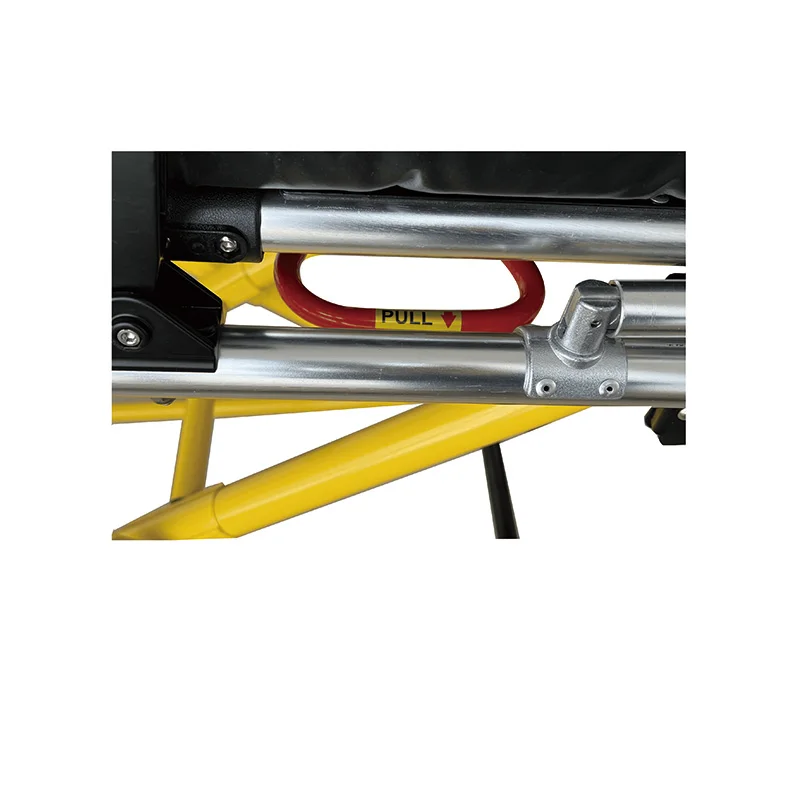

When getting off the ambulance, when the landing gear is lowered, the safety U-shaped hook will hook the ambulance until the operator goes to open the ambulance.
The safety U-hooks will hold the ambulance until the operator opens it.
Foldable head
Height-adjustable stretcher

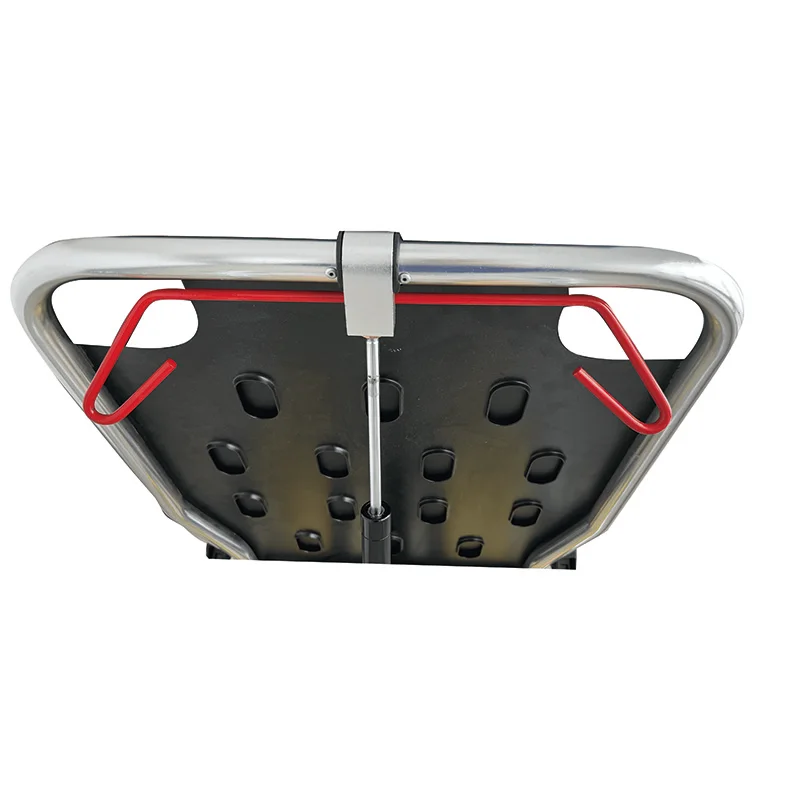

The angle of the backrest is adjusted by gas springs in a range of 0-75°.
Reversible guardrails to protect the patient during transfer.
One or two persons can lift the stretcher and push it into the ambulance.
When the stretcher is in the ambulance, it can be locked by the fixing device.
The stretcher is made of high strength aluminum alloy.
φ150mm wide rubber wheels
Mainly used in ambulances, hospitals and emergency centers.
Piece: waterproof seamless PVC mattress
Waterproof seamless PVC mattress (8cm thickness foam)
3 safety belts (for chest, hip, knee and shoulder straps)
Fixtures
Highest position: 200*56*100cm
Lowest position: 200*56*38cm
Maximum back inclination: 75°.
Maximum inclination angle of knee: 35°
Net weight: 43kg
Gross weight: 60kg
Load capacity: ≤250kg
Packing size: 205*65*47cm
