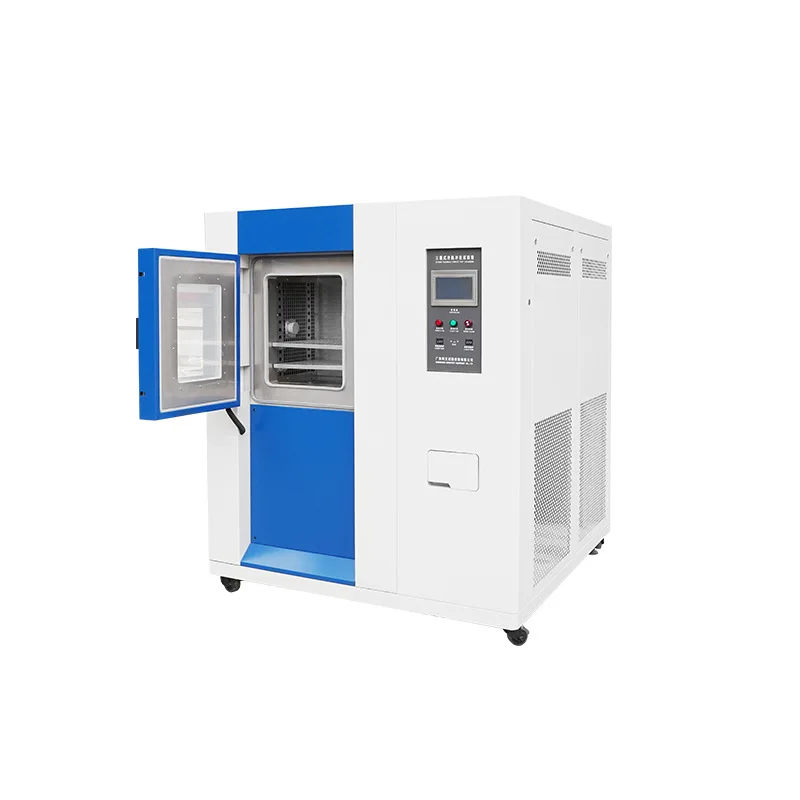

YueXin high quality cold and hot shock chamber 10 degrees / min rapid thermal shock test chambers
- Category: >>>
- Supplier: Guangzhou Yuexin Test Equipment Co. Ltd.
Share on (1600907504029):
Product Overview
Description
Product Description
Product characteristics
Stainless steel inner box
Welded with high-quality stainless steel material, rust-proof and durable.
Bitzer compressor
Using high-quality compressors, high-efficiency refrigeration and lower noise.
External power supply hole
Holes are drilled on both sides of the inner box, which is convenient for users to test the external power supply.
Uniform temperature.
The hot air blows out from the top and returns from the bottom to ensure the uniformity of temperature.
Specification
High Low temperature test chamber is suitable for aerospace products, all kinds of electronic components and materials in high temperature, low temperature or damp environment, to test the reliability of the performance.
Model | YX-LRCJ-225L |
Effective volume | 225L |
Inner size | W600*H750*D500 mm |
Outer size | W850*H1750*D1500mm (subject to the actual object) |
Condition | Refers to air-cooled ambient temperature between +5°C and +25°C. Relative humidity ≤85%. No load (when there is no sample in the test chamber). |
Temperature/humidity range | -40°C to +150°C/humidity control range 20% to 98%RH (limited temperature range, see zoning diagram). |
Temperature/humidity fluctuation | ±0.5℃ / ±2.5%RH |
Temperature/humidity deviation | ≤±2℃ / A)>75%RH:≤+2,-3%RH, B)<75%RH:≤±5%RH. |
Temperature uniformity | ≤±2.0°C (-40~+150°C range) |
Heating time | Rising from 25°C to 150°C for 45 minutes, the average nonlinearity in the whole process, no load |
Cooling time | From 20°C to -40°C for 60 minutes, the average nonlinearity in the whole process, no load |
Temperature rise and fall overshoot | ≤2℃ |
Maximum load | Box load: 50kg |
Constant max Heat load | 500W. |
Voltage(V) | 380V |
Power(KW) | 8.0KW |
Company Profile
Guangzhou Yuexin Test Equipment Co., LTD., established in 2013, covers an area of 2350 square meters and employs approximately 50 people.
We have rich experience in the test equipment industry. In the last decade, we are delicated to provide IP waterproof testing, IP dustproof testing and other environmental testing equipments.
We are a manufactuer with a professional R&D team,which enables us to customize the product as per requirements.
We have a excellent after-sales service team that can respond and provide solutions quickly.
We are the nominated supplier of BYD, DJI, CATL and other companies, and our products are sold worldwide.
Warmly welcome you to visit our factory!
We have been granted 25 patents and passed the Quality management system:ISO9001.
We enjoy a reliable reputation among customers with professional service, quality products and competitive prices.

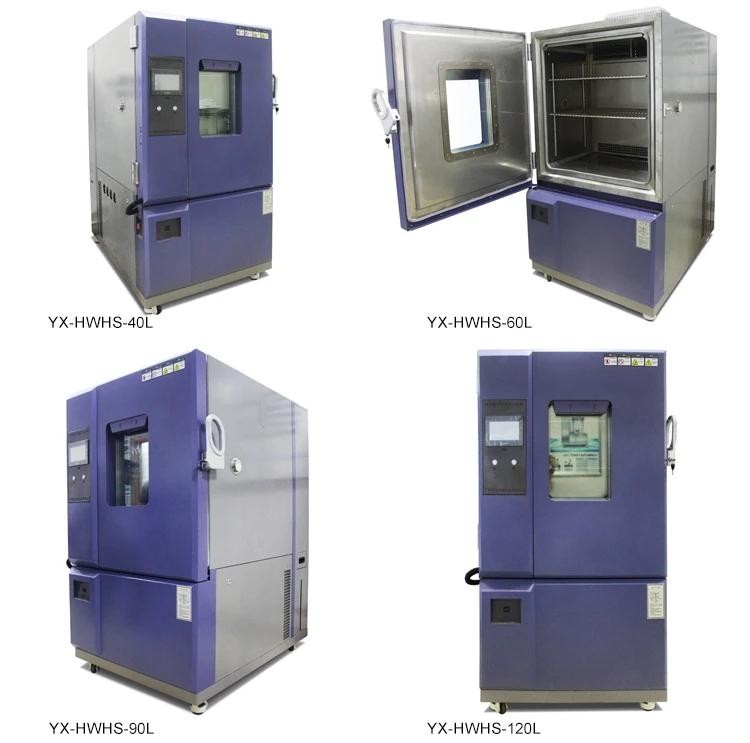

The main products are IPX1-9 Waterproof Test Chamber, IP5-6X Dustproof Test Chamber, Air Tightness Detector, Salt Spray test Machine, Drop Test Machine, High and Low Temperature Test Chamber, etc.
Warmly welcome you to visit our factory!
FAQ
1. Are you manufacturer? Do you offer after-sales service? How can i ask for that?
Yes, We are one of the professional manufacturers of waterproof and dustproof test equipment in China. Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.In the period of warranty,we may offering the parts replacements,repairing and technique support,necessaryly,our engineer may go to the local country to service.
If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our
conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48hours.
2. What's the delivery term ?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.
3.Do you accept customization service? Can i have the LOGO on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can i install and use the machine?
conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48hours.
2. What's the delivery term ?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.
3.Do you accept customization service? Can i have the LOGO on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can i install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.
5. what languages are supported?
The factory standard equipment supports bilingual Chinese and English. Other languages can be customized according to the needs of users.
5. what languages are supported?
The factory standard equipment supports bilingual Chinese and English. Other languages can be customized according to the needs of users.
