200M/300M/600M Drilling Depth Borehole DTH Water Well Drilling Rig Machines Drilling percussion core water well drilling rig
200M/300M/600M Drilling Depth Borehole DTH Water Well Drilling Rig Machines Drilling percussion core water well drilling rig
200M/300M/600M Drilling Depth Borehole DTH Water Well Drilling Rig Machines Drilling percussion core water well drilling rig
200M/300M/600M Drilling Depth Borehole DTH Water Well Drilling Rig Machines Drilling percussion core water well drilling rig
200M/300M/600M Drilling Depth Borehole DTH Water Well Drilling Rig Machines Drilling percussion core water well drilling rig
200M/300M/600M Drilling Depth Borehole DTH Water Well Drilling Rig Machines Drilling percussion core water well drilling rig
200M/300M/600M Drilling Depth Borehole DTH Water Well Drilling Rig Machines Drilling percussion core water well drilling rig

200M/300M/600M Drilling Depth Borehole DTH Water Well Drilling Rig Machines Drilling percussion core water well drilling rig

Share on (1600907541250):


Price:$4,500.00 - $9,000.00

Quantity:


Product Overview

Description



water well drilling rig bore hole drilling machine price 200m deep rock Pneumatic borehole drilling machines



Product Description




Specification


Specification of 200m DTH Drilling Rig
The weight(T)
6.5
Dimensions(mm)
3442*2200*2800
The hole diameter(mm)
100~300
Drilling depth(m)
220
Once-time advance length(mm)
3000
Walking speed(km/h)
2.5~5
Climbing angles(Max.)
30
Minimum clearance clearance(mm)
250
Using air pressure(Mpa)
1.7-3.5
Air consumption(m³/min)
17-31
Equipped capacitor(Kw)
100
Swing speed(rpm)
55-115
Swing torque(N.m)
8660-11150
Drill pipe diameter(mm)
Φ76 Φ89 Φ102
Drill pipe length(m)
1.5 2.0 3.0
Rig lifting force(T)
20
Adapt to conditions
Loose layers and bedrock
Drilling mode
Hydraulic rotary top drive and propulsion,
DTH hammer drilling rig or mud
Impactor
Middle and high pressure series
Optional accessories
After circulating means, mud pumps,
centrifugal pumps, generators, foam


Main Features
1.High drilling efficiency, power provided by 60KW Yunnei diesel engine
2.High efficiency(20M~40M/Hour), large rotary torque(6000-6500N.m)
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,easy to operating.

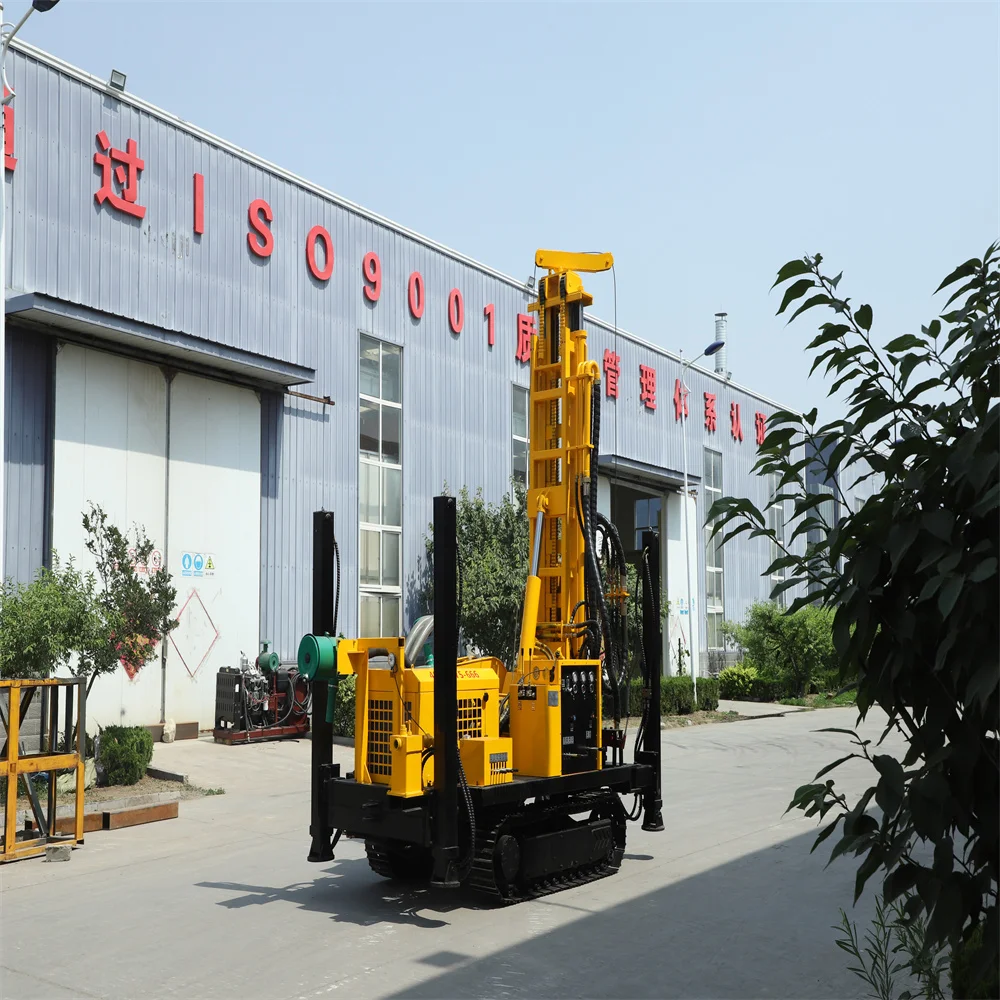

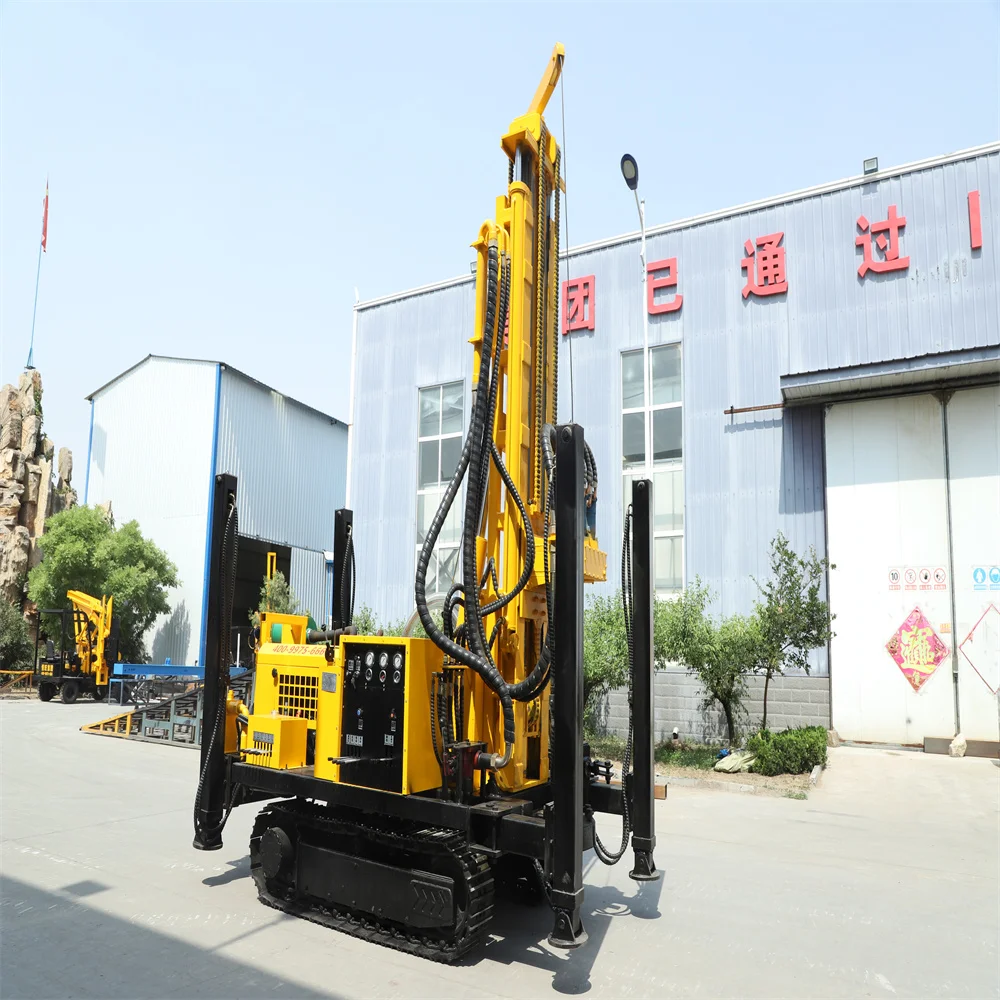

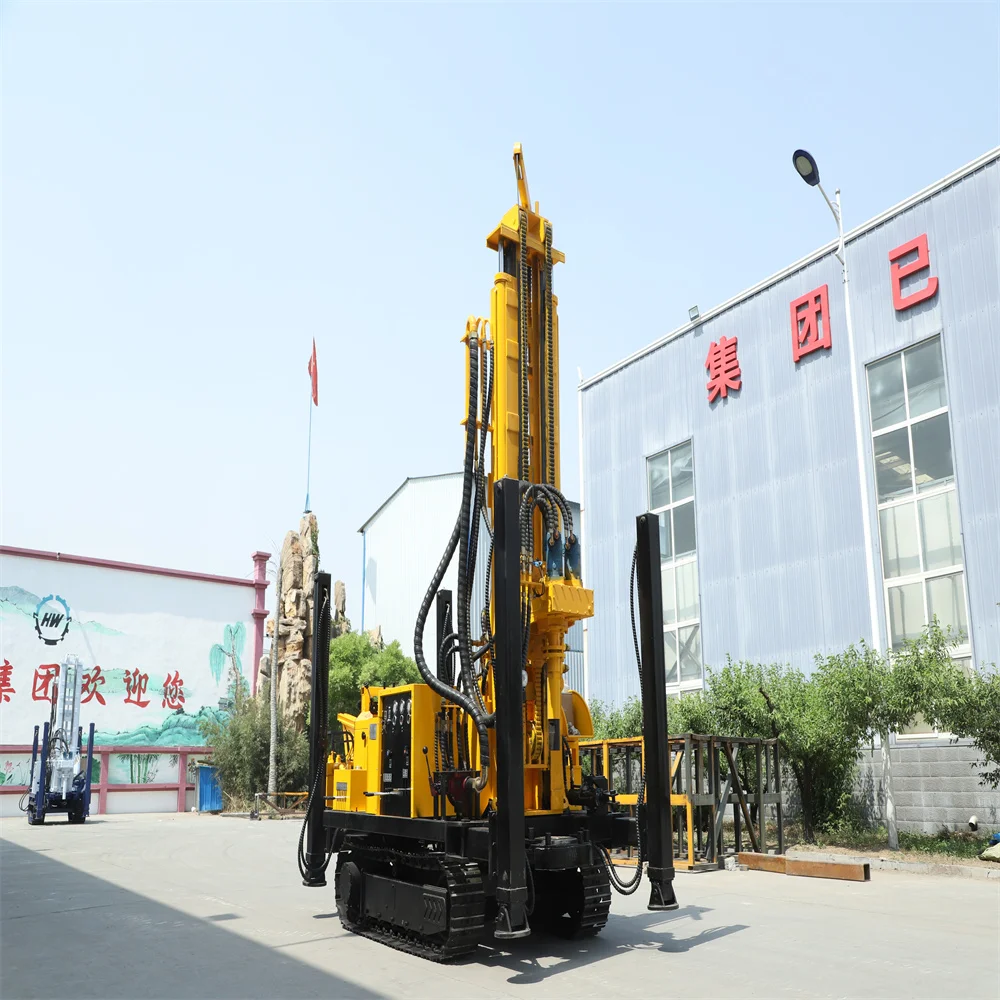

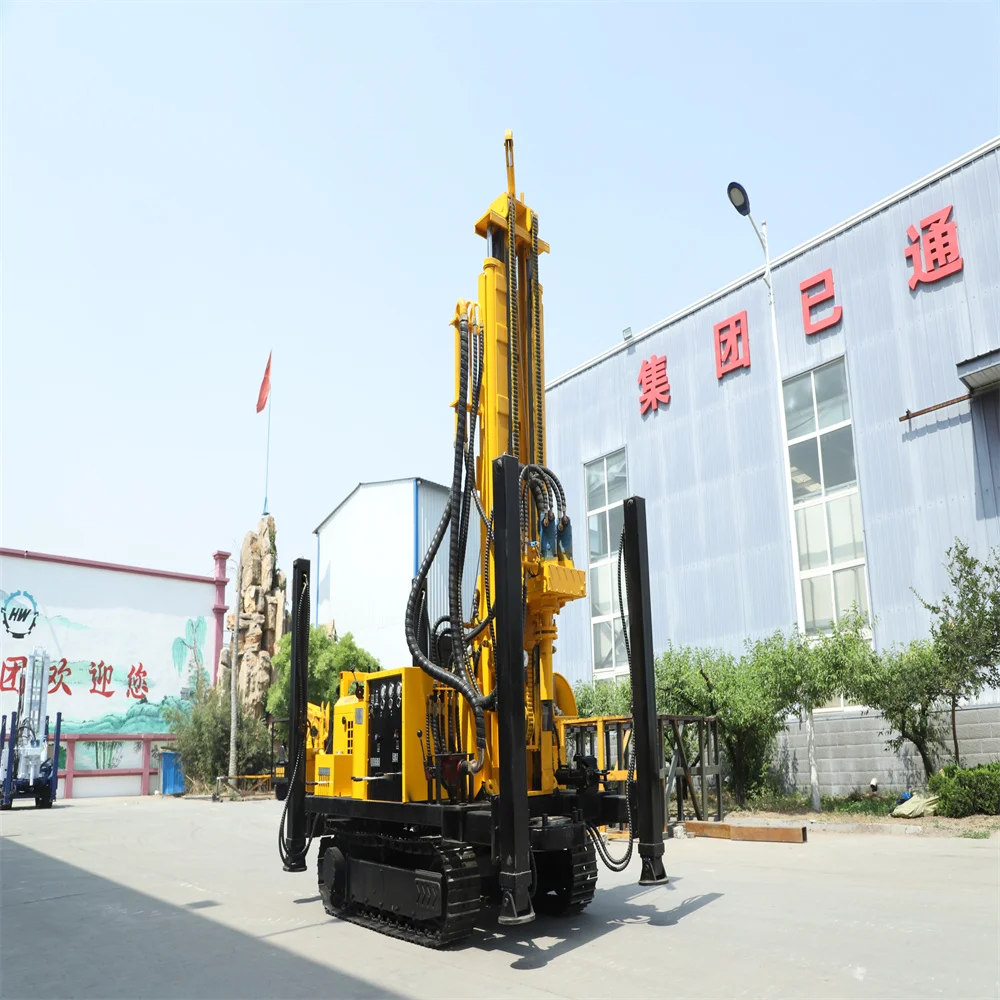

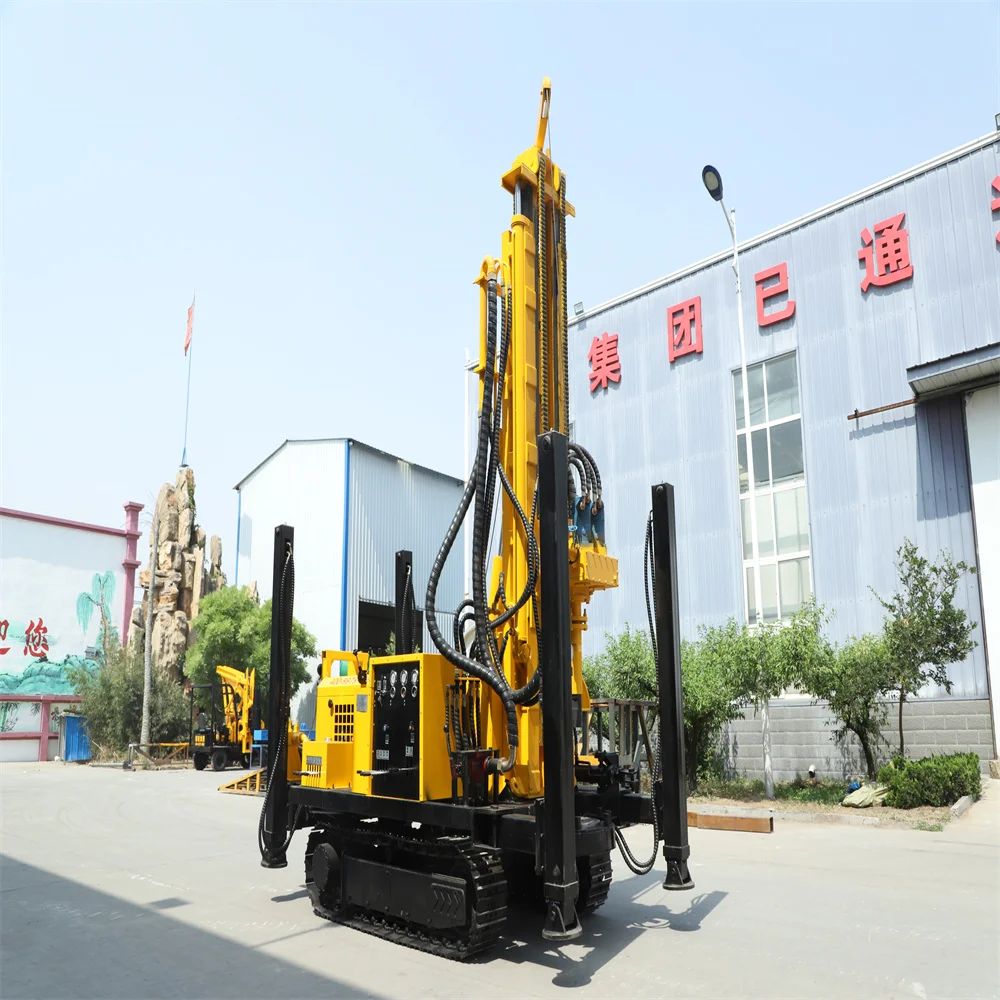

Details Images




Recommend Products


Model
HQZ-180L
Type
Pneumatic Water Well Drilling Rig
Drilling depth
180m
Drilling diameter
130-245mm
Engine Power
42Kw


Model
HQZ-260L
Type
Pneumatic Water Well Drilling Rig
Drilling depth
260m
Drilling diameter
140-300mm
Engine Power
76Kw


Model
HQZ-320L
Type
Pneumatic Water Well Drilling Rig
Drilling depth
320m
Drilling diameter
140-320mm
Engine Power
92Kw


Model
HQZ-450L
Type
Pneumatic Water Well Drilling Rig
Drilling depth
450m
Drilling diameter
140-400mm
Engine Power
105Kw
