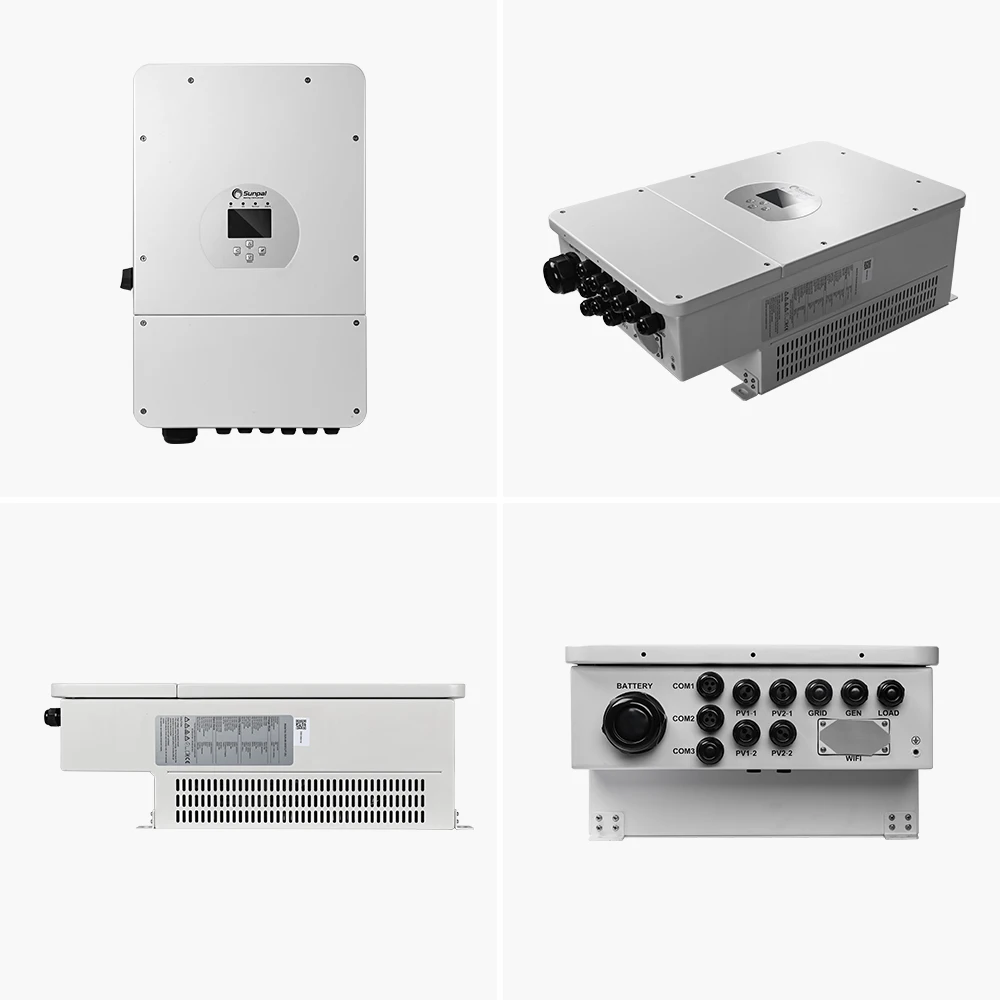

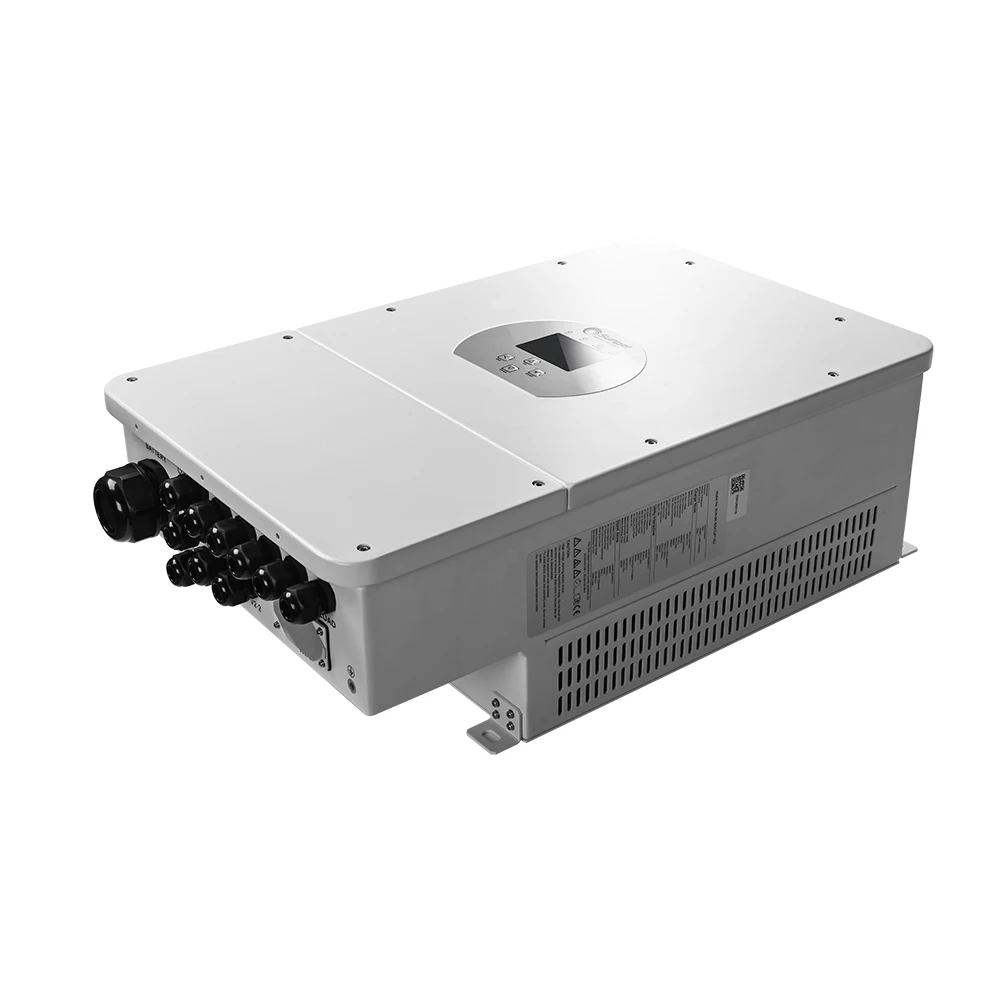

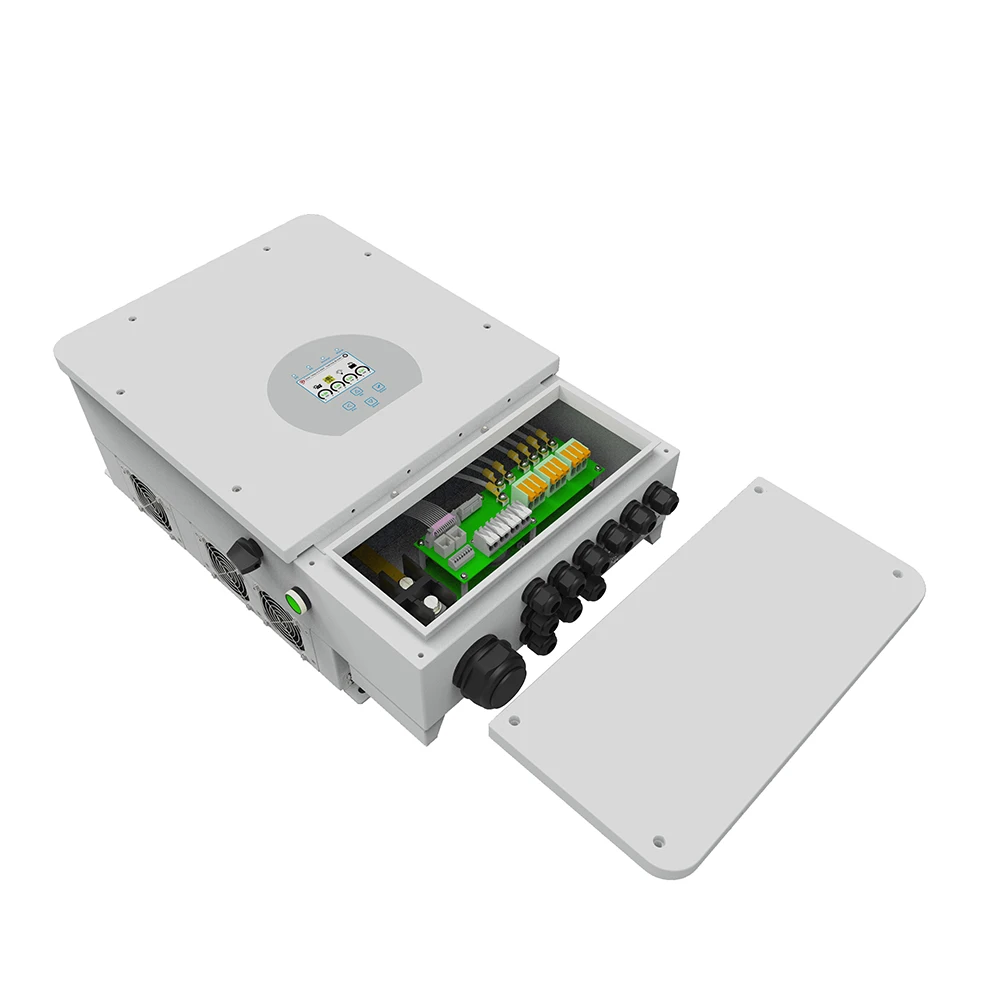

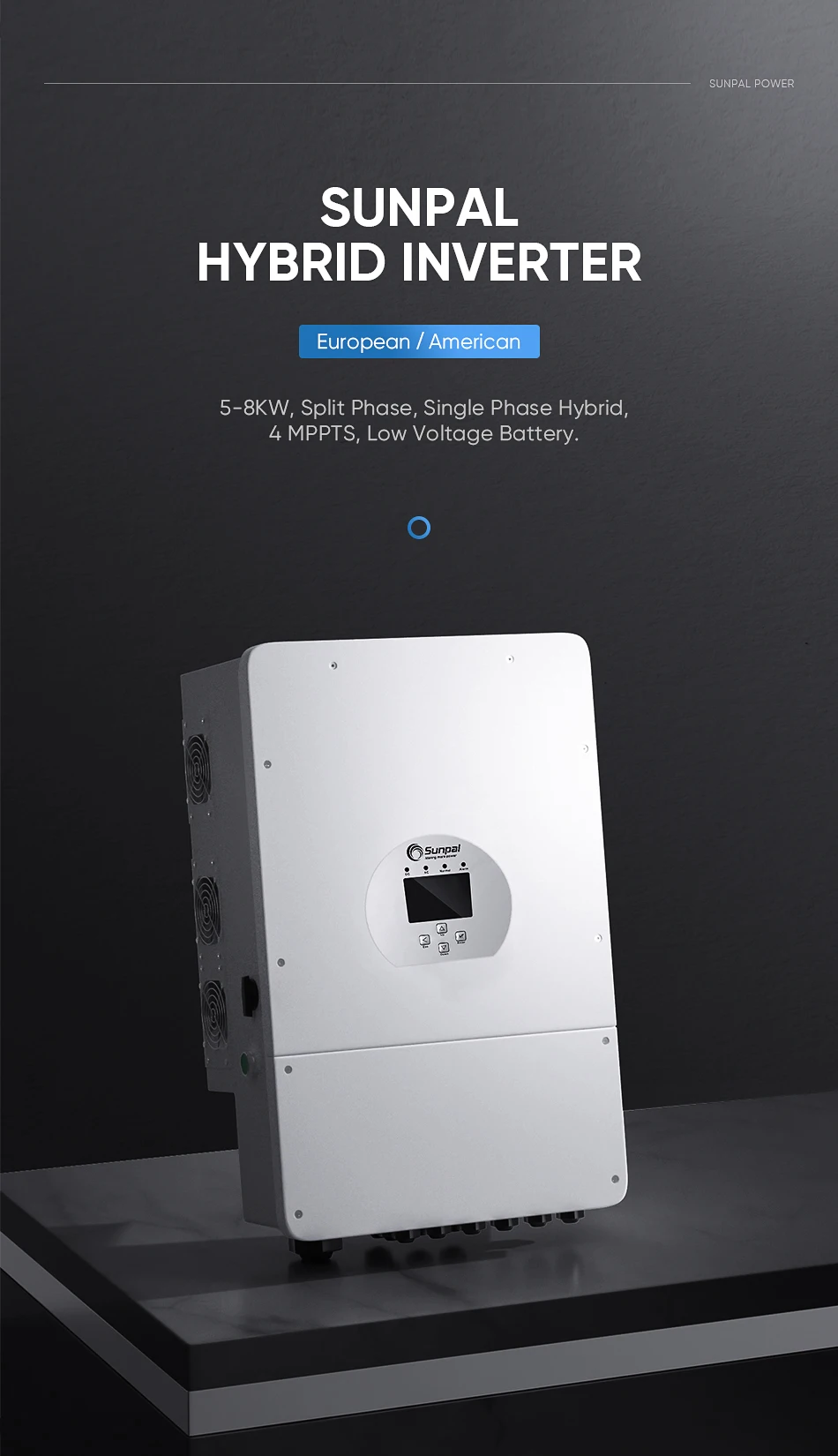

Sunpal Hot Sale All In One Solar Inverter 5KW 8KW 10KW 12KW 120V 240V Split Phase Hybrid Inverter For Home Use
- Category: >>>
- Supplier: Sunpal Power Co. Ltd.
Share on (1600907550652):
Product Overview
Description
Product Description
Reliable
Flexible - Wide input voltage range. Compatible with lead-acid or lithium-ion batteries or other battery.
Grace - Fashion apperance, light weight, smart operation. Natural cooling, low noise. IP65 , wall mounted design, saving space. Touch screen LCD.
Reliable - Compatible anti counter flflow function. Battery reverse connect protection.

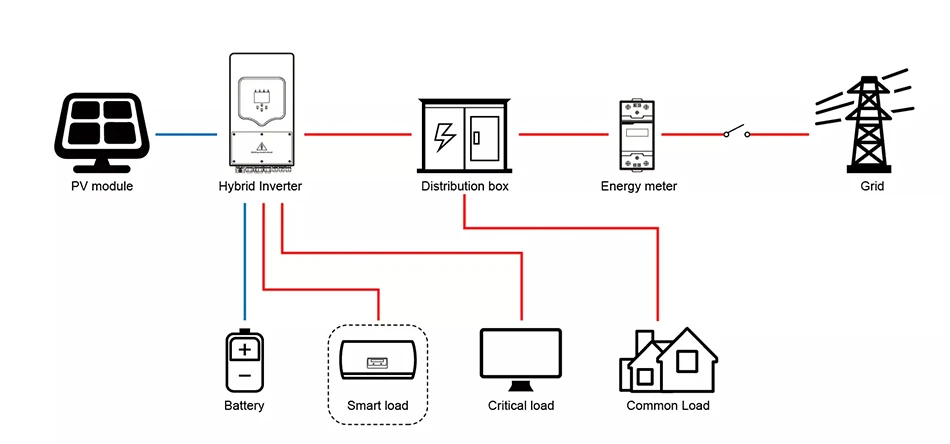

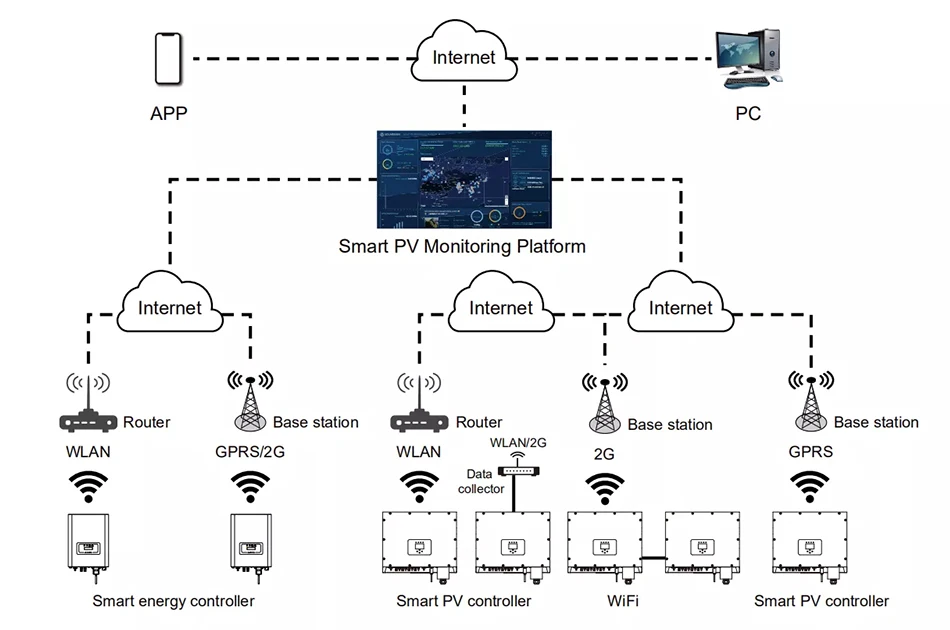

Advanced - Intelligent energy management system for home. Power dispatching and demand side response management. Distributed virtual power station management.
Reliable - Compatible anti counter flflow function. Battery reverse connect protection.
Advanced - Intelligent energy management system for home. Power dispatching and demand side response management. Distributed virtual power station management.
Technical specifications
Model | R5KLNA | R8KLNA | ||||||
Battery Input Data | ||||||||
Battery Type | Lead-acid or Li-lon | |||||||
Battery Voltage Range (V) | 48V | |||||||
Max. Charging Current (A) | 120A | 190A | ||||||
Max. Discharging Current (A) | 120A | 190A | ||||||
External Temperature Sensor | Optional | |||||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||||
PV String Input Data | ||||||||
Max. DC Input Power (W) | 7500W | 12000W | ||||||
PV Input Voltage (V) | 350V/85V-500V | |||||||
MPPT Range (V) | 120V-500V | |||||||
Single MPPT input current(A) | 12A | 12A | ||||||
No.of MPPT Trackers | 4 | |||||||
BACK-UP AC OUTPUT | ||||||||
Rated Backup output power (KVA) | 5000W | 8000W | ||||||
Max Backup output power (KVA) | 6.25kVA 60S. 7.5KVA 1S | 10kVA 60S. 12KVA 1S | ||||||
Backup AC output Voltage (V) | 120/240Vac(split phase), 208Vac(2/3 phase), 230Vac(single phase) | |||||||
AC Frenquency (Hz) | 50/60Hz | |||||||
Output THDI | <2% | |||||||
Grid Type | Current Harmonic Distortion | |||||||
Efficiency | ||||||||
Max. Efficiency | ≥98.2% | |||||||
CEC Effciency | ≥97.2% | |||||||
Protection | ||||||||
Ground protection | Yes | |||||||
AFCI protection | Yes | |||||||
Islanding protection | Yes | |||||||
DC disconnect detection | Yes | |||||||
Battery Reverse protection | Yes | |||||||
Battery charge and discharge protection | Yes | |||||||
Insulation testing | Yes | |||||||
GFCI | Yes | |||||||
DC anti-thunder | Yes | |||||||
AC anti-thunder | Yes | |||||||
Input overvoltage & under-voltage protections | Yes | |||||||
Output overvoltage & under-voltage protections | Yes | |||||||
AC & DC over-current protection | Yes | |||||||
AC short-circuit current protection | Yes | |||||||
Overheating protection | Yes | |||||||
General Data | ||||||||
Operating Temperature Range (℃ ) | -25~60℃ | |||||||
Environment humidity | 0-95% | |||||||
Altitude | 0-4000M (over 2000M derating) | |||||||
IP rank | IP65/NEMA 3R | |||||||
Weight (kg) | 32kg | |||||||
Dimension (W × H × D) | 430 × 710 × 210mm | |||||||
Cooling | Fan Cooling | |||||||
Noise (dB) | <25dB | <29dB | ||||||
Display | LCD | |||||||
Communication / Safty / EMC / On Grid | Modbus, RS485, WIFI, 4G / EN61000-6-1, EN61000-6-3, FCC 15 class B EC62109-1, IEC62109-2 / IEEE1547, RULE21, VDE 0126, AS4777, NRS2017, G98, G99 | |||||||

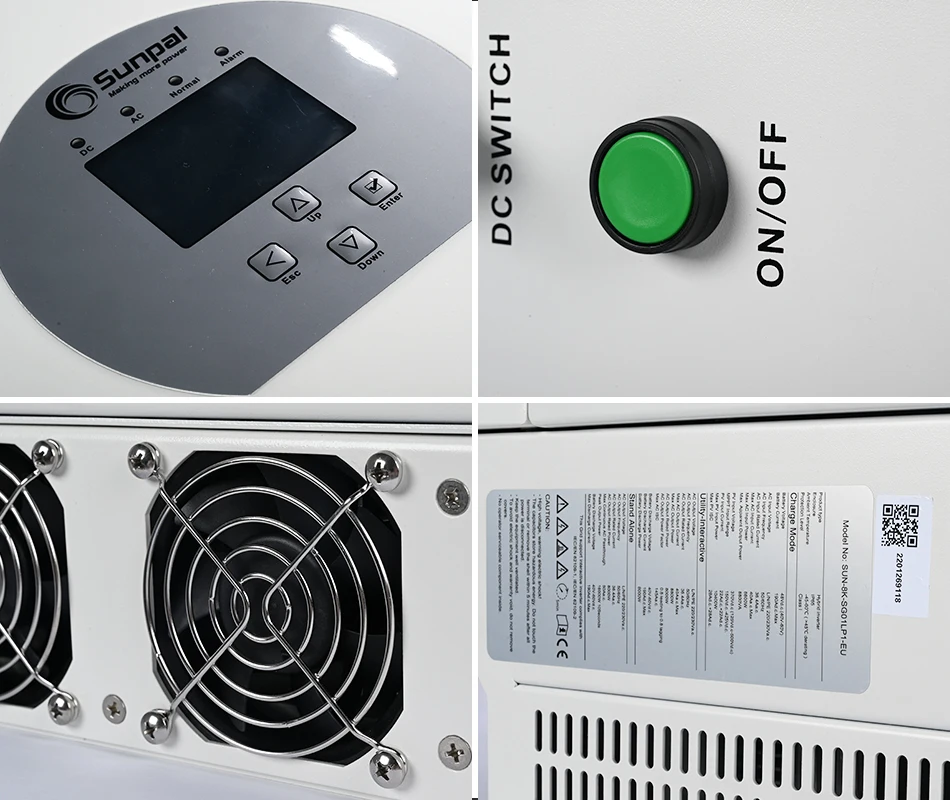

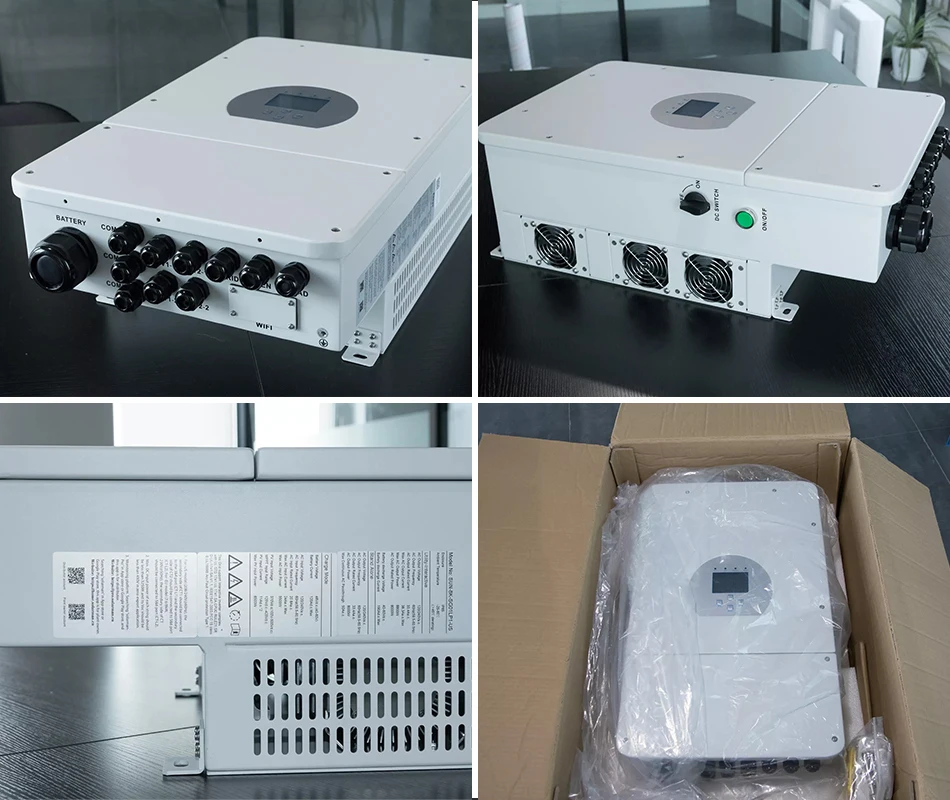

Product Details
Company Profile

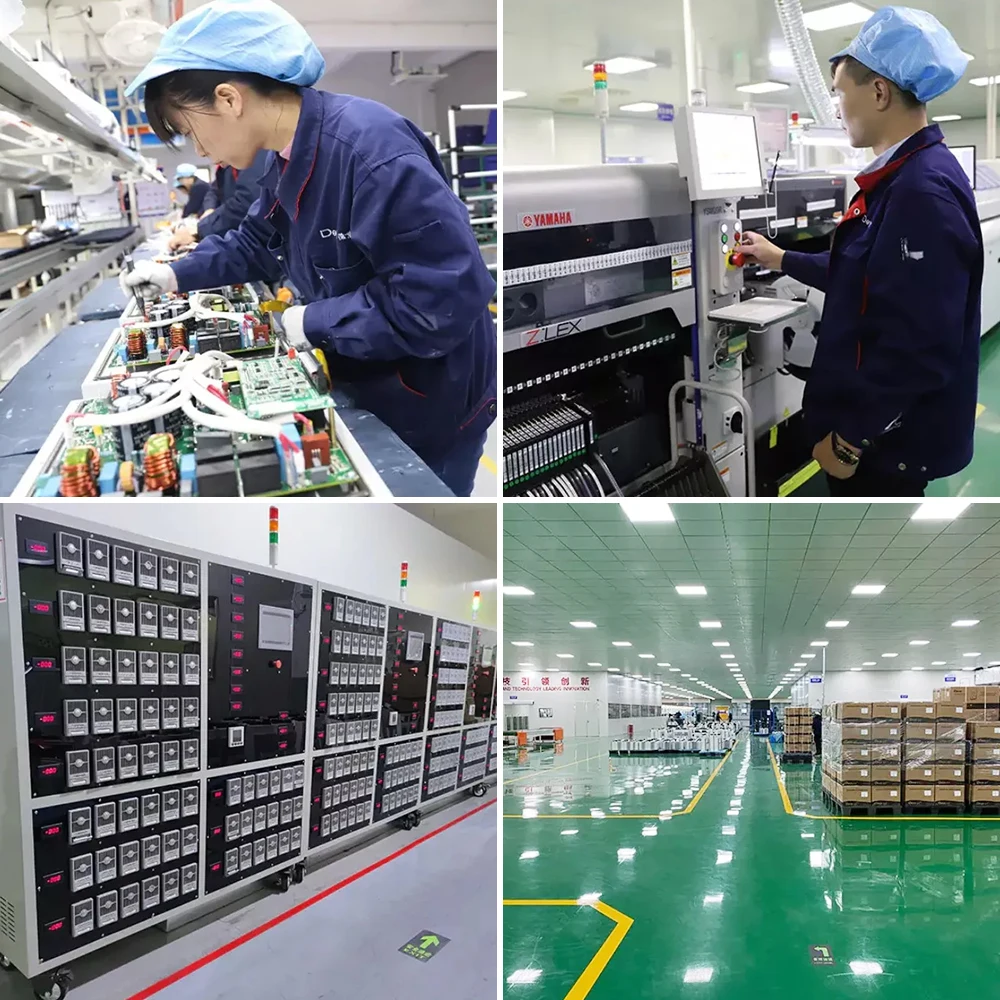

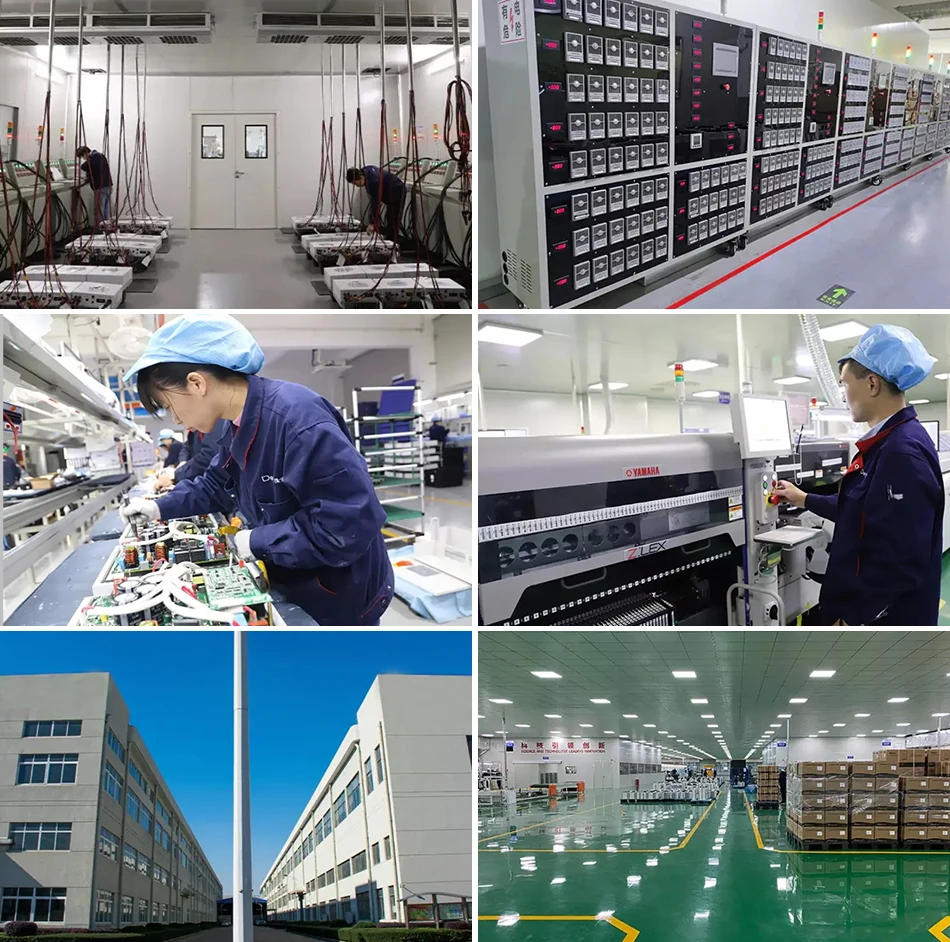

Factory Overview

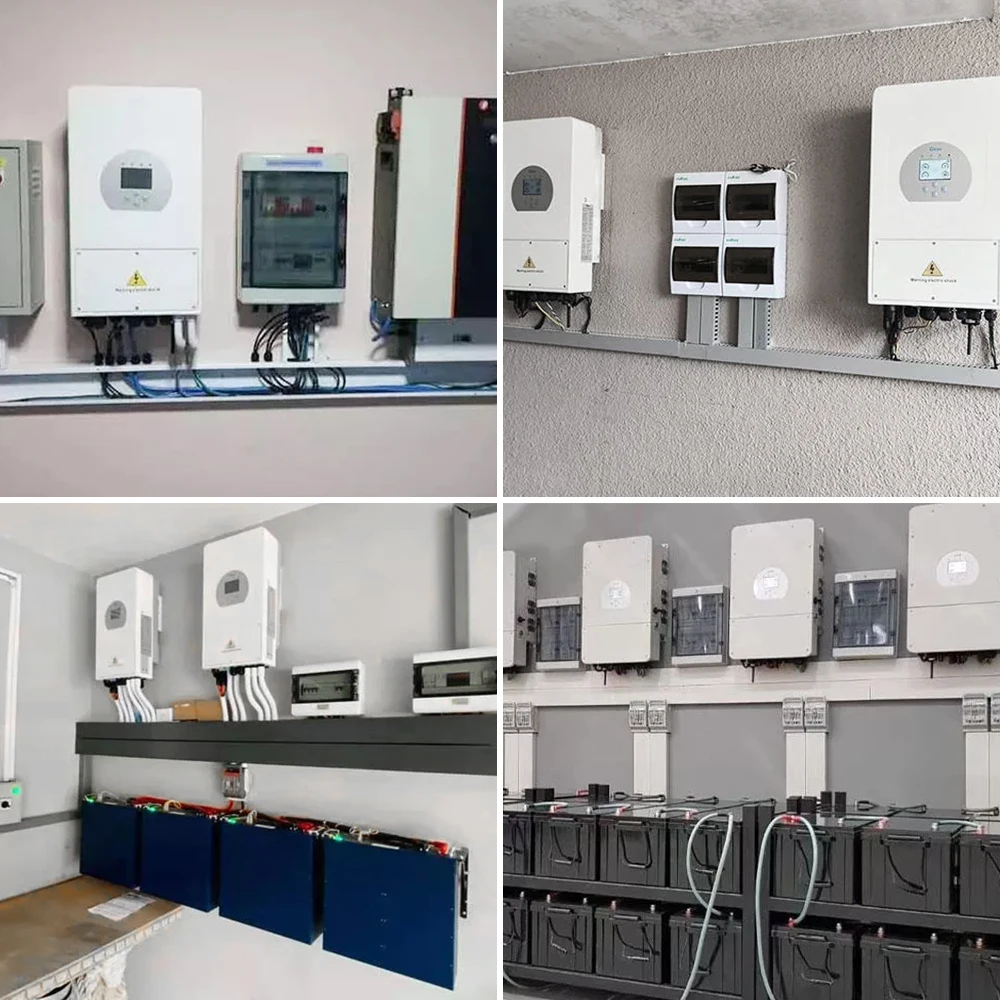

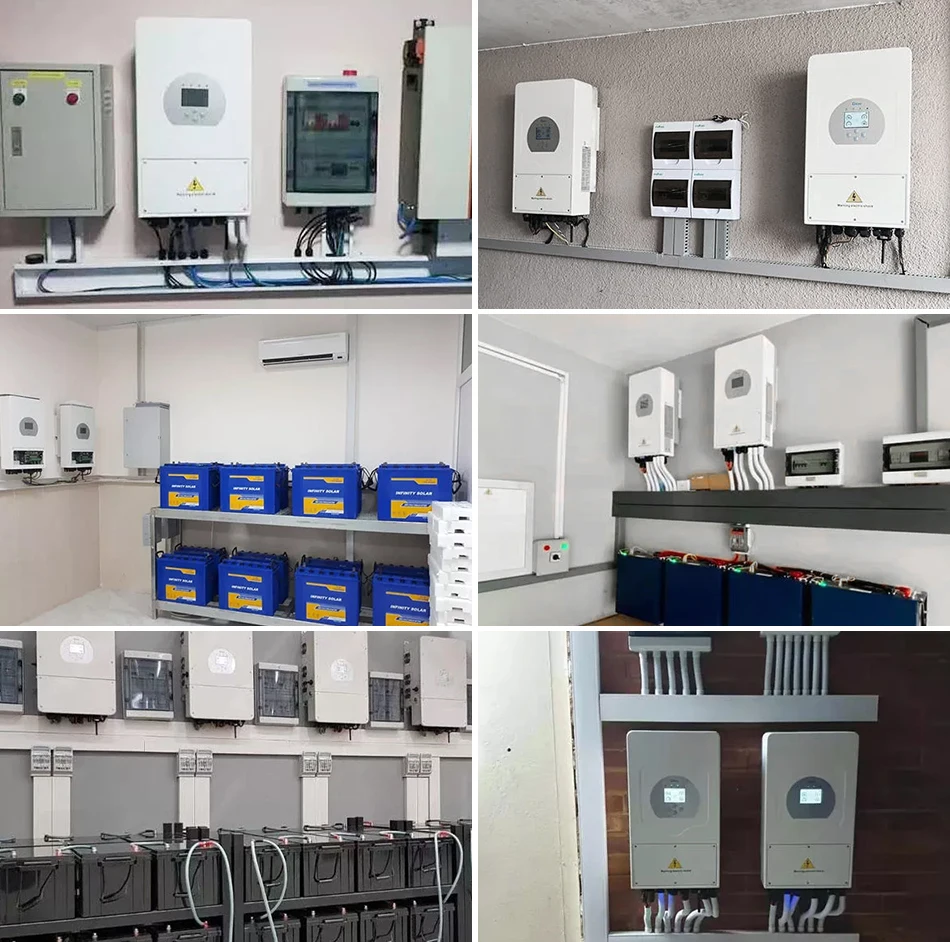

Project Case
