MINI Low Cost live Streaming RTMP HTTP H.265 HEVC 1080P WEBRTC single HD to IP Video Encoder
- Category: >>>
- Supplier: Hangzhou Dtvane Technology Co. Ltd.
Share on (1600907573379):
Product Overview
Description
Product Description

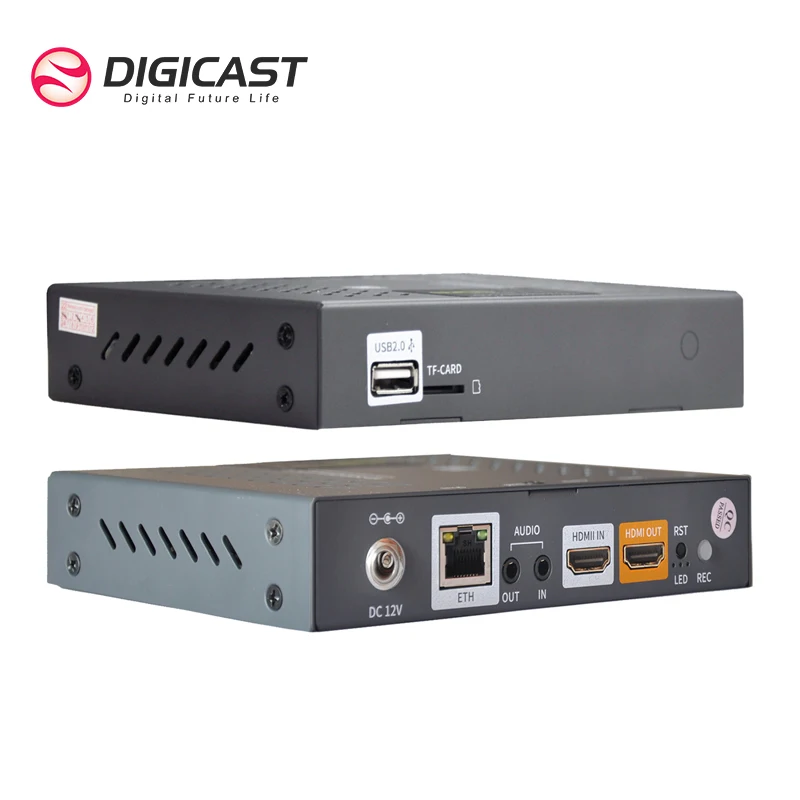

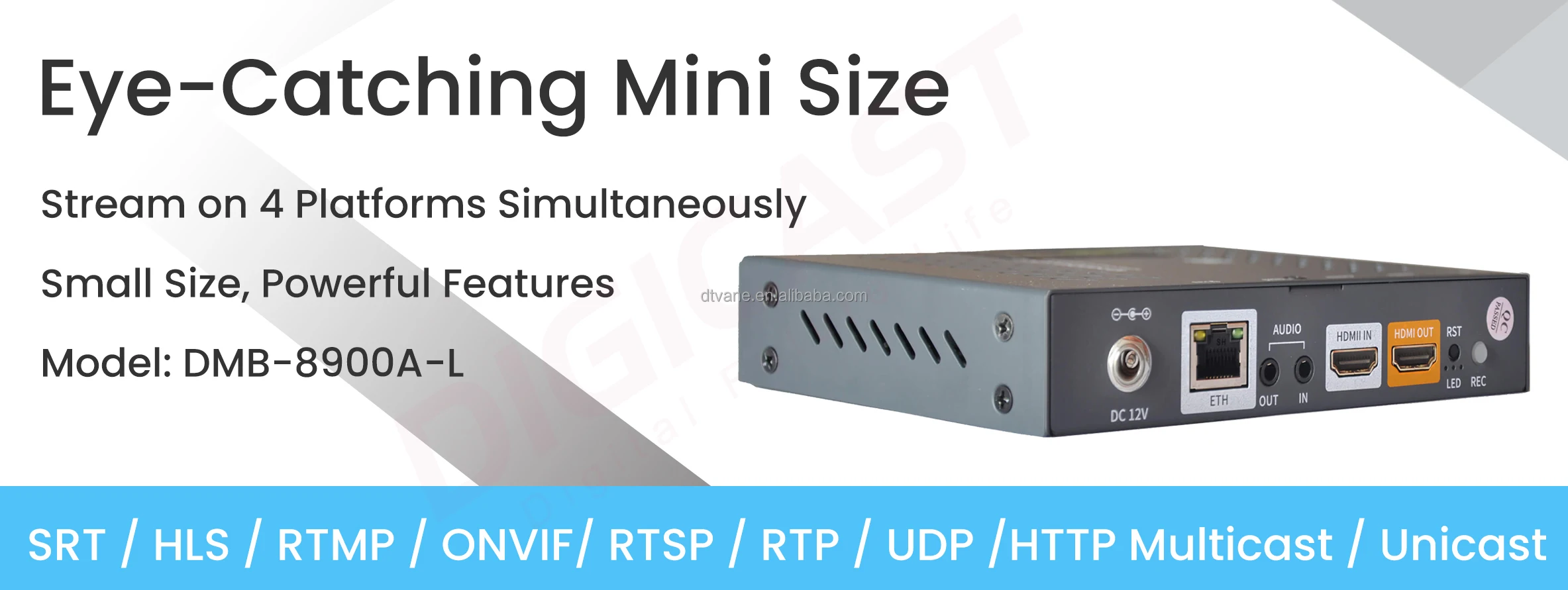

DMB-8900A-L mini ProVideo Streaming Encoder features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.265/HEVC, which realizes its resolution to be up to 1080P. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate within limited bandwidth.
DMB-8900AL is a one channel HDMI input and outputs 4 channels TS over IP in H.265/H264 format with multi-protocol, multi-resolution which can be freely adjusted according to your needs. Moreover, it provides username and password matching function required from a destination server, aiming at avoiding unauthorized streaming.

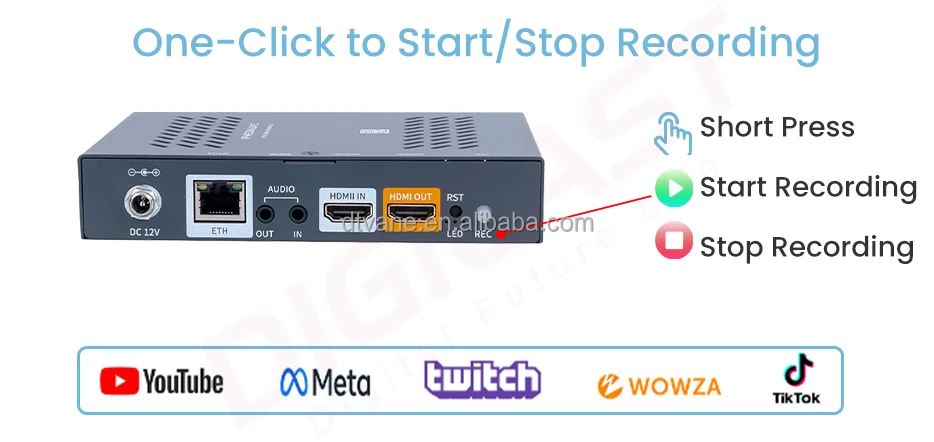

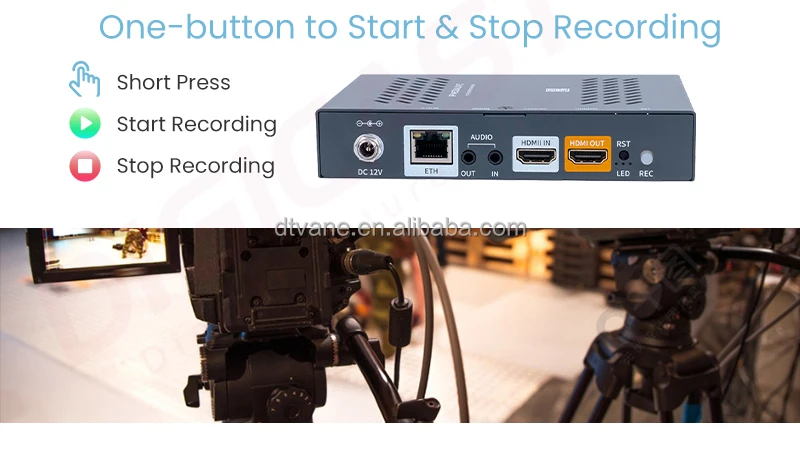

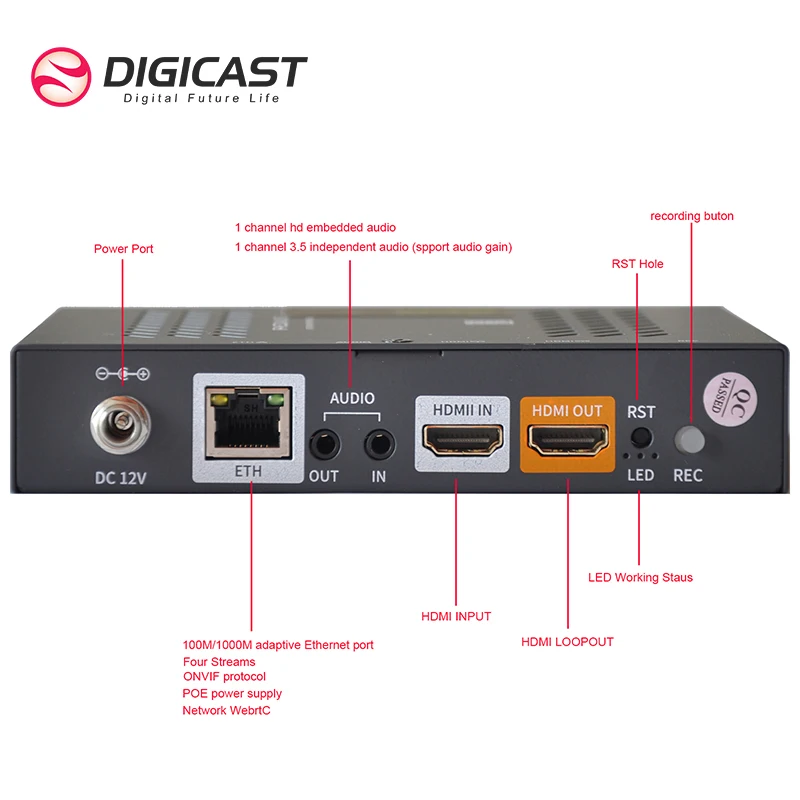

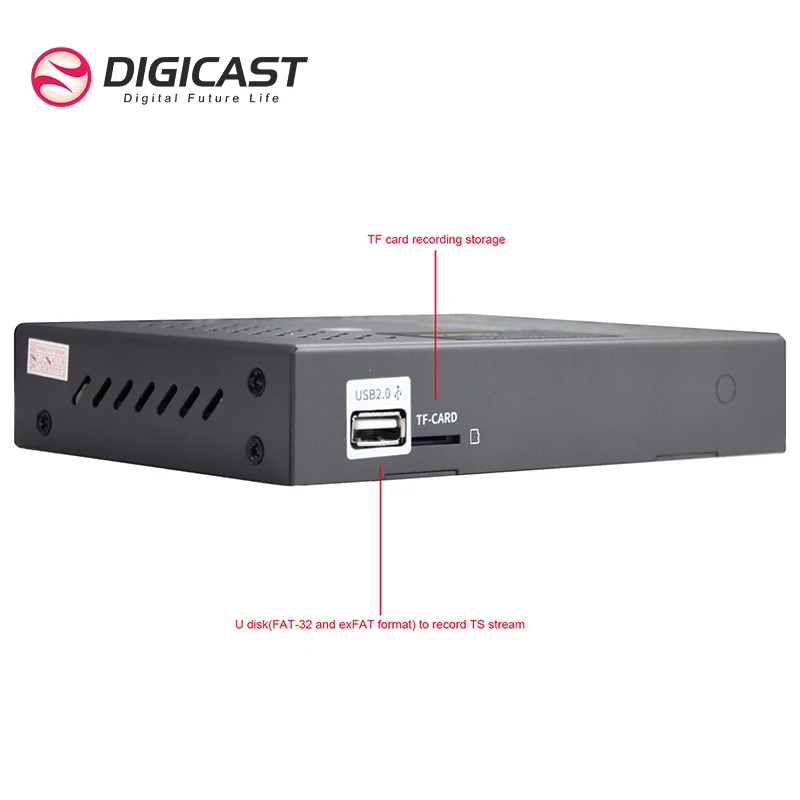

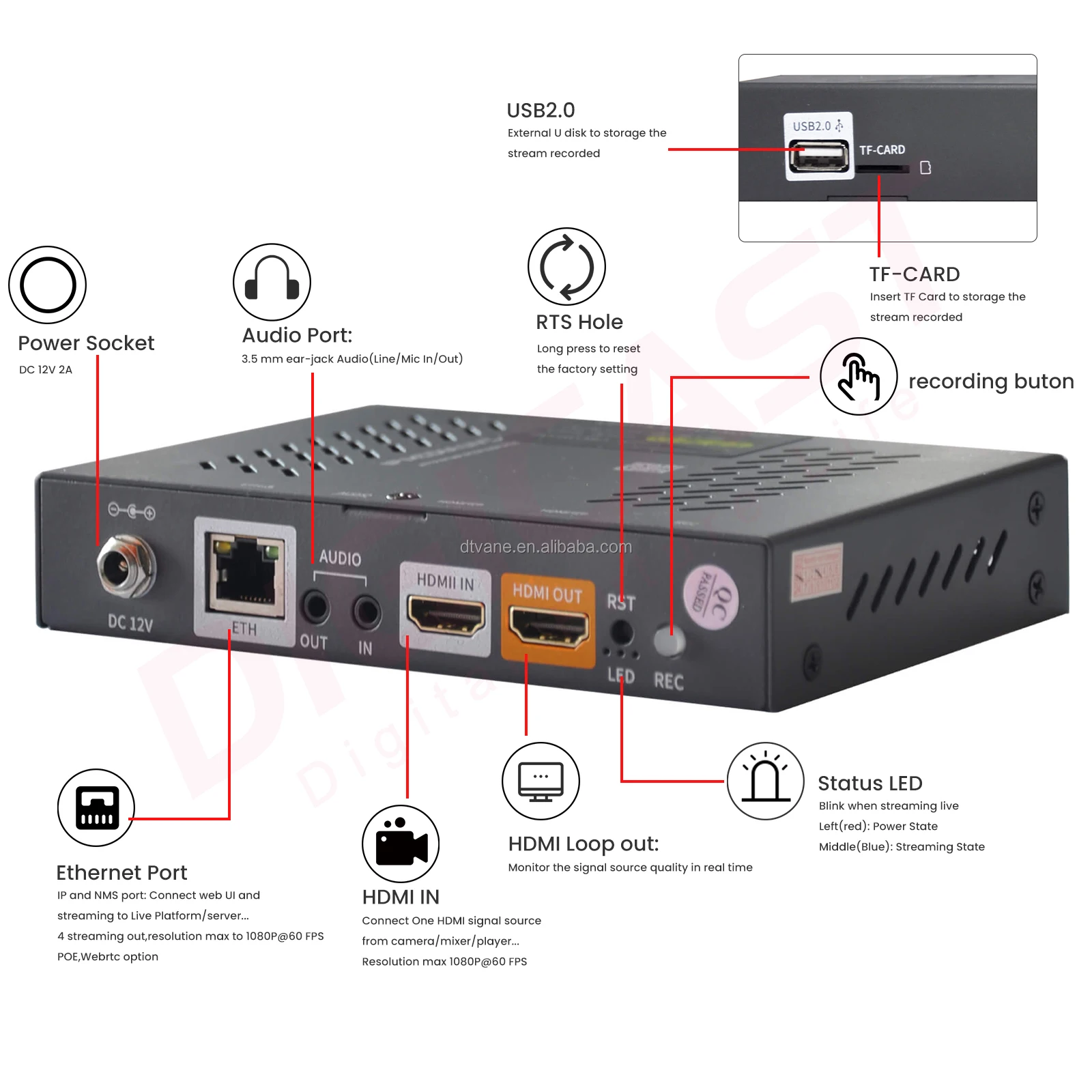

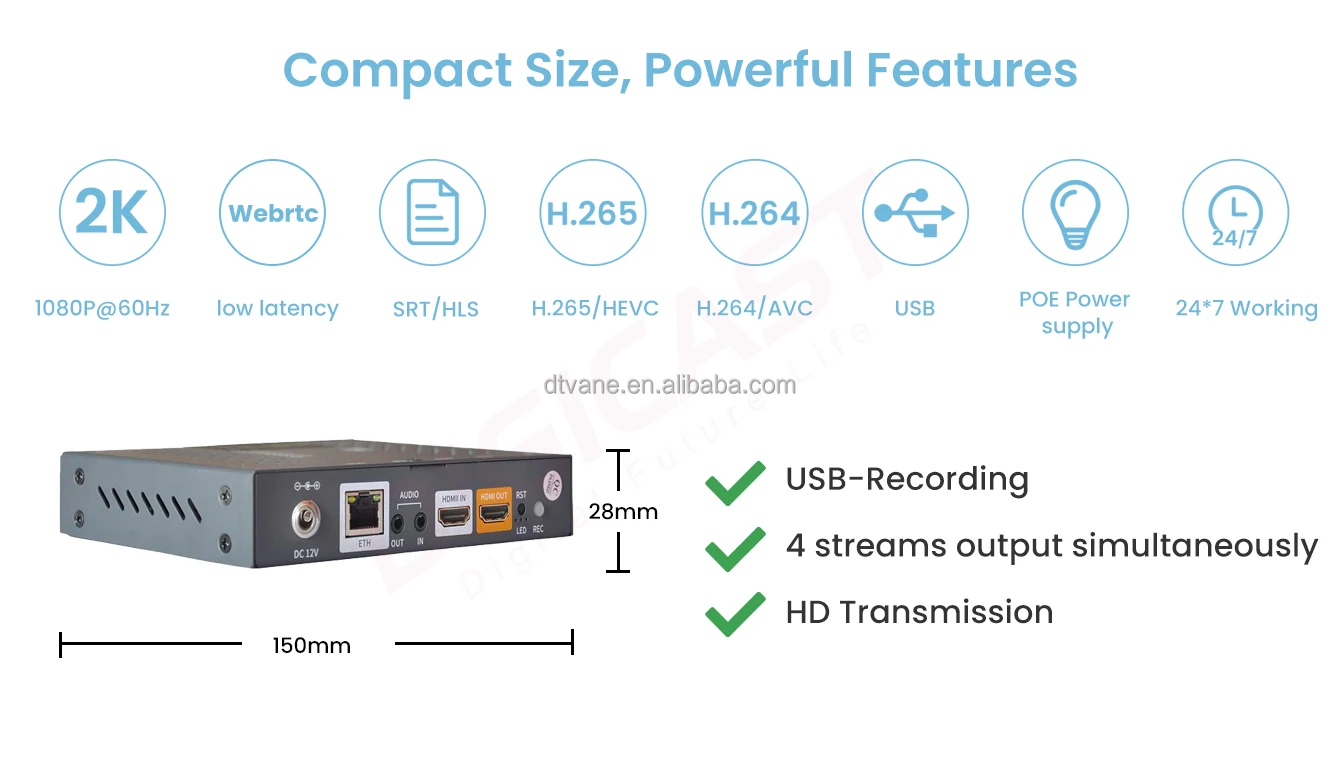

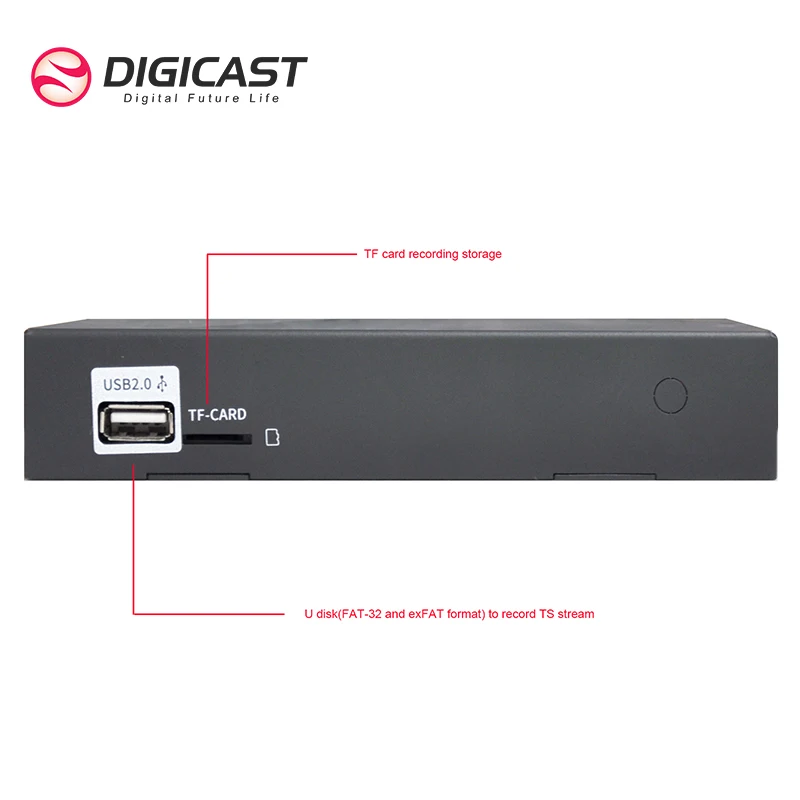

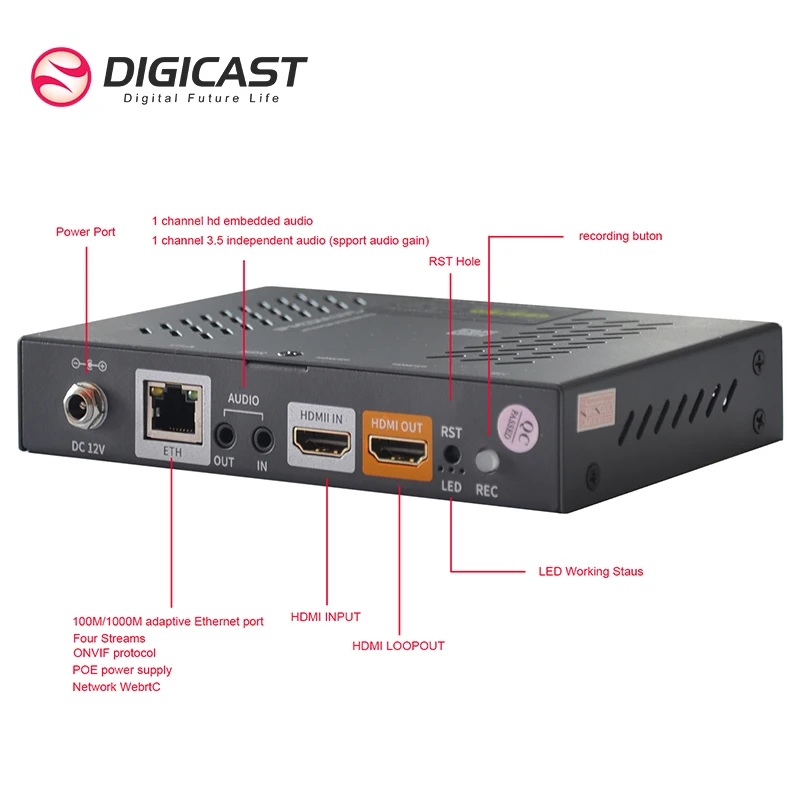

This Encoder support HDMI input HDMI Loop out, resolution max to 1080P@60 FPS , NDI,POE option, Webrtc support HTTPS play by 3 terminals over WAN with ultra low latency ! Support Recording function that storage the recorded streaming to USB external U-disk and TF card.
DMB-8900AL provides fully functional second development package, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.
FEATURES
* 1*HDMI+3.5mm audio input
* Supporting up to 2 TS over IP stream out (2 streaming out version resolution max 1080P 30 fps, 4 streaming out version price different support max 1080P@60 fps).
* Encoding level: Level 1/2/3/4/5(the higher level, the higher stream fluctuation rate)
* Switchable audio output mode: Left, right and Stereo
* Display on multi-screens from a computer is available
* Up to full HD 1080P output.
* Workable under HLS, RTSP/HTTP/UDP, RTMP unicast and multicast(Username and password verification allowed
* Supporting up to 2 TS over IP stream out (2 streaming out version resolution max 1080P 30 fps, 4 streaming out version price different support max 1080P@60 fps).
* Encoding level: Level 1/2/3/4/5(the higher level, the higher stream fluctuation rate)
* Switchable audio output mode: Left, right and Stereo
* Display on multi-screens from a computer is available
* Up to full HD 1080P output.
* Workable under HLS, RTSP/HTTP/UDP, RTMP unicast and multicast(Username and password verification allowed
under RTMP)
* Support ONVIF network video protocol
* Multi-protocol, multi-resolution and multi-bitrate are configurable
* Any iOS device browser (iPhone, iPad, MacBook etc) is able to have streams from IPTV Streaming Encoder Anytime,
* Multi-protocol, multi-resolution and multi-bitrate are configurable
* Any iOS device browser (iPhone, iPad, MacBook etc) is able to have streams from IPTV Streaming Encoder Anytime,
Anywhere by HLS protocol without installing any software players
* Any terminal device/decoder is able to have streams from IPTV Streaming Encoder directly by RTMP protocol with
* Any terminal device/decoder is able to have streams from IPTV Streaming Encoder directly by RTMP protocol with
software players(such as VLC)
* Audio encoded bit-rate: 48kbps/64kbps /96kbps/128kbps/160kbps/192kbps /256kbps
* Bit-rate mode CBR/VBR,16Kbps~12Mbps
* Video packing: FFMPEG/VLC
* Transport method: TCP,UDP,1000M (RJ45 duplex interface)
* Web-based management easy for configuration.
* Scrollable English OSD ,picture overlay and logos are supported so that letters and symbols can be displayed anywhere
* Audio encoded bit-rate: 48kbps/64kbps /96kbps/128kbps/160kbps/192kbps /256kbps
* Bit-rate mode CBR/VBR,16Kbps~12Mbps
* Video packing: FFMPEG/VLC
* Transport method: TCP,UDP,1000M (RJ45 duplex interface)
* Web-based management easy for configuration.
* Scrollable English OSD ,picture overlay and logos are supported so that letters and symbols can be displayed anywhere
in the screen
* Allowing DHCP to automatically obtain IP, offering one key recovery & upgrading and remote maintenance.
* Image setup: contrast, brightness, hue, saturation, noise inspection, sharpness, wave filtering
* Audio: embedded or line in; left & right; built-in audio gain for independent volume adjustability
* Able to encode with absence of video signal
* The setting comes into effect once finished while reboot is unnecessary
* Default configuration can be done by one key recovery
* WINDOWS XP/VISTA/SERVER 2003/SERVER 2008/WIN7 32 and WIN7 64, LINUX are supported
* Allowing DHCP to automatically obtain IP, offering one key recovery & upgrading and remote maintenance.
* Image setup: contrast, brightness, hue, saturation, noise inspection, sharpness, wave filtering
* Audio: embedded or line in; left & right; built-in audio gain for independent volume adjustability
* Able to encode with absence of video signal
* The setting comes into effect once finished while reboot is unnecessary
* Default configuration can be done by one key recovery
* WINDOWS XP/VISTA/SERVER 2003/SERVER 2008/WIN7 32 and WIN7 64, LINUX are supported
Top Selling
Why Choose Us
Delivery & Payment
FAQ
1.What the difference between H.264 and H.265 encoder format?
Mostly, it depends on the Server you use. If your terminal decoding could support H.265 decoding, we recoomend you the one by H.265. Because compared to the H.264, H.265 encoder format able to transfer more programs in limited bandwidth.
2.Can this support HLS protocol?
Yes, it’s compatible with HLS(M3U8), HTTP/UDP/RTSP, RTMP, ONVIF, RTMP protocols.
3.Which input do you have?
It depends on the products. For this economic series, we have HD interface, SDI input only.
4. Can this stream to the Facebook, YouTube and so on. Is that compatible with the OBS Streaming Software?

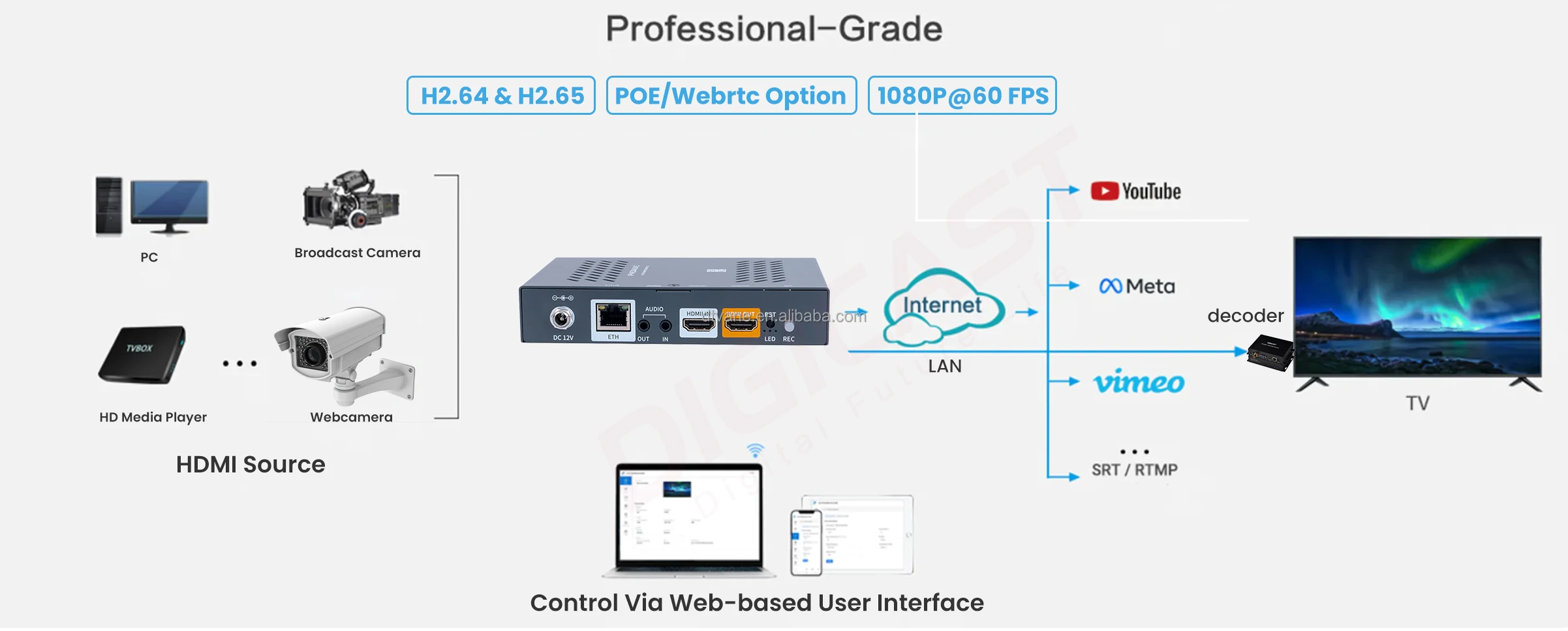

Yes. our encoder could stream to the Facebook, YouTube, Twitch etc. And the OBS software uses RTMP protocol, so this encoder could compatible with the OBS.
5. How and where can I set up the device? Is by software?
You could set up the encoder by Web-management. It's very easy for operation. You can add a logo and subtitle. We also will send a User Manual with encoder. And our technical will to be of help.
6. How is the delay?
The delay of this device is about 200 ms. If you find the delay is more than that, could be caused by the internet or decoder.
7.I am a Cameraman, Which device is better for me?
If you need move the camera often, and will use it in the outdoor, we recommend you the one with WIFI, Battery and 4G/3G function. It’s super suitable for the Mobile Live Streaming Event, is that DMB-8900N Ultra. Please note, the WIFI and Battery function is banded, can’t be separated.
8.I never use this device before/I don’t know if the device suit our local market, Can I get a sample for test firstly.
Yes, even if we are doing wholesale business, We could fully understand the further cooperation is based on time and the goods’ quality. So one set of sample is totally welcomed.
9.How long will I receive my product?
All our products are in stock. It will take about 3-7 work days after we get the payment. Because before shipping, we need to all test the device.
10. Still don't a suitable product and solve your problem? Contact us now!!
E-mail: Stephanie@digicast.cn;
Skype/WeChat/WhatsApp:+86 15394250136
Mostly, it depends on the Server you use. If your terminal decoding could support H.265 decoding, we recoomend you the one by H.265. Because compared to the H.264, H.265 encoder format able to transfer more programs in limited bandwidth.
2.Can this support HLS protocol?
Yes, it’s compatible with HLS(M3U8), HTTP/UDP/RTSP, RTMP, ONVIF, RTMP protocols.
3.Which input do you have?
It depends on the products. For this economic series, we have HD interface, SDI input only.
4. Can this stream to the Facebook, YouTube and so on. Is that compatible with the OBS Streaming Software?
Yes. our encoder could stream to the Facebook, YouTube, Twitch etc. And the OBS software uses RTMP protocol, so this encoder could compatible with the OBS.
5. How and where can I set up the device? Is by software?
You could set up the encoder by Web-management. It's very easy for operation. You can add a logo and subtitle. We also will send a User Manual with encoder. And our technical will to be of help.
6. How is the delay?
The delay of this device is about 200 ms. If you find the delay is more than that, could be caused by the internet or decoder.
7.I am a Cameraman, Which device is better for me?
If you need move the camera often, and will use it in the outdoor, we recommend you the one with WIFI, Battery and 4G/3G function. It’s super suitable for the Mobile Live Streaming Event, is that DMB-8900N Ultra. Please note, the WIFI and Battery function is banded, can’t be separated.
8.I never use this device before/I don’t know if the device suit our local market, Can I get a sample for test firstly.
Yes, even if we are doing wholesale business, We could fully understand the further cooperation is based on time and the goods’ quality. So one set of sample is totally welcomed.
9.How long will I receive my product?
All our products are in stock. It will take about 3-7 work days after we get the payment. Because before shipping, we need to all test the device.
10. Still don't a suitable product and solve your problem? Contact us now!!
E-mail: Stephanie@digicast.cn;
Skype/WeChat/WhatsApp:+86 15394250136
