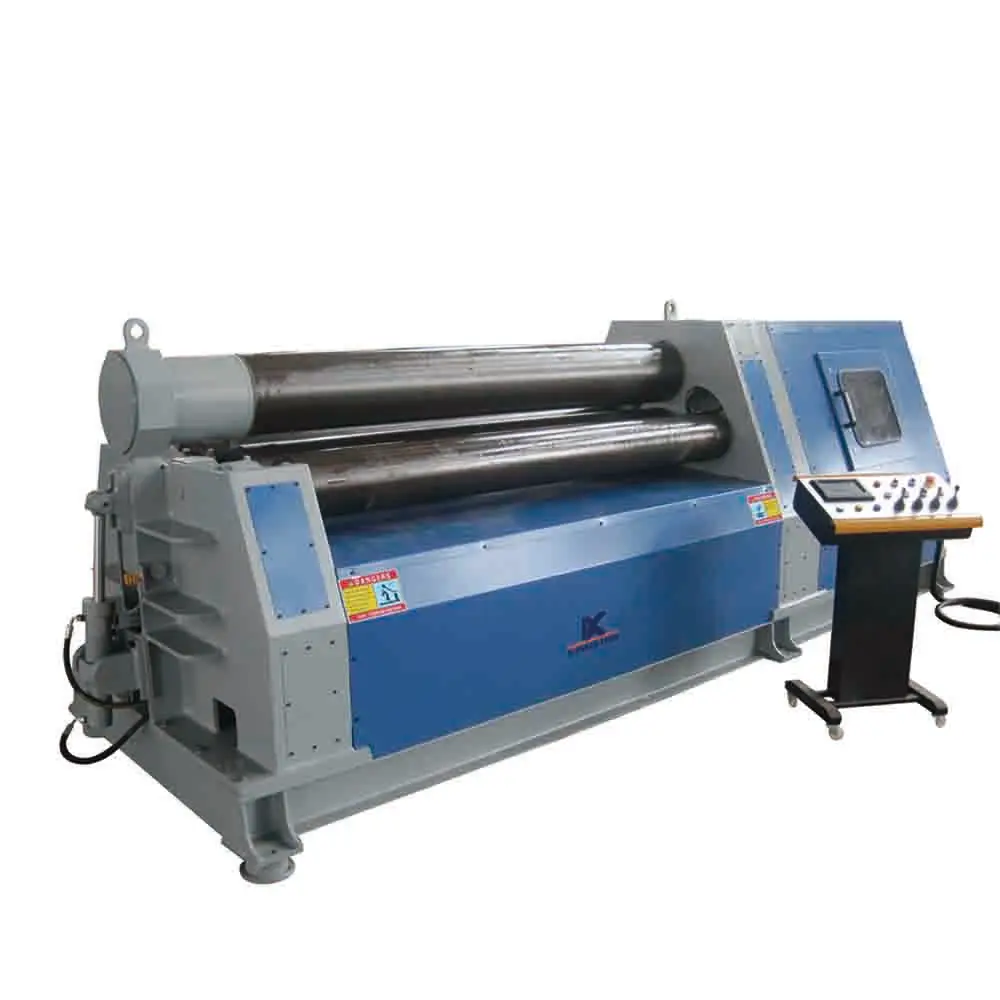

CNC full hydraulic 4 roller sheet roller machine W12 100*3000

Product Overview

Description

CNC full hydraulic 4 roller sheet roller machine W12-100*3000

I.                Main Function

The machine belongs to hydraulic 4-rollers rolling machine, be used to roll plate sheet into cylinder shape.

Up roller is fixed, the bottom roller and two side roller can move up and down

The up and bottom roller are main driving roller, the two side roller are assistant rollers.

The up and bottom rollers are used to pre-bend the plate sheet. Upward and downward the side rollers are forming the shape

II.             Main Technical Parameters



III.           Main Part

No.	Main Machine part	Technical Requirement
1	Top Roller Device	Material	42CrMo
		Techniques	forging piece go through rough machining then quenching and tempering treatment at HB260~300
			finish turning then medium frequency quenching of surface at  HRC48~52
2	Bottom Roller Device	Material	42CrMo
		Techniques	forging piece go through rough machining then quenching and tempering treatment at HB260~280
			finish turning then medium frequency quenching of surface at HRC48~52
3	Side Roller Device	Material	42CrMo
		Techniques	forging piece go through rough machining then quenching and tempering treatment at HB260~280
			finish turning then medium frequency quenching of surface at HRC48~52
4	Side Frame and  Chassis	Material	Q235 steel
		Techniques	Fixed and tipping side frame and chassis are welding pieces of steel plate.
			1. welding 2. anneal and vibration 3. the stress shall be eliminated
5	Drive Device	Motor	From china famous supplier
		Reducer	From china famous supplier
6	Hydraulic System	hydraulic valve	Japan Yuken
		sealing element	From china famous supplier
		Oil Cylinder	From china famous supplier
7	Tipping Device	Function	Get bended work piece
8	Control System	Low Voltage Apparatus	SIEMENS GERMAN
		PLC	OMRON JAPAN
		Touch Screen	Wuxi Weite
		Control Console	From china famous supplier
		Control program	From china famous supplier
9	Bearing	Double-row Self-aligning Roller Bearing	From china famous supplier
10	Encoder		From china famous supplier



IV. Remark (advantage of the machine):

1. The Bending Machine maximum capacity maximum the thickness (pre-bending thickness), the maximum coil width, rolled sheet material and maximum specifications four main parameters determining the minimum roll diameter work four parameters variable mutual conversion between aircraft conversion relationship in the random manual provided to the user, for the user to more reasonable use of equipment.

2. The aircraft can be rolled tapered workpiece. Coiled conical workpiece, since the single-end by a larger force, thus requiring the tapered workpiece rolled for 60% of the device capability. Rolled conical taper of the workpiece is generally not more than 30 °. But with plate slab width decreases, the equipment load is reduced, taper increase accordingly.

V. Structure features

1. Structure Description

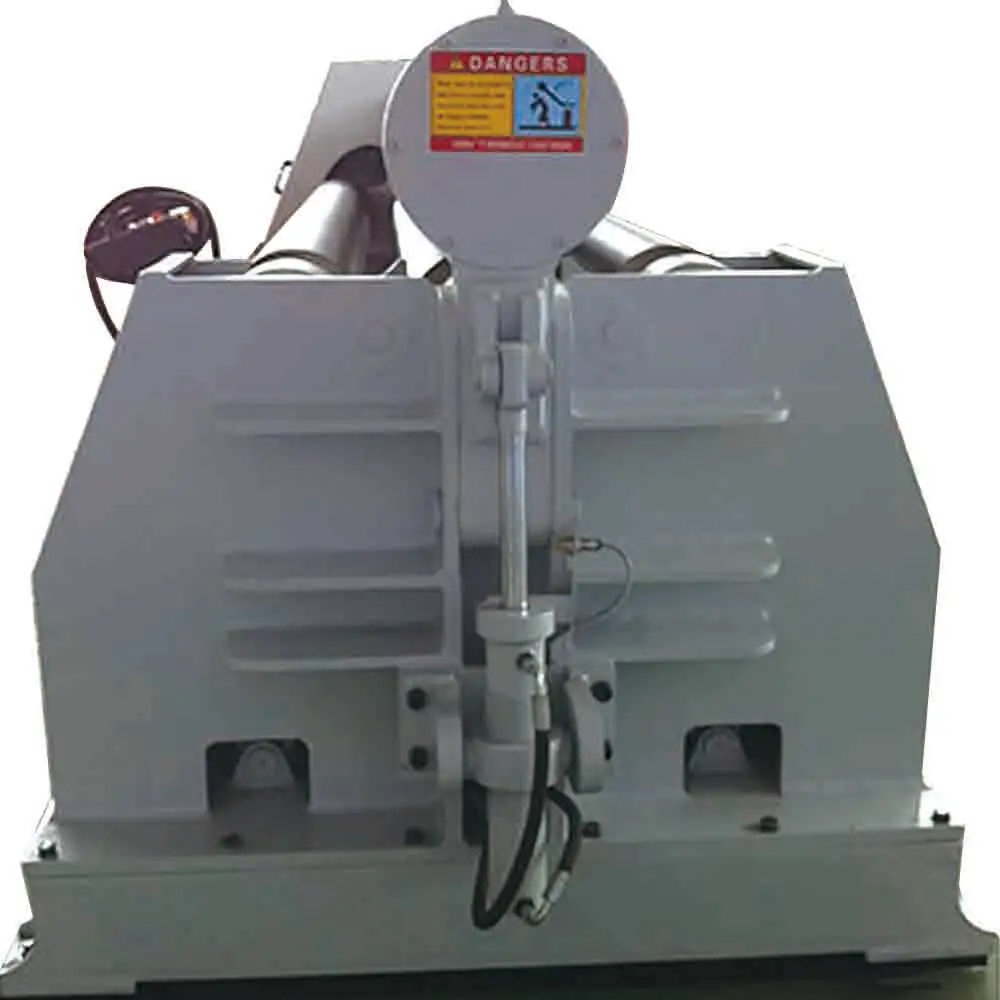

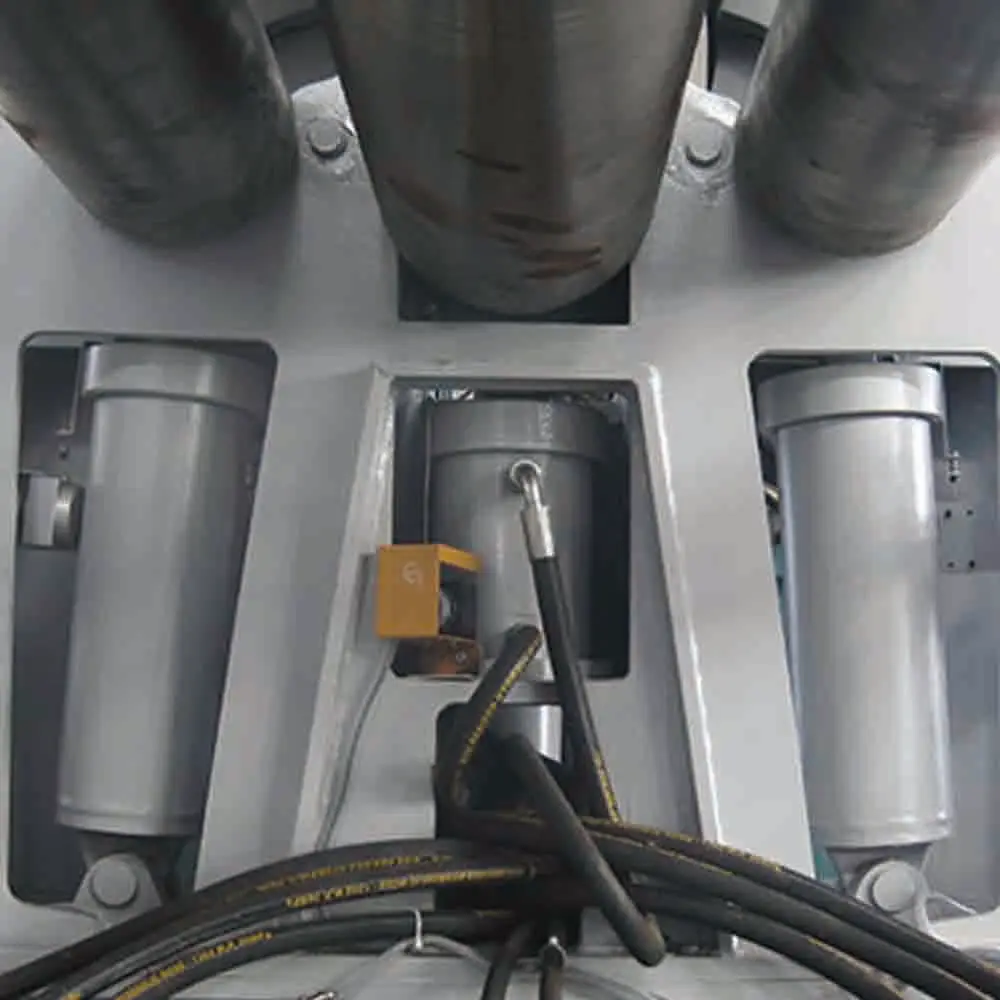

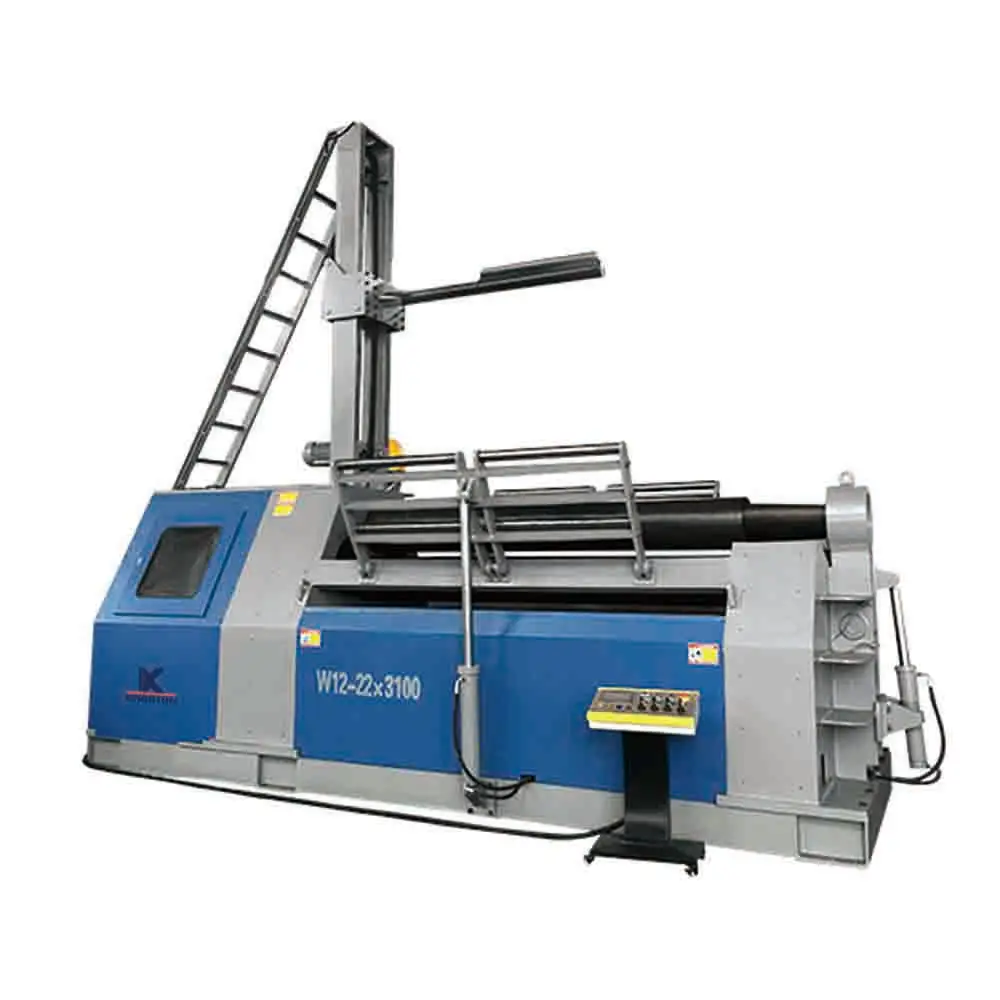

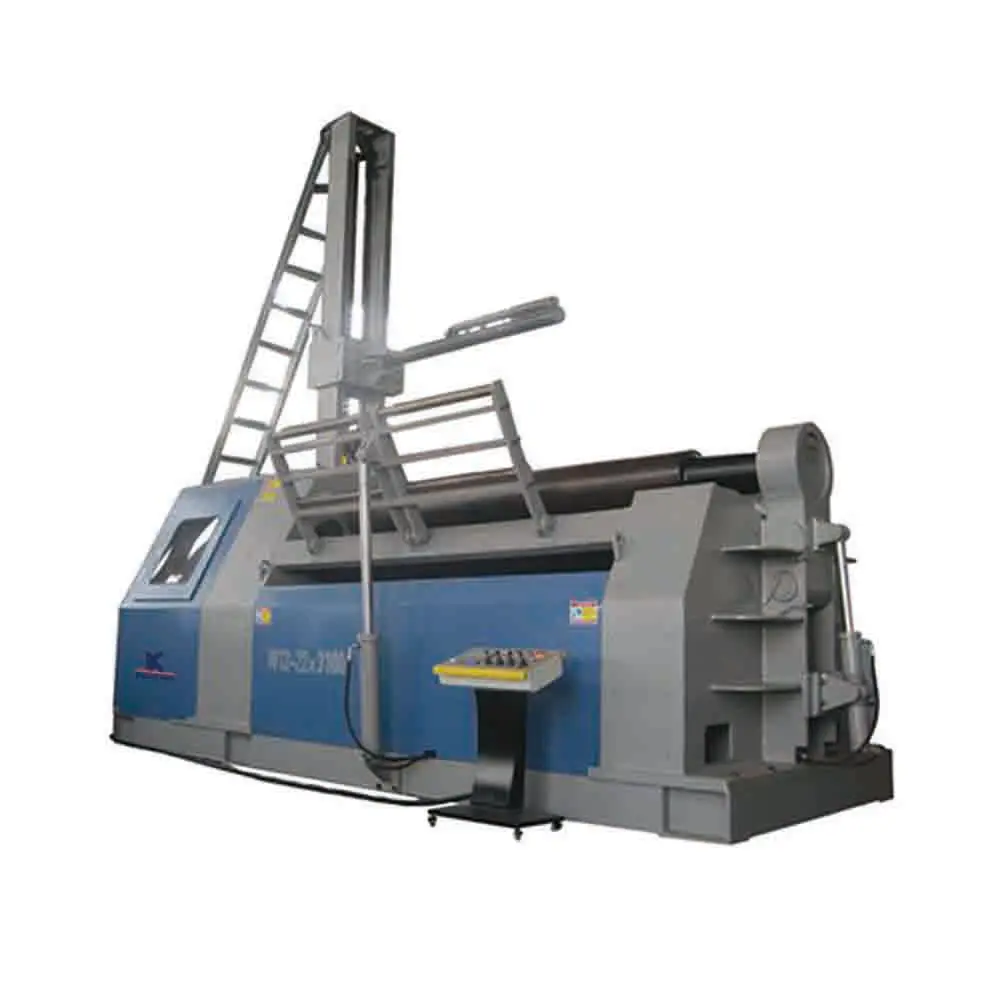

This machine is four- roller bending machine, the upper and lower roller are guide roller, and side one is the driven roller, the upper roller position fixed, lower roller and side roller can be lifting movement. Upper and lower roller drive in hydraulic transmission, side roller rotation which depends on friction between the steel plate and respective rollers ,the lower roller and side roller are lifting moved by its both ends parallel oil cylinder and it makes the upper roller flip support turnover, reset. The roller bearing body and oil cylinder are packed in left and right of the machine frame.

Compare with three- roller bending machine, the four- roller bending machine which can bend plate end directly without the help of other equipment mould, and residual straight edge is lesser, and compare with asymmetric three- roller bending machine it can roll into the work piece not make plate head back, and this not only improve the efficiency, ensure the quality of the work piece, but also process simple, easy to operate.

2 .Machine Frames:

The machine frame which weld by the Q235 steel plate overall structure, weld joint through strict inspection, post-weld heat aging annealing treatment, eliminate internal stress. The rack is the major force component of the machine designed with sufficient strength and rigidity while according to your company’s process characteristics made further strengthening to ensure roll bending needs . The machine frame welded by CNC machining to ensure its accuracy.

Rack process : steel shot blasting processing →CNC cutting blanking →each plate parts groove processing → welding → overall annealing → CNC bore processing .
