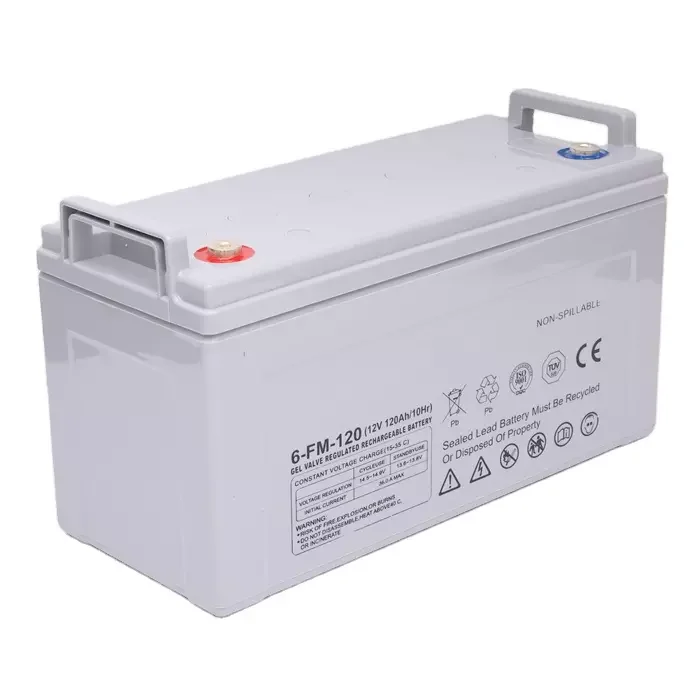

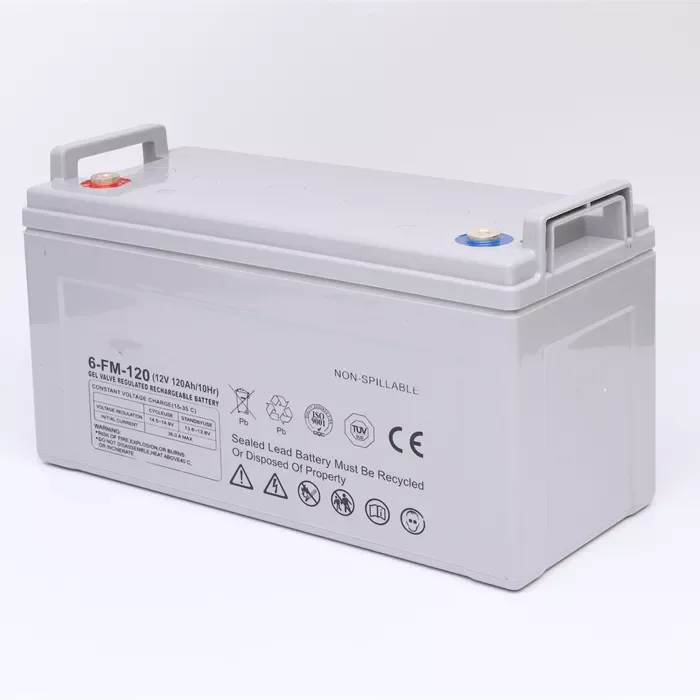

best selling deep cycle 12v 120ah off grid solar and battery system
- Category: >>>
- Supplier: Guangzhou Jalon Power Co. Ltd.
Share on (1600907812333):
Product Overview
Description
Recommend Products

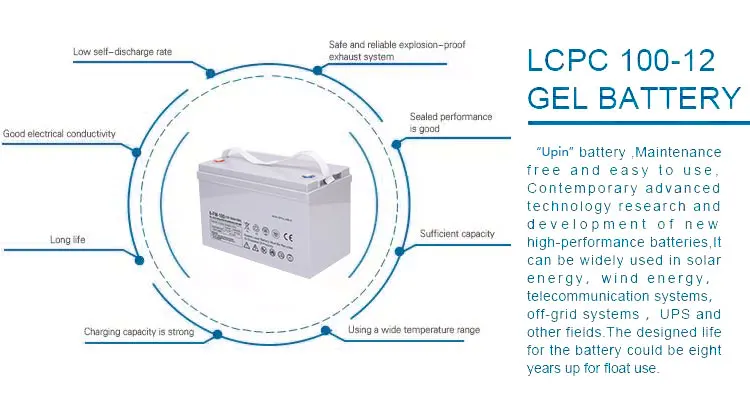

Product Description
Solar energy power systems storage: Sealed lead acid battery Lithium battery |
Specification
Model | 6-GFM(G)-100Ah | 6-GFM(G)-150Ah | 6-GFM(G)-200Ah | 6-GFM(G)-250Ah |
Weight | 29 KG | 42 KG | 58.5 KG | 67 KG |
Cells Per Unit | 6 | |||
Voltage Per Unit | 12V | |||
Capacity | 100Ah@10hr-rate to 1.80V per cell @25°C | 150Ah@10hr-rate to 1.80V per cell @25°C | 200Ah@10hr-rate to 1.80V per cell @25°C | 250Ah@10hr-rate to 1.80V per cell @25°C |
Internal Resistance | Approx. 6mΩ | Approx. 4mΩ | Approx. 3.5mΩ | Approx. 2mΩ |
Terminal | F1/F2 | |||
Design Life | 10~15 years | |||
Maximum Charging Current | 25A | 37.5A | 50A | 62.5A |
| Float Charging Voltage | 13.6 V~13.8 V @ 25°C Temperature Compensation: -20mV/°C/Cell | |||
Cycle Use Voltage | 14.4 V~14.9 V @ 25°C Cycle Use Voltage Temperature Compensation: -30mV/°C/Cell | |||
Operating Temperature Range | Discharge: -20°C~60°C Charge: 0°C~50°C Storage: -20°C~60°C | |||

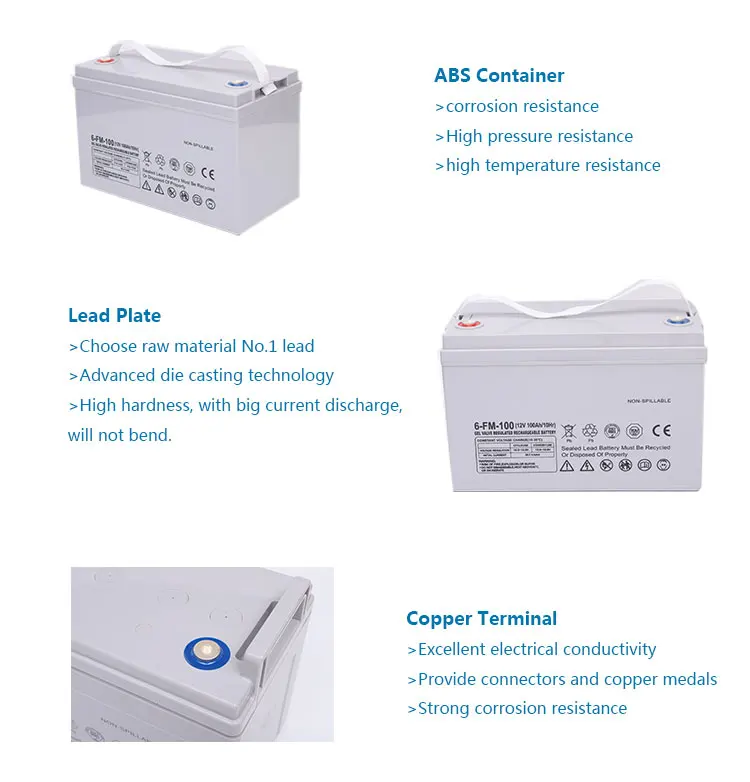

Container Material | A.B.S. UL94-HB, UL94-V0 Optional. | |||
Max. Discharge Current | 1500A(5s) | 1500A(5s) | 3000A(5s) | 3000A(5s) |

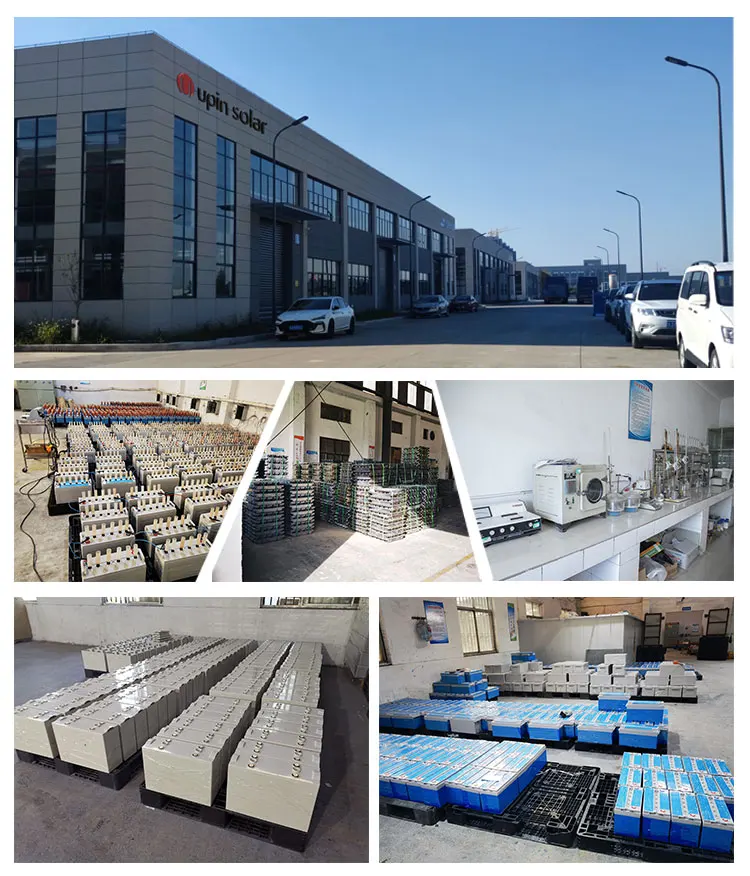

Company Profile

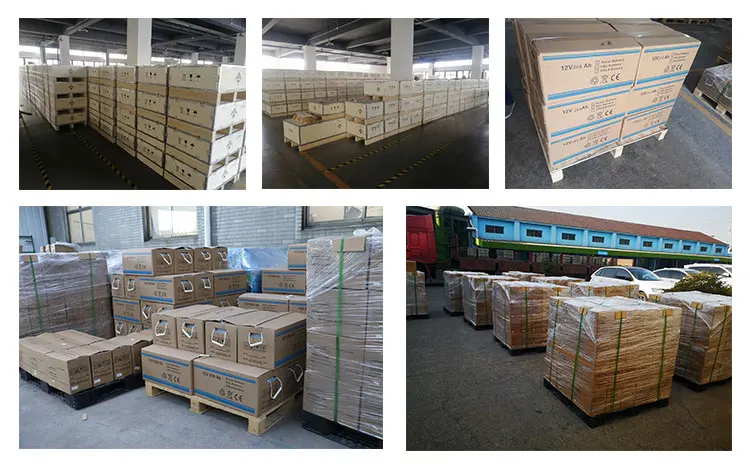

Packing & Delivery

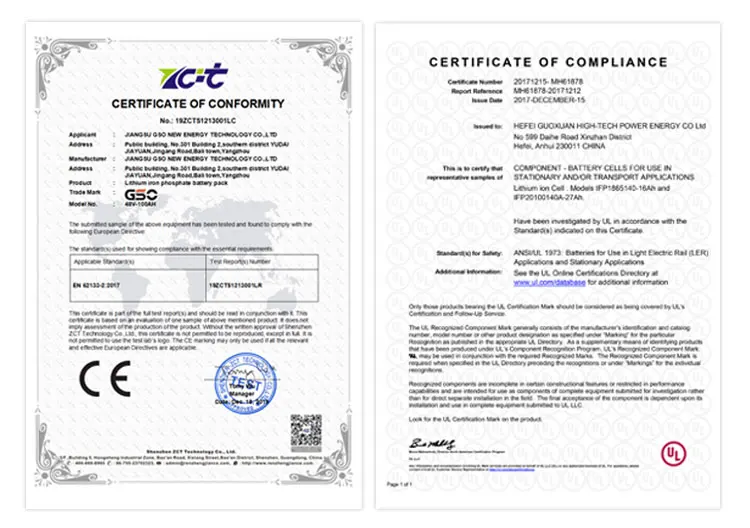

Certifications
Exhibition
FAQ
A: What are your main products? We mainly manufacture solar systems, solar panels, inverters, controllers, batteries and mounting systems and all related solar accessories. B: Are you a factory or a trading company? We are a factory with more than ten years of experience in the production of solar energy series products. You are welcome to visit our factory. C: Can you print our company logo on the nameplate and packaging? Yes, we can do it according to your design. D: Can you support OEM and field installation? Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, full support and assistance services. E: How does your factory conduct quality control? Quality first. We have a professional QC team to strictly control the quality. Only when the quality meets the requirements, will it be packaged out of the factory. F: What are your strengths in solar systems? Fully automatic production line using international advanced production equipment such as Japan and Germany. |
