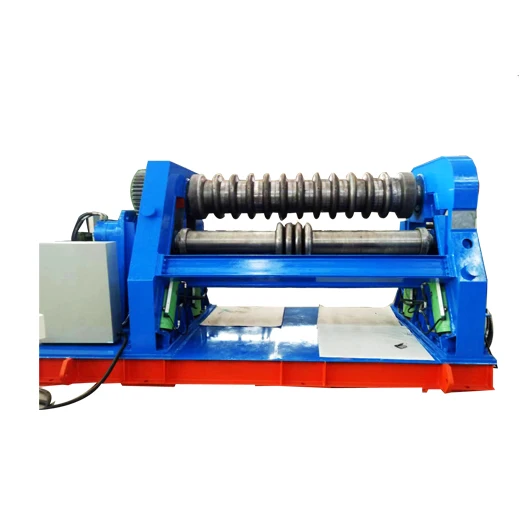

metal forging equipment corrugated furnace roll machine with four roller W12NC 10 2200
- Category: >>>
- Supplier: Qinyang Juli Forming Machine Tools Manufacture Co. Ltd.
Share on (1600907845680):
Product Overview
Description
picture of our products
![J1WC~Q1DT]W9I3}Q~3~~ZFW.png](http://g01.s.alicdn.com/kf/HTB1mQGKKXXXXXX7XpXX760XFXXXC/220811364/HTB1mQGKKXXXXXX7XpXX760XFXXXC.png)
Product Description
W12NC - series hydraulic plate rolling machine for Heating Boiler Furnace , this machine is a mutifunctional rolling machine, the machine can be used as a general four roller plate rolling machine, mounted molds on the working roller, also can roll corrugated cylindrical workpiece, can pre-rolling and rolling in once load, do not need to U-turn the plate. it is the ideal choice model for boiler making , heat exchanger, petroleum, chemical industry, water and electricity, metal structure, etc rolling round, arc and conical workpiece and so on.
plate rolling machine for corrugated furnace
Technical parameter of hydraulic plate rolling machine for corrugated furnace
Model
| W12NC-10×2200 | |
1 | Maximum Rolling thickness (mm) | 25mm/corrugated plate10mm |
2 | Maximum pre- rolling thicknessf (mm) | 20mm/corrugated plate10mm |
3 | Maximum Rolling width (mm) | 2200mm |
4 | Yield limit of plate | 245MPa |
5 | Minimum rolling diameter (mm) | 600mm |
6 | Diameter of upper roller (mm) | 360mm(without dies)/ 496(with dies) |
7 | Diameter of lower roller (mm) | 360mm(without dies) /496(with dies) |
8 | Diameter of side roller (mm) | 270mm |
9 | Rolling speed (m/min) | ~4m/min |
10 | Lifting speed of lower roller (mm) | ~130 |
11 | Lifting speed of side roller (mm) | ~310 |
12 | Pressure of hydraulic system (mm) | ~18MPa |
13 | Power of motor (mm) | Y200L-4-B35 30KW 1470rpm |
14 | Dimension(mm) | 3630*2060*2030 |
15 | Weight ( Kg ) | ~20800Kg |
How to order
How to order our Product
4.1.Customers offer the bending materials’ type and parameters of machine.
4.2.Our designers will make accurate calculation and professional design according to your information.
4.3.After your confimation, we will do quote of our machine.
4.4.Note: you can have your own idea about machines’ color, so different colors are avaliable.
