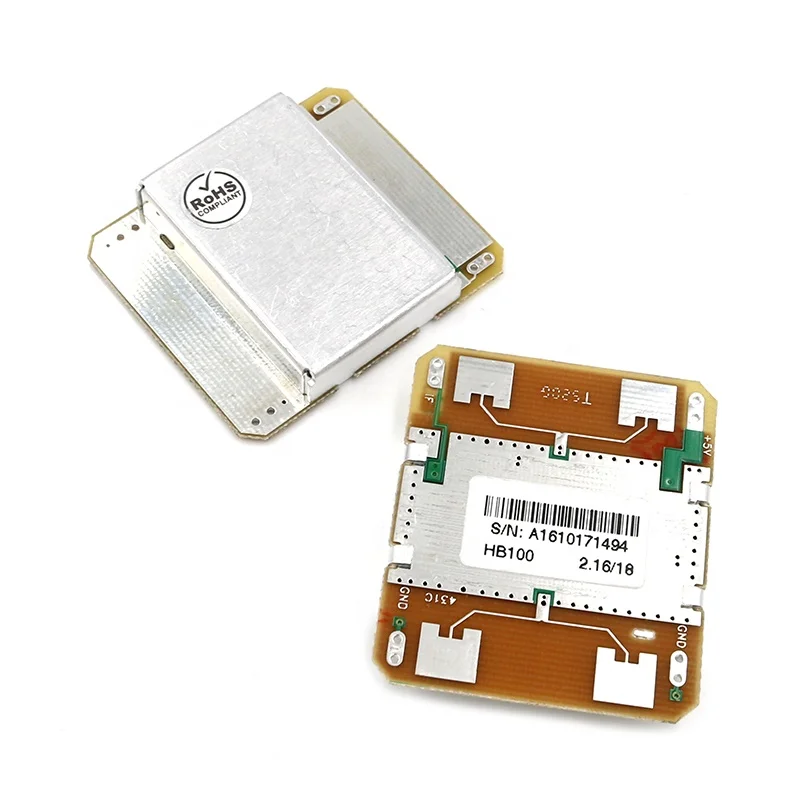

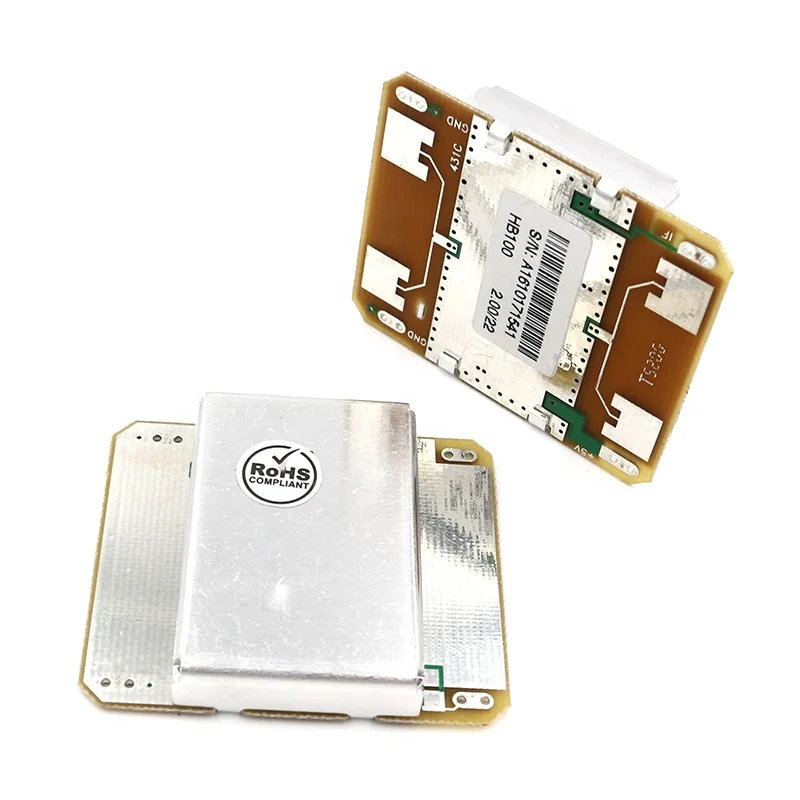

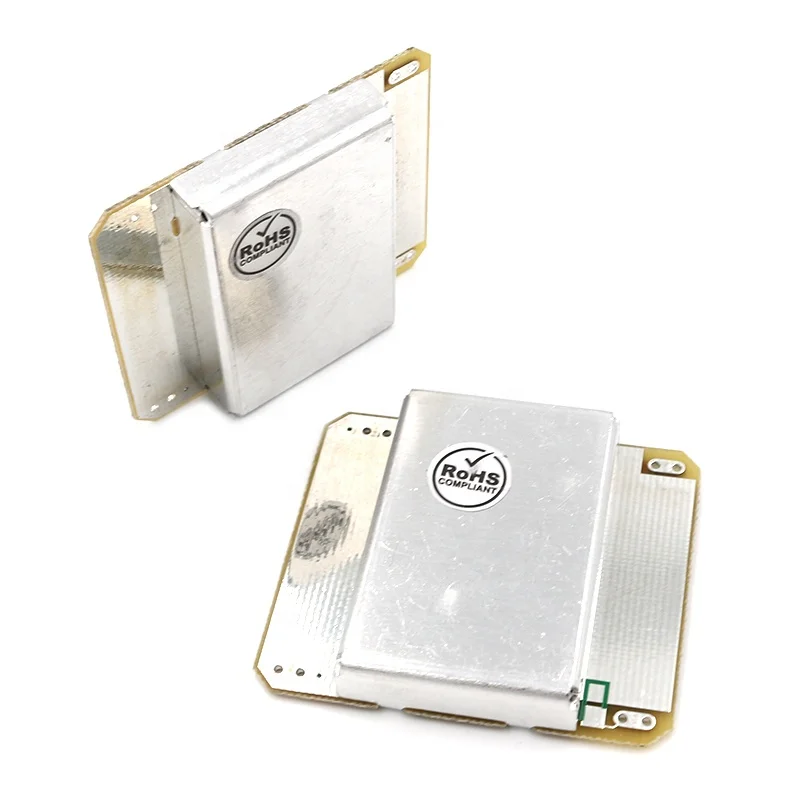

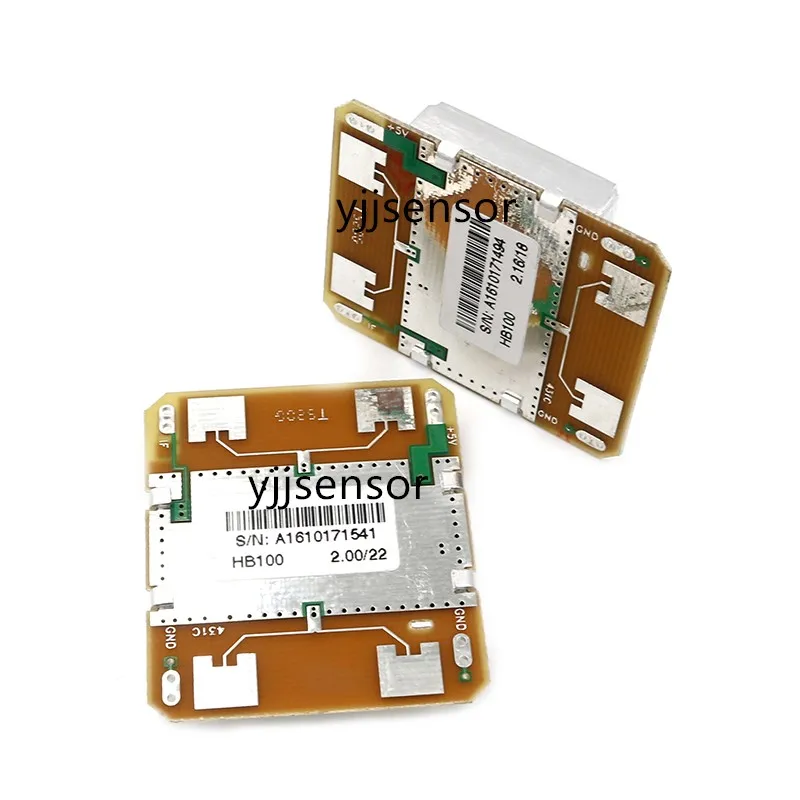

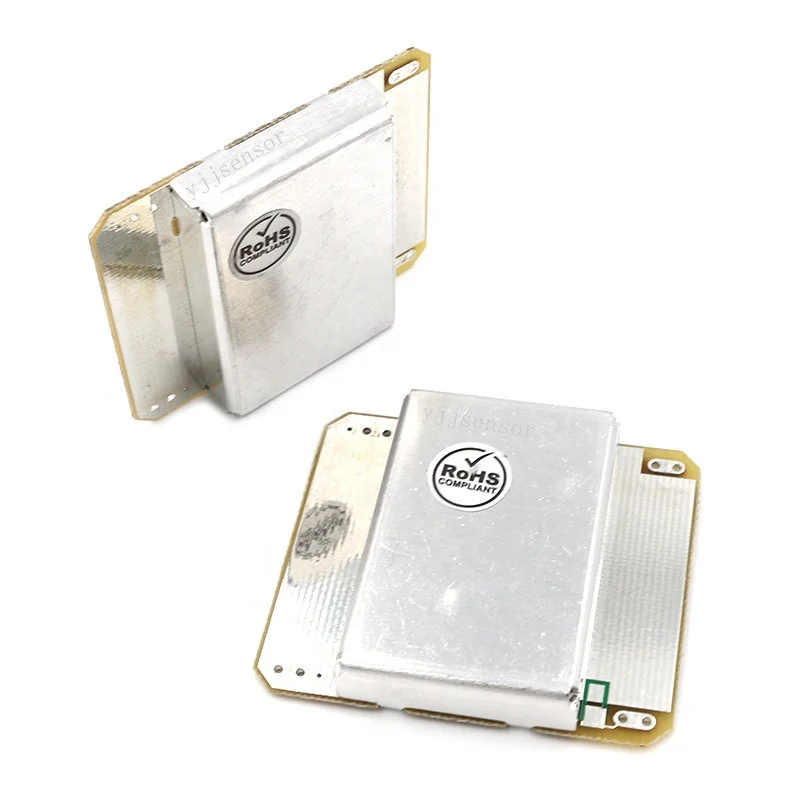

YJJ HB100 Microwave Radar Sensor module Detector Probe sensor module 10.525GHz Doppler mode

Product Overview

Description

sensitive sources	185 to 260
Weight Approx.	1.5g
frequency setting	10.525GHZ
Operating Temperature	-15 ~ 5℃



Name:Microwave Sensors Modules HB100
pattern:HB100
Brand:Others
Categories:Microwave Sensors Modules

Information: Microwave Sensors Modules HB100

Description:
HB100 Miniature Microwave Motion Sensor is a X-Band Bi-Static Doppler transceiver module. Its built-in Dielectric Resonator Oscillator (DRO) and a pair of Microstrip patch antenna array, make it ideal for OEM usage in motion detection equipment. This module is ideally suitable for false alarms reduction in intruder detectors when work together with Passive Infrared (PIR) sensor. It can also be used for auto-door opening and vehicle speed measurement.

Specifications:
1) frequency setting: 10.525GHZ (typ)
2) setting time: 3(typ) μSec
3) supply voltage: 5.0VDC
4) current consumption: 30-40ma
5) Operating Temperature: -15 ~ 5℃

Features:
1) Low current consumption
2) CW or Pulse operation
3) Flat profile
4) Long detection range

Applications:
Microwave-PIR motion detector
Speed measurement
Lighting control
