RICHON BS 0 BS 1 Semi Universal Dividing Head
RICHON BS-0 BS-1 Semi-Universal Dividing Head

RICHON BS 0 BS 1 Semi Universal Dividing Head

Share on (1600907877882):


Price:$300.00

Quantity:


Product Overview

Description









BS-0 BS-1
Semi-Universal dividing head is a simple index center and can be used for direct and indirect dividing. Complete the gear, face, flute processing and no need accessories, but the whole construction is the same as universal type. The 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. Attaches 3 dividing plate along with the dividing head indirect dividing in any division indexing 2-50, 51-380.





Number
of holes
A-Plate
15,16,17,18,19,20
B-Plate
21,23,27,29,31,33
C-Plate
37,39,41,43,47,49

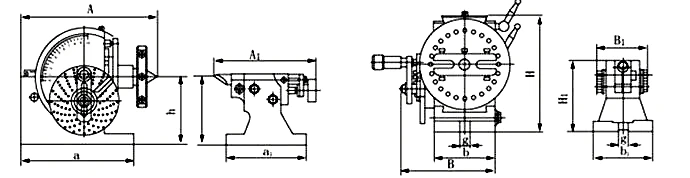

Model No.
A
B
H
h
a
b
g
Taper of center
Diameter of spindle hole
BS-0
193
131
173
100
166
90
16
MT2
18
7.59
5.15
6.81
3.93
6.53
3.54
0.63
0.71
BS-1
242
168
220
128
206
113
16
MT3
20
9.52
6.61
8.66
5.04
8.11
4.45
0.63
0.79


Model No.
A1
B1
H1
h
a1
b1
g1
BS-0
175
87
102
100
130
92
16
6.89
3.42
4.02
3.93
5.12
3.62
0.63
BS-1
183
87
137
128
158
110
16
7.20
3.42
5.39
5.04
6.22
4.33
0.63
