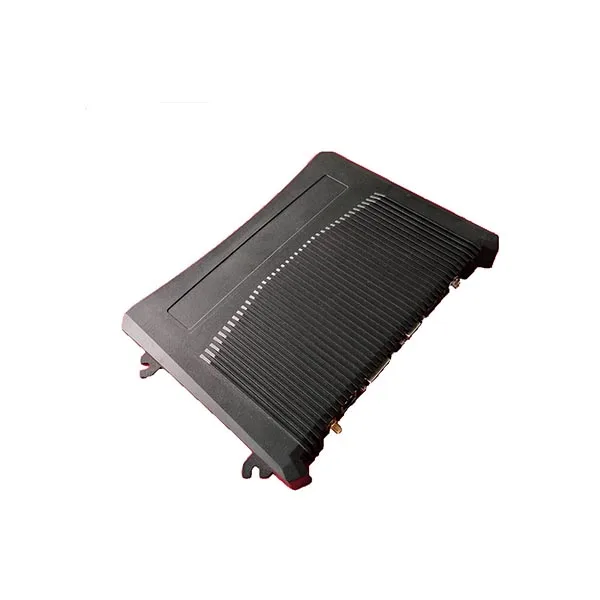

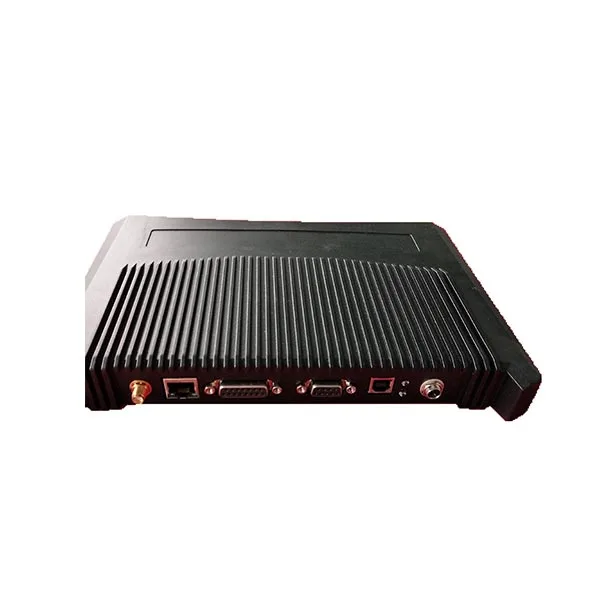

UHF Long Range RFID Fixed Reader With Four Antenna Ports Reader For Inventory Management
UHF Long Range RFID Fixed Reader With Four Antenna Ports Reader For Inventory Management
UHF Long Range RFID Fixed Reader With Four Antenna Ports Reader For Inventory Management
UHF Long Range RFID Fixed Reader With Four Antenna Ports Reader For Inventory Management
UHF Long Range RFID Fixed Reader With Four Antenna Ports Reader For Inventory Management
UHF Long Range RFID Fixed Reader With Four Antenna Ports Reader For Inventory Management
UHF Long Range RFID Fixed Reader With Four Antenna Ports Reader For Inventory Management

UHF Long Range RFID Fixed Reader With Four Antenna Ports Reader For Inventory Management

Share on (1600907917446):


Price:$315.00 - $370.00

Quantity:


Product Overview

Description



Specification


item
value
Place of Origin
China
Brand Name
HECERE
Frequency
865-868MHz/902-928MHz
Protocol
ISO-18000-6C
Size
270x180x27mm
Weight
1.3kg
Power supply
8-12V
Humidity
5% to 95%, Non-condensing
Receiver Sensitivity
Max -82 dBm
Software
Supply API SDK and VC and VB, Java
Communication Rate
Serial rate 9600~115200bps,RJ45 is 10Mbps
Communication interface
TCP/IP,RS232,RS485,Wiegand26/34


Product Description


General Descrption
HC-4C6403 is a high performance UHF RFID fixed reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.




Feature


* Self-intellectual property;
* Based on Impinj R2000 high performance RF engine;
* Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
* 860~868MHz/902~928MHz frequency band(frequency customization optional); * FHSS or Fix Frequency transmission;
* RF output power up to 30dbm(adjustable);
* Support 4 TNC antenna port with antenna auto-tuning and failure-detection; * Support answer and real-time-inventory work mode;
* Support RSSI;
* Maximum inventory speed over 500pcs;
* Tag buffer: 600pcs@max. 128bitsEPC or
* 180pcs@max.496bitsEPC； l Low power dissipation with single +9
* DC power supply;
* Support USB(Slave), RS232, RJ45(TCPIP) with POE optional; * High reliability design.

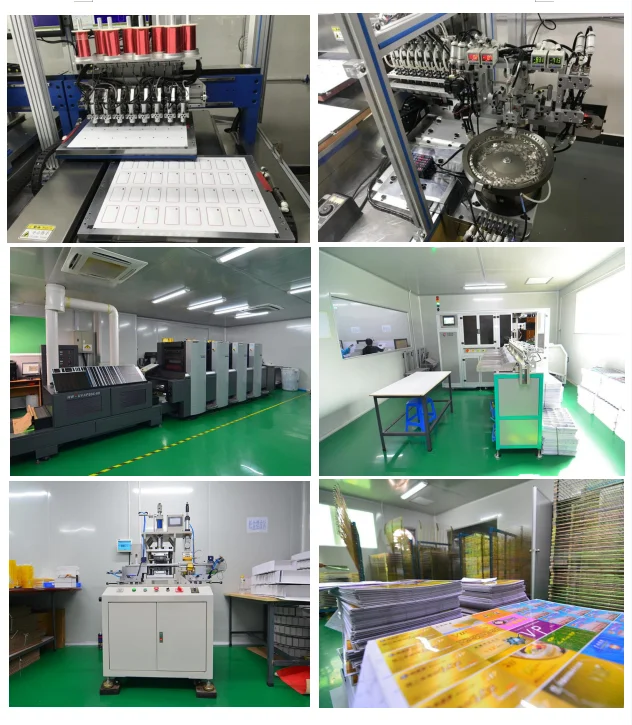

Company Profile




Quanzhou Hecere Electronic Co.,Ltd is a market leader for RFID/NFC products supplying in China since 2008. We have 3 factories and 300 workers, mainly supplying RFID device.We worked with more than 3000 Individuals and companies around the world. The most famous cooperated companies are DISNEY, NIKE and ZARA. We hope you can be our next VIP customers.Why so many businessmen trust us? First,we will refund full money if our products are not as described. Second, we will not delay the deliver time. But if it happens, we will give compensation.Third, we can quickly response for you at any time.We trust with us your money in safe your business in safe.Work with Hecere, you will trust we are not just a products seller, but a professional services provider.








Certificate




Shipping




FAQ


1. who are we?
We are based in Fujian, China, start from 2014,sell to Western Europe(35.00%),North America(25.00%),Southeast Asia(15.00%),Africa(10.00%),Mid East(10.00%),South America(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
RFID Tag, Smart Card

4. why should you buy from us not from other suppliers?
We have 2 factories, one factory produces smart cards and one factory produces RFID tags.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
