Product Overview
Description
Product Introduction
Product characteristic:
1. 1U height, adaptable to 19" standard cabinet installation, metal construction.

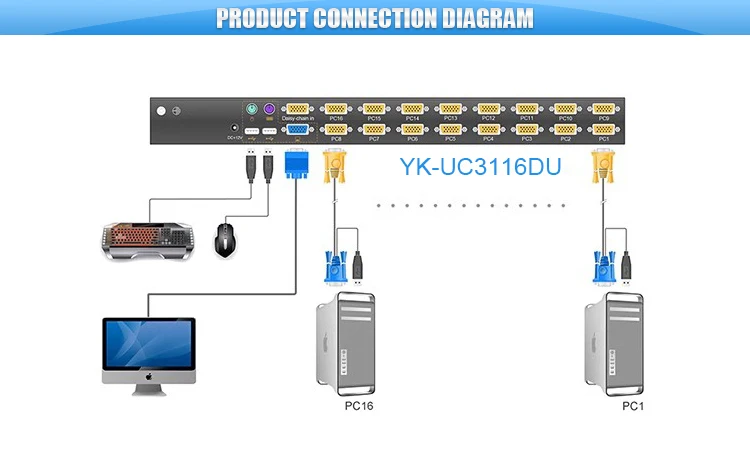

2. 16 KVM ports with VGA interface, connect to server via KVM signal cable (local support up to 5 meters).

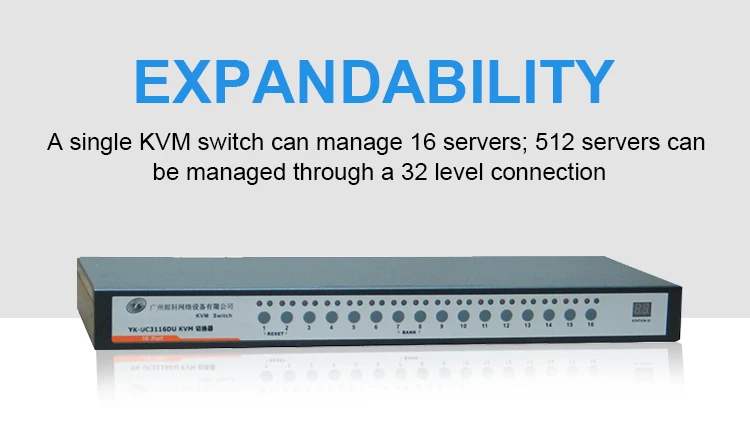

3. YK-UC3116DU can manage 16 servers in a single unit, and connect up to 512 servers through 32 levels.
4. It supports mainstream operating systems such as Windows, Linux, and Sun, and is compatible with mainstream servers such as Lenovo, Dawning, Wave, Huawei, Baldor, HP, IBM, Dell, and Cisco.

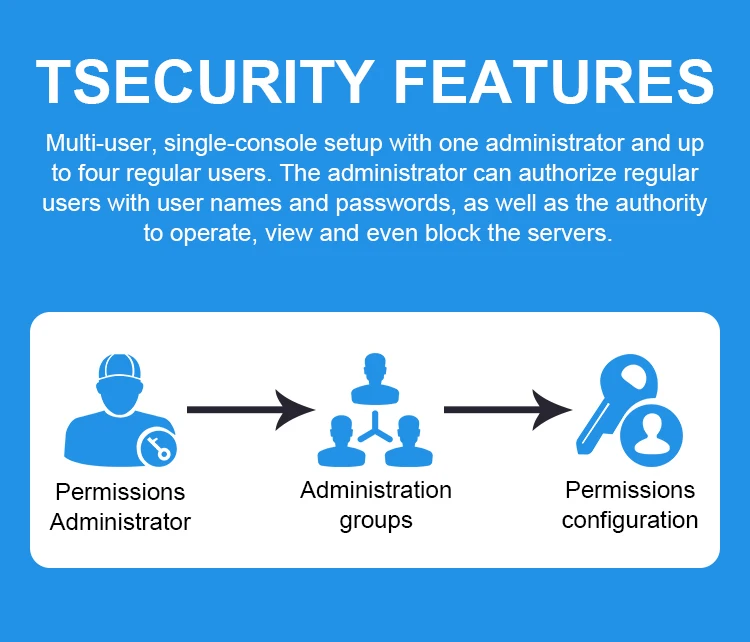

5. Multi-user single console setup, providing 1 administrator user and up to 4 ordinary users, the administrator can separately authorize the ordinary user's user name and password, as well as the operation, viewing and even blocking privileges on the server.

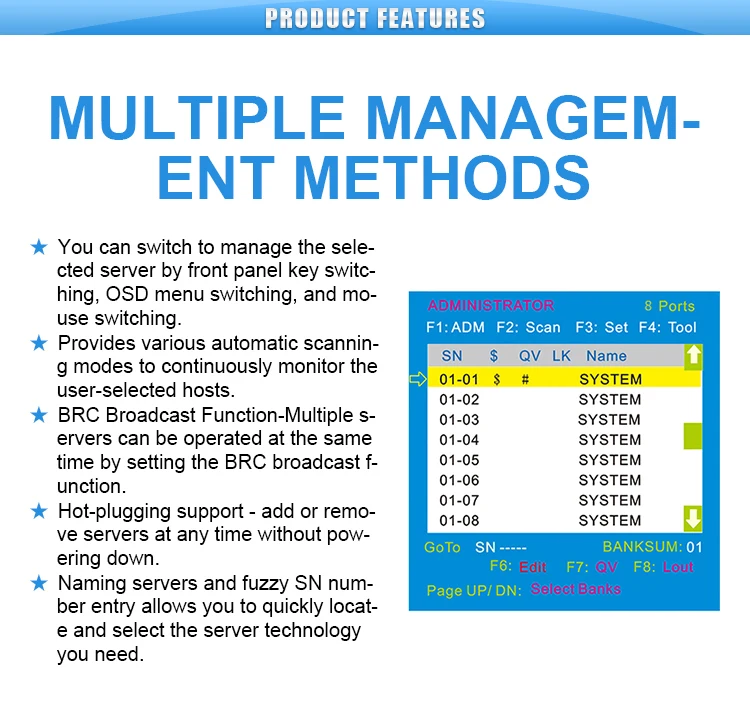

6. You can switch the selected hosts through the front panel key switching and OSD switching, and support the mouse to switch the management mode.
7. Provide various automatic scanning modes to continuously monitor user-selected hosts.
8. BRC broadcast function - By setting the BRC broadcast function, multiple servers can be operated at the same time.
9. Hot-plugging support - add or remove servers at any time without turning off the power.
10. Naming servers and fuzzy SN number input can quickly locate and select the server you need.
5. Multi-user single console setup, providing 1 administrator user and up to 4 ordinary users, the administrator can separately authorize the ordinary user's user name and password, as well as the operation, viewing and even blocking privileges on the server.
6. You can switch the selected hosts through the front panel key switching and OSD switching, and support the mouse to switch the management mode.
7. Provide various automatic scanning modes to continuously monitor user-selected hosts.
8. BRC broadcast function - By setting the BRC broadcast function, multiple servers can be operated at the same time.
9. Hot-plugging support - add or remove servers at any time without turning off the power.
10. Naming servers and fuzzy SN number input can quickly locate and select the server you need.
Product Specifications
Function | YK-UC3116DU | |||||
Number of host connections | 16 | |||||
Port Selection | Button; OSD Menu | |||||

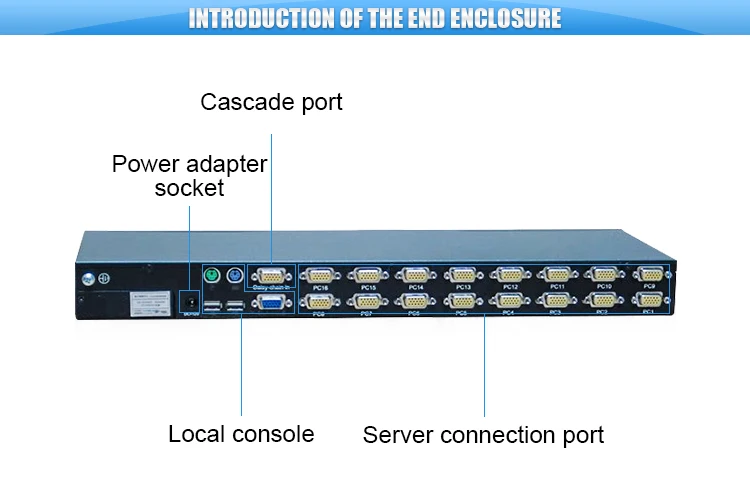

Connection Port | Console | Keyboard | 1 x USB TYPE A | |||
Mouse | 1 x USB TYPE A | |||||
Monitor | 1×HDB-15 Female(Blue) | |||||

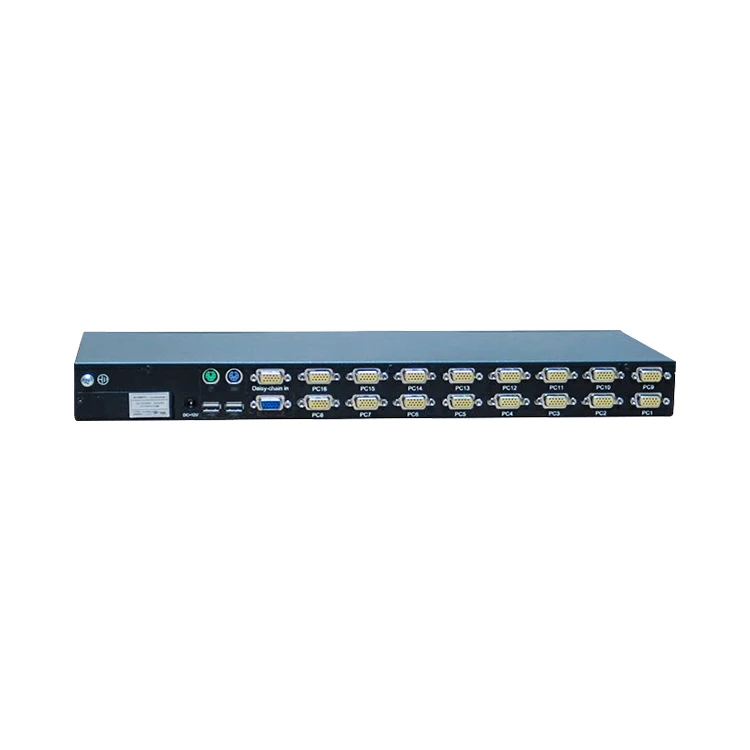

Server Connection | 16 × HDB-15 Female(Yellow) | |||||
Cascade port | 1 × HDB-15 Female(Yellow) | |||||
Switch | Port Selection | 16 × Pushbutton | ||||
Indicator light | Online | 16 (Orange) | ||||
Selected | 16 (Green) | |||||
Cascade/port display | 2 × 7- Segment (Orange) | |||||
Video Signal | 2048 × 1536; DDC2B | |||||
I/R Value | DC 12V ; 3A | |||||
Power Consumption | 6W | |||||
Environmental Requirements | Operating Temperature | 0-50℃ | ||||
Storage Temperature | -20-60℃ | |||||
Humidity | 0-80%RH,Non-condensing | |||||
Physical Characteristics | Material | Metallic | ||||
Weight | 2.1kg | |||||

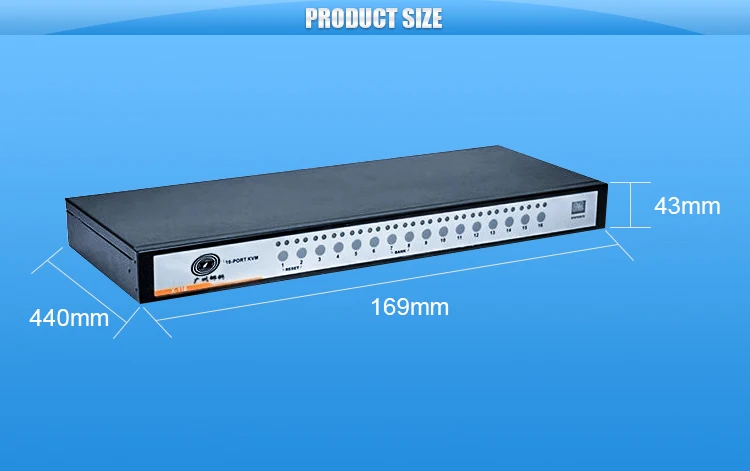

Dimension | 440mm×169mm×43mm | |||||
